Types of Bonds

Types of Bonds. Unit 4 Topic 2. Ionic Bonding. An Ionic bond forms when two atoms exchange electrons. Ions. The atom which loses electrons , forms a positive ion , (cation) and is a metal The atom which gains electrons , forms a negative ion (anion) and is a nonmetal.

nakia
Télécharger la présentation

Types of Bonds

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Types of Bonds Unit 4 Topic 2

  2. Ionic Bonding • An Ionic bond forms when two atoms exchange electrons

  3. Ions • The atom which loses electrons, forms a positive ion, (cation) and is a metal • The atom which gains electrons, forms a negative ion (anion) and is a nonmetal.

  4. Metal + Nonmetal • Ionic bonds form between a metal atom and a nonmetal atom. • The ions in the crystalline solid are held together by strong attractions between the oppositely charged ions that make up the compound.

  5. Metal + Nonmetal • The formulas for ionic compounds are determined by balancing out the charges on the ions. • The ionic compound must be balanced so that the net charge is zero.

  6. Naming Ionic Compounds • To name ionic compounds that contain only two types of elements, the element name of the positive ion is followed by the element name of the negative ion changing the ending of the second element to “ide” • Example: CaCl2 = Calcium Chloride

  7. Covalent Bonding • A Covalent bond forms when two atoms share electrons • Sharing is Caring (C for covalent)

  8. Sharing • Two atoms will share their valence electrons. • They share because neither element has enough pull to take an electron away from the other. • Sharing involves an overlapping of the outermost energy level between the two atoms.

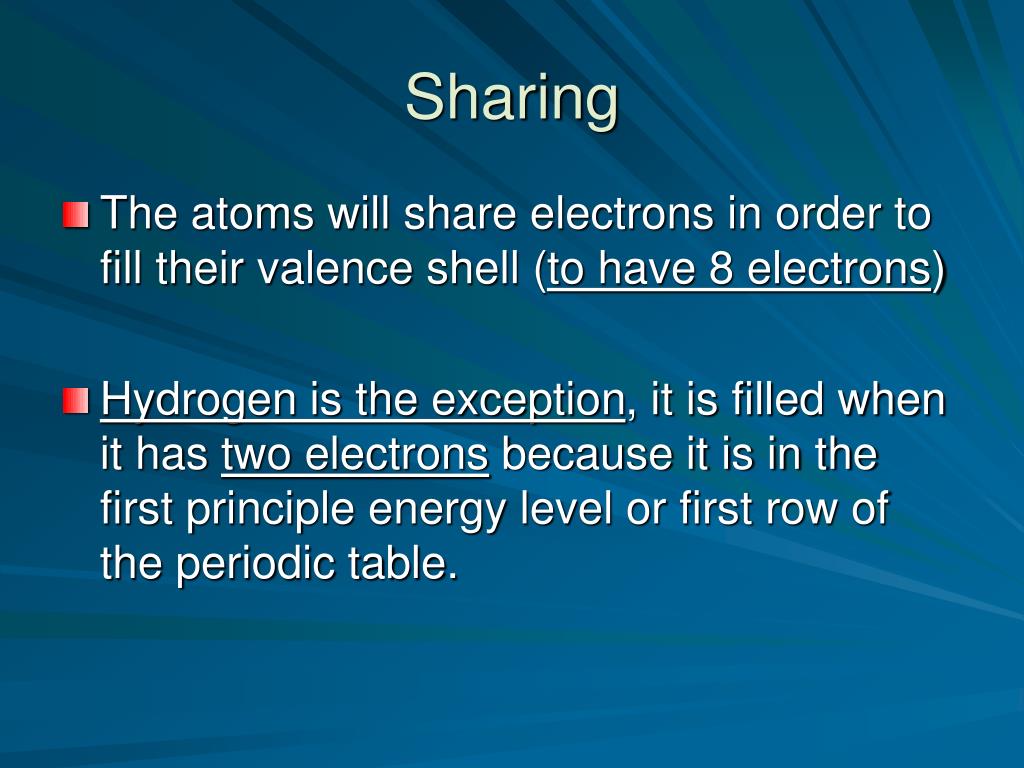

  9. Sharing • The atoms will share electrons in order to fill their valence shell (to have 8 electrons) • Hydrogen is the exception, it is filled when it has two electrons because it is in the first principle energy level or first row of the periodic table.

  10. Nonmetals • Covalent compounds form between two nonmetal elements • (nonmetal + nonmetal)

  11. Formulas • Formulas for covalent compounds can be predicted using electron dot diagrams (Lewis Dot Diagrams). • Nonmetal compounds will share valence electrons until they obtain eight total electrons, the octect rule (hydrogen being the exception)

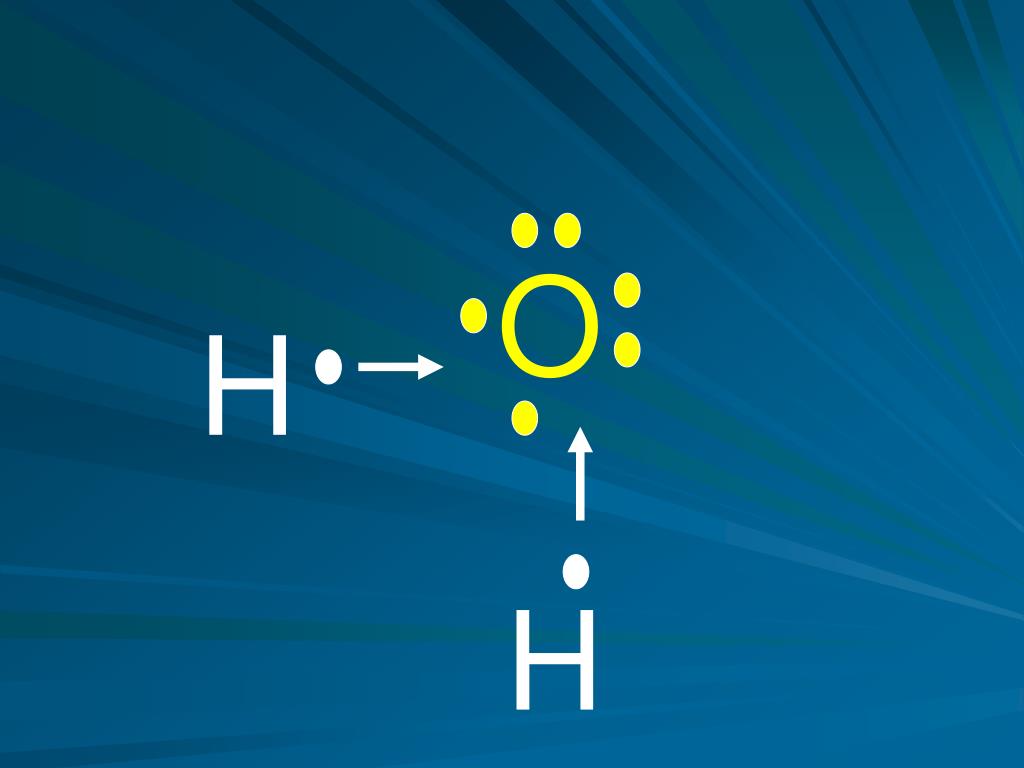

  12. O H H

  13. Identify • Categorize the following as Ionic or Covalent: • KF • Na2O • H2 • CO2 • N2 • AlBr3 • BF3 • Cl2 • BeS • NH3 • MgI2 • CH4

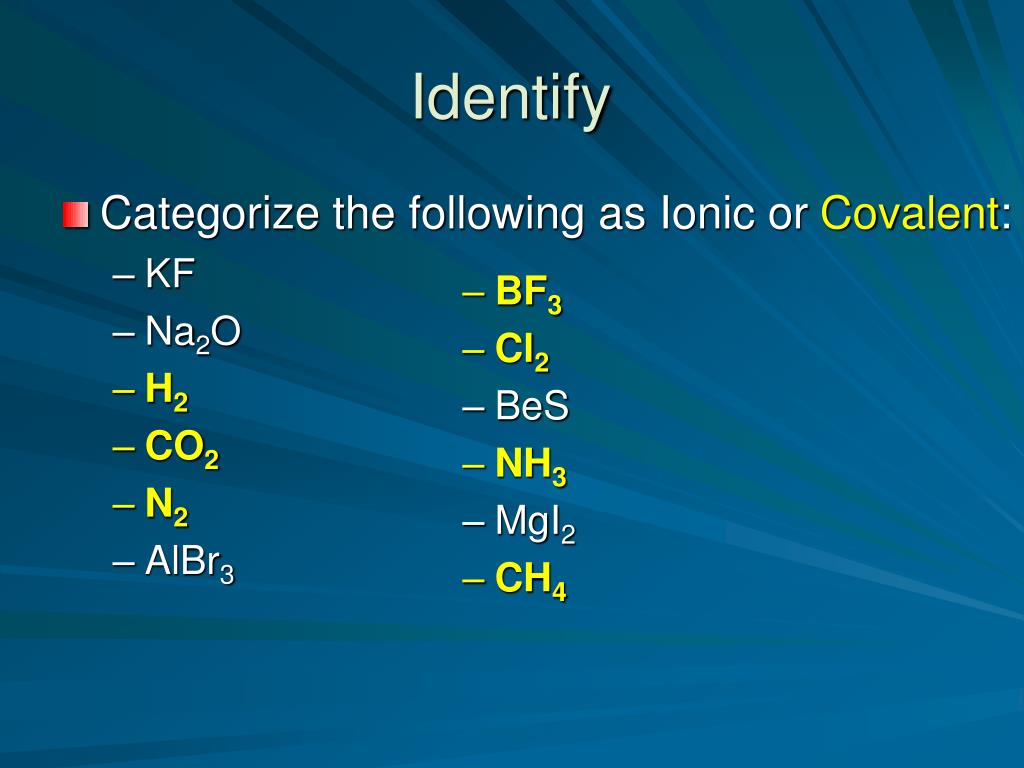

  14. Identify • Categorize the following as Ionic or Covalent: • KF • Na2O • H2 • CO2 • N2 • AlBr3 • BF3 • Cl2 • BeS • NH3 • MgI2 • CH4

  15. Identify • Draw Lewis Dot Diagrams of the Covalent Bonds: H2 CO2 N2 Cl2 CH4 BF3 NH3

  16. Identify • Determine the formula or the name for the following compounds: N2O3 PCl3 P2O5 Phosphorus pentabromide Dinitrogen tetraoxide Disulfur decafluoride
