  1. Replace your Flash Runner with an HTS Solution using Deep Serial MemoryReplace your Frame Scan with a Vector Based Test Go Faster and Test More!!

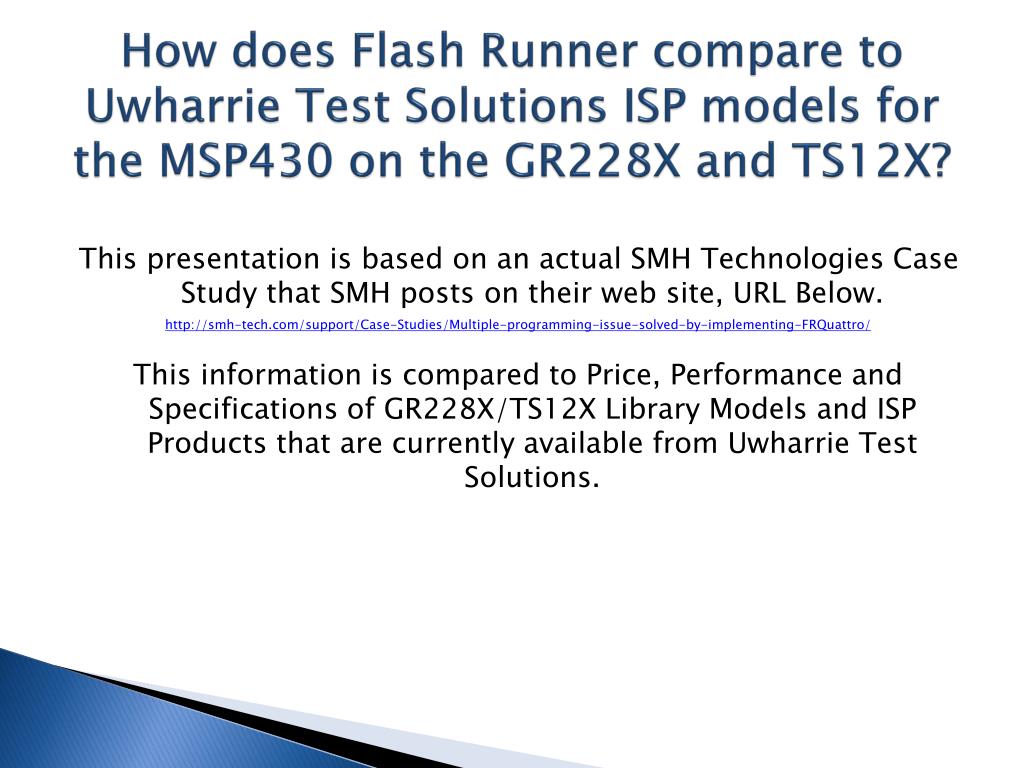

  2. How does Flash Runner compare to Uwharrie Test Solutions ISP models for the MSP430 on the GR228X and TS12X? This presentation is based on an actual SMH Technologies Case Study that SMH posts on their web site, URL Below. http://smh-tech.com/support/Case-Studies/Multiple-programming-issue-solved-by-implementing-FRQuattro/ This information is compared to Price, Performance and Specifications of GR228X/TS12X Library Models and ISP Products that are currently available from Uwharrie Test Solutions.

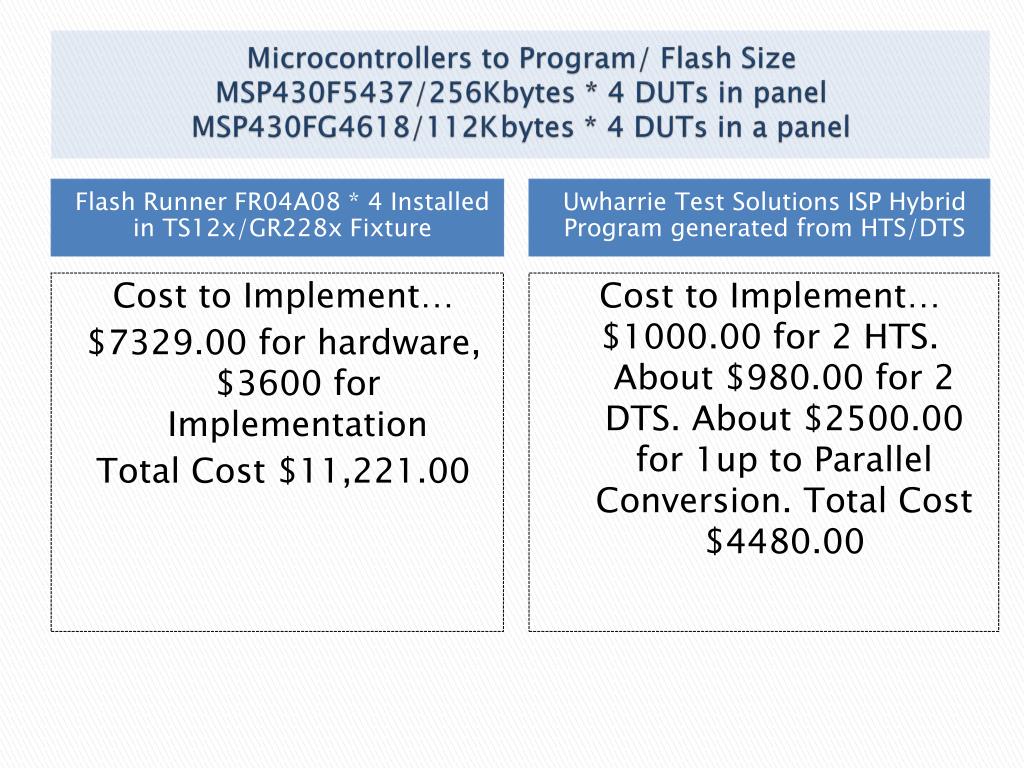

  3. Microcontrollers to Program/ Flash SizeMSP430F5437/256Kbytes * 4 DUTs in panelMSP430FG4618/112K bytes * 4 DUTs in a panel Cost to Implement… $7329.00 for hardware, $3600 for Implementation Total Cost $11,221.00 Cost to Implement… $1000.00 for 2 HTS. About $980.00 for 2 DTS. About $2500.00 for 1up to Parallel Conversion. Total Cost $4480.00 Flash Runner FR04A08 * 4 Installed in TS12x/GR228x Fixture Uwharrie Test Solutions ISP Hybrid Program generated from HTS/DTS

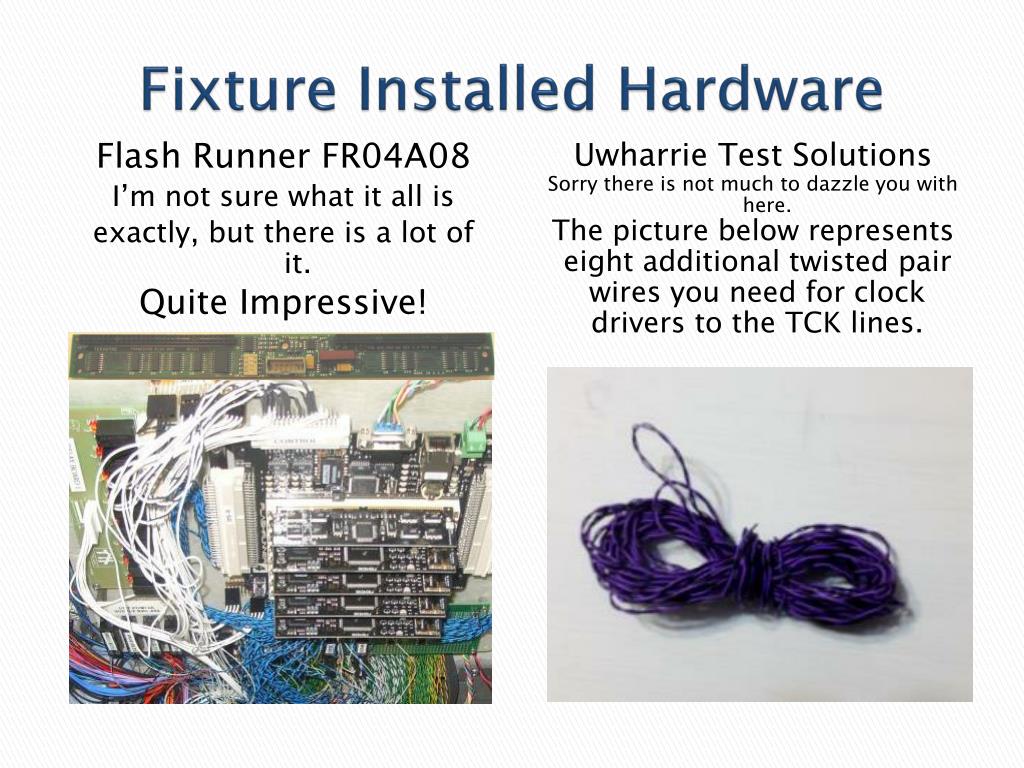

  4. Fixture Installed Hardware Flash Runner FR04A08 I’m not sure what it all is exactly, but there is a lot of it. Quite Impressive! Uwharrie Test Solutions Sorry there is not much to dazzle you with here. The picture below represents eight additional twisted pair wires you need for clock drivers to the TCK lines.

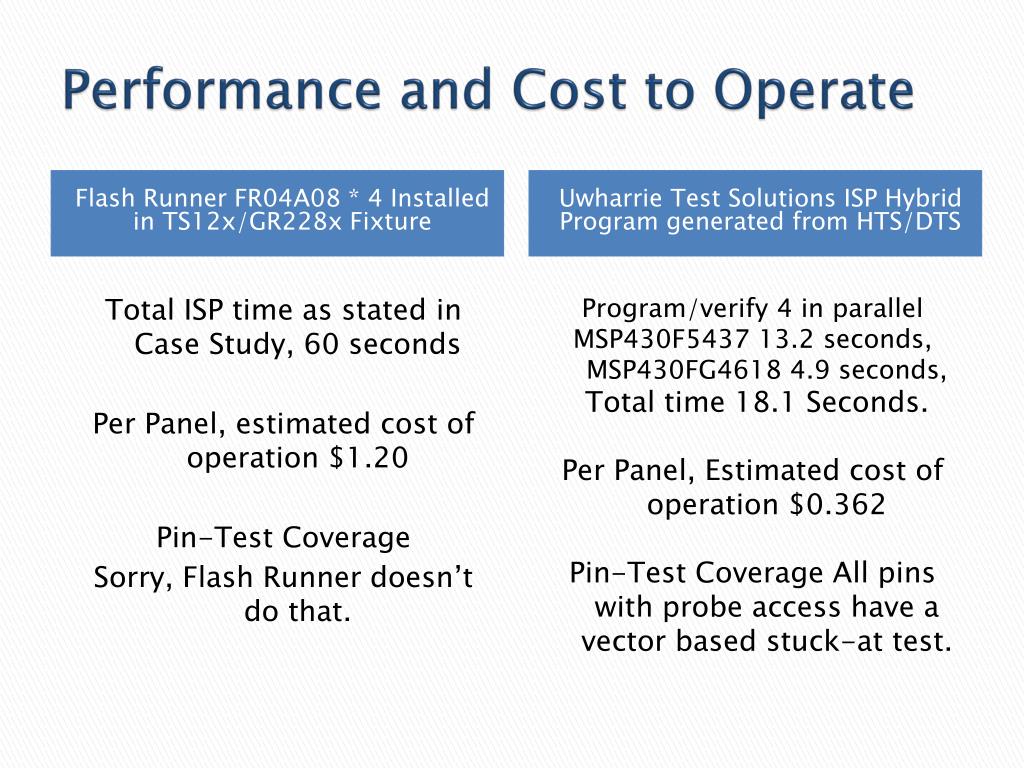

  5. Performance and Cost to Operate Total ISP time as stated in Case Study, 60 seconds Per Panel, estimated cost of operation $1.20 Pin-Test Coverage Sorry, Flash Runner doesn’t do that. Program/verify 4 in parallel MSP430F5437 13.2 seconds, MSP430FG4618 4.9 seconds, Total time 18.1 Seconds. Per Panel, Estimated cost of operation $0.362 Pin-Test Coverage All pins with probe access have a vector based stuck-at test. Flash Runner FR04A08 * 4 Installed in TS12x/GR228x Fixture Uwharrie Test Solutions ISP Hybrid Program generated from HTS/DTS

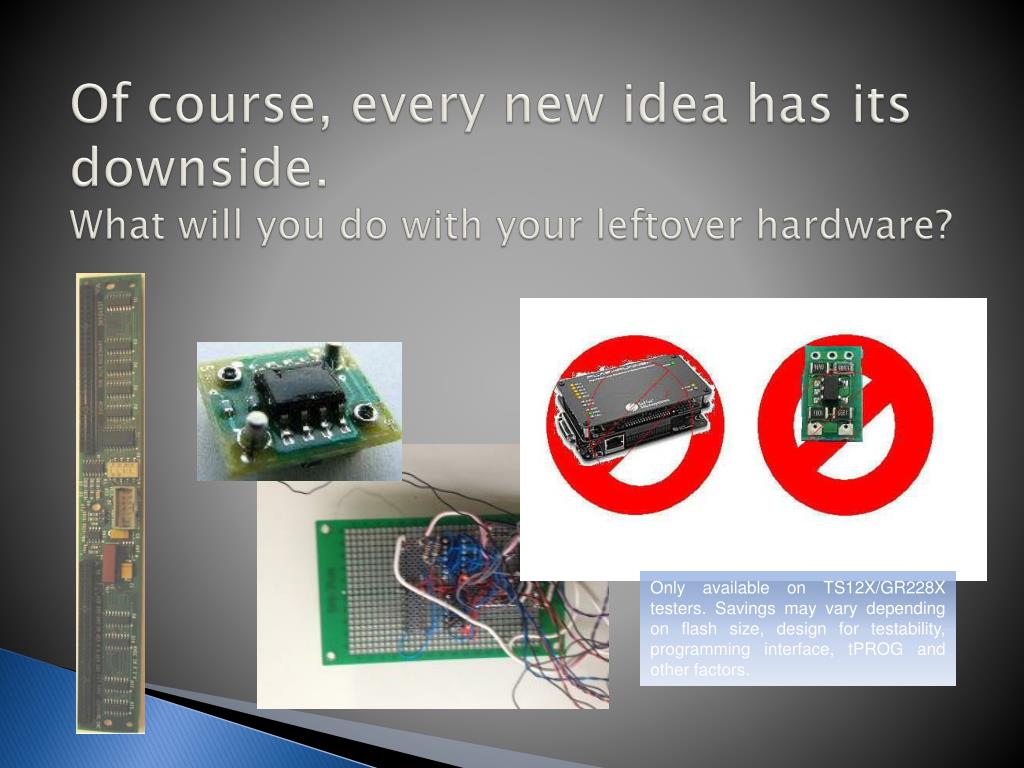

  6. Of course, every new idea has its downside.What will you do with your leftover hardware? Only available on TS12X/GR228X testers. Savings may vary depending on flash size, design for testability, programming interface, tPROG and other factors.

  7. For more information contact:Dudley HillerUwharrie Test Solutions LLC1527 White Smith Rd.Siler City, NC 27344(303) 818-3411info@uwharrietest.comFor HTS quote of your next device:http://www.uwharrietest.com/model_req_form.htm
