  1. Transformationsof Functions Viviana C. Castellón East Los Angeles College MEnTe Mathematics Enrichment through Technology

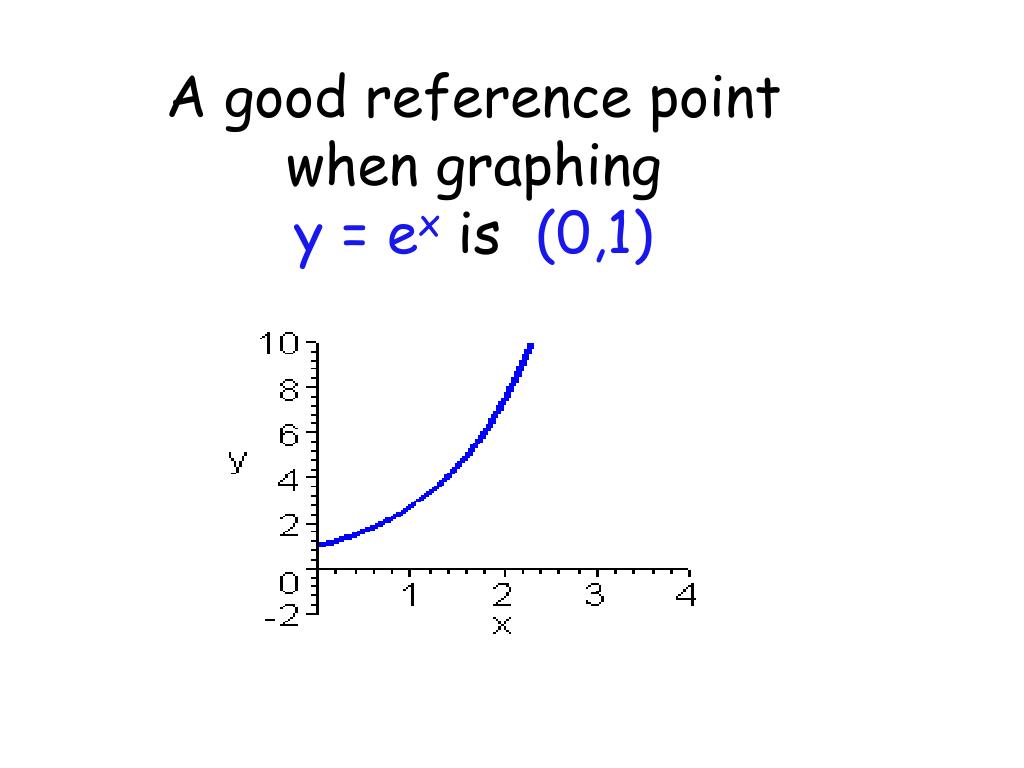

  2. A good reference point when graphing y = exis (0,1)

  3. Given the following function, If: a > 0, then shift the graph “a” units up, using the reference point (0,1) If: a < 0, then shift the graph “a” units down, using the reference point (0,1)

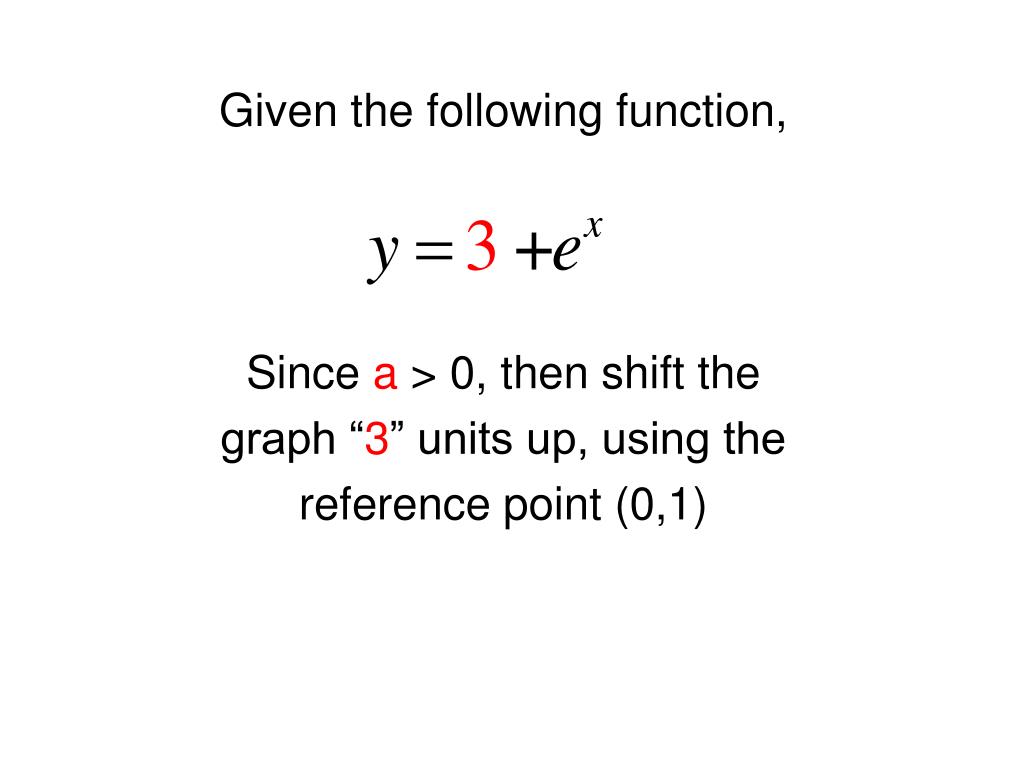

  4. Given the following function, Since a > 0, then shift the graph “3” units up, using the reference point (0,1)

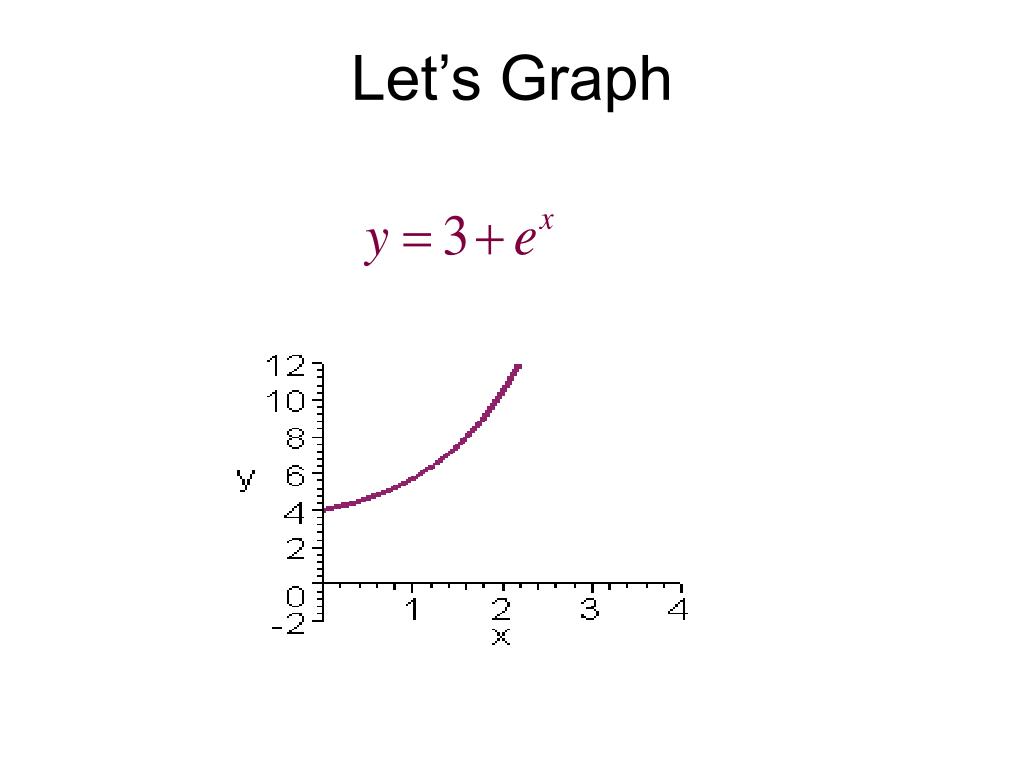

  5. Let’s Graph

  6. How will the graph look?

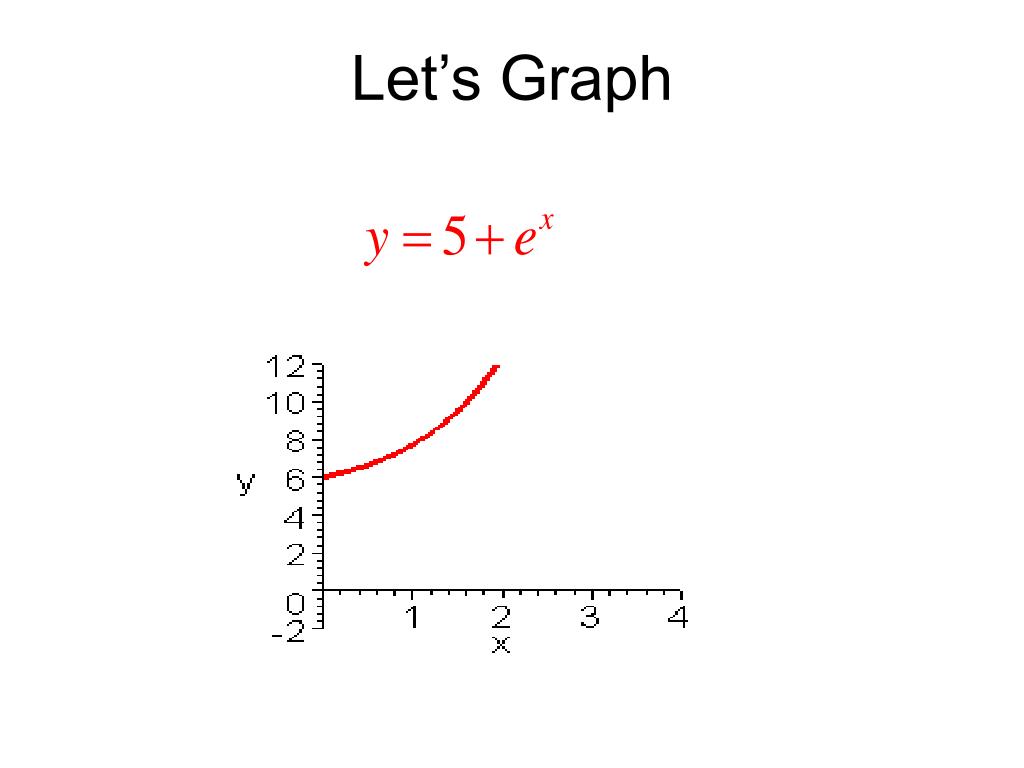

  7. Let’s Graph

  8. How will the graph look?

  9. Let’s Graph

  10. How will the graph look?

  11. Let’s Graph

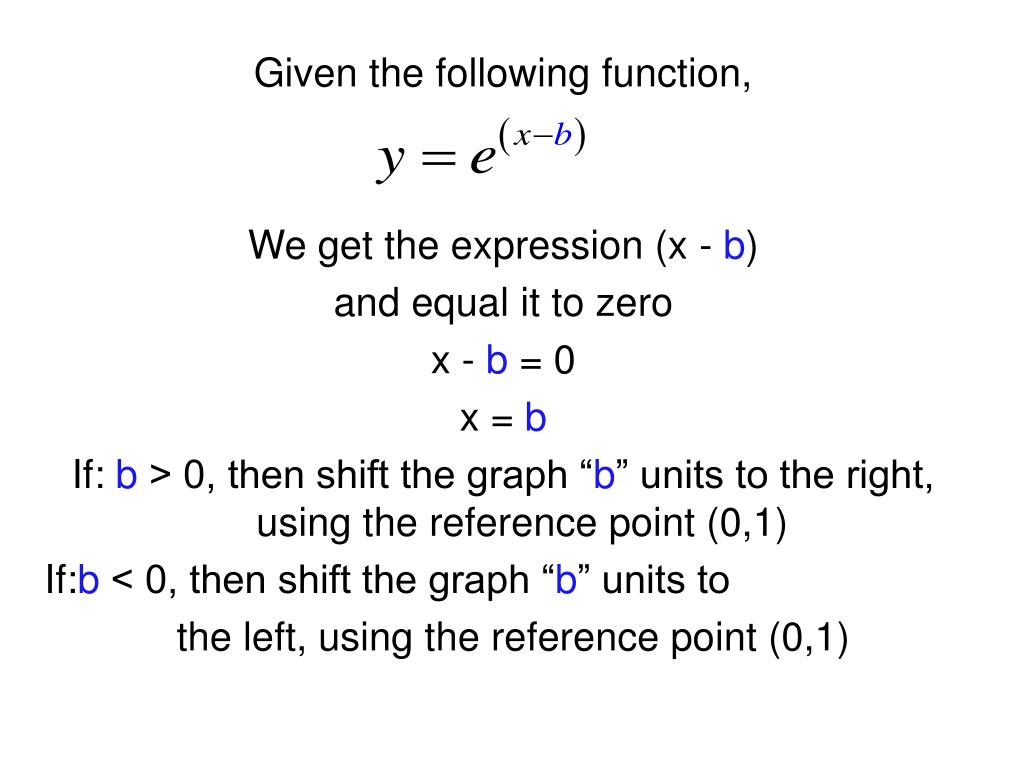

  12. Given the following function, We get the expression (x - b) and equal it to zero x - b = 0 x = b If: b> 0, then shift the graph “b” units to the right, using the reference point (0,1) If:b< 0, then shift the graph “b” units to the left, using the reference point (0,1)

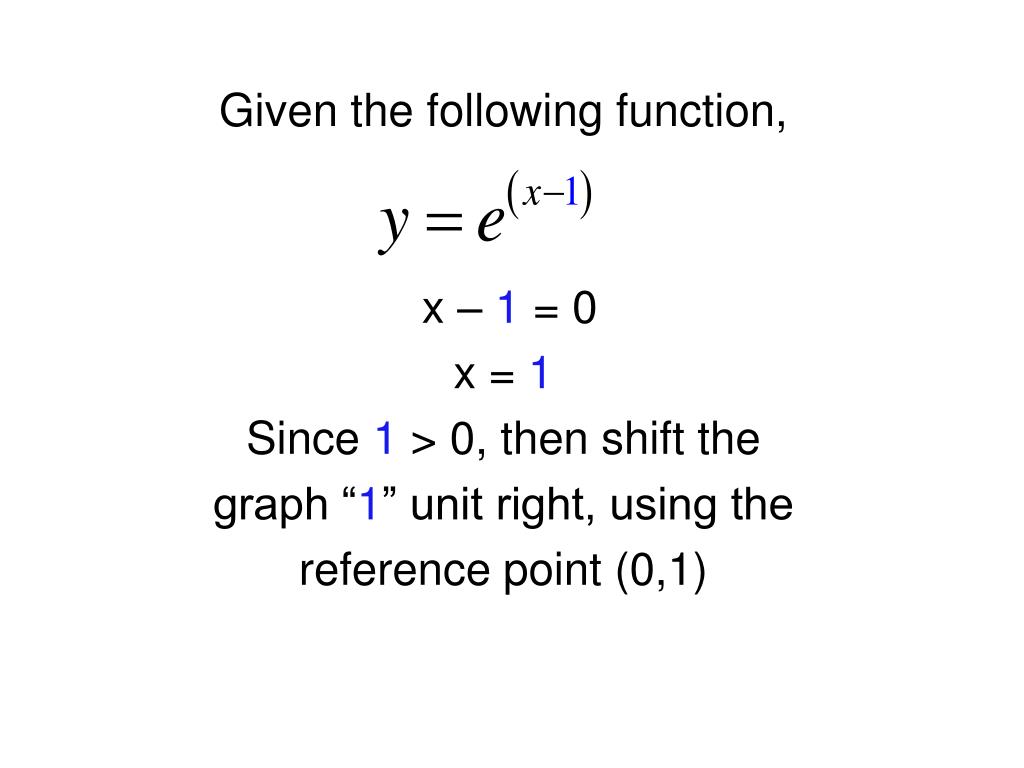

  13. Given the following function, x – 1 = 0 x = 1 Since 1> 0, then shift the graph “1” unit right, using the reference point (0,1)

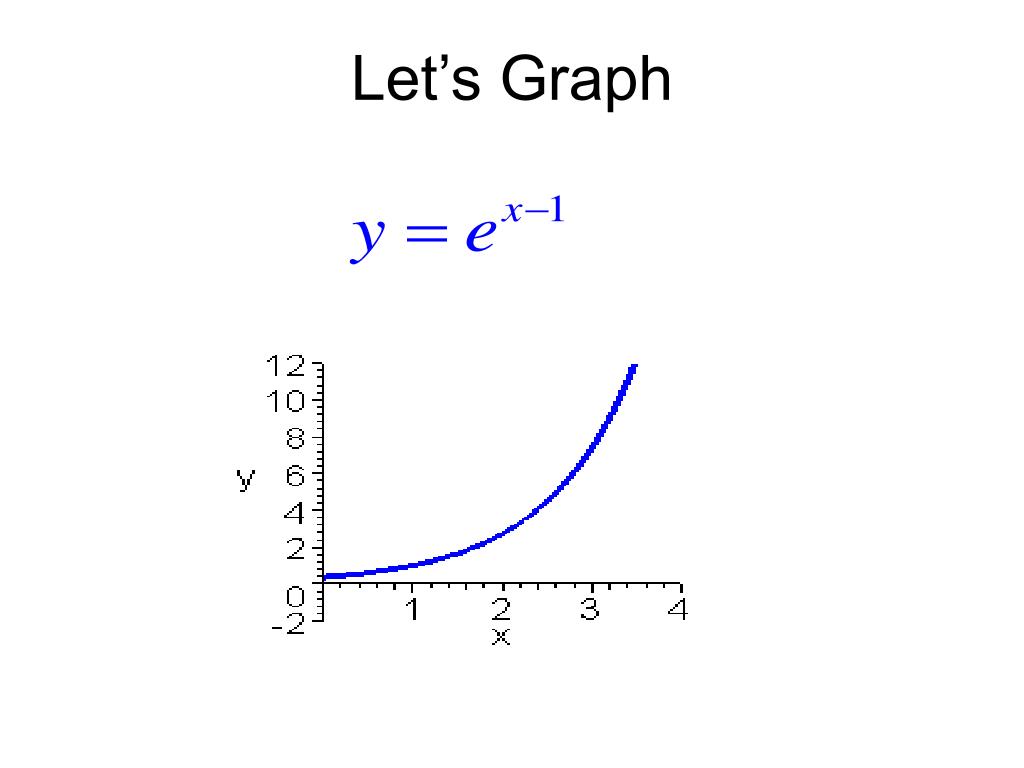

  14. Let’s Graph

  15. How will the graph look?

  16. Let’s Graph

  17. How will the graph look?

  18. Let’s Graph

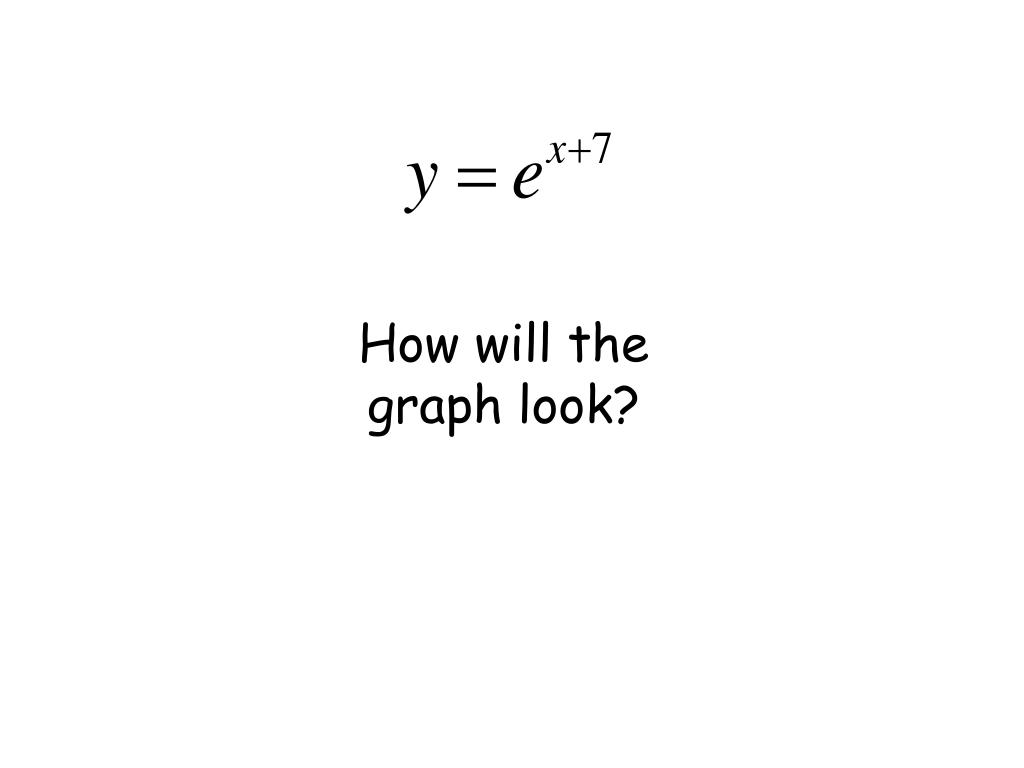

  19. How will the graph look?

  20. Let’s Graph

  21. Graphing Recall: Shift “3” units up since 3 > 0 then we use the expression x + 1, and equal it to zero x +1 = 0 x = -1 Since –1 < 0, then we shift “1” unit to the left

  22. Let’s Graph

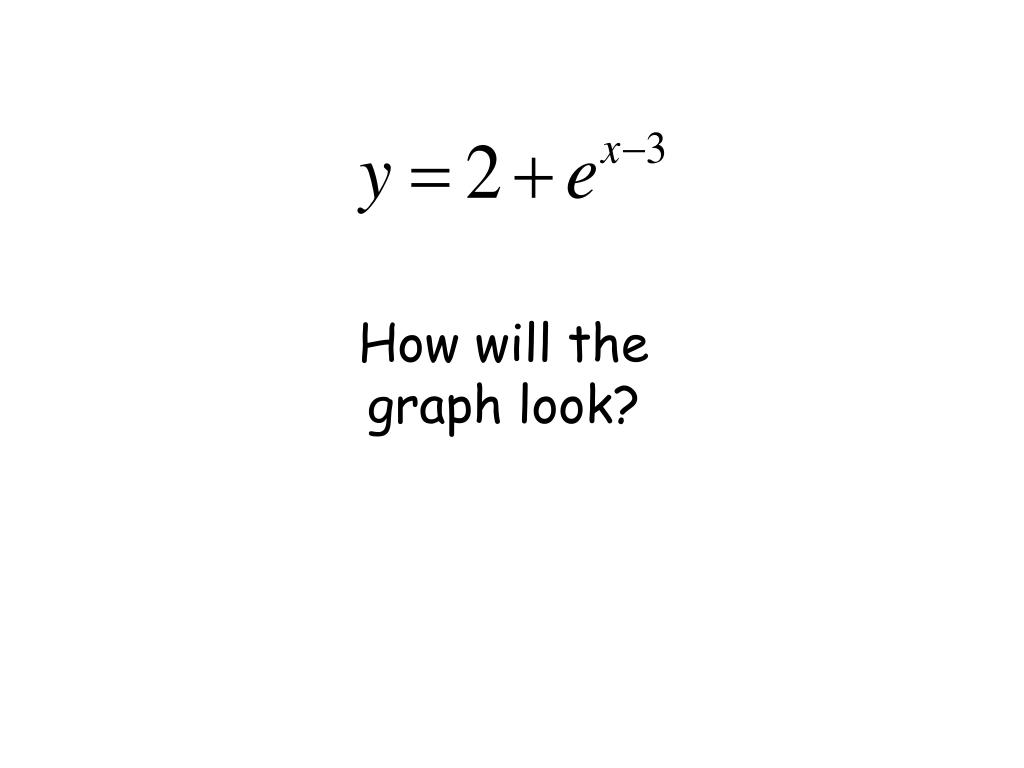

  23. How will the graph look?

  24. Let’s Graph

  25. How will the graph look?

  26. Let’s Graph

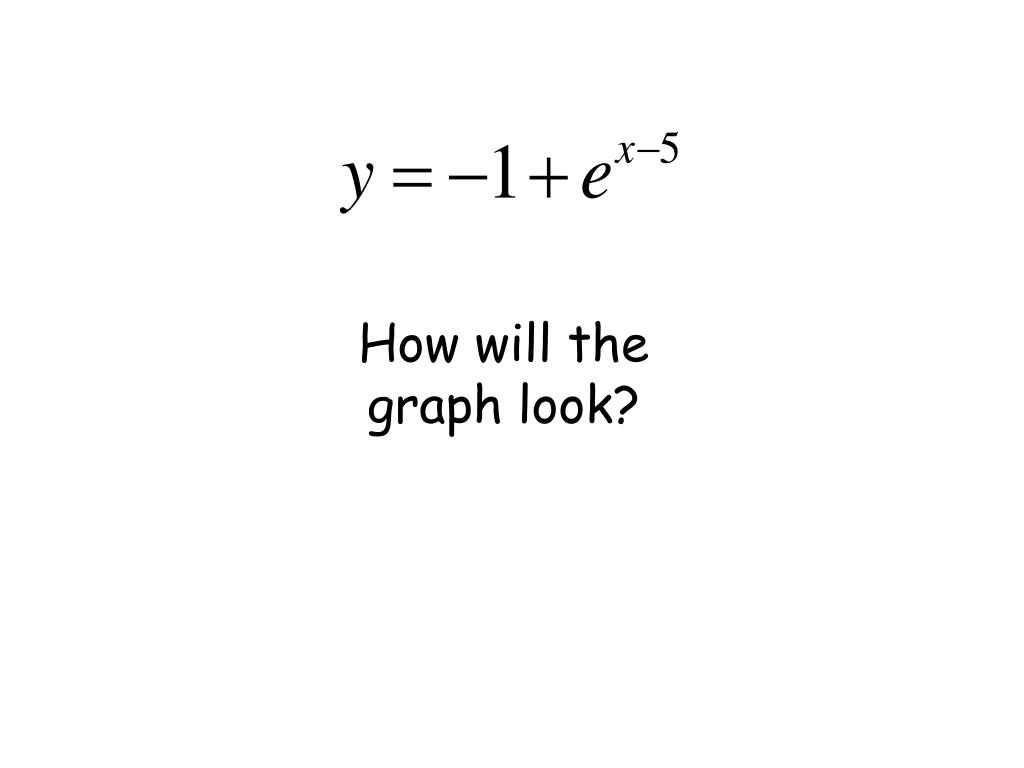

  27. How will the graph look?

  28. Let’s Graph

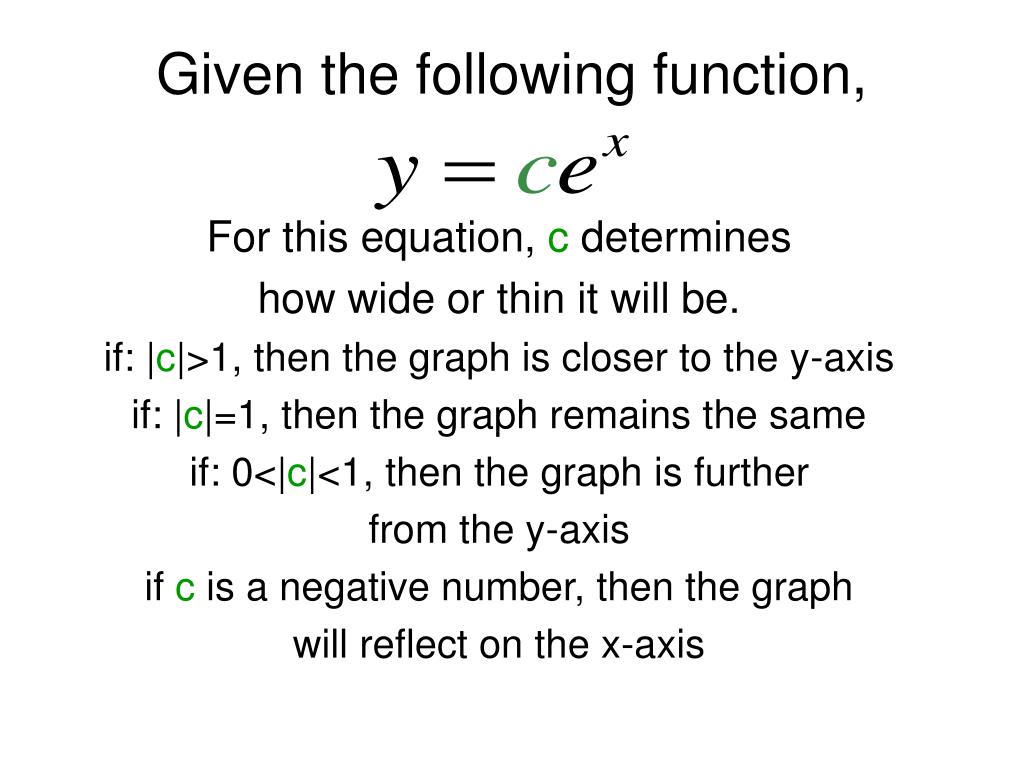

  29. Given the following function, For this equation, c determines how wide or thin it will be. if: |c|>1, then the graph is closer to the y-axis if: |c|=1, then the graph remains the same if: 0<|c|<1, then the graph is further from the y-axis if c is a negative number, then the graph will reflect on the x-axis

  30. Given the following function, Since |5| > 0, then the graph is closer to the y-axis

  31. Let’s Graph

  32. How will the graph look?

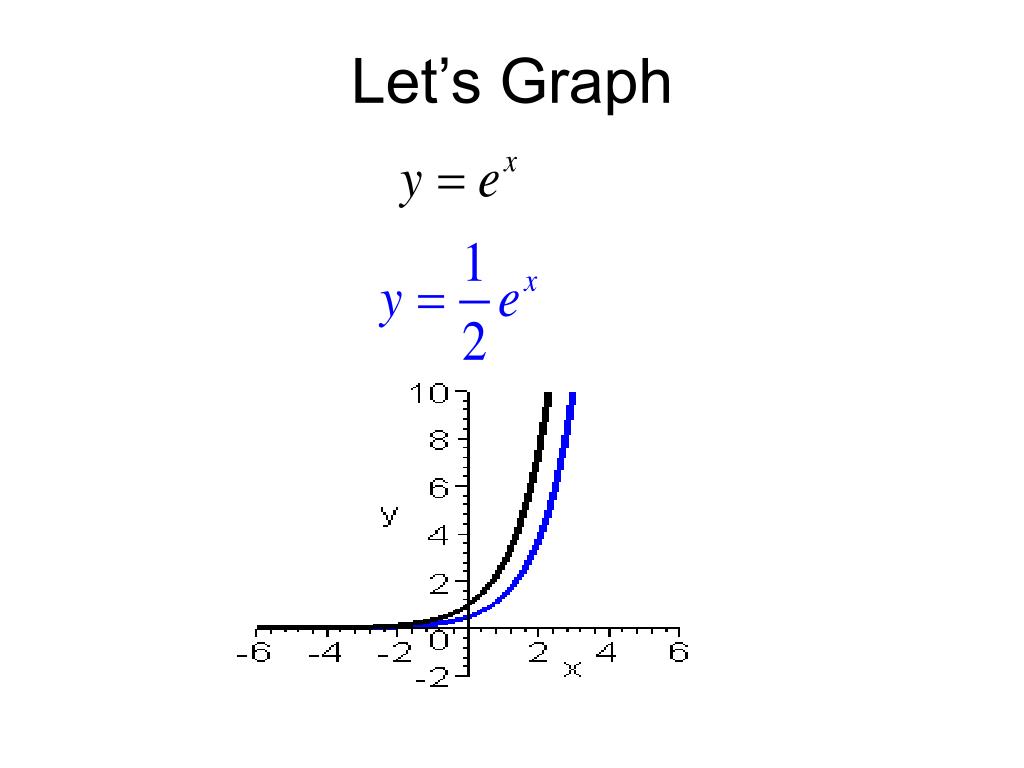

  33. Let’s Graph

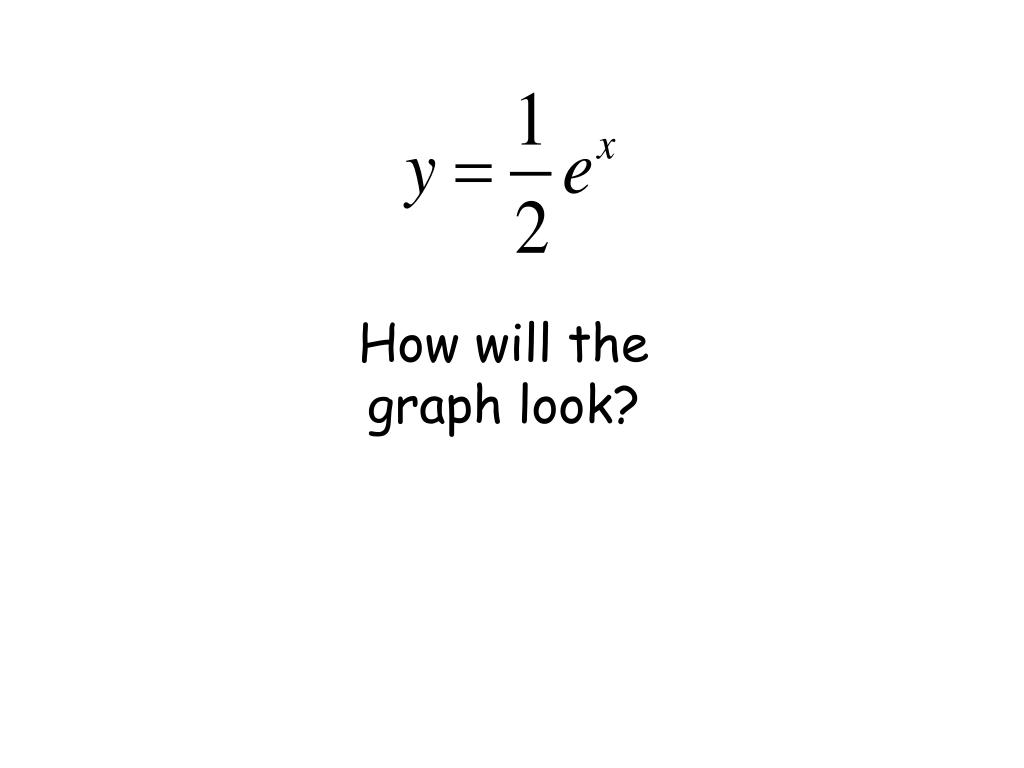

  34. How will the graph look?

  35. Let’s Graph

  36. How will the graph look?

  37. Let’s Graph

  38. How will the graph look?

  39. Let’s Graph

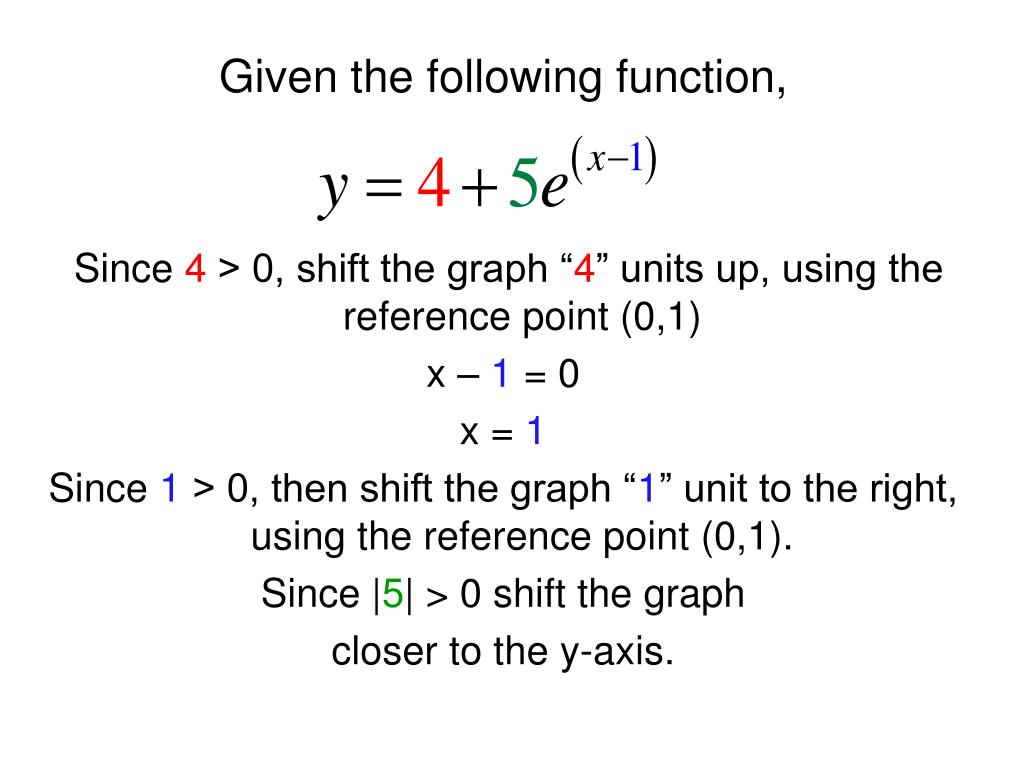

  40. Given the following function, Since 4 > 0, shift the graph “4” units up, using the reference point (0,1) x – 1 = 0 x = 1 Since 1> 0, then shift the graph “1” unit to the right, using the reference point (0,1). Since |5| > 0 shift the graph closer to the y-axis.

  41. Let’s Graph

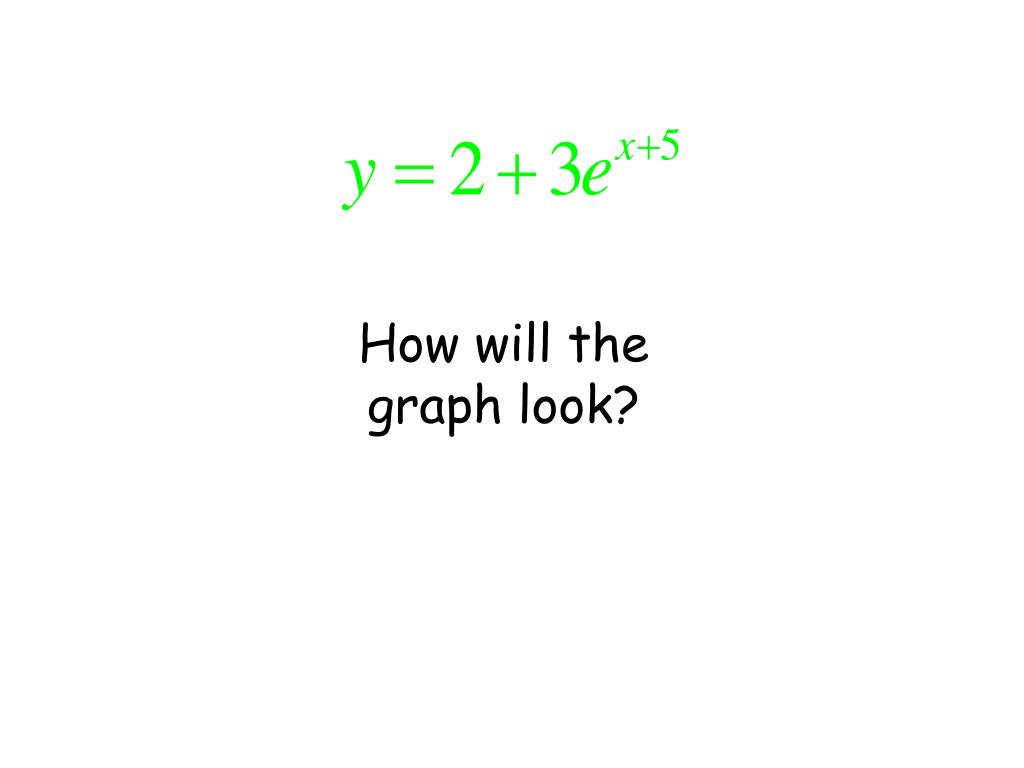

  42. How will the graph look?

  43. Let’s Graph

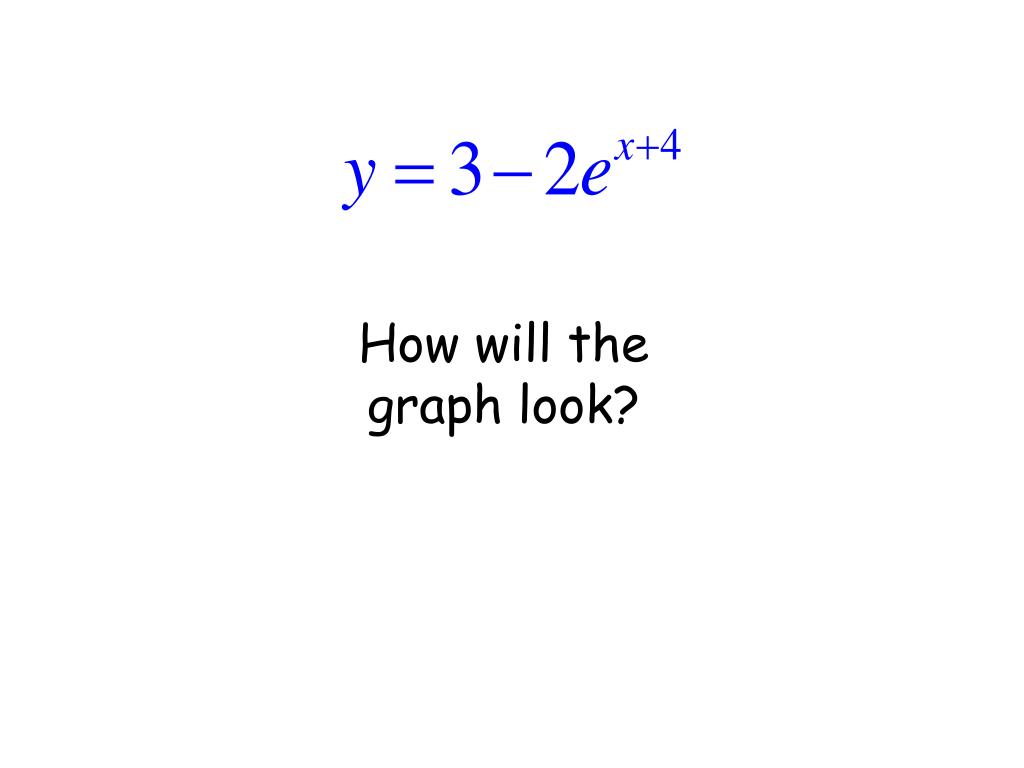

  44. How will the graph look?

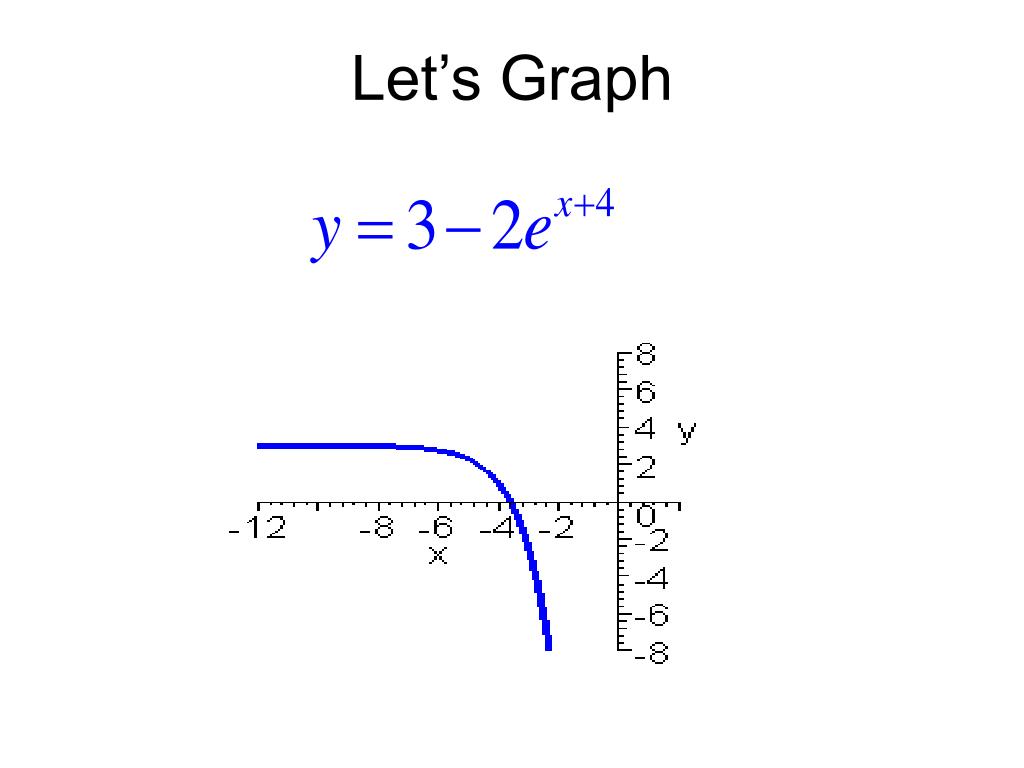

  45. Let’s Graph

  46. How will the graph look?

  47. Let’s Graph

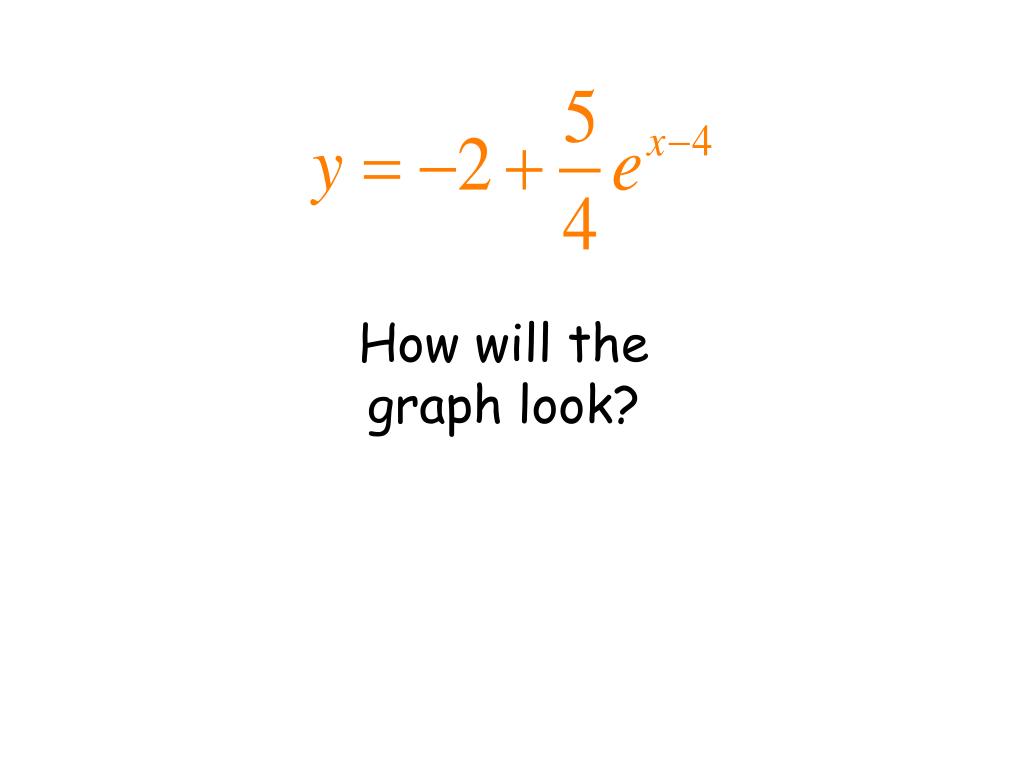

  48. How will the graph look?

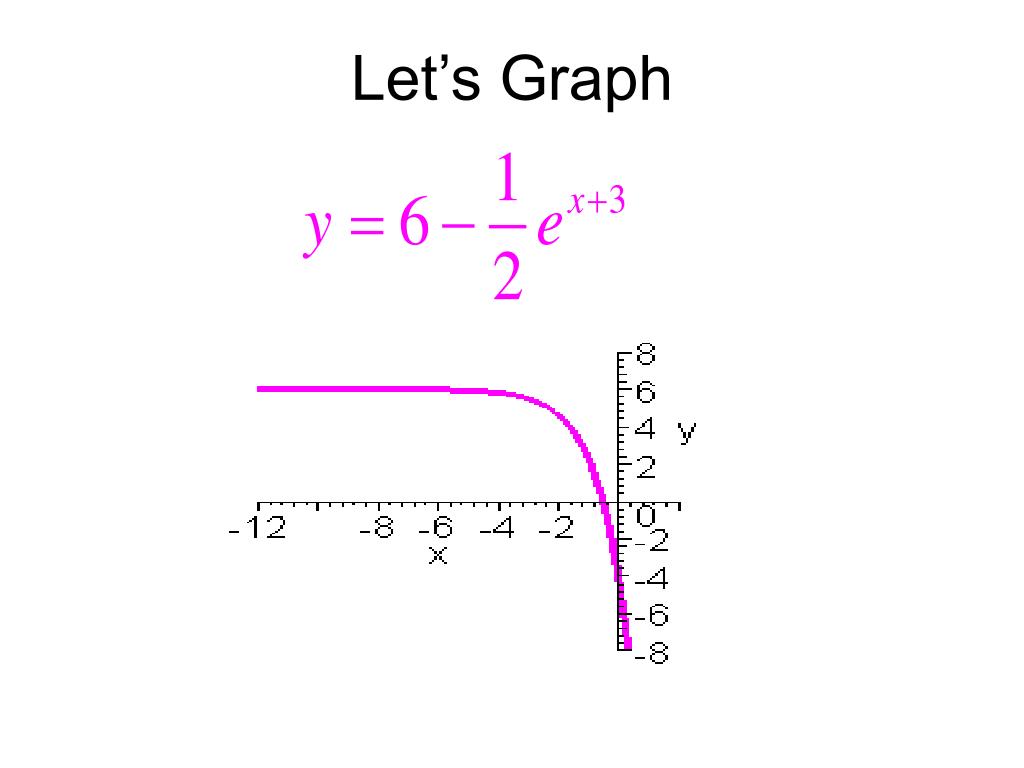

  49. Let’s Graph

  50. How will the graph look?
