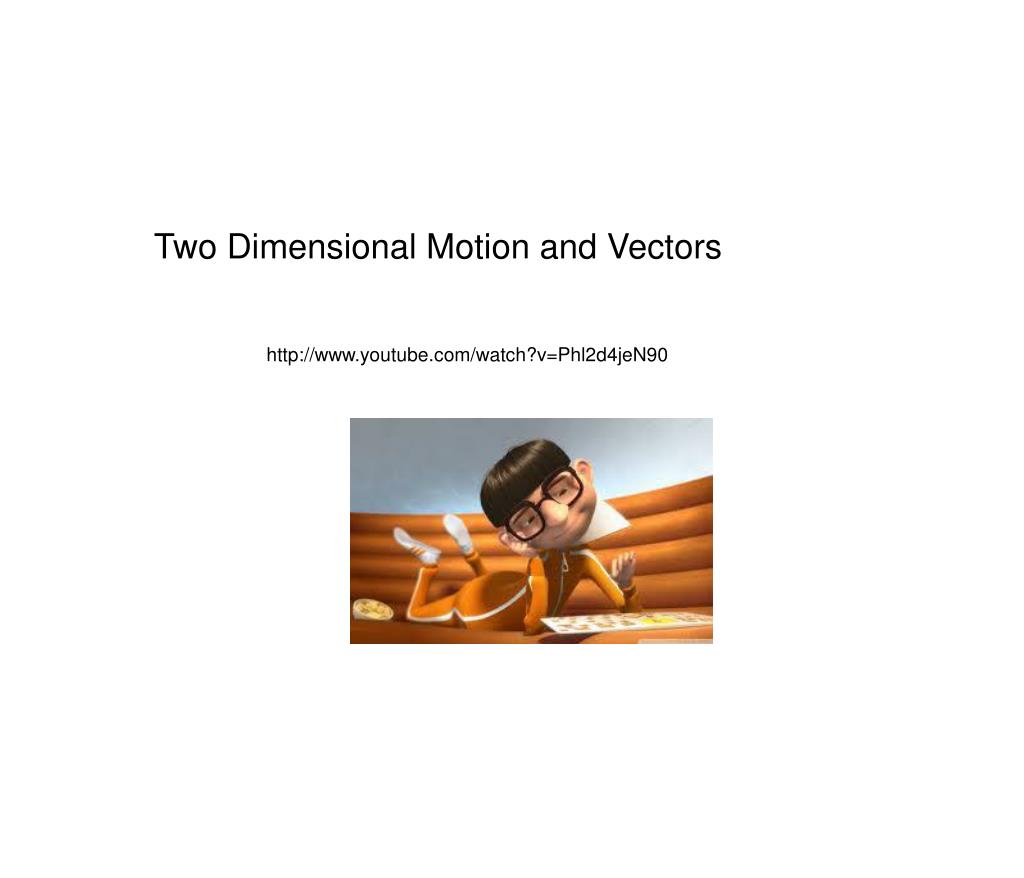

1. Two Dimensional Motion and Vectors http://www.youtube.com/watch?v=Phl2d4jeN90

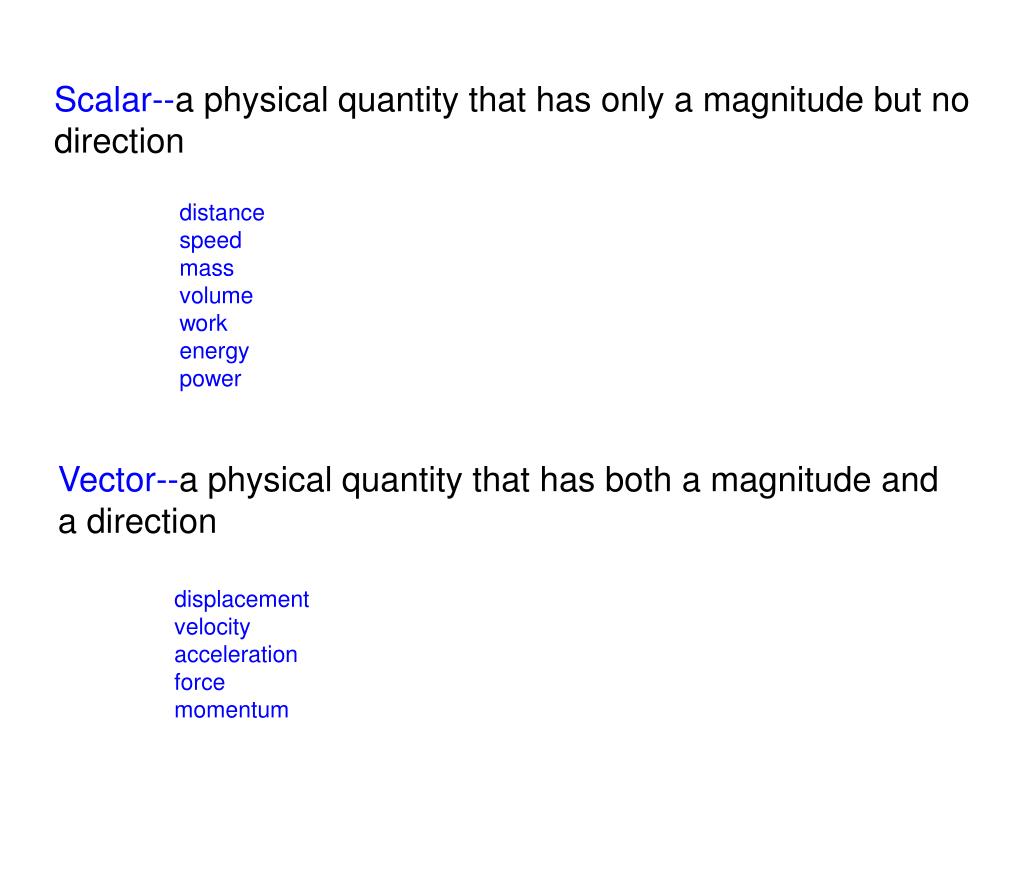

2. Scalar--a physical quantity that has only a magnitude but no direction distance speed mass volume work energy power Vector--a physical quantity that has both a magnitude and a direction displacement velocity acceleration force momentum

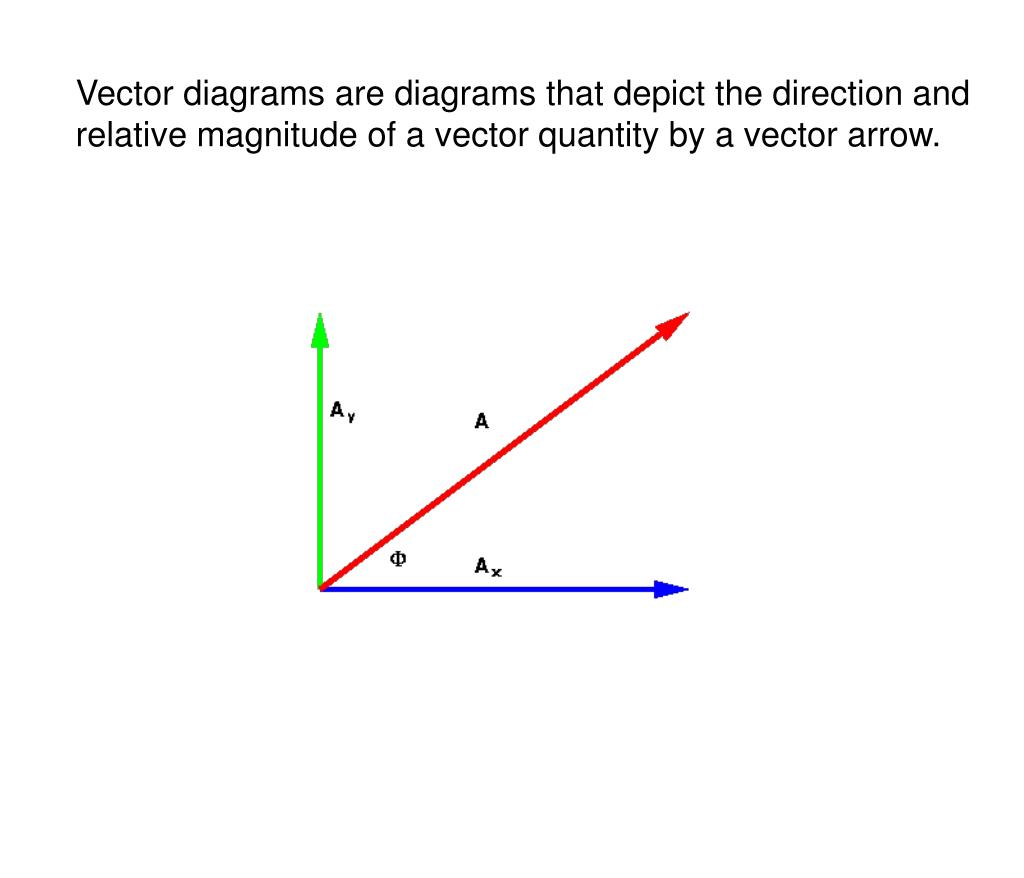

3. Vector diagrams are diagrams that depict the direction and relative magnitude of a vector quantity by a vector arrow.

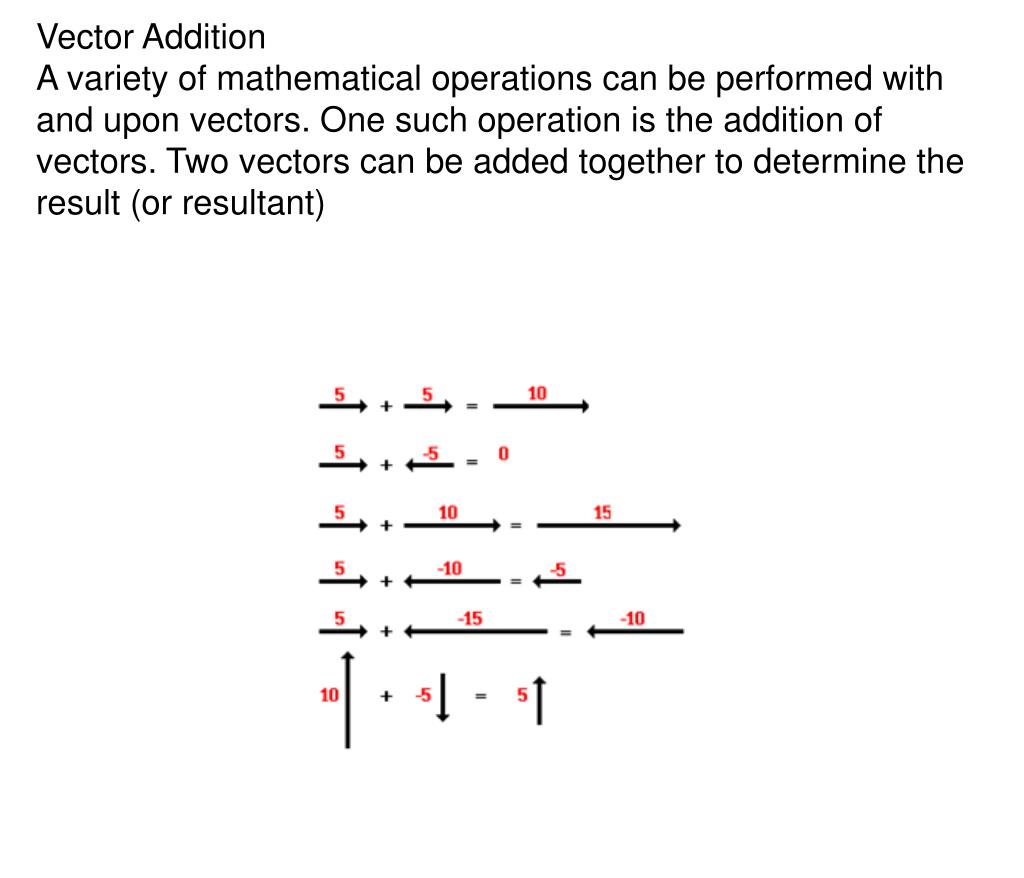

4. Vector Addition A variety of mathematical operations can be performed with and upon vectors. One such operation is the addition of vectors. Two vectors can be added together to determine the result (or resultant)

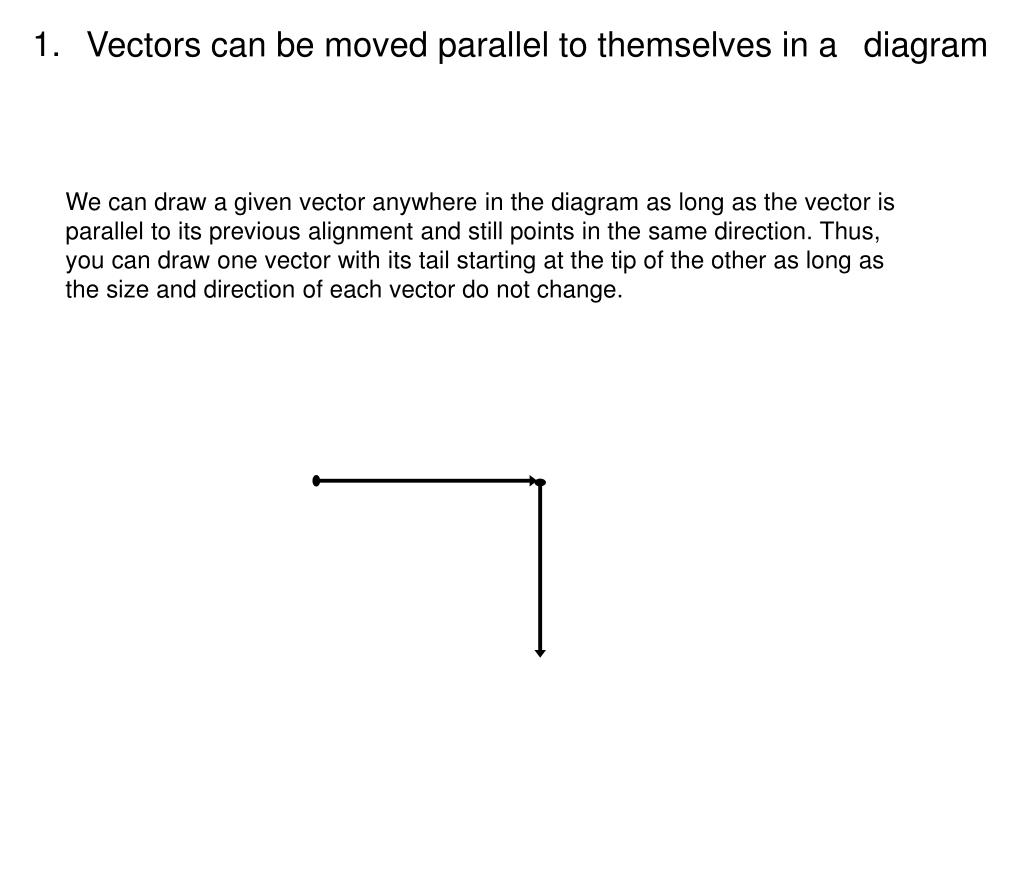

5. 1. Vectors can be moved parallel to themselves in a
diagram We can draw a given vector anywhere in the diagram as long as the vector is parallel to its previous alignment and still points in the same direction. Thus, you can draw one vector with its tail starting at the tip of the other as long as the size and direction of each vector do not change.

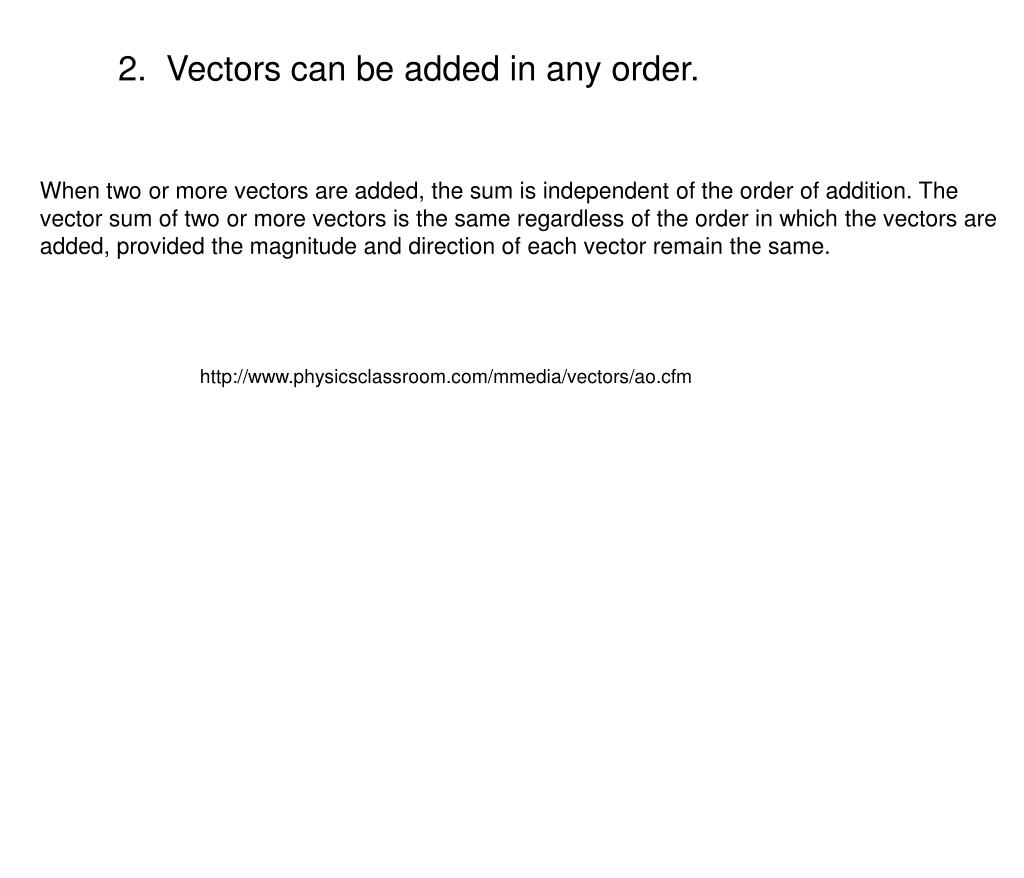

6. 2. Vectors can be added in any order. When two or more vectors are added, the sum is independent of the order of addition. The vector sum of two or more vectors is the same regardless of the order in which the vectors are added, provided the magnitude and direction of each vector remain the same. http://www.physicsclassroom.com/mmedia/vectors/ao.cfm

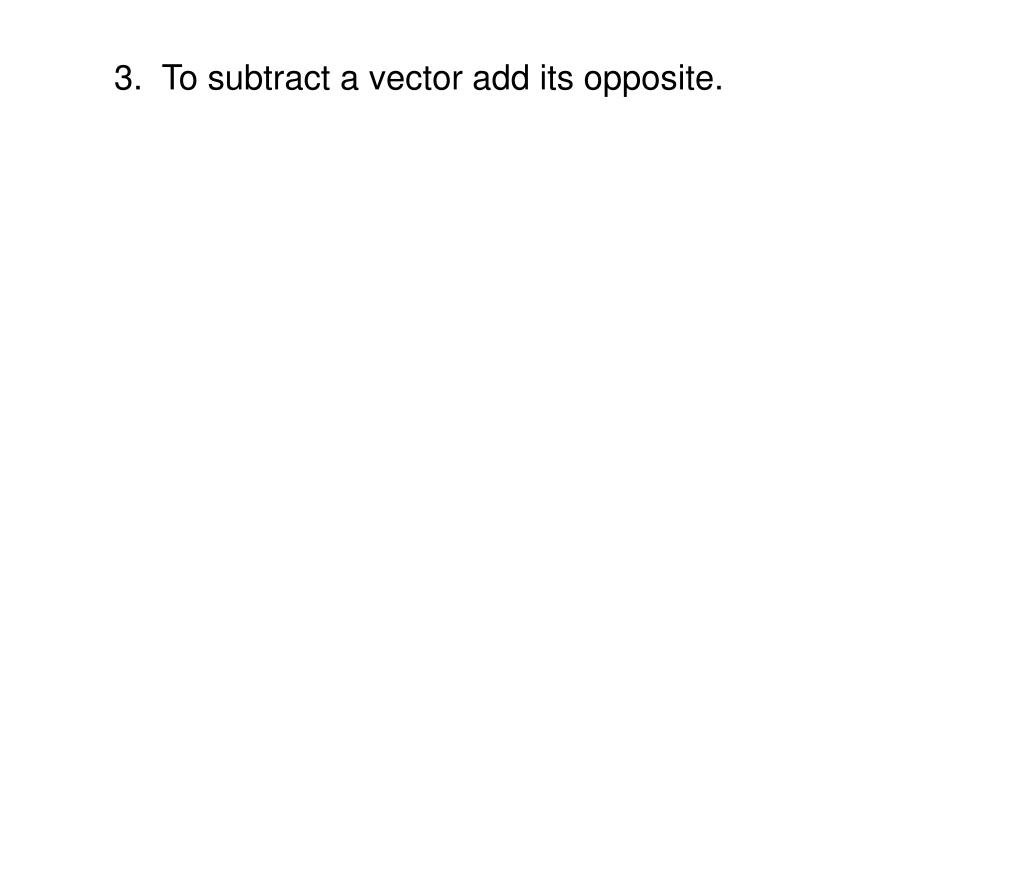

7. 3. To subtract a vector add its opposite.

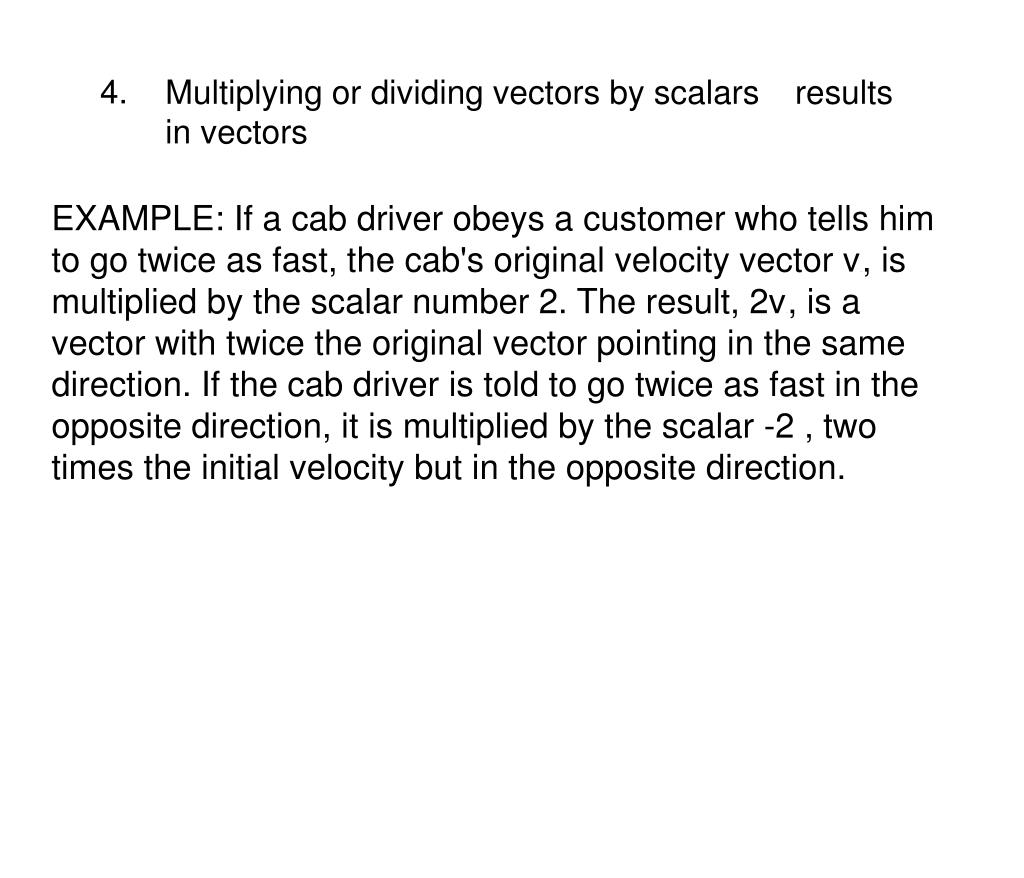

8. 4. Multiplying or dividing vectors by scalars
results in vectors EXAMPLE: If a cab driver obeys a customer who tells him to go twice as fast, the cab's original velocity vector vcab, is multiplied by the scalar number 2. The result, 2vcab, is a vector with twice the original vector pointing in the same direction. If the cab driver is told to go twice as fast in the opposite direction, it is multiplied by the scalar -2 , two times the initial velocity but in the opposite direction.

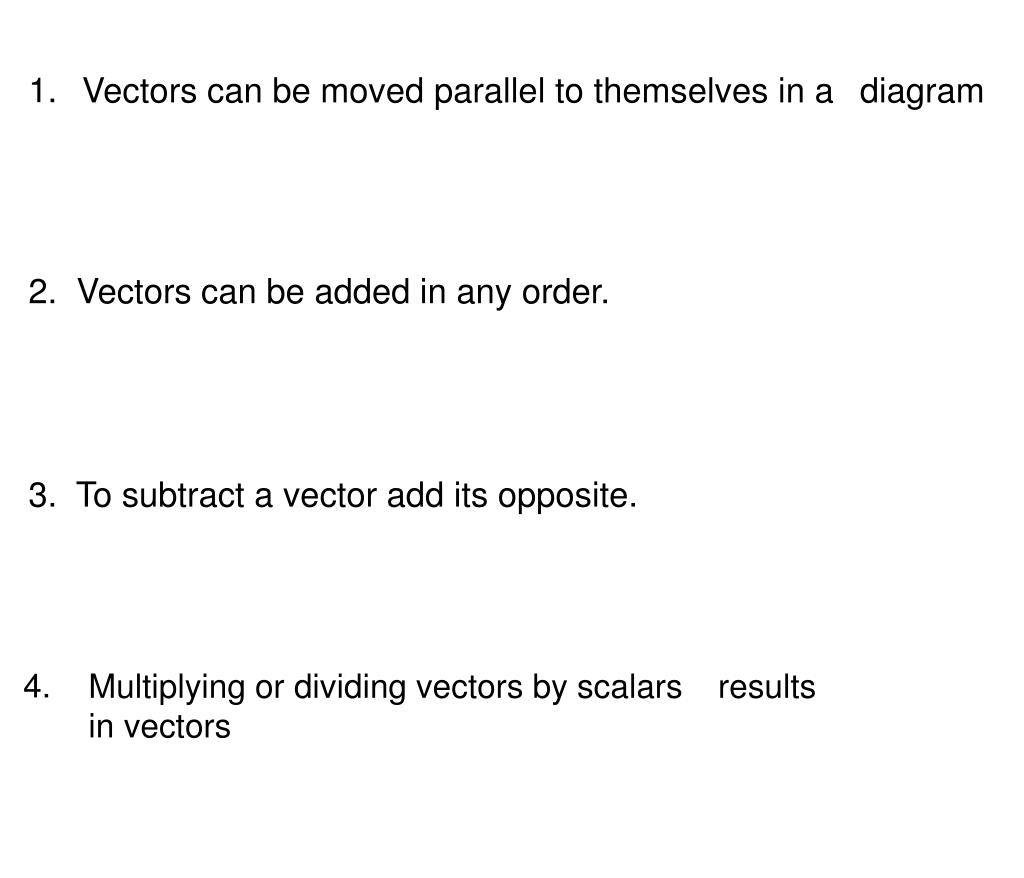

9. 1. Vectors can be moved parallel to themselves in a
diagram 4. Multiplying or dividing vectors by scalars
results in vectors 2. Vectors can be added in any order. 3. To subtract a vector add its opposite.

10. Vectors can be added graphically Consider a student waling to school. The student walks 1500 m to a friend's house, then 1600 m to the school. School Friend's House Home Resultant--a vector representing the
sum of two or more vectors

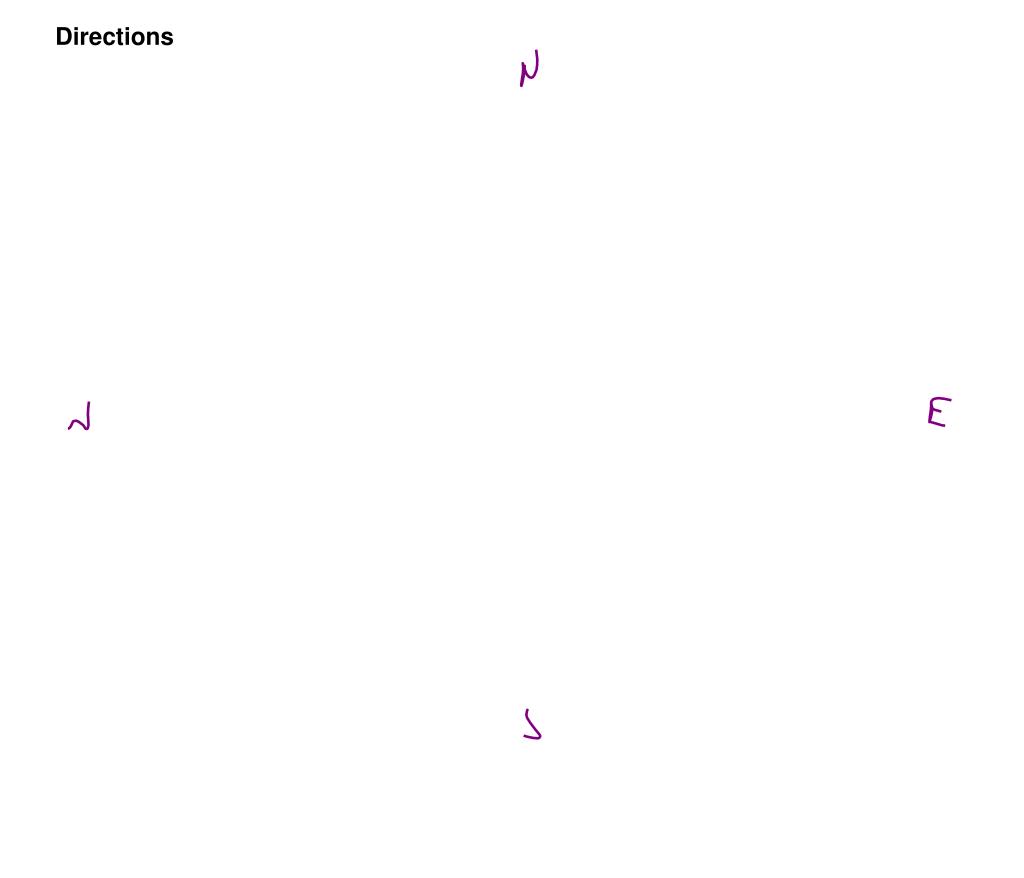

11. Directions

12. Determining resultant magnitude and direction Pythagorean Theorem a2 + b2 = c2 c a b d y x

13. Review of Trigonometry

14. Resolving vectors into components (the projections of
a vector along the axes of a coordinate system)

15. Example Problem: An archeologist climbs the great Pyramid in Giza, Egypt. If the pyramids height is 136 m and its width is 2.3 x 102 m, what is the magnitude and direction of the archaeologist's displacement while climbing fro the bottom of the pyramid to the top? Given: y Unknown: x

16. Example Problem: Find the component velocities of a helicopter traveling 95 km/hr at an angle of 35o to the ground. Given: y Unknown: vx, vy v = 95 km/h 35o x

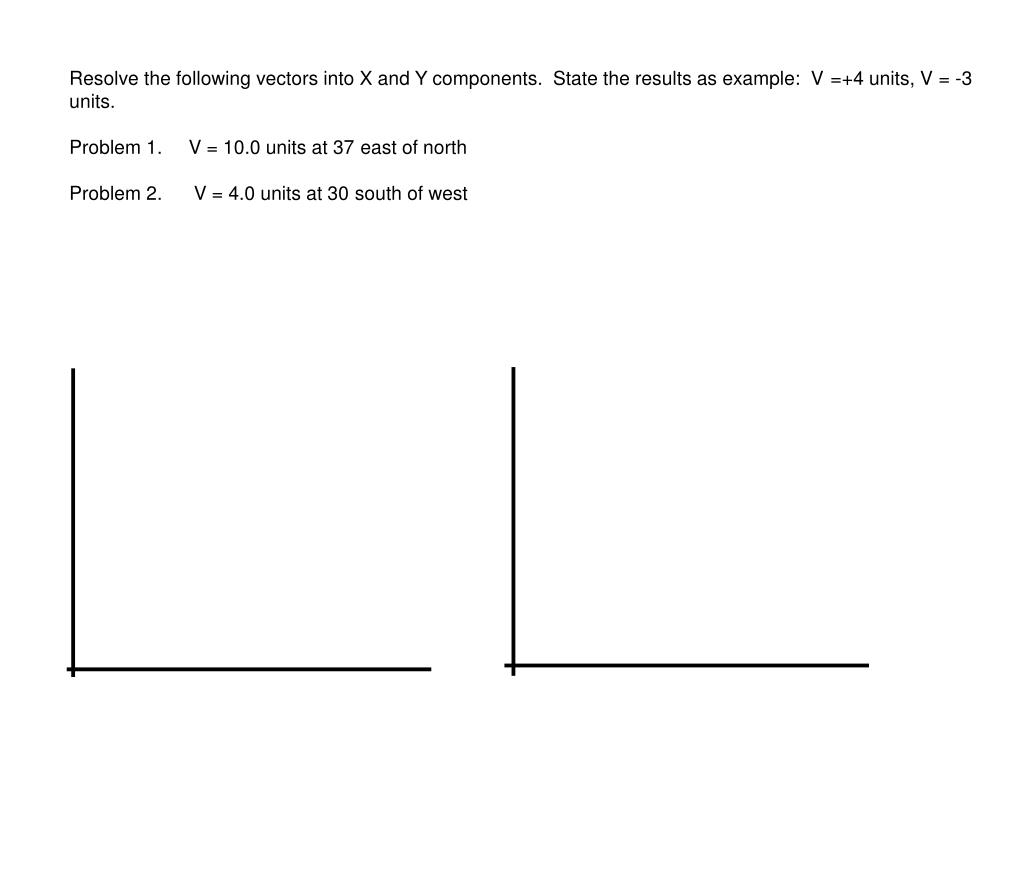

17. Resolve the following vectors into X and Y components. State the results as example: Vx =+4 units, Vy = -3 units. Problem 1. V = 10.0 units at 37o east of north Problem 2. V = 4.0 units at 30o south of west

18. Projectile Motion

19. y = -1/2g(t2) Vertical motion of a projectile that falls from rest Horizontal Motion of a Projectile x = vxt

20. EXAMPLE: The Royal Gorge Bride rises 321 m above the Arkansas River. Suppose you kick a little rock horizontally off the bridge. The rock hits the water such that the magnitude of its horizontal displacement is 45.0 m. Find the speed at which the rock was kicked.

21. Projectiles launched at an Angle x = vicos()t vy,f = visin()-gt vy,f2 = vi2(sin())2 - 2gy y = visin()t-1/2gt2

22. Upwardly Launched Projectiles projectile motion simulator lady bug simulator

23. EXAMPLE: A zoo keeper finds an escaped money hanging from a light pole. Aiming her tranquilizer gun a the monkey, the zoo keeper kneels 10.0 m from the light pole, which is 5 m high. The tip of her gun is 1 m above the ground. The monkey tries to trick the zoo keeper by dropping a banana, then continues to hold onto the light pole. At the moment the monkey releases the banana, the zoo keeper shoots. If the tranquilizer dart travels at 50 m/s, will the dart hit the money, banana, or neither one?

24. Relative Motion & Frames of Reference Observers using different frames of reference may measure different displacements or velocities for an object in motion. Example: Airplane dropping stunt dummy

25. EXAMPLE: A boat heading north crosses a wide river with a velocity of 10.00 km/h relative to the water. The river has a uniform velocity of 5.00 km/h due east. Determine the boat's velocity with respect to an observer on shore.

26. Circular (Rotational) Motion motion of a body that spins about an axis. rotation--when an object turns about an internal axis revolution--when an object turns about an external axis The earth revolves around the sun and rotates on its axis.

27. radian--an angle whose arc length is
equal to its radius ( 57.3o) one revolution = 360o = 2 radians

28. Angular Displacement: how much an object has rotated   = s change in arc length r distance from axis

29. Angular Displacement EXAMPLE: While riding on a carousel that is rotating clockwise, a child travels through an arc length of 11.5 m. If the child's angular displacement is 165o what is the radius of the carousel?

30.  ave = t vt = r Angular Speed--the rate at which a body
rotates about an axis Tangential Speed--instantaneous linear
speed of an object directed along the
tangent to the object's circular path

31. Angular Speed EXAMPLE: A child at an ice cream parlor spins on a stool. The child turns counterclockwise with an average angular speed of 4 rad/s. In what time interval will the child's feet have an angular displacement of 8 rad?

32. Tangential Speed EXAMPLE: The radius of a CD in a computer is 0.0600 m. If a microbe riding on the disc's rim has a tangential speed of 1.88 m/s, what is the disc's angular speed?

33.  ave = t at = r Angular Acceleration--change in angular
speed with time Tangential Acceleration--instantaneous
linear acceleration of an object directed
along the tangent to the object's circular
path

34. All points on a rotating rigid object have
the same angular speed and angular
acceleration. Tangential (linear) speed and tangential
(linear) acceleration depend upon the
radius of rotation.

35. Angular Acceleration EXAMPLE: a car's tire rotates at an initial angular speed of 21.5 rad/s. The driver accelerates, and after 3.5s the tire's angular speed is 28.0 rad/s. What is the tire's average angular acceleration during the 3.5 s time interval.

36. Tangential Acceleration EXAMPLE: A spinning ride at a carnival has an angular acceleration of 0.5 rad/s2. How far from the center is a rider who has a tangential acceleration of 3.3 m/s2?

37. EXAMPLE: The wheel on an upside moves through 11.0 rad in 2 s. What is the wheel's angular acceleration if its initial angular speed is 2 rad/s?

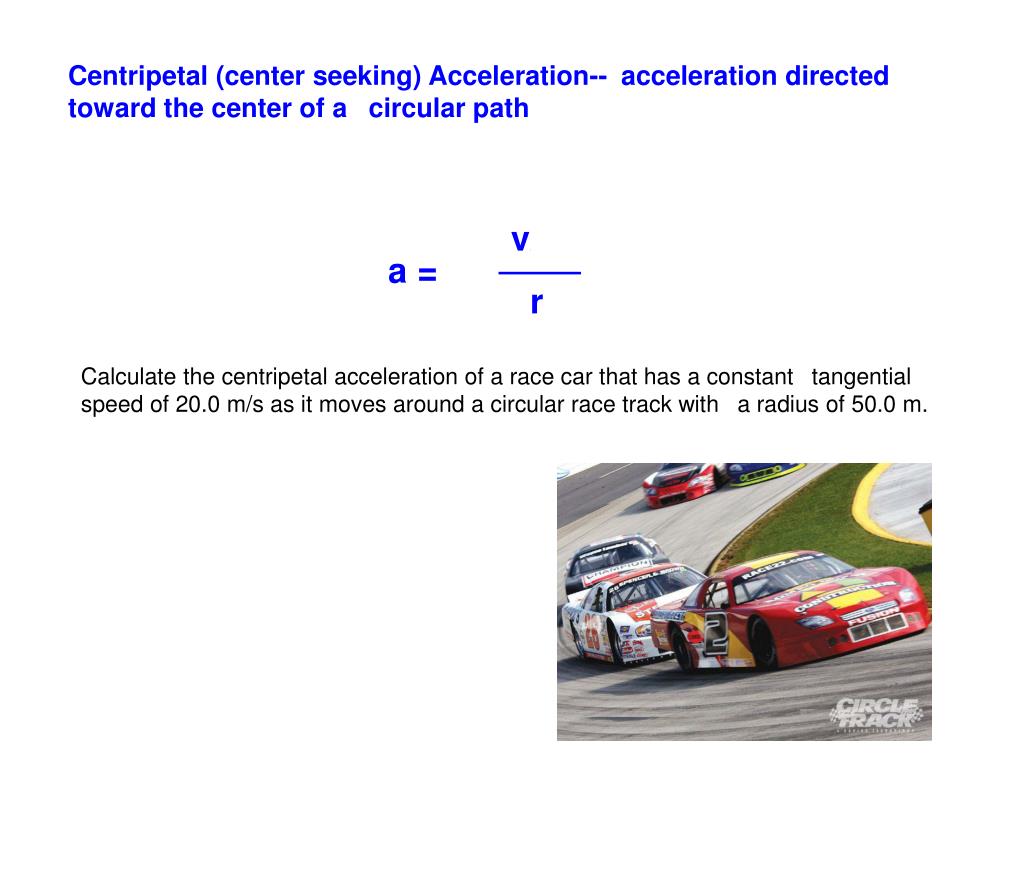

38. v2t ac = r Centripetal (center seeking) Acceleration--
acceleration directed toward the center of a
circular path Calculate the centripetal acceleration of a race car that has a constant
tangential speed of 20.0 m/s as it moves around a circular race track with
a radius of 50.0 m.

39. Centripetal Acceleration EXAMPLE: A test car moves at a constant speed around a circular track. If the car is 48.2 m from the track's center and has a centripetal acceleration of 8.05 m/s2, what is its tangential speed?

40. Which part of the Earth's surface has the
greatest angular speed about the Earth's
axis? Which part has the greatest
tangential (linear) speed? angular vs tangential review

41. 2 A ladybug sits halfway between the axis
and the edge of a rotating turntable.
What will happen to the ladybug's
linear speed if a. the RPM rate is doubled? b. the ladybug sits at the edge? c. both a and b occur?

42. 3 Which state in the United States has
the greatest tangential speed as Earth
rotates around its axis?

43. 4 The speedometer in a car is driven by a
cable connected to the shaft that turns
the car's wheels. Will speedometer
readings be more or less than actual
speed when the car's wheels are replaced
with smaller ones? A taxi driver wishes to increase his fares
by adjusting the size of his tires. Should
he change to larger tires or smaller tires?

44. Mars is about twice as far from the
sun as is Venus. A Martian year,
which is the time it takes Mars to go
around the sun, is about three times
as long as a Venusian year. 5 A. Which of these two planets
has the greater rotational
speed in its orbit? B. Which planet has the
greater linear speed?

45. Launch Speed less than 8000 m/s Projectile falls to Earth Projectile launched in the absence of
gravity Launch Speed greater than 8000 m/s Projectile orbits Earth - Elliptical Path Launch Speed equal to 8000 m/s Projectile orbits Earth - Circular Path
