Basic Digital Camera Concepts

Basic Digital Camera Concepts. How a digital camera works. The Sensor. Additive Primary RGB Secondary Primary CYM. RGB Channels. The Sensor. The Bayer Pattern Color Filter. BGBGBGBGBGBGBGBGBGBGBGBBGBGBG GRGRGRGRGRGRGRGRGRGRGRGRGRGRG. Interpolation.

ianna
Télécharger la présentation

Basic Digital Camera Concepts

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Basic Digital Camera Concepts How a digital camera works

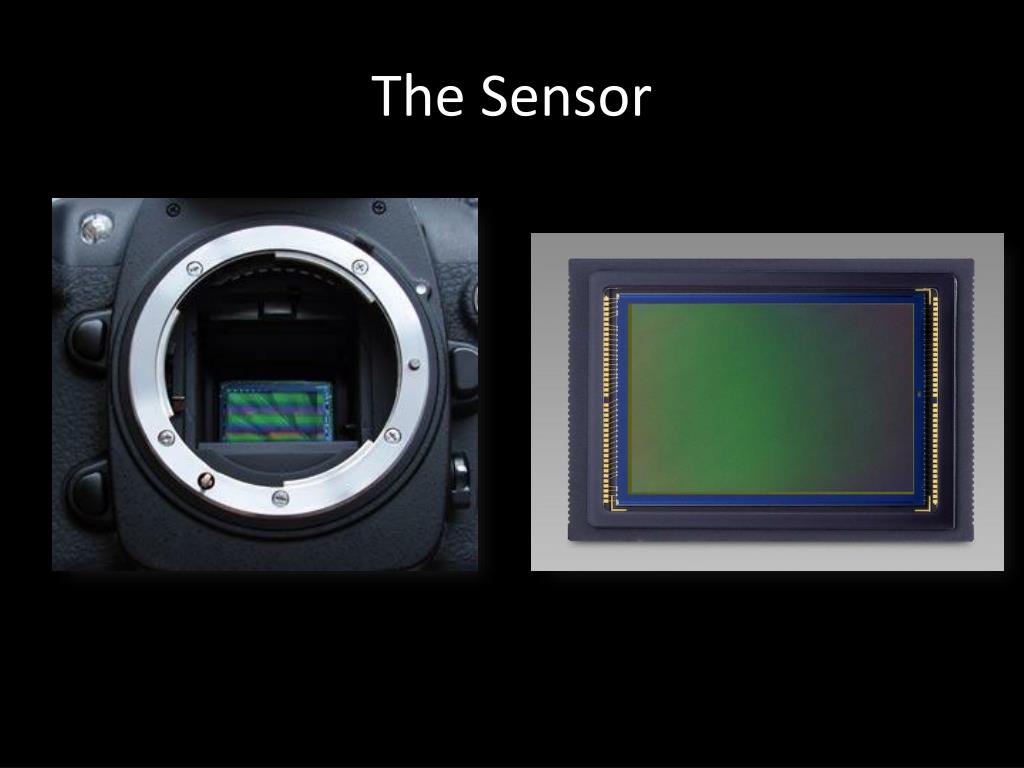

  2. The Sensor

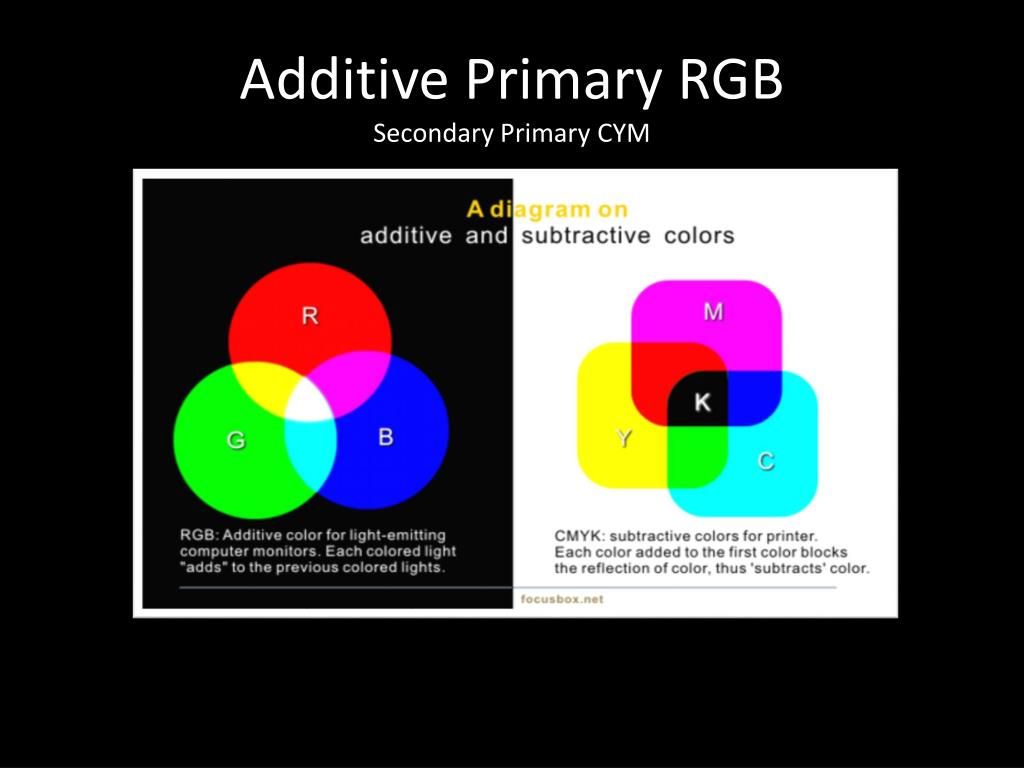

  3. Additive Primary RGBSecondary Primary CYM

  4. RGB Channels

  5. The Sensor

  6. The Bayer PatternColor Filter BGBGBGBGBGBGBGBGBGBGBGBBGBGBG GRGRGRGRGRGRGRGRGRGRGRGRGRGRG

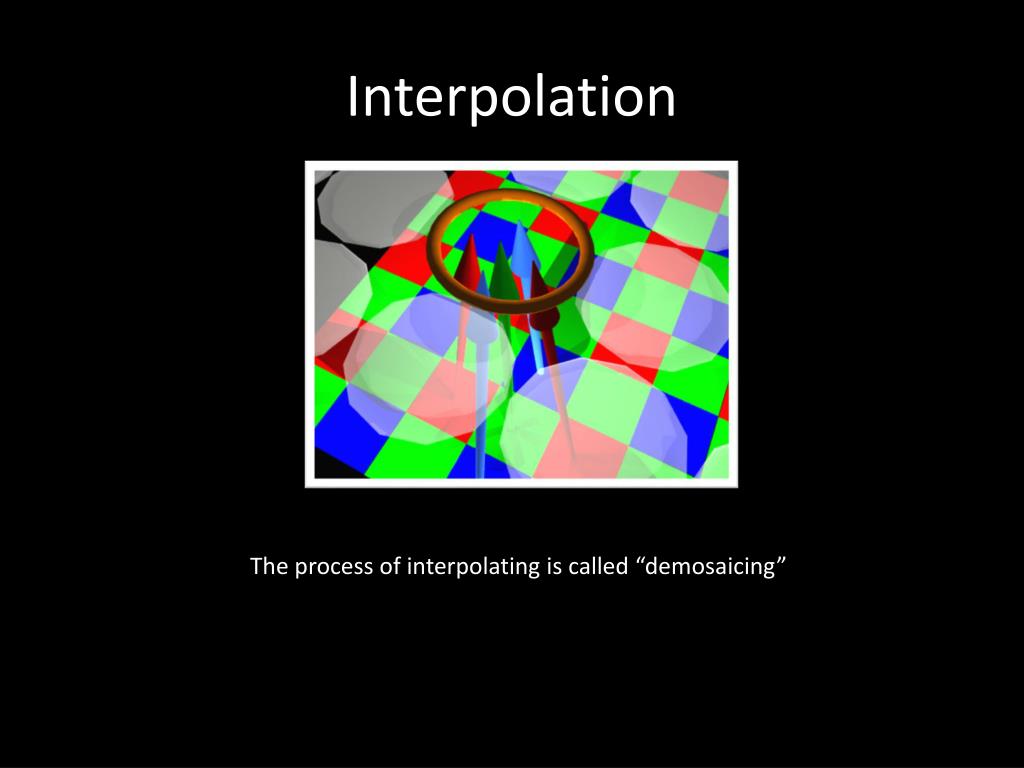

  7. Interpolation The process of interpolating is called “demosaicing”

  8. Note: Dirty Sensor

  9. NOTE: B&W vs. GRAYSCALE Technically, in digital photography we make grayscale images, AKA Black & White conversions, using the color channels during the conversion.

  10. Color SpaceVarious Mathematical models to represent color as it applies to JPEG camera settings sRGB Web Adobe RGB Prints

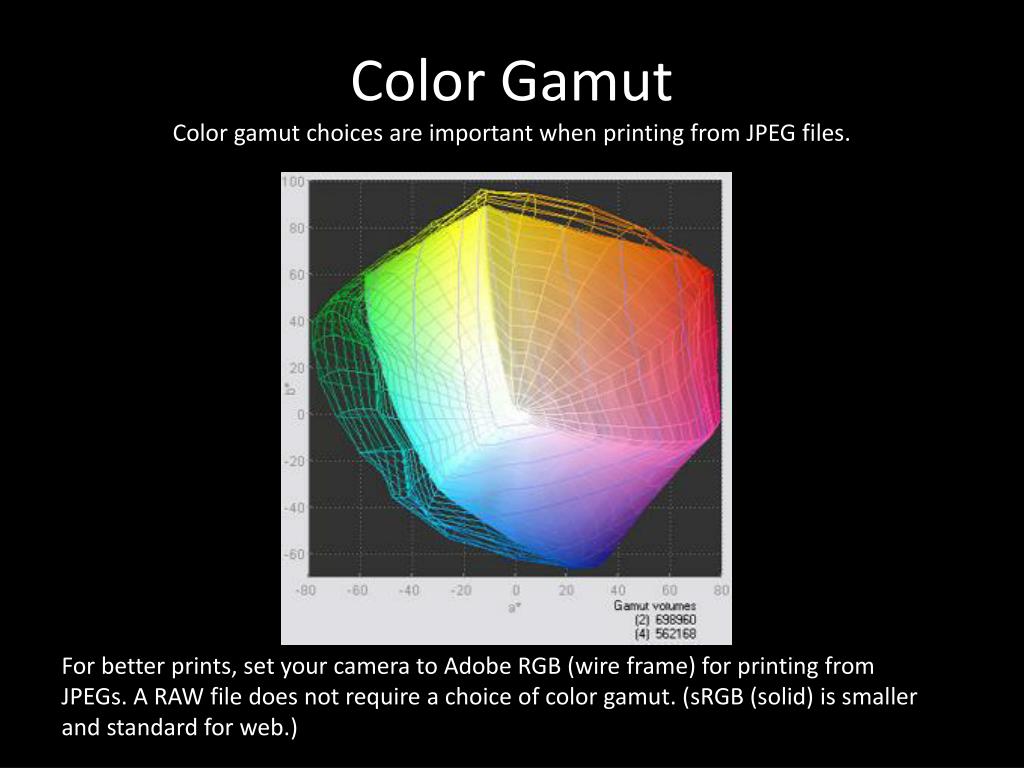

  11. Color GamutColor gamut choices are important when printing from JPEG files. For better prints, set your camera to Adobe RGB (wire frame) for printing from JPEGs. A RAW file does not require a choice of color gamut. (sRGB (solid) is smaller and standard for web.)

  12. JPEG & RAW Applies sRGB Or Adobe RGB Camera processed JPEG Unprocessed RAW

  13. JPEG & RAW JPEG No corrections JPEG Auto corrections RAW unprocessed RAW auto processed

  14. RAW File as shot RAW File processed RAW File B&W Conversion

  15. RAW FILES • Are not compressed • Are larger & take up more memory • Are processed and converted by you (not your camera) • Are proprietary (not universal like JPEGs) i.e. NEF & CR2 • Are at least 8-bits in color • Are NOT restricted by sRGB or Adobe RGB color spaces • Have more latitude for adjustments in the highlight and shadows • (Are sometimes admissible in a court of law, forensics) • Are what you will be shooting with after the first assignment
