Installing MDT in Eclipse

Installing MDT in Eclipse. Adrian Pop [ adrpo@ida.liu.se ]. Download Eclipse Classic 3.5.1 . Install Eclipse by unpacking the .zip. Start Eclipse. Choose an Eclipse Workspace. Eclipse - Help->Install New Software. Eclipse - Install New Software. c lick on Add.

ianna
Télécharger la présentation

Installing MDT in Eclipse

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

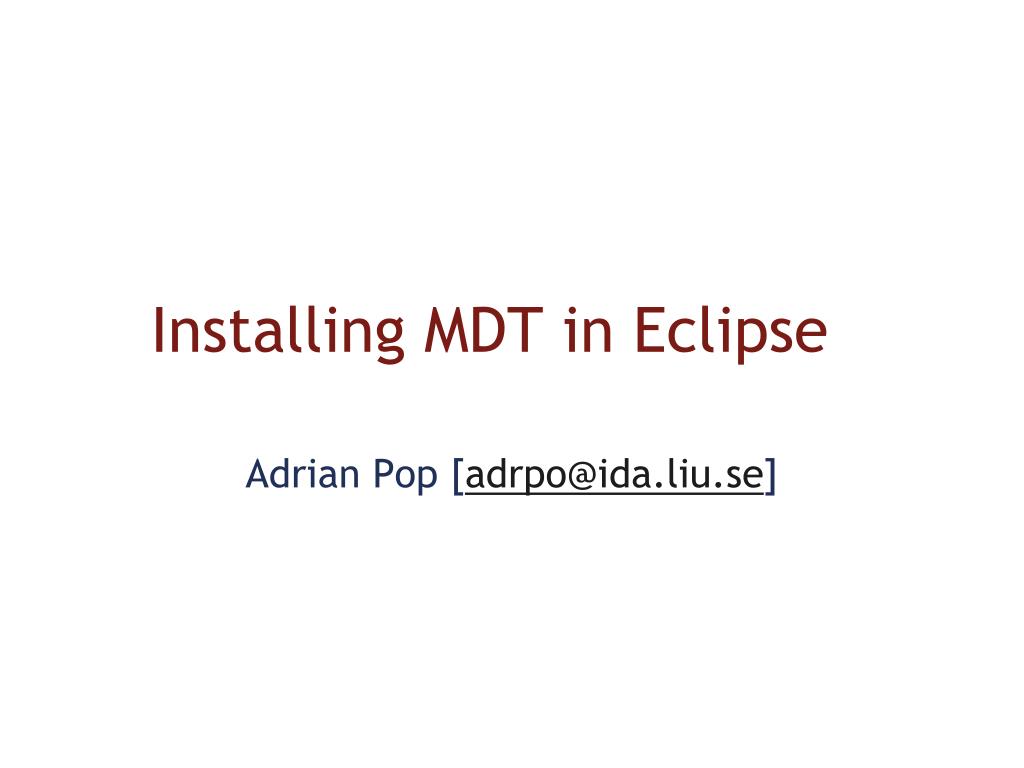

  1. Installing MDT in Eclipse Adrian Pop [adrpo@ida.liu.se]

  2. Download Eclipse Classic 3.5.1

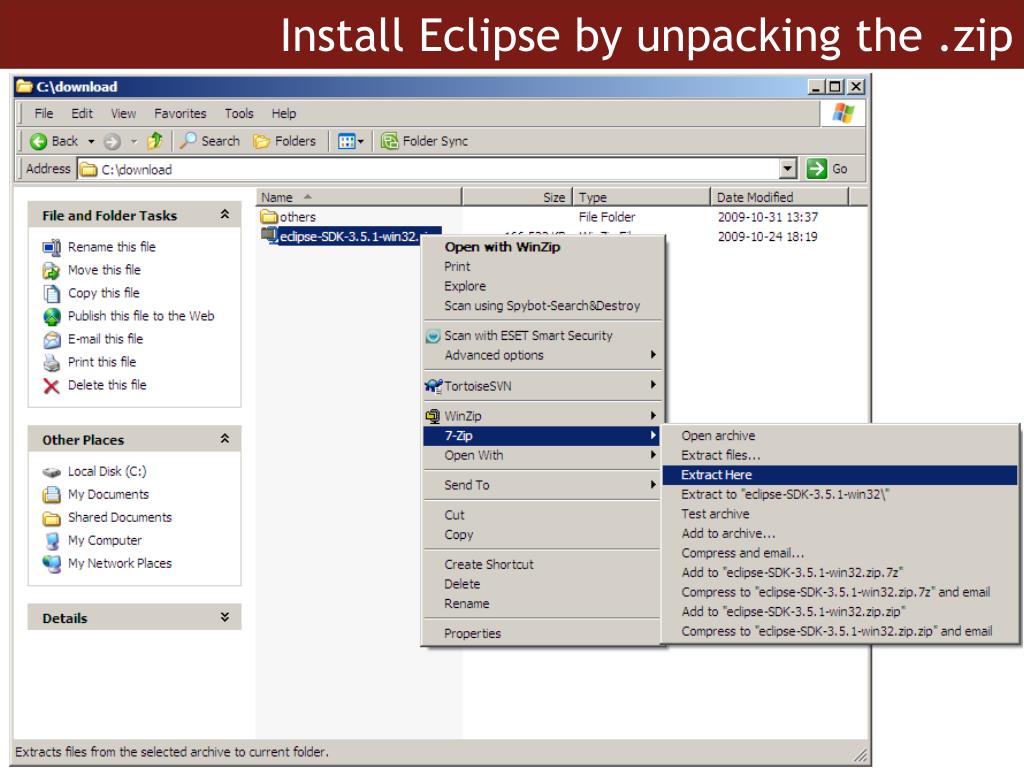

  3. Install Eclipse by unpacking the .zip

  4. Start Eclipse

  5. Choose an Eclipse Workspace

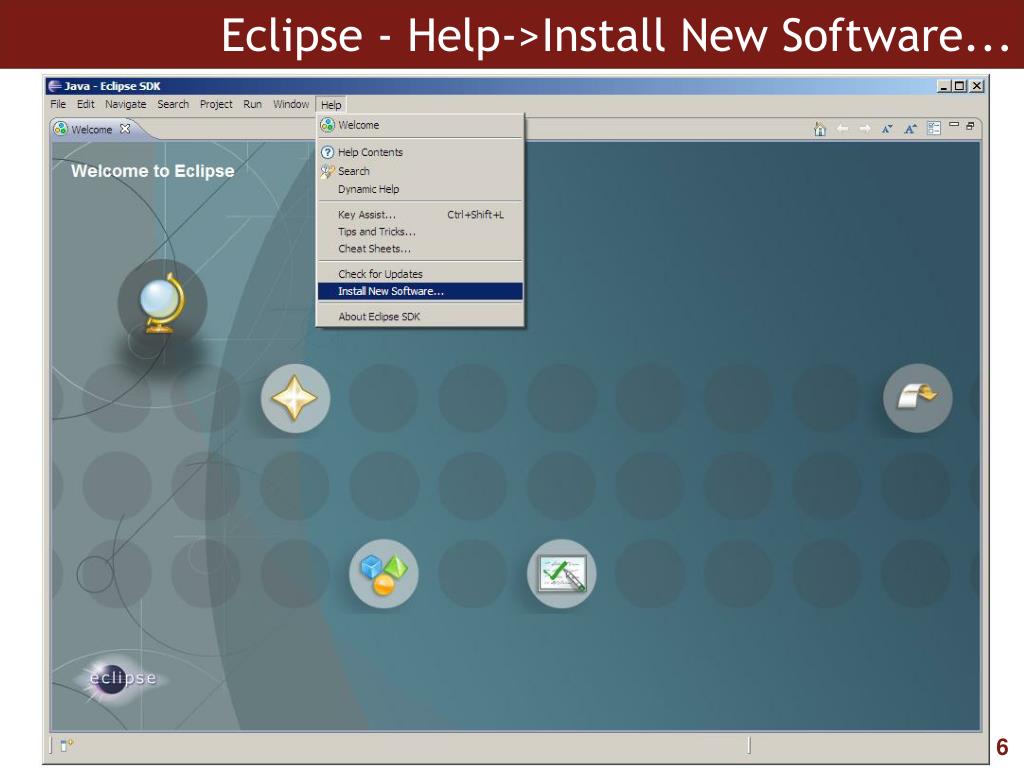

  6. Eclipse - Help->Install New Software...

  7. Eclipse - Install New Software click on Add Enter Name: MDT and Location:http://www.ida.liu.se/~pelab/modelica/OpenModelica/MDT

  8. Eclipse – Important Step By default no MDT is shown! Un-Check: Group items by category

  9. Eclipse - Select MDT 0.7.3

  10. Eclipse - MDT • Click: • Next->Next->(accept the license) • Finish • Accept not signed content • Say yes at restart

  11. Eclipse – Activate Modelica Perspective

  12. Eclipse – Modelica Perspective Right click in the Projects area

  13. Eclipse – New Modelica Project Right click in the Projects area

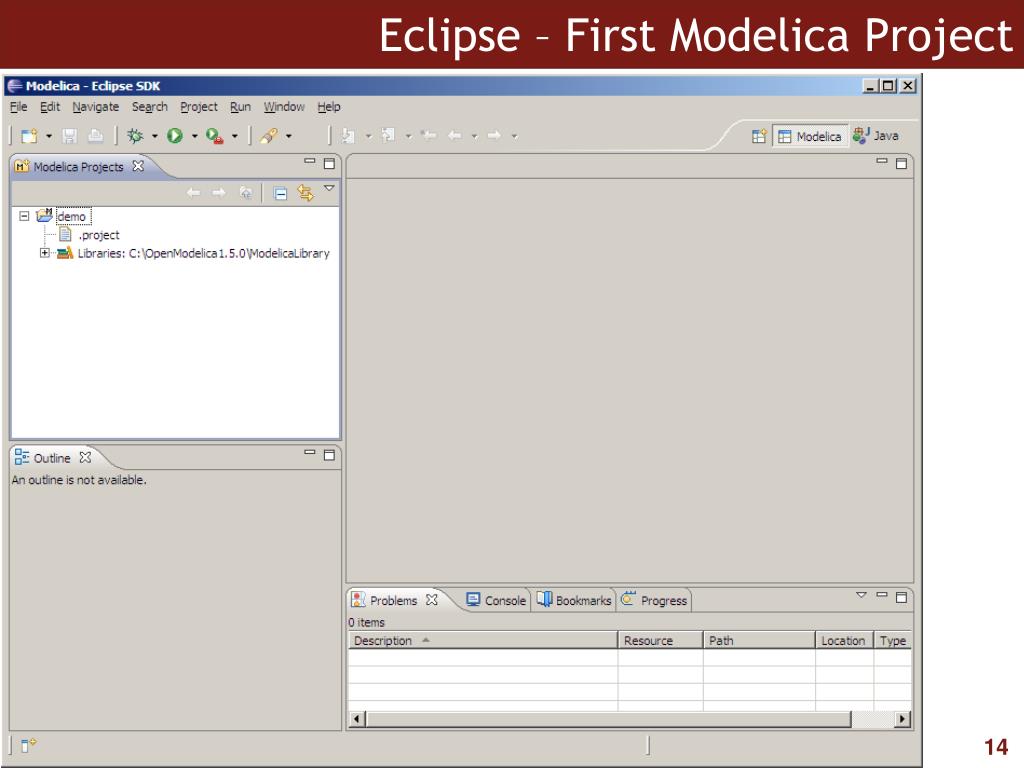

  14. Eclipse – First Modelica Project

  15. The End http://www.OpenModelica.org
