  1. Travel time registration using ETC tags in Norway

  2. NORWAY Facts: Population 4,5 million (In Oslo area 1,5 million) Area 365 000 km2 Public Roads 90 000 km National Roads 27 000 km Vehicles 2.5 million EFC Tags 1,0 million (40% of carpool) 42 Toll Companies Worlds first ETC in operation in 1987 Ålesund, Norway One technical standard (autoPASS)

  3. Point 1 Point 2 Point 3 Section 1 Section 2 Point and section data Point data Speed or density based on a momentarily situation Section data Section speed is calculated from the time consumed to traverse the section

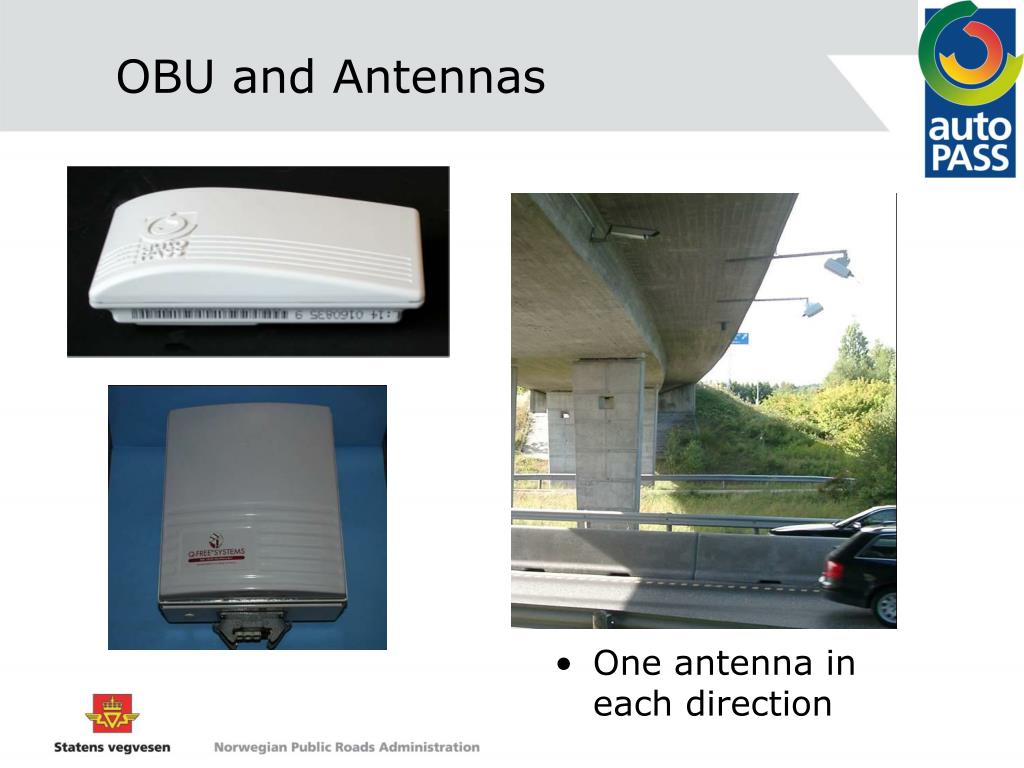

  4. OBU and Antennas • One antenna in each direction

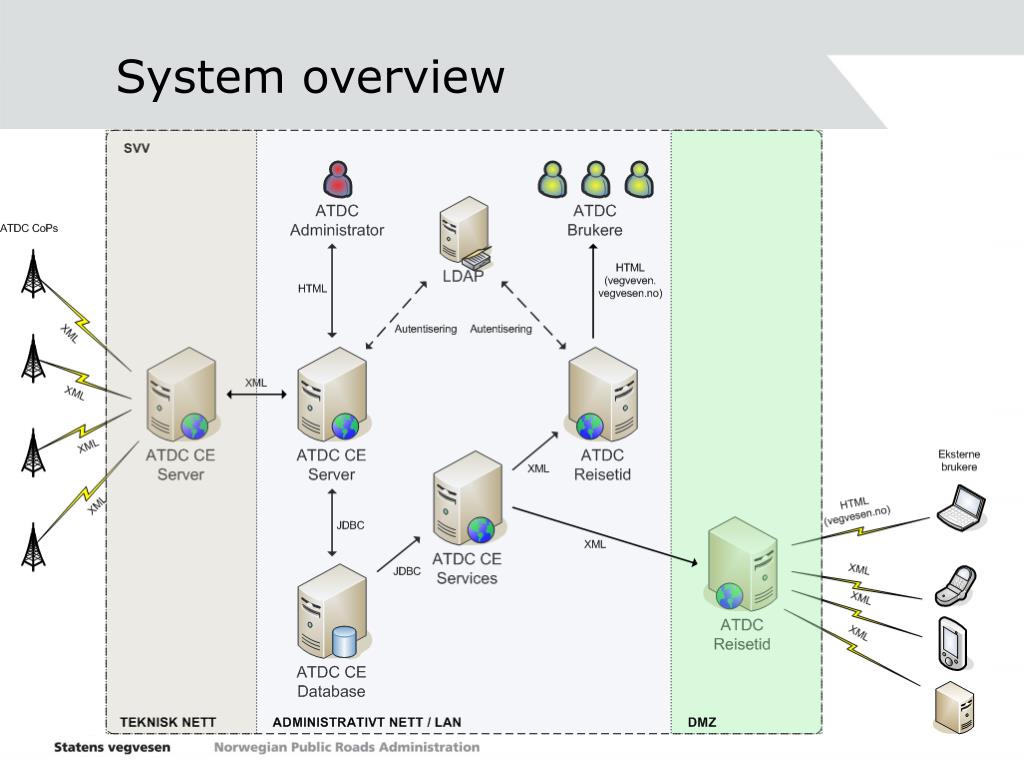

  5. System overview

  6. System overview

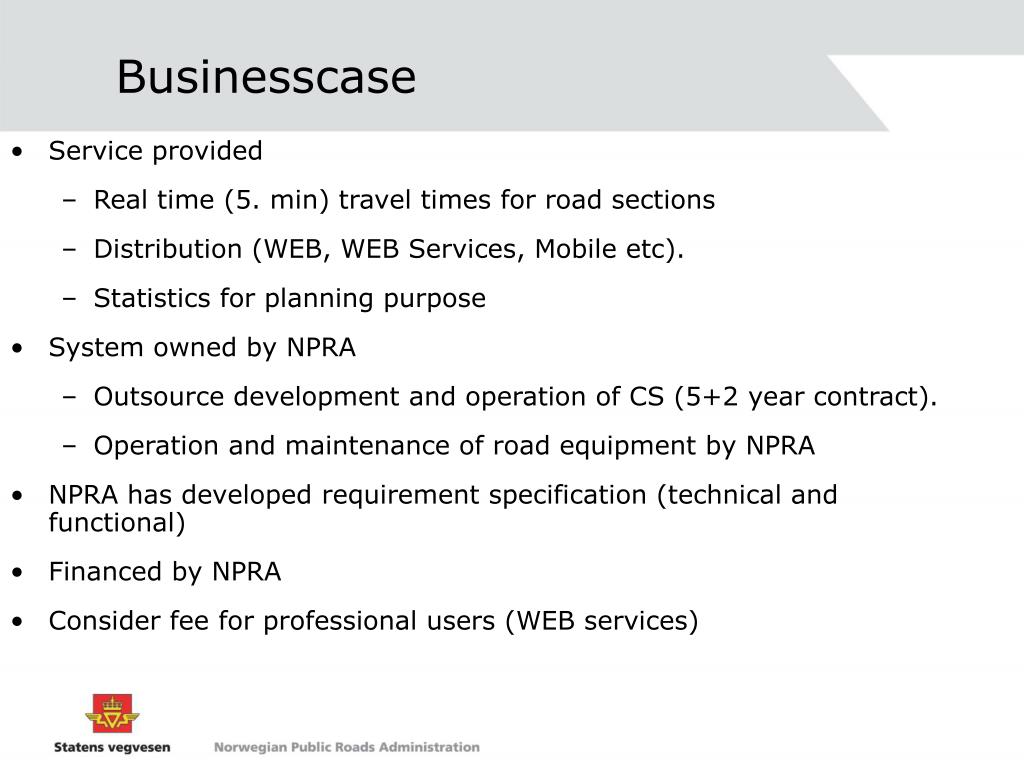

  7. Businesscase • Service provided • Real time (5. min) travel times for road sections • Distribution (WEB, WEB Services, Mobile etc). • Statistics for planning purpose • System owned by NPRA • Outsource development and operation of CS (5+2 year contract). • Operation and maintenance of road equipment by NPRA • NPRA has developed requirement specification (technical and functional) • Financed by NPRA • Consider fee for professional users (WEB services)

  8. Open web services Southward: Traveltime Delay Lysaker - Lierskogen   14min   0 min Lierskogen - Drammensbrua N    8 min 0 min  Drammensbrua N - Drammen S    8 min 2 min Drammen S - Kopstad   22 min 0 min  Kopstad - Tønsberg   16 min 3 min Tønsberg - Larvik   23 min 0 min Northward : Traveltime Delay Larvik - Tønsberg   28 min 5 min Tønsberg – Kopstad 26 min 13 min Kopstad - Drammen S   22m   0 min Drammen S - Drammensbrua N    14 min 8 min Drammensbrua N - Asker   12 min 0 min Asker - Lysaker   - -
