  1. Mineral Processing Operations Simulator (MPOS) • MPOS can be used for multiple purposes including, • DCS system checkout, tuning, and FAT for new site operations, • and or new or upgraded control systems at existing sites. • Control strategy design, testing, and tuning. • HMI design and testing. • Equipment What-If Analysis. • Operator training for new site startup. • Operator training for on-going continuous improvement. • P2P: Crushing, Stockpiles, Primary Mills, Secondary Mills, Flotation, Tailings, and Plant CIMExcel Software Inc. Slide 1

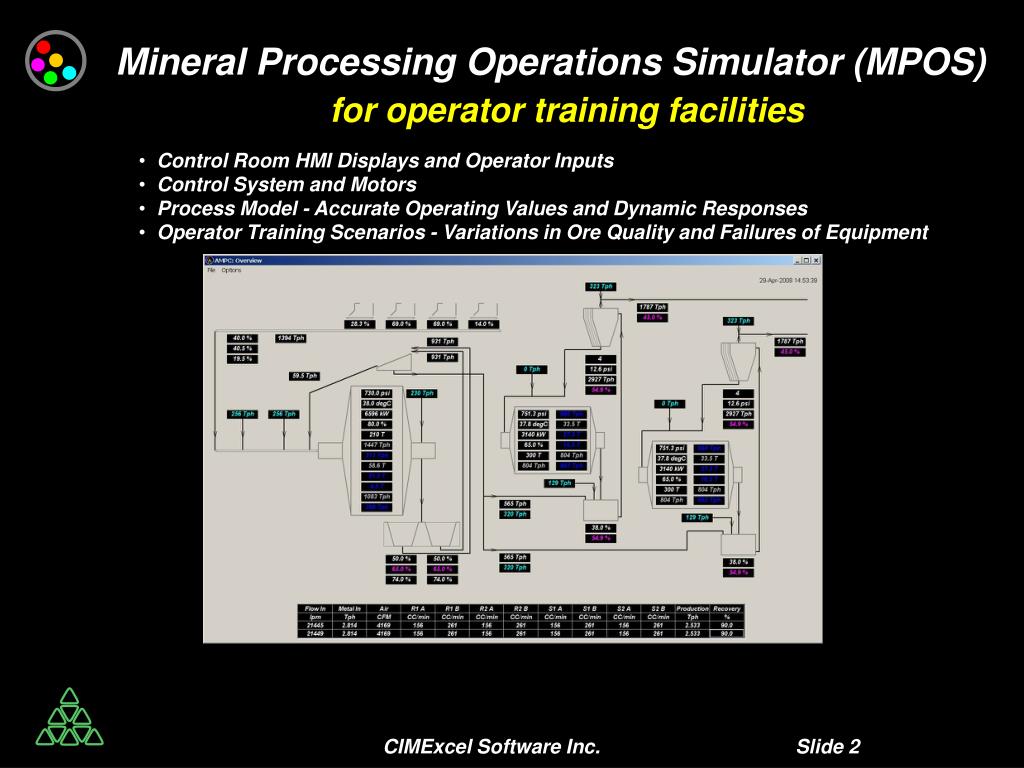

  2. Mineral Processing Operations Simulator (MPOS) • for operator training facilities • Control Room HMI Displays and Operator Inputs • Control System and Motors • Process Model - Accurate Operating Values and Dynamic Responses • Operator Training Scenarios - Variations in Ore Quality and Failures of Equipment CIMExcel Software Inc. Slide 2

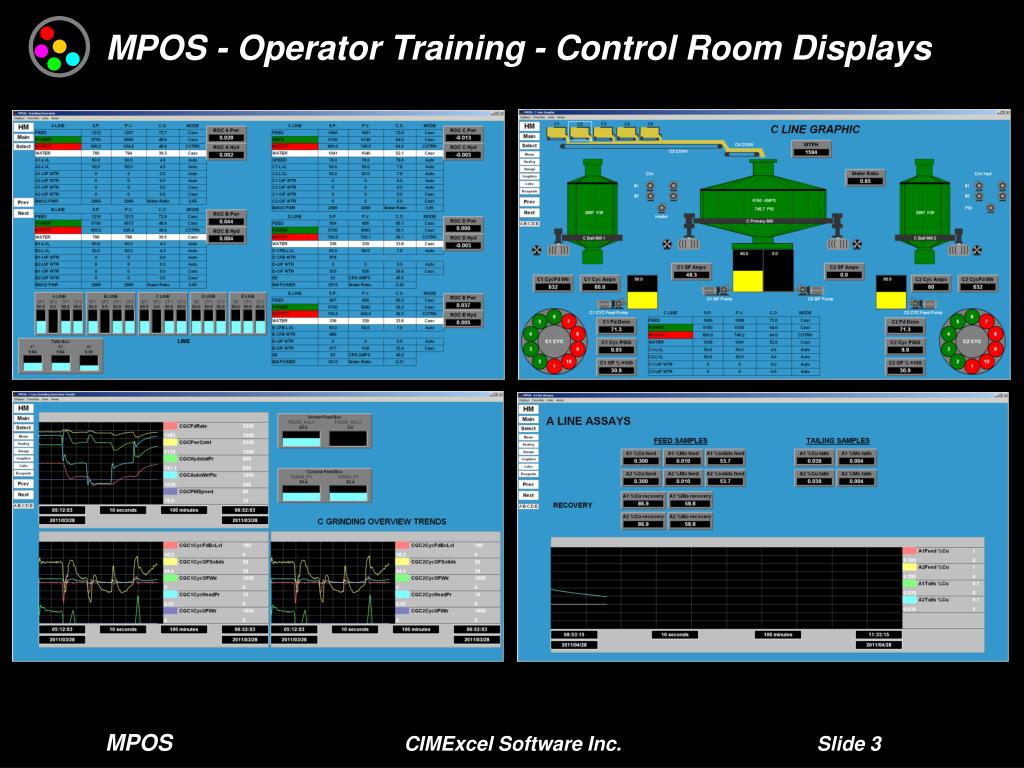

  3. MPOS - Operator Training - Control Room Displays MPOS CIMExcel Software Inc. Slide 3

  4. MPOS - Operator Training - Popup Controls MPOS CIMExcel Software Inc. Slide 4

  5. MPOS - Controls and Trends Display MPOS CIMExcel Software Inc. Slide 5

  6. MPOS - Additional Displays MPOS CIMExcel Software Inc. Slide 6

  7. MPOS - Training Scenarios MPOS CIMExcel Software Inc. Slide 7

  8. MPOS - Completely Configurable MPOS CIMExcel Software Inc. Slide 8

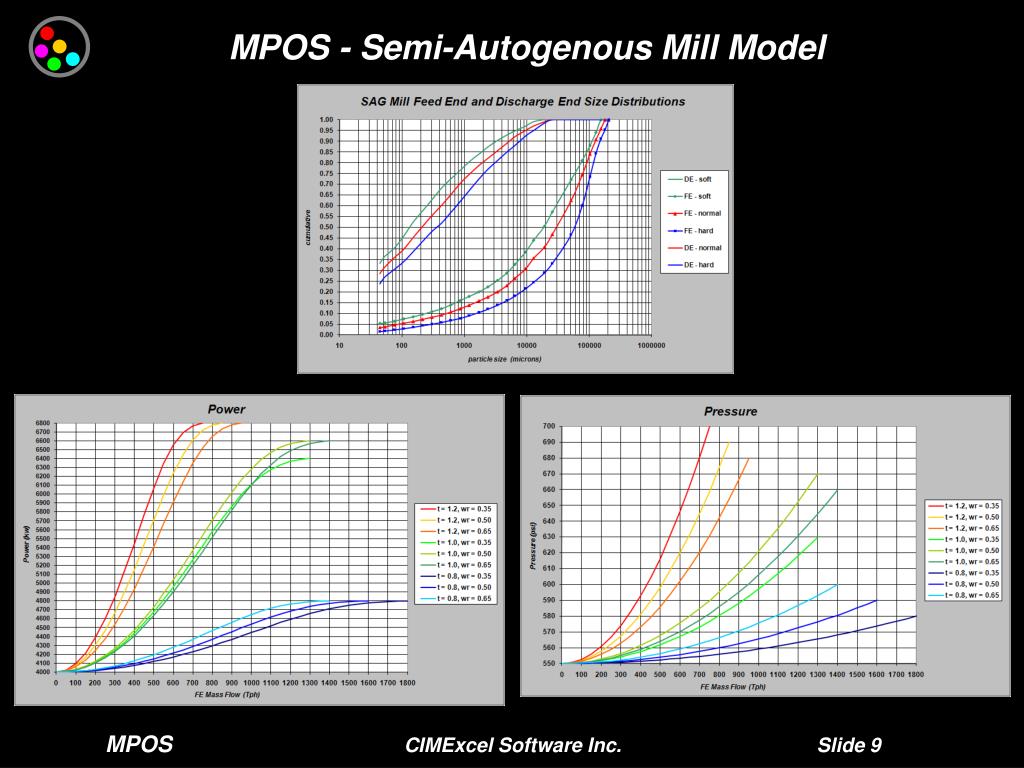

  9. MPOS - Semi-Autogenous Mill Model MPOS CIMExcel Software Inc. Slide 9

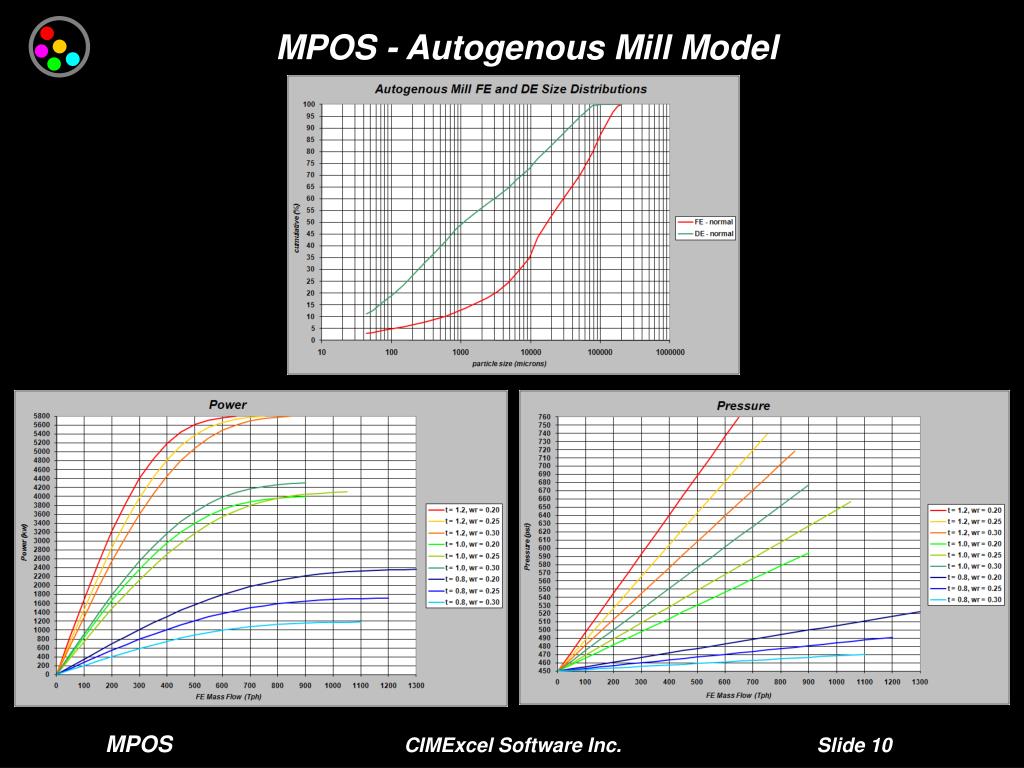

  10. MPOS - Autogenous Mill Model MPOS CIMExcel Software Inc. Slide 10

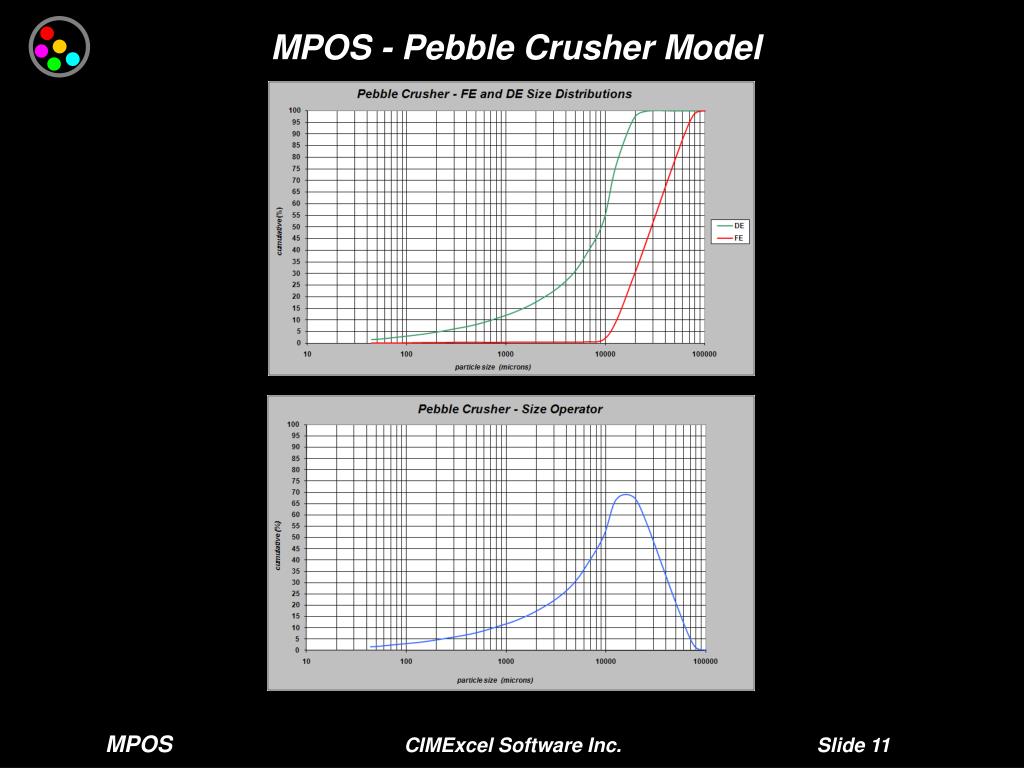

  11. MPOS - Pebble Crusher Model MPOS CIMExcel Software Inc. Slide 11

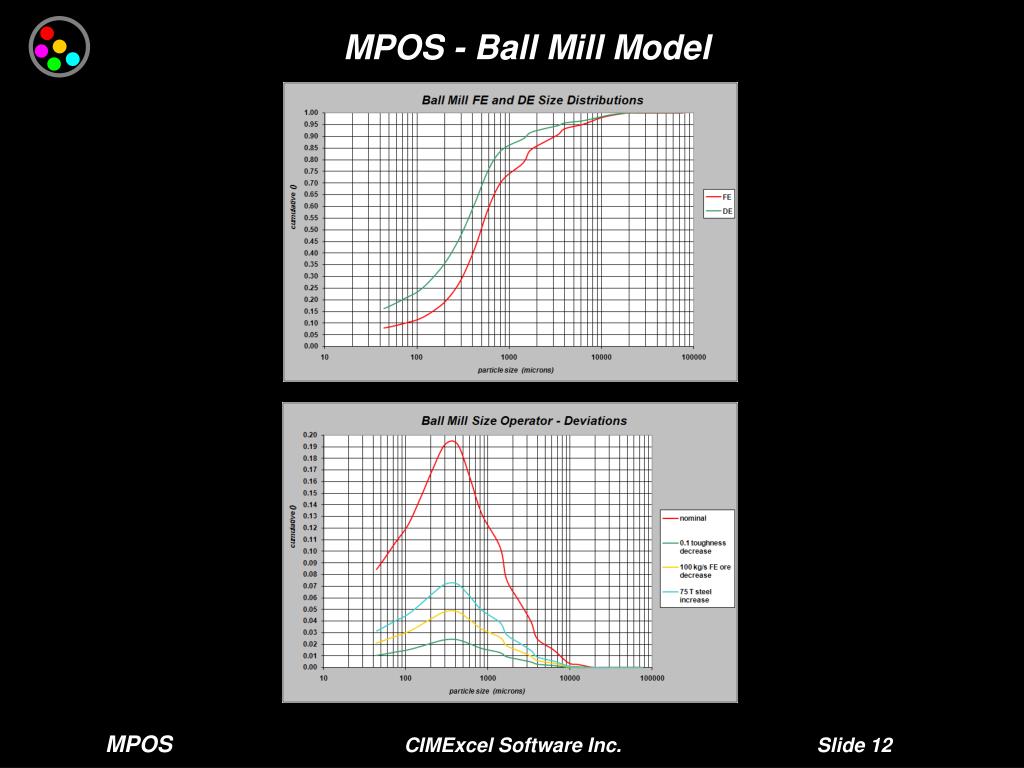

  12. MPOS - Ball Mill Model MPOS CIMExcel Software Inc. Slide 12

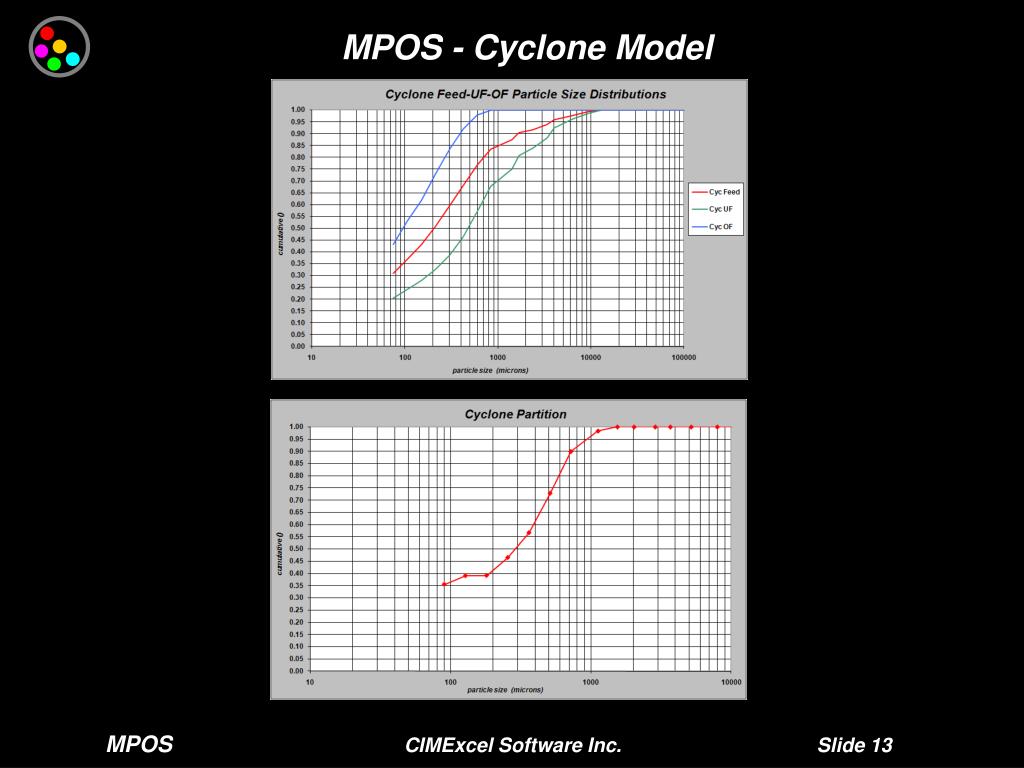

  13. MPOS - Cyclone Model MPOS CIMExcel Software Inc. Slide 13

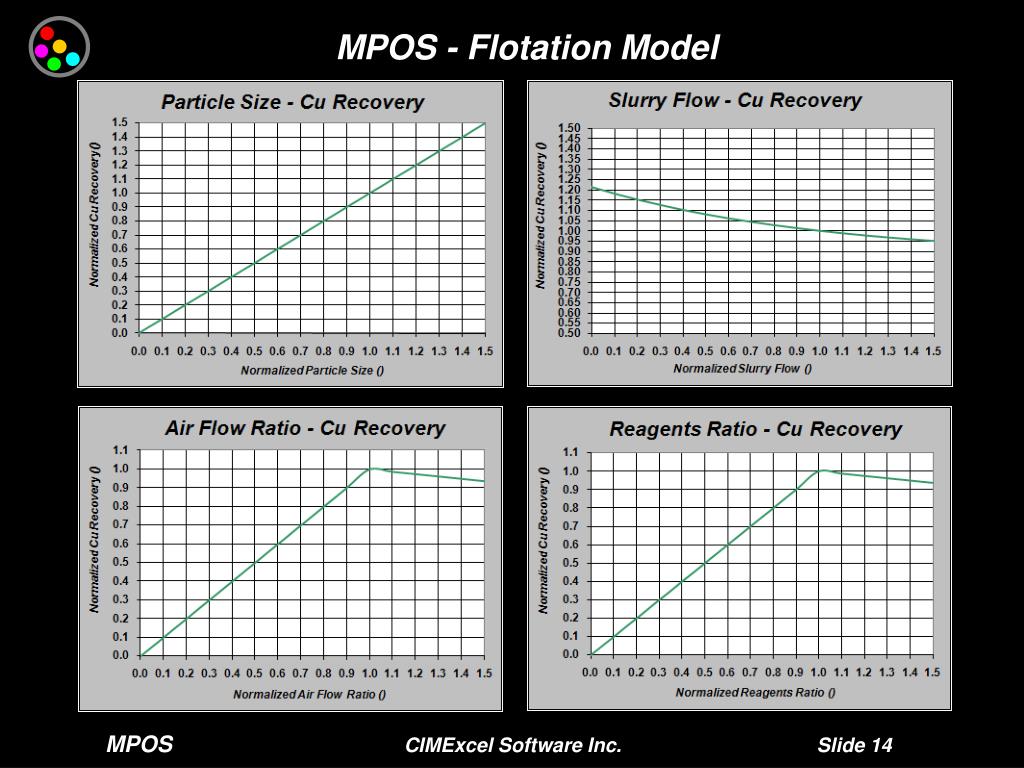

  14. MPOS - Flotation Model MPOS CIMExcel Software Inc. Slide 14

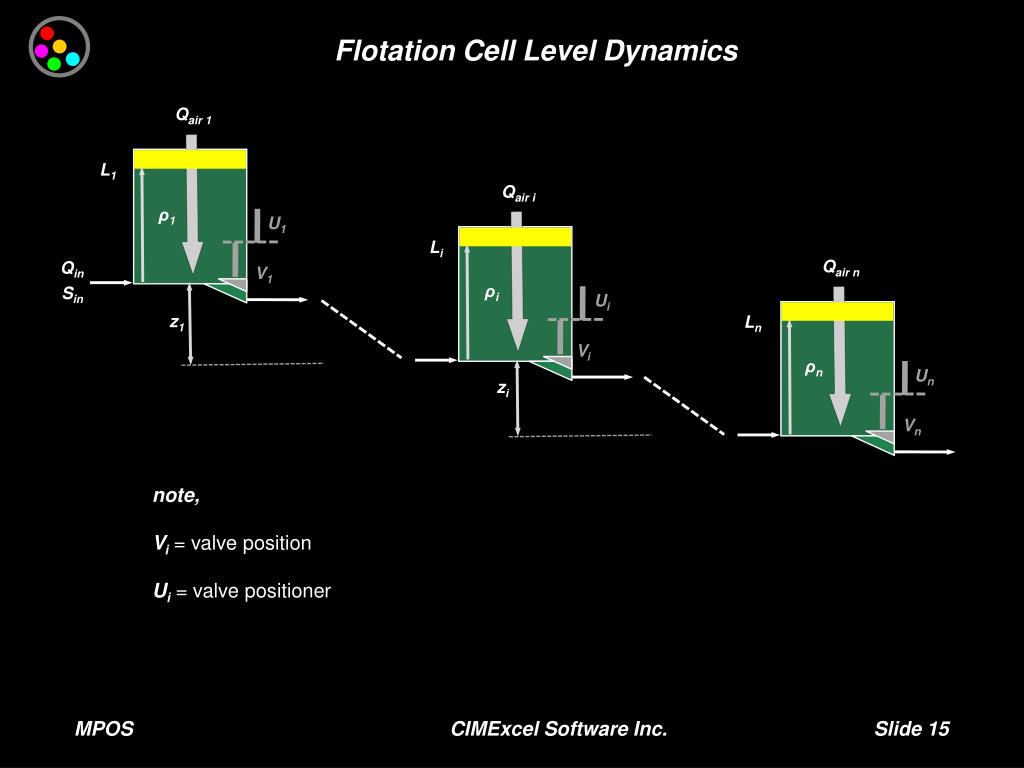

  15. Flotation Cell Level Dynamics Qair 1 L1 Qair i ρ1 U1 Li Qair n Qin V1 ρi Sin Ui z1 Ln Vi ρn Un zi Vn • note, • Vi = valve position • Ui = valve positioner MPOSCIMExcel Software Inc. Slide 15

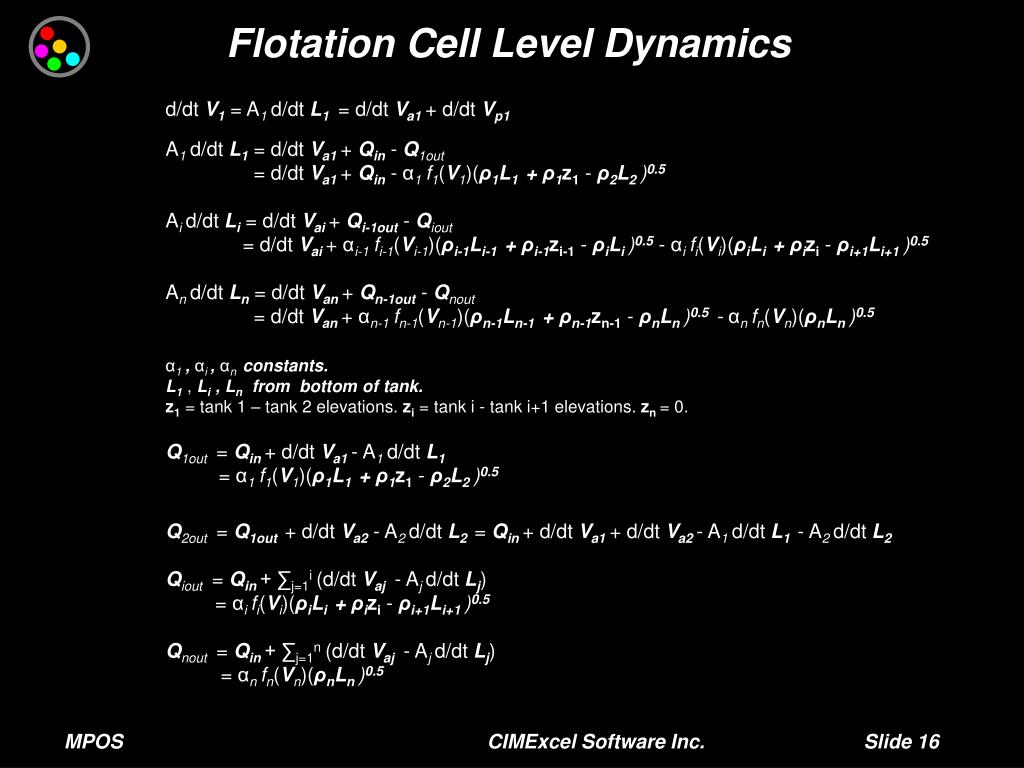

  16. Flotation Cell Level Dynamics • d/dt V1 = A1 d/dt L1 = d/dt Va1 + d/dt Vp1 • A1 d/dt L1 = d/dt Va1 + Qin - Q1out • = d/dt Va1 + Qin - α1 f1(V1)(ρ1L1 + ρ1z1 - ρ2L2 )0.5 • Ai d/dt Li = d/dt Vai + Qi-1out - Qiout • = d/dt Vai + αi-1 fi-1(Vi-1)(ρi-1Li-1 + ρi-1zi-1 - ρiLi )0.5 - αi fi(Vi)(ρiLi + ρizi - ρi+1Li+1 )0.5 • An d/dt Ln = d/dt Van + Qn-1out - Qnout • = d/dt Van + αn-1 fn-1(Vn-1)(ρn-1Ln-1 + ρn-1zn-1 - ρnLn )0.5 - αn fn(Vn)(ρnLn )0.5 • α1 , αi , αn constants. • L1 , Li , Ln from bottom of tank. • z1 = tank 1 – tank 2 elevations. zi = tank i - tank i+1 elevations. zn = 0. • Q1out = Qin + d/dt Va1 - A1 d/dt L1 • = α1 f1(V1)(ρ1L1 + ρ1z1 - ρ2L2 )0.5 • Q2out = Q1out + d/dt Va2 - A2 d/dt L2 = Qin + d/dt Va1 + d/dt Va2 - A1 d/dt L1 - A2 d/dt L2 • Qiout = Qin + ∑j=1i (d/dt Vaj - Aj d/dt Lj) • = αi fi(Vi)(ρiLi + ρizi - ρi+1Li+1 )0.5 • Qnout = Qin + ∑j=1n (d/dt Vaj - Aj d/dt Lj) • = αn fn(Vn)(ρnLn )0.5 MPOSCIMExcel Software Inc. Slide 16

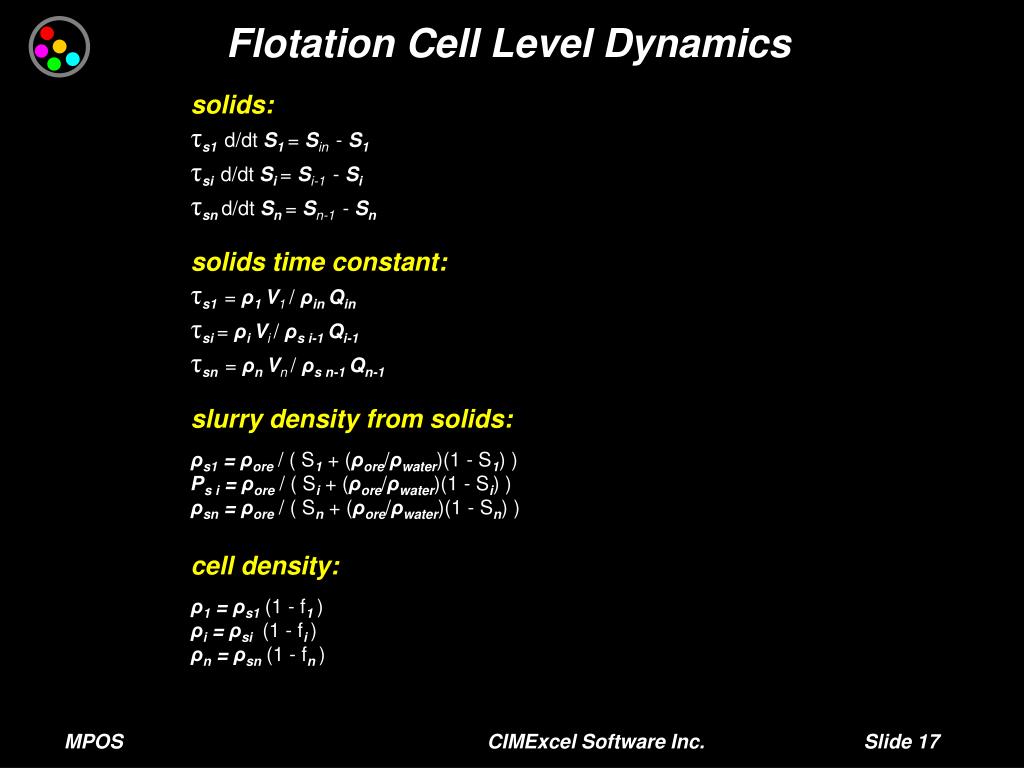

  17. Flotation Cell Level Dynamics • solids: • τs1 d/dt S1 = Sin - S1 • τsi d/dt Si = Si-1 - Si • τsn d/dt Sn = Sn-1 - Sn • solids time constant: • τs1 = ρ1 V1 / ρin Qin • τsi = ρi Vi / ρs i-1 Qi-1 • τsn = ρn Vn / ρs n-1 Qn-1 • slurry density from solids: • ρs1 = ρore/ ( S1 + (ρore/ρwater)(1 - S1) ) • Ρs i = ρore/ ( Si + (ρore/ρwater)(1 - Si) ) • ρsn = ρore/ ( Sn + (ρore/ρwater)(1 - Sn) ) • cell density: • ρ1 = ρs1(1 - f1 ) • ρi = ρsi(1 - fi ) • ρn = ρsn(1 - fn ) MPOSCIMExcel Software Inc. Slide 17

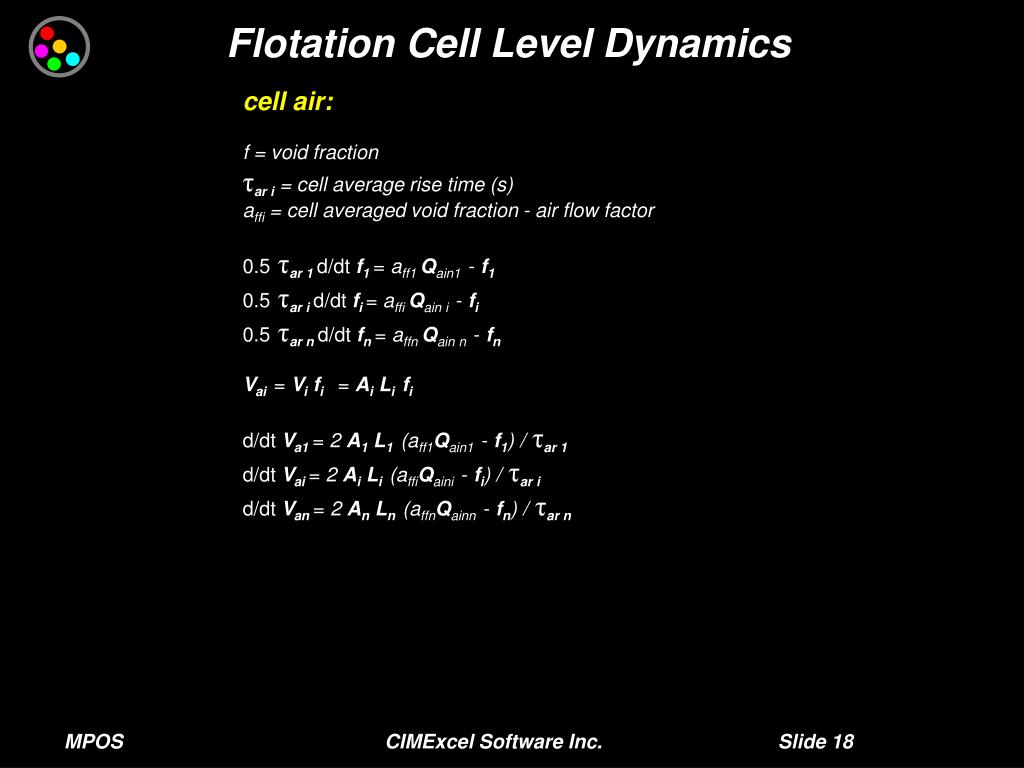

  18. Flotation Cell Level Dynamics • cell air: • f = void fraction • τar i = cell average rise time (s) • affi = cell averaged void fraction - air flow factor • 0.5τar 1 d/dt f1 = aff1 Qain1 - f1 • 0.5τar i d/dt fi = affi Qain i - fi • 0.5τar n d/dt fn = affn Qain n - fn • Vai = Vi fi= Ai Li fi • d/dt Va1 = 2A1 L1 (aff1Qain1 - f1) / τar 1 • d/dt Vai = 2Ai Li (affiQaini - fi) / τar i • d/dt Van = 2An Ln (affnQainn - fn) / τar n MPOSCIMExcel Software Inc. Slide 18

  19. Flotation Cell Level Dynamics • open loop response Cyclones 5 -> 6 -> 4 -> 5, Air Flow - Flow Ratio Control, Solids Setpoint Control @ 50% MPOSCIMExcel Software Inc. Slide 19

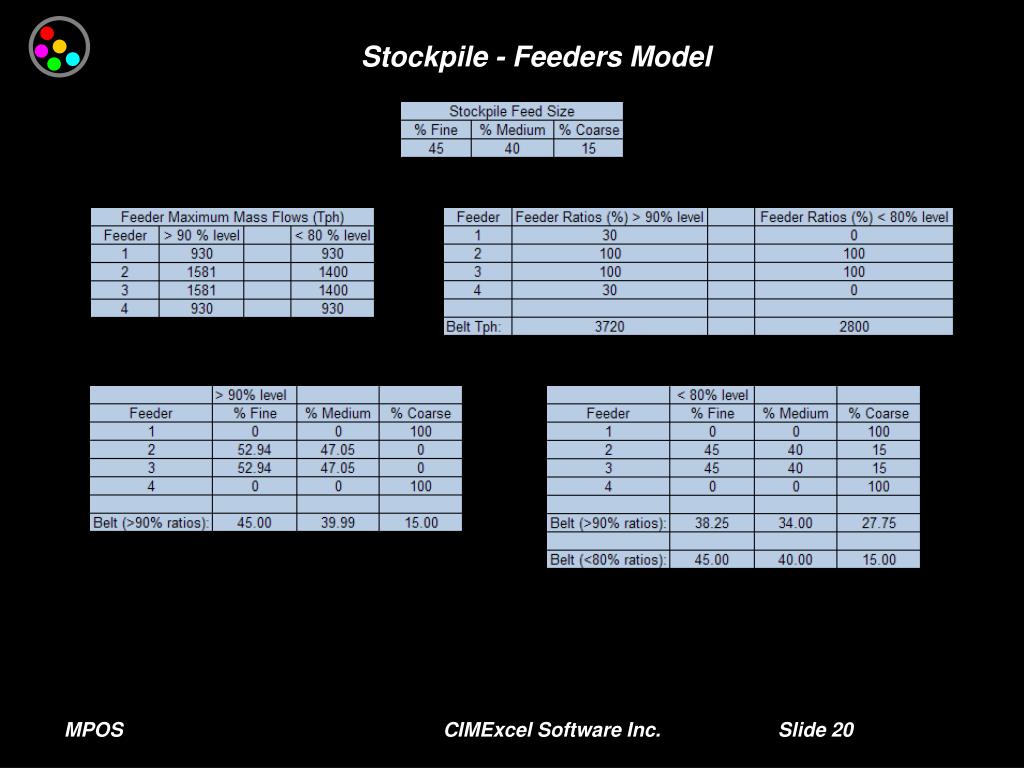

  20. Stockpile - Feeders Model MPOSCIMExcel Software Inc. Slide 20

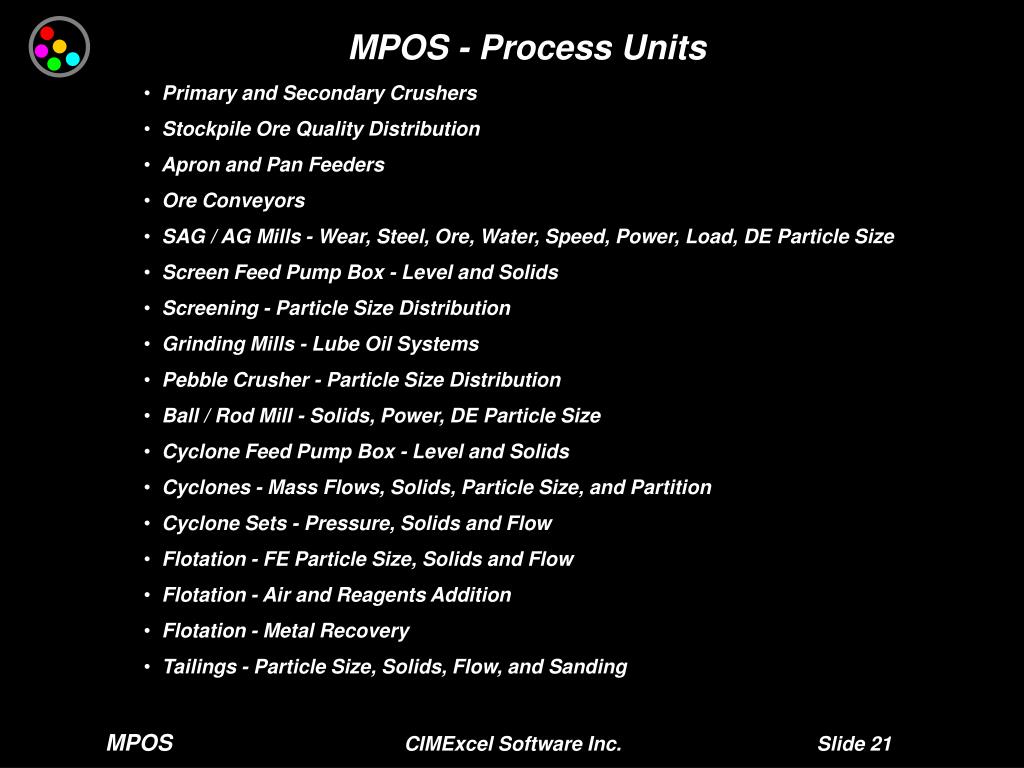

  21. MPOS - Process Units • Primary and Secondary Crushers • Stockpile Ore Quality Distribution • Apron and Pan Feeders • Ore Conveyors • SAG / AG Mills - Wear, Steel, Ore, Water, Speed, Power, Load, DE Particle Size • Screen Feed Pump Box - Level and Solids • Screening - Particle Size Distribution • Grinding Mills - Lube Oil Systems • Pebble Crusher - Particle Size Distribution • Ball / Rod Mill - Solids, Power, DE Particle Size • Cyclone Feed Pump Box - Level and Solids • Cyclones - Mass Flows, Solids, Particle Size, and Partition • Cyclone Sets - Pressure, Solids and Flow • Flotation - FE Particle Size, Solids and Flow • Flotation - Air and Reagents Addition • Flotation - Metal Recovery • Tailings - Particle Size, Solids, Flow, and Sanding MPOS CIMExcel Software Inc. Slide 21

  22. MPOS - Conventional and Advanced Control Loops • Lube Oil Systems • Apron and Pan Feeder Speed • SAG / AG Mill - Feedrate • SAG / AG Mill - Power and Load • SAG / AG Mill - Water Ratio • SAG / AG Mill - Speed • SAG / AG Mill - Water Addition • Screen Feed Pump Box Level • Pebble Crusher • Cyclone Feed Pump Box Level • Cyclone Scheduling • Cyclone Underflow Water Addition • Cyclone Overflow Water Addition • Cyclone Overflow Solids • Flotation Air and Reagents MPOS CIMExcel Software Inc. Slide 22
