Understanding Bisectors in Triangles: Theorems and Examples

This chapter delves into bisectors in triangles, focusing on perpendicular and angle bisectors. The Perpendicular Bisector Theorem states that a point on the perpendicular bisector of a segment is equidistant from the segment's endpoints. The converse affirms that any point equidistant from endpoints lies on the bisector. Additionally, the Angle Bisector Theorem highlights that a point on the angle bisector is equidistant from the angle's sides, with its converse also validated. By exploring various examples and exercises, this section reinforces comprehension through practical application.

imelda
Télécharger la présentation

Understanding Bisectors in Triangles: Theorems and Examples

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Chapter 5: Relationships within Triangles 5.2 Bisectors in Triangles

  2. A little vocab… • perpendicular bisector: • equidistant: • angle bisector:

  3. Theorem 5-2 & 5-3 • Perpendicular Bisector Theorem • If a point is on the perpendicular bisector of a segment, then it is equidistant from the endpoints of the segment • Converse of the Perpendicular Bisector Theorem • If a point is equidistant from the endpoints of a segment, then it is on the perpendicular bisector of the segment

  4. Example 1 • Use the information given in the diagram. CD is the perpendicular bisector of AB. Find CA and DB.

  5. Theorem 5-4 & 5-5 • Angle Bisector Theorem • If a point is on the bisector of an angle, then the point is equidistant from the sides of the angle • Converse of the Angle Bisector Theorem • If a point in the interior of an angle is equidistant from the sides of the angle, then the point is on the angle bisector

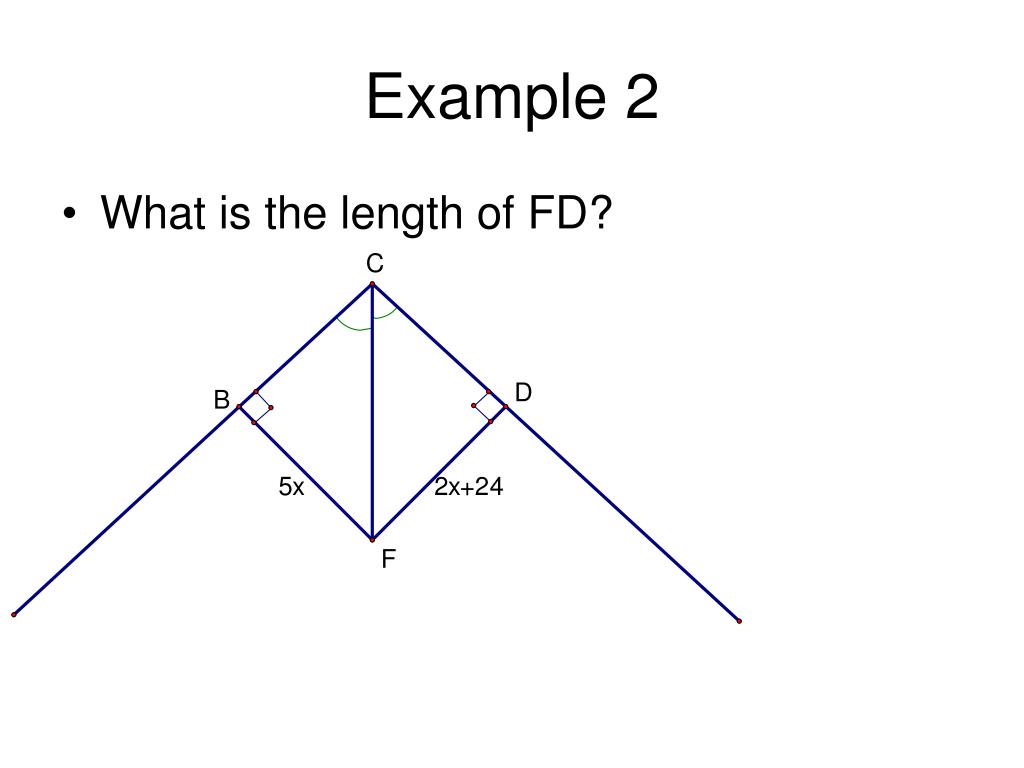

  6. Example 2 • What is the length of FD?

  7. Example 3 • Find the value of x, CG, and the perimeter of quadrilateral ABCG.

  8. Homework
