Adaptive Data Hiding in Edge Areas of Images with Spatial LSB Domain Systems

Adaptive Data Hiding in Edge Areas of Images with Spatial LSB Domain Systems. Source: IEEE Transactions on Information Forensics and Security, Vol. 3, No. 3, pp. 488-497, Sep. 2008. Authors: Cheng-Hsing Yang, Chi-Yao Weng, Shiuh-Jeng Wang, and Hung-Min Sun

imogene-pennington
Télécharger la présentation

Adaptive Data Hiding in Edge Areas of Images with Spatial LSB Domain Systems

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Adaptive Data Hiding in Edge Areas of Images with Spatial LSB Domain Systems Source: IEEE Transactions on Information Forensics and Security, Vol. 3, No. 3, pp. 488-497, Sep. 2008. Authors: Cheng-Hsing Yang, Chi-Yao Weng, Shiuh-Jeng Wang, and Hung-Min Sun Speaker: Chia-Chun Wu (吳佳駿) Date: 2008/09/04

  2. Outline • Introduction • Related works • The proposed method • Experimental results • Conclusion

  3. Introduction • Fixed Data Hiding Secret data: 0 1 1 … 1 P1, P2, P3, …, Pn P1, P2, P3, …, Pn 10011110 Cover image Stego-image • Adaptive Data Hiding Secret data: 0 10 111 … 1010 P1, P2, P3, …, Pn P1, P2, P3, …, Pn Cover image Stego-image 10011110 10011111

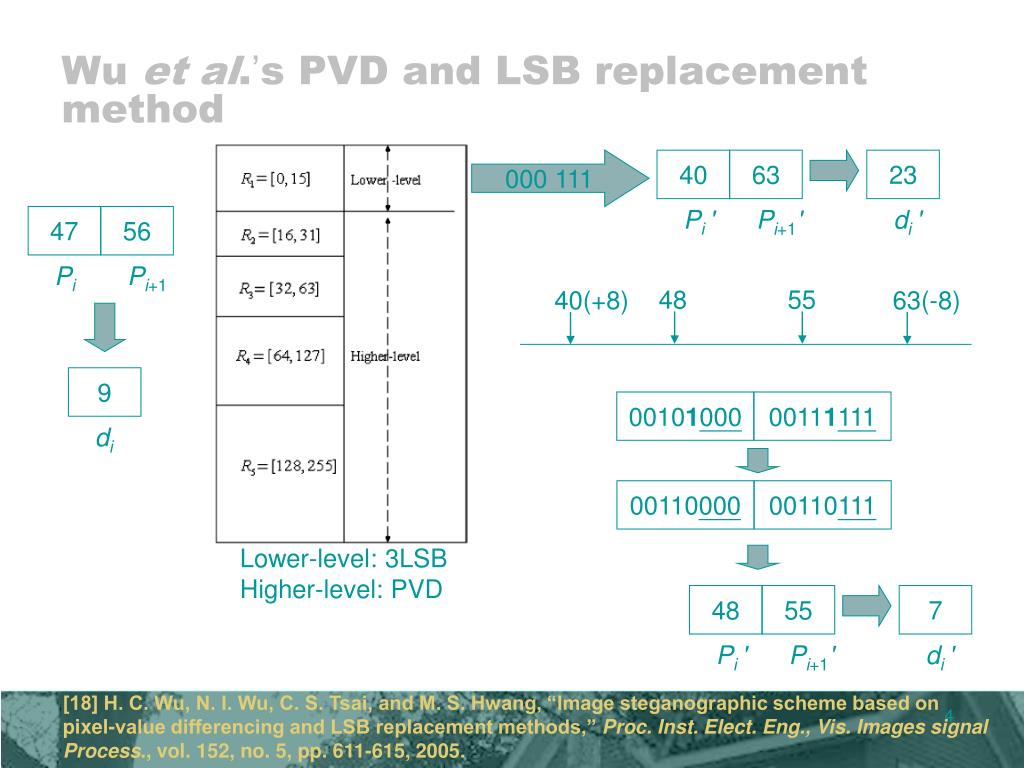

  4. 23 di ' 48 55 40(+8) 63(-8) Wu et al.’s PVD and LSB replacement method 000 111 40 63 Pi ' Pi+1' 47 56 Pi Pi+1 9 00101000 00111111 di 00110000 00110111 Lower-level: 3LSB Higher-level: PVD 48 55 7 Pi ' Pi+1' di ' [18] H. C. Wu, N. I. Wu, C. S. Tsai, and M. S. Hwang, “Image steganographic scheme based on pixel-value differencing and LSB replacement methods,” Proc. Inst. Elect. Eng., Vis. Images signal Process., vol. 152, no. 5, pp. 611-615, 2005.

  5. The proposed method (1/5) 47 56 9 Pi Pi+1 di |R1| = 16, |R2|=16, |R3|=224 4-4-7 Case 1 Case 2 Case 3 Case 4

  6. 64 63 76 48(+24) 79(-24) MSE=10 64 79 12 MSE=394 48 63 15 MSE=170 64 63 1 Pi+1' Pi ' di ' The proposed method (2/5) • Case 1 63 76 13 48 79 31 Pi Pi+1 di Pi ' Pi+1' di ' 00001111 00111111 01001100 00110000 01001111 4-4-7 Min(10, 394, 170) = 10

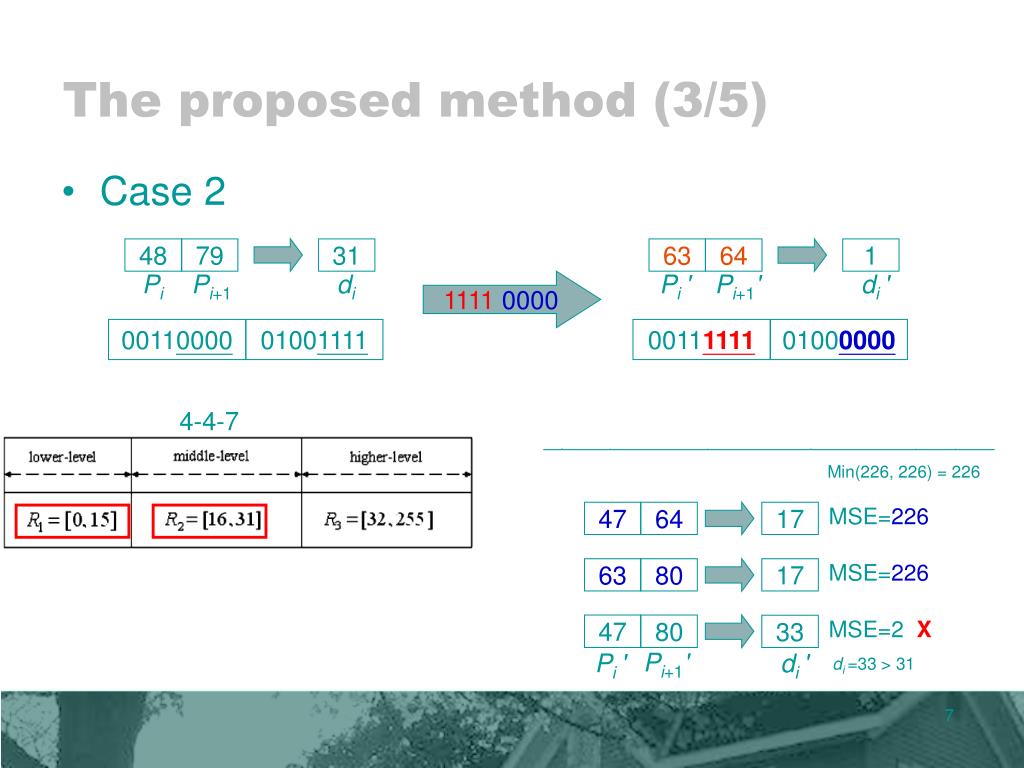

  7. 63(-24) 48 80 79 47 64(+24) MSE=226 47 64 17 MSE=226 63 80 17 MSE=2 X 47 80 33 Pi+1' Pi ' di ' The proposed method (3/5) • Case 2 48 79 31 63 64 1 Pi Pi+1 di Pi ' Pi+1' di ' 11110000 00110000 01001111 00111111 01000000 4-4-7 Min(226, 226) = 226 di =33 > 31

  8. 48(+24) 51 82 67 64 83(-24) MSE=170 64 83 19 MSE=234 48 67 19 MSE=394 X 64 67 3 Pi+1' Pi ' di ' The proposed method (4/5) • Case 3 51 82 31 48 83 35 Pi Pi+1 di Pi ' Pi+1' di ' 00000011 00110011 01010010 00110000 01010011 4-4-7 Min(170, 234) = 170 di =3 < 16

  9. 63(-27) 83 207 48 79(+27) 63 207 144 Pi+1' Pi ' di ' The proposed method (5/5) • Case 4 48 83 35 63 79 16 Pi Pi+1 di Pi ' Pi+1' di ' 0111111 1001111 00110000 01010011 00111111 01001111 4-4-7 63 - 27 = -1 < 0

  10. Experimental results (1/3) Capacity: 883196 bits PSNR: 33.52 dB Capacity: 916010 bits PSNR: 33.01 dB Capacity: 816956 bits PSNR: 37.82 dB Capacity: 874642 bits PSNR: 34.84 dB Lower-level Higher-level Lower-level Middle-level Higher-level 3-4 3-4-5 R1=[0, 7] R2=[8, 255] R1=[0, 15] R2=[16, 47] R3=[48, 255]

  11. Experimental results (2/3)

  12. Experimental results (3/3)

  13. Conclusion • The proposed method majors in more significant promotion in the term of adaptability, capacity, and imperceptivity.
