  1. Monitoring and Detection Equipment Hazmat Industry Technician

  2. Types of Equipment • Monitoring equipment • Detection devices • Air sampling systems

  3. Purpose of Equipment • Detect presence of substance • Identify the substance • Measure the concentration

  4. Monitoring Equipment • Continuously measure concentration • Detect fluctuations

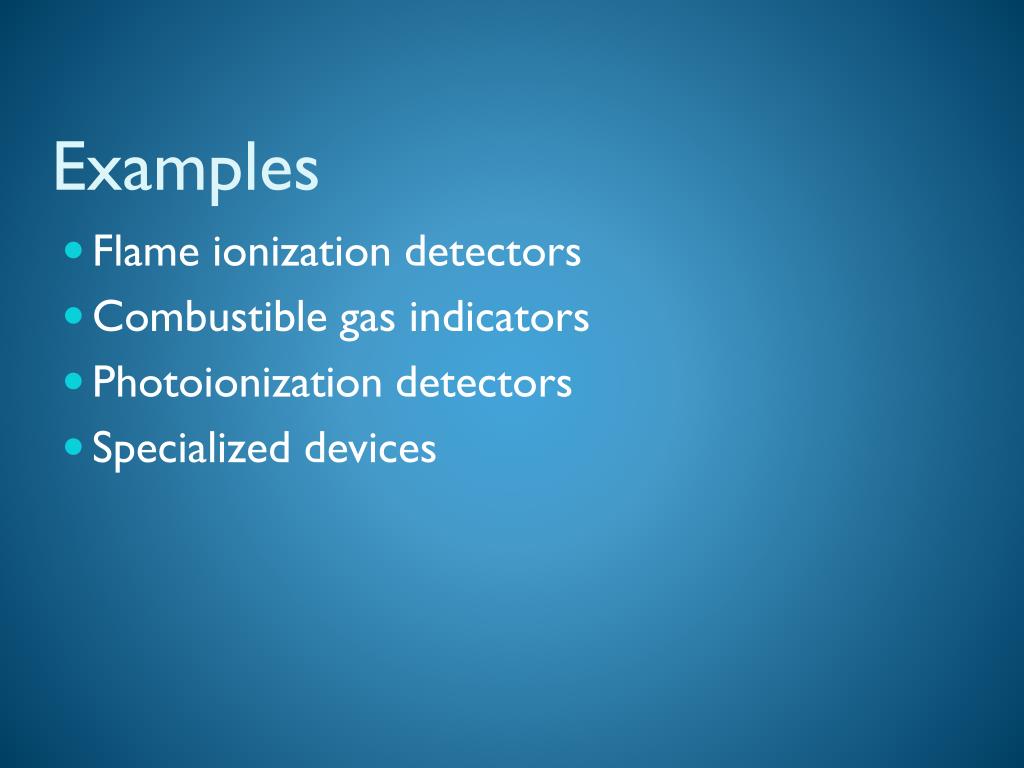

  5. Examples • Flame ionization detectors • Combustible gas indicators • Photoionization detectors • Specialized devices

  6. Detection Devices • One-time measuring devices • Provide only positive or negative indication

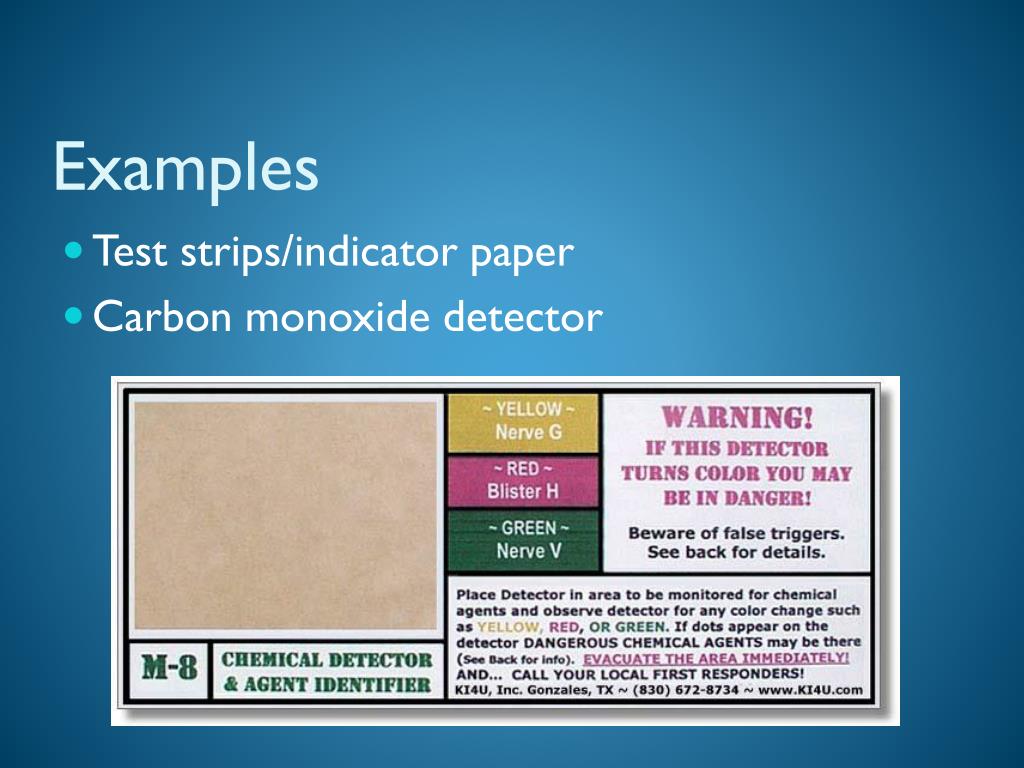

  7. Examples • Test strips/indicator paper • Carbon monoxide detector

  8. Equipment in Both Categories • pH paper • Colorimetric tubes

  9. Air Sampling Systems • May be required for your worksite • Measure long-term exposures

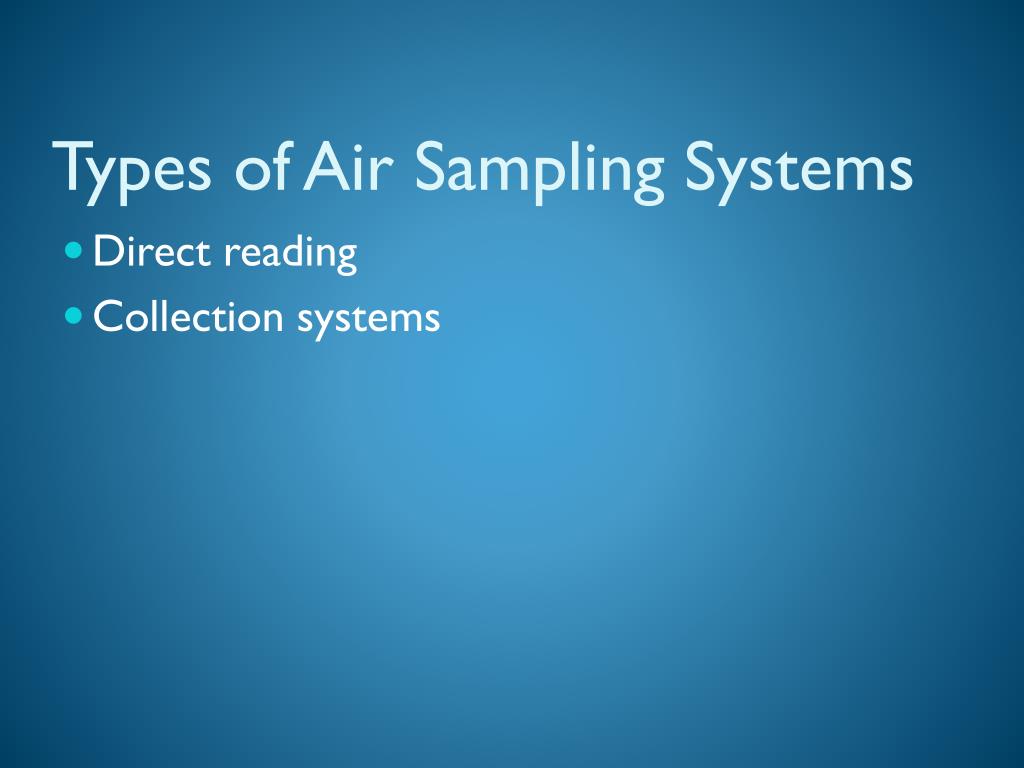

  10. Types of Air Sampling Systems • Direct reading • Collection systems

  11. Caveat • One size doesn’t fit all • Each type has limitations

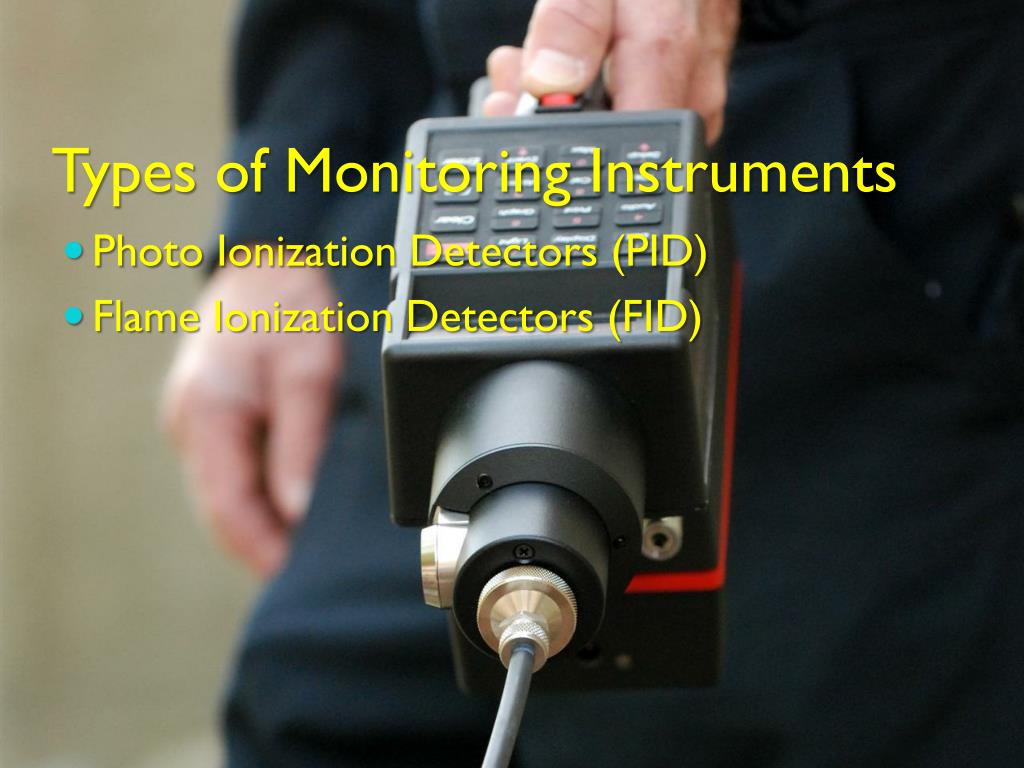

  12. Types of Monitoring Instruments • Photo Ionization Detectors (PID) • Flame Ionization Detectors (FID)

  13. Types of Monitoring Instruments • Combustible Gas Indicators (CGI)

  14. Types of Monitoring Instruments • Substance specific • Oxygen • Carbon monoxide • Hydrogen sulfide

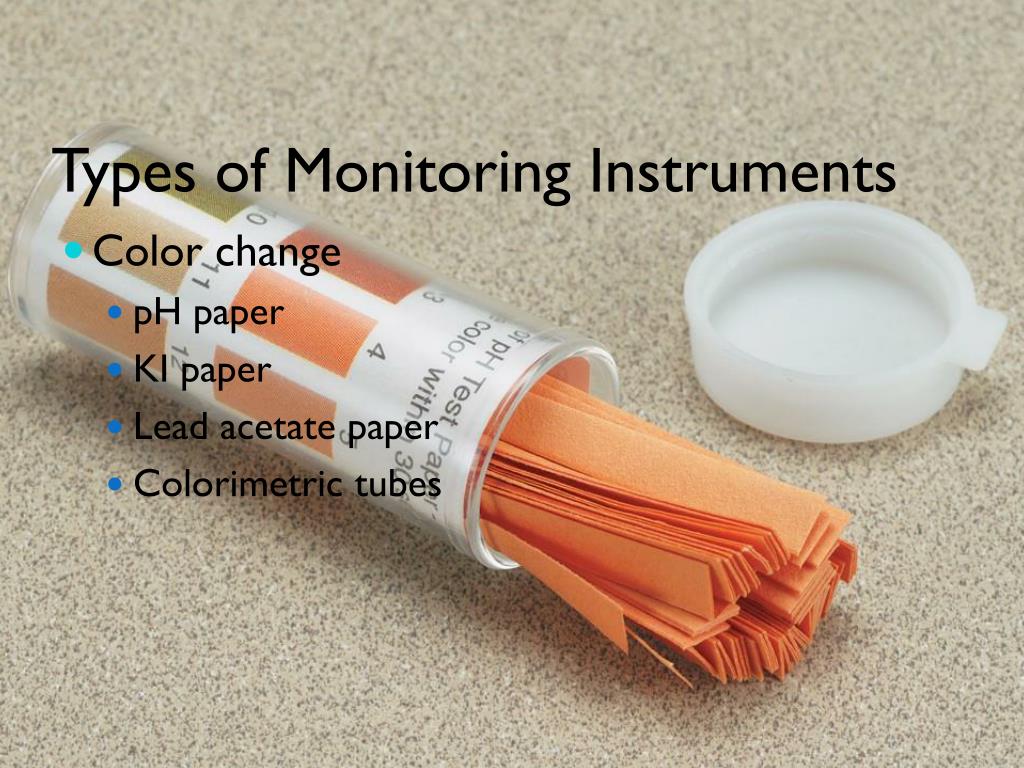

  15. Types of Monitoring Instruments • Color change • pH paper • KI paper • Lead acetate paper • Colorimetric tubes

  16. Capabilities and Limitations

  17. Photo Ionization Detectors • Capabilities • Detect wide variety of vapors • Detects vapors at low concentrations • Easy to use

  18. Photo Ionization Detectors • Limitations • Detection ability depends on lamp • May need to be calibrated • Corrosives kill it

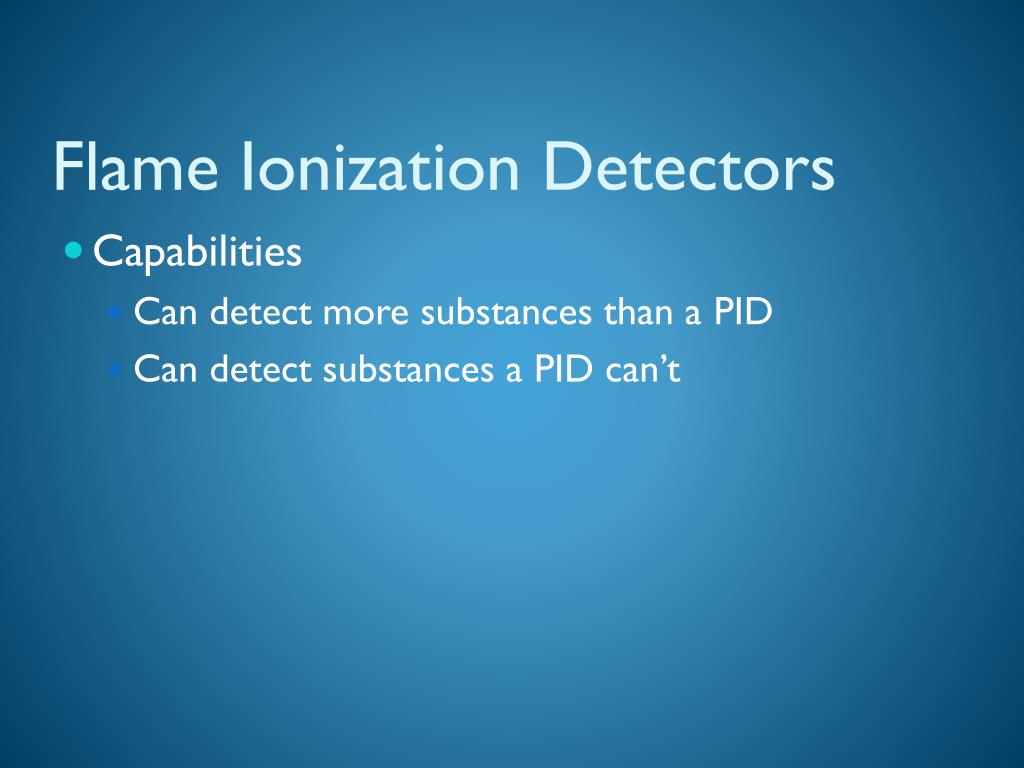

  19. Flame Ionization Detectors • Capabilities • Can detect more substances than a PID • Can detect substances a PID can’t

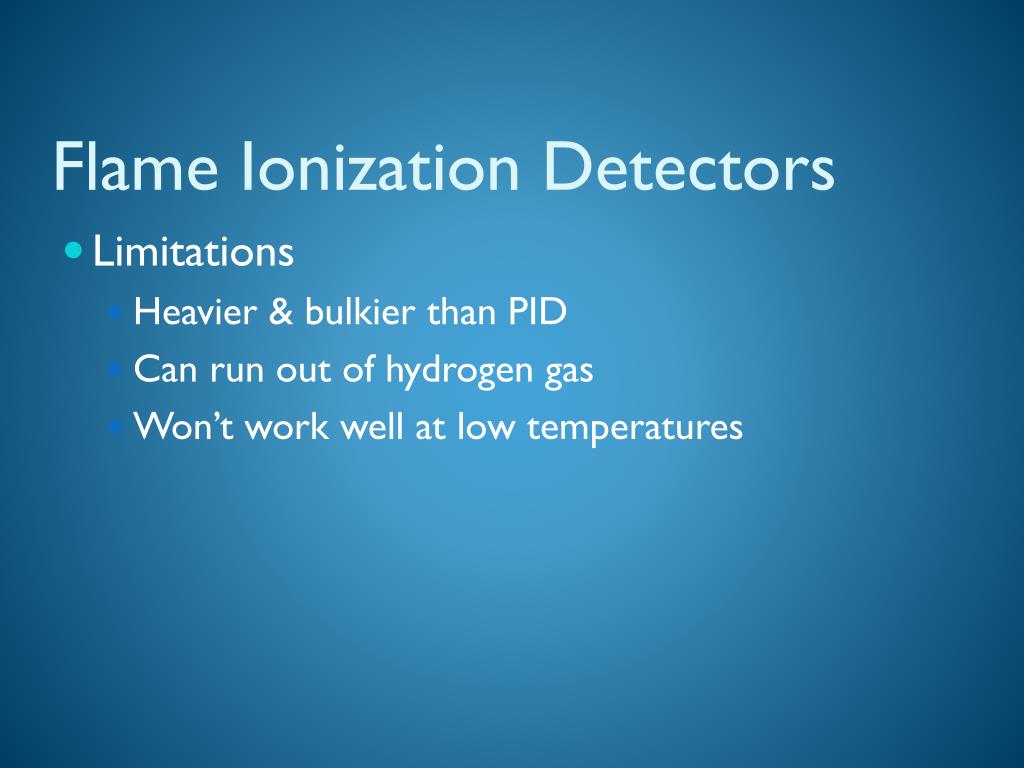

  20. Flame Ionization Detectors • Limitations • Heavier & bulkier than PID • Can run out of hydrogen gas • Won’t work well at low temperatures

  21. Combustible Gas Indicators • Capabilities • Warns of flammable gases/vapors • Accurate for most common gases • Small, light & easy to use

  22. Combustible Gas Indicators • Limitations • May not be accurate for a gas it’s not calibrated to • Common substances can damage sensor • Not accurate in oxygen-deficient atmosphere

  23. Oxygen Sensors • Capabilities • Quickly & accurately measure O2 level

  24. Oxygen Sensors • Limitations • Lacks sensitivity of other sensors • May be inaccurate in presence of oxidizing gases

  25. Color Change • Capabilities • Provide quick indication of substance • Limitation • Detection range may be limited • May not be specific to one substance

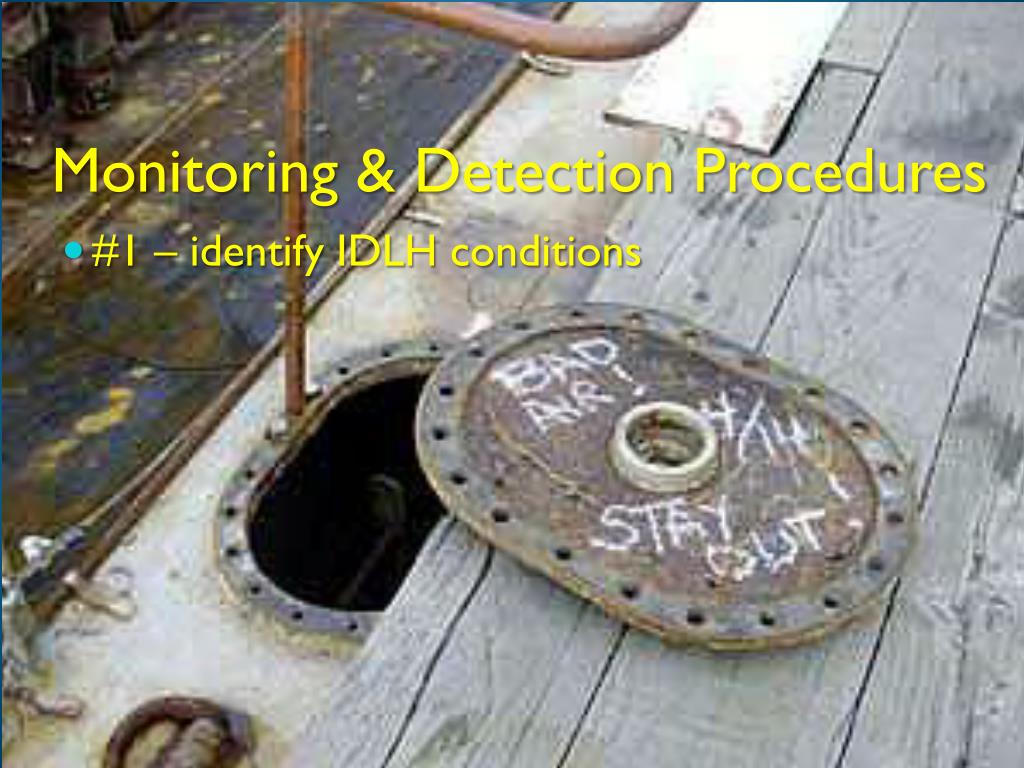

  26. Monitoring & Detection Procedures • #1 – identify IDLH conditions

  27. IDLH Conditions • Lack of sufficient oxygen • Oxygen-enriched atmosphere • Flammable gases/vapors • Highly toxic contaminants

  28. Indications of IDLH Conditions • Activated alarm system • Visible vapor cloud • Large amount of product leaking • Dead stuff • Insects, plants, etc.

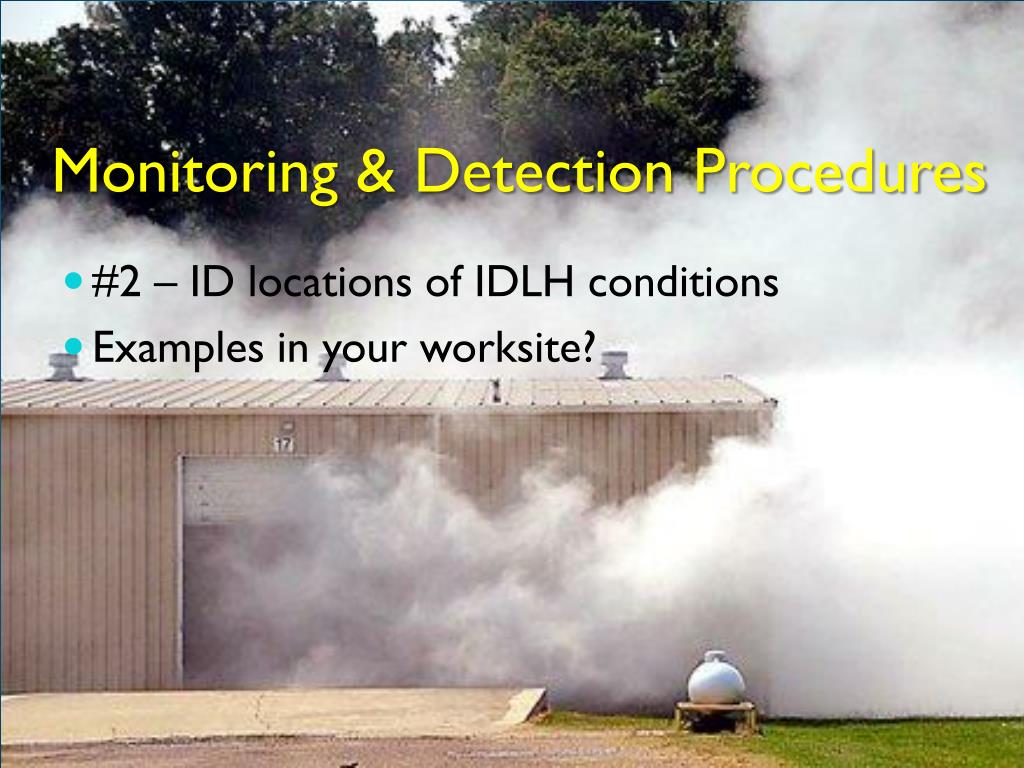

  29. Monitoring & Detection Procedures • #2 – ID locations of IDLH conditions • Examples in your worksite?

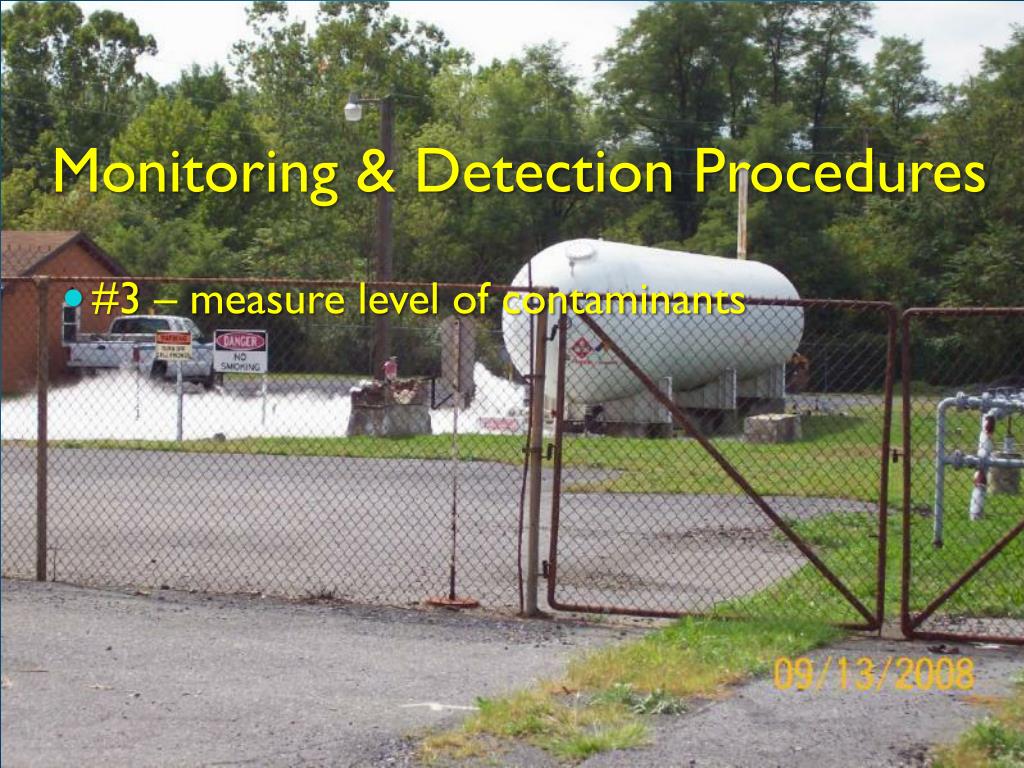

  30. Monitoring & Detection Procedures • #3 – measure level of contaminants

  31. General Procedures • Read the manual! • Monitor for radioactivity • Determine level of oxygen

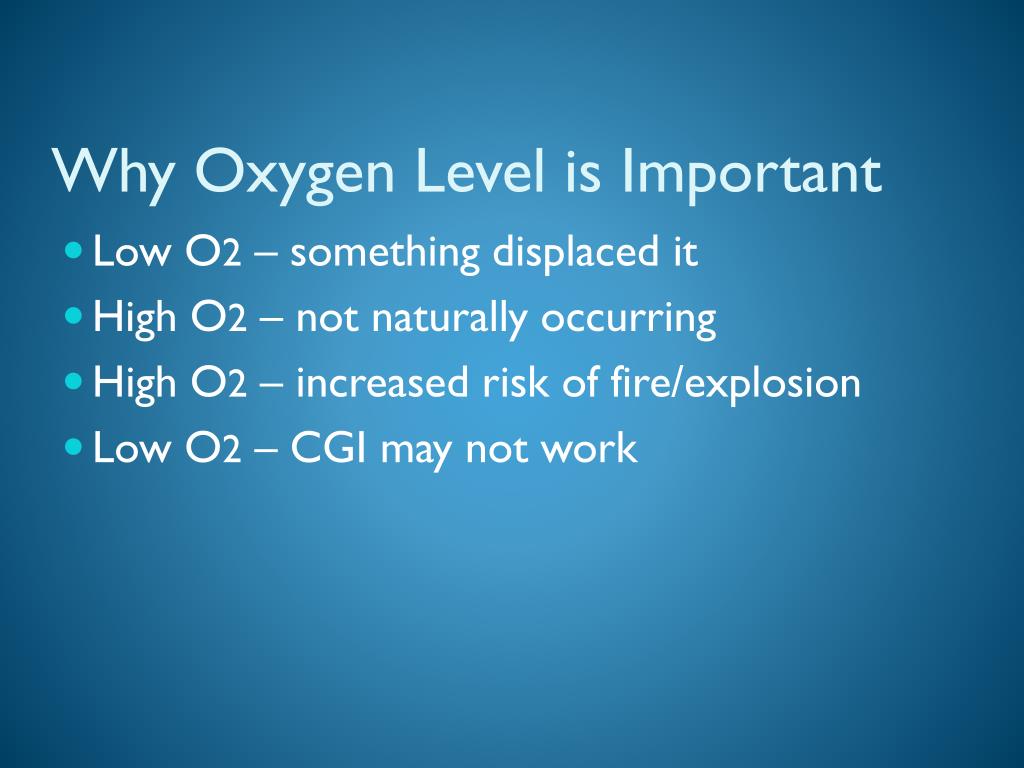

  32. Why Oxygen Level is Important • Low O2 – something displaced it • High O2 – not naturally occurring • High O2 – increased risk of fire/explosion • Low O2 – CGI may not work

  33. More General Procedures • Use pH paper • Approach from upwind (if possible) • Monitor high and low • Zero reading? • Doesn’t mean nothing is there1

  34. Maintenance and Testing • #1 – store and use properly • Read the manual!

  35. Calibration • Ensures instrument is accurate • Follow manufacturer’s recommendations • Written record? • Does your workplace require it?

  36. Bump Test • Verifies calibration • Expose instrument to known gas • Bad bump test? Time for calibration

  37. Detailed Procedures Read the manual Follow workplace procedures
