  1. Model 5 Long Distance Phone Calls By Benjamin Cutting 4 2 4 9 5 2 3 5 6 1 8 8 3 3 5 6

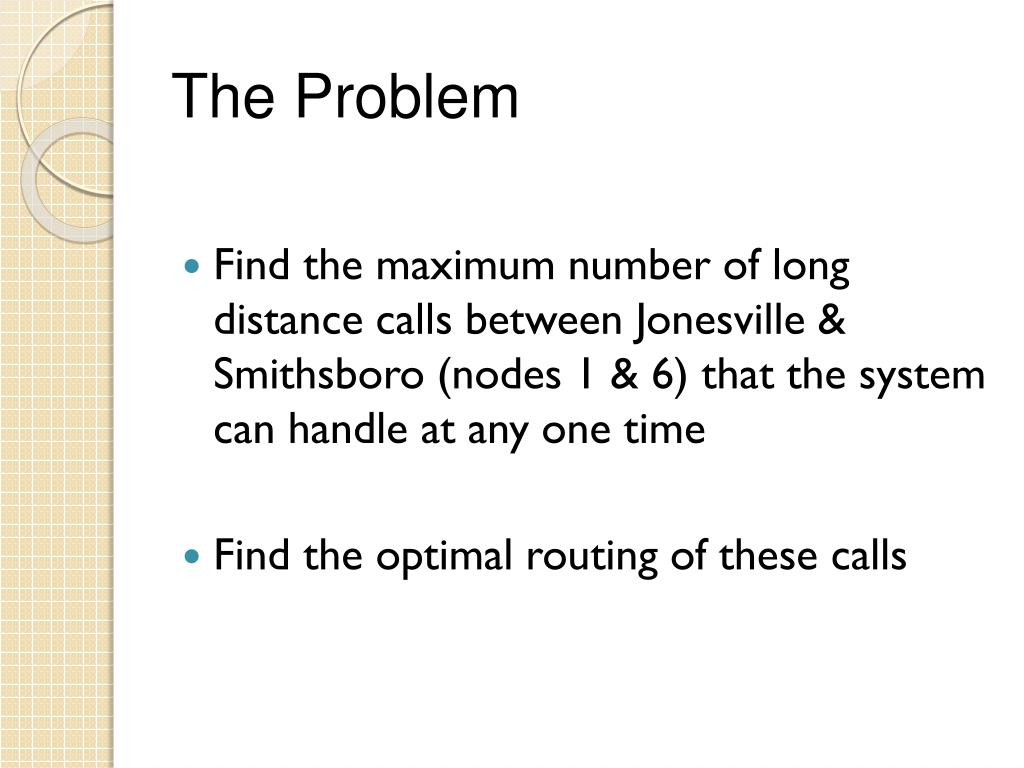

  2. The Problem • Find the maximum number of long distance calls between Jonesville & Smithsboro (nodes 1 & 6) that the system can handle at any one time • Find the optimal routing of these calls

  3. Constraints & Assumptions • Call each line Xij • Each line can hold at most the number of calls it is assigned in the given diagram • Calls can only go one direction on the line • Assume all calls in the system are between Jonesville & Smithsboro • The amount of calls going into a given node equals the number going out • The total of the calls leaving Jonesville is equal to the total of the calls arriving at Smithsboro

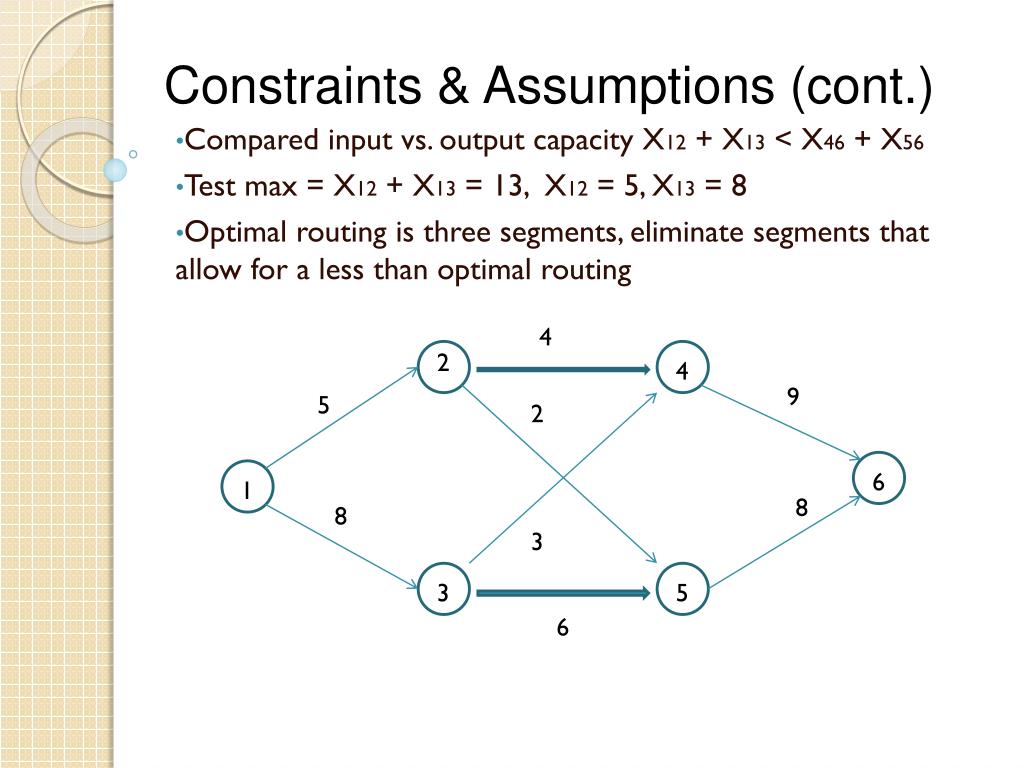

  4. Constraints & Assumptions (cont.) Compared input vs. output capacity X12 + X13 < X46 + X56 Test max = X12 + X13 = 13, X12 = 5, X13 = 8 Optimal routing is three segments, eliminate segments that allow for a less than optimal routing 4 2 4 9 5 2 6 1 8 8 3 3 5 6

  5. Constraints (cont.) • X12 = 5 • X13 = 8 • X12 = X24 + X25 • X13 = X34 + X35 • X24 + X34 = X46 • X24 + X35 = X56

  6. Methods • Put constraints in a matrix and performed row reduction • Found X46 + X56 = 13 • X35 & X56 free variables • To find optimal routing pick values for free variables subject to the constraints of the system • e.g. Pick X35 = 6, X56 = 7 • Implies X24 = 4, X34 = 2, X25 = 1, X46 = 6 • With a max call capacity of 13 and every call being routed through 3 segments

  7. Conclusions • The max call capacity of the system is 13 • The shortest routing route is three segments (Max is four segments) • All 13 calls can be handled by only three segments • There are several (4) optimal routing routes, determined by picking values for X35 and X56 subject to the system constraints

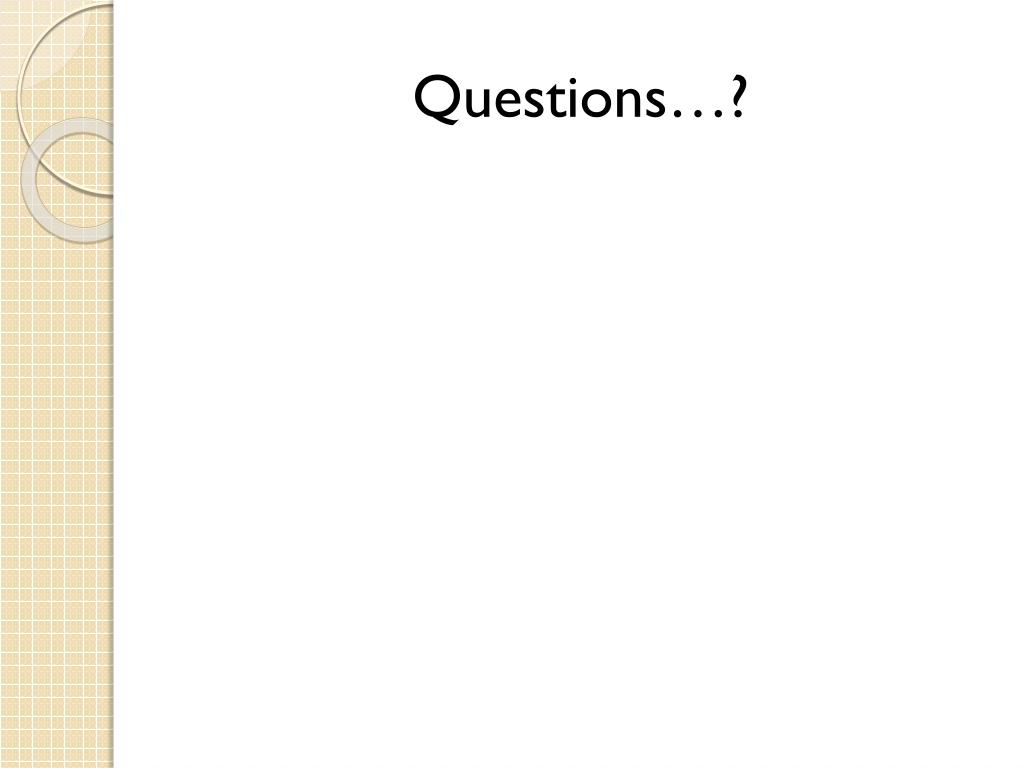

  8. Questions…?
