Presentation Transcript

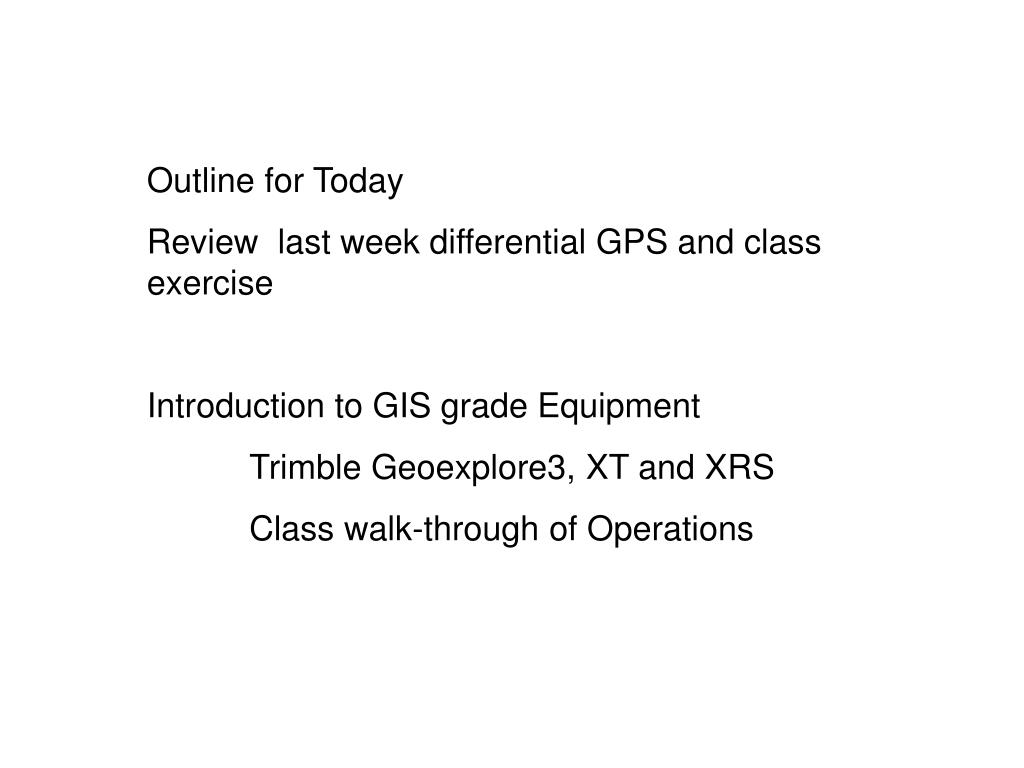

  1. Outline for Today Review last week differential GPS and class exercise Introduction to GIS grade Equipment Trimble Geoexplore3, XT and XRS Class walk-through of Operations

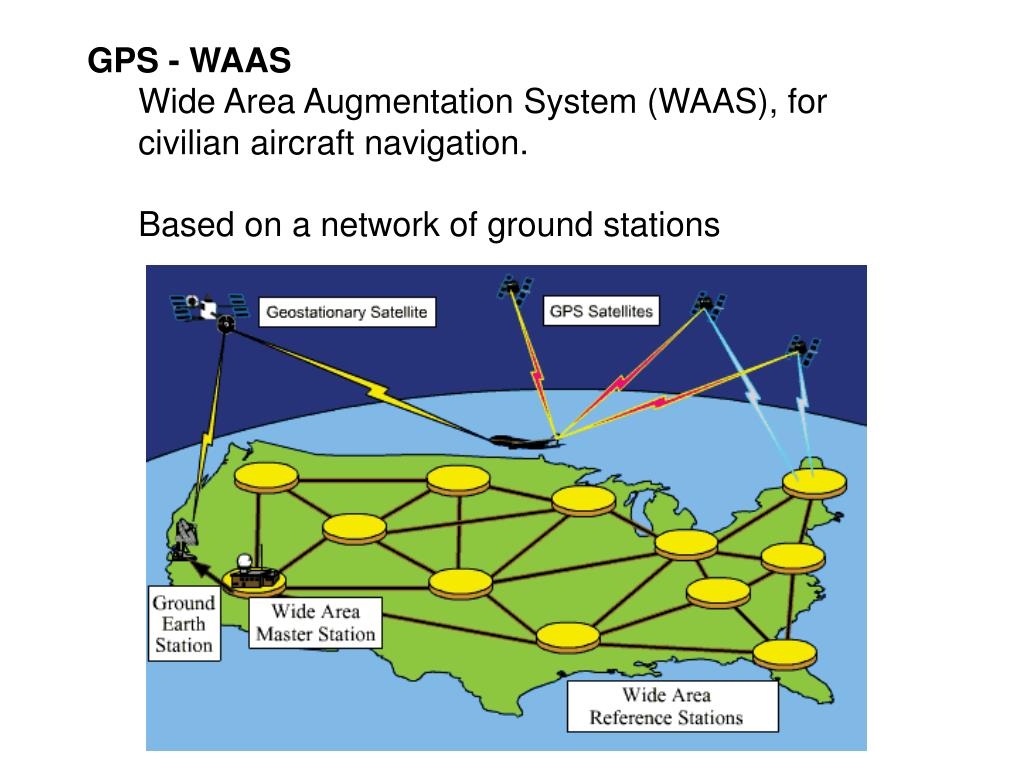

  2. GPS - WAAS Wide Area Augmentation System (WAAS), for civilian aircraft navigation. Based on a network of ground stations

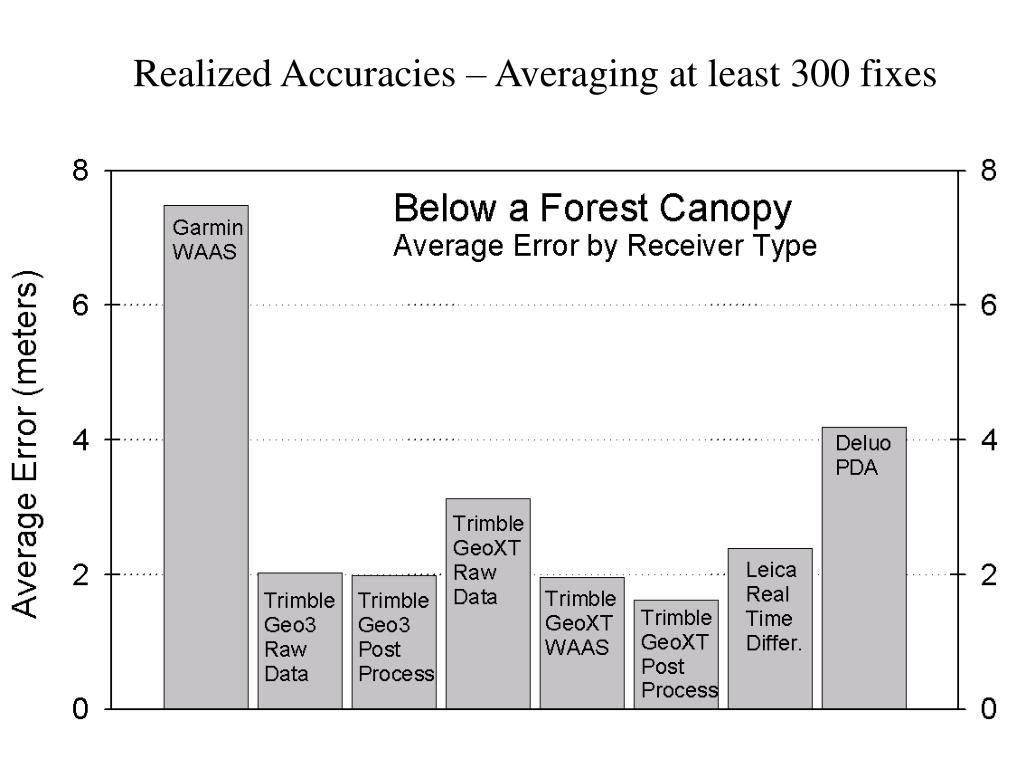

  3. Realized Accuracies – Averaging at least 300 fixes

  4. Realized Accuracies – Averaging at least 300 fixes

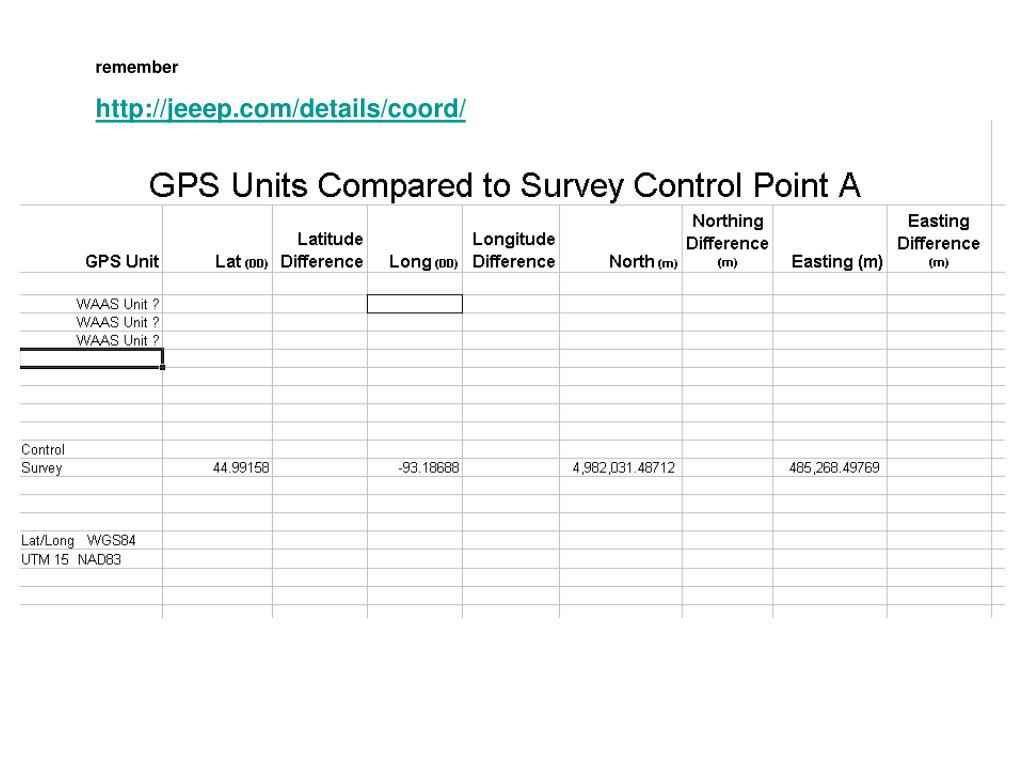

  5. remember http://jeeep.com/details/coord/

  6. remember http://jeeep.com/details/coord/

  7. Class Exercise • 1. Download Data collected from last week’s exercise • (g:\CFLAB\ESPM3031-5031\Lab6\GPS_data_Ctrl_Pt_A_Compare.txt) • 2. Print (or transfer to Excel) and Save as a shapefile. • This is just a class exercise not to be turned in. • Compare the WAAS Garmin 76 data to the NGS/MDOT Survey Control Points (blank form) On your own • Make comparison Map • (Optional, not for turn-in but you should know how to do this as it will be part of the field exam)

  8. Trimble GeoExplorer3

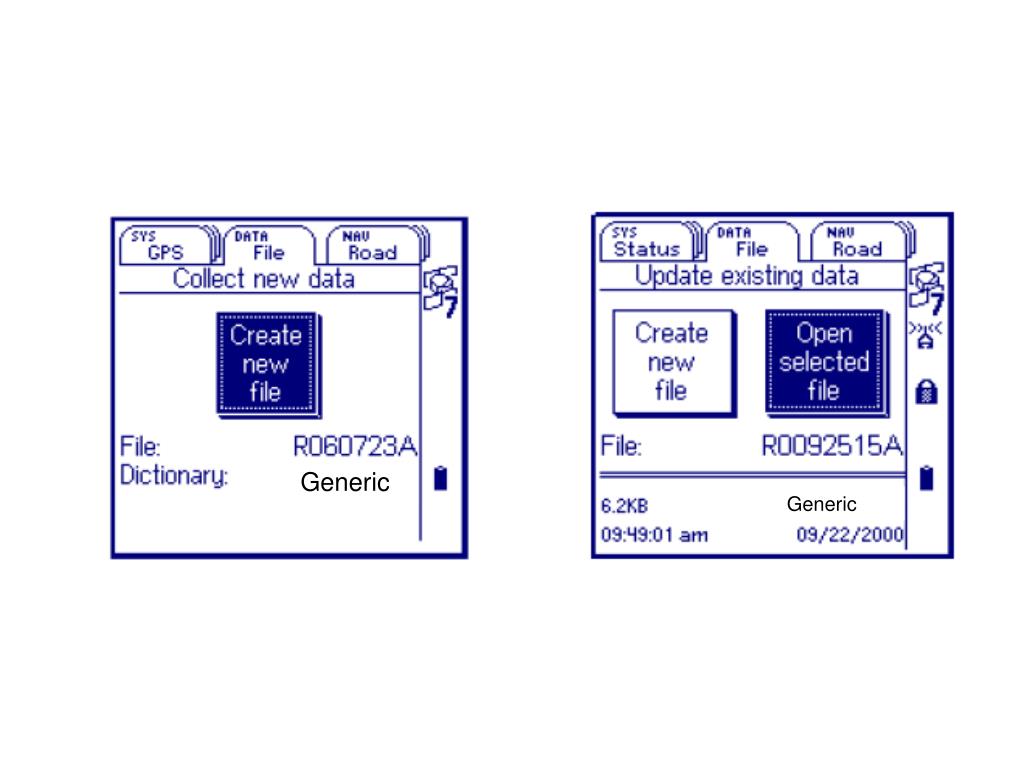

  9. Generic Generic

  10. Point Line Area
