  1. Floating Point Representation and Arithmetic (see Patterson Chapter 4)

  2. Outline • Review of floating point scientific notation • Floating point binary • IEEE Floating Point Standard • Addition in Floating Point • Remarks about multiplication

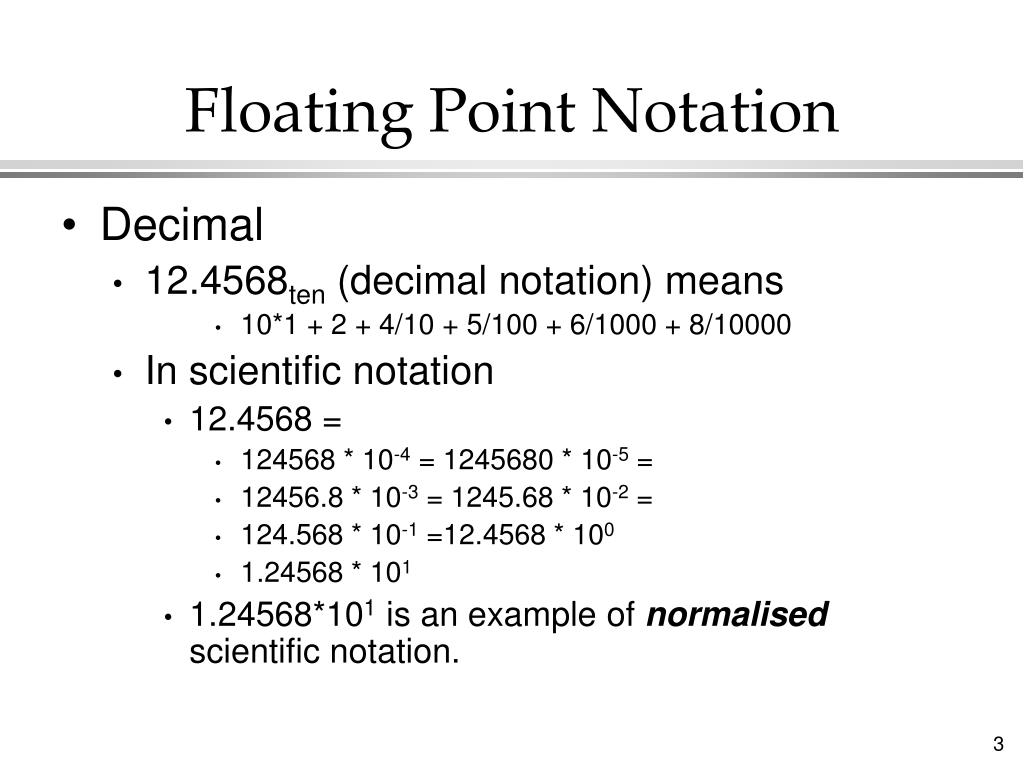

  3. Floating Point Notation • Decimal • 12.4568ten (decimal notation) means • 10*1 + 2 + 4/10 + 5/100 + 6/1000 + 8/10000 • In scientific notation • 12.4568 = • 124568 * 10-4 = 1245680 * 10-5 = • 12456.8 * 10-3 = 1245.68 * 10-2 = • 124.568 * 10-1 =12.4568 * 100 • 1.24568 * 101 • 1.24568*101 is an example of normalised scientific notation.

  4. Floating Point in Binary • Binary • 0.010011two = (0/2) + (1/22) + (0/24) +(1/25) + (1/26) • 0 + 1/4 + 0 + 1/32 + 1/64 = • (0.25 + 0.03125 + 0.015625)ten = • 0.296875ten • In scientific notation • 10011*2-6 = 1001.1*2-5 = • 100.11*2-4 • 1.0011*2-2normalised

  5. Normalised Notation • In normalised binary scientific notation • unless the number is 0 • always have 1.sssssss...sss * 2E • sss...sss is the significand • E is the exponent • The significand s1s2...sn represents

  6. Representation • Note that it is impossible to exactly represent all decimal numbers in this way (eg 0.3) • Problem of representation of floating point numbers in fixed word length • need to represent • sign • significand • exponent • in one word (32 bits).

  7. 31 22 30 23 0 sign bit S exponent 8 bits E significand: 23 bits F Representation • Represents floating point number: • (-1)S * (1.0+F) * 2E • S is 1 bit (if S=1 then negative) • F is 23 bits • E is 8 bits

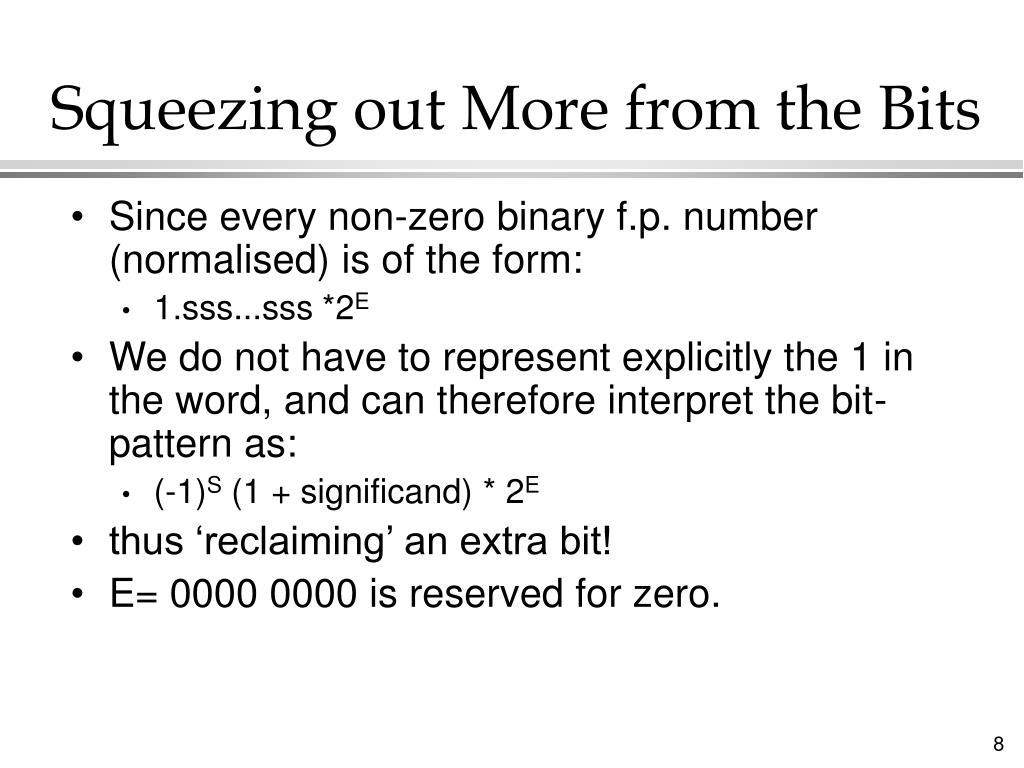

  8. Squeezing out More from the Bits • Since every non-zero binary f.p. number (normalised) is of the form: • 1.sss...sss *2E • We do not have to represent explicitly the 1 in the word, and can therefore interpret the bit-pattern as: • (-1)S (1 + significand) * 2E • thus ‘reclaiming’ an extra bit! • E= 0000 0000 is reserved for zero.

  9. Requirements • As far as possible the ALU should be able to reuse integer machinery in implementation of f.p. • Eg, comparison with zero • easy because of sign bit • fp numbers can be easily classified as negative, zero or positive without additional hardware. • Comparison of two fp numbers x<y not so straightforward - • how are negative exponents to be formed?

  10. 0 1111 1111 0000.... 0000 significand S E 0 0000 0001 0000.... 0000 significand S E Bad Example: (1/2) > 2 ??? • Representation of 1/2 is • 0.1two = 1.0*2-1 (normalised) • Representation of 2 is • 10two = 1.0*21 (normalised)

  11. 1111 1111 1111 1110 ....... 0111 1111 0111 1110 ... 0000 0000 Representation of Exponent • Inappropriate to use two’s complement for the exponent • Ideally want 0000 0000 to represent most negative number, 1111 1111 most positive. • Number range: positive use this for 20 negative 0111 1111 = 127ten

  12. Biased Representation(IEEE FP Standard) • The ‘bias’ 127 represents 0 • 128 to 255 represent positive exponents • 1 to 127 represent negative exponents • (remember 0 is reserved for the entire number being zero). • The actual exponent is therefore: • E - bias • (-1)S * (1 + significand) * 2E-bias

  13. Example 1 • Represent 0.3125ten = 5/16 • 5/16 = 1/4 + 1/16 = 0.0101two = 1.01*2-2 • S = 0 • E = ??? • -2 = E-bias = E-127 • E = 125ten = 0111 1101two • Significand = 010.…000 • 0 0111 1101 010000...000

  14. Example 2 • What does • 0 0111 1101 010000...000 • represent? • S = 0 • E = 0111 1101 = 125ten • Exponent = E-bias = 125-127 = -2 • Significand = 1/4 • (-1)S(1+sig.)2E-bias = (1 + 1/4)*(1/4) = 5/16

  15. Addition of FP Numbers • Given two numbers: • normalise them both • adjust the floating point of the smaller number to match the larger one • Add them together • renormalise • check for underflow/overflow of exponent • if so then break; • round significand to required number of bits • might need renormalisation (eg, 11111 round to 4 bits).

  16. Addition Example • 0.5 + 2.75 = 3.25 • 0.1two + 10.11two • 1.0*2-1 + 1.011*21 • 0.010*21 + 1.011*21 • 1.101*21 (already normalised) • (1 + (1/2) + (1/8)) * 2 • 3.25

  17. Remarks • The IEEE FP standard represents floats in 32 bits, higher precision represented across two words (doubles). • Multiplication is relatively easy, since the exponents add, and the significands can be done with integer multiplication. • There can be huge pitfalls in reliably transferring floating point code to different hardware!

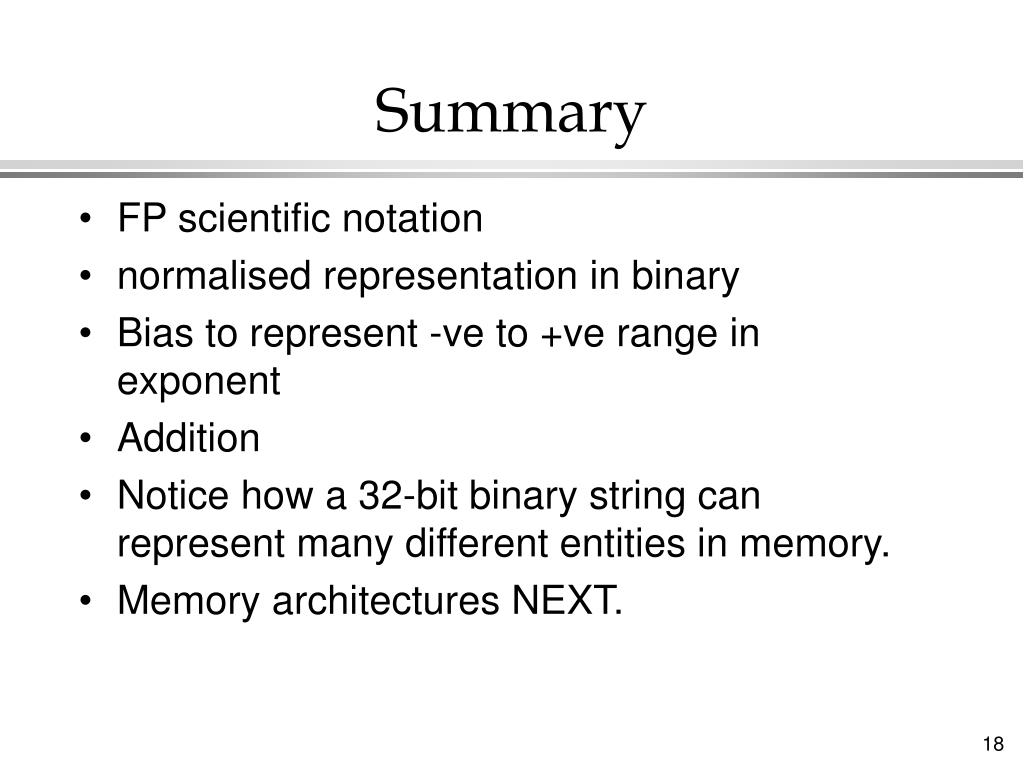

  18. Summary • FP scientific notation • normalised representation in binary • Bias to represent -ve to +ve range in exponent • Addition • Notice how a 32-bit binary string can represent many different entities in memory. • Memory architectures NEXT.
