  1. Spatial Variation in Corn and Soybean Fields in Central Iowa Energy Balance and Carbon Dioxide Exchanges

  2. Authors • J.L. Hatfield • J.H. Prueger • W.P. Kustas

  3. Background • Experiment conducted in central Iowa during 2002 as part of the Soil Moisture experiment (SMEX02) • Opportunity to combine a Soil Moisture Atmospheric Coupling Experiment (SMACEX) to quantify the spatial variation in energy balance and carbon dioxide exchanges across a watershed

  4. Objectives • Quantify the differences among energy balance and CO2 exchanges across multiple sites in a corn-soybean area • Quantify the differences among sites caused by soil and crop growth differences

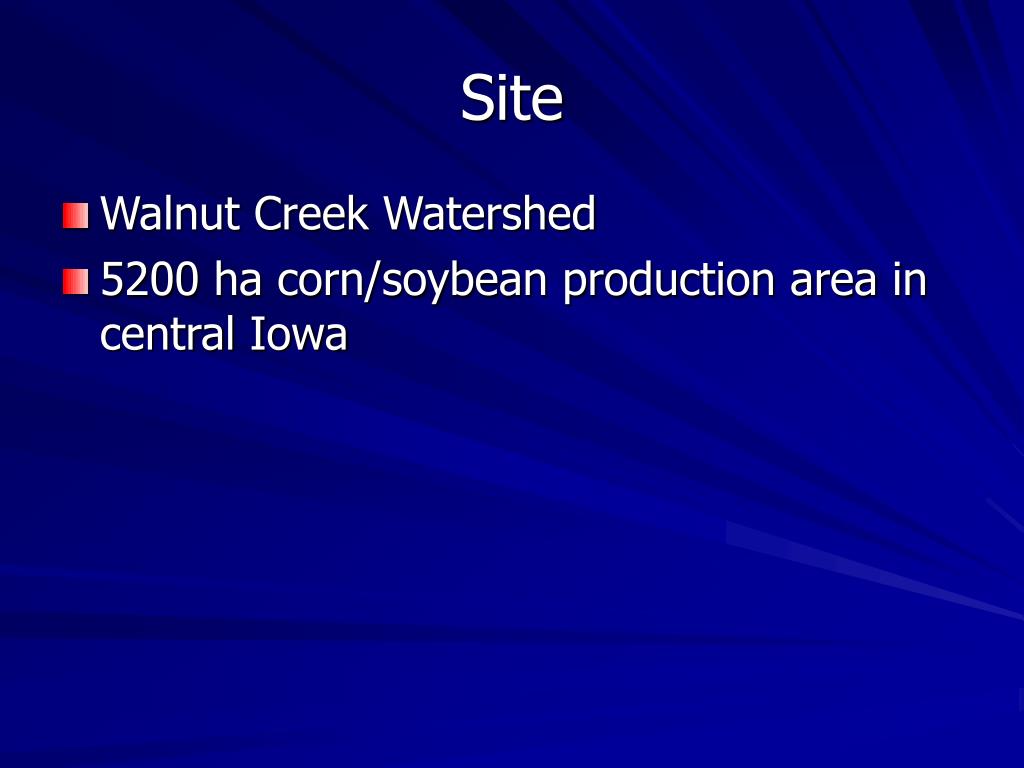

  5. Site • Walnut Creek Watershed • 5200 ha corn/soybean production area in central Iowa

  6. Soils within Fields • Eight sites were in Clarion soil • Two sites in Nicollet soil • Two sites in Webster soil • Differences among these soils is due to soil water holding capacity in the upper 25-30 cm.

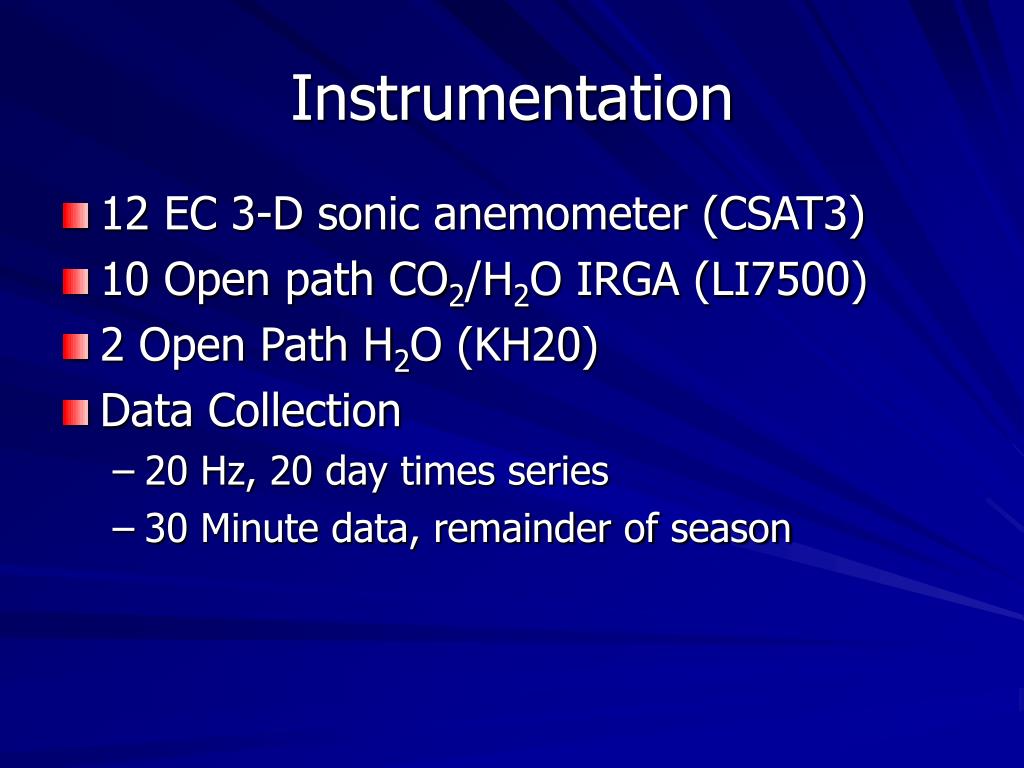

  7. Instrumentation • 12 EC 3-D sonic anemometer (CSAT3) • 10 Open path CO2/H2O IRGA (LI7500) • 2 Open Path H2O (KH20) • Data Collection • 20 Hz, 20 day times series • 30 Minute data, remainder of season

  8. Ancillary Instrumentation • Net radiation (7-Kipp & Zonen, 7-REBS) • Soil heat flux plates with soil T (REBS) • Vitel θv sensors • Temperature and humidity (Vaisala) • Radiometric temperatures (soil & canopy + soil, Apogee)

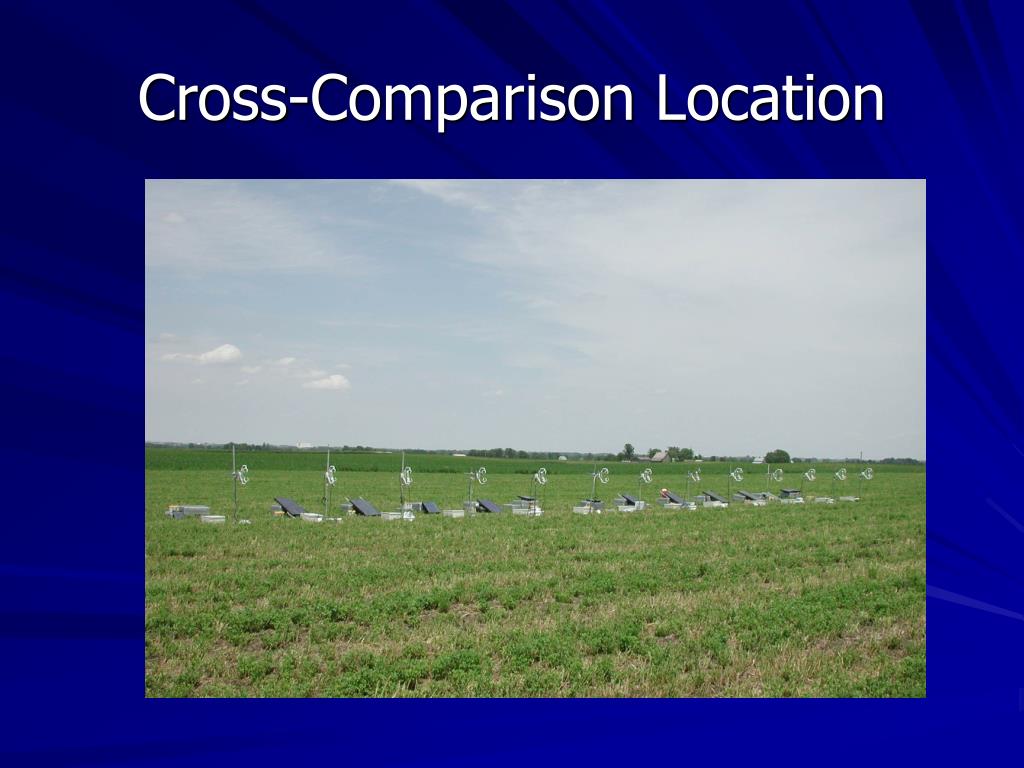

  9. Cross-Comparison Location

  10. Exploratory Equivalence Analysis(are the EC’s equivalent)

  11. Variation in Precipitation July 04 02 Rainfall (mm)

  12. Variation in Precipitation Total Rainfall (6/1/02-8/19/02) (cm)

  13. Energy Balance Closure

  14. Variation in Net Radiation Little difference among net radiation across the sites

  15. Seasonal Variation in Rn - Corn

  16. Seasonal Variation in Rn - Soybean

  17. Seasonal Variation in G - Corn

  18. Seasonal Variation in G- Soybean

  19. Variation in LE and CO2

  20. Variation in LE - Soybean

  21. Variation in Energy Balance Components Blue- Corn Red- Soybean

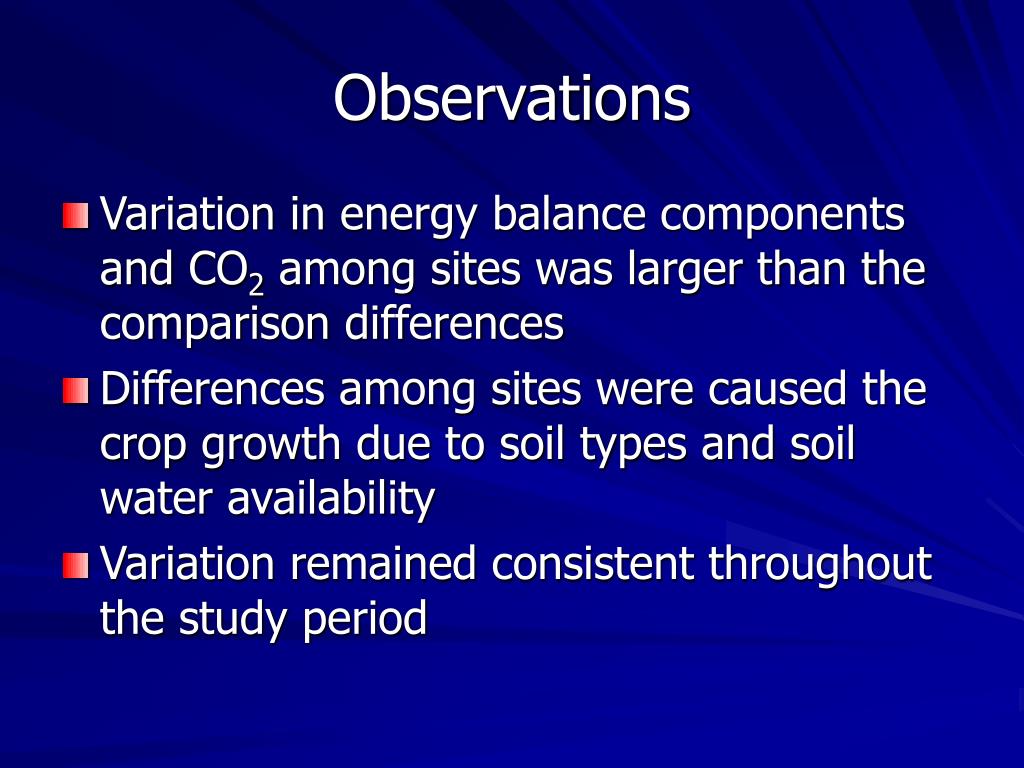

  22. Observations • Variation in energy balance components and CO2 among sites was larger than the comparison differences • Differences among sites were caused the crop growth due to soil types and soil water availability • Variation remained consistent throughout the study period

  23. Implications • Multiple sites provide measure of the differences across soils within a watershed settings • Careful selection of sites would be necessary to obtain data typical of regional scale estimates
