Device Design: Stage 2 (Modified Microchannel Design)

Device Design: Stage 2 (Modified Microchannel Design). Process Sequence Begin with four polished Si wafers Spin SU-8 (negative photoresist) on the Si wafers and pre-bake at 95°C

irma-nieves
Télécharger la présentation

Device Design: Stage 2 (Modified Microchannel Design)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Device Design: Stage 2(Modified Microchannel Design) Process Sequence • Begin with four polished Si wafers • Spin SU-8 (negative photoresist) on the Si wafers and pre-bake at 95°C • Align each of the four wafers with one of four masks and expose the SU-8 to ultraviolet light, then post-bake at 95°C • Develop the SU8 so that the unexposed areas are removed • Results in four distinct SU8 molds 5. Spin PDMS on the SU8 molds less than the vertical dimension of the SU-8 protrusions • Mix PDMS (Sylgard 184, Dow-Corning) 10:1 with curing agent • Spin on PDMS • Dip the Si wafer in a sodium dodecyl sulfate(SDS) adhesion barrier and allow it to dry naturally • Bake in box furnace for 2 hours at 70°C

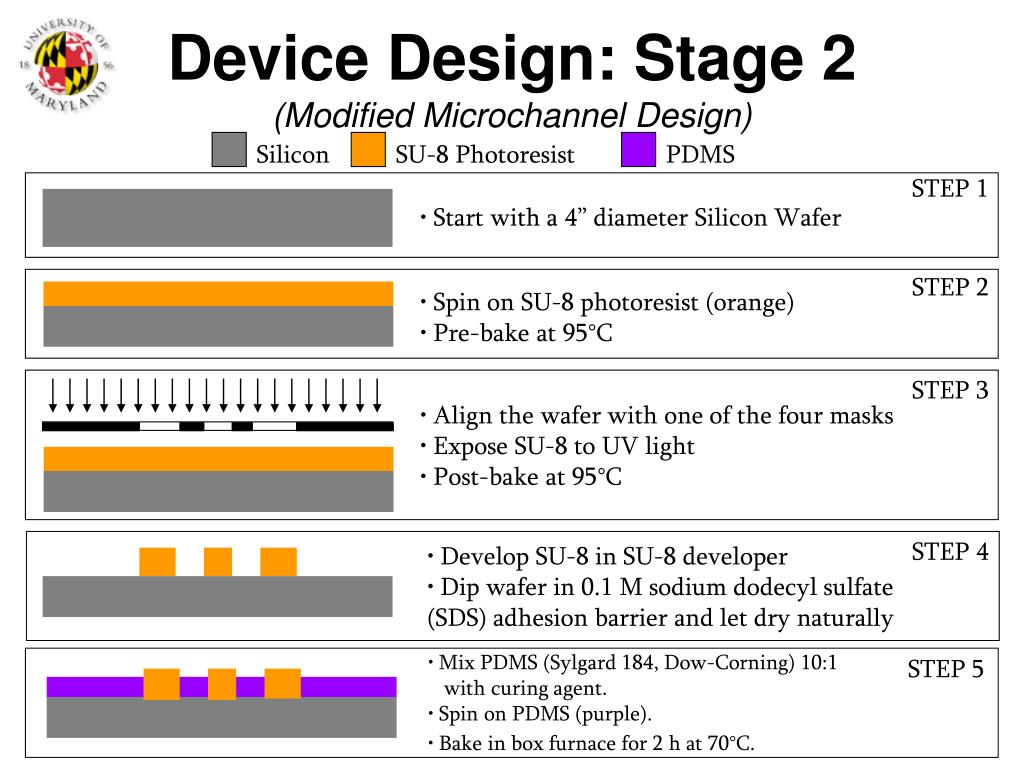

  2. PDMS STEP 1 • Start with a 4” diameter Silicon Wafer STEP 2 • Spin on SU-8 photoresist (orange) • Pre-bake at 95°C SU-8 Photoresist Silicon STEP 3 • Align the wafer with one of the four masks • Expose SU-8 to UV light • Post-bake at 95°C STEP 4 • Develop SU-8 in SU-8 developer • Dip wafer in 0.1 M sodium dodecyl sulfate (SDS) adhesion barrier and let dry naturally • Mix PDMS (Sylgard 184, Dow-Corning) 10:1 • with curing agent. • Spin on PDMS (purple). • Bake in box furnace for 2 h at 70°C. STEP 5 Device Design: Stage 2(Modified Microchannel Design)
