  1. High-Quality Volume Graphics on Consumer PC Hardware Klaus Engel Joe Kniss Markus Hadwiger Christof Rezk-Salama

  2. a(f) RGB(f) Shading, Compositing… Human Tooth CT Map data value f to color and opacity RGB a f

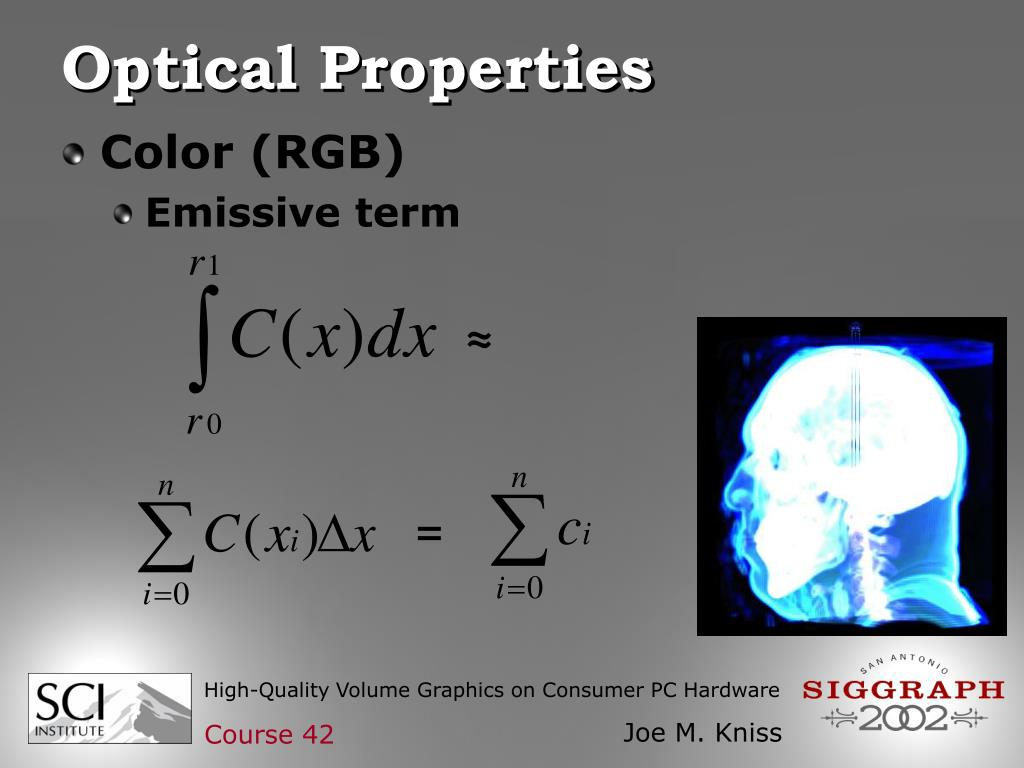

  3. ~ ~ Optical Properties • Color (RGB) • Emissive term =

  4. ~ ~ Optical Properties • Alpha (a.k.a. opacity or extinction) • Attenuates light based on density = =

  5. ~ ~ Optical Properties • Traditional Volume Rendering Equation • Emission & absorption

  6. Optical Properties • Scale alpha values based on sample rate (sr) 1.3 .7

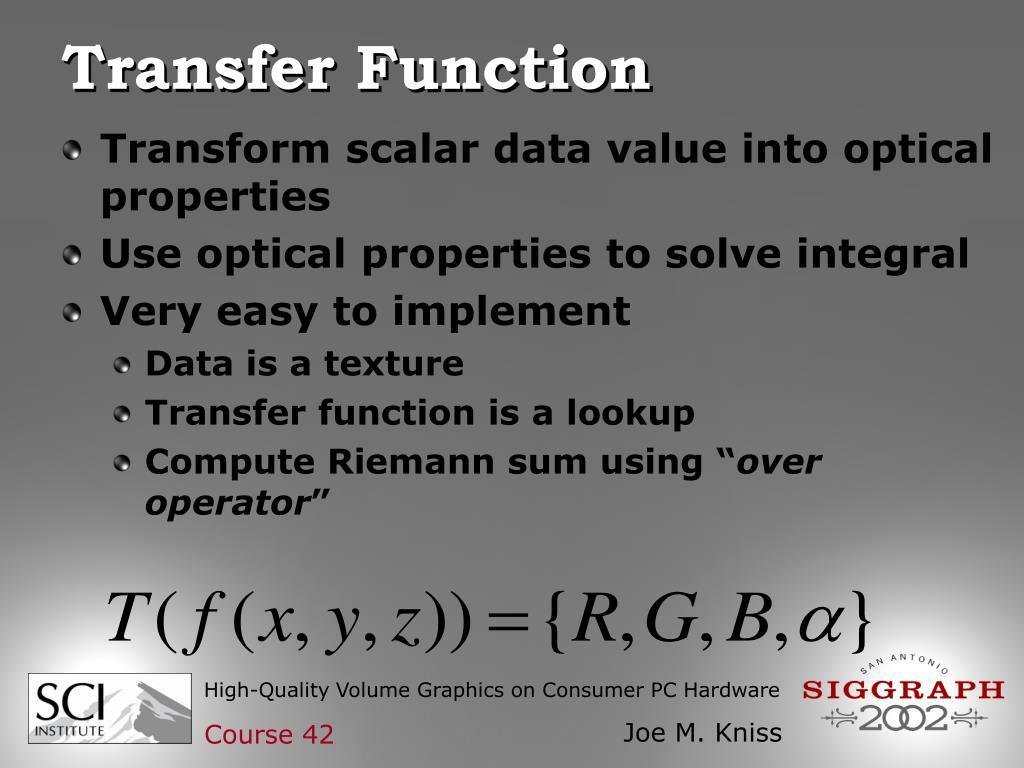

  7. Transfer Function • Transform scalar data value into optical properties • Use optical properties to solve integral • Very easy to implement • Data is a texture • Transfer function is a lookup • Compute Riemann sum using “over operator”

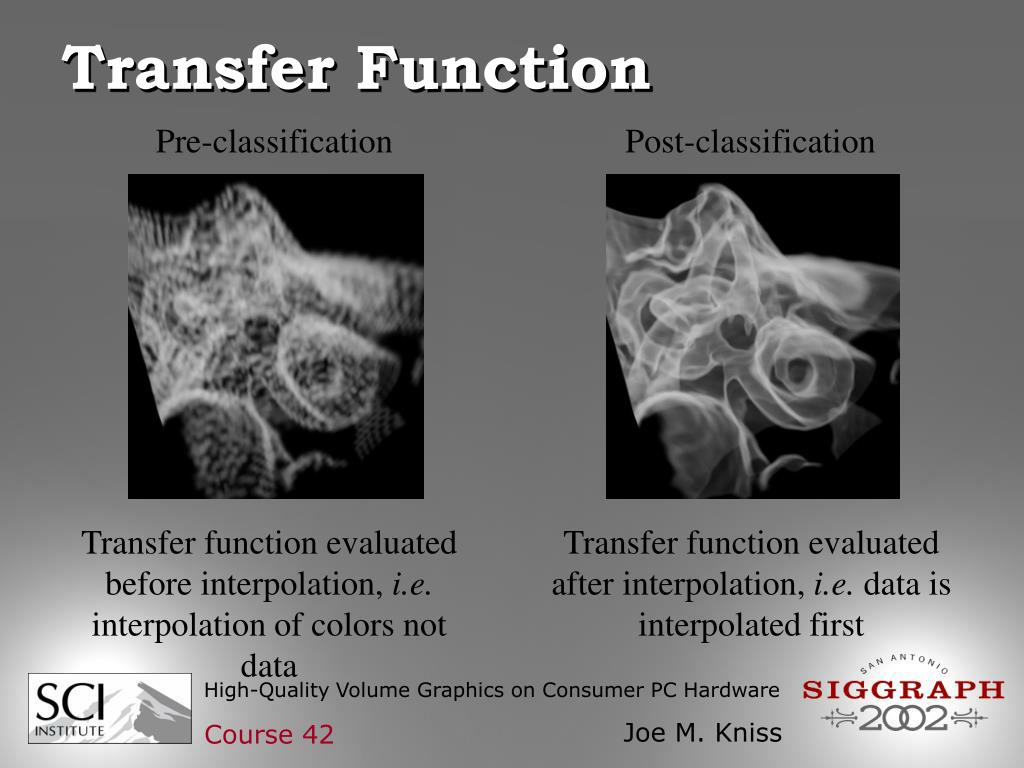

  8. Transfer Function Pre-classification Post-classification Transfer function evaluated before interpolation, i.e. interpolation of colors not data Transfer function evaluated after interpolation, i.e. data is interpolated first

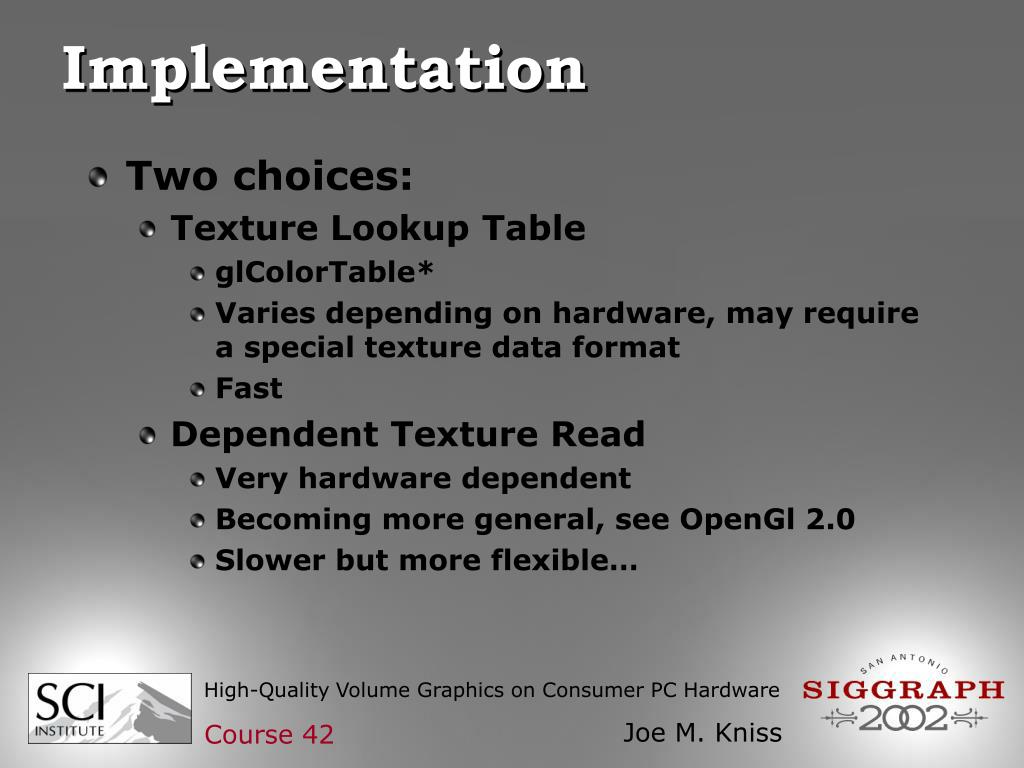

  9. Implementation • Two choices: • Texture Lookup Table • glColorTable* • Varies depending on hardware, may require a special texture data format • Fast • Dependent Texture Read • Very hardware dependent • Becoming more general, see OpenGl 2.0 • Slower but more flexible…

  10. Transfer Function • Problem: • No shape or depth queues • No shading. color alpha f(x,y,z)

  11. Transfer Function • Solution: Faux Shading • Ramp color to black with alpha • Silhouette edges color alpha f(x,y,z)

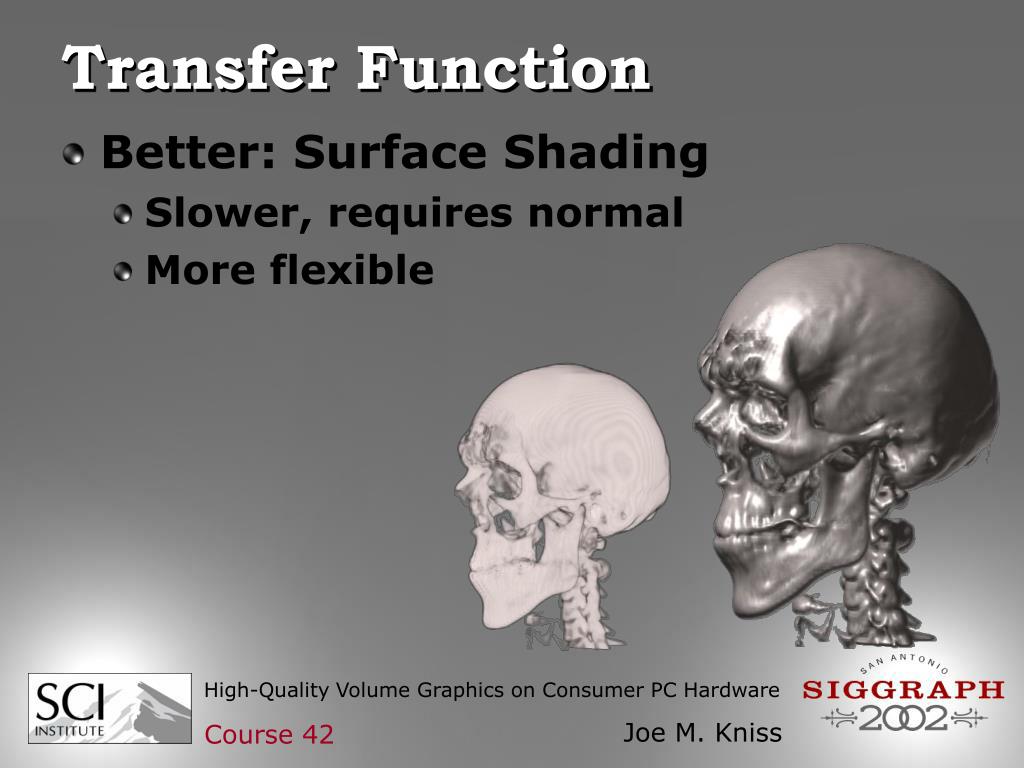

  12. Transfer Function • Better: Surface Shading • Slower, requires normal • More flexible

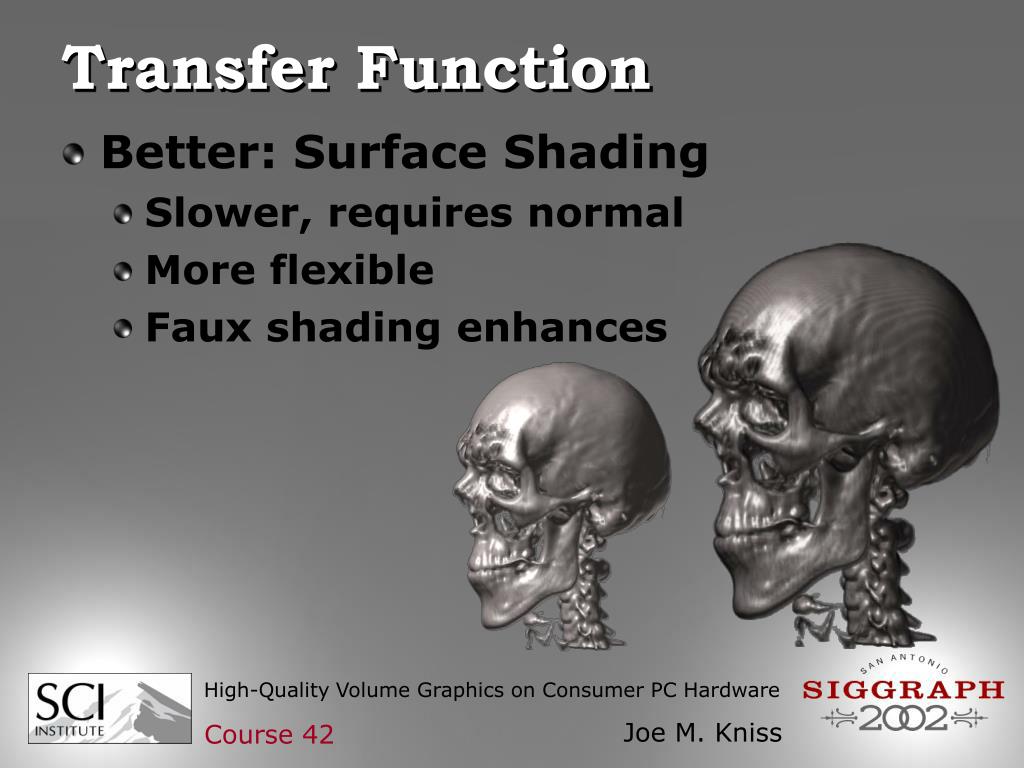

  13. Transfer Function • Better: Surface Shading • Slower, requires normal • More flexible • Faux shading enhances

  14. Transfer Function • Problem: Can’t surface shade homogeneous regions • Need good gradients • Sensitive to noise

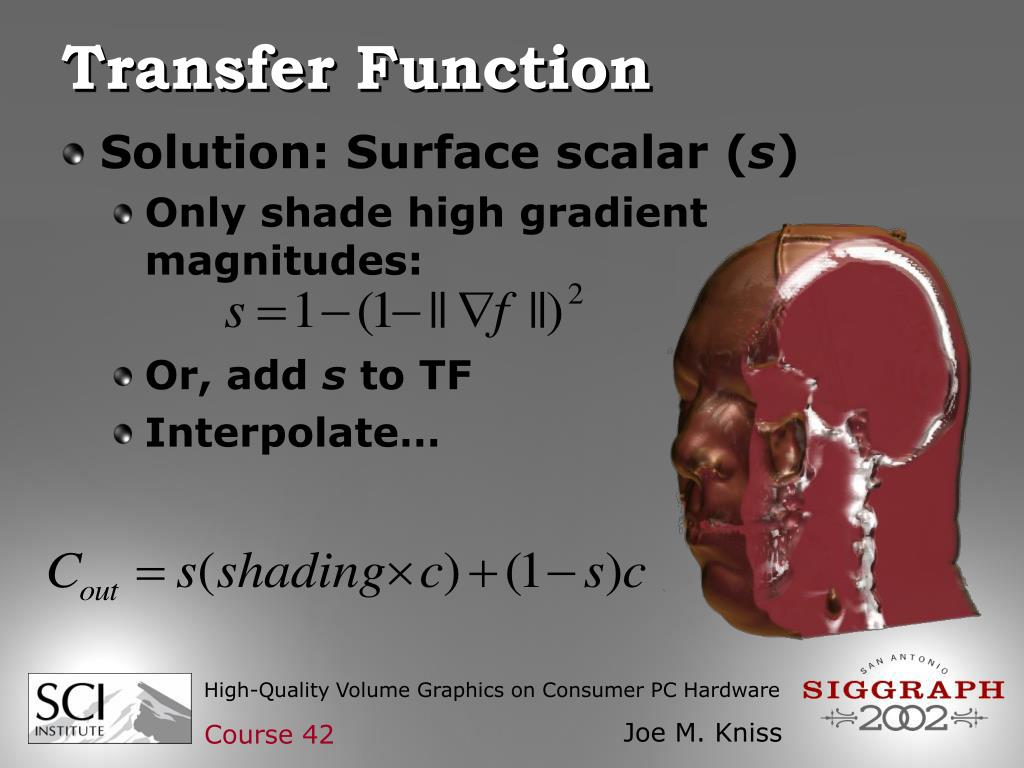

  15. Transfer Function • Solution: Surface scalar (s) • Only shade high gradient magnitudes: • Or, add s to TF • Interpolate…

  16. Transfer Function • Problem: How did the light get there? • No attenuation through volume • Not realistic!

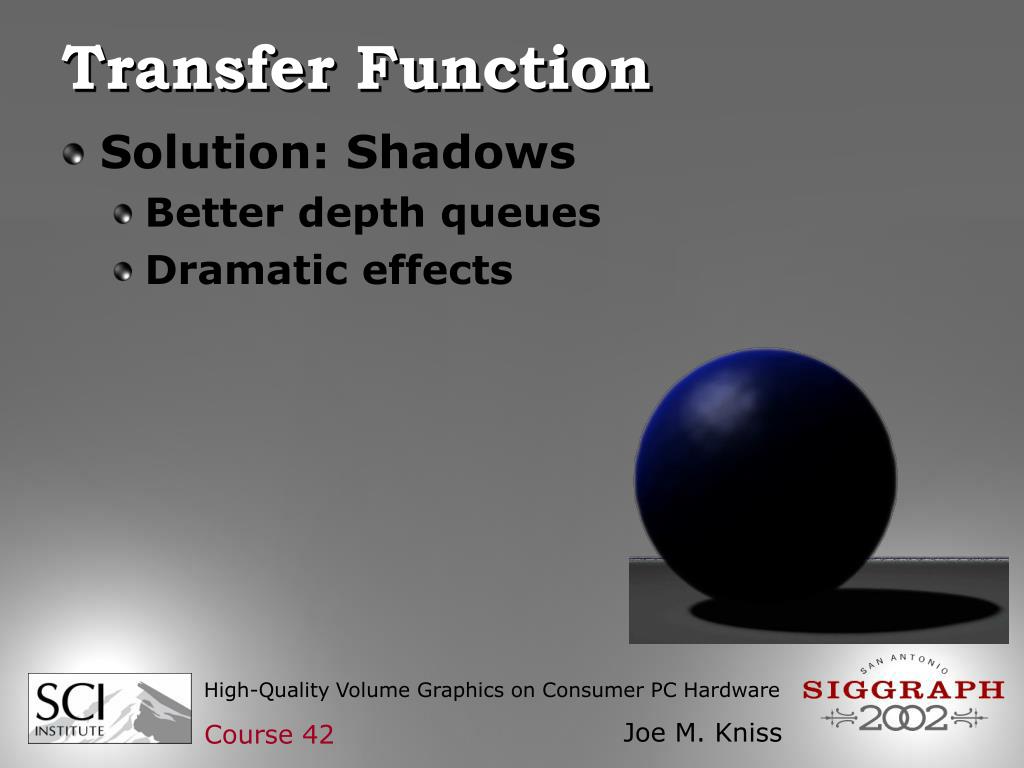

  17. Transfer Function • Solution: Shadows • Better depth queues • Dramatic effects

  18. Shadows Image plane r1 r0 Eye Light

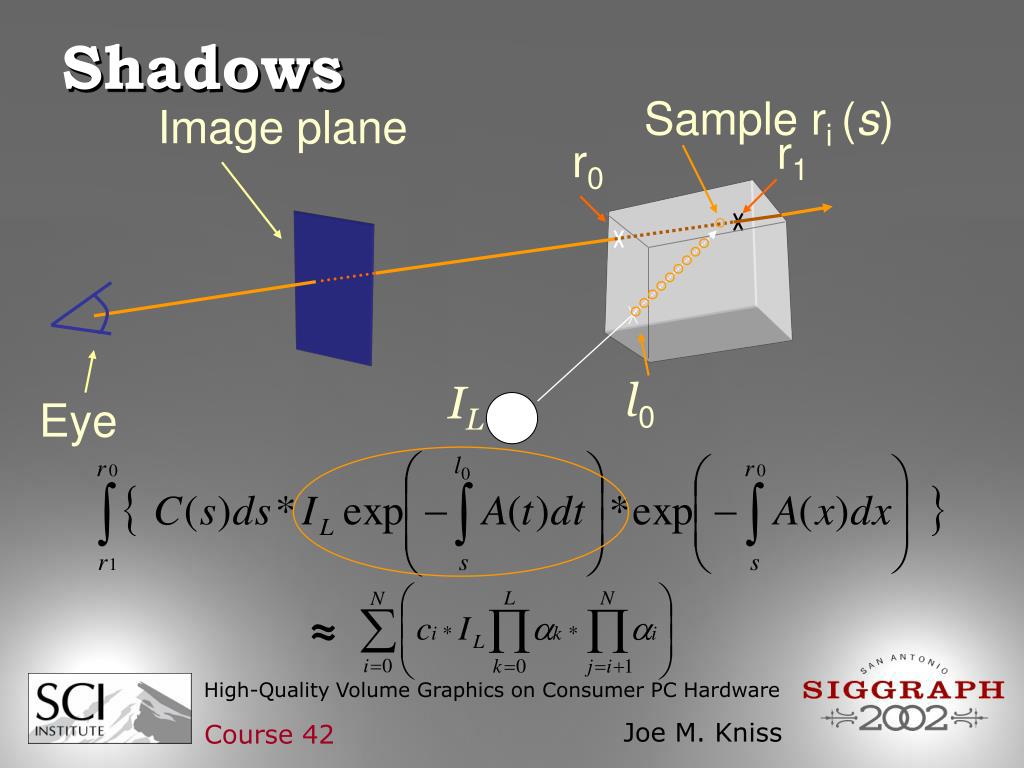

  19. ~ ~ Shadows Sample ri (s) Image plane r1 r0 l0 IL Eye

  20. Shadows • Implementation: • 2 passes • Attenuate from the light source • Render from the eye • Store light attenuation in second volume • Multiply color by attenuation from shadow volume

  21. Shadows • Disadvantages: • Difficult to build shadow volume on the card • Slow to build off the card • Additional volume required • Attenuation leakage • Blurry shadow boundaries • Low resolution shadows!

  22. Shadows • Alternative: Incremental shadows • Generate shadows one slice at a time • Only use a 2D buffer • Image space shadow computation • All on card • Half angle slicing

  23. Shadows Eye Slicing from light’s point of view

  24. Shadows Eye Slicing from eye’s point of view

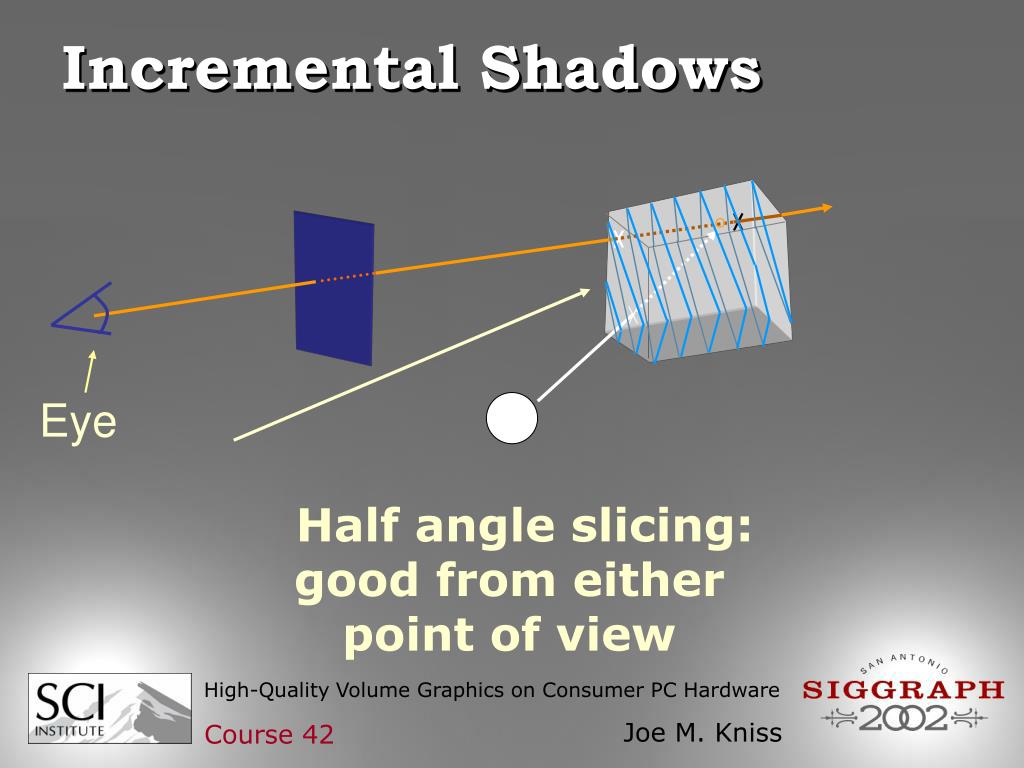

  25. Incremental Shadows Eye Half angle slicing: good from either point of view

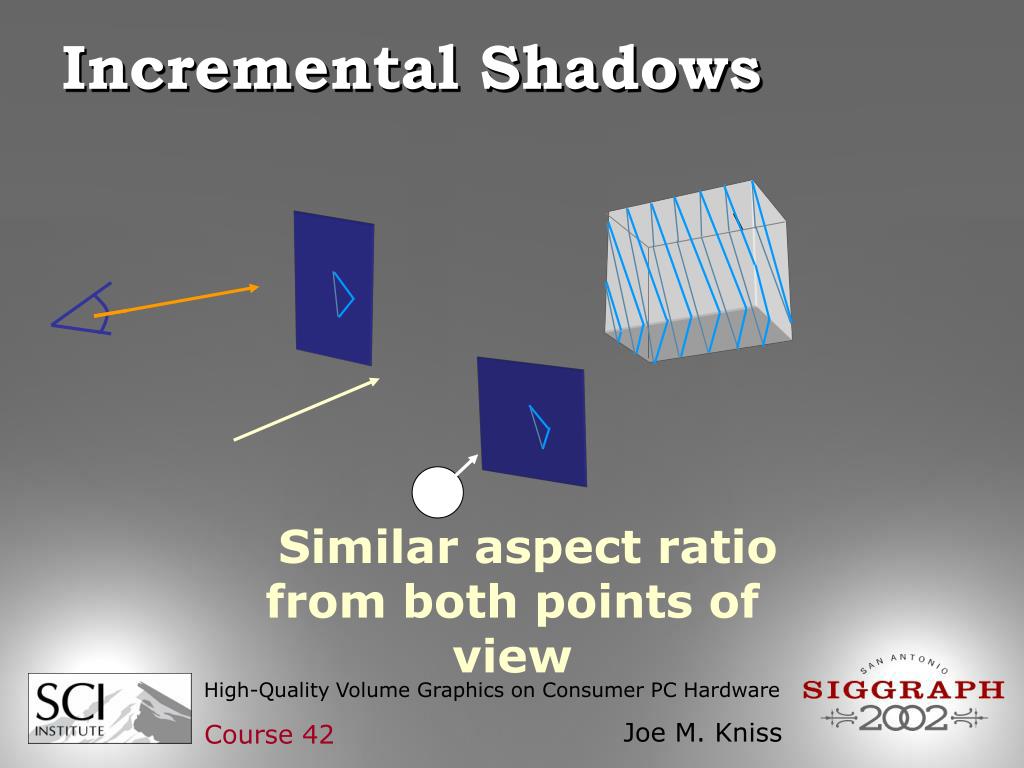

  26. Incremental Shadows Similar aspect ratio from both points of view

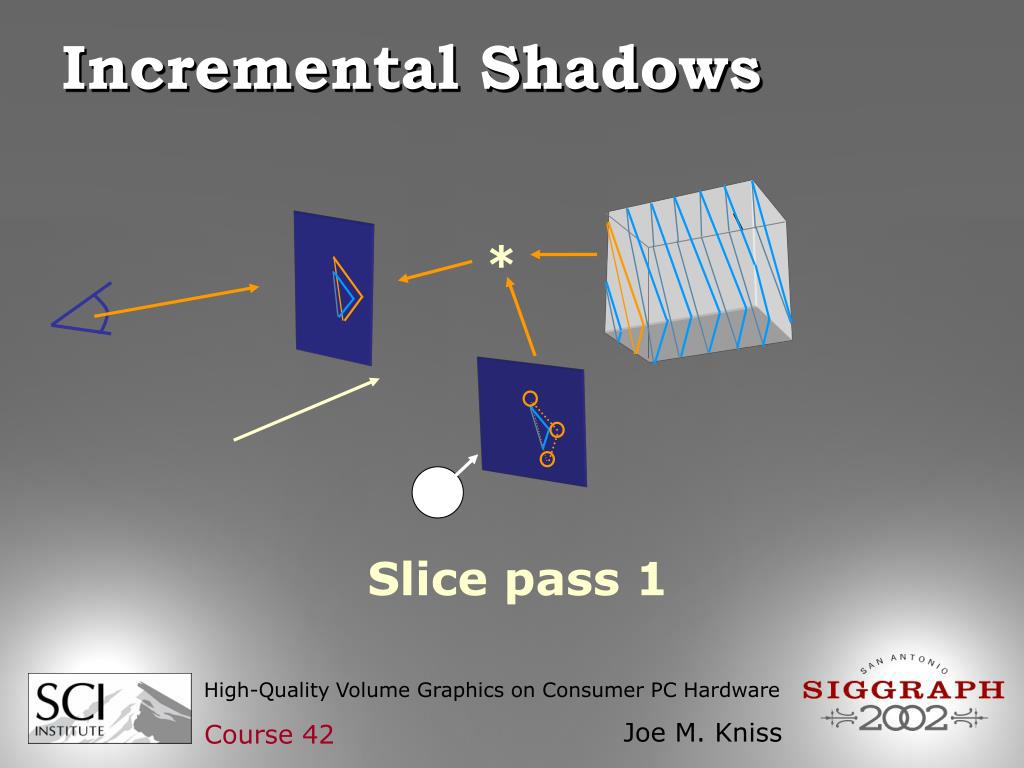

  27. Incremental Shadows * Slice pass 1

  28. Incremental Shadows Slice pass 2

  29. Incremental Shadows • Advantages: • Screen space shadows • No leakage • Use render to texture to optimize • Shades perturbed volumes • Simple implementation • Disadvantages: • Aliasing at sharp opacity changes • Fix with slightly larger light buffer

  30. Shadows • Problem: Shadows still too dark • Direct attenuation is inadequate • Need to handle higher order light transport effects Shadows

  31. Shadows • Solution: Translucency • One consequence of light scattering • Smoke, clouds, skin, wax…. Translucent Shadows

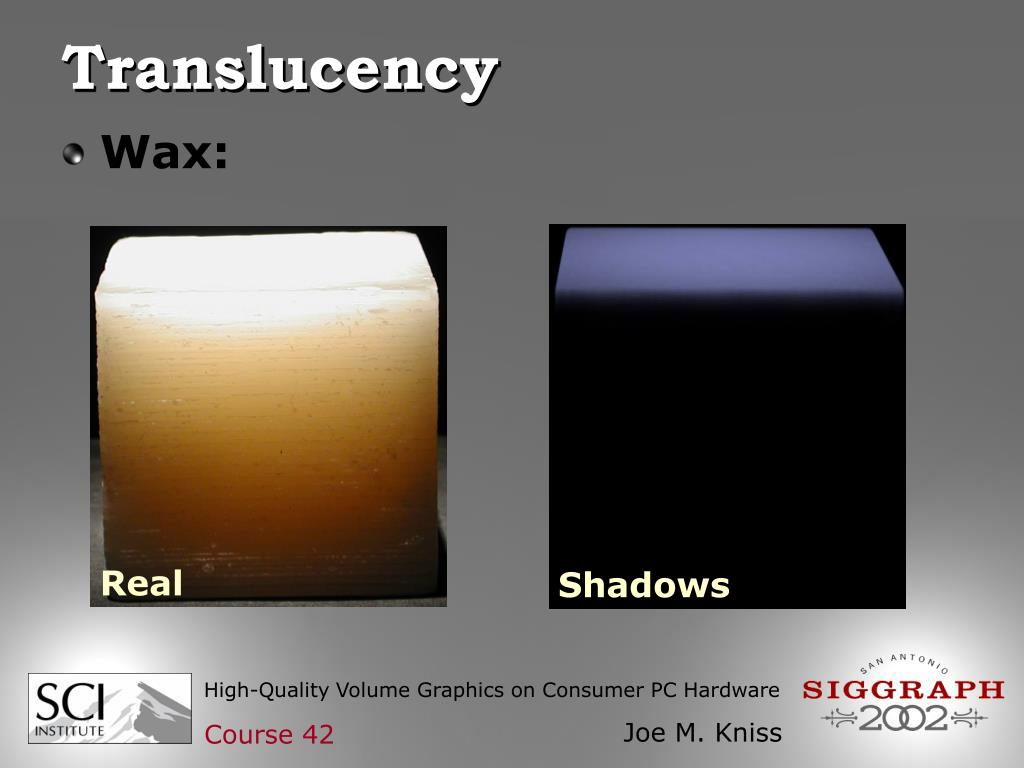

  32. Translucency • Wax: Real Shadows

  33. Translucency • Wax: Translucent Real Shadows

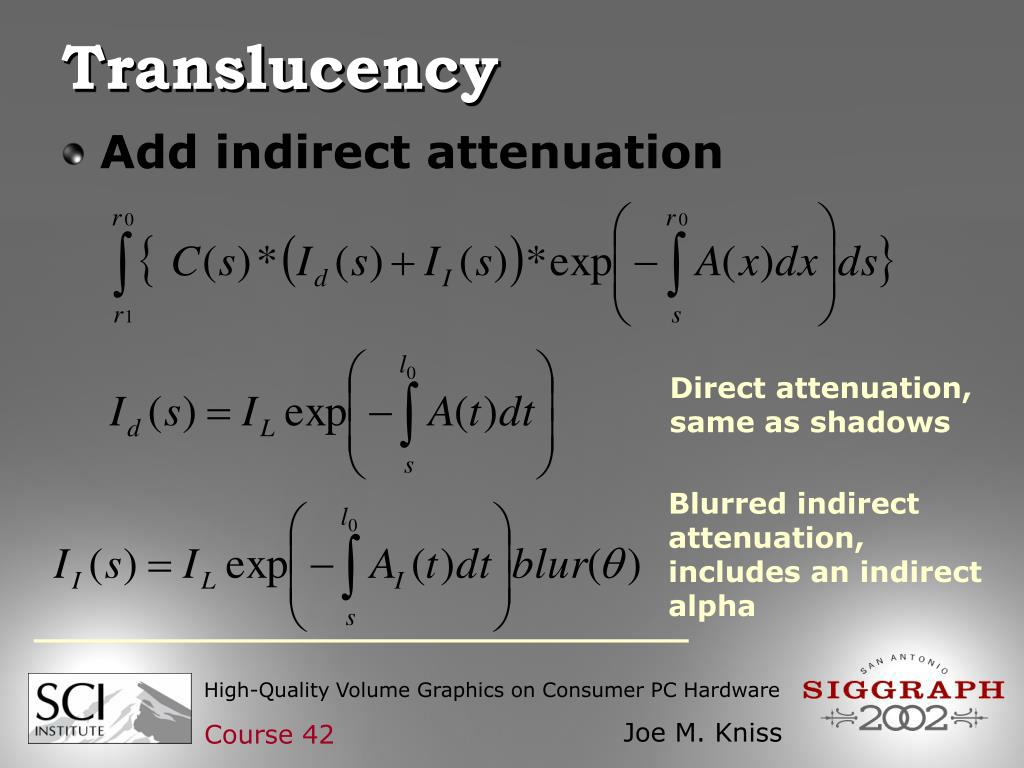

  34. Translucency • Add indirect attenuation Direct attenuation, same as shadows Blurred indirect attenuation, includes an indirect alpha

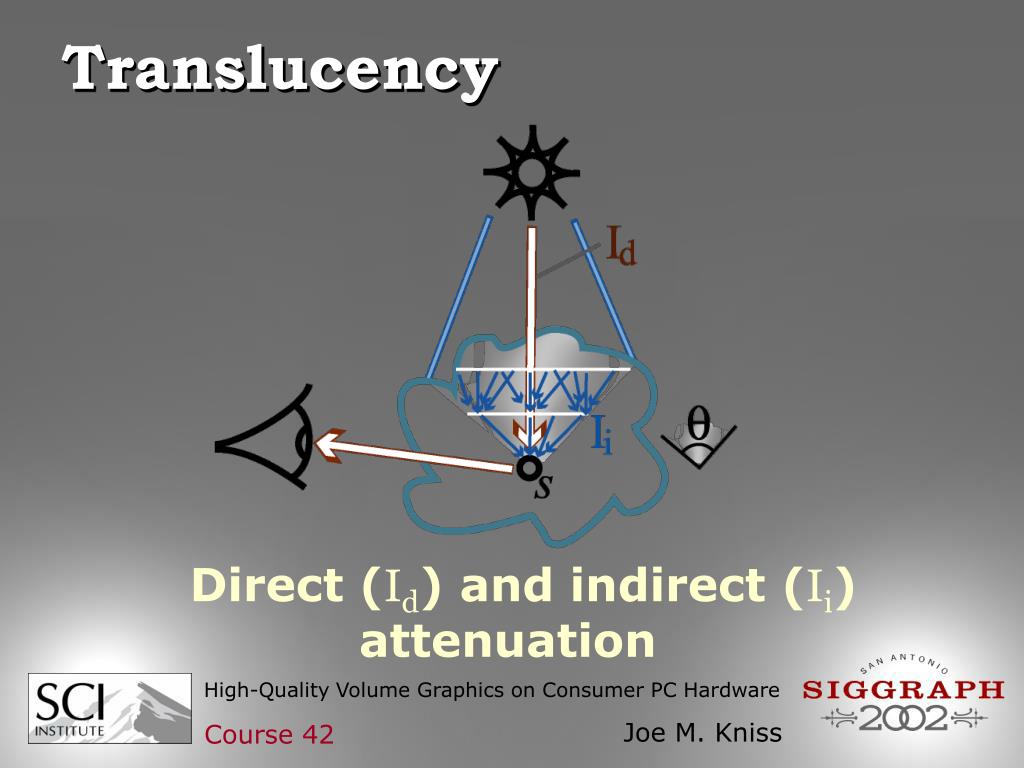

  35. Translucency Direct (Id) and indirect (Ii) attenuation

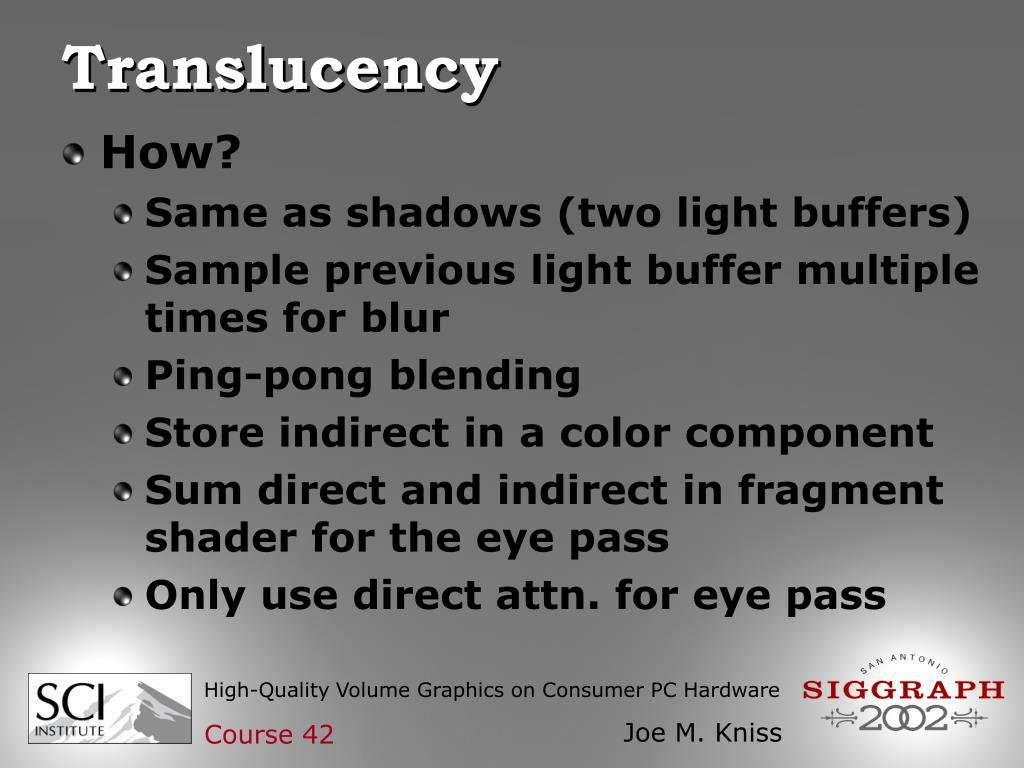

  36. Translucency • How? • Same as shadows (two light buffers) • Sample previous light buffer multiple times for blur • Ping-pong blending • Store indirect in a color component • Sum direct and indirect in fragment shader for the eye pass • Only use direct attn. for eye pass

  37. Translucency • Problem: Still doesn’t look right Translucent Real Shadows

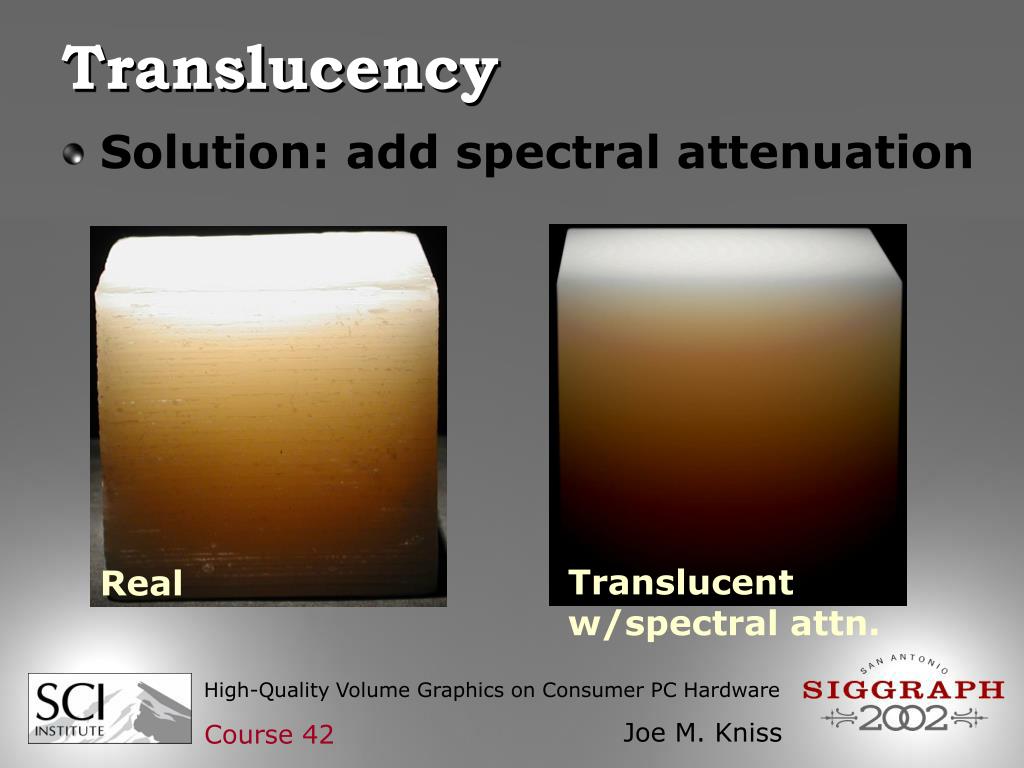

  38. Translucency • Solution: add spectral attenuation Translucent w/spectral attn. Real

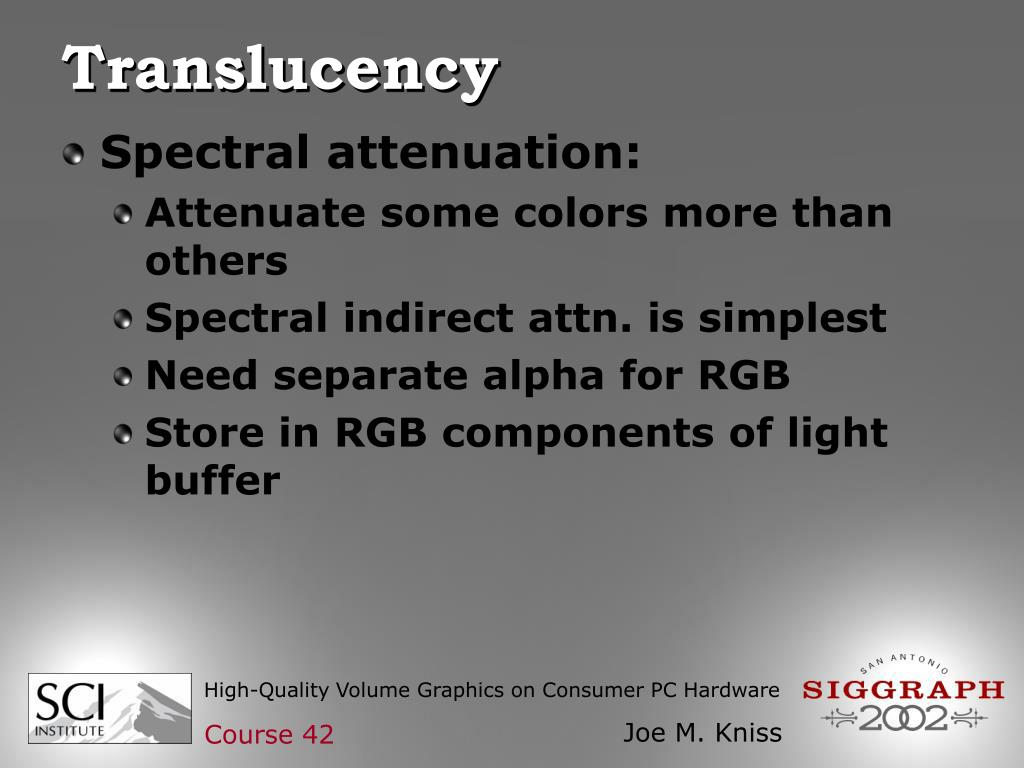

  39. Translucency • Spectral attenuation: • Attenuate some colors more than others • Spectral indirect attn. is simplest • Need separate alpha for RGB • Store in RGB components of light buffer

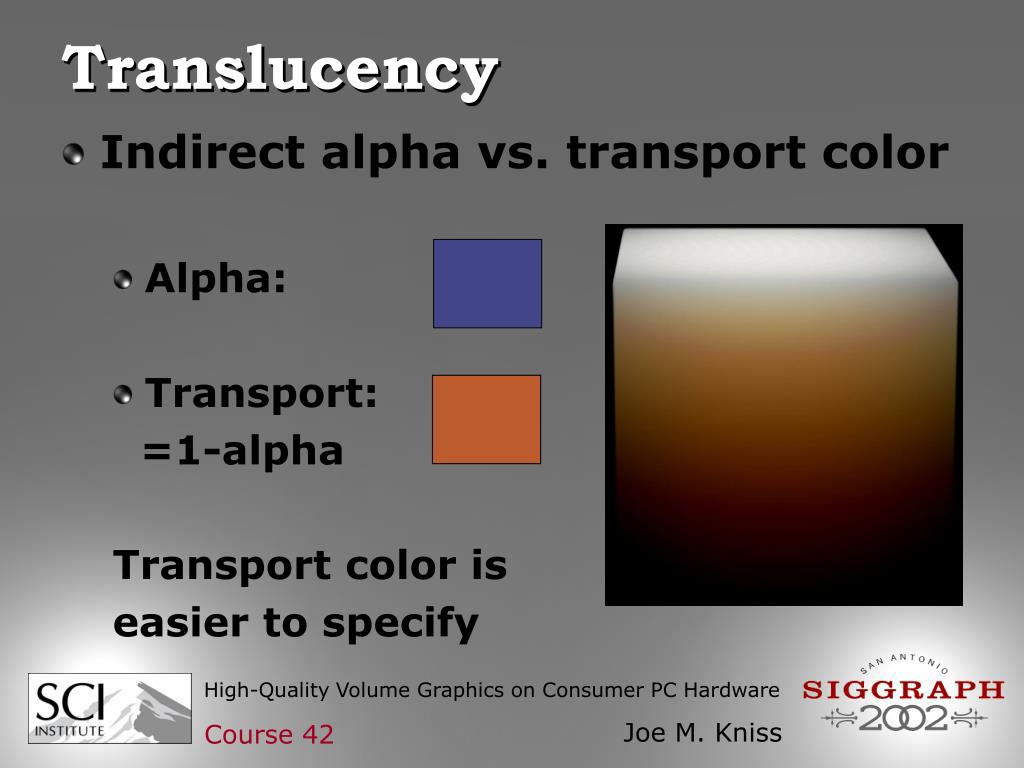

  40. Translucency • Indirect alpha vs. transport color • Alpha: • Transport: =1-alpha Transport color is easier to specify

  41. Optical Properties • Recap: • Reflective color/Emission (RGB) • Direct attenuation/alpha (A) • Surface scalar (s) • Indirect attenuation (Ar,Ag,Ab) • Others? Scattering, absorption, phase function, density, emission, index of refraction…

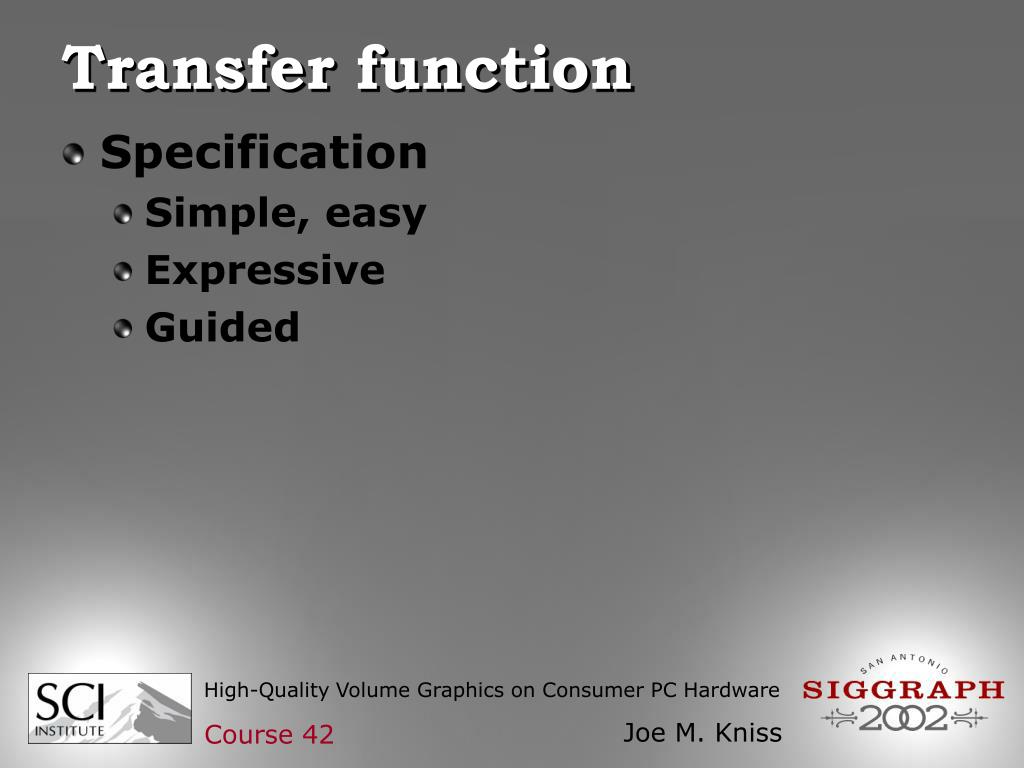

  42. Transfer function • Specification • Simple, easy • Expressive • Guided

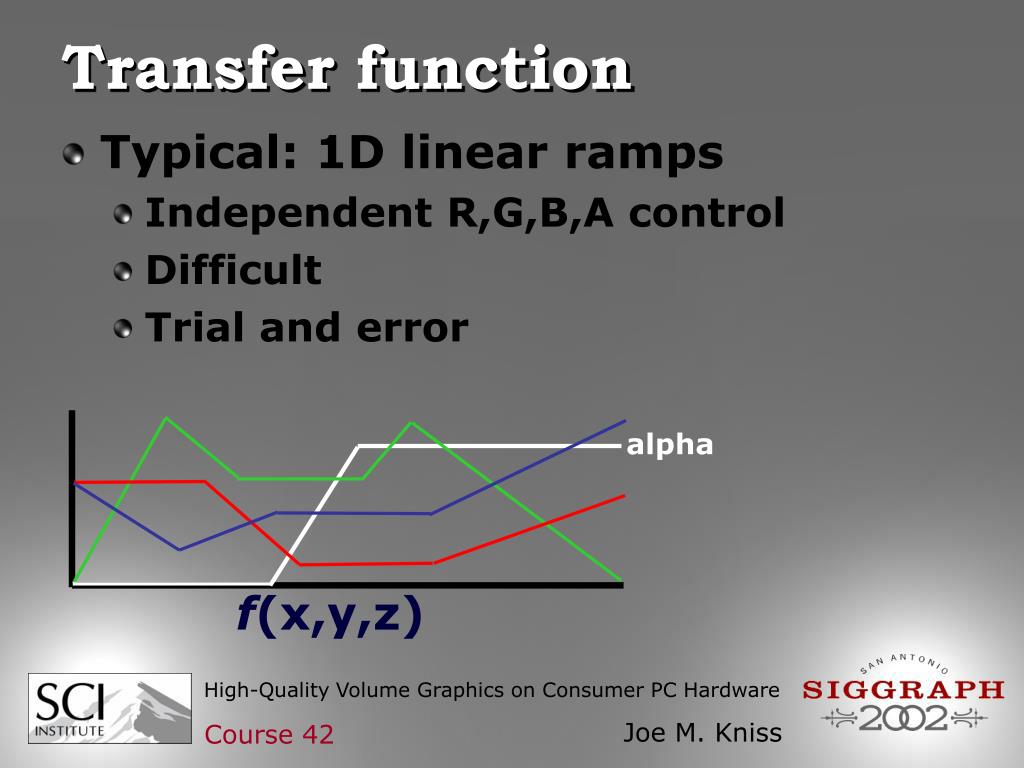

  43. Transfer function • Typical: 1D linear ramps • Independent R,G,B,A control • Difficult • Trial and error alpha f(x,y,z)

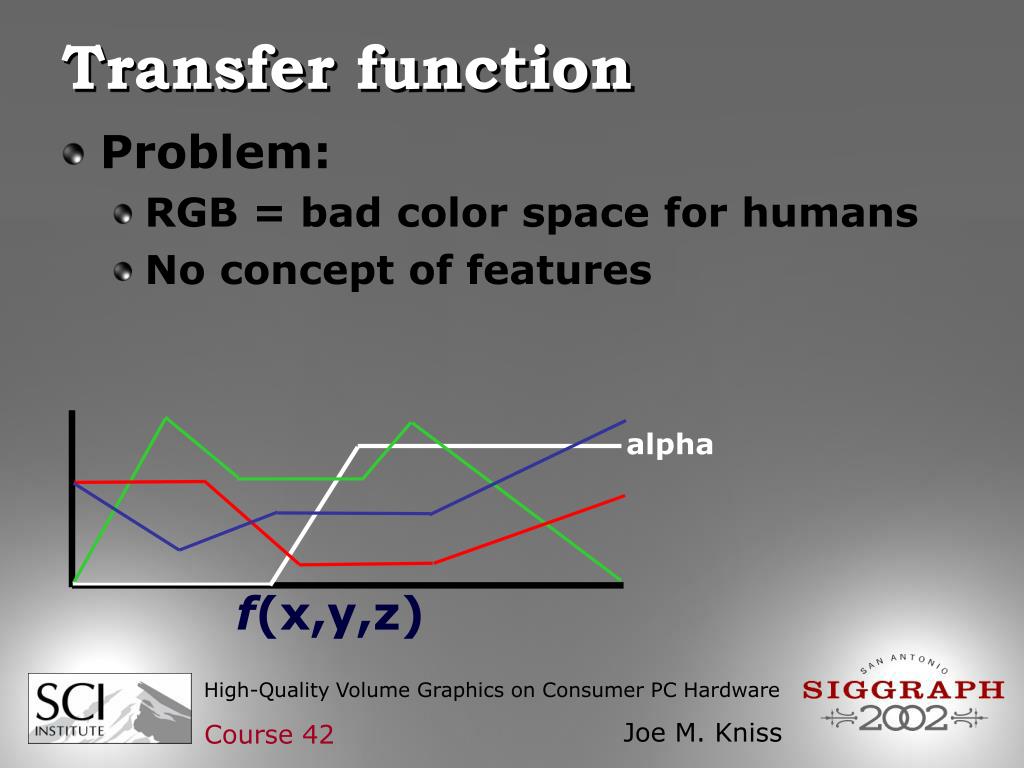

  44. Transfer function • Problem: • RGB = bad color space for humans • No concept of features alpha f(x,y,z)

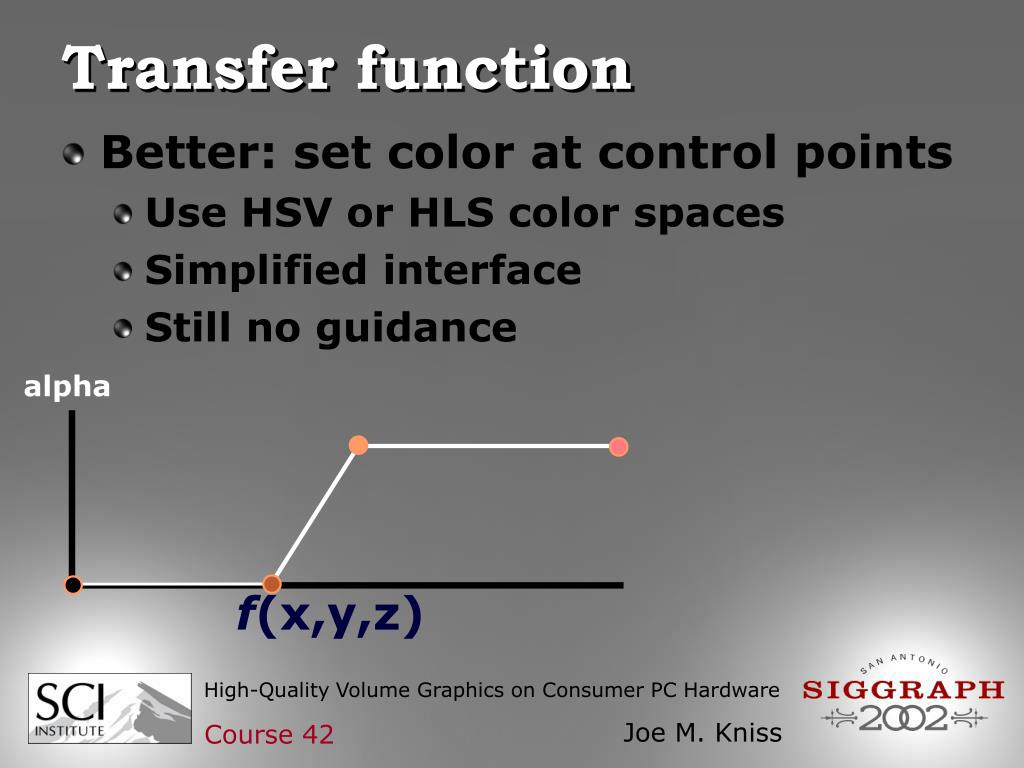

  45. Transfer function • Better: set color at control points • Use HSV or HLS color spaces • Simplified interface • Still no guidance alpha f(x,y,z)

  46. Transfer function • Guided techniques: • Design Galleries • Thumbnails • Semi-Automatic • Dual-domain interaction

  47. Design Galleries • Treat TF and rendering as a high dimensional parameter space • Stochastically sample space • Cluster images based on fitness • Select best looking image

  48. Design Galleries

  49. Design Galleries • Computationally expensive • Difficult to implement • Not guided by dataset specifics • Only handles 1D transfer functions

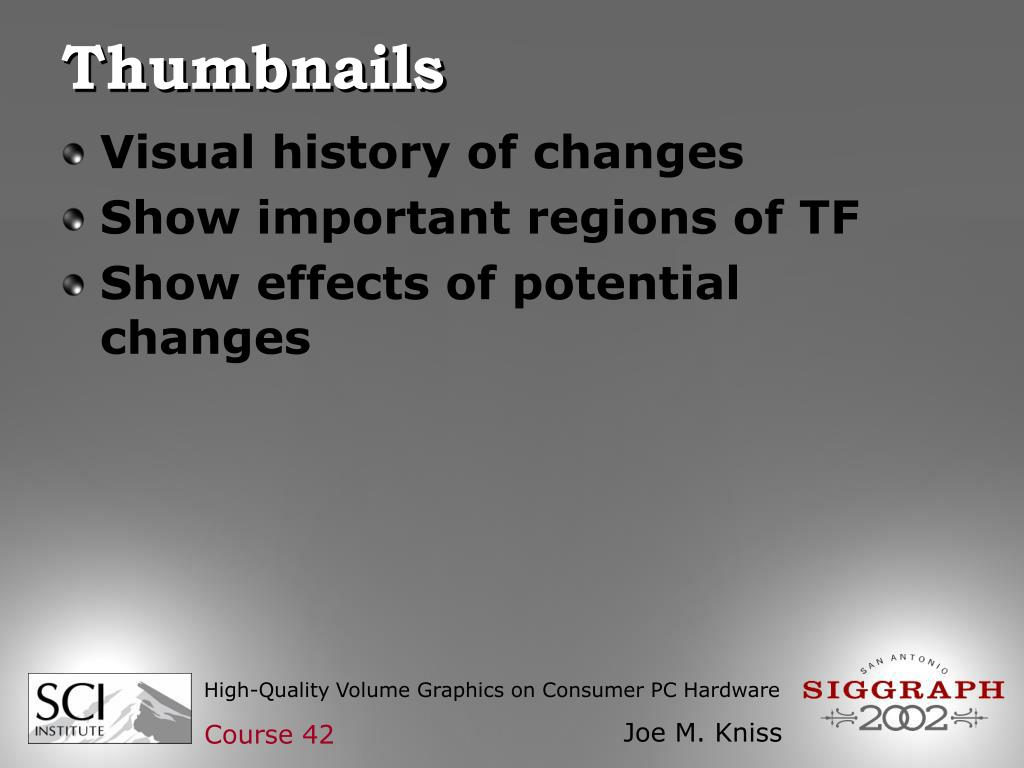

  50. Thumbnails • Visual history of changes • Show important regions of TF • Show effects of potential changes
