  1. PC Hardware ISQS 6343 John R. Durrett

  2. Why PCs • Ubiquitous • Powerful • Adaptive to many appliations • Software • Cost • Purchase • Management • Upgrades

  3. Architecture • Motherboard • CPU • Bus • Memory • External Storage • Video • Audio • O/S

  4. Motherboard

  5. CPU • CISC • Intel 8086 - PII, AMD, etc • Speed • ALU, CU, Registers • IRQ • DMA • DMQ

  6. Bus • External connectivity • Speed • 33, 66, ?, 100 • limiting factor • Path width • ISA • EISA • PCI

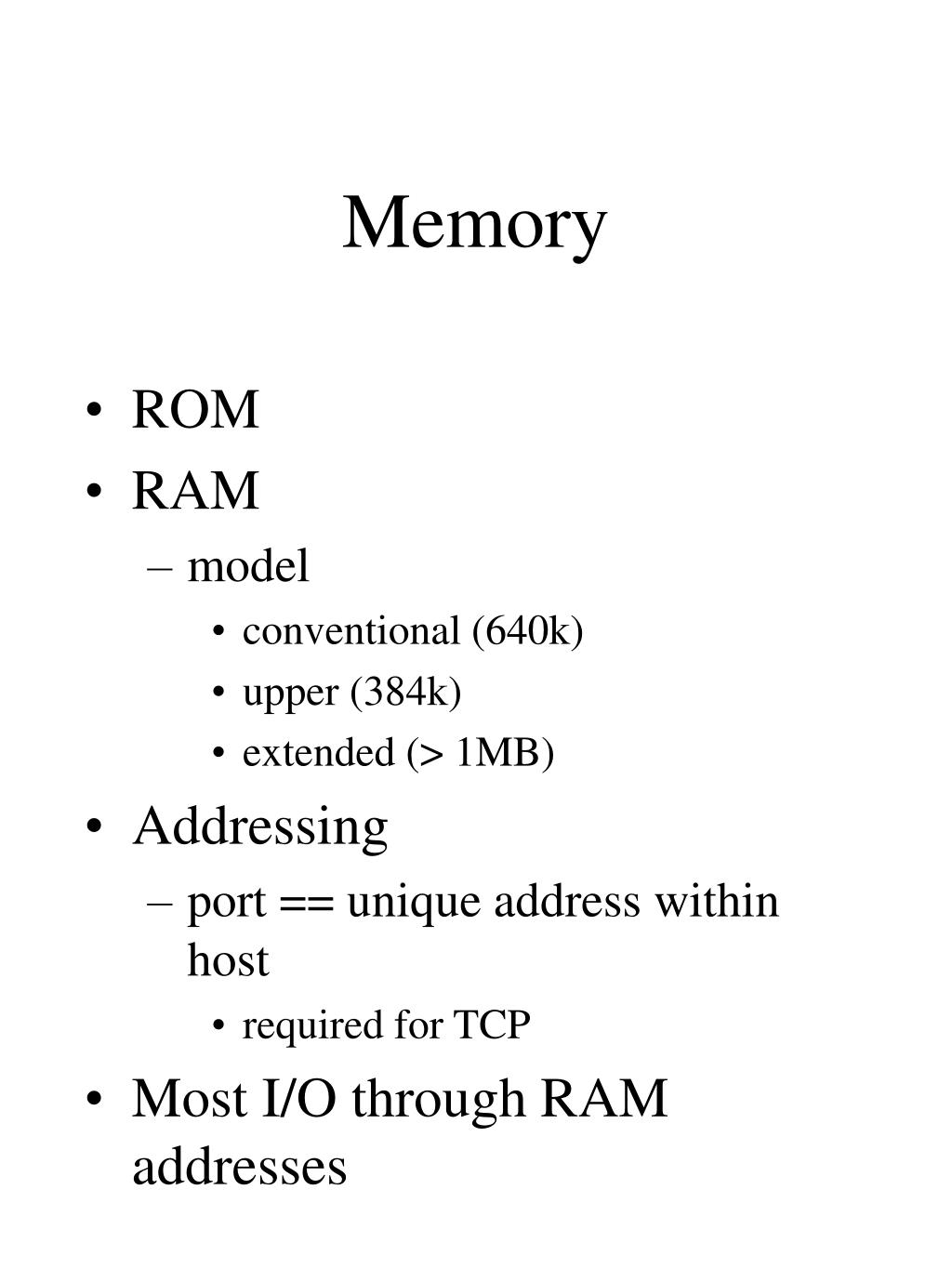

  7. Memory • ROM • RAM • model • conventional (640k) • upper (384k) • extended (> 1MB) • Addressing • port == unique address within host • required for TCP • Most I/O through RAM addresses

  8. External Storage • IDE & EIDE • SCSI • RAID • FAT, FAT32, NTFS, etc.

  9. Video • Standards • Monitors • Cards • Acceleration • MMX • 3D

  10. Audio • Games • Online • Telephony

  11. O/S • DOS • Windoze • 3.? • 95 & 98 • NT • Un*x • including Linux • O/S2
