Problem 4-4 (page 138)

Problem 4-4 (page 138). Draw the free body diagram of the beam which supports the 80-kg load and is supported by the pin at A and a cable which wraps around the pulley at D. Explain the significance of each force on the diagram. Solution:. 80(9.81)N is the effect of the cable

isaura
Télécharger la présentation

Problem 4-4 (page 138)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Problem 4-4 (page 138) Draw the free body diagram of the beam which supports the 80-kg load and is supported by the pin at A and a cable which wraps around the pulley at D. Explain the significance of each force on the diagram. Solution: 80(9.81)N is the effect of the cable (the weight of the object) on the beam. T is the effect of the cable on the beam. Ax and Ay are the effect of the pin Support on the beam.

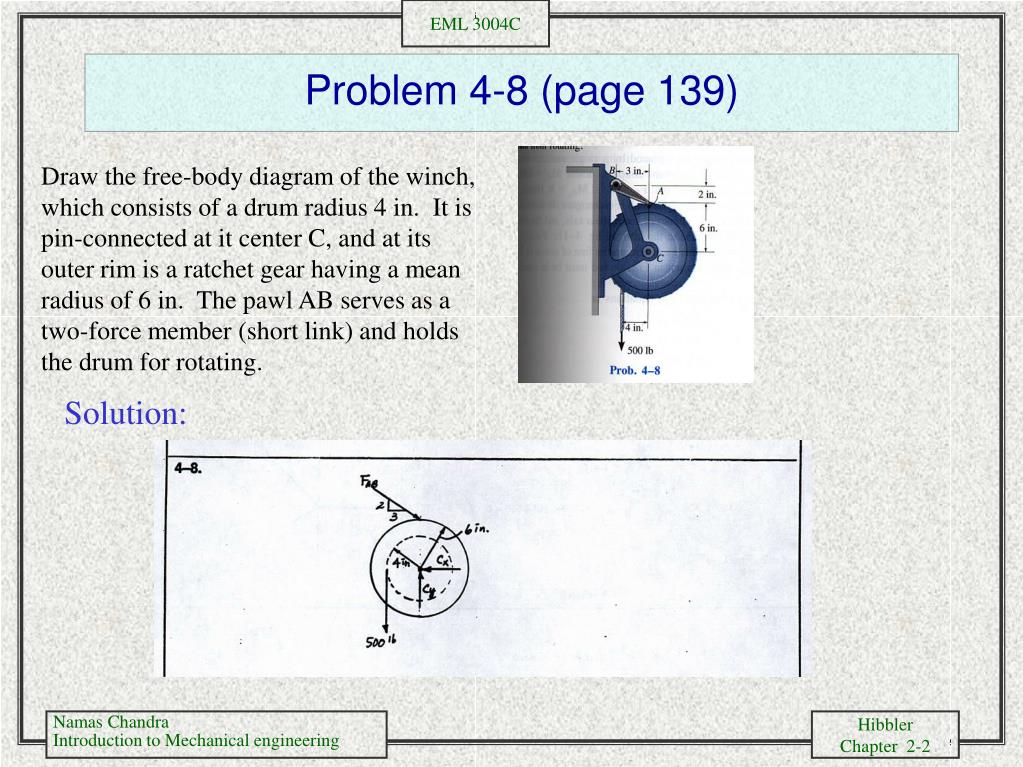

  2. Problem 4-8 (page 139) Draw the free-body diagram of the winch, which consists of a drum radius 4 in. It is pin-connected at it center C, and at its outer rim is a ratchet gear having a mean radius of 6 in. The pawl AB serves as a two-force member (short link) and holds the drum for rotating. Solution:

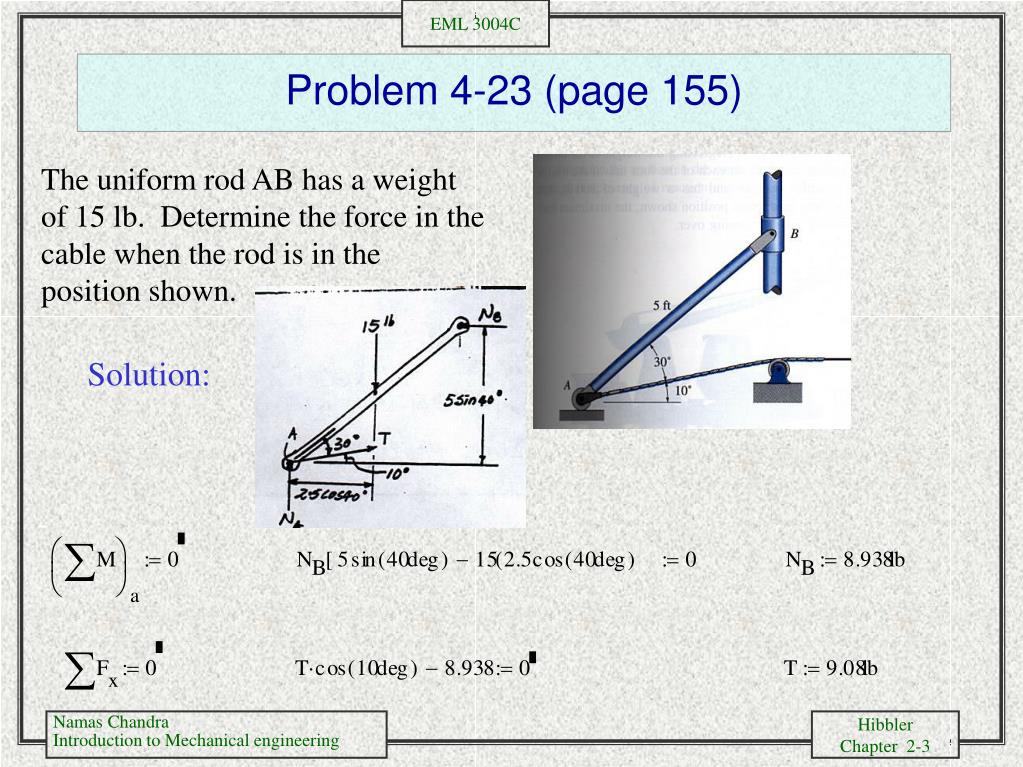

  3. Problem 4-23 (page 155) The uniform rod AB has a weight of 15 lb. Determine the force in the cable when the rod is in the position shown. Solution:

  4. Problem 4-32 (page 156) Determine the resultant normal force acting on each set of the wheels of the airplane. There is a set of wheels in the front, A, and a set of wheels under each wing, B. Both wings have total weight of 50 kip and center of gravity at Gw, the fuselage has a weight of 180 kip and center of gravity at Gf, and both engines(one on each side) have a weight 22 kip and center of gravity at Ge. Solution:

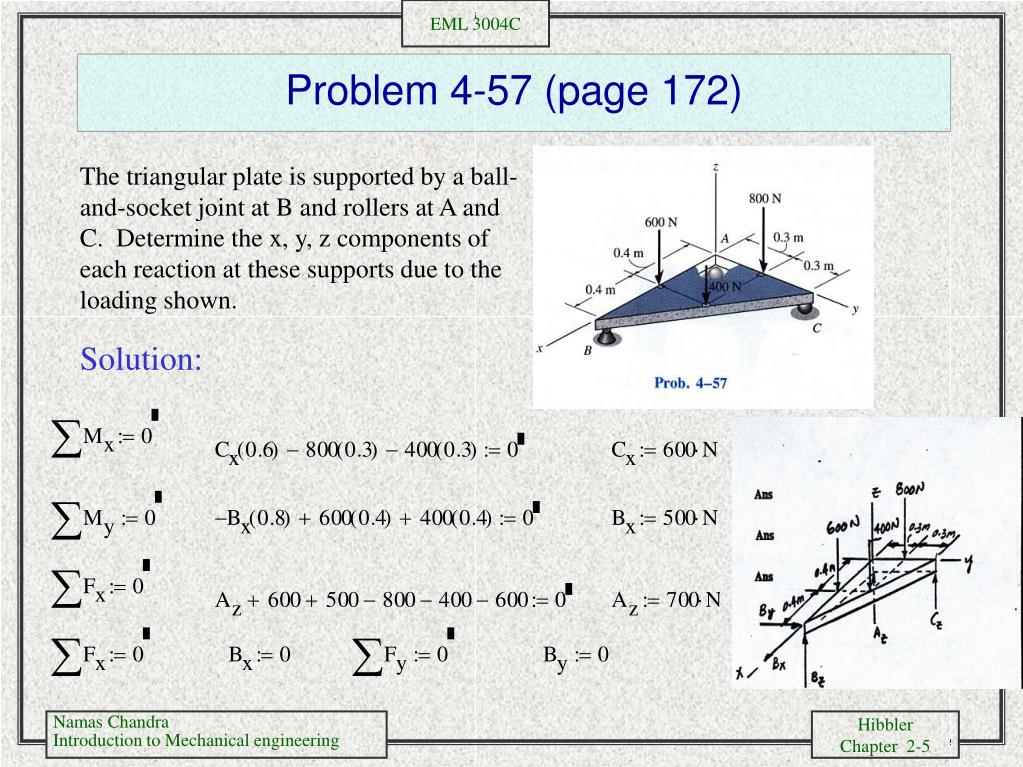

  5. Problem 4-57 (page 172) The triangular plate is supported by a ball-and-socket joint at B and rollers at A and C. Determine the x, y, z components of each reaction at these supports due to the loading shown. Solution:

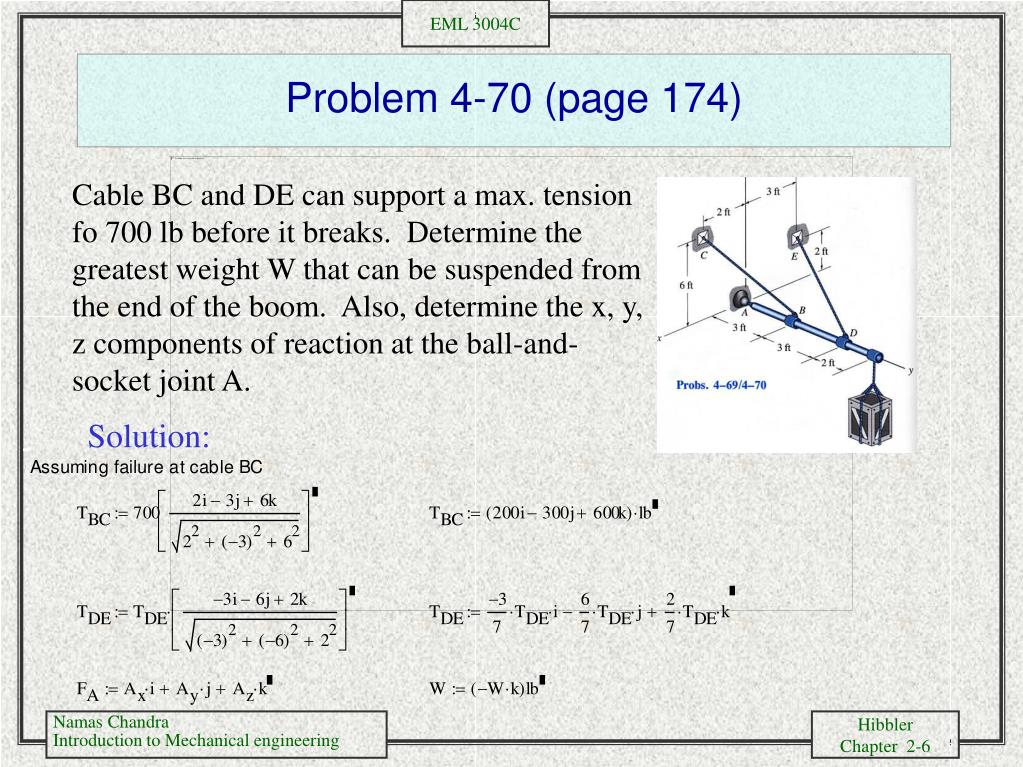

  6. Problem 4-70 (page 174) Cable BC and DE can support a max. tension fo 700 lb before it breaks. Determine the greatest weight W that can be suspended from the end of the boom. Also, determine the x, y, z components of reaction at the ball-and-socket joint A. Solution:

  7. Problem 4-70 (continued)

  8. Problem 4-70 (continued)

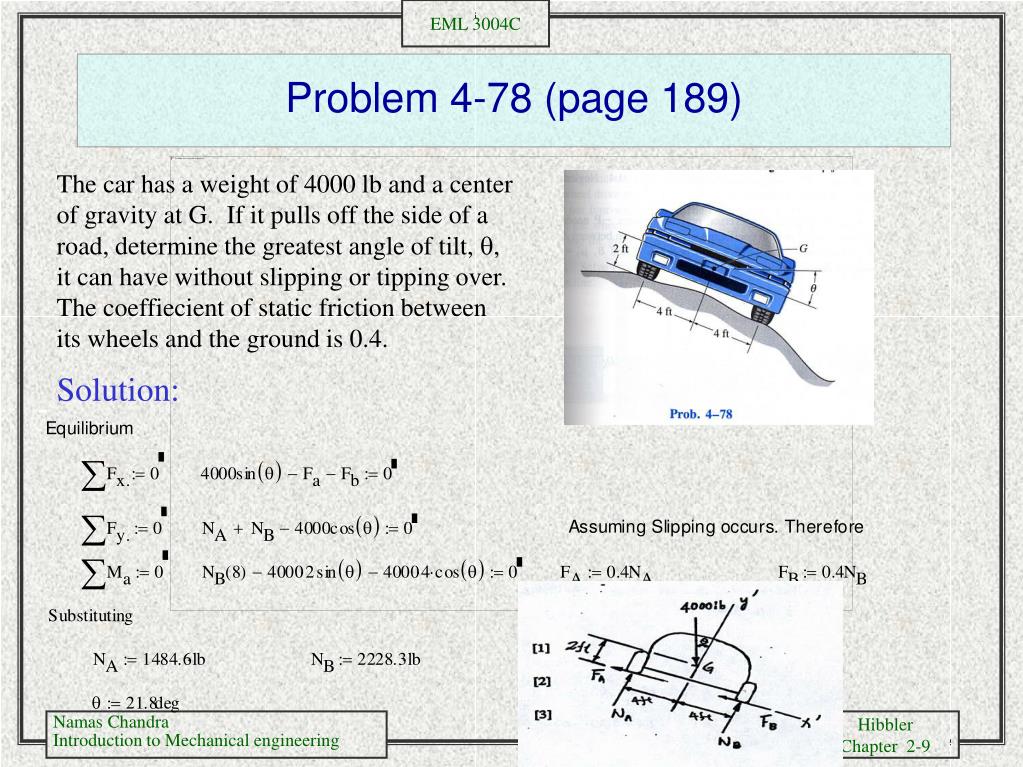

  9. Problem 4-78 (page 189) The car has a weight of 4000 lb and a center of gravity at G. If it pulls off the side of a road, determine the greatest angle of tilt, , it can have without slipping or tipping over. The coeffiecient of static friction between its wheels and the ground is 0.4. Solution:

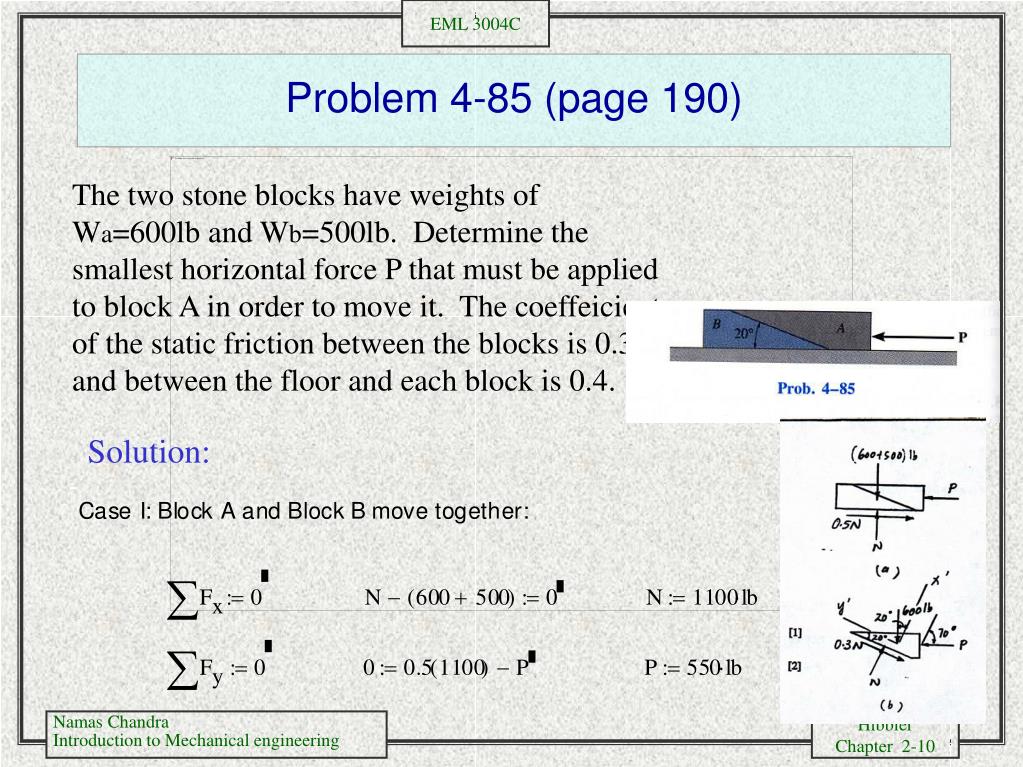

  10. Problem 4-85 (page 190) The two stone blocks have weights of Wa=600lb and Wb=500lb. Determine the smallest horizontal force P that must be applied to block A in order to move it. The coeffeicient of the static friction between the blocks is 0.3 and between the floor and each block is 0.4. Solution:

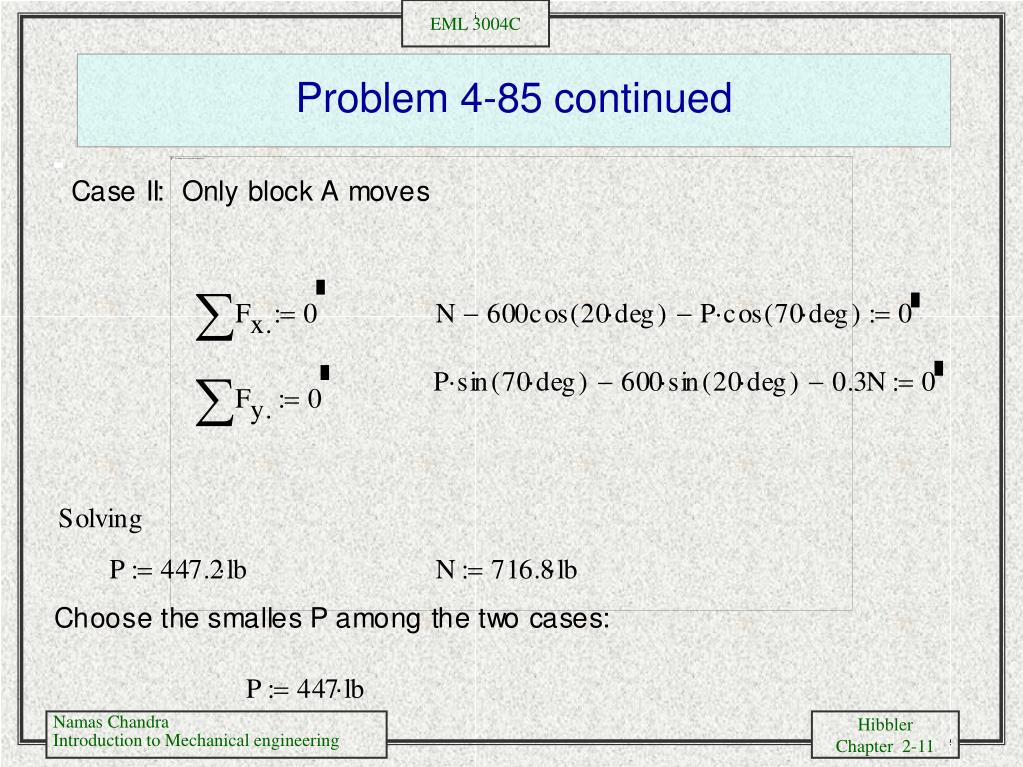

  11. Problem 4-85 continued

  12. Problem 4-110 (page 194) Determine the angle  at which the applied force P should act on the log so that the magnitude of P is as small as possible for pulling the log up the incline. What is the corresponding value of P? The log weighs W and the slope  is known. Express the answer in terms of the angle of kinetic friction,  = atan (). Solution:

  13. Problem 4-110 (continued)
