  1. R05002 Redirect Examples Appendix Examples: In all cases a Parent Reservation to be Redirected must be Firm Point-to-Point. Unless noted otherwise, example Redirect requests may be on either a firm or non-firm basis. Reservations that are shaded show Capacity Available to Redirect. MW’s in Gray are no longer available to Redirect. Requests that are cross-hatched are outside the bounds of the Parent Reservation. 1A Conference Call 8/18/05

  2. 100 MW - 60 MW - Confirmed Firm Parent ARef# 1000 20 MW - Day 1 Day 2 Day 3 Day 4 RECOMMENDATION TO NAESB WEQ EXECUTIVE COMMITTEE Requesters: Electronic Scheduling Subcommittee and Information Technology Subcommittee Request No.: R05002 Request Title: Revision of Redirect Standards 9 and 10 Example 1: Parent Reservation 100 MW - Implemented Tag ID# 100 Confirmed Redirect ARef# 1002 Confirmed Resale ARef# 1001 60 MW - Pending Tag ID# 101 30 MW - Pending Redirect ARef# 1004 Confirmed Redirect ARef#1003 Day 3 Day 1 Day 2 Day 4 Example 1: Capacity Available to Redirect on Parent Reservation (shaded area) after Various events Example 1 – Capacity Available to Redirect against Parent ARef# 1000 would be 60 MW for Day one and 30 MW for Day two. See Standards 9.4, 9.5, 10.4 and 10.5 and definition of Capacity Available to Redirect. 1A Conference Call 8/18/05

  3. RECOMMENDATION TO NAESB WEQ EXECUTIVE COMMITTEE Requesters: Electronic Scheduling Subcommittee and Information Technology Subcommittee Request No.: R05002 Request Title: Revision of Redirect Standards 9 and 10 100 MW - Outage 60 MW - Confirmed Firm Parent ARef# 2000 20 MW - Day 1 Day 2 Day 3 Day 4 Example 2: Capacity Available to Redirect on Parent Reservation Not Affected by Outage Example 2 – The Capacity Available to Redirect is unaffected by the outage. The Capacity Available to Redirect against Parent ARef# 2000 would be 100 MW’s for all four days. See Standards 9.2 and 10.2. 1A Conference Call 8/18/05

  4. RECOMMENDATION TO NAESB WEQ EXECUTIVE COMMITTEE Requesters: Electronic Scheduling Subcommittee and Information Technology Subcommittee Request No.: R05002 Request Title: Revision of Redirect Standards 9 and 10 Example 3 – The TP must deny Request 3001 because the time period is invalid (i.e. extends past the time period of the Parent Reservation). The Capacity Available to Redirect on the Parent Reservation remains at 100 MW for the duration of the reservation. See Standards 9.3, 9.4.1, 10.3 and 10.4.1 100 MW - 60 MW - Confirmed Firm Parent ARef# 3000 Invalid Redirect ARef# 3001 20 MW - Day 1 Day 2 Day 3 Day 4 Example 3: Redirect Request with Invalid Time Period 1A Conference Call 8/18/05

  5. RECOMMENDATION TO NAESB WEQ EXECUTIVE COMMITTEE Requesters: Electronic Scheduling Subcommittee and Information Technology Subcommittee Request No.: R05002 Request Title: Revision of Redirect Standards 9 and 10 Non-Firm Redirect Request ARef# 4001 100 MW - 60 MW - Confirmed Firm Parent ARef# 4000 20 MW - Day 1 Day 2 Day 3 Day 4 Example 4: Non-Firm Redirect with Capacity Requested exceeding Capacity Available to Redirect on Parent Reservation. Example 4 – With a Non-Firm Redirect Request where the capacity requested exceeds the Capacity Available to Redirect of the Parent, if ATC is available, the TP may Counteroffer ARef# 4001 at 100 MW (See Example 4a) or deny ARef# 4001 (See Example 4b). In 4a, assuming the customer confirmed the Counteroffer, the Capacity Available to Redirect on Parent Reservation ARef# 4000 would be 100 MW for the first two days and zero for days 3 and 4. See Standards 10.2, 10.3, 10.4, 10.4.1, 10.4.3 and 10.5. 100 MW - Non-Firm Redirect ARef# 4001 Counteroffered and Confirmed at 100 MW Confirmed Firm Parent ARef# 4000 60 MW - 20 MW - Day 1 Day 2 Day 3 Day 4 Example 4a: Non-Firm Redirect with Optional Counteroffer. 1A Conference Call 8/18/05

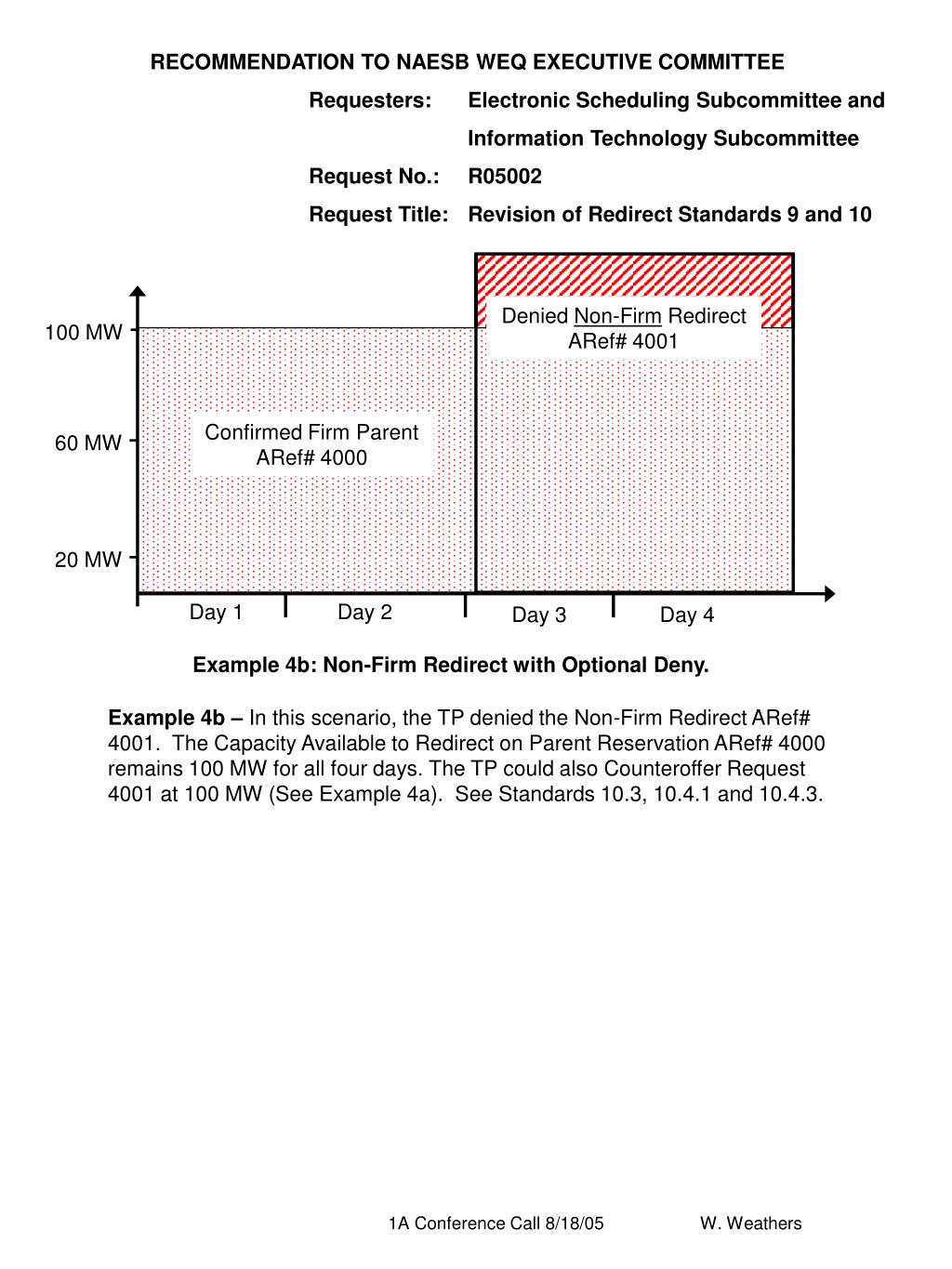

  6. RECOMMENDATION TO NAESB WEQ EXECUTIVE COMMITTEE Requesters: Electronic Scheduling Subcommittee and Information Technology Subcommittee Request No.: R05002 Request Title: Revision of Redirect Standards 9 and 10 Denied Non-Firm Redirect ARef# 4001 100 MW - 60 MW - Confirmed Firm Parent ARef# 4000 20 MW - Day 1 Day 2 Day 3 Day 4 Example 4b: Non-Firm Redirect with Optional Deny. Example 4b – In this scenario, the TP denied the Non-Firm Redirect ARef# 4001. The Capacity Available to Redirect on Parent Reservation ARef# 4000 remains 100 MW for all four days. The TP could also Counteroffer Request 4001 at 100 MW (See Example 4a). See Standards 10.3, 10.4.1 and 10.4.3. 1A Conference Call 8/18/05

  7. RECOMMENDATION TO NAESB WEQ EXECUTIVE COMMITTEE Requesters: Electronic Scheduling Subcommittee and Information Technology Subcommittee Request No.: R05002 Request Title: Revision of Redirect Standards 9 and 10 Firm Redirect Request ARef# 5001 100 MW - 60 MW - Confirmed Firm Parent ARef# 5000 20 MW - Day 1 Day 2 Day 3 Day 4 Example 5: Firm Redirect with Capacity Requested exceeding Capacity Available to Redirect on Parent Reservation. Example 5 - With a Firm Redirect Request where the capacity requested exceeds the Capacity Available to Redirect of the Parent, assuming ATC is available, the TP must Counteroffer ARef# 5001 at 100 MW. Assuming also that the customer confirmed the Counteroffer, the Capacity Available to Redirect on Parent Reservation ARef# 5000 would be 100 MW for the first two days and zero for days 3 and 4. See Standards 9.3 and 9.4.3. 100 MW - Firm Redirect ARef# 5001 Counteroffered and Confirmed at 100 MW 60 MW - Confirmed Firm Parent ARef# 5000 20 MW - Day 1 Day 2 Day 3 Day 4 Example 5: Firm Redirect with Counteroffer 1A Conference Call 8/18/05

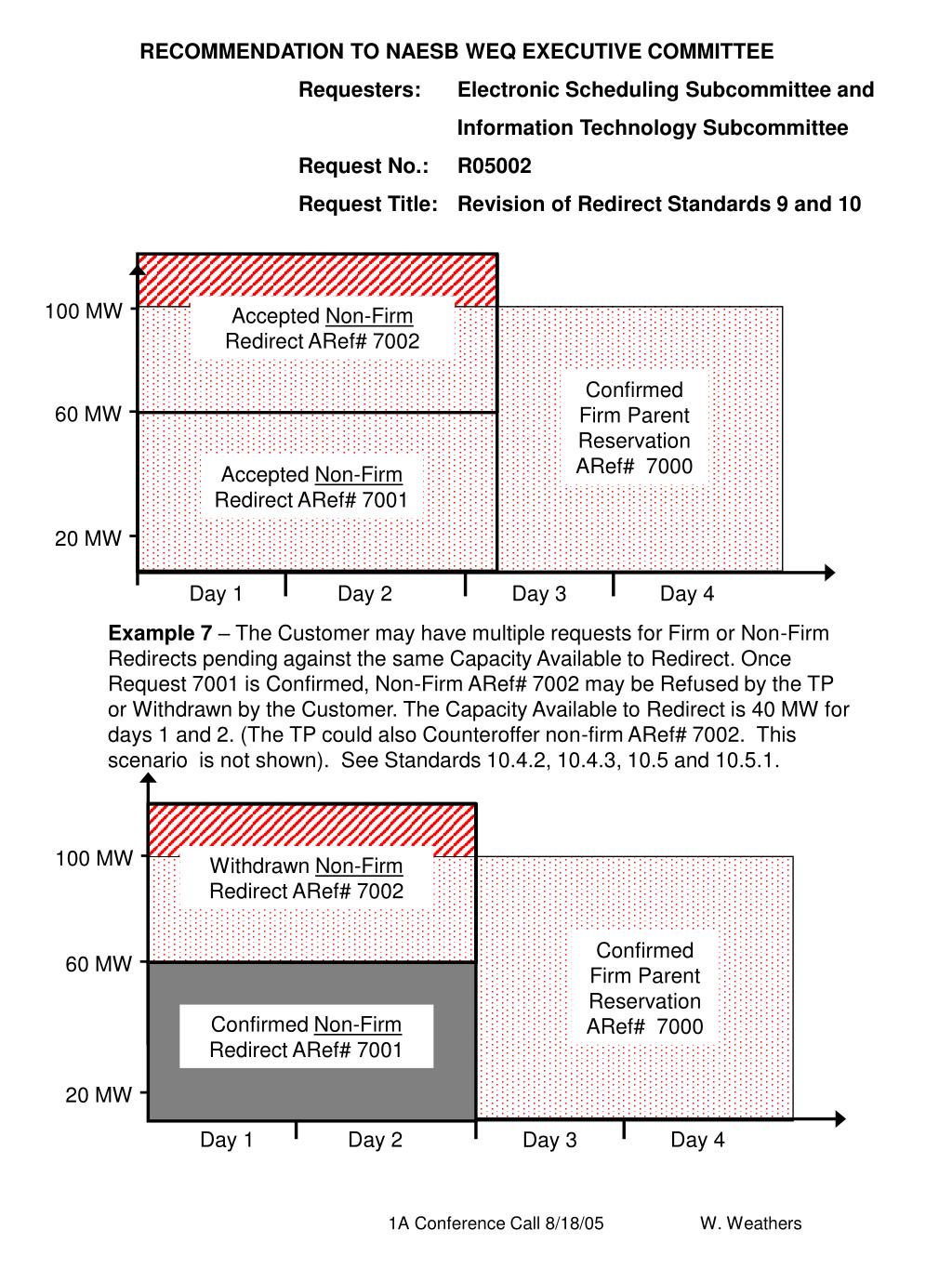

  8. 100 MW - Confirmed Firm Parent Reservation ARef# 7000 60 MW - 20 MW - Day 1 Day 2 Day 3 Day 4 RECOMMENDATION TO NAESB WEQ EXECUTIVE COMMITTEE Requesters: Electronic Scheduling Subcommittee and Information Technology Subcommittee Request No.: R05002 Request Title: Revision of Redirect Standards 9 and 10 Accepted Non-Firm Redirect ARef# 7002 Accepted Non-Firm Redirect ARef# 7001 Example 7 – The Customer may have multiple requests for Firm or Non-Firm Redirects pending against the same Capacity Available to Redirect. Once Request 7001 is Confirmed, Non-Firm ARef# 7002 may be Refused by the TP or Withdrawn by the Customer. The Capacity Available to Redirect is 40 MW for days 1 and 2. (The TP could also Counteroffer non-firm ARef# 7002. This scenario is not shown). See Standards 10.4.2, 10.4.3, 10.5 and 10.5.1. 100 MW - Withdrawn Non-Firm Redirect ARef# 7002 Confirmed Firm Parent Reservation 5000 60 MW - Confirmed Firm Parent Reservation ARef# 7000 Confirmed Non-Firm Redirect ARef# 7001 20 MW - Day 1 Day 2 Day 4 Day 3 1A Conference Call 8/18/05

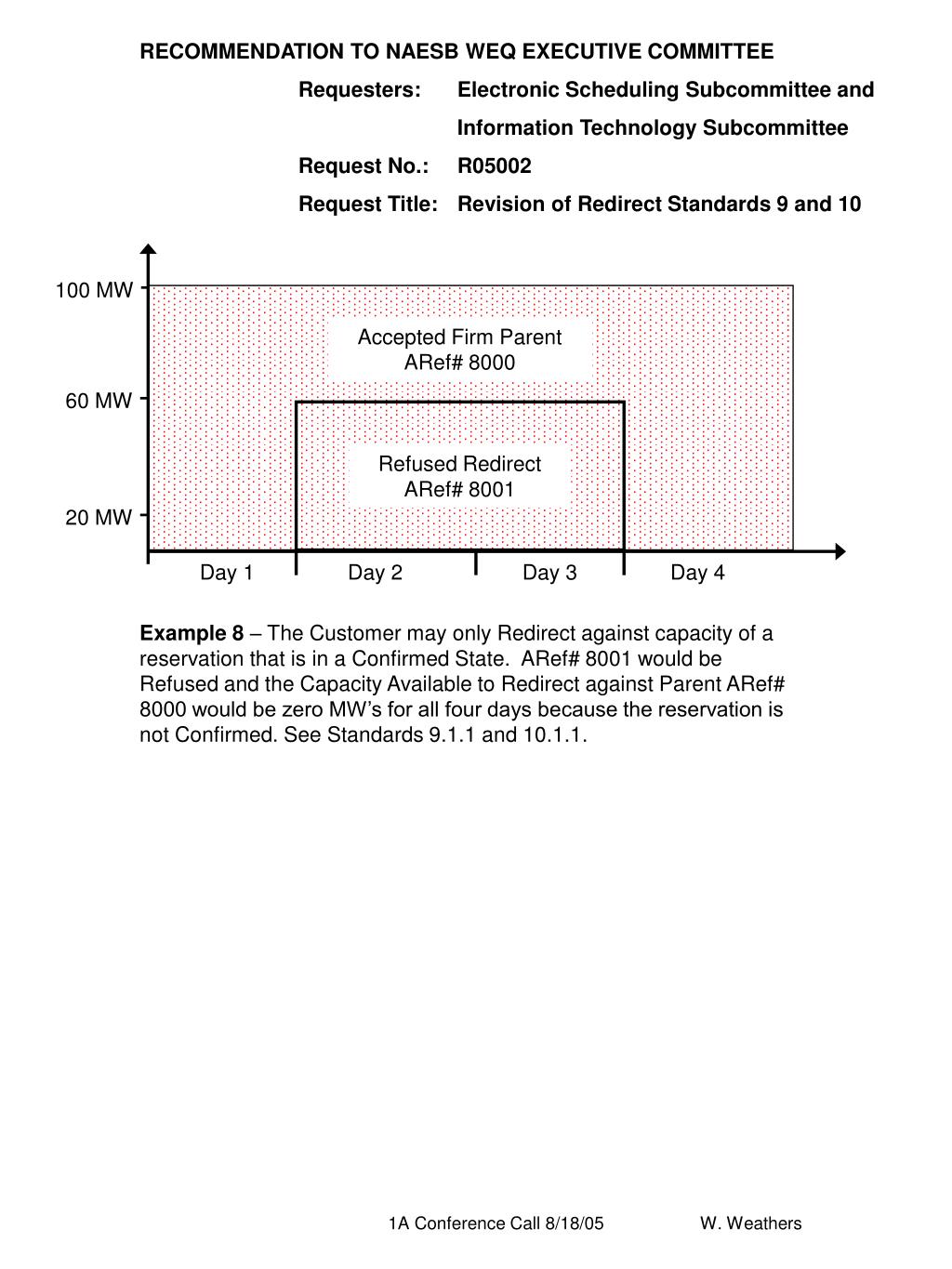

  9. RECOMMENDATION TO NAESB WEQ EXECUTIVE COMMITTEE Requesters: Electronic Scheduling Subcommittee and Information Technology Subcommittee Request No.: R05002 Request Title: Revision of Redirect Standards 9 and 10 100 MW - Accepted Firm Parent ARef# 8000 60 MW - Refused Redirect ARef# 8001 20 MW - Day 1 Day 2 Day 3 Day 4 Example 8 – The Customer may only Redirect against capacity of a reservation that is in a Confirmed State. ARef# 8001 would be Refused and the Capacity Available to Redirect against Parent ARef# 8000 would be zero MW’s for all four days because the reservation is not Confirmed. See Standards 9.1.1 and 10.1.1. 1A Conference Call 8/18/05
