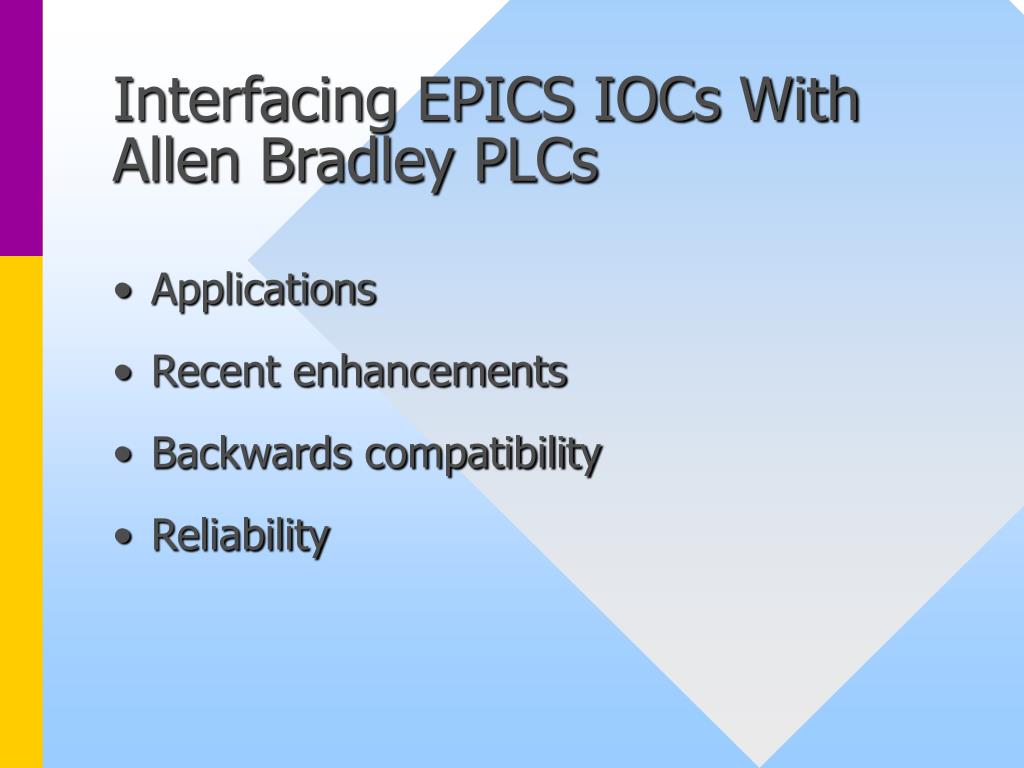

  1. Interfacing EPICS IOCs With Allen Bradley PLCs • Applications • Recent enhancements • Backwards compatibility • Reliability

  2. EPICS device and driver support for Allen Bradley DF1 protocol • Originally written for (and funded by) the KECK observatory • Recently updated for APT high power RF and personnel safety subsystems

  3. DF1 Driver Applications • IOC host architecture neutral • runs on PC, VME, and VXI IOCs • Point to point serial communication • Allen Bradley Data Highway communication • Allen Bradley KF2 standalone • Data Link DL PC low cost ISA card

  4. Recent Enhancements • Support for Allan Bradley PLC5 architecture • Output tracking • DF1 server • Others

  5. Support for Allan Bradley PLC5 architecture • PLC5 addressing • Thanks to Eric Bjorklund for improved ASCII address parser • PLC5 protocol • Data type safe R/W • Elements in files • Improved access control granularity

  6. Output Tracking • IOC initialization does not block for Initial output value query completion • Output records in invalid / undefined alarm state until this query completes • Output records track changes occurring in PLC (they are processed) • Potential side effects when output records have forward links

  7. DF1 server • Allan Bradley PLCs see EPICS records as elements in files in a PLC5 on DH+ • Reduced latency • Occurs when record addresses data highway node number of IOC

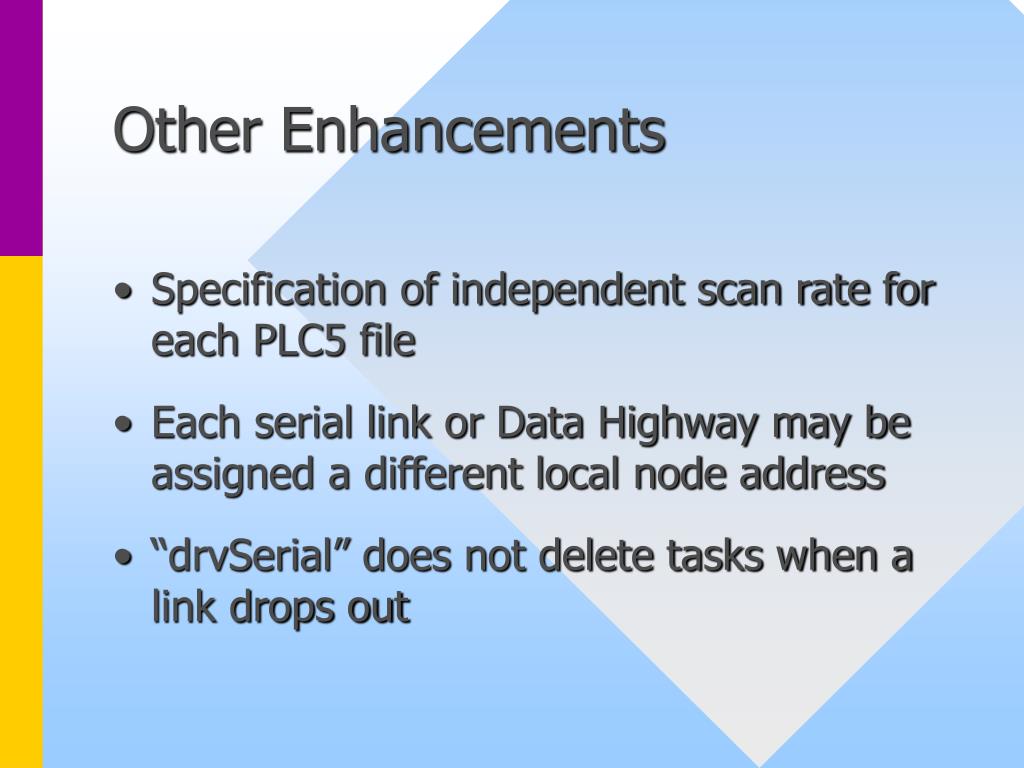

  8. Other Enhancements • Specification of independent scan rate for each PLC5 file • Each serial link or Data Highway may be assigned a different local node address • “drvSerial” does not delete tasks when a link drops out

  9. Backward compatibility • Continue to support original addressing and protocol of older PLCs • additional testing required for this version • Driver no-longer aborts a write in the queue so that it can be combined with another subsequent write

  10. Reliability • This driver has been supporting the APT high level RF and window test systems since the beginning of the calendar year • The driver has been very reliable on this very lightly loaded PLC5 system • Now have operational experience with Allen Bradley Data Highway

  11. Getting a copy of the DF1 protocol driver described here • KECK (Allan Honey) is the distribution point but I have not yet sent them a copy of this version

  12. In Memory Communication with VME Resident Allen Bradley PLC5? • Contact Eric Bjorklund (LANL LANSCE-6) for his driver • Both the DF1 driver (described here) and Eric’s VME driver use the same common PLC5 enhanced device support

  13. Conclusions • The Allen Bradley DF1 device / driver support has been upgraded to support PLC5s, output tracking, and DF1 server operation. • It has been very reliable under continuous production, but lightly loaded, operation of the APT high power RF system.
