  1. AutroSafe SelfVerifyInteractive Fire & Gas Detection System ID: ASAFE_intro_Eng, 2007-09

  2. Overview and a brief introduction of; • Reference to traditional systems • The AutroSafe system • Background for development – IEC EN54 • AutroSafe terminology • Features introduction • SelfVerify • System Integrity (SIL) • Reliability • Communication • Software Tools

  3. BRANN Traditional Analogue Addressable Fire-Alarm Systems BU-100 5th Deck BU-70 4th Deck BU-100 3rd Deck BU-70 2nd Deck BU-100 LER CCR 1st Deck Utility Deck DYNAMIC FILTER PROCESS

  4. AutroSafe SelfVerify Interactive Fire-& Gas Detection System Corridor LER 5th deck Corridor LER 4th deck Corridor LER 3rd deck Corridor LER 2nd deck CCR LER 1st deck AUTROLON Utility-deck

  5. Traditional F & G System AutroSafe DCS system Operator Station Standard Loop Units Node 1 Redundant Network Node 2 Node 3 Node 4 Node 5 Node 6 EX Loop Units AutroPoint AutroFlame Third party detectors Kidde Fenwal Analaser II Third party detectors AutroPathHC600 RX Simrad AutroPathHC600 TX AutroFlame CCTV

  6. AutroSafe Panel (TCP/IP) AutroOS AutroSafe Panel AutroSafe IFG ModBus To Process AutroSafe Controller Control System Al_Com AutroLON loop Standard AutroSafe loop units Information/ Barrier unit Repeater BZ-500 panel BSD-340 AutroFieldBus AutroSafe EX loop units BSD-321 PowerLoop AutroFlame Video X33/1 PL BN-342 (4-20mA) Third-party Detector Third-party Detector Kidde Fenwal Analaser II AutroPath HC600 AutroFlame CCTV

  7. AutroSafe and EN 54 • AutroSafe:Developed and approved in accordance with EN 54-2 and EN 54-4 • AutroSafe:Considers the demands of future EN 54 norms • AutroSafe:Exploits all the possibilities of EN 54 (American equivalent is NFPA 72 – AutroSafe is also FM approved – thus tested and approved against NFPA 72)

  8. Features, Performance, Functionality.. • Interactive loop Communication • Automatic addressing • Intelligent field devices • Increased reliability – key terms: • SelfVerify TM • DYFI+ (Dynamic Filter Process) • Built-in Short circuit isolators • Loop topology • Fail-safe loop communication • Roughed loop communication

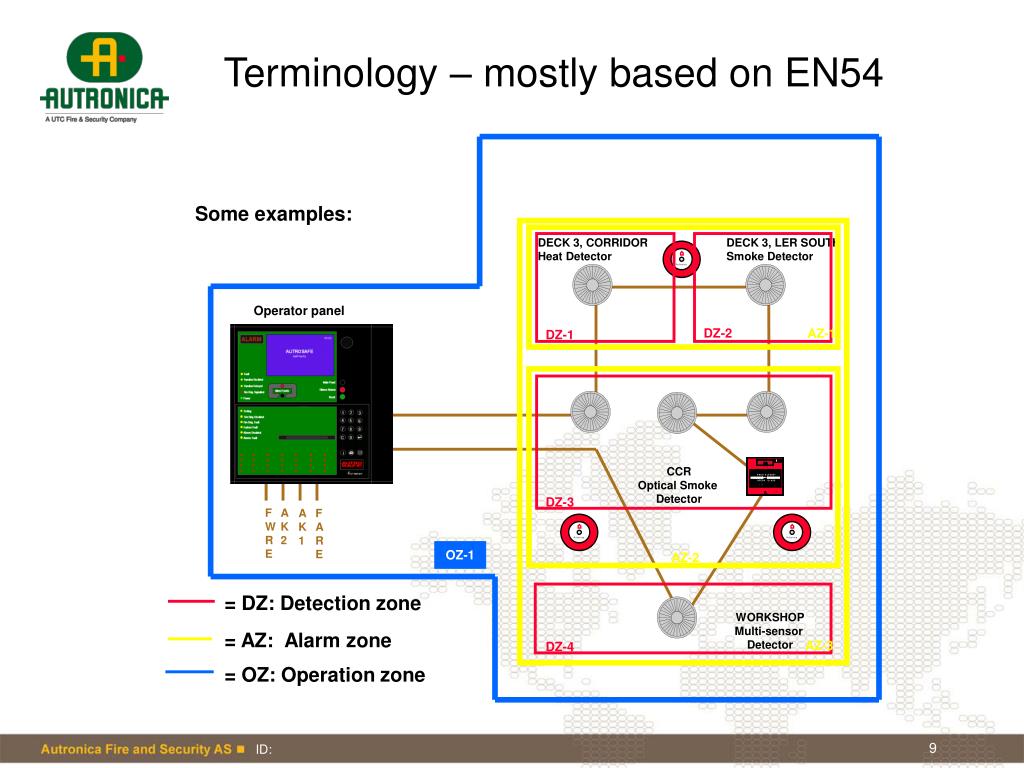

  9. DECK 3, CORRIDOR Heat Detector DECK 3, LER SOUTH Smoke Detector Operator panel DZ-2 AZ-1 DZ-1 CCR Optical Smoke Detector DZ-3 FWRE AK2 AK1 FARE OZ-1 AZ-2 = DZ: Detection zone WORKSHOP Multi-sensor Detector = AZ: Alarm zone AZ-3 DZ-4 = OZ: Operation zone Terminology – mostly based on EN54 Some examples:

  10. AutroSafe SelfVerify System Panels Maximum flexibility: Easy to read, understand and operate Fire & Gas Alarm panel Operator Panel Repeater Panel Information Panel Controller

  11. AutroLON AutroLON • AutroSafe panels in a Ring loop • Short-circuit isolators in every panel – all panels will continue to operate even with a single break or short circuit on the AutroLON • Maximum 32 panels in one LON-ring (but needs a Booster for each 8th panel) • Fibre-optic modems available (3000 meters between two panels) Back to main page

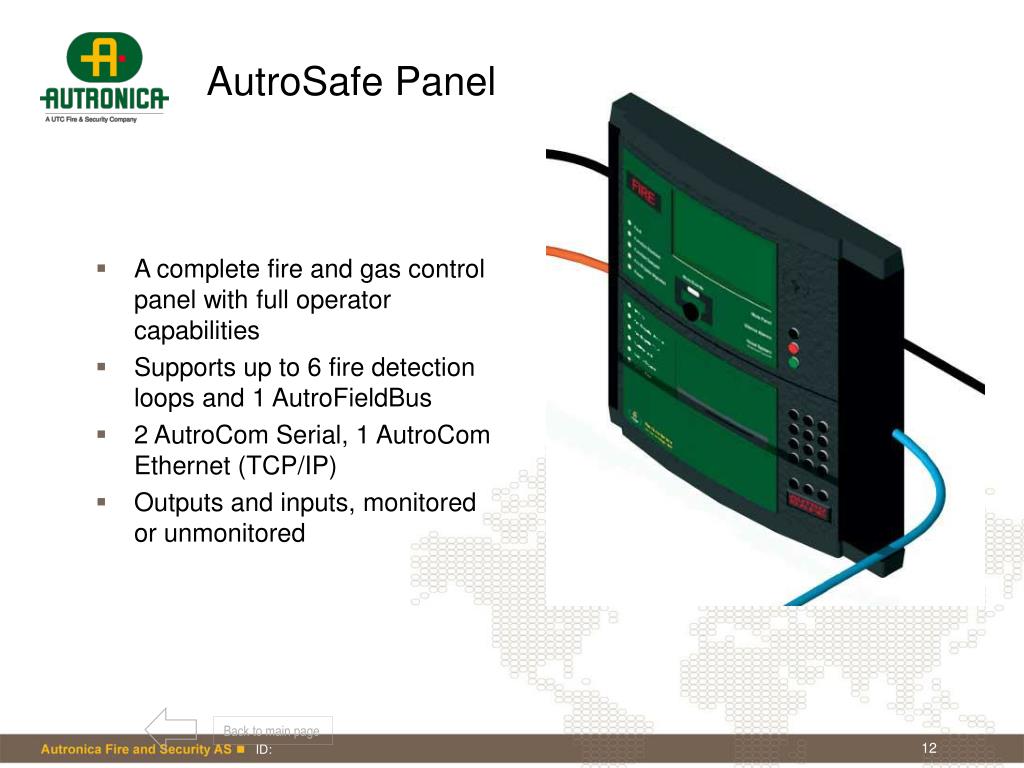

  12. AutroSafe Panel • A complete fire and gas control panel with full operatorcapabilities • Supports up to 6 fire detection loops and 1 AutroFieldBus • 2 AutroCom Serial, 1 AutroCom Ethernet (TCP/IP) • Outputs and inputs, monitored or unmonitored Back to main page

  13. AutroSafe Controller • Serves as a connection unit for detection loops (maximum 6) • 1 AutroFieldBus • 2 AutroCom Serial, 1 AutroCom Ethernet • Outputs and inputs, monitored or unmonitored • Communicates with other system units on AUTROLON Back to main page

  14. AutroSafe Information/ Repeater Panel Information Panel • Serves as an indication device only • Provides information related to the defined operation zone(s). Repeater Panel • Displays alarms and allows operation of alarms and receipt of additional information related to the relevant operation zone Back to main page

  15. AutroSafe SelfVerify, a Modular System A variety of DIN rail mounted I/O modules available.. • Loop drivers • Digital output modules • 24V alarm output modules • Digital input modules

  16. A Wide Range of Products for All Applications Optical smoke detectors High-sensitivity smoke detectors Series Multisensor smoke detectors Heat detectors Interface/ address units Manual Call-points Sounder Units Series 200 Standard Interactive- Addressable units Series 300 With SelfVerify® functions Series 500 With special protection for marine, offshore, Exi applications

  17. AL_Com Loop AL_Com Loop • Ring loop-topology with detectors, I/O interfaces and sounders • Short-circuit isolators in every loop unit – all detectors and interfaces will continue to operate even with a single break or short circuit on the AL_Com Loop • One branch between two units on the main loop • All ‘decisions’ made by loop unit, event messages sent to panel • Fail-safe operation if communication fails. Back to main page

  18. Standard AutroSafe Loop Units • The detection loop is connected directly to the Loop Driver Module • All types and series of AutroSafe detectors, manual call-points and I/O units can be connected to the same detection loop (99 det/mcp + 27 I/O) Back to main page

  19. AutroSafe EX Loop • Connected to one barrier (branch) between two units on the main loop • Maximum 20 EX-units on one branch • Most Autronica-detectors and I/O-units are produced in EX-versions Back to main page

  20. Large Assortment of I/O Units A number of loop controls and Interface units are available • Disablement input-units • Interface units for alarm and faults • Door control and monitoring units • Output control unit • General monitoring and control units • Sprinkler monitoring units

  21. BSL-330/X • Interfaces on-site third-party systems • The following messages can be transmitted (from/to an AutroSafe fire-alarm panel): • fire alarms • pre-alarms • faults • technical alarms from I/O units and event handling from third-party devices • Four different versions Back to main page

  22. AutroCom directly to DCS • ABB AC400 • ABB AC800 • Siemens • Kongsberg • Emerson • Hima Advantages of direct communication and propriatary protocol: Fuctionality and SIL!

  23. AutroOS • Aremote monitoring and control system thatenables full operation of the AutroSafe fire-alarm panels • All alarms, faults, inhibits, overrides and outputs can bemonitored and controlled from the AutroOS stations • Video from CCTV flame cameras • Microsoft Windows platform Back to main page

  24. AutroSafe Sys. & Utility Software Package • AS Configuration Tool • Merge Tool • Power Calculators • Import/Export Tools • Download Tools • AS I/O Simulator Tool • The perfect Application Software verification Tool • Loop Diagnostics Tool • WAS-2000 and AS-2000

  25. What is SelfVerify®? SelfVerify® function:The detectors are tested once every 24 hours with a calibrated signal

  26. Power Supply Detector Loop Communication interface Fault Warning Fault Signal ALARM! Fire Alarm Fire Alarm Signal STOP! Detector smoke chamber Alarm signal Standard Analogue Addressable Fire-Alarm System Power supply Monitored parts Communication interface Non-Calibrated test Smoke detector Fault warning Fault signal Fire Alarm Fire Alarm signal Operation Detector test with test gas Alarm signal

  27. Fail-safe detectors give increased reliability, and reduce maintenance costs dramatically Power supply Communication- interface SV- control Smoke detector Fault warning Fault signal ALARM! Fire Alarm Fire Alarm Signal Calibrated test Detector smoke chamber STOP! SelfVerify® stimulator Operating Alarm- signal Monitored part SelfVerify®

  28. Why SelfVerify®? SelfVerify® – Reduces the need for manual testing is significantly

  29. System Integrity • R&D target for System Integrity: No single fault shall degrade system performance • SIL 2 (Safety Integrity Level2) in accordance with IEC-61508 (By TÛV and NEMCO)

  30. SIL 2 Certificates by TÛV and NEMCO

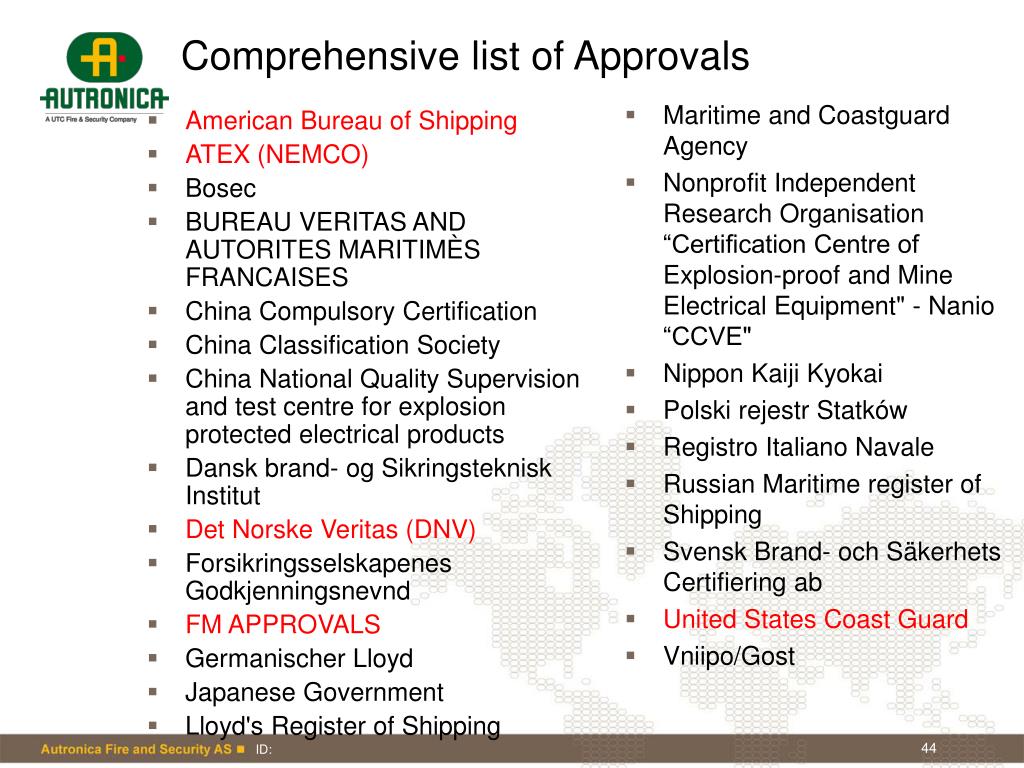

  31. American Bureau of Shipping • ATEX (NEMCO) • Bosec • BUREAU VERITAS AND AUTORITES MARITIMÈS FRANCAISES • China Compulsory Certification • China Classification Society • China National Quality Supervision and test centre for explosion protected electrical products • Dansk brand- og Sikringsteknisk Institut • Det Norske Veritas (DNV) • Forsikringsselskapenes Godkjenningsnevnd • FM APPROVALS • Germanischer Lloyd • Japanese Government • Lloyd's Register of Shipping Comprehensive list of Approvals • Maritime and Coastguard Agency • Nonprofit Independent Research Organisation “Certification Centre of Explosion-proof and Mine Electrical Equipment" - Nanio “CCVE" • Nippon Kaiji Kyokai • Polski rejestr Statków • Registro Italiano Navale • Russian Maritime register of Shipping • Svensk Brand- och Säkerhets Certifiering ab • United States Coast Guard • Vniipo/Gost
