  1. EE 445S Real-Time Digital Signal Processing LabSpring 2012 Lab 7Guitar Special Effects Chao Jia

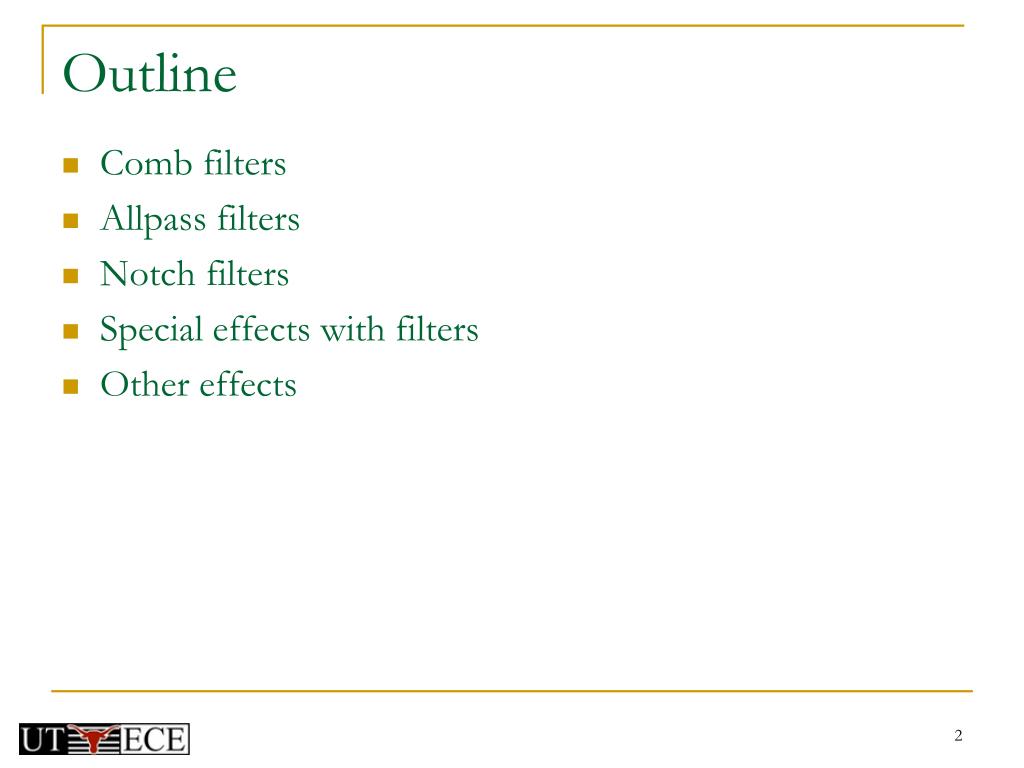

  2. Outline • Comb filters • Allpass filters • Notch filters • Special effects with filters • Other effects

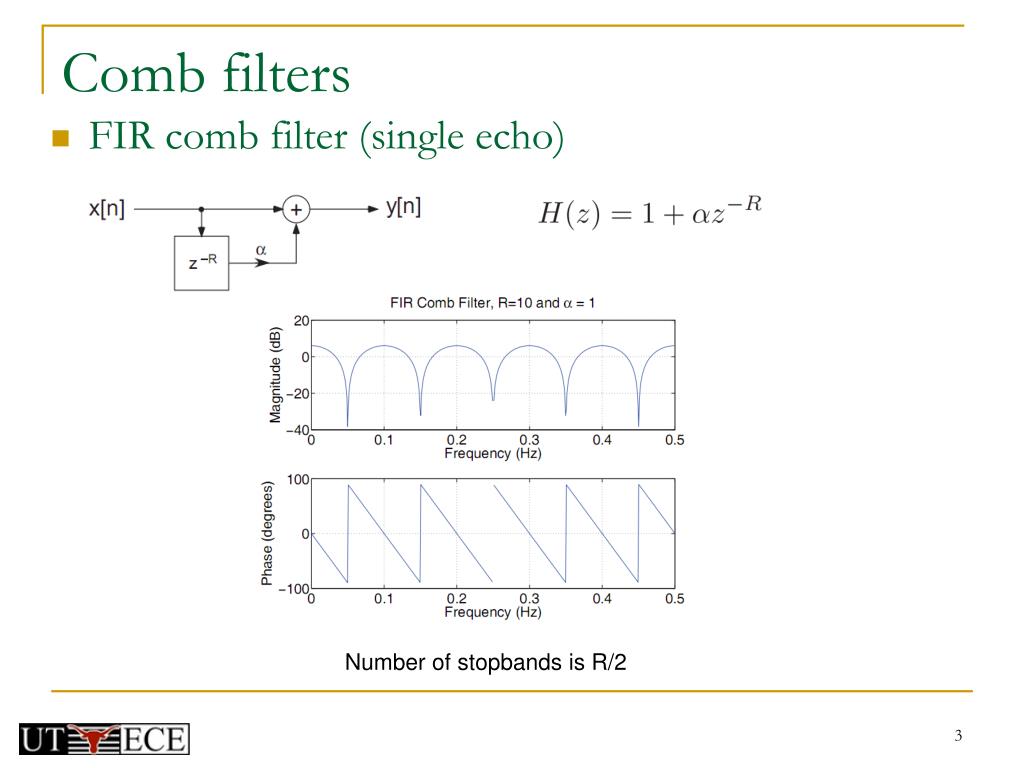

  3. Comb filters • FIR comb filter (single echo) Number of stopbands is R/2

  4. Comb filters • IIR comb filter (multiple echoes)

  5. Allpass filters

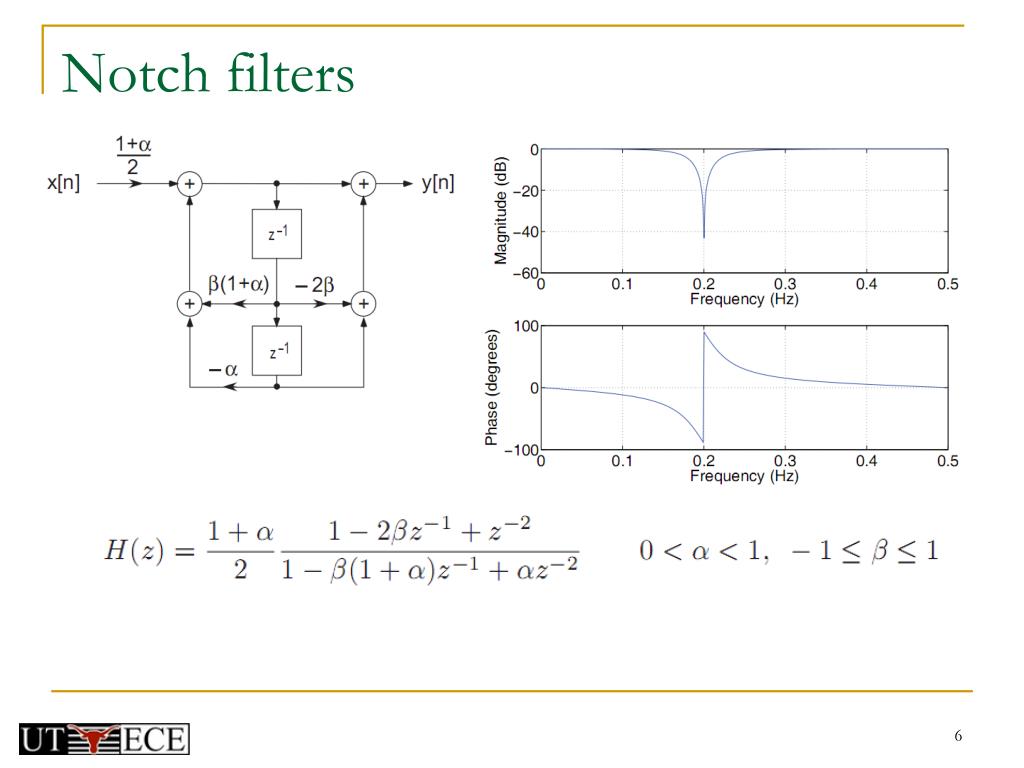

  6. Notch filters

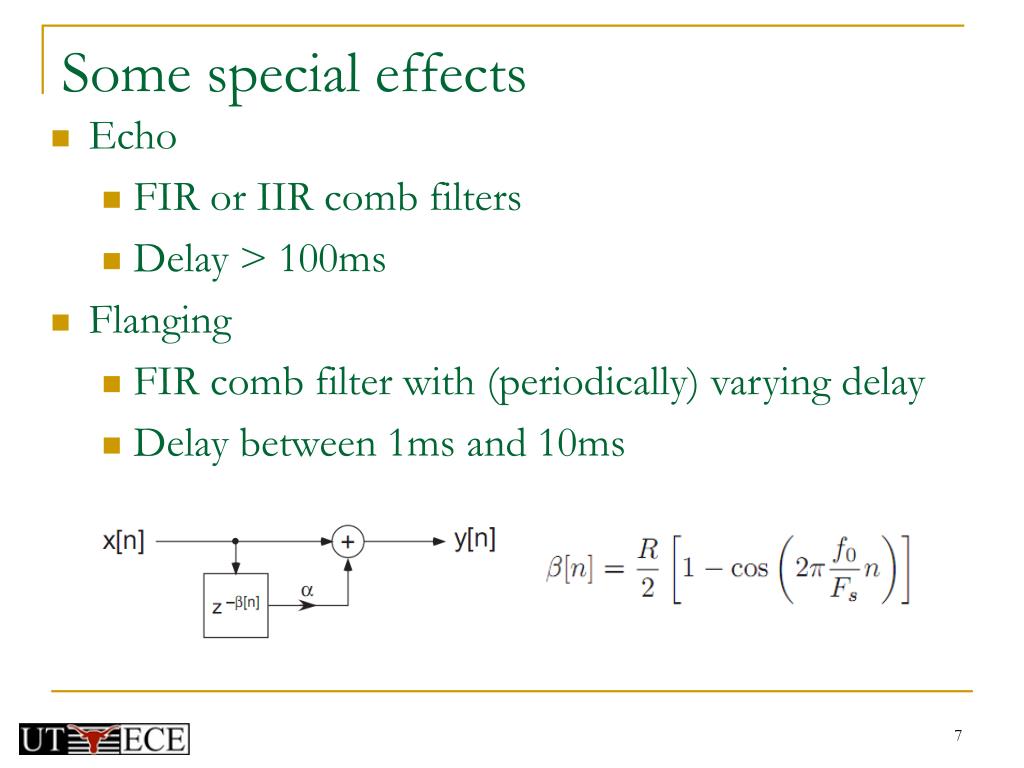

  7. Some special effects • Echo • FIR or IIR comb filters • Delay > 100ms • Flanging • FIR comb filter with (periodically) varying delay • Delay between 1ms and 10ms

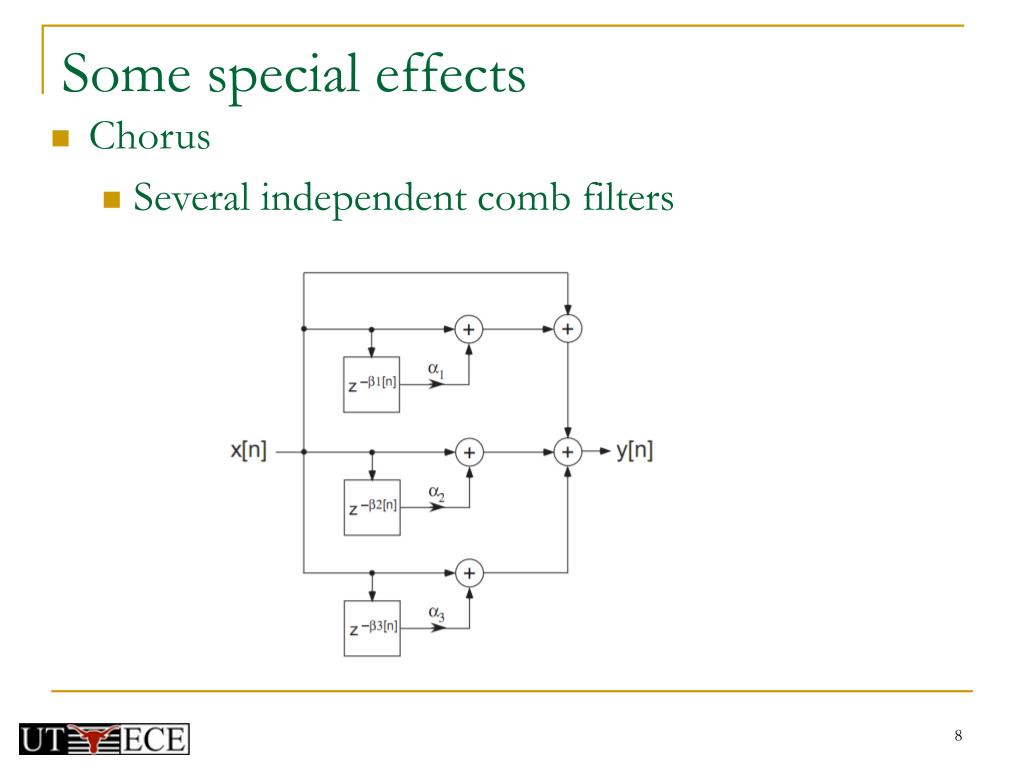

  8. Some special effects • Chorus • Several independent comb filters

  9. Some special effects • Reverb • Mimic a enclosed space (lots of echoes)

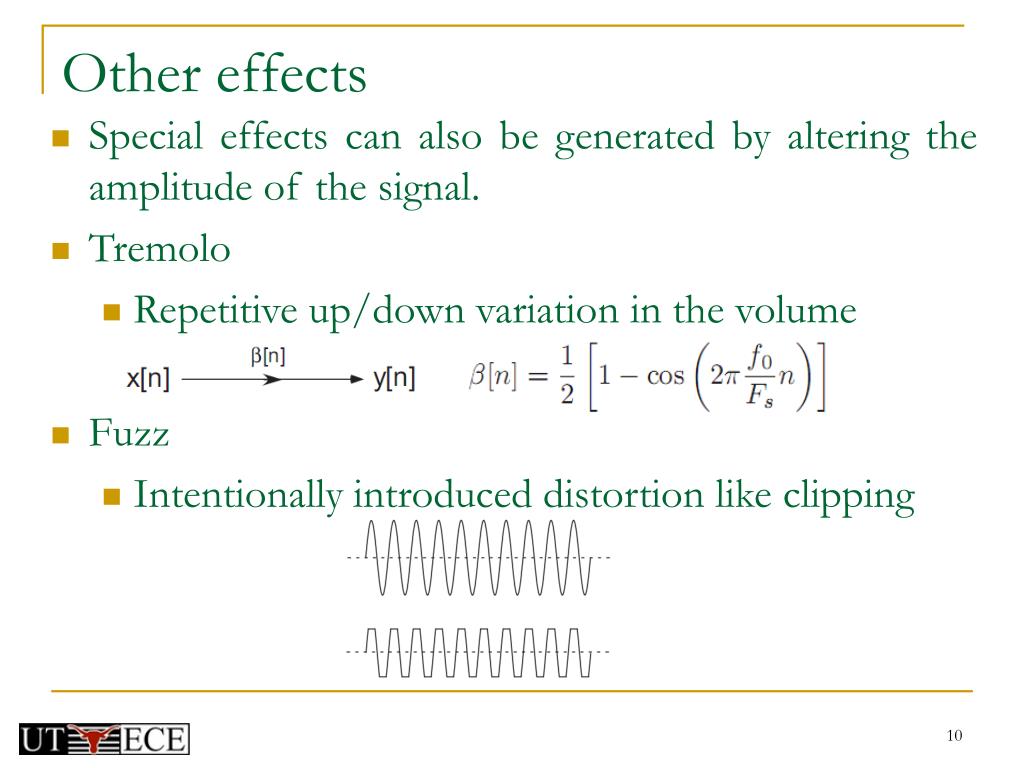

  10. Other effects • Special effects can also be generated by altering the amplitude of the signal. • Tremolo • Repetitive up/down variation in the volume • Fuzz • Intentionally introduced distortion like clipping
