  1. Finite-State Machines

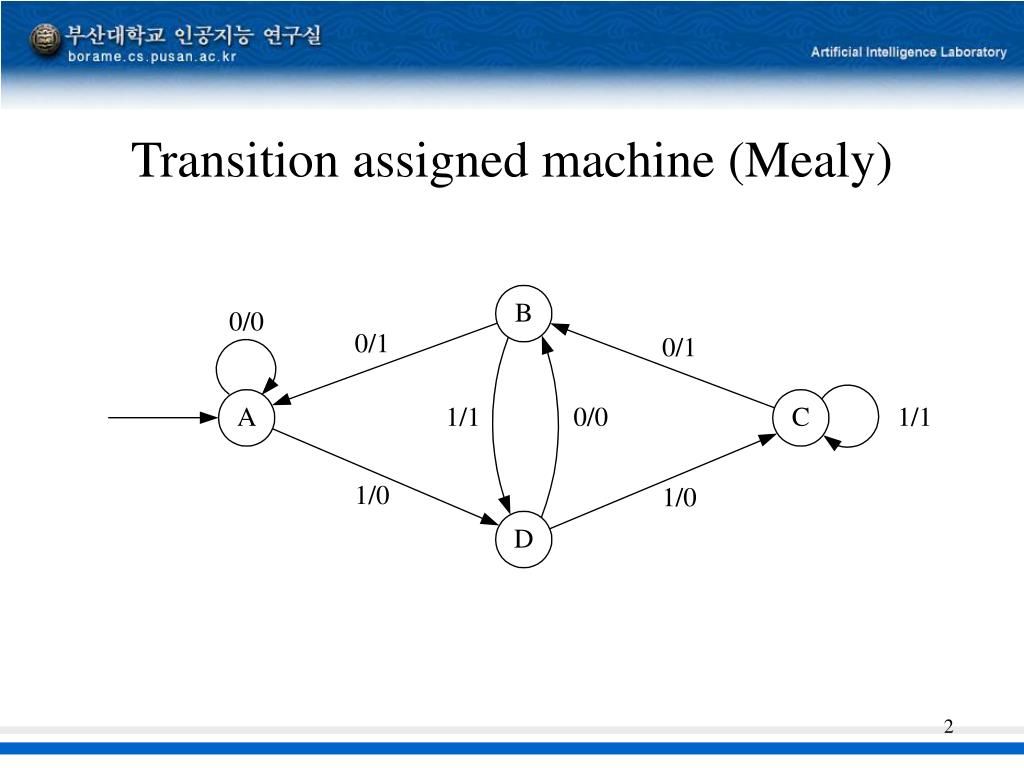

  2. Transition assigned machine (Mealy)

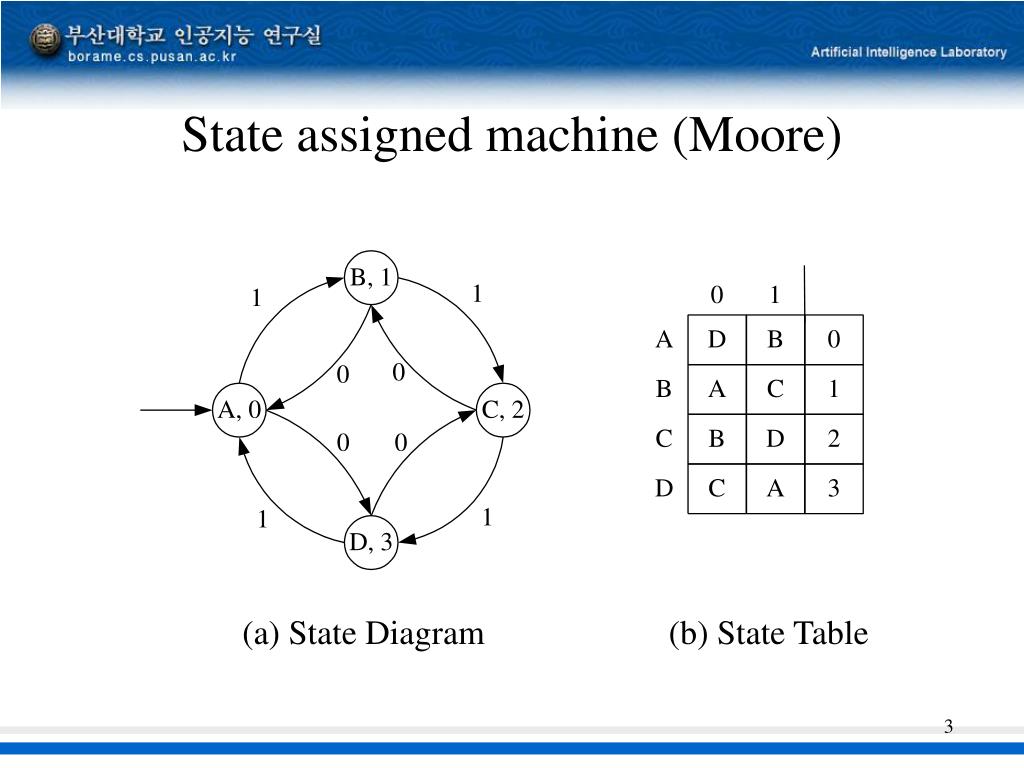

  3. State assigned machine (Moore) (a) State Diagram (b) State Table

  4. Construction of Ms from Mt Mt : Ms :

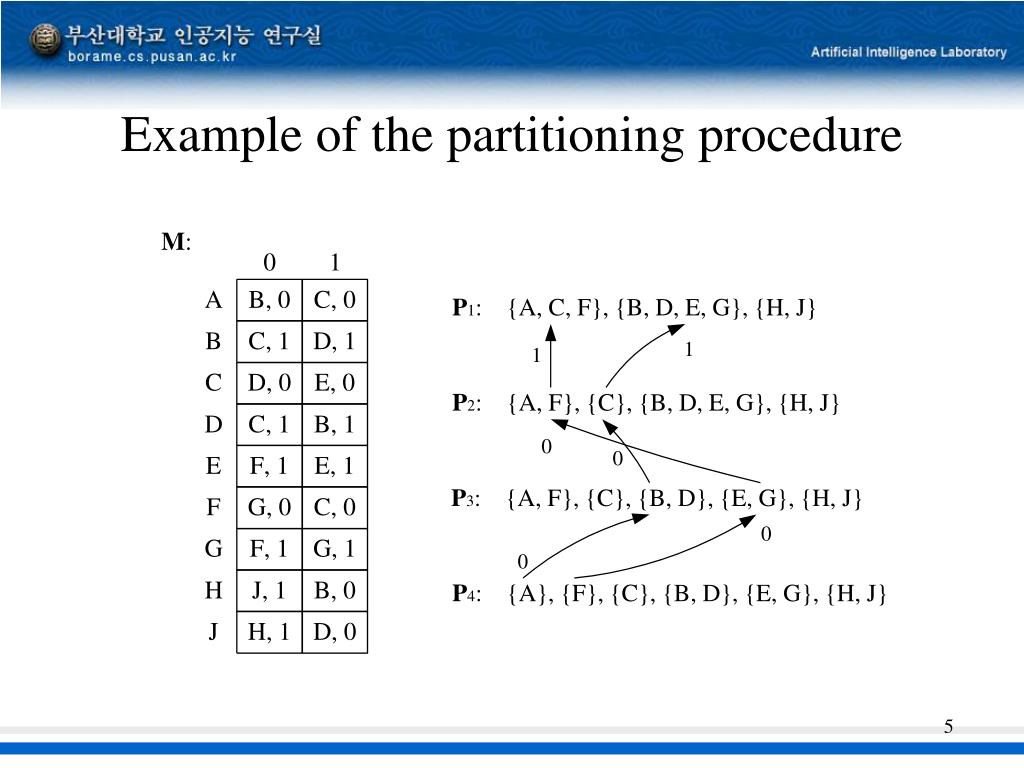

  5. Example of the partitioning procedure

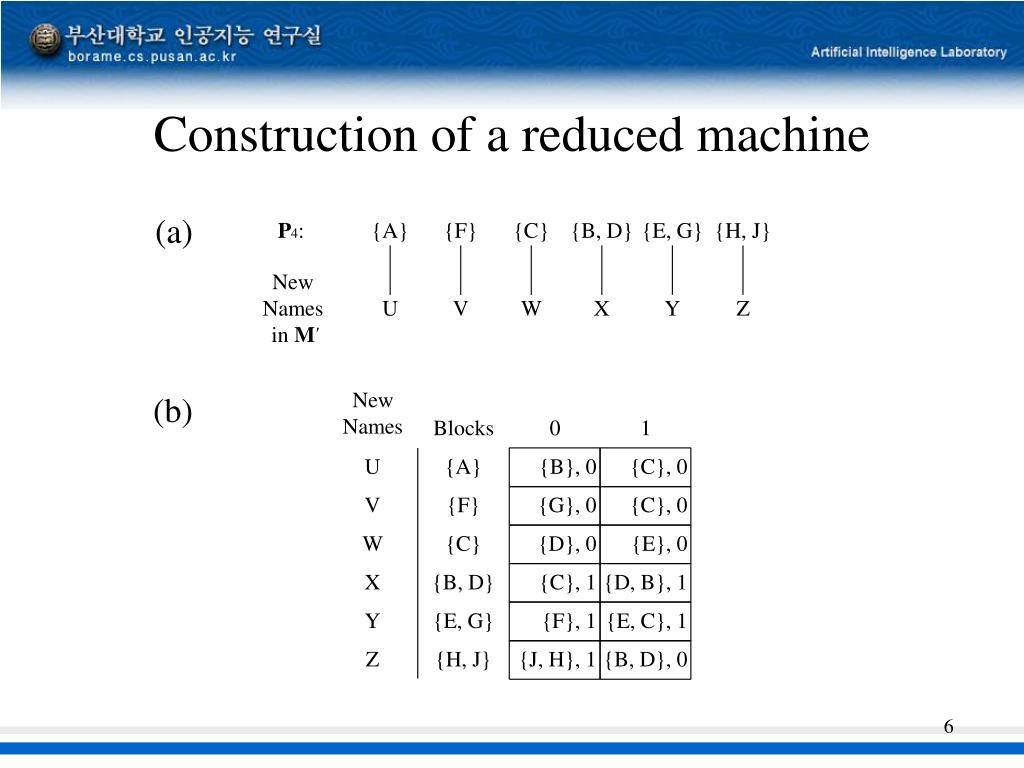

  6. Construction of a reduced machine (a) (b)

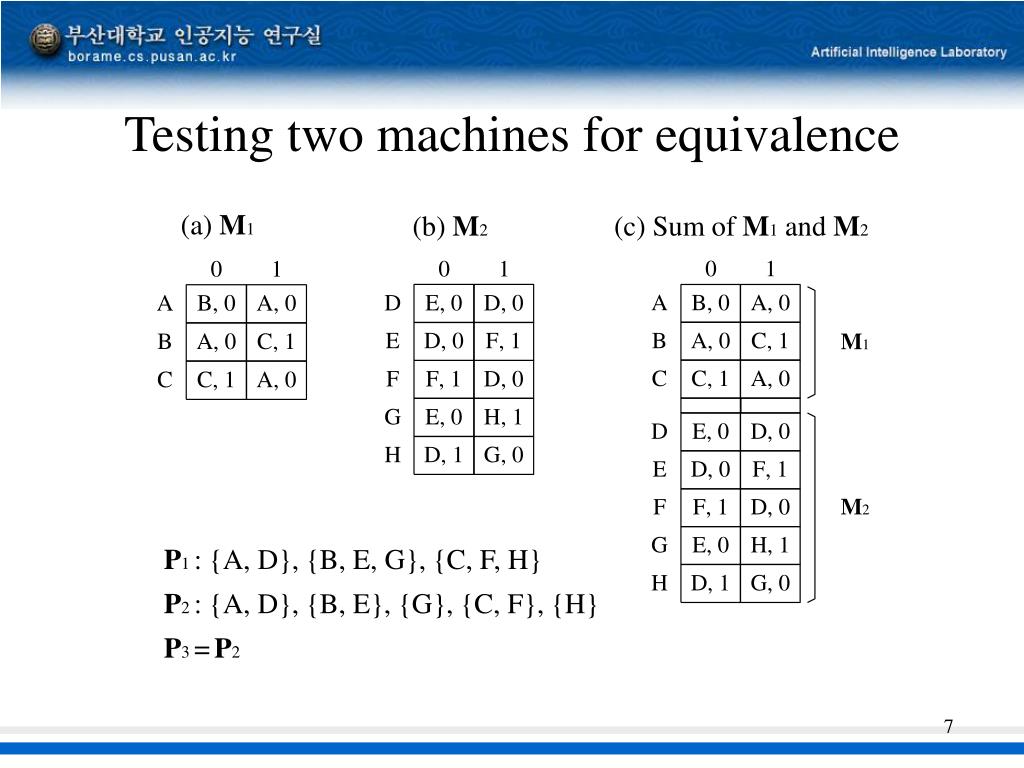

  7. Testing two machines for equivalence (a) M1 (b) M2 (c) Sum of M1 and M2 P1 : {A, D}, {B, E, G}, {C, F, H} P2 : {A, D}, {B, E}, {G}, {C, F}, {H} P3 =P2
