  1. Radionuclide methods in oncology Materials for medical students Otto Lang, MD, PhD Otakar Bělohlávek, MD, CSc Dept Nucl Med Charles Univ, 3rd Med Fac

  2. Role for Nuclear Medicine • Diagnosis • Specific or non-specific • Staging • Important for proper therapy • Follow-up • Early detection of recurrens • Treatment • Specific or non-specific

  3. Tumors • Metabolically active tissues – many similar properties as inflammation • Increased vascularization • Increased capillary permeability • Newly proliferated capillaries • Increased blood flow • Metabolically active cells • Increased energy demand

  4. Tumor cells • High density of some common receptors • Expression of several specific receptors • Expression of some specific tumor antigenes • All these properties could be used for imaging and therapy

  5. Diagnostic radiopharmaceuticals • Non-specific - demonstrate tumor sites but are not specific for malignancy • PET or PET-CT • F-18 FDG – anaerobic metabolism • Planar, SPECT or SPECT-CT • Diphosphonates – bone scan • Ga-67 citrate – similar to FDG – localising agent • Colloids – liver-spleen scan • Leukocytes – bone marrow scan • MIBI – several tumors

  6. Diagnostic radiopharmaceuticals • Specific – binds directly to special tumor antigens or receptors or are accumulated by special metabolic pathway • PET or PET/CT - no commercially available • Planar, SPECT or SPECT/CT • I-123/131 MIBG for neuroendocrine tumours • I-131 for differentiated thyroid carcinomas • In-111 octreotide for tumours expressing somatostatin receptors. • monoclonal antibodies labelled with In-111, I-123/131 or Tc-99m

  7. Therapeutic radiopharmaceuticals • Non-specific • Sr-89, Sm-153, Re-189 • Bone pain palliation • Specific • I-131 • Thyroid cancer, as specific diagnostic if tumor significantly accumulates • Y-90 • Zevalin – monoclonal antibody for B-cell lymphomas

  8. Ga-67 scan • Introduced in seventies of 20th century for lymphomas (prof. Dienstbier) • Mechanisms of accumulation • tumour viability • blood flow • capillary permeability • lymphatic drainage • transferrin receptors on the tumour cells

  9. Ga-67 scan • Procedure • Patient preparation • Laxatives for bowel preparation post injection, nothing else • Several weeks post tumor therapy (FN) • radiation therapy and chemotherapy can alter the normal pattern of gallium distribution • 180 MBq is usually administered • imaging follows after 48 – 72 hours • WB + SPECT, middle-energy collimator

  10. Ga-67 scan • Normal scan • Accumulates in bone marrow and liver. • Splenic uptake is variable. • The kidneys are usually visualized and also lacrimal, salivary, nasopharyngeal and genital activity is often present. • Female breasts can be visualized, but accumulation is physiologically symmetrical. • Radioactivity is commonly seen in the colon

  11. Ga-67 scan • Clinical indications • lymphoma • staging and monitoring effect of therapy • melanoma • lung cancer • hepatoma • Combination with other imaging modalities is necessary (SPECT/CT)

  12. Bone scan • Radiopharmaceuticals • Tc-99m MDP, HDP • Tissue accumulation depends on • blood flow • capillary permeability • metabolic activity of osteoblasts and osteoclasts • mineral turnover • 500 to 800 MBq, imaging 2 to 3 hours later – WB + SPECT

  13. Bone scan • Clinical indications: • Diagnosis of metastases of different tumors – staging and follow-up • Positivity many months before an abnormality can be detected on X ray - method of choice to seek for bone metastases • Mainly • Bronchogenous carcinoma, prostate, breast, thyroid, and renal tumours

  14. Bone scan • Scan pattern • increased accumulation in the surrounding bone - hot lesion • defect - cold lesion (some metastases –breast) - rare (very fast grow – no bone reaction) • flare phenomenon – increased number of lesions in the case of effective therapy • super-scan (spread malignancies) - diffusely increased uptake

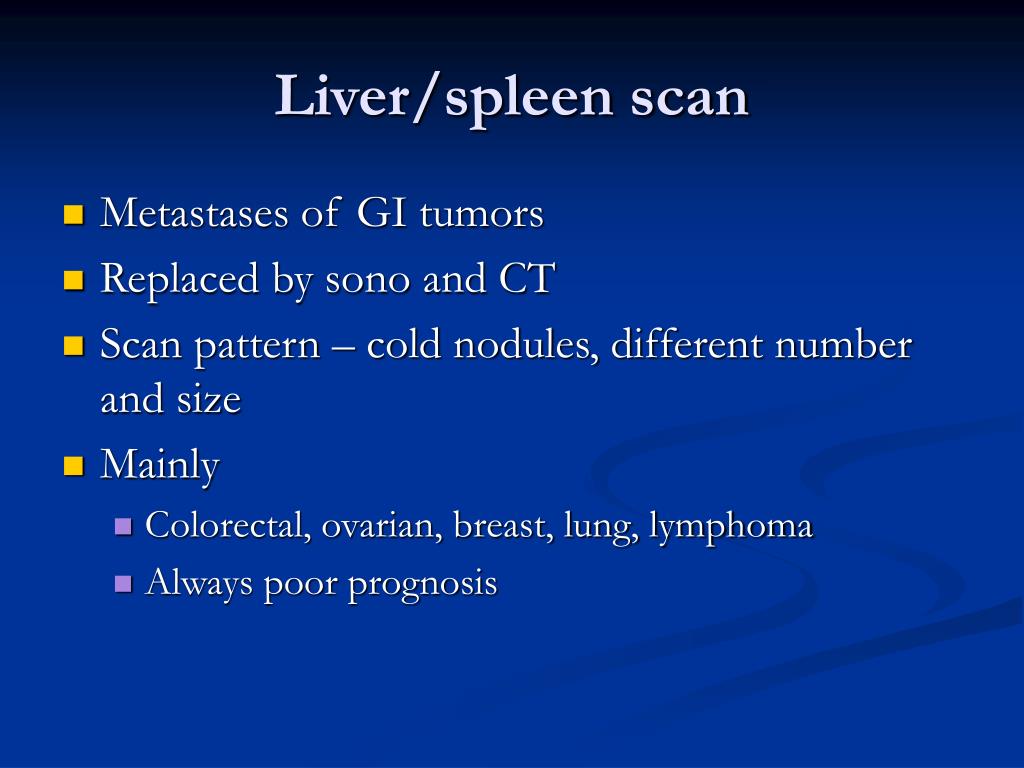

  15. Liver/spleen scan • Metastases of GI tumors • Replaced by sono and CT • Scan pattern – cold nodules, different number and size • Mainly • Colorectal, ovarian, breast, lung, lymphoma • Always poor prognosis

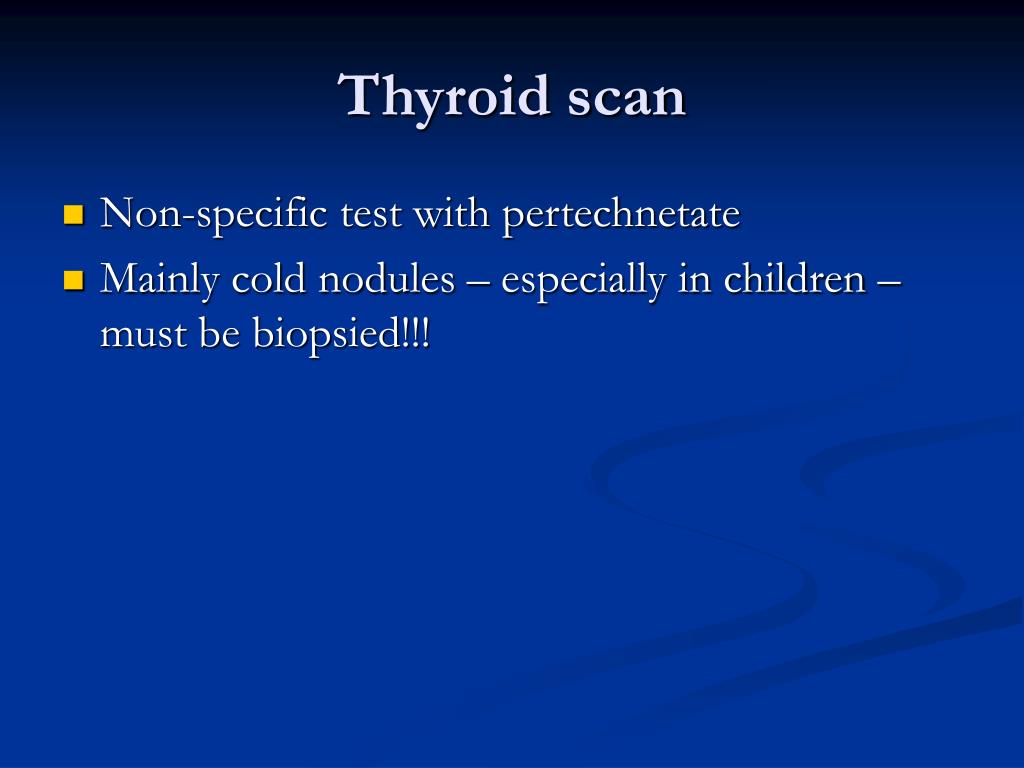

  16. Thyroid scan • Non-specific test with pertechnetate • Mainly cold nodules – especially in children – must be biopsied!!!

  17. Bone marrow scan • Colloids or leukocytes • Similar as bone scan • Better sensitivity

  18. FDG PEThttp://www.homolka.cz/nm/ • For several tumors – staging and follow-up • Mainly lymphomas, lung cancers, melanoma, colorectal cancers and others • Not suitable for prostate cancer • Patient preparation • At least 1 w post chemo, 3 m radiotherapy • One hour before injection physical rest • Fasting, no milk, no sugar

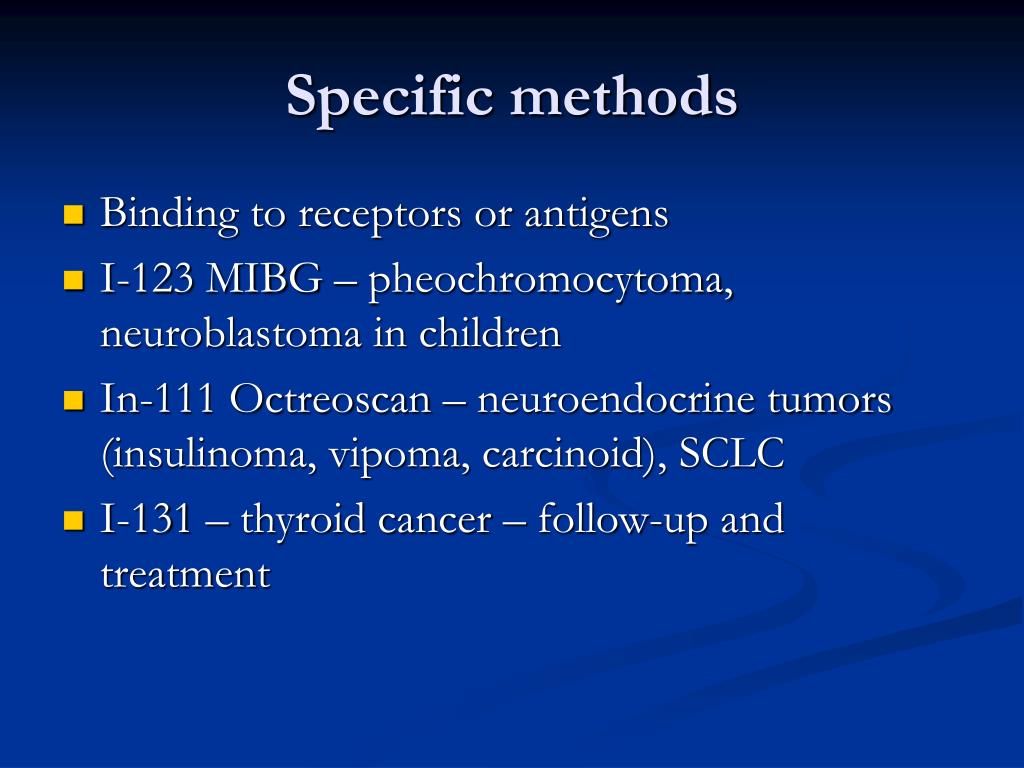

  19. Specific methods • Binding to receptors or antigens • I-123 MIBG – pheochromocytoma, neuroblastoma in children • In-111 Octreoscan – neuroendocrine tumors (insulinoma, vipoma, carcinoid), SCLC • I-131 – thyroid cancer – follow-up and treatment

  20. Specific methods • Monoclonal antibodies • Anti-CEA – rather in detection of relaps • In the pelvis better than CT • In the liver CT better • In-111 Oncoscint – colorectal, ovarian • Melanoma – antibody against melanin • Ga scan is better

  21. Bone scan – multiple metastases

  22. Bone scan – multiple metastases

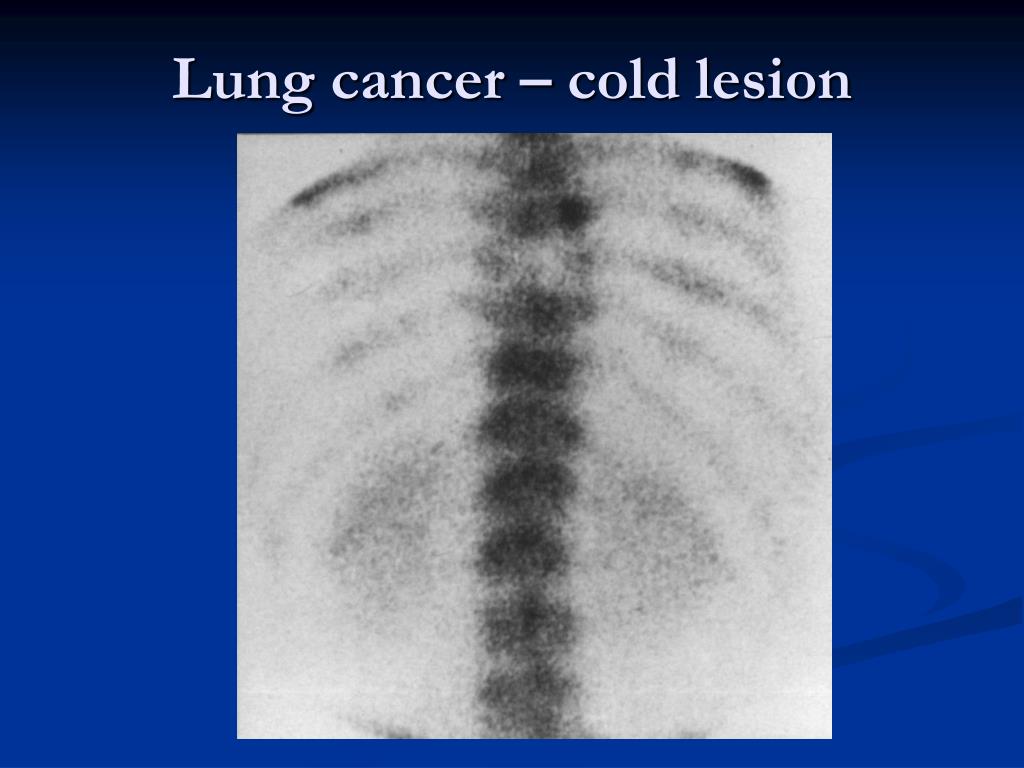

  23. Lung cancer – cold lesion

  24. Breast cancernormal X ray with hot spot on scintigraphy

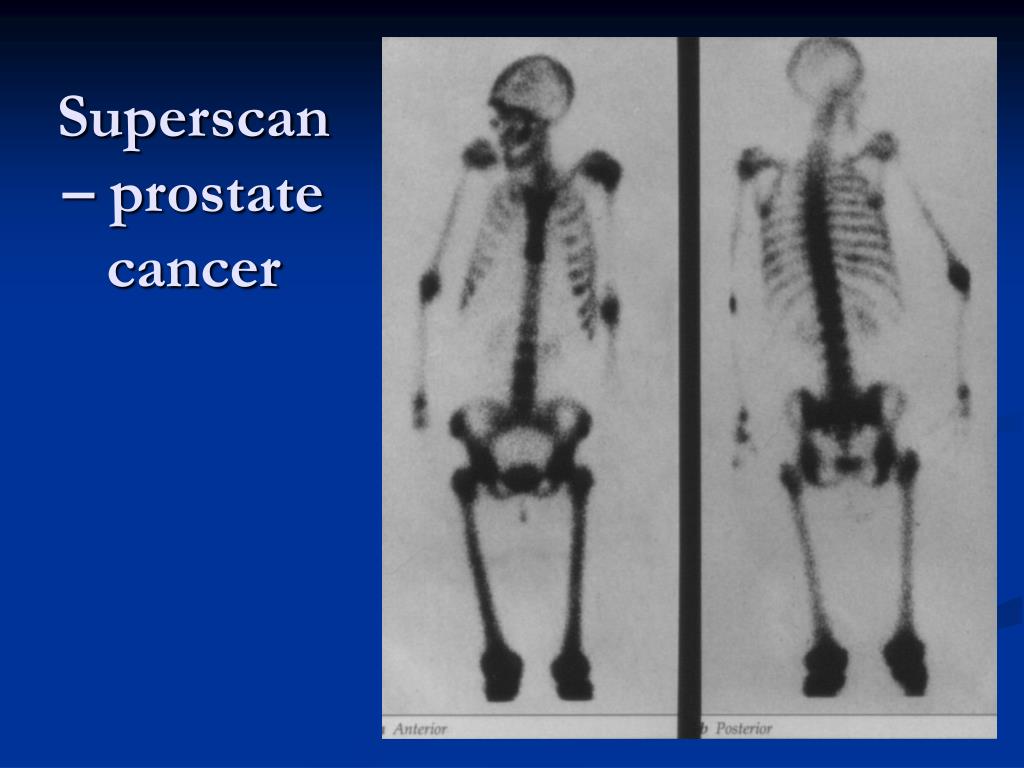

  25. Superscan – prostate cancer

  26. Bone scan - prostate cancerprogression

  27. Breast cancer – FU – progr.

  28. Thyroid – folicular caon sonography solid nodule

  29. Thyroid cancer - anaplastic

  30. Thyroid cancer I-131 Tc-99m Tc-99m post surgery

  31. Thyroid cancer –I-131 - meta

  32. Tc-99m sestamibiparathyroid adenoma early late

  33. Neuroblastoma liver and bone involvment I-131 MIBG scan Bone scan

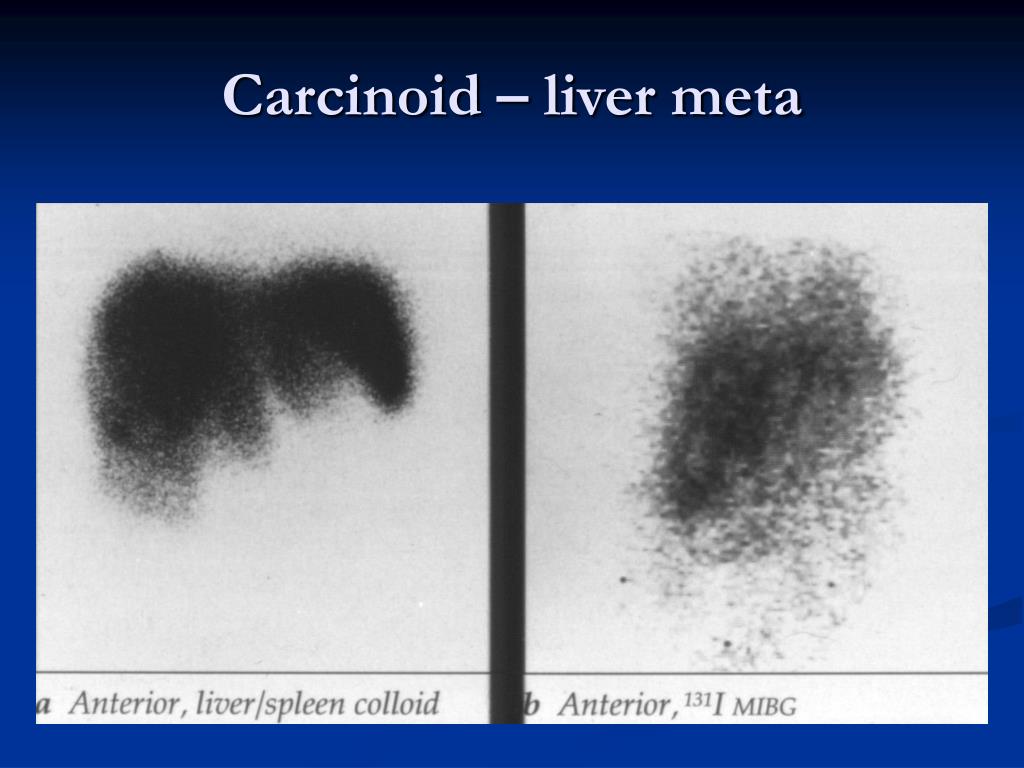

  34. Carcinoid – liver meta

  35. Ga scan – lung cancer

  36. Ga scan - lymphomas

  37. Palpable mass on the necklymphoma Tc-99m pertechnetate Ga-67 citrate

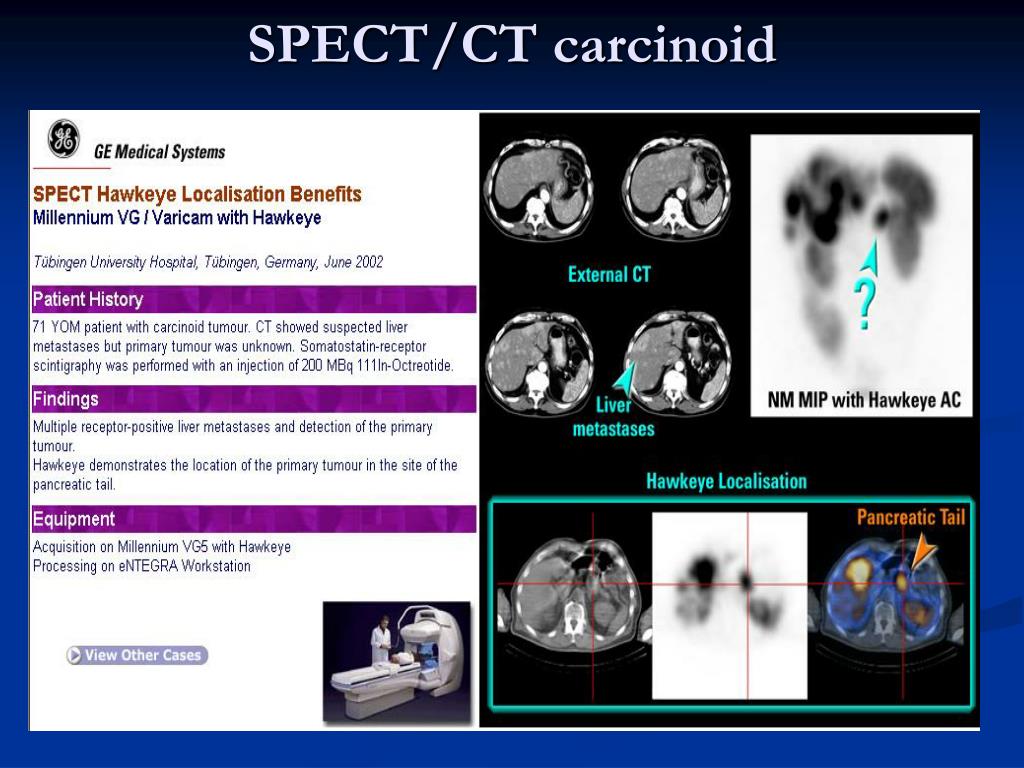

  38. SPECT/CT carcinoid

  39. SPECT/CT breast cancer

  40. SPECT/CT lung cancer

  41. SPECT/CT lung cancer

  42. FDG PET - normal

  43. FDG PET melanoma

  44. FDG PET Tumor of unknown origin Metastatic involvment of neck lymph nodes

  45. FDG PET Tumor of unknown origin Pharyngeal cancer

  46. FDG PET – brain tumor post thtwo foci on CT, only one viable tumor

  47. Staging colorectal CA

  48. Lung cancer Effect of therapy

  49. Stomach cancer
