  1. Appendix B Classifying Instruction Set Architecture Memory addressing mode Operations in the instruction set Control flow instructions Instruction format CDA5155 Spring, 2007, Peir / University of Florida

  2. Classifying Architectures • One important classification scheme is by the type of addressing modes supported. • Stack architecture: Operands implicitly on top of a stack. (Early machines, Intel floating-point.) • Accumulator architecture: One operand is implicitly an accumulator (a special register). (Early machs.) • General-purpose register architecture: Operands may be any of a large (typically 10s-100s) # of registers. • Register-memory architectures: One op may be memory. • Load-store architectures: All ops are registers, except in special load and store instructions.

  3. Four Architecture Classes Assembly for C:=A+B:

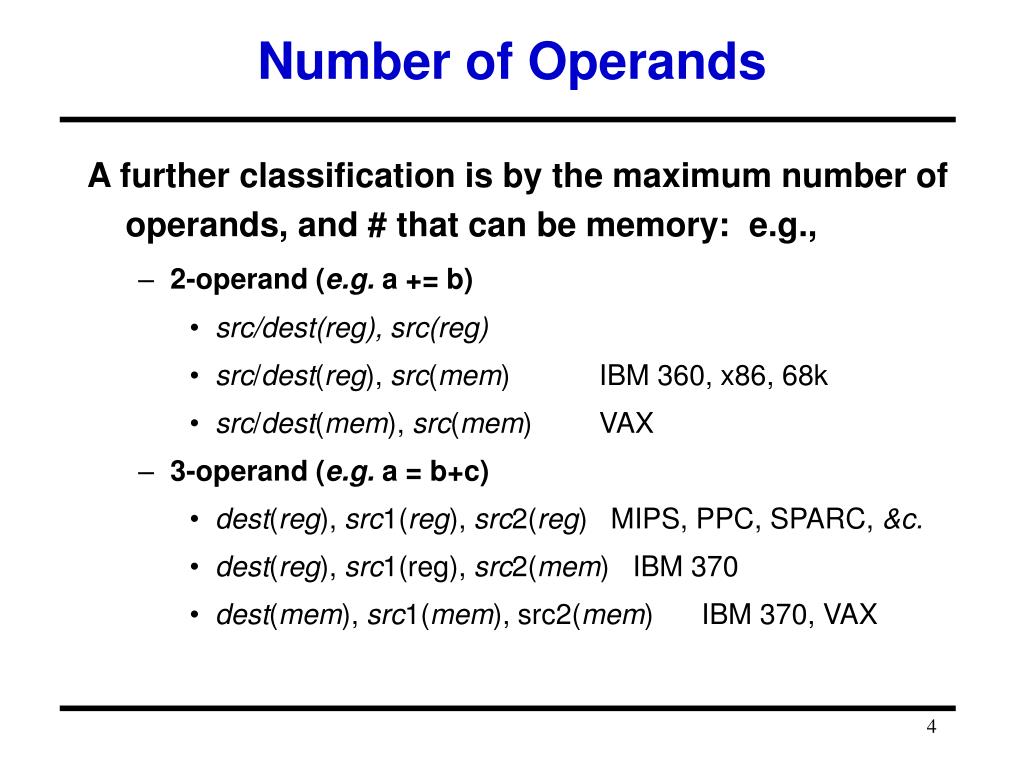

  4. Number of Operands • A further classification is by the maximum number of operands, and # that can be memory: e.g., • 2-operand (e.g. a += b) • src/dest(reg), src(reg) • src/dest(reg), src(mem) IBM 360, x86, 68k • src/dest(mem), src(mem) VAX • 3-operand (e.g. a = b+c) • dest(reg), src1(reg), src2(reg) MIPS, PPC, SPARC, &c. • dest(reg), src1(reg), src2(mem) IBM 370 • dest(mem), src1(mem), src2(mem) IBM 370, VAX

  5. Endians & Alignment Increasing byteaddress 7 6 5 4 3 2 1 0 4 Word-aligned word at byte address 4. 2 Halfword-aligned word at byte address 2. 1 Byte-aligned (non-aligned) word, at byte address 1. word Little-endian byte order (least-significant byte “first”). 3 (MSB) 2 1 0 (LSB) word Big-endian byte order (most-significant byte “first”). 0 (LSB) 1 2 3 (MSB)

  6. Addressing Modes • In example assembly syntax in middle column, ( ) indicates memory access. (A typical syntax.) • In RTL syntax on right, [ ] denotes accessing a member of an array, Register or Memory.

  7. Addressing Mode Usage 3 SPEC89 on VAX

  8. Displacement Distribution Sign bit is not counted SPEC CPU2000 on Alpha

  9. Use of Immediate Operand SPEC CPU2000 on Alpha

  10. Distribution of Immediate Sign bit is not counted SPEC CPU2000 on Alpha

  11. Instruction Type (Same as B.12 in the 4th Edition)

  12. Instruction Distribution (Same as Fig. 2.16) (5 SPECint92)

  13. Control Flow Instructions • Four basic types: • (Conditional) branches • (Unconditional) jumps • Procedure calls • Procedure returns • Control flow addressing modes: • Often PC-relative (PC + displacement). Relocatable. • Also useful: register indirect jumps (reg. has addr.). Uses: • Procedure returns • Case / switch statements • Virtual functions / methods (abstract class method calls) • High-order functions / function pointers • Dynamically shared libraries

  14. Conditional Branch Options • Condition Code (CC) Register • E.g.: X86, ARM, PPC, SPARC, … • ALU ops set condition code flags in the CCR • Branch just checks the flag • Condition register • E.g.: Alpha, MIPS • Comparison instruction puts result in a GPR • Branch instruction checks the register • Compare & Branch • E.g.: PA-RISC, VAX • Compare & branch in 1 instruction.

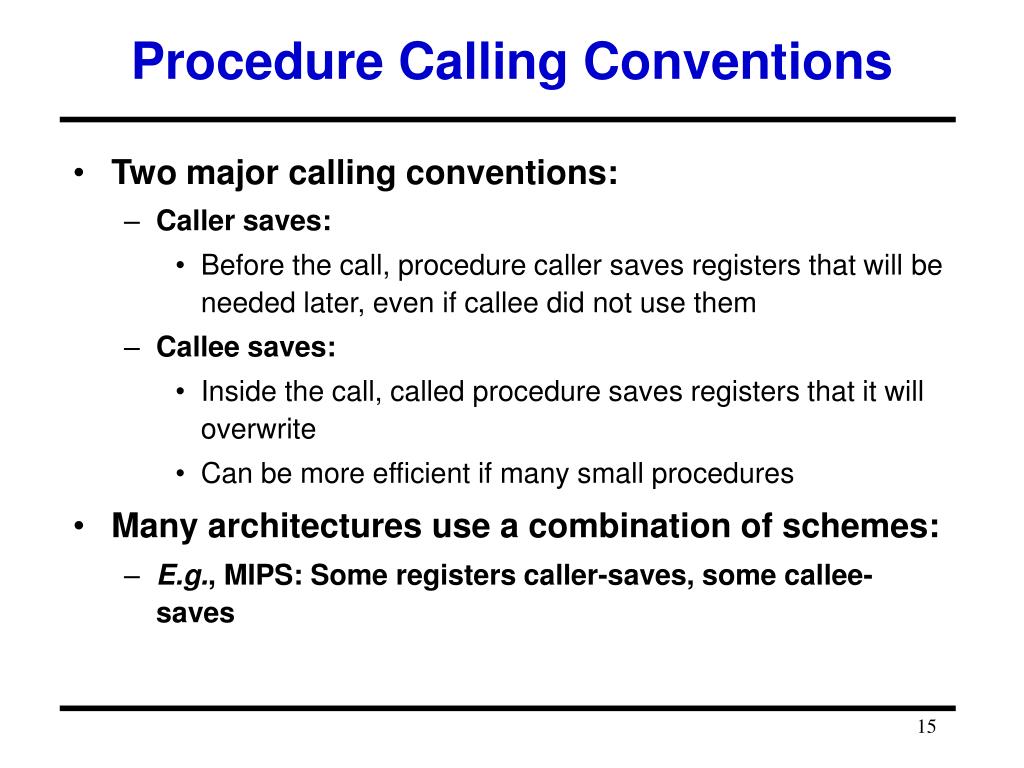

  15. Procedure Calling Conventions • Two major calling conventions: • Caller saves: • Before the call, procedure caller saves registers that will be needed later, even if callee did not use them • Callee saves: • Inside the call, called procedure saves registers that it will overwrite • Can be more efficient if many small procedures • Many architectures use a combination of schemes: • E.g., MIPS: Some registers caller-saves, some callee-saves

  16. Three Classes of Control Instructions SPEC CPU2000 on Alpha

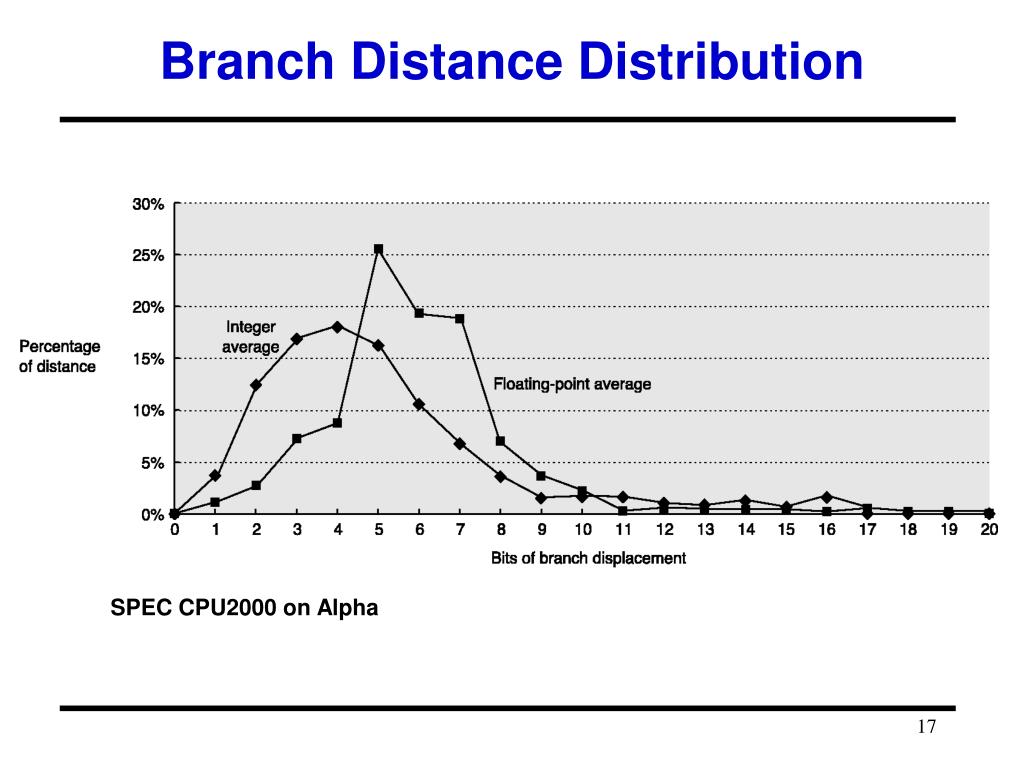

  17. Branch Distance Distribution SPEC CPU2000 on Alpha

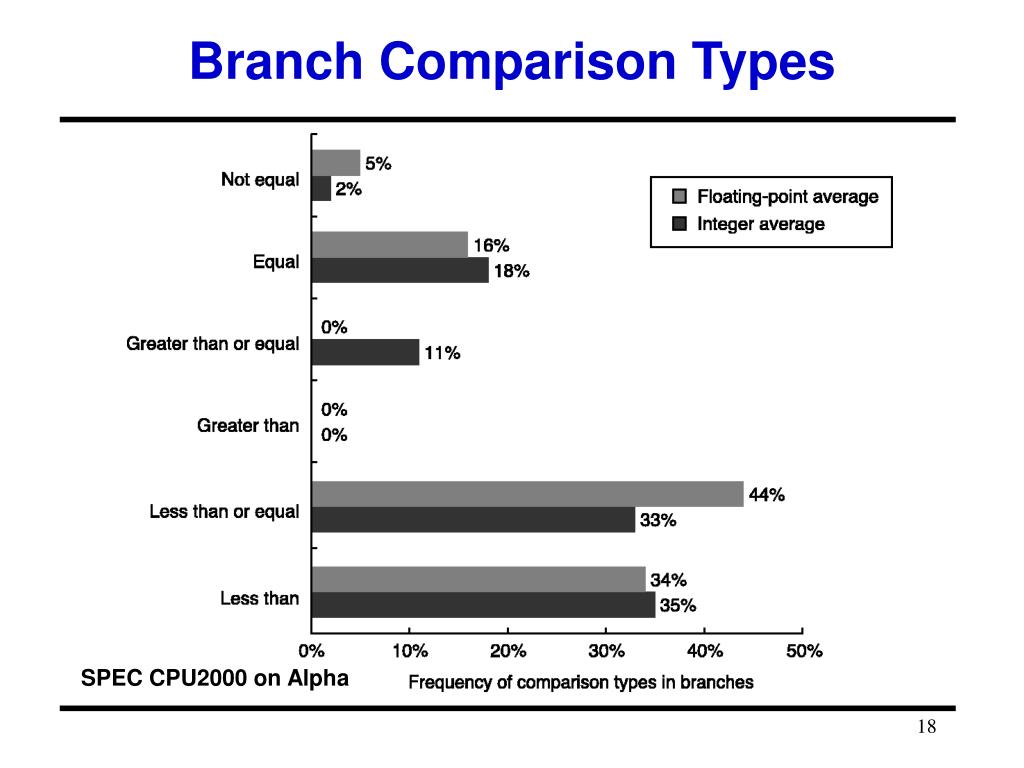

  18. Branch Comparison Types SPEC CPU2000 on Alpha

  19. Encoding An Instruction Set

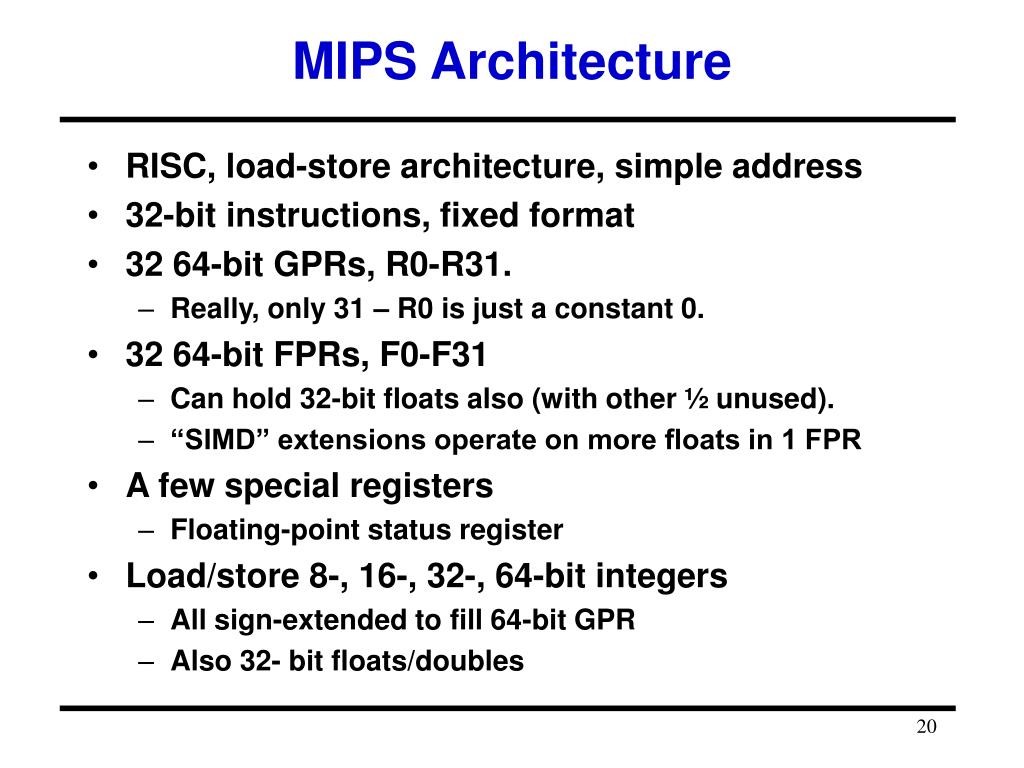

  20. MIPS Architecture • RISC, load-store architecture, simple address • 32-bit instructions, fixed format • 32 64-bit GPRs, R0-R31. • Really, only 31 – R0 is just a constant 0. • 32 64-bit FPRs, F0-F31 • Can hold 32-bit floats also (with other ½ unused). • “SIMD” extensions operate on more floats in 1 FPR • A few special registers • Floating-point status register • Load/store 8-, 16-, 32-, 64-bit integers • All sign-extended to fill 64-bit GPR • Also 32- bit floats/doubles

  21. MIPS Addressing Modes • Register (arith./logical ops only) • Immediate (arith./logical only) & Displacement (load/stores only) • 16-bit immediate / offset field • Register indirect: use 0 as displacement offset • Direct (absolute): use R0 as displacement base • Byte-addressed memory, 64-bit address • Software-settable big-endian/little-endian flag • Alignment required

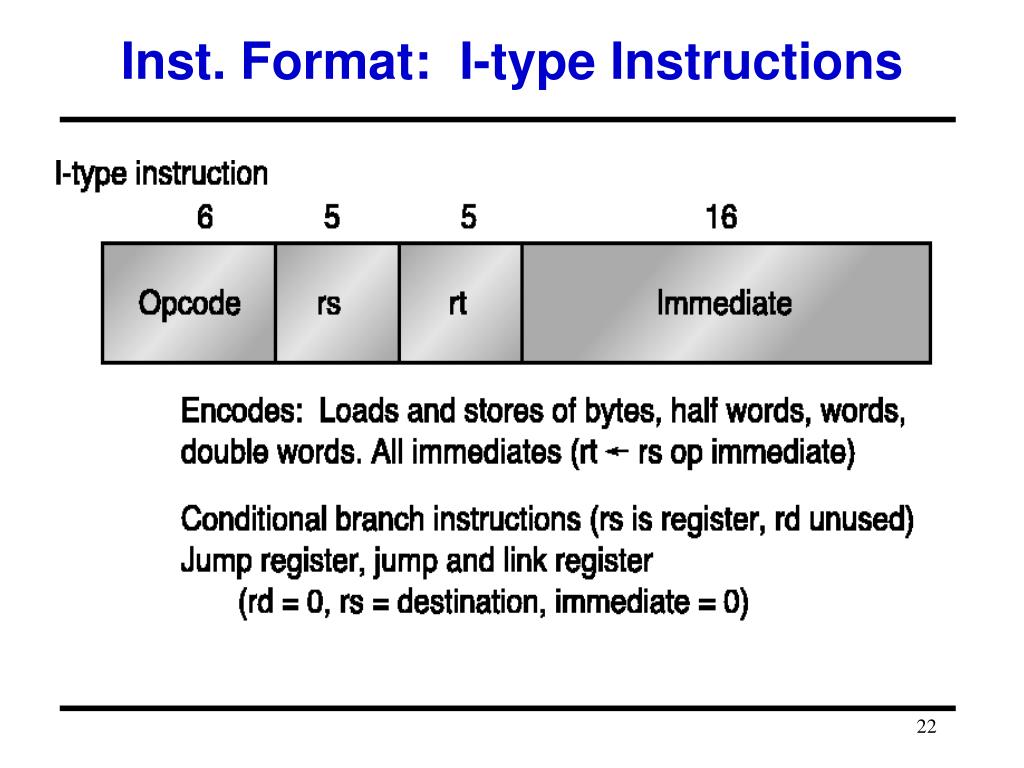

  22. Inst. Format: I-type Instructions

  23. Inst. Format: R-type Instructions

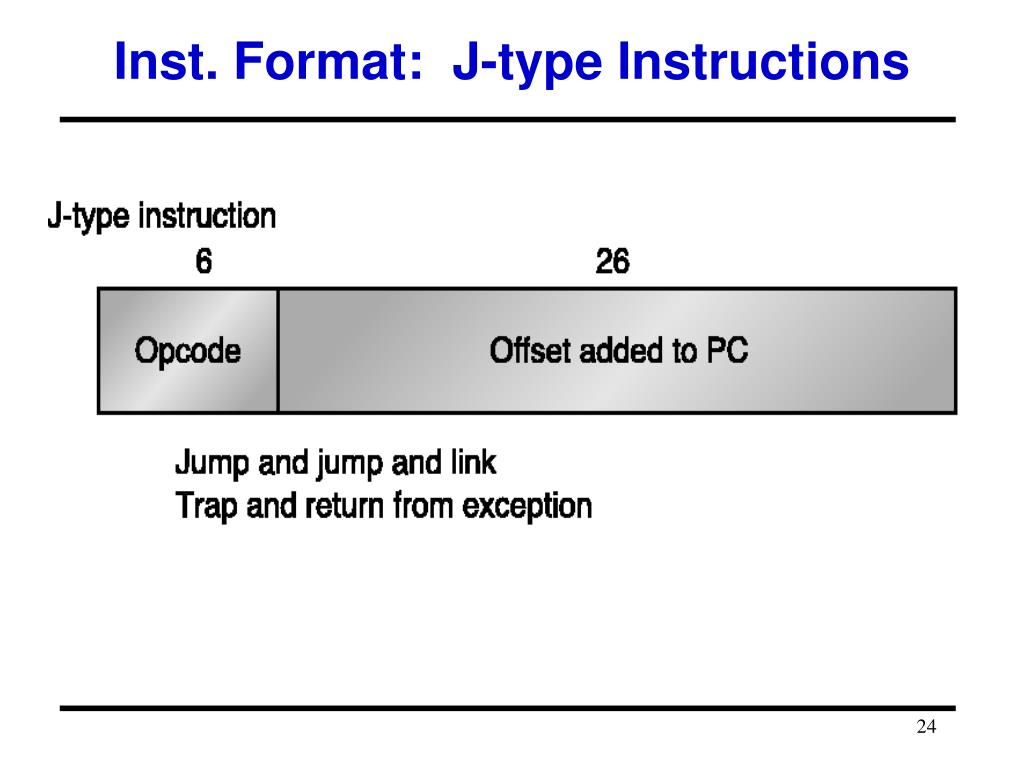

  24. Inst. Format: J-type Instructions

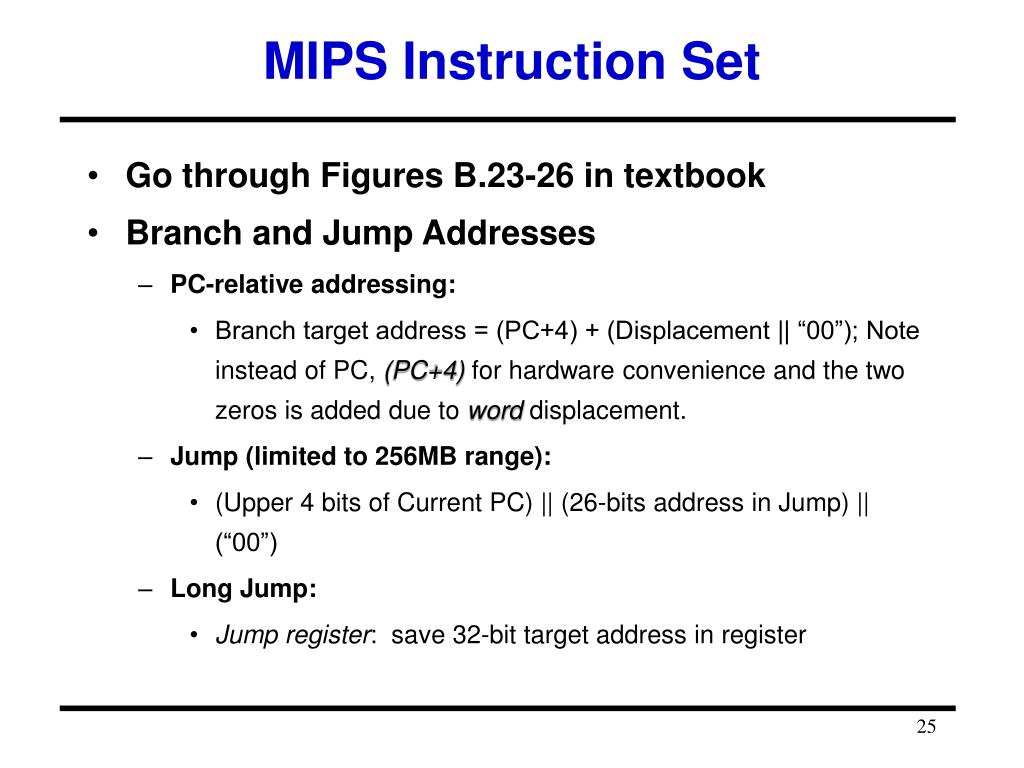

  25. MIPS Instruction Set • Go through Figures B.23-26 in textbook • Branch and Jump Addresses • PC-relative addressing: • Branch target address = (PC+4) + (Displacement || “00”); Note instead of PC, (PC+4) for hardware convenience and the two zeros is added due to word displacement. • Jump (limited to 256MB range): • (Upper 4 bits of Current PC) || (26-bits address in Jump) || (“00”) • Long Jump: • Jump register: save 32-bit target address in register
