  1. OmniPCX Enterprise Onsite Wireless Mobility Solutions

  2. Topics • PWT integrated onsite wireless solution • Architecture • Wireless phone • Twinset feature • Notification server • Wireless LAN integration

  3. Alcatel PWT Solution Onsite wireless mobility • Fully integrated solution • Radio base stations connect to digital line ports • Administration of wireless phones completely integrated with system management • Access to same features as wired phones

  4. 1 2xUA U C U A P A 3 U 3 2 5 2 6 simultaneous calls M D U U 256 P A A M T 1 3 S F 1 6 2 D Alcatel PWT SolutionConnection to OmniPCX Enterprise • The PWT base stations connect to UA boards Up to 256 PWT base stations per eCS

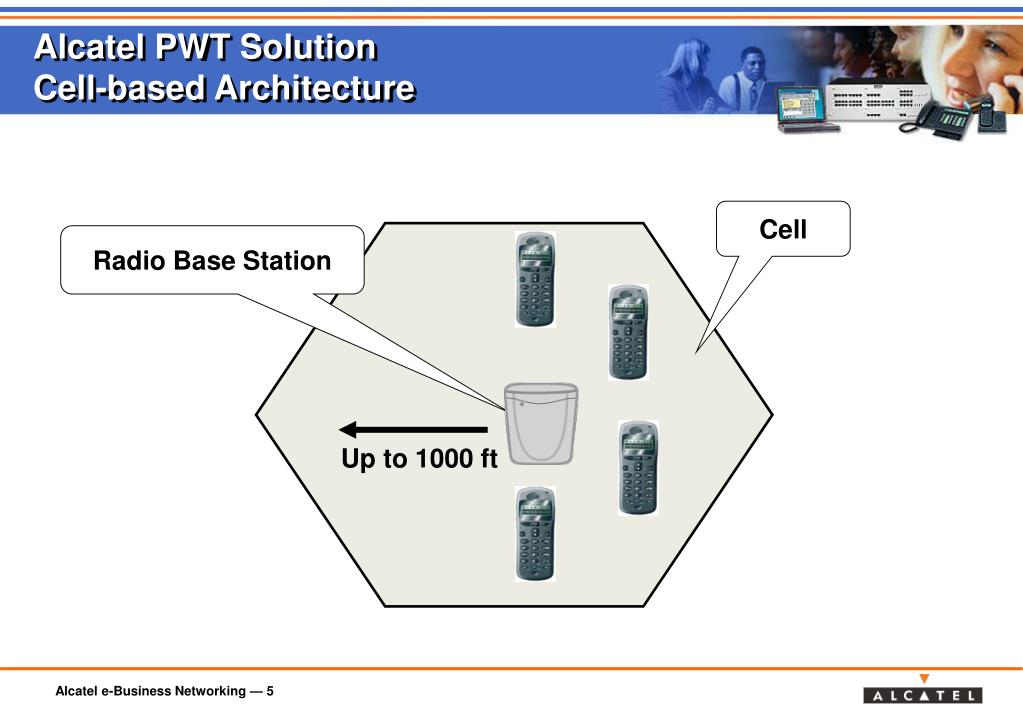

  5. Cell Radio Base Station Up to 1000 ft Alcatel PWT Solution Cell-based Architecture

  6. Alcatel PWT Solution Coverage Studies • The size and shape of the cell depends on the environment • To define the number of base stations required, a coverage study is required

  7. Alcatel PWT Solution Roaming Between Cells • The user can be reached anywhere within the coverage area.

  8. Alcatel PWT SolutionSeamless handover • User may move from one cell to another without any cut out or interference during the conversation.

  9. North West Central eCS eCS eCS Alcatel PWT SolutionMulti-site Roaming • Full featured mobility in a multi-site environment • Throughout a campus • Throughout a wide area network (WAN) • User keeps same features, privileges and phone number at any location

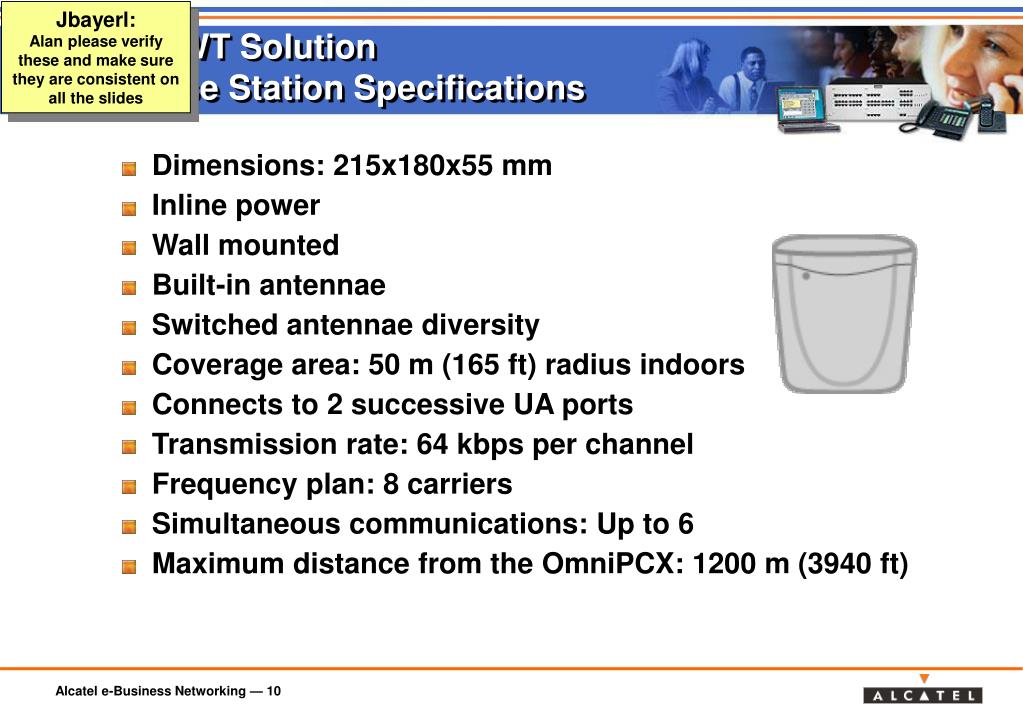

  10. Jbayerl: Alan please verify these and make sure they are consistent on all the slides Alcatel PWT SolutionRadio Base Station Specifications • Dimensions: 215x180x55 mm • Inline power • Wall mounted • Built-in antennae • Switched antennae diversity • Coverage area: 50 m (165 ft) radius indoors • Connects to 2 successive UA ports • Transmission rate: 64 kbps per channel • Frequency plan: 8 carriers • Simultaneous communications: Up to 6 • Maximum distance from the OmniPCX: 1200 m (3940 ft)

  11. Twinset feature • One calling number, one “virtual” terminal • Both phones: • Ring on incoming calls • Provide message notification • Share a common charging account • Share feature activation/cancellation, e.g., forwarding, DND, camp-on, call-back requests, absence message

  12. Alcatel 4073 Wireless Telephone Features Second line (Soft key labels) Two line by 16 characters display Plus icons 1: Dial by name 2: Individual directory 1. Navigation keys (standard mode) and erase key 1: Off-hook 2: Lock keyboard 2. Transfer key (down) Off-hook Redial Vibrating battery Guide menu 1: Mail key 2: Forward key 1: Flash 2: ON/OFF Audio volume key

  13. Alcatel 4073 Wireless Telephone Specifications

  14. Topics • PWT integrated onsite wireless solution • Architecture • Wireless phones • Twinset feature • Notification server • Wireless LAN integration

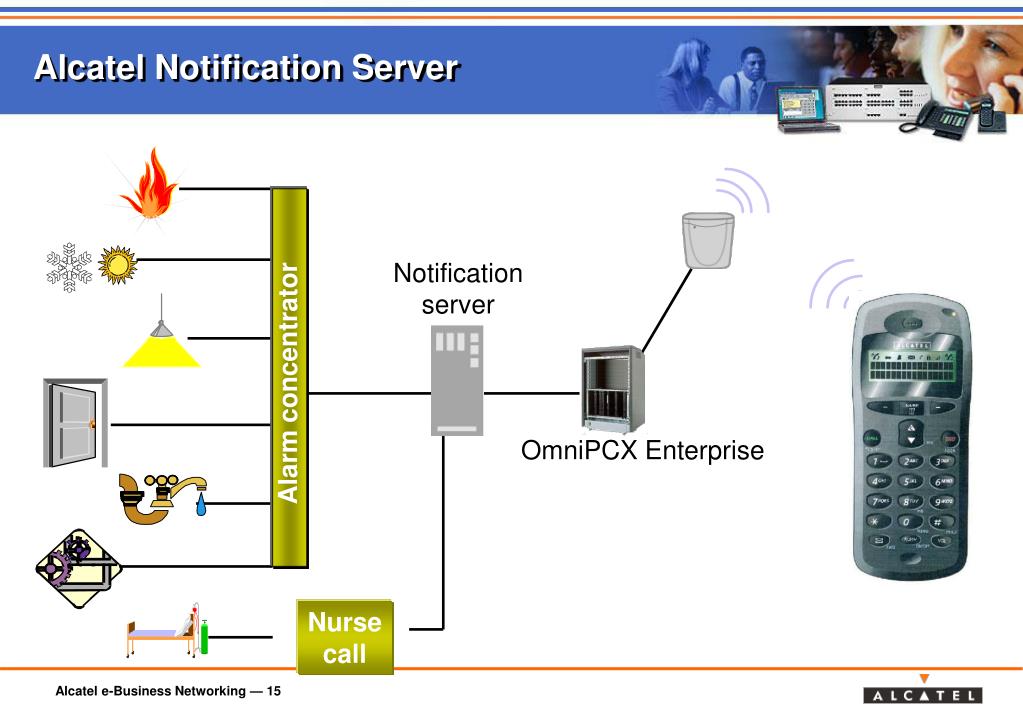

  15. Notification server Alarm concentrator OmniPCX Enterprise Nurse call Alcatel Notification Server

  16. > V Fire alarm > !Fire alarm # ! on off 1 room 15 V or Building 3 Floor> To consult another alarm Alcatel Notification ServerTelephone Display Integration

  17. Dynamic keys during alarm message !Fire alarm If alarm is URGENT If alarm is NORMAL SMS messages Alcatel Notification ServerAlarm Receivers

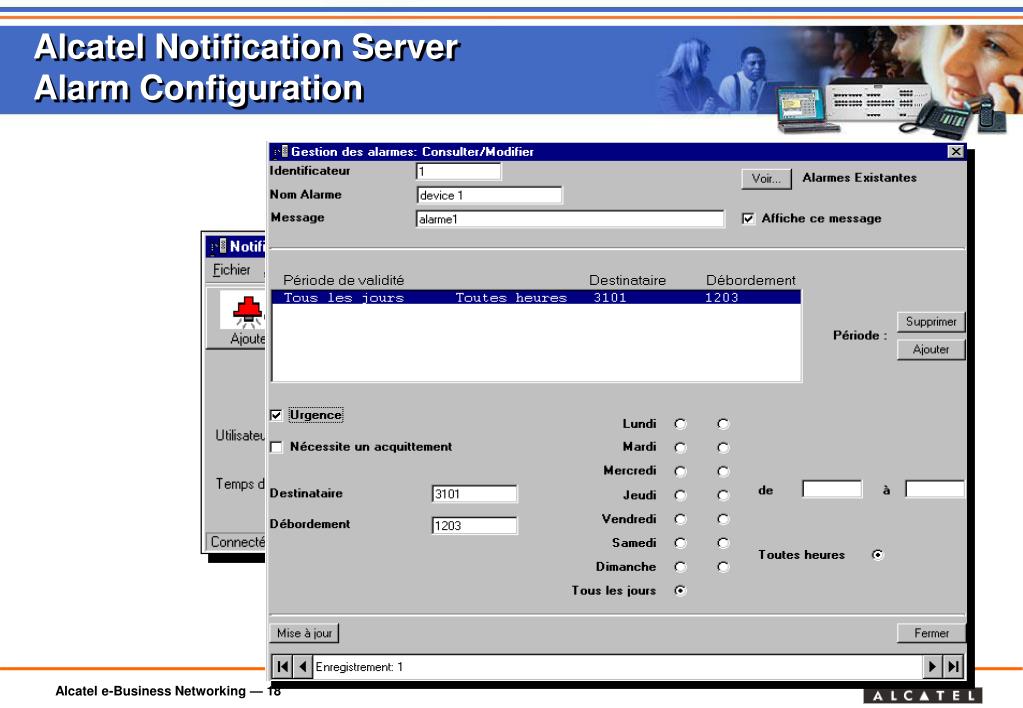

  18. Alcatel Notification Server Alarm Configuration

  19. Alcatel Notification Server Capacities • 10,000 alarms per system • 1000 alarms/hour • 1000 groups of phones • 20 phones per group • 8 alarms memorized per phone • 128 characters per message

  20. Alcatel Notification Server SDK • SDK (Software Development Kit) • Tool to allow external providers to implement the Notification protocol in their devices • Contains all necessary elements • Training and certification endorsed by Alcatel

  21. Topics • PWT integrated onsite wireless solution • Architecture • Wireless phones • Twinset feature • Notification server • Wireless LAN integration

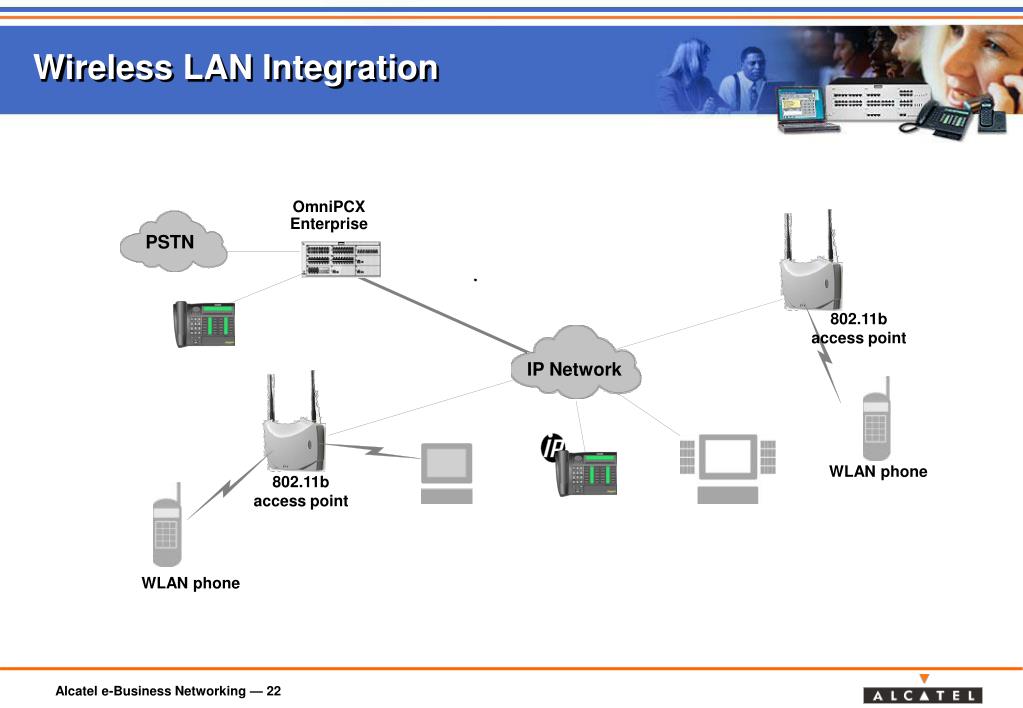

  22. OmniPCX Enterprise 802.11b access point IP Network PSTN WLAN phone 802.11b access point WLAN phone Wireless LAN Integration
