12.4 MUTATIONS

12.4 MUTATIONS. I. Kinds of Mutations Mutations are changes in the genetic material A. Gene mutations – changes in a single gene 1. point mutation – changes in one or a few nucleotides. 3 TYPES OF MUTATIONS. a. substitution – one base is changed to another

jalene
Télécharger la présentation

12.4 MUTATIONS

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 12.4 MUTATIONS I. Kinds of Mutations Mutations are changes in the genetic material A. Gene mutations – changes in a single gene 1. point mutation – changes in one or a few nucleotides

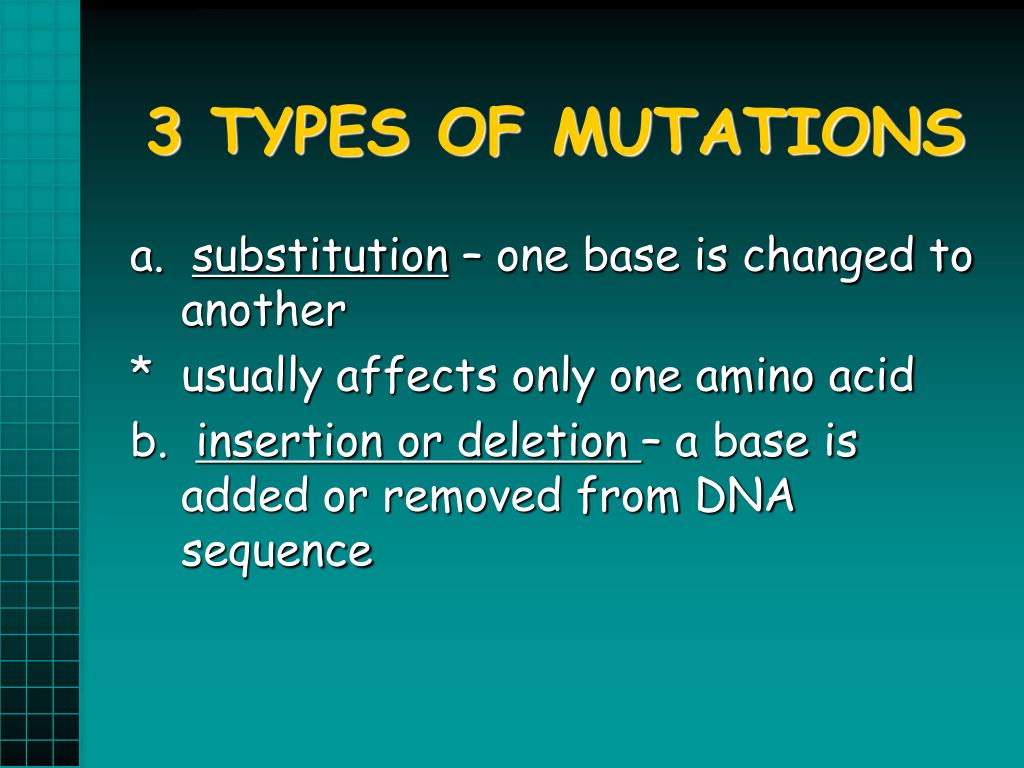

  2. 3 TYPES OF MUTATIONS a. substitution – one base is changed to another * usually affects only one amino acid b. insertion or deletion – a base is added or removed from DNA sequence

  3. FRAMESHIFT MUTATIONS i. Insertion & Deletion are known as frameshift mutationsbecause the reading frame of the genetic message is shifted when a base is added or removed ii. may change every amino acid that follows the point of mutation iii. can alter a protein so much that it can not function

  4. Gene Mutations: Substitution, Insertion, and Deletion Deletion Substitution Insertion

  5. CHROMOSOMAL MUTATIONS B. Chromosomal mutation – changes in the number or structure of chromosomes 1. Four types of chromosomal mutations: a. Deletion – all or part of chromosome is lost

  6. CHROMOSOMAL MUTATIONS b. Duplication – produces extra copies of parts of a chromosome c. Inversion – reverses the direction of parts of chromosomes d. Translocation – part of one chromosome breaks off and attaches another chromosome

  7.  Chromosomal Mutations Deletion Duplication Inversion Translocation

  8. MUTATIONS II. Significance of Mutations A. many mutations are neutral and have little or no effect on expression of a gene or function of protein 1. mutations allow genetic diversity in a species

  9. MUTATIONS B. harmful mutations are the causes of many genetic disorders or even cancer • beneficial mutations produce proteins that can be helpful in different environments

  10. MUTATIONS Meiosis is a process where gametes (sex Cells) half the number of chromosomes. a. Nondisjunction occurs when a complete set of chromosomes fails to separate during Meiosis. • gametes(sperm & egg) may produce triploid (3N) or tetraploid (4N) organisms

  11. What happens if nondisjunction occurs? • The gamete will die or result in conditions known as trisomy or monosomy. • Trisomy - a person has more than 2 copies of the same chromosome. • Monosomy – a person only has one copy of a chromosome.

  12. How can you tell that? • Take a picture of the chromosomes • This is known as a karyotype.

  13. Normal Female Karyotype

  14. Normal Male Karyotype

  15. Abnormal Karyotype-Trisomy #21 Down’s Syndrome

  16. Abnormal Karyotype – Monosomy of the X chromosome Turner’s Syndrome
