Practical Installation Process of NewGenLib OSS on Windows XP for Library automation

Practical Installation Process of NewGenLib OSS on Windows XP for Library automation. Goutam Biswas Department of Library & Information Science University of Kalyani, Nadia, West Bengal INDIA Email: goutambiswas8@gmail.com Mobile No. +91 9831092149. NOTE.

jalene
Télécharger la présentation

Practical Installation Process of NewGenLib OSS on Windows XP for Library automation

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

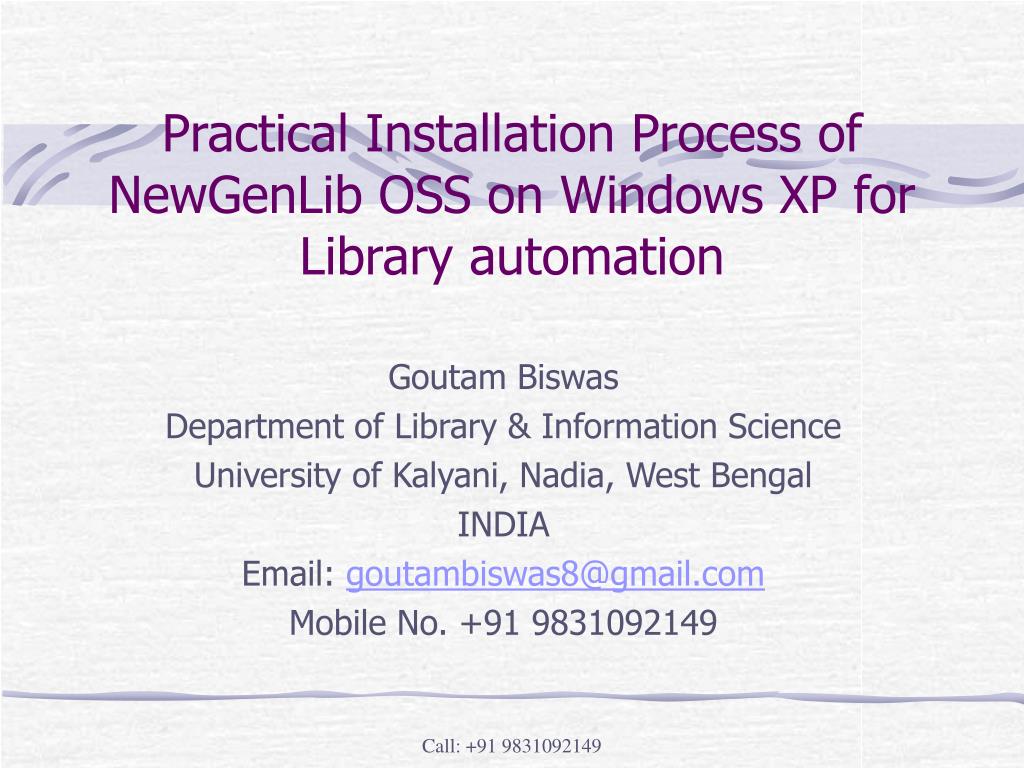

  1. Practical Installation Process of NewGenLib OSS on Windows XP for Library automation Goutam Biswas Department of Library & Information Science University of Kalyani, Nadia, West Bengal INDIA Email: goutambiswas8@gmail.com Mobile No. +91 9831092149 Call: +91 9831092149

  2. NOTE The following slides demonstrate the installation of NewGenLib software on a local machine. This presentation is limited to installation only. For further assistance, please refer to NewGenLib User Manual (UserManualAllModules.pdf) available at http://www.sourceforge.net/projects/newgenlib Call: +91 9831092149

  3. Thanks To • Dr. L J Haravu • Kesavan Institute of Information and Knowledge Management, Hyderabad • Verus Solutions Pvt. Ltd., Hyderabad • Everyone else involved in the development of NewGenLib and making it open source Call: +91 9831092149

  4. What is NewGenLib? • “NewGenLib is a metadata content management software solution” • An integrated library management software • A web-based application that uses RDBMS technology to manage databases • Compliant with International Standards: MARC, XML, UNICODE & Dublincore • Installable on LAN/Intranet and Standalone computers • Uses many open source components NewGenLib is now Open Source !!!  • Free download at http://www.sourceforge.net/projects/newgenlib • Take a 20-minute multimedia tour at www.newgenlib.com Let’s Install & Use it Call: +91 9831092149

  5. Files Required for Installation • J2SE Software Development Kit (SDK) • PostgreSQL for Windows • JBoss Application Server • newgenlib.ear • NewGenLibFiles.zip • backupinplain.sql • Java Runtime Environment (JRE) (for installation on clients) Call: +91 9831092149

  6. Sources of Download Download files 1 to 4 from http://www.sourceforge.net/projects/newgenlib • JBoss Application Server • newgenlib.ear • NewGenLibFiles • backupinplain.sql • J2SE Software Development Kit (SDK) http://java.sun.com/j2se/1.4.2/download.html • PostgreSQL for Windows • http://www.postgresql.org • Java Runtime Environment (JRE) http://java.sun.com/j2se/1.4.2/download.html Call: +91 9831092149

  7. Installation Summary • Install Java 2 SDK • Set environment variable for Java 2 SDK • Install PostgreSQL for Windows • Create newgenlib database • Run backupinplain.sql script to create tables • Install JBoss Application Server • Copy newgenlib.ear file to JBoss Server • Extract NewGenLibFiles.zip to C drive • Edit Env_Var file & fill in the System Parameters • Create a shortcut for JBoss run.bat file on the Desktop • Start the JBoss Application Server • Access NewGenLib through the Web Browser Call: +91 9831092149

  8. Files Required for Installation Call: +91 9831092149

  9. Install Java 2 SDK • Double Click j2sdk file to launch the installer Call: +91 9831092149

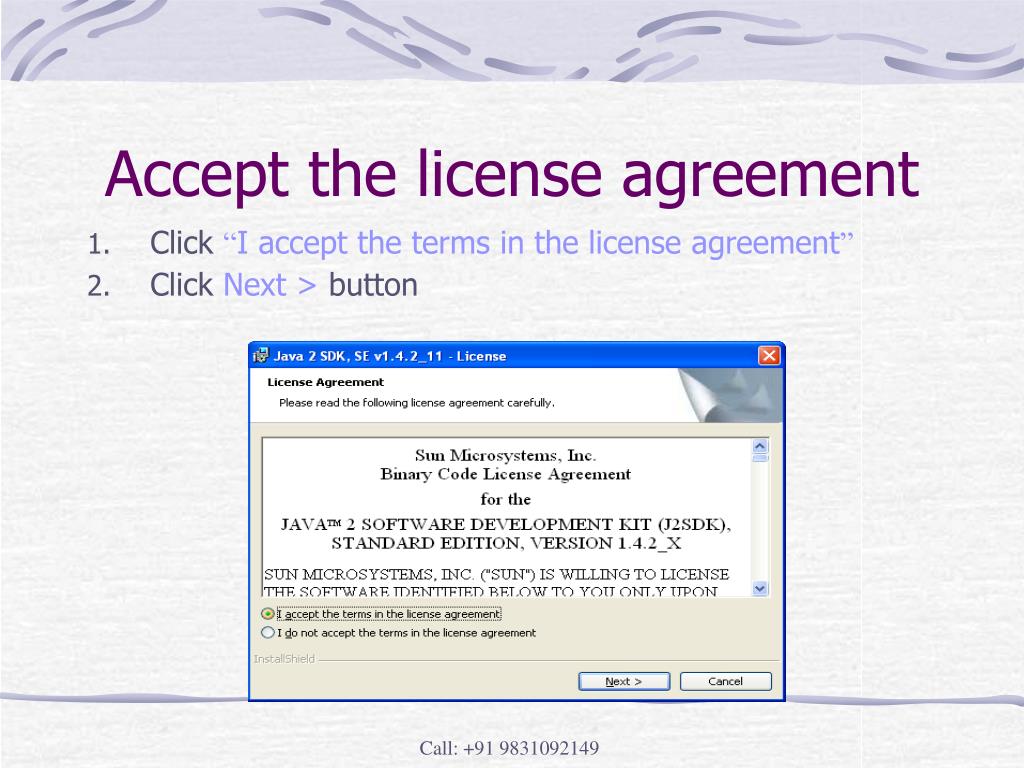

  10. Accept the license agreement • Click “I accept the terms in the license agreement” • Click Next > button Call: +91 9831092149

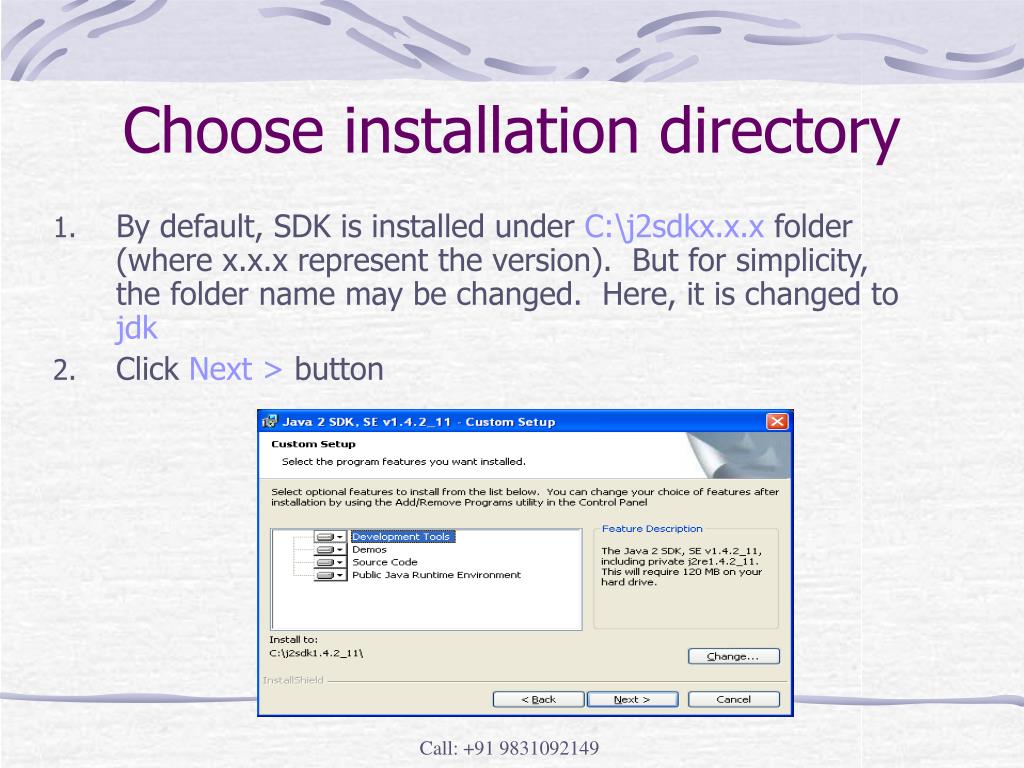

  11. Choose installation directory • By default, SDK is installed under C:\j2sdkx.x.x folder (where x.x.x represent the version). But for simplicity, the folder name may be changed. Here, it is changed to jdk • Click Next > button Call: +91 9831092149

  12. Choose installation directory • Click Change… button and change the folder name to jdk • Click OK button Call: +91 9831092149

  13. Choose installation directory • Click Next > button Call: +91 9831092149

  14. Web Browser Configuration • Java 2 SDK automatically identifies the browsers installed. Select the browsers to be configured with Java. • Click Install > button Call: +91 9831092149

  15. Installation in Progress Call: +91 9831092149

  16. Installation Complete • Click Finish button Call: +91 9831092149

  17. Set Environment Variable for Java 2 SDK • Right Click My Computer icon on your Desktop and click Properties Call: +91 9831092149

  18. Set Environment Variable for Java 2 SDK • In System Properties screen, select Advanced tab & click Environment Variables button Call: +91 9831092149

  19. Set Environment Variable for Java 2 SDK • In Environment Variables window, Click New button under System Variables Call: +91 9831092149

  20. Set Environment Variable for Java 2 SDK • In New System Variable window, type JAVA_HOME for Variable name & Java 2 SDK installation path (C:\jdk in this example) for Variable value • Click OK Call: +91 9831092149

  21. Environment Variable for Java 2 SDK set • The Environment Variable for Java 2 SDK can be seen Call: +91 9831092149

  22. Install PostgreSQL for Windows • Double click the postgresql installer package to launch installation wizard • Select the language & click Start > button Call: +91 9831092149

  23. Welcome Screen • Click Next > button Call: +91 9831092149

  24. Installation Notes • Click Next > button Call: +91 9831092149

  25. Installation Options • Leave all the options default (including the installation directory) • Click Next > button Call: +91 9831092149

  26. Service Configuration • Account name: postgres • Account domain: accept default value • Account password: newgenlib (retype the password) • Click Next > button NOTE: DO REMEMBER THIS PASSWORD Call: +91 9831092149

  27. Account Creation & Password Warning • If Account error window appears, click Yes to create postgres Account • If “Password weak” warning appears, click No to retain your password (If you click Yes, the installer replaces your password with a random password) Call: +91 9831092149

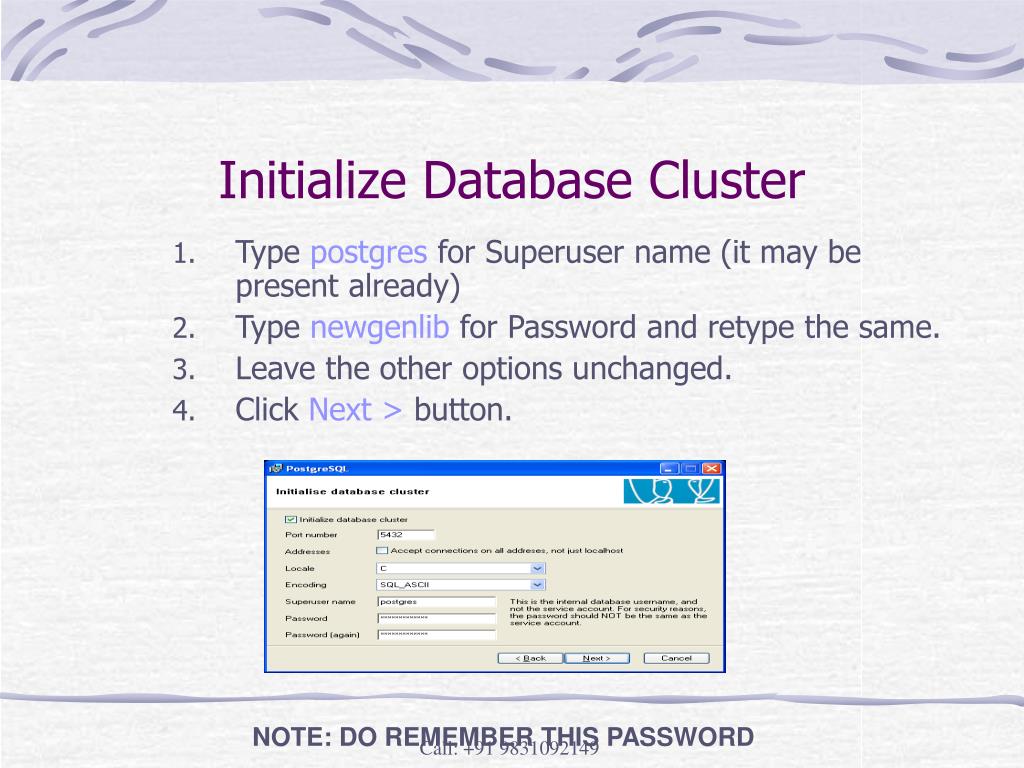

  28. Initialize Database Cluster • Type postgres for Superuser name (it may be present already) • Type newgenlib for Password and retype the same. • Leave the other options unchanged. • Click Next > button. Call: +91 9831092149 NOTE: DO REMEMBER THIS PASSWORD

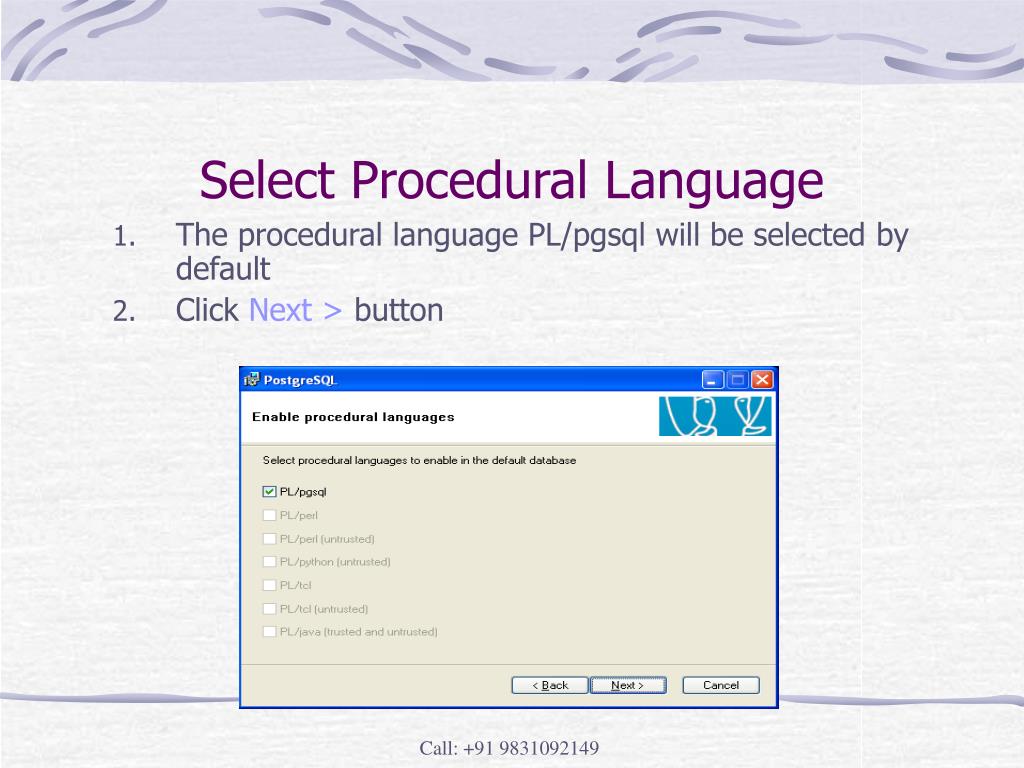

  29. Select Procedural Language • The procedural language PL/pgsql will be selected by default • Click Next > button Call: +91 9831092149

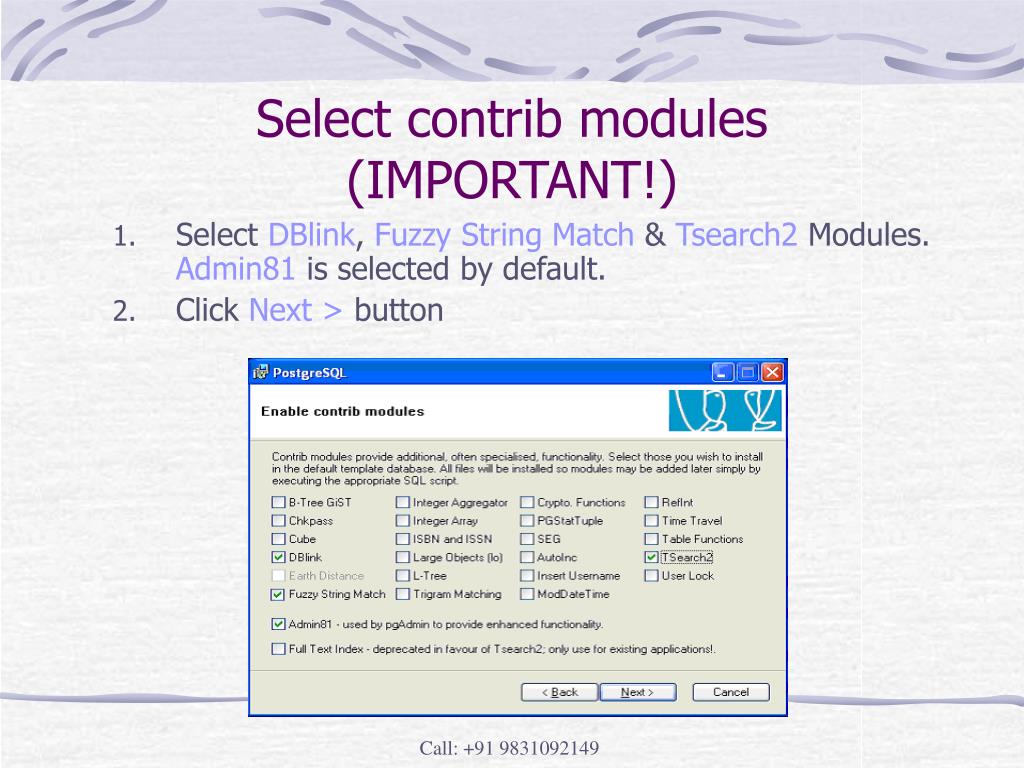

  30. Select contrib modules (IMPORTANT!) • Select DBlink, Fuzzy String Match & Tsearch2 Modules. Admin81 is selected by default. • Click Next > button Call: +91 9831092149

  31. Ready to Install • Click Next > button to start installation Call: +91 9831092149

  32. Installation in Progress Call: +91 9831092149

  33. Installation Complete • Click Finish > button Call: +91 9831092149

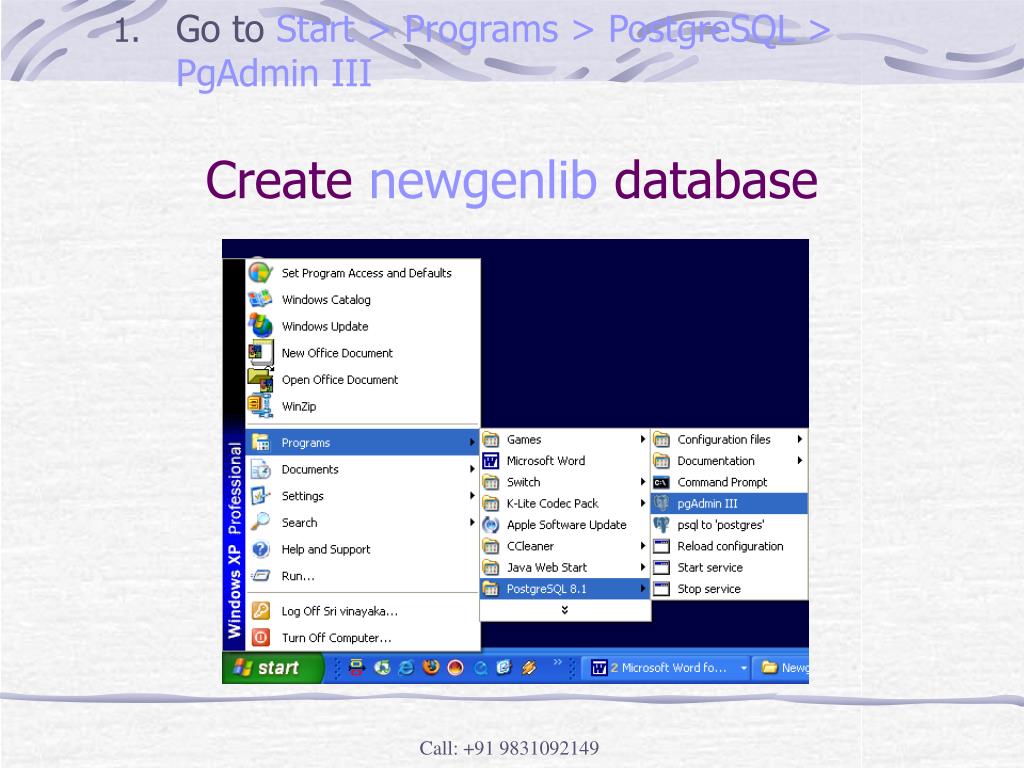

  34. Create newgenlib database • Go to Start > Programs > PostgreSQL > PgAdmin III Call: +91 9831092149

  35. Connect to PostgreSQL Database Server • Right Click on PostgreSQL Database Server & click Connect Call: +91 9831092149

  36. Enter Password to connect to server • Enter the password for user postgres (password is newgenlib) • Click OK button Call: +91 9831092149

  37. Create New Database • Right click on Databases & click New Database Call: +91 9831092149

  38. Create newgenlib database • In New Database Window, enter newgenlib for Name, select posgres for Owner, UTF8 for Encoding & pg_default for Tablespace • Click OK button Call: +91 9831092149

  39. newgenlib database created • newgenlib database can be seen in Database list • Close pgAdmin III Call: +91 9831092149

  40. Copy backupinplain.sql file to C drive • Copy backupinplain.sql file to C drive Call: +91 9831092149

  41. Go to Command Prompt • To go to command prompt, click Start > Run & type cmd Call: +91 9831092149

  42. Change directory to PostgreSQL\bin • At the command prompt, type cd C:\Program Files\PostgreSQL\x.x\bin (where x.x is the version directory. In this example, it is 8.1) • Press Enter Call: +91 9831092149

  43. Access newgenlib database for user postgres • type psql -d newgenlib –U postgres • Press Enter • Type postgres account password (password is newgenlib) (NOTE: While typing the password, no characters appear on screen. The cursor will not move) • Press Enter Call: +91 9831092149

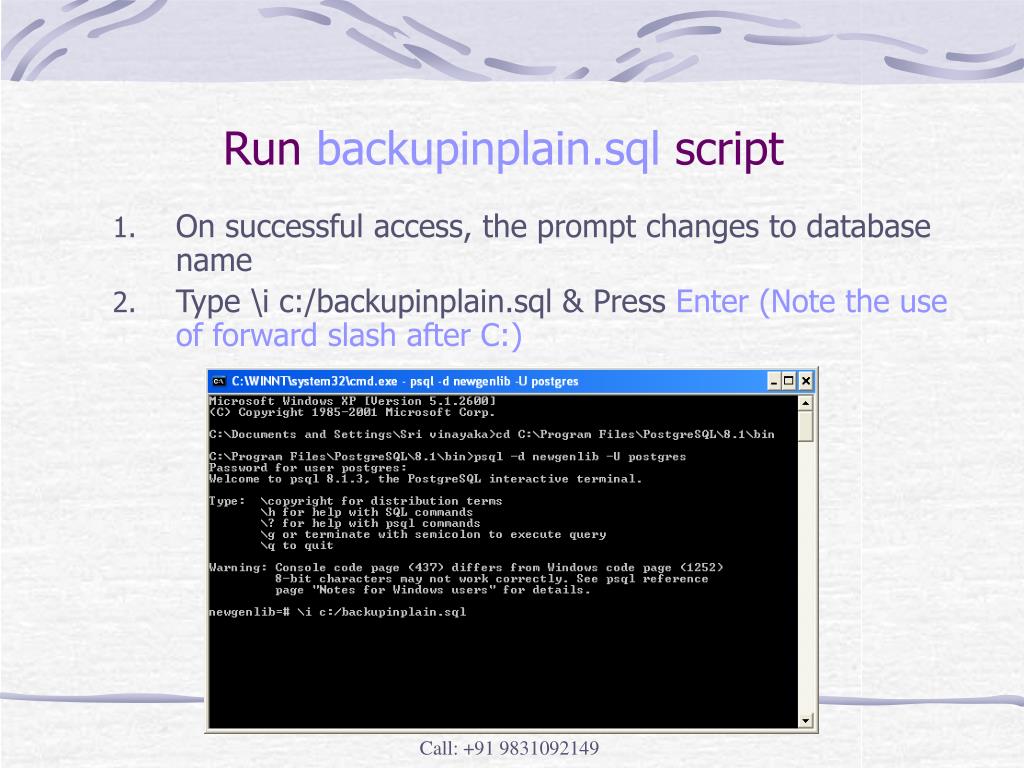

  44. Run backupinplain.sql script • On successful access, the prompt changes to database name • Type \i c:/backupinplain.sql & Press Enter (Note the use of forward slash after C:) Call: +91 9831092149

  45. Table creation in progress Call: +91 9831092149

  46. Table creation complete • The table creation is complete • Close the command prompt Call: +91 9831092149

  47. Install JBoss Application Server • Extract jboss-3.2.1_tomcat-4.1.24.zip file to C drive directly Call: +91 9831092149

  48. Select location for extraction • Select C drive as location for extraction • Click Extract button Call: +91 9831092149

  49. Extraction Complete • When extraction completes, the jboss folder can be seen in C drive Call: +91 9831092149

  50. Copy newgenlib.ear file to JBoss Server • Copy newgenlib.ear file to C:\jboss-xxx\server\default\deploy directory Call: +91 9831092149
