  1. Antenna Report 100609 Chih-Ching Chen /Chris Yao 2010/06/09

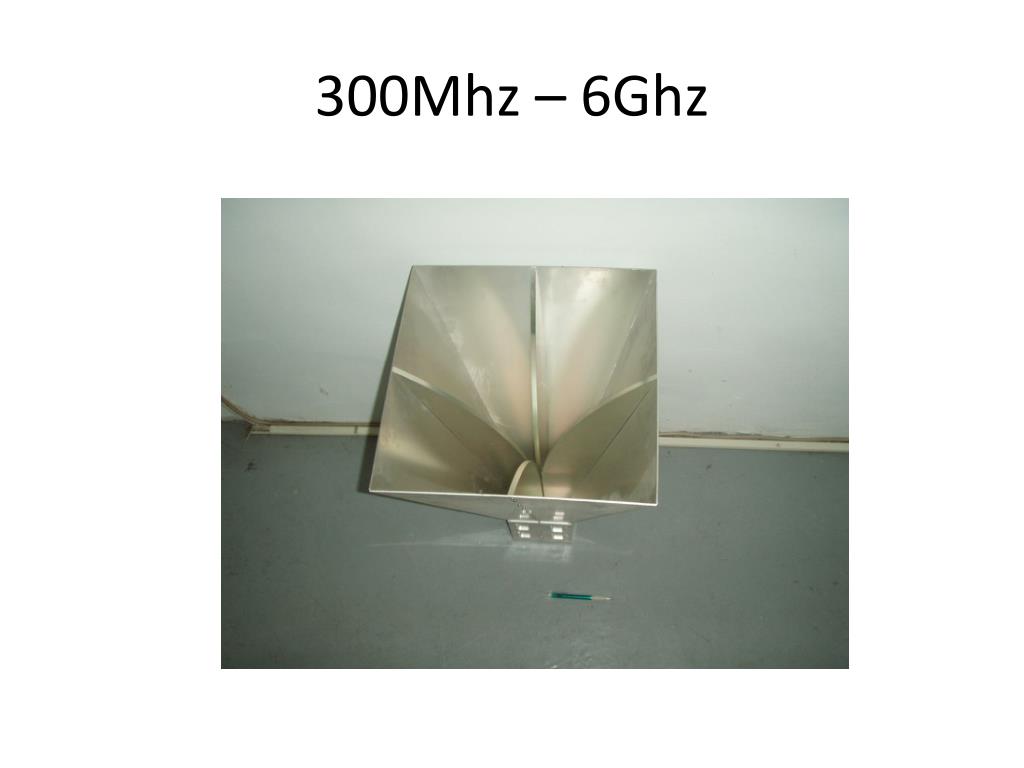

  2. 300Mhz – 6Ghz

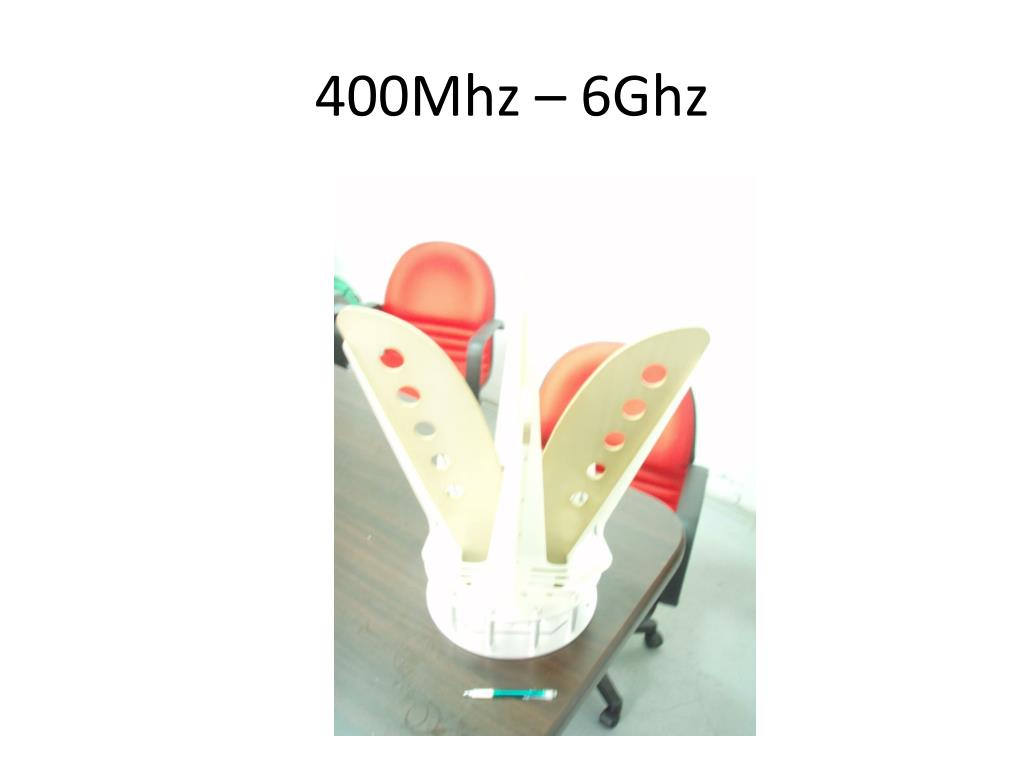

  3. 400Mhz – 6Ghz

  4. Anechoic chamber • 6m*6m*12m

  5. Antenna tripod mount

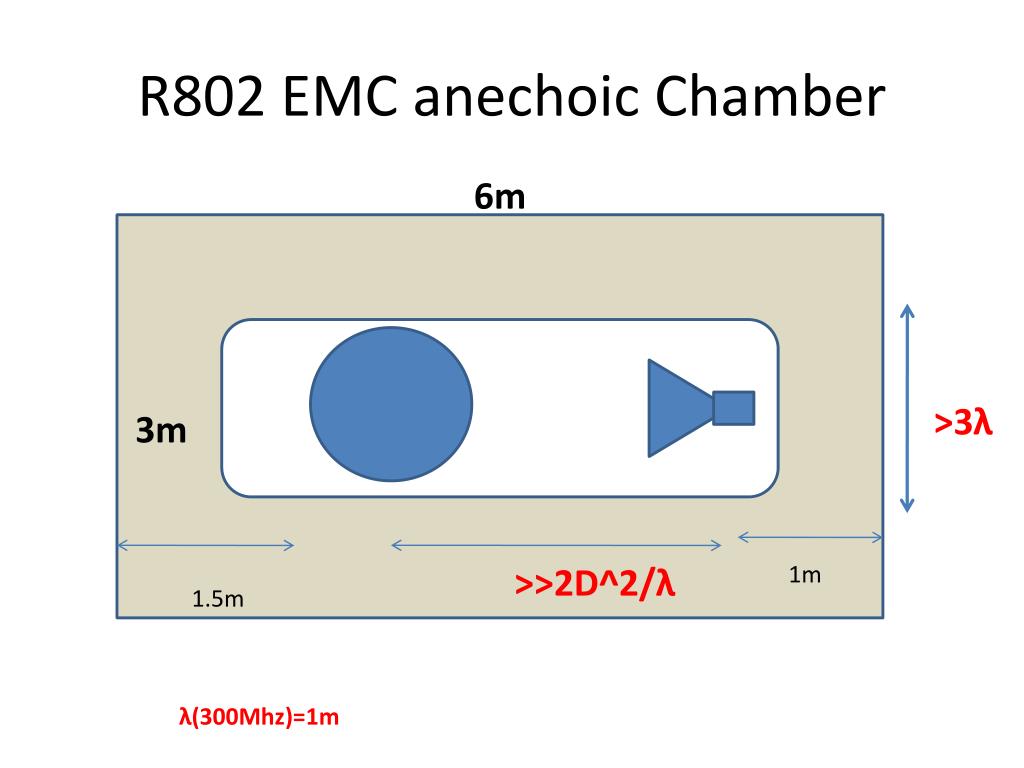

  6. R802 EMC anechoic Chamber 6m 6m >3λ 3m >>2D^2/λ 1m 1.5m λ(300Mhz)=1m

  7. suggestion • Chamber size • RF/EMC chamber • Antenna weight • Absorber • Turn-table motor (maker or tracing)

  8. Open Site measurement device under test(DUT) Horn antenna v v v v v v v v v v v v v v v v v v v v v v v v v v v v v v v v v v v v v v v v v v v v v v v v v v v v v v v v v v v v v v (Θ,φ) v v v v v v v v v v v v v v v v v v Scope Delta-function pulse generator

  9. Equipments for Open Site Test • Horn Antenna (source) • DUT (Device Under Test) • Cables • Pulse generator (AVTek AVMH-1-C) • OscilloScope (Agilent DSO90404A) • Antenna tripod (Acrylic) • Turn-table (Acrylic) Jun. 09, 2010

  10. Jun. 09, 2010
