  1. Superconducting Fault Current Limiters A. V. Velichko, T. A. Coombs Department of Engineering, Cambridge University, UK. Funded by EPSRC

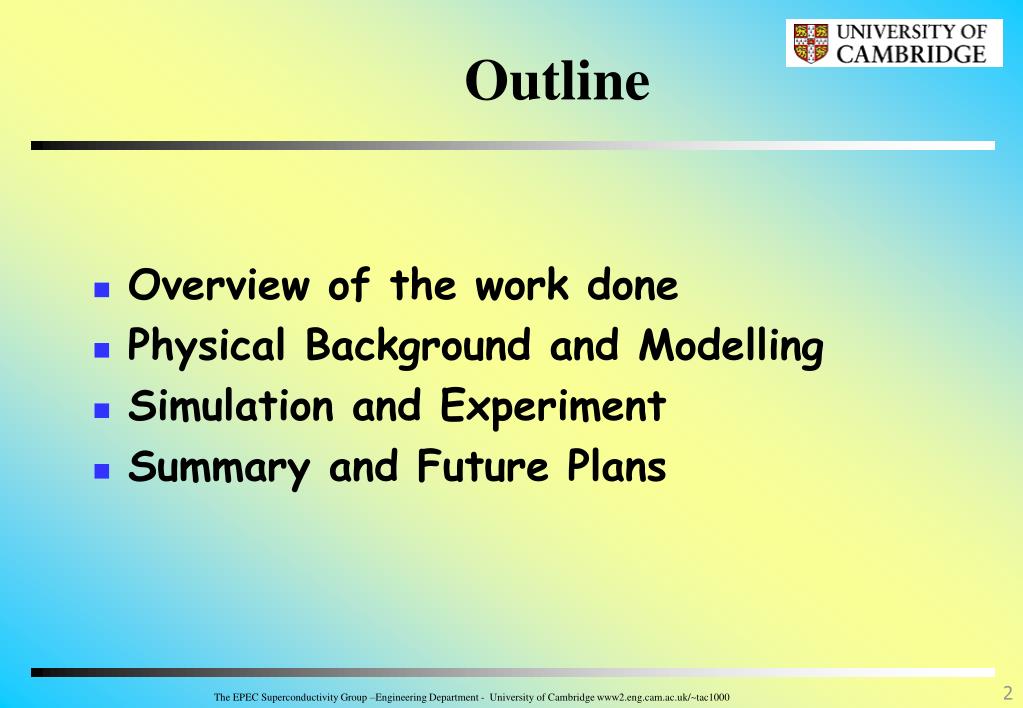

  2. Outline • Overview of the work done • Physical Background and Modelling • Simulation and Experiment • Summary and Future Plans

  3. Overview • Problems to be solved within the project: • FCLs are highly nonlinear devices, extensive simulation is required: • So far we have addressed: • - High-aspect ratio • - Multi-element configuration • - First Experiments(DC VACH, AC loss and Pulse Measurements) • Problems remaining to solve: • - Structural deformations (simulation and experiment) • - Overall contribution to the power network.

  4. Thermal Electrical Single FCL Structural Physical Background and Modelling (I) All Properties are NONLINEAR and INTERDEPENDENT! If done consistently & simultaneously – very time-consuming andcould befallible

  5. Physical Background and Modelling (II) EXISTINGPROPRIETARY MODEL Model takes into account: Thermal and Electrical; Need to incorporate: Structural, Multi-element • From Experiment: - Spread in Ic and n; • Strain and Stress;

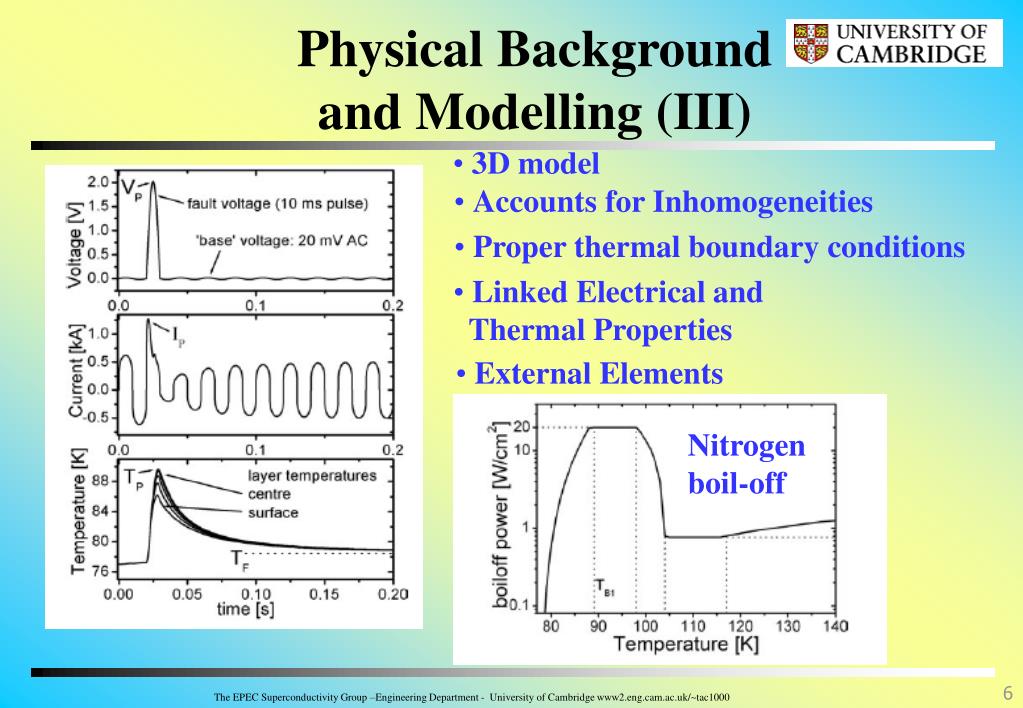

  6. Physical Background and Modelling (III) • 3D model • Accounts for Inhomogeneities • Proper thermal boundary conditions • Linked Electrical and • Thermal Properties • External Elements Nitrogen boil-off

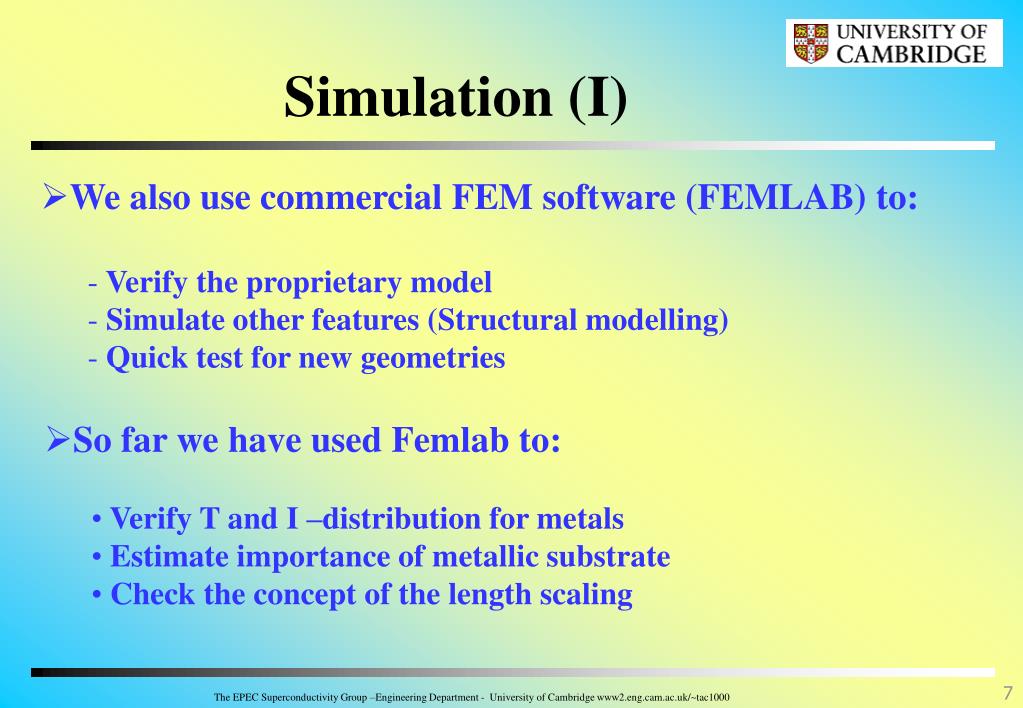

  7. Simulation (I) • We also use commercial FEM software (FEMLAB) to: • Verify the proprietary model • Simulate other features (Structural modelling) • Quick test for new geometries • So far we have used Femlab to: • Verify T and I –distribution for metals • Estimate importance of metallic substrate • Check the concept of the length scaling

  8. Simulation: verifying our model (II) FCLSimu2003D & FEMLAB Cu-block, 1*0.5*0.25 mm3, takes ~ 1 minute on P-IV, 2.4 GHz, 512 MGb RAM DT = 275.24-275.3 K DT = 260.24-260.27 K

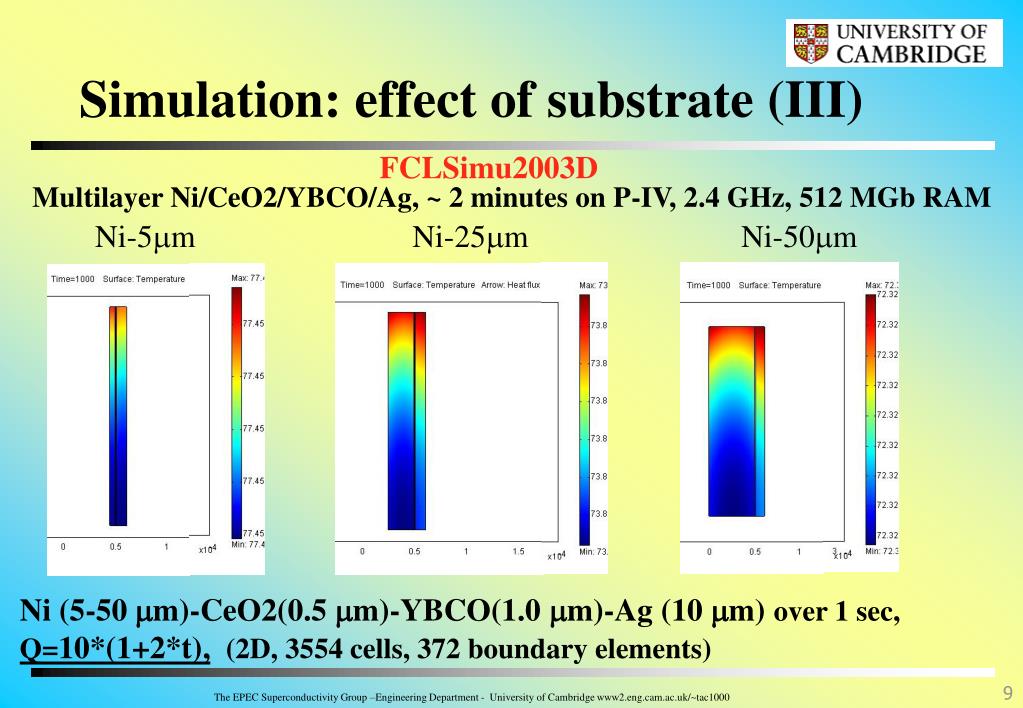

  9. Simulation: effect of substrate (III) FCLSimu2003D Multilayer Ni/CeO2/YBCO/Ag, ~ 2 minutes on P-IV, 2.4 GHz, 512 MGb RAM Ni-5mm Ni-25mm Ni-50mm Ni (5-50 mm)-CeO2(0.5 mm)-YBCO(1.0 mm)-Ag (10 mm)over 1 sec, Q=10*(1+2*t),(2D, 3554 cells, 372 boundary elements)

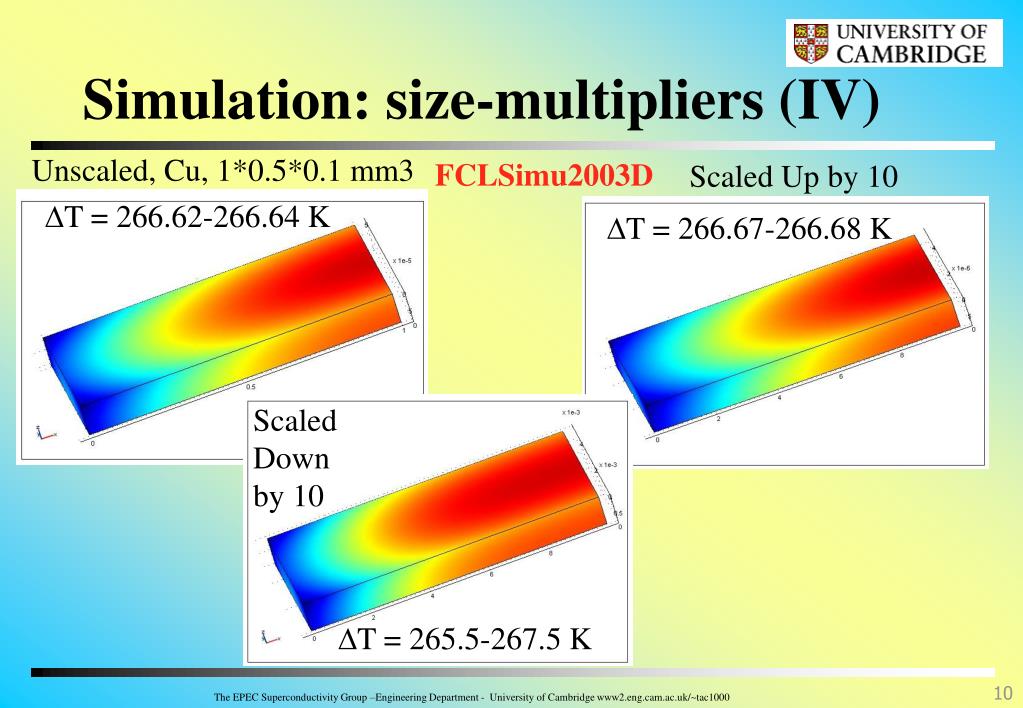

  10. Simulation: size-multipliers (IV) Unscaled, Cu, 1*0.5*0.1 mm3 FCLSimu2003D Scaled Up by 10 DT = 266.62-266.64 K DT = 266.67-266.68 K Scaled Down by 10 DT = 265.5-267.5 K

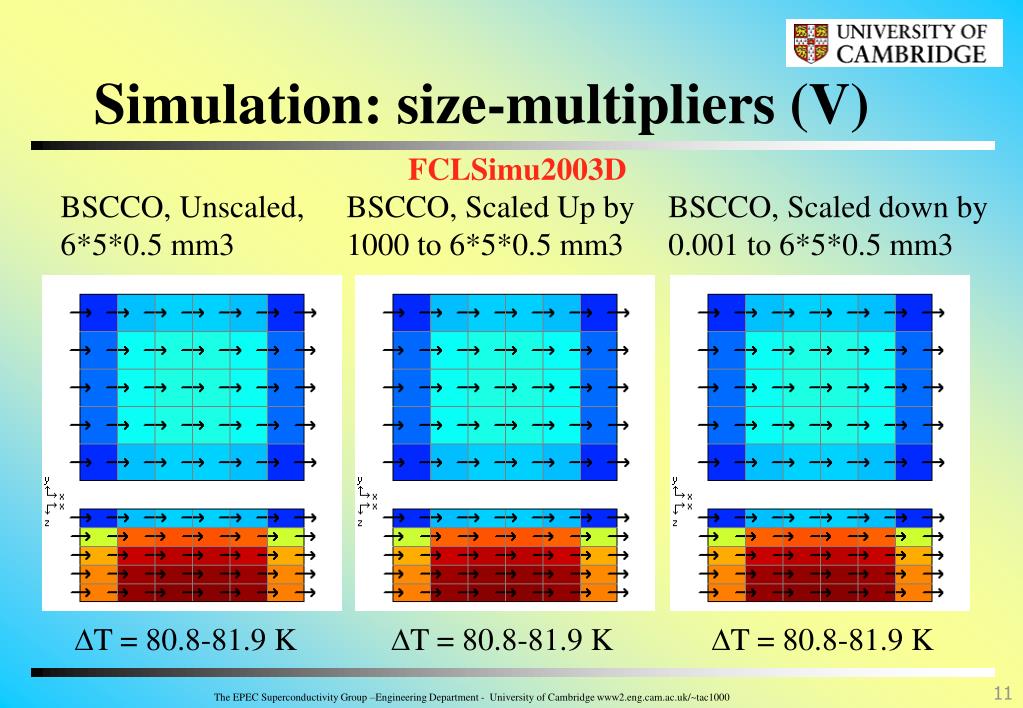

  11. Simulation: size-multipliers (V) FCLSimu2003D BSCCO, Unscaled, 6*5*0.5 mm3 BSCCO, Scaled Up by 1000 to 6*5*0.5 mm3 BSCCO, Scaled down by 0.001 to 6*5*0.5 mm3 DT = 80.8-81.9 K DT = 80.8-81.9 K DT = 80.8-81.9 K

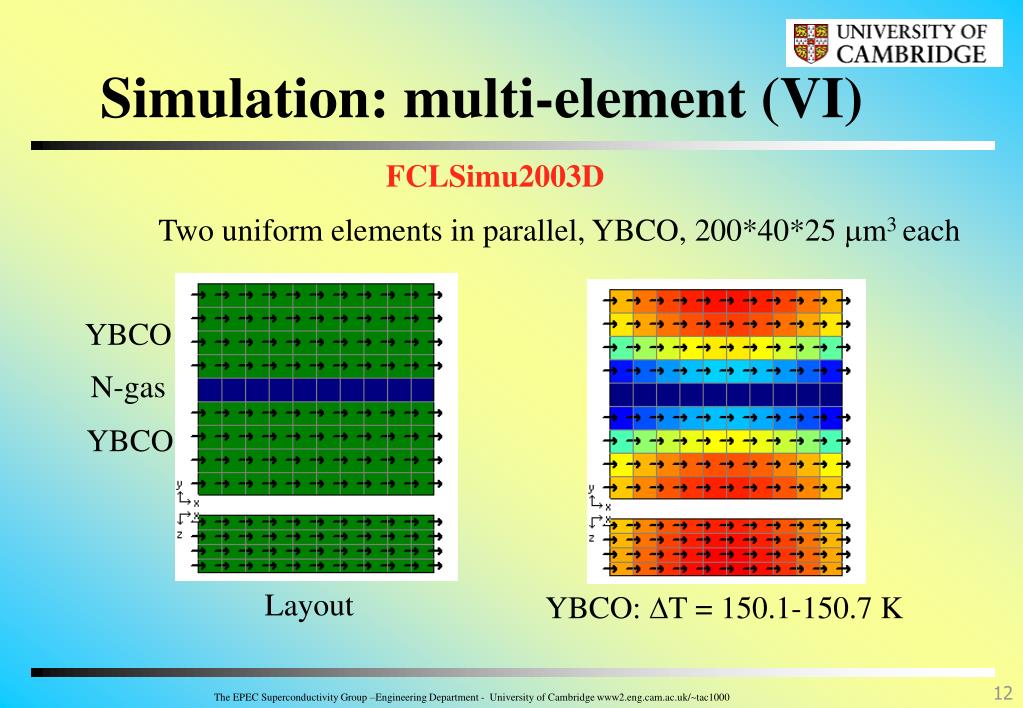

  12. Simulation: multi-element (VI) FCLSimu2003D Two uniform elements in parallel, YBCO, 200*40*25 mm3 each YBCO N-gas YBCO Layout YBCO: DT = 150.1-150.7 K

  13. Simulation: multi-element + defect (VII) FCLSimu2003D Two elements in parallel, one with defect YBCO, 200*40*25 mm3 each YBCO N-gas YBCO YBCO: DT = 106.7-106.8 K Layout YBCO: DT = 175.1-176.1 K

  14. Experiments – DC VACH (I) Fitting dc Current-Voltage Characteristic with EJ-model dc Current-Voltage characteristics, 4 consecutive runs

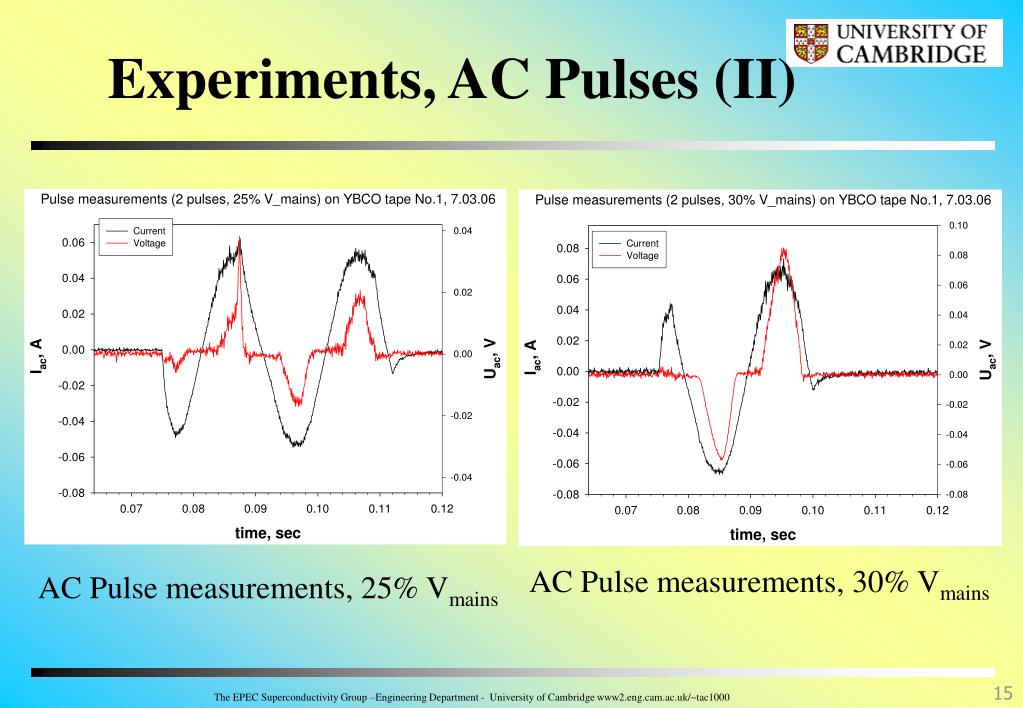

  15. Experiments, AC Pulses (II) AC Pulse measurements, 30% Vmains AC Pulse measurements, 25% Vmains

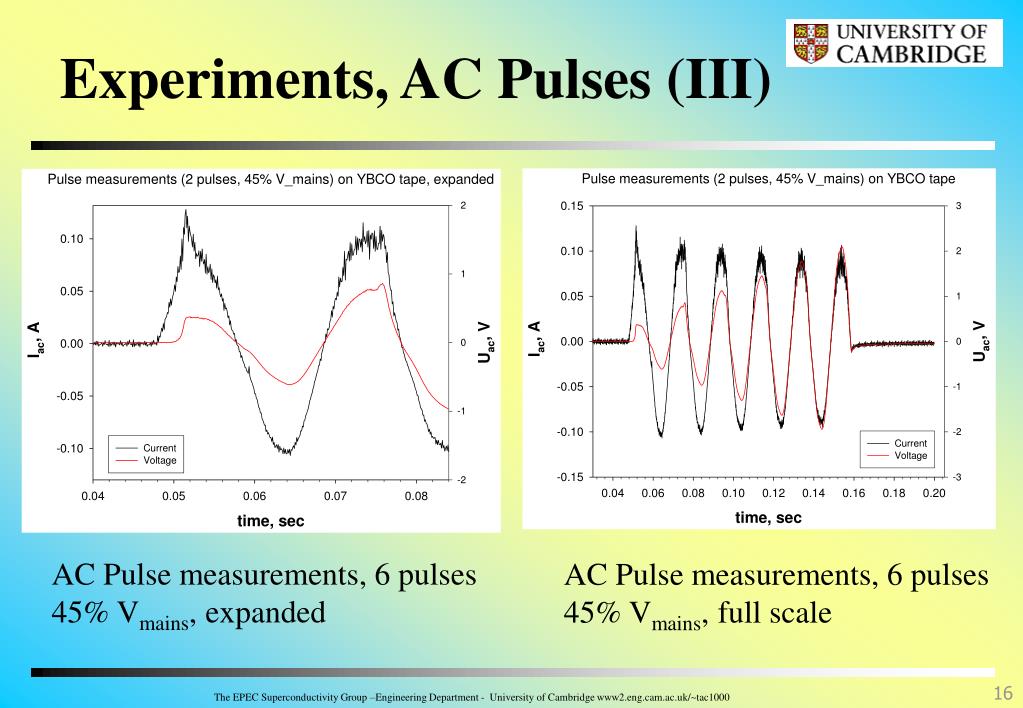

  16. Experiments, AC Pulses (III) AC Pulse measurements, 6 pulses 45% Vmains, expanded AC Pulse measurements, 6 pulses 45% Vmains, full scale

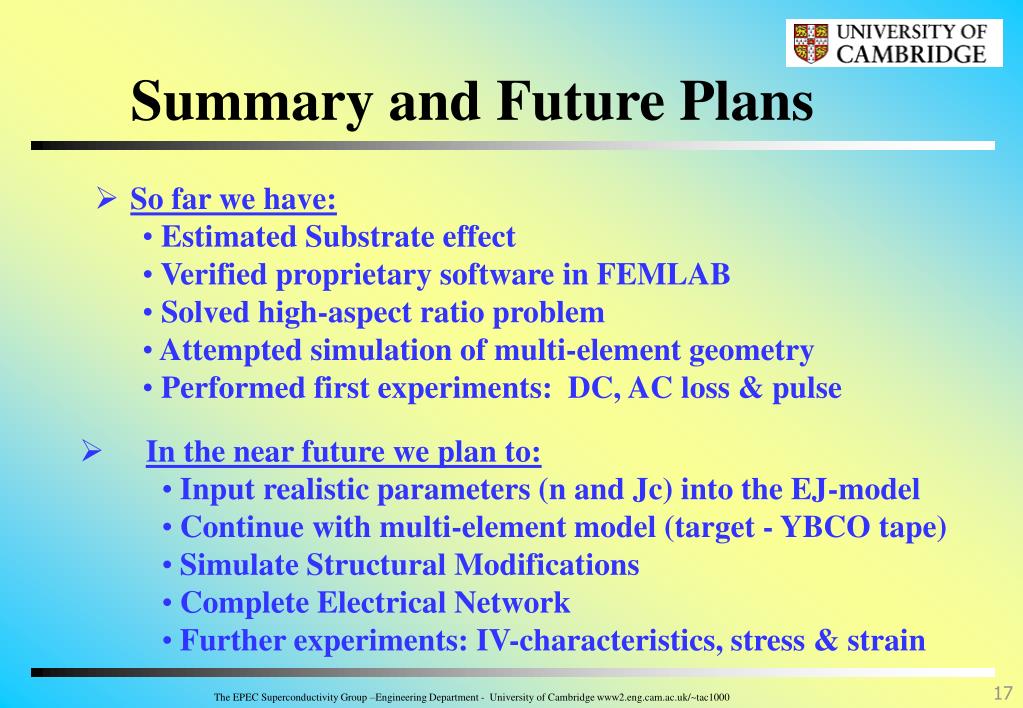

  17. Summary and Future Plans • So far we have: • Estimated Substrate effect • Verified proprietary software in FEMLAB • Solved high-aspect ratio problem • Attempted simulation of multi-element geometry • Performed first experiments: DC, AC loss & pulse • In the near future we plan to: • Input realistic parameters (n and Jc) into the EJ-model • Continue withmulti-element model (target - YBCO tape) • Simulate Structural Modifications • Complete Electrical Network • Further experiments: IV-characteristics, stress & strain

  18. Project Schedule (original) Mastered existing FCL model Created 2D Thermal modelin FEMLAB Repeat Existing model in Femlab & Built multi-element model Building Structural Model Setting up Experiments & Making Measurements

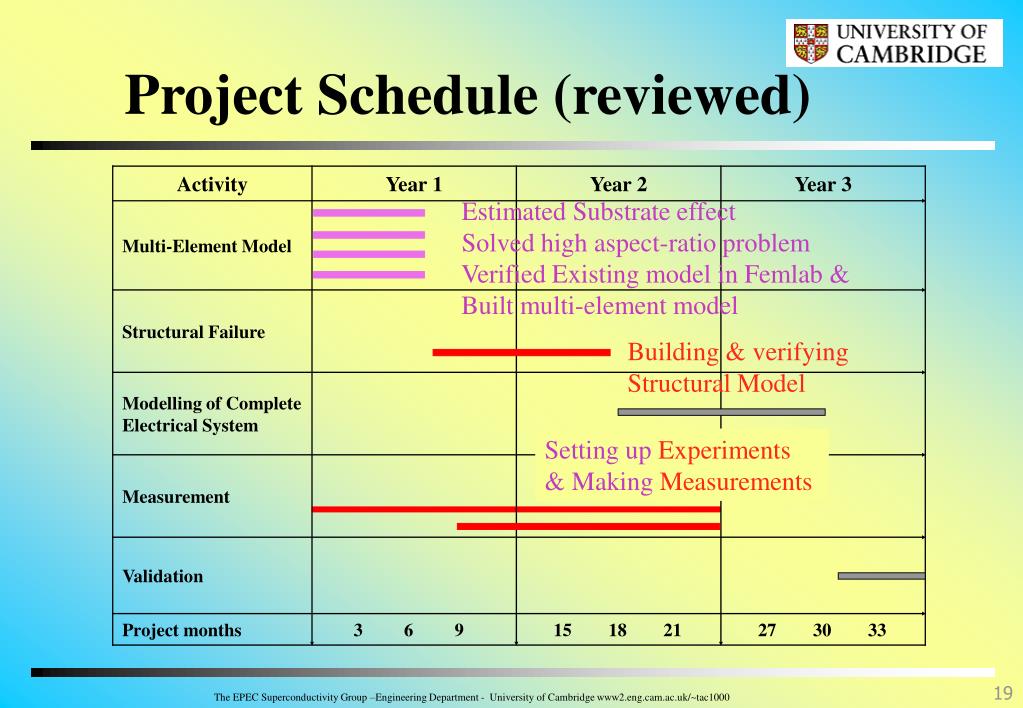

  19. Project Schedule (reviewed) Estimated Substrate effect Solved high aspect-ratio problem Verified Existing model in Femlab & Built multi-element model Building & verifying Structural Model Setting up Experiments & Making Measurements
