  1. Copenhagen, 2-3.09.02 Results of ageing testsC. Garabatos, GSI Experimental set-up TEDLAR ARALDIT 2013

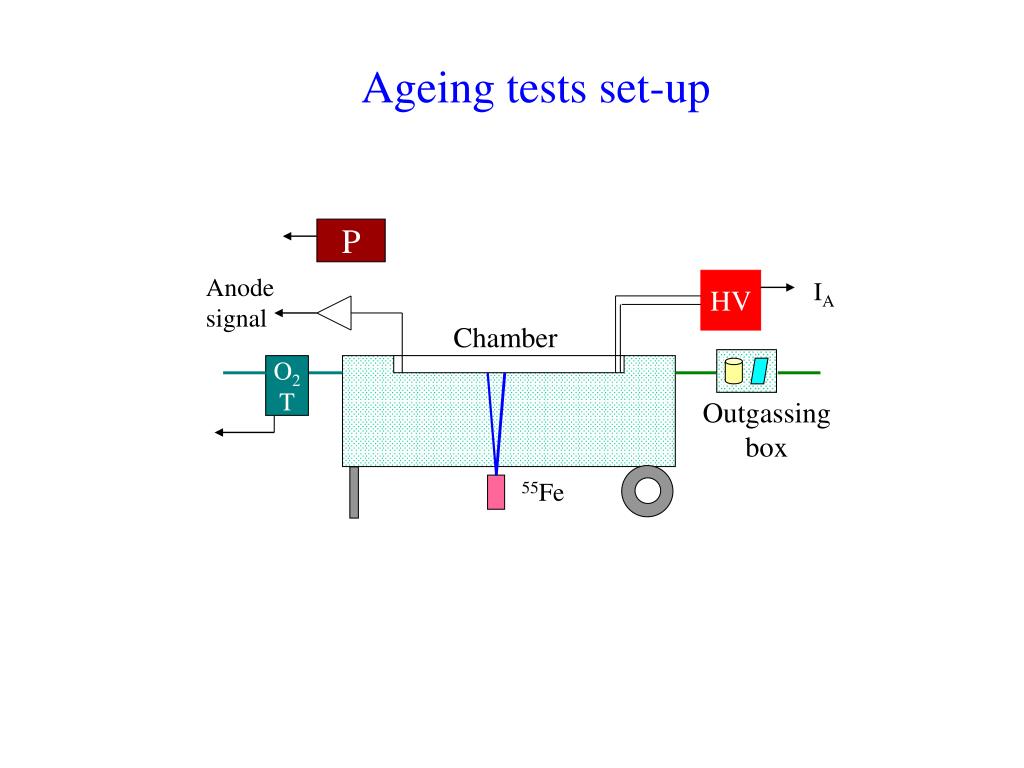

  2. P Anode signal HV IA Chamber O2 T Outgassing box 55Fe Ageing tests set-up

  3. Readout and monitoring of relevant parameters

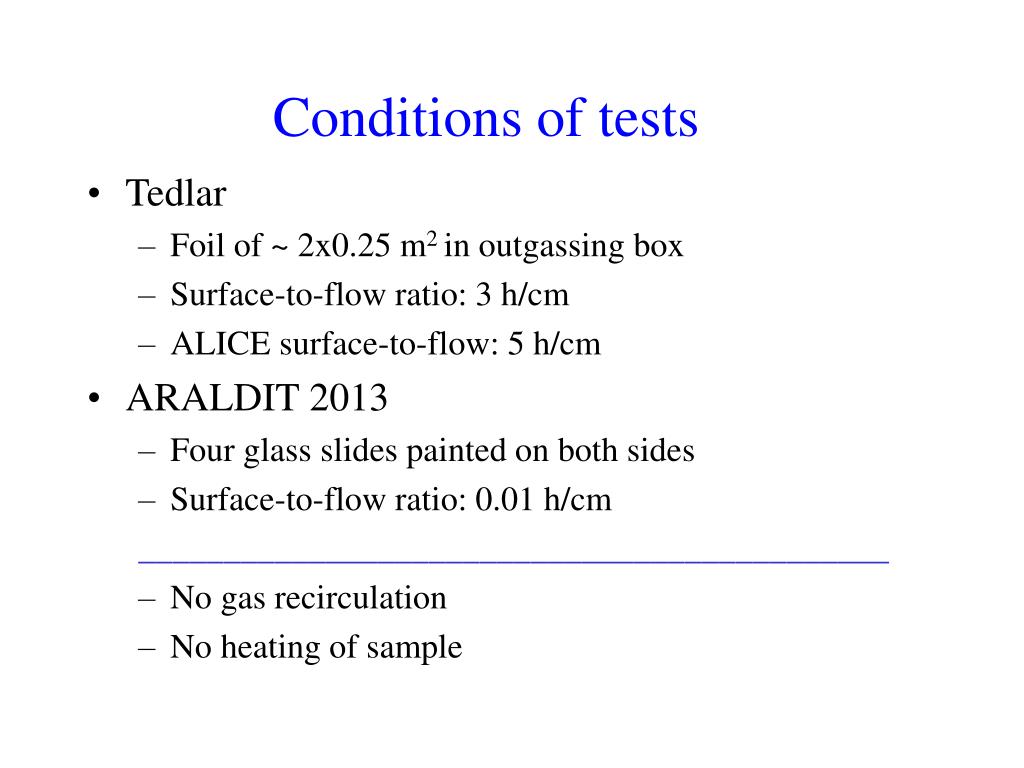

  4. Conditions of tests • Tedlar • Foil of ~ 2x0.25 m2 in outgassing box • Surface-to-flow ratio: 3 h/cm • ALICE surface-to-flow: 5 h/cm • ARALDIT 2013 • Four glass slides painted on both sides • Surface-to-flow ratio: 0.01 h/cm ____________________________________________ • No gas recirculation • No heating of sample

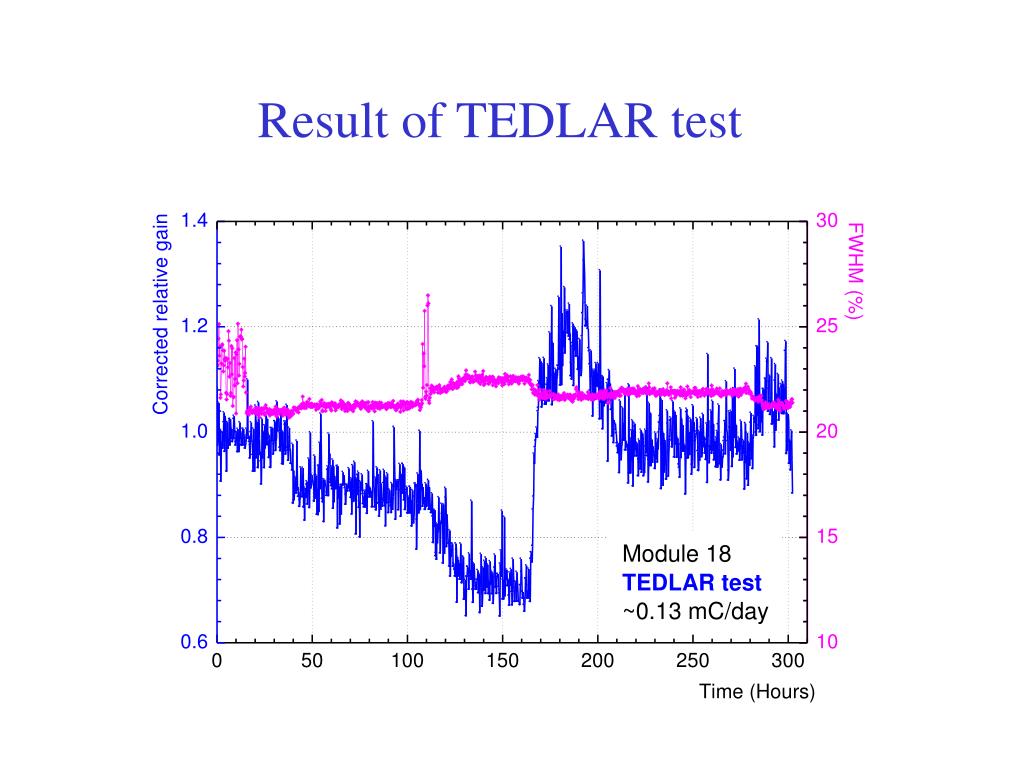

  5. Result of TEDLAR test

  6. Scan of chamber after tests

  7. Conclusions • The set-up and the sensitivity of our gas mixture to 'everything' makes it difficult to perform controlled ageing tests, • although any significant degradation would be detected • No ageing effect can be attributed to the materials tested so far
