Motion Study Guide & Notes

Motion Study Guide & Notes. Mr. Rosato’s Honors Physical Science Fall 2013. Slope of a Curve. Slope shows how much y changes with x. Y. Y. Slope = 3/2 . X. X. Slope of a Distance-Time (DT) Curve. Slope of a Distance vs. Time Graph (DT) is SPEED!. Slope.

janine
Télécharger la présentation

Motion Study Guide & Notes

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

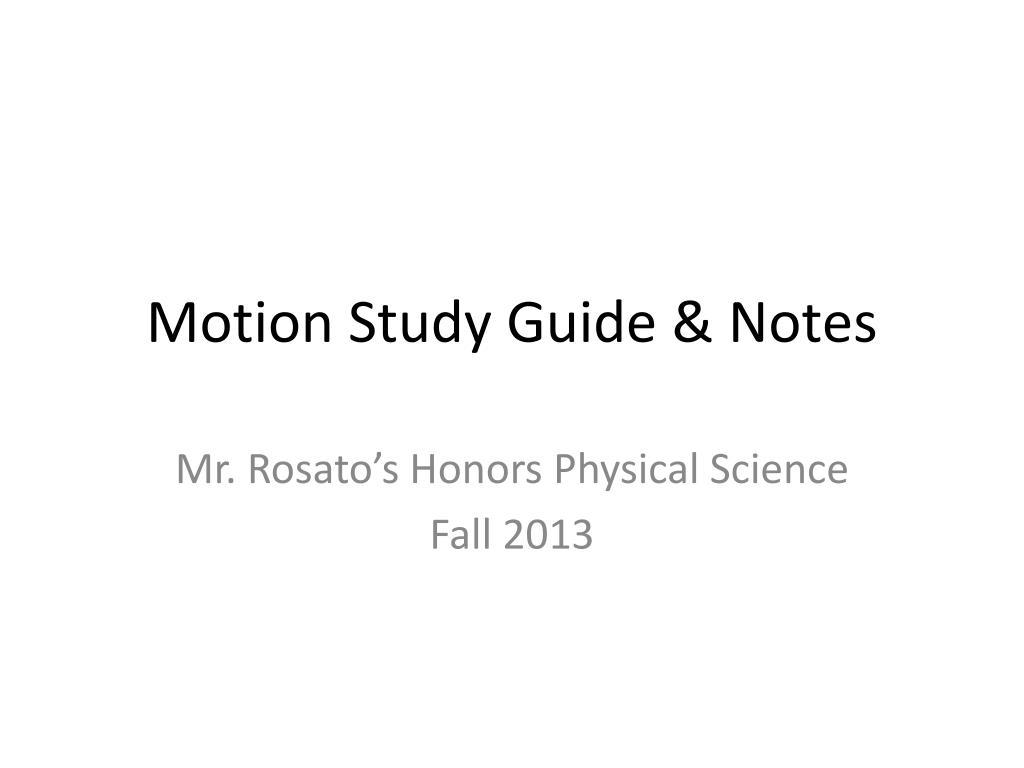

  1. Motion Study Guide & Notes Mr. Rosato’s Honors Physical Science Fall 2013

  2. Slope of a Curve Slope shows how much y changes with x Y Y Slope = 3/2 X X

  3. Slope of a Distance-Time (DT) Curve

  4. Slope of a Distance vs. Time Graph (DT) is SPEED! Slope

  5. Slope of a Speed/Velocity-Time (VT) Graph is ACCELERATION!

  6. Reading a Velocity-Time (VT) Graph • The slope of a VT graph shows how fast the speed is changing – or how the object is accelerating

  7. Acceleration

  8. Calculating Acceleration

  9. A rocket can move 100 kilometers in 4 seconds. What speed is it moving at? • What speed (in m/s) is a skateboarder moving if he can skate 10 kilometers in 10 minutes? • A red Ferrari zooms over 500 metres in 4 seconds. What is its speed? • How long would it take a snail to slither 20 meters at 5 meters per hour? • How many seconds does it take an Indy race car to travel a 240 meter straight section at 80 m/s?

  10. 1. How fast is a bird flying if it goes 50 meters in 5 seconds ?  2. If a lizard crawls 10 meters in 20 seconds, what is its speed? 3. If a fish swims a distance of 4 km in 2 hours, what is its speed?  4. If a baseball is traveling at 60 m/s, how far will it go in 3 seconds? 5. How much time will it take a bike going 5 m/s to travel 20 meters ? 6. If a sprinter runs 40 meters in 5 seconds what is his speed? 7. If an insect travels for 300 seconds at a speed of 2 cm/second, how far will it have traveled?

  11. Acceleration Questions • A car accelerates from 20 m/s to 40 m/s in 5 seconds. What is its acceleration? • A motorbike speeds up from a standing start (that is, 0 m/s) to 30 m/s in 4 seconds. How fast is its acceleration? • When she sees the red traffic light, Marie brakes to a halt from a speed of 70 meters per second in just 2 seconds. What is her deceleration (negative acceleration? • A skydiver falling from an aircraft falls at 9.8 m/s2. What is his speed after 3 seconds? 18. • Toon Train is traveling at the speed of 10 m/s at the top of a hill. Five seconds later it reaches the bottom of the hill and is moving at 30 m/s. What is the rate of acceleration of Toon Train? • Pete the Penguin loves to sled down his favorite hill. If he hits a speed of 50 m/s after 5 seconds, what is his rate of acceleration? Hint: He starts at 0 m/s at the top of the hill. • Monster Mike’s truck decelerates from 72 m/s to 0 m/s in 6 seconds. What is his rate of deceleration?
