  1. Kinetic/Optical Properties Methods of Measuring Colloidal Sizes

  2. Motion • Thermal motion • Brownian Motion on the microscopic scale • Diffusion and translation on the macroscopic scale • Techniques for measuring colloidal sizes • Sedimentation (under gravitational or applied field) • Colligative Properties • Scattering techniques

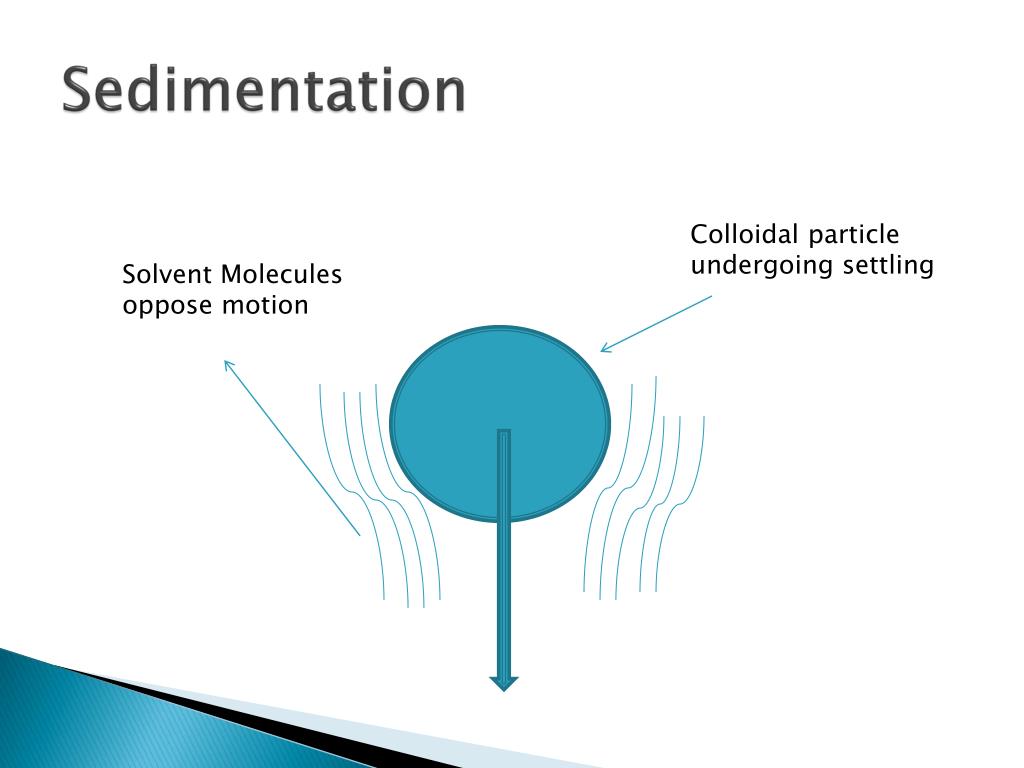

  3. Sedimentation Colloidal particle undergoing settling Solvent Molecules oppose motion

  4. A terminal velocity is reached • Where m – mass of particle • - specific volume of colloidal particle • - solvent density • f – particle frictional factor

  5. The Frictional Factor • The frictional factor in a given medium is obtained from Stokes Law  – solvent viscosity a - particle radius

  6. Stokes Law • In the limit of • Slow particle motion • Dilute colloidal suspensions • Solvent is considered as a continuum of viscosity 

  7. Frictional Factors • Frictional factors depend on the particle shape • f increases as • Particle asymmetry increases • Degree of interaction with solvent increases • Define the frictional ratio, f/fo. • Ratio of the f value of the particle to that of an unsolvated sphere.

  8. Diffusion • Recall Kinetic Theory of motion

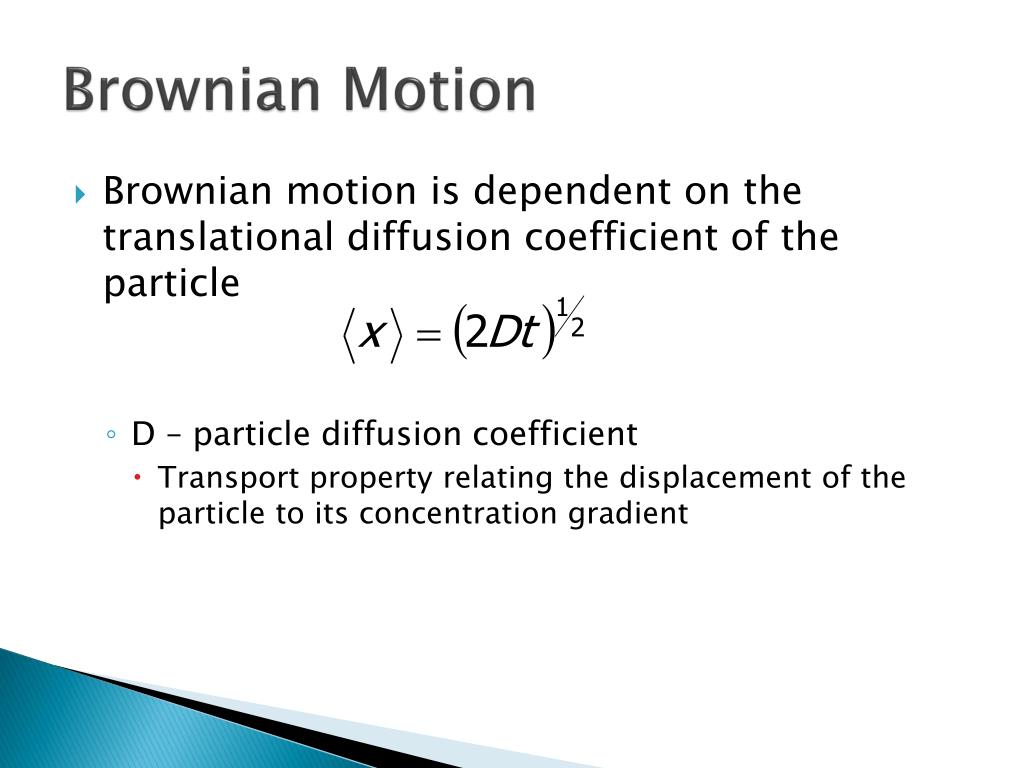

  9. Brownian Motion • Brownian motion is dependent on the translational diffusion coefficient of the particle • D – particle diffusion coefficient • Transport property relating the displacement of the particle to its concentration gradient

  10. Diffusion and Frictional Factors • The diffusion coefficient of a suspended particle is related to f via the Einstein Equation For spherical particles

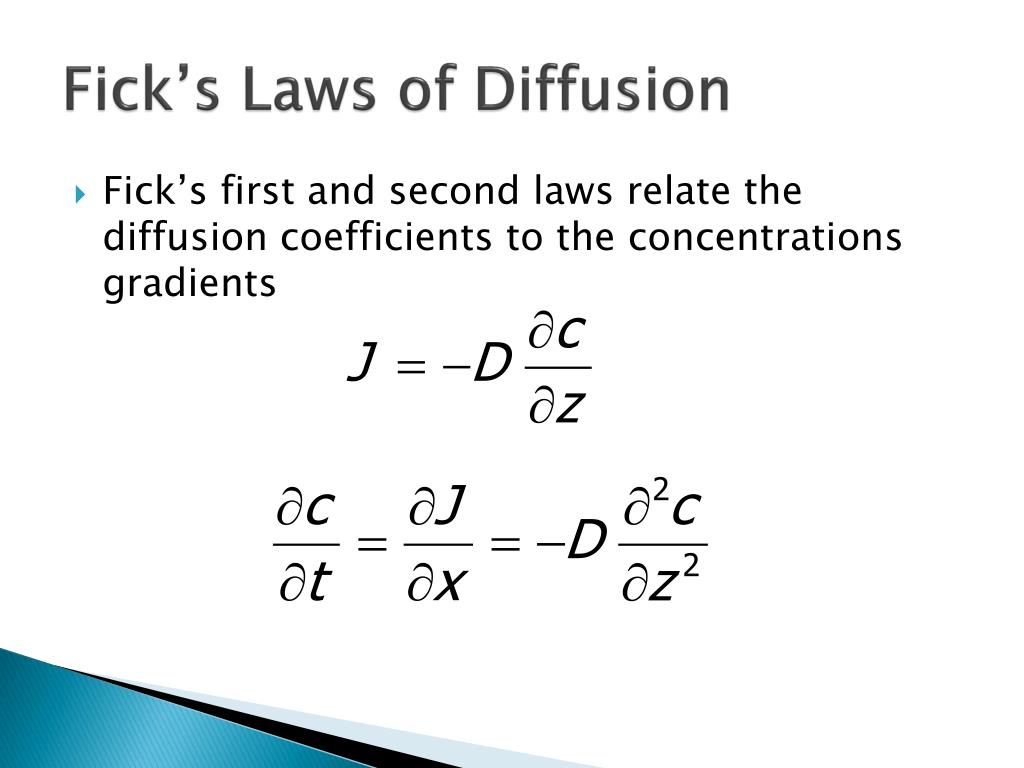

  11. Fick’s Laws of Diffusion • Fick’s first and second laws relate the diffusion coefficients to the concentrations gradients

  12. The Thermodynamic Force • At constant T,P – investigate the non-expansion work done when substance is transported along gradient

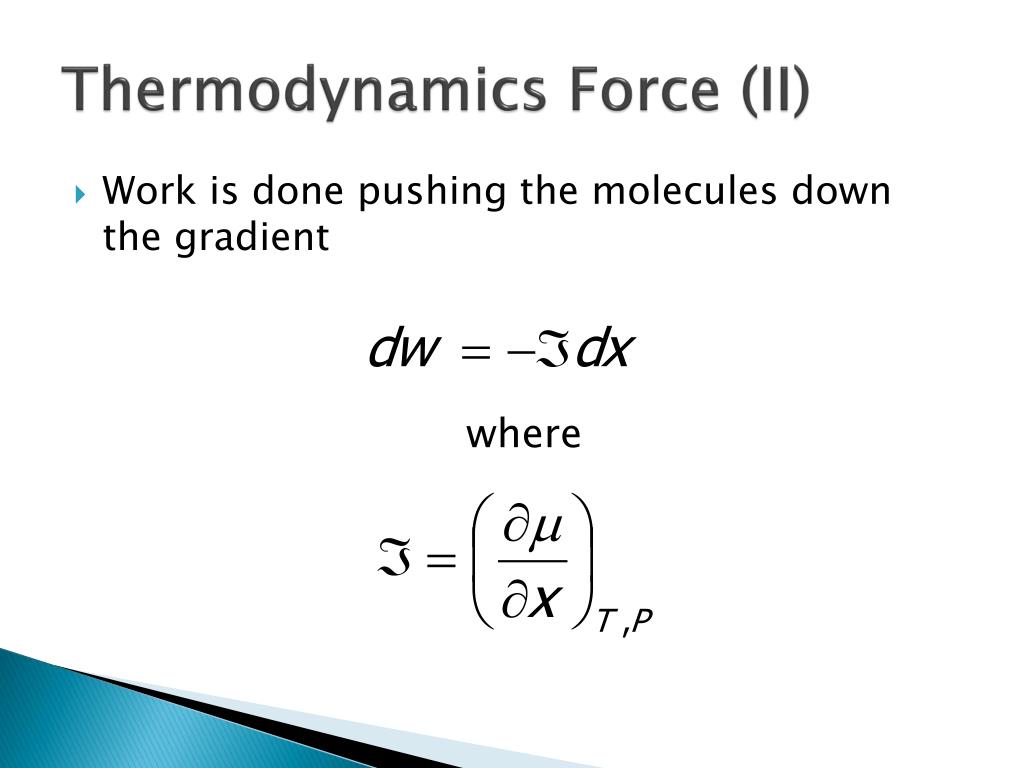

  13. Thermodynamics Force (II) • Work is done pushing the molecules down the gradient where

  14. Measurement of Diffusion Coefficients • Free boundary methods • a boundary between two solutions of different concentrations is formed in a cylindrical cell • Determine the evolution of the concentration distribution with time.

  15. Measurement of Diffusion Coefficients (II) • Taylor Dispersion methods • NMR Techniques • Pulsed gradient spin echo experiments (PGSE) • Diffusion oriented spectroscopy (DOSY)

  16. Sedimentation • Under gravity • Balance method – cumulative mass of settling particles is obtained as a function of time • Practical lower limit is about 1 micron W = weight fraction of settled particles with Stokes diameter >a1 mp(t) = mass of settled particles with time

  17. Sedimentation (II) • Under centrifugal force • High Field – up to 4 x 105g is applied. • Displacement of boundary is monitored with time

  18. Sedimentation (III) • Under low field • Measure concentration profile in the tube as a function of position.

  19. Osmosis

  20. Osmosis • The movement of water through a semi-permeable membrane from dilute side to concentrated side • the movement is such that the two sides might end up with the same activity • Osmotic pressure: the pressure required to prevent this movement

  21. Osmosis • Osmosis Pressure in dilute non macromolecule solutions  = MRT • In macromolecular solutions

  22. Molar Mass Determination • Plot the osmotic pressure as a function of concentration Plot /c vs. c and extrapolate to 0 concentration. The intercept will yield the molar mass of the sample.

  23. Terminology • Isotonic: having the same osmotic pressure • Hypertonic: having a higher osmotic pressure • Hypotonic: having a lower osmotic pressure • Hemolysis: the process that ruptures a cell placed in a solution that is hypotonic to the cell’s fluid • Crenation: the opposite effect

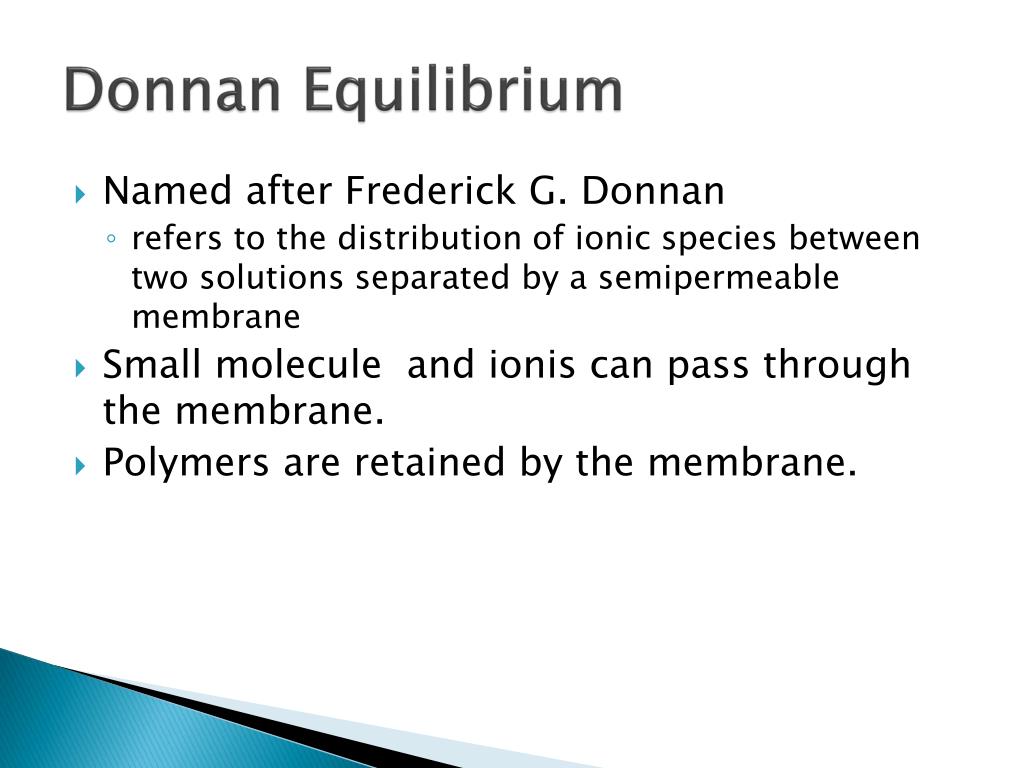

  24. Donnan Equilibrium • Named after Frederick G. Donnan • refers to the distribution of ionic species between two solutions separated by a semipermeable membrane • Small molecule and ionis can pass through the membrane. • Polymers are retained by the membrane.

  25. Donnan Equilibrium Semi permeable membrane [NaX (aq)]L [NaX (aq)]R Start [NaP (aq)]=[P] [NaX (aq)]L + x [NaX (aq)]L - x Equil. [NaP (aq)]=[P] The condition for equilibrium is that the Gibbs Energy of the NaX in solution is the same across the Membrane. A flow of ions across membrane results to equalize the chemical potentials.

  26. Light Scattering • Shine a beam of light at colloidal systems • Absorption • Transmission • Scattering • Tyndall Effect • Intensity of transmitted radiation related to solution turbidity ()

  27. Light Scattering and Colloidal Sizes • Size and shapes of colloidal systems can be obtained from scattering measurements • Advantages of Light Scattering • Absolute • No perturbations of system • Polydispersed systems • Fast

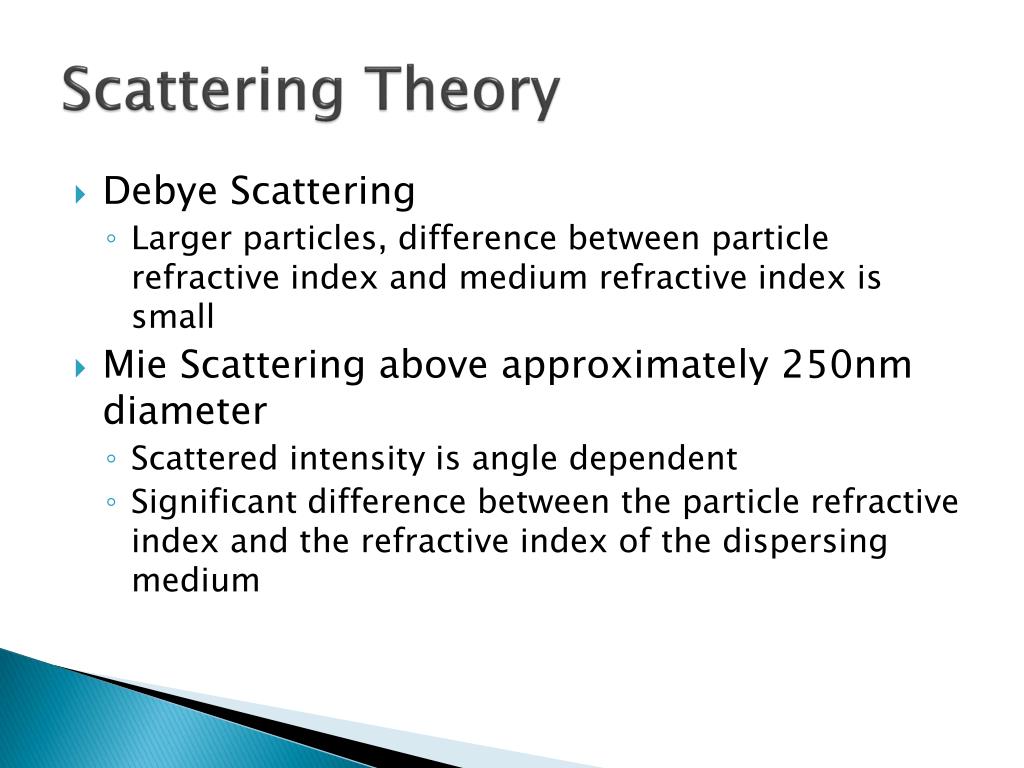

  28. Scattering Theory • Debye Scattering • Larger particles, difference between particle refractive index and medium refractive index is small • Mie Scattering above approximately 250nm diameter • Scattered intensity is angle dependent • Significant difference between the particle refractive index and the refractive index of the dispersing medium

  29. Scattering Theory • Rayleigh Scattering • Consider colloidal systems as point sources of scattered light • Particles size is small compared with the wavelength of the light • The intensity of the scattered light is uniform in all directions for larger particles

  30. Scattering Theory • Intensity of scattered radiation as a function of angle Rayleigh Ratio

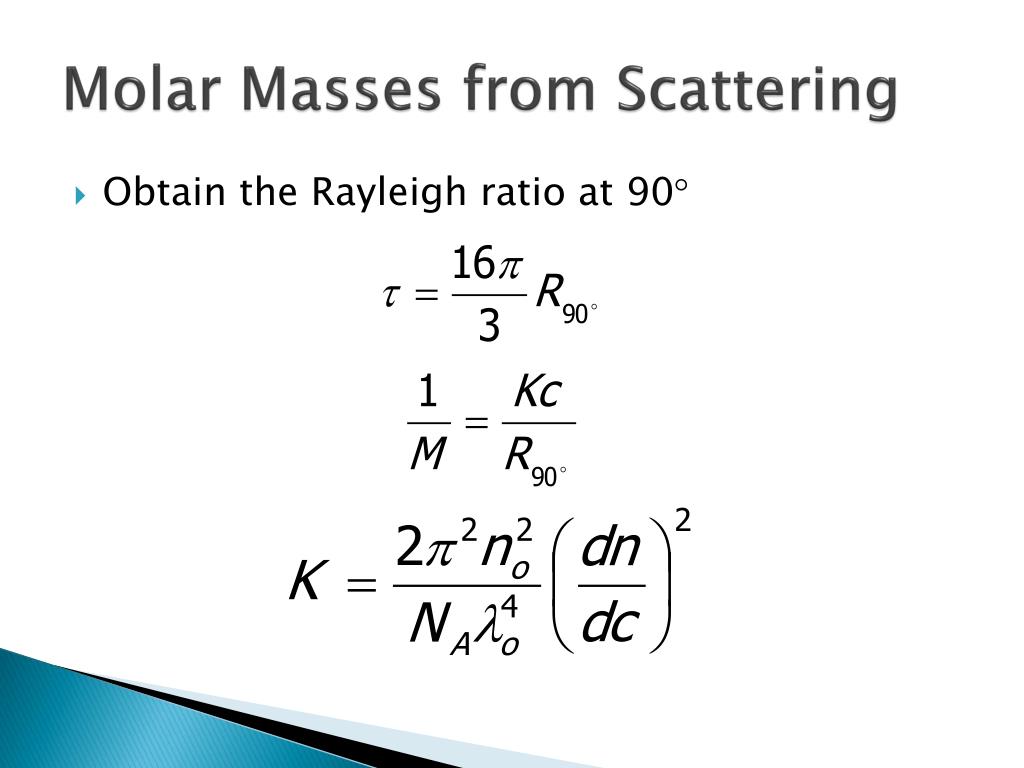

  31. Molar Masses from Scattering • Obtain the Rayleigh ratio at 90

  32. Dynamic Light Scattering • Incident light is coherent and monochromatic (e.g., a laser) • observe time-dependent fluctuations in the scattered intensity using a suitable detector • Fluctuations arise from the fact that the particles are small enough to undergo Brownian motion • Analysis of the time dependence of the intensity fluctuation can therefore yield the diffusion coefficient of the particles

  33. DLS/PCS • Light scattered by a moving particle will experience a Doppler shift • For a collection of particles undergoing Brownian Motion, a Doppler frequency broadening will result. • The width of the Doppler broadened peak at half-height will yield the particle diffusion coefficient.

  34. Doppler Broadening 1.0 1/2 0.5 0.0 Frequency
