CHARACTERIZING COLD AIR POOL DYNAMICS USING THERMAL IMAGERY

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. BIOMICROMETEOROLOGY GROUP CHARACTERIZING COLD AIR POOL DYNAMICS USING THERMAL IMAGERY PRESENTED BY CHRIS JOHNSON

  2. Photo Credit: The University of Utah

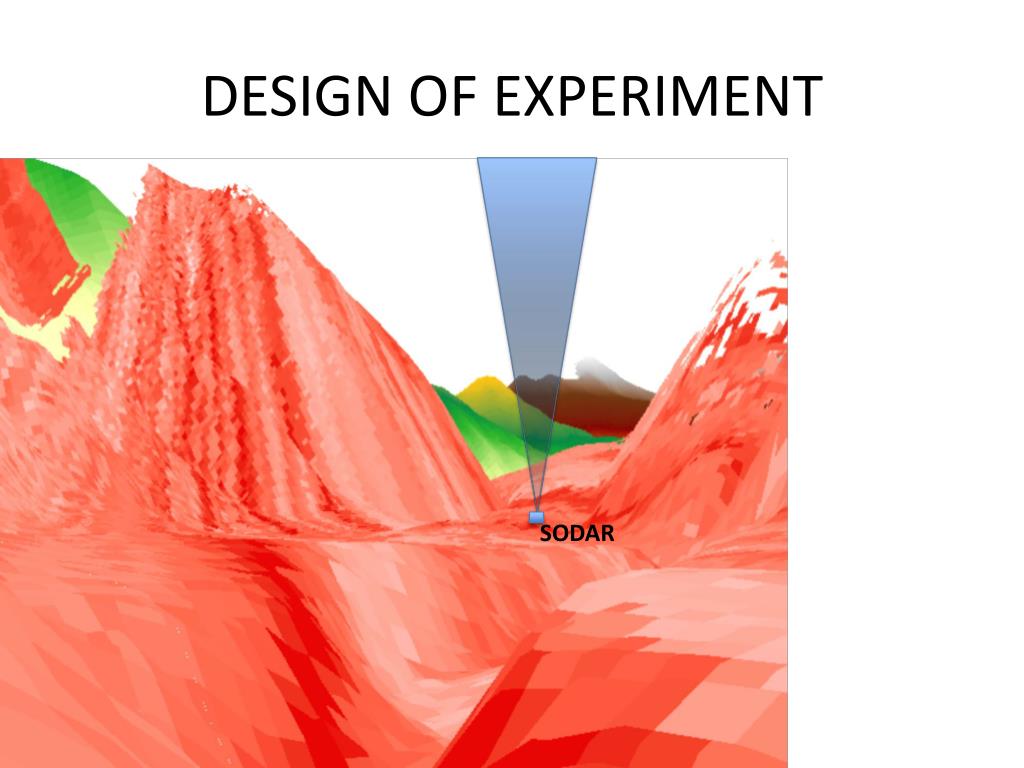

  3. DESIGN OF EXPERIMENT SODAR

  4. THERMAL IMAGERY TO MAP COLD AIR POOL DYNAMICS Each pixel of temperature information will be associated with a position on the Earth and an elevation. But first the thermal imagery must be filtered, georeferenced, and orthorectified.

  5. GEOREFERENCING THERMAL IMAGERY Known Object and Location • Identify objects in the image • Obtain accurate locations • Use known objects as Ground Control Points Ground Control Point

  6. ORTHORECTIFICATION Data Gap

  7. VALIDATION – Temperature Profile • Basic Functions: • Emits a sound pulse • Measures properties of sound backscattered from turbulent fluctuations • Emitted pulse frequency • Backscattered sound frequency • Intensity of backscattered sound • Relationship to IR Measurements: • Atmospheric Structure Parameters • Refractive Index Structure Parameter(CN2) • Temperature Structure Parameter (CT2) • Intensity related to CN2 • CN2 related to CT2 • CT2 directly calculated from temperature gradient

  8. VALIDATION – Cold Air Pool Depth Assumption: The depth of the cold air pool is equal to the inversion height. Backscatter Intensity Potential Temperature ABL Conditions for Plot: Weak wind, surface radiatively cooling. Plot Credit: Beyrich, F., 1997. Mixing Height Estimation from SODAR Data. Atmospheric Environment 31, 3941-3953.

  9. DESIGN OF EXPERIMENT SODAR
