  1. Thin-Client Panels TTPC Series introduction • Brian.Shen • IAG/HMI • Jan 25th, 2013

  2. Automation Panels Product Positioning • TPC 71 Series • 6.5”, 10 “, 12”, 15” ,17” display • Atom D525 1.8GHz CPU • 2 x LAN, 3 x COM • Mini PCIe/ PCIe • - 8 x DI/DO Price Control Panels General TPC In the past • TPC 50/51 Series • 6”, 12”,15” display • Atom Z520 1.33GHz CPU • 2 x LAN, 2 x COM • Wide operating temp 4:3 Thin-Client Panels • TPC/SPC 40 Series • 18.5”, 21.5”display/Multi-touch • AMD dual-core platform • intelligent keys for UI • Easy installation / Stand alone 16:9 Functionality

  3. Intelligent HMI : The Evolution of HMI

  4. Asset Management & Remote Monitoring in Thin-Client Market Plant Level HMI • Web-based HMI & SCADA • Manufacturing control • Building Automation • Facilities Automation • Quality Management • Warehouse Logistics Machine Level HMI Device Level HMI TPC-xx50H/51H New TPC/SPC-xx40WP

  5. Value-Added by Partner Collaboration Vertical Market Eco-Partners Collaboration

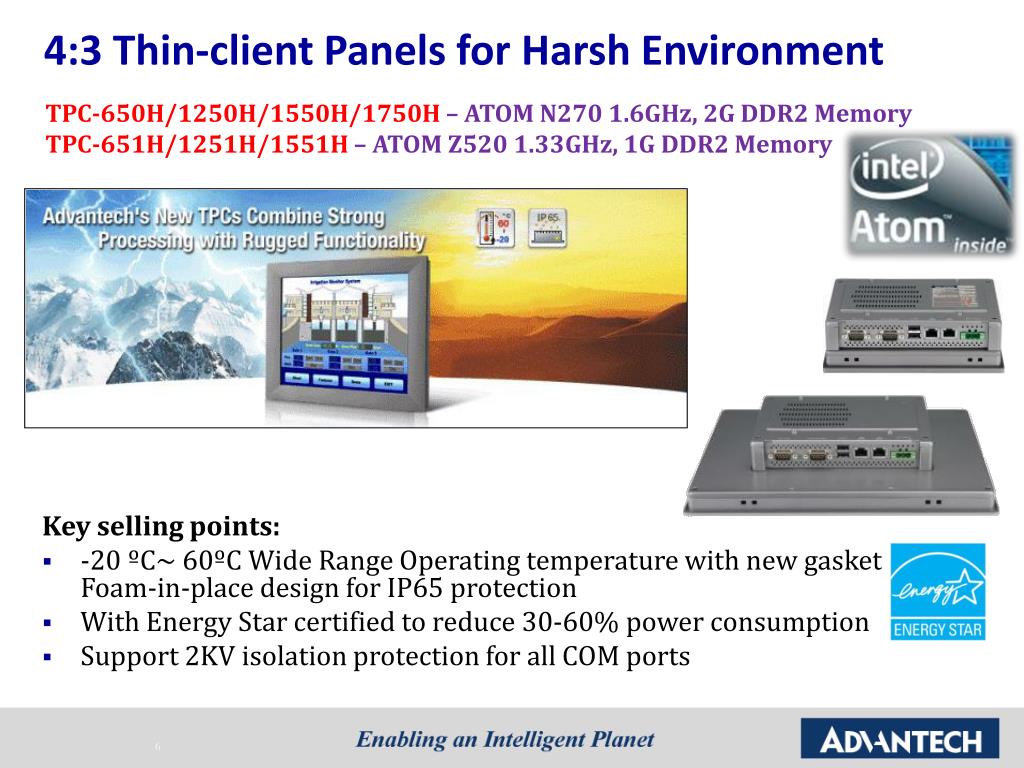

  6. 4:3 Thin-client Panels for Harsh Environment TPC-650H/1250H/1550H/1750H– ATOM N270 1.6GHz, 2G DDR2 Memory TPC-651H/1251H/1551H – ATOM Z520 1.33GHz, 1G DDR2 Memory Key selling points: • -20 ºC~ 60ºC Wide Range Operating temperature with new gasket Foam-in-place design for IP65 protection • With Energy Star certified to reduce 30-60% power consumption • Support 2KV isolation protection for all COM ports 6

  7. TPC-50/51 series in SCADA application- 4:3Thin client Panels • TPC-650H / TPC-1250H / TPC-1550H / TPC-1750H • (-20~60C) TPC-651H / TPC-1251H / TPC-1551H • SupportSCADA/HMI solution • Wonderware InTouch • InduSoft A-Studio • Advantech WebAccess • ACP ThinManager SCADA/HMI

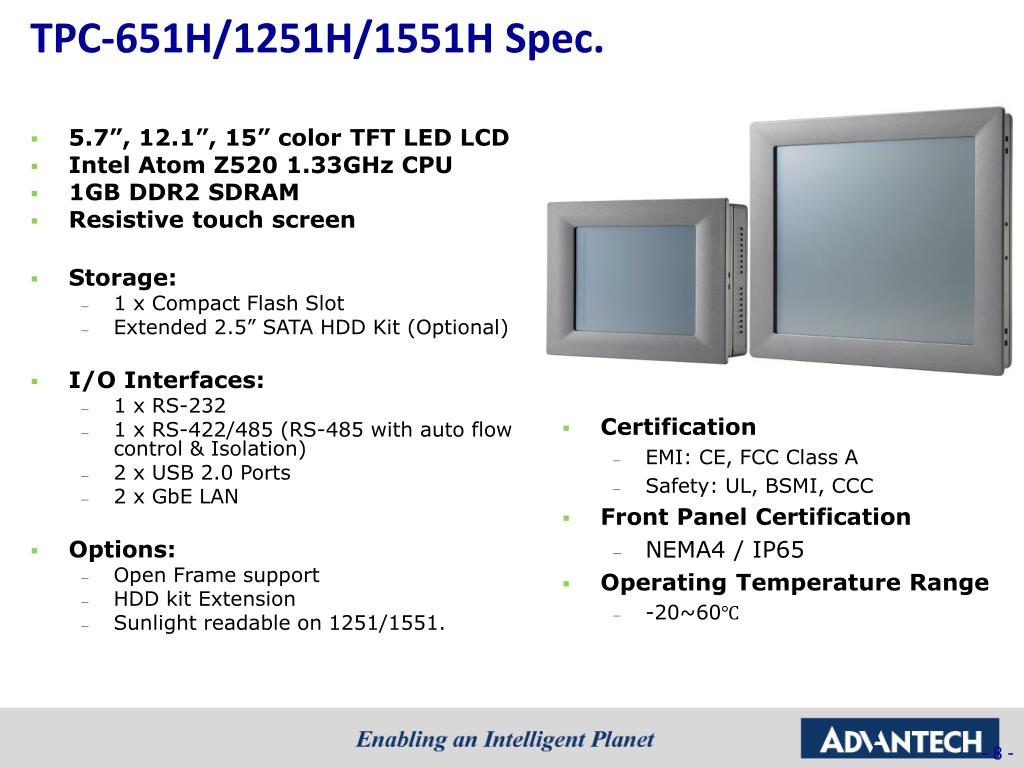

  8. TPC-651H/1251H/1551H Spec. • 5.7”, 12.1”, 15” color TFT LED LCD • Intel Atom Z520 1.33GHz CPU • 1GB DDR2 SDRAM • Resistive touch screen • Storage: • 1 x Compact Flash Slot • Extended 2.5” SATA HDD Kit (Optional) • I/O Interfaces: • 1 x RS-232 • 1 x RS-422/485 (RS-485 with auto flow control & Isolation) • 2 x USB 2.0 Ports • 2 x GbE LAN • Options: • Open Frame support • HDD kit Extension • Sunlight readable on 1251/1551. • Certification • EMI: CE, FCC Class A • Safety: UL, BSMI, CCC • Front Panel Certification • NEMA4 / IP65 • Operating Temperature Range • -20~60℃ - 8 -

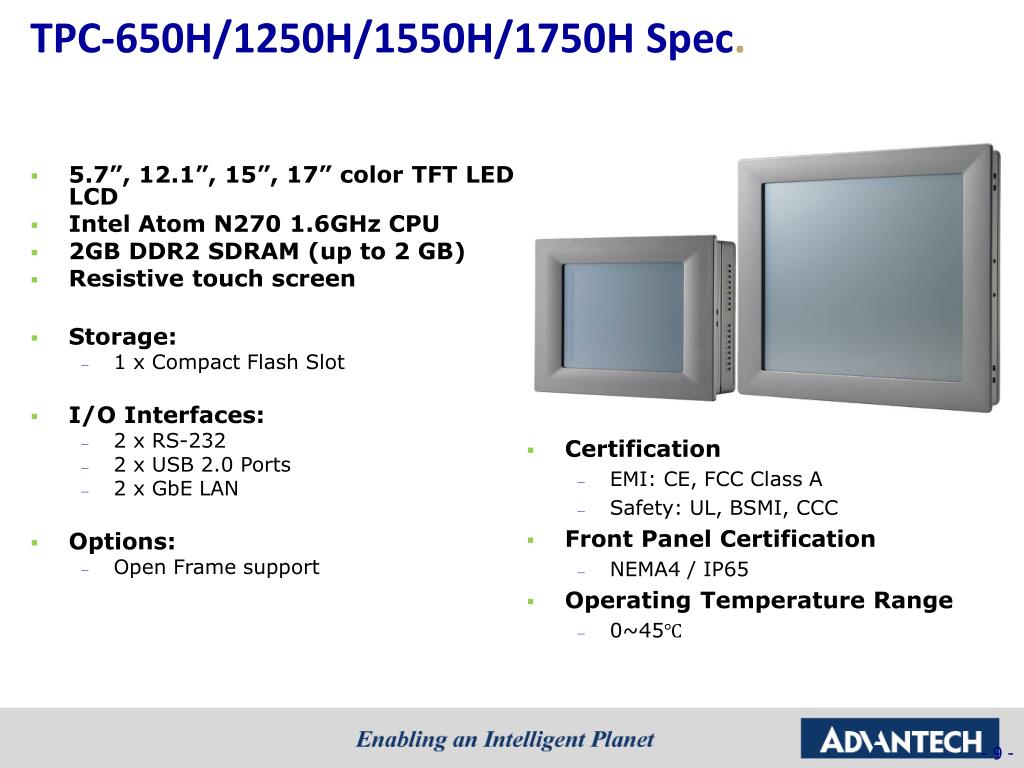

  9. TPC-650H/1250H/1550H/1750H Spec. • 5.7”, 12.1”, 15”, 17” color TFT LED LCD • Intel Atom N270 1.6GHz CPU • 2GB DDR2 SDRAM (up to 2 GB) • Resistive touch screen • Storage: • 1 x Compact Flash Slot • I/O Interfaces: • 2 x RS-232 • 2 x USB 2.0 Ports • 2 x GbELAN • Options: • Open Frame support • Certification • EMI: CE, FCC Class A • Safety: UL, BSMI, CCC • Front Panel Certification • NEMA4 / IP65 • Operating Temperature Range • 0~45℃ - 9 -

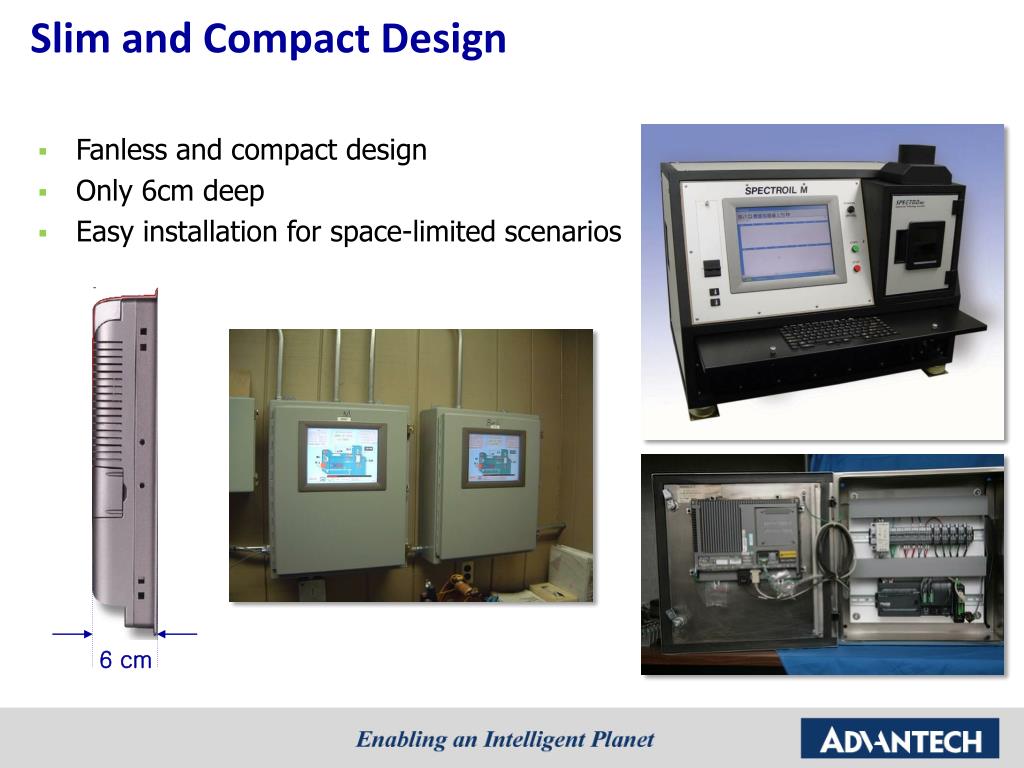

  10. Slim and Compact Design 6 cm • Fanless and compact design • Only 6cm deep • Easy installation for space-limited scenarios

  11. Wide Operating Temperature • -20 ~ 60oC (-4 ~ 140oF) wide operating temperature range with IP65 protection

  12. Com-Port Isolation Protection • 2KV isolation protection in serial ports prevents damage from accidental shock, surges or ground loops. No Isolation No Safety

  13. High Brightness for Sunlight Readability • High brightness solution of 1000nits with optical bonding Normal LCD: 300~450 nit High Brightness LCD: 1,500~2,000 nit

  14. LED Backlight LCD • Energy Saving Reduces power consumption by 40% • Environment Protection Reduces CO2 generation by 40% Lead-free and mercury-free • 50,000hrs operating life

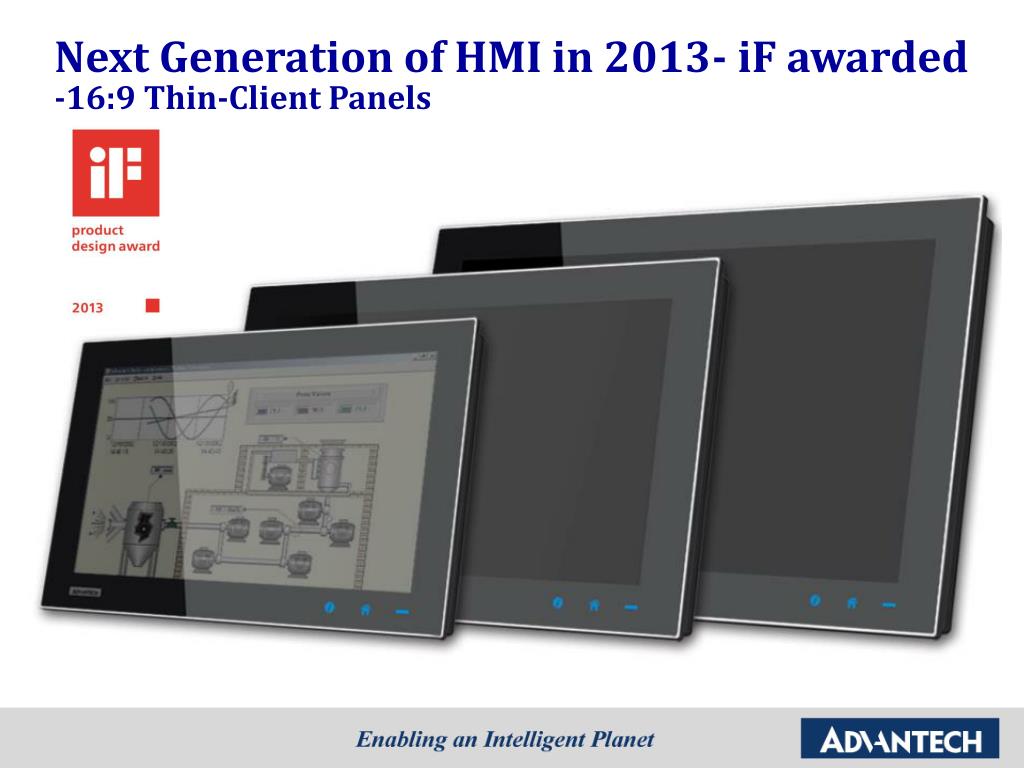

  15. Next Generation of HMI in 2013- iF awarded • -16:9 Thin-Client Panels

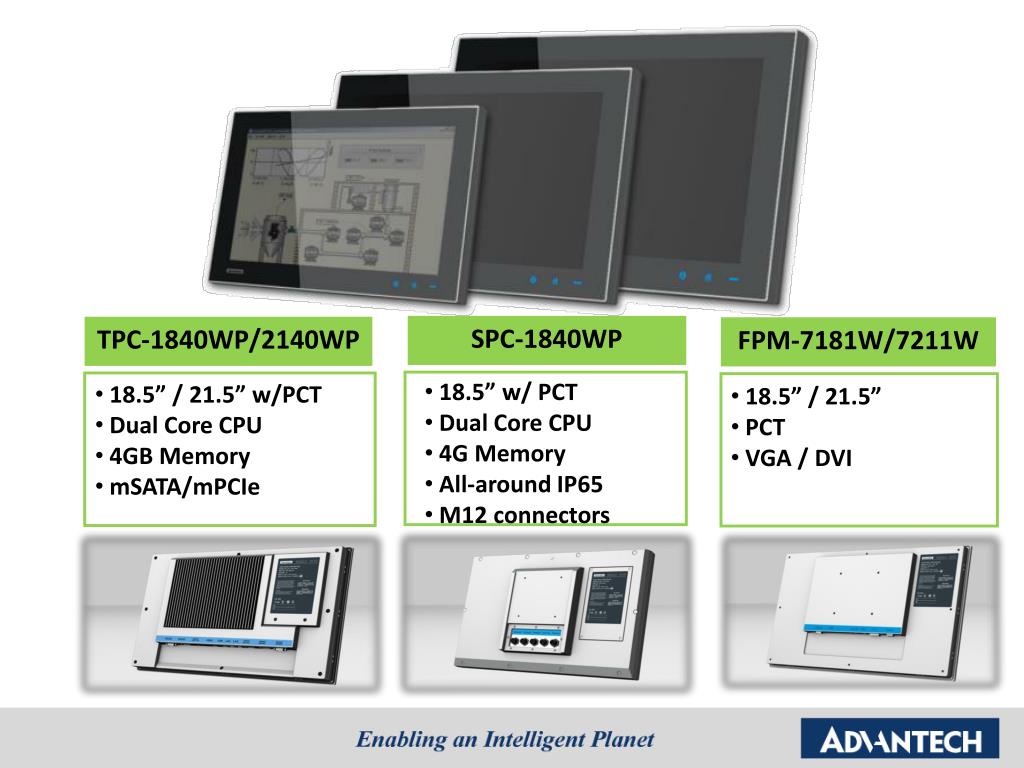

  16. SPC-1840WP TPC-1840WP/2140WP FPM-7181W/7211W • 18.5” w/ PCT • Dual Core CPU • 4G Memory • All-around IP65 • M12 connectors • 18.5” / 21.5” w/PCT • Dual Core CPU • 4GB Memory • mSATA/mPCIe • 18.5” / 21.5” • PCT • VGA / DVI

  17. TPC-1840WP/2140WPOffering Content • Models: TPC-1840WP-T3AE & TPC-2140WP-T3AE • Wide screen(16:9) 18.5”/21.5” TFT LED B/L LCD • AMD G-series T56E1.65GHz with external APU • Built-in function and home key button used for intuitive UI • PCT Multi-touch screen • Expansion: • 1 x Mini PCI-E slot • Storage: • 1 x CFastSlot • 1 x 2.5” SATA HDD • I/O Interface: • 3x RS-232 • 1x RS-422/485 • 2 x USB 2.0 Host Ports • 2 x GbE LAN • 1xHDMI • 1xAudio, 1xAudio out • Certification • EMI: CE, FCC Class A • Safety: UL, BSMI, CCC • Front Panel • IP65 • Operating Temperature • 0~50℃ - 17 -

  18. SPC-1840WPOffering Content • Models: SPC-1840WP-T3AE • Wide screen(16:9) 18.5” TFT LED B/L LCD • AMD G-series T56N1.65GHz with external APU • All around IP65 with waterproof M12 connector • PCT Multi-touch screen • Expansion: • 1 x Mini PCI-E slot • Storage: • 1 x 2.5” SATA HDD • I/O Interface: • 1 x RS-232 • 1 x USB 2.0 Host Ports • 2 x GbE LAN • Certification • EMI: CE, FCC Class A • Safety: UL, BSMI, CCC • Front Panel • IP65 • Operating Temperature • 0~50℃ - 18 -

  19. 16:9 Wide Screen Benefit • Application Programming and Execution in popular 16:9 world • Visualization and Content can be more rich • Higher Resolution Brings Greater details while enlarging picture Increase 40 % Space 16:9

  20. Excellent Computing & Graphic Performance • AMD Dual Core G-series T56E • Accelerated Processing Unit (GPU inside) • 2D Acceleration & 3D Acceleration • Highly-optimized 128-bit engine • Full DirectX 11, shader model 5, OpenCL 1.1, Open GL 4.0 • Motion Video Acceleration • Dedicated hardware for H.264,VC-1 and MPEG2 decode • HD visual experience while still low power design • DDR3 Memory & CFast

  21. Projected Capacitive Touch • Widely used in smart phone and tablet • Higher Durability • 7H Glass • Scratch & Chemical Resistance • Avoid inappropriate usage • Coating to avoid Reflective • 1mm Glove or PCT Glove • No calibration

  22. Multi-touch Benefit • Two-Hands Safety • Machine adjustment, Recipe adjustment • Zoom In/Out • Positioning, detail information or statistics chart • Swiping & Multi-Fingers • 3D model Rotation, Scrollable toolbars, • Drag & drop individual screen elements in the runtime

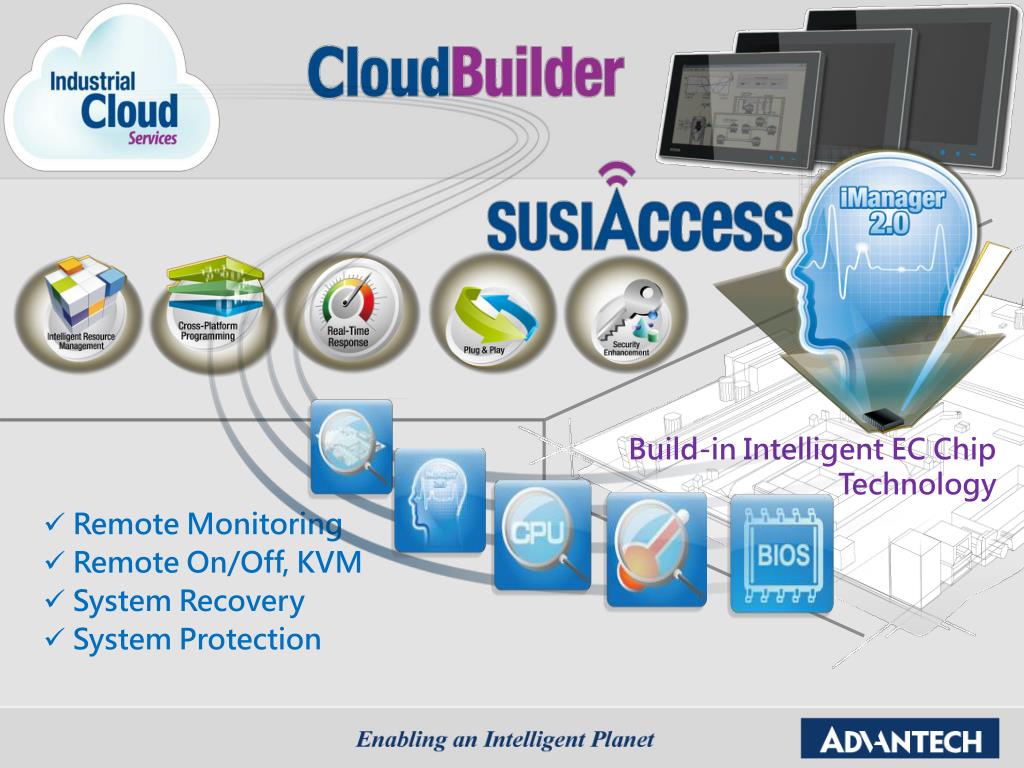

  23. Build-in Intelligent EC Chip Technology • Remote Monitoring • Remote On/Off, KVM • System Recovery • System Protection

  24. Intelligent Key for Intuitive Operation • Intelligent Utility : GL Utility (Graphical Line) • Setting (Brightness, Password, Home-key) • System Management • System Information • Self-Diagnosis • Quick start (Max. 8) • Customized Intelligent Keys • i Key : Ctrl-Alt-shift-I • H key : Ctrl-Alt-shift-H

  25. Easy Installation By Special Snaps

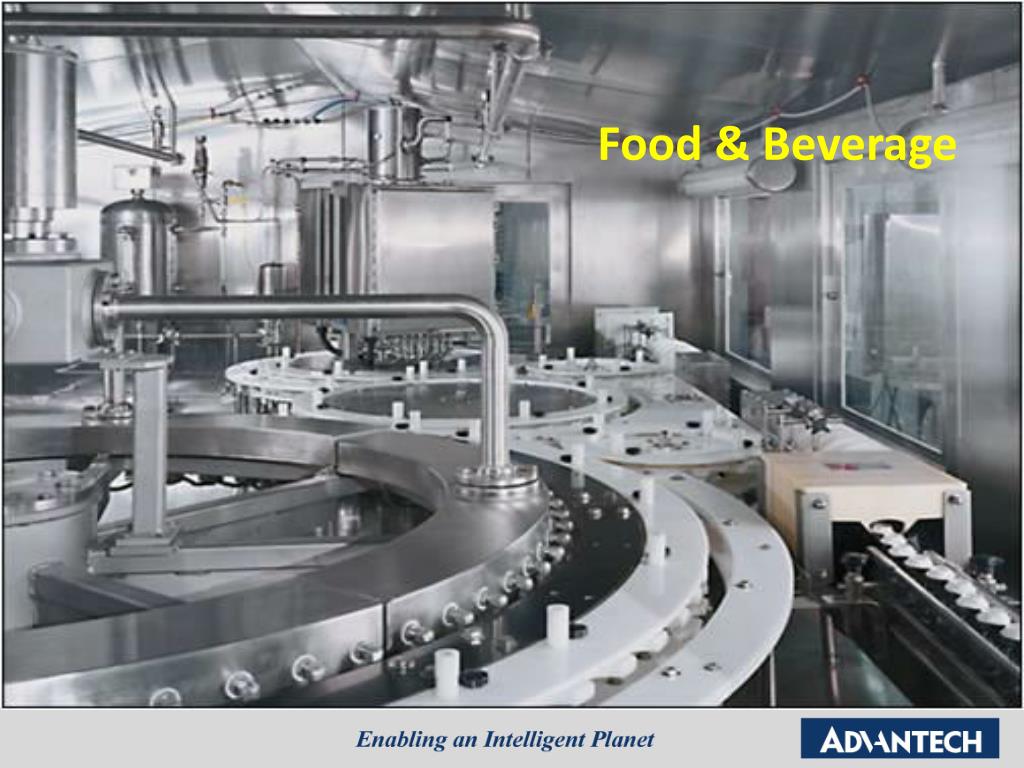

  26. Food & Beverage

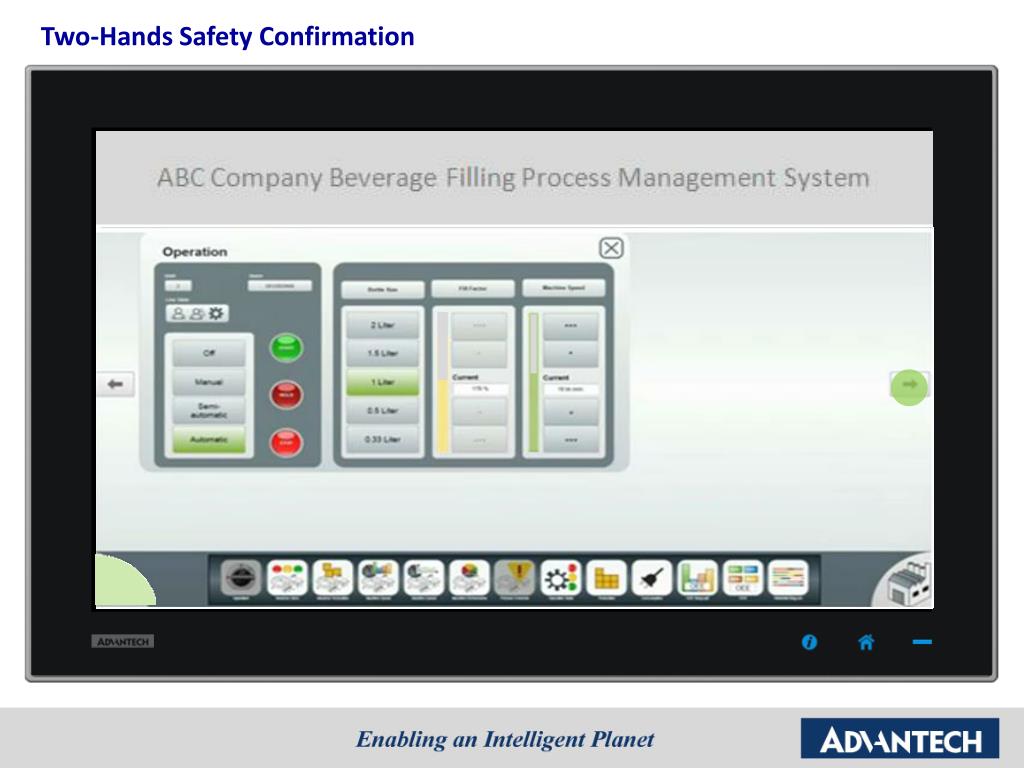

  27. Two-Hands Safety Confirmation

  28. Long Press H-Key : Touch Enable / Disable For Clearance Touch Screen Locked Long Press H-Key to Unlock

  29. Automotive – Engine Process

  30. Zooming (Zoom-In, Zoom-Out)

  31. Customized Touch-Like Intelligent i-Key

  32. Windows Support • Product Manager • Brian.Shen brian.shen(IAG)@advantech.com.tw • Sales/Marketing • Sally.Huang sally.huang@advantech.com.tw • AE Team

  33. THANK YOU! Visit us at www.advantech.com
