Advanced Modular Sample System: Enhanced Process Sample Solution for Extractive Analyzers

The Advanced Modular Sample System (AMSS) by Richard E. Hughes offers a compact and efficient solution for conditioning samples before analysis in extractive process analyzers. Featuring modular construction with interchangeable mounting components on a common base plate, the AMSS minimizes internal volume and contamination risks. Key features include miniaturization, rapid design flexibility, and smart/redundant systems that ensure fault detection and automatic switching. Ideal for various industrial applications, the AMSS enhances servicing and maintenance while adhering to defined performance specifications.

jaser
Télécharger la présentation

Advanced Modular Sample System: Enhanced Process Sample Solution for Extractive Analyzers

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Advanced Modular Sample System Richard E. Hughes

  2. 15915 So. San Pedro St.Gardena, CA 90248(310) 515-2866 Standard Products • Autoplex® Double Block and Bleed, Sample Stream Select Valves Modular Sample System Manifolds • Flow Switches Flow Switches Micro Flow Switch • Flow Fuse® Excess Flow Shut-Off Valves

  3. Process Sample Systems All extractive process analyzers require sample Samples often are incompatible with analyzer Samples must therefore be “conditioned”

  4. Sample System - Typical Components • Filter • Pressure Regulator • Pressure Gauge, Transducer, Transmitter • Shut-Off Valves • Selector valves • Relief valves • Flow Meter or Flow Switch • Flow Control Valve • Process Sample Heating Element

  5. Advanced Modular Sample System(AMSS)

  6. AMSS Construction Components mounted on common base plate Base plate internally ported Each mounting “footprint’ identical Every position interchangeable Base plate available in any number of positions Multiple or optional internal porting paths Multiple manifolds can be bridged

  7. AMSS Key Features • Miniaturization - 1/10 Volume • Internal volume minimized • Eliminates contamination reduction caused by pipe and tube fittings • Elimination of leak paths caused by pipe and tube fittings • Enhanced servicing and maintenance

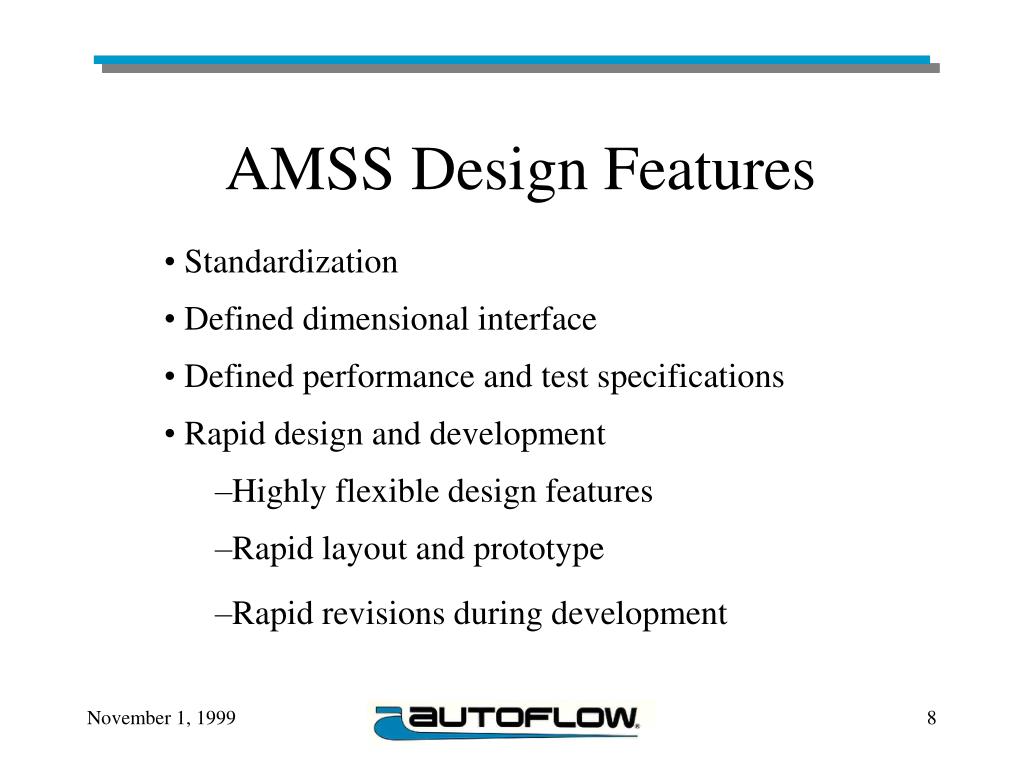

  8. AMSS Design Features Standardization Defined dimensional interface Defined performance and test specifications Rapid design and development Highly flexible design features Rapid layout and prototype Rapid revisions during development

  9. AMSS Smart / Redundant Systems Faults detected to the system or component level Capable of automatic switching to a parallel, redundant system
