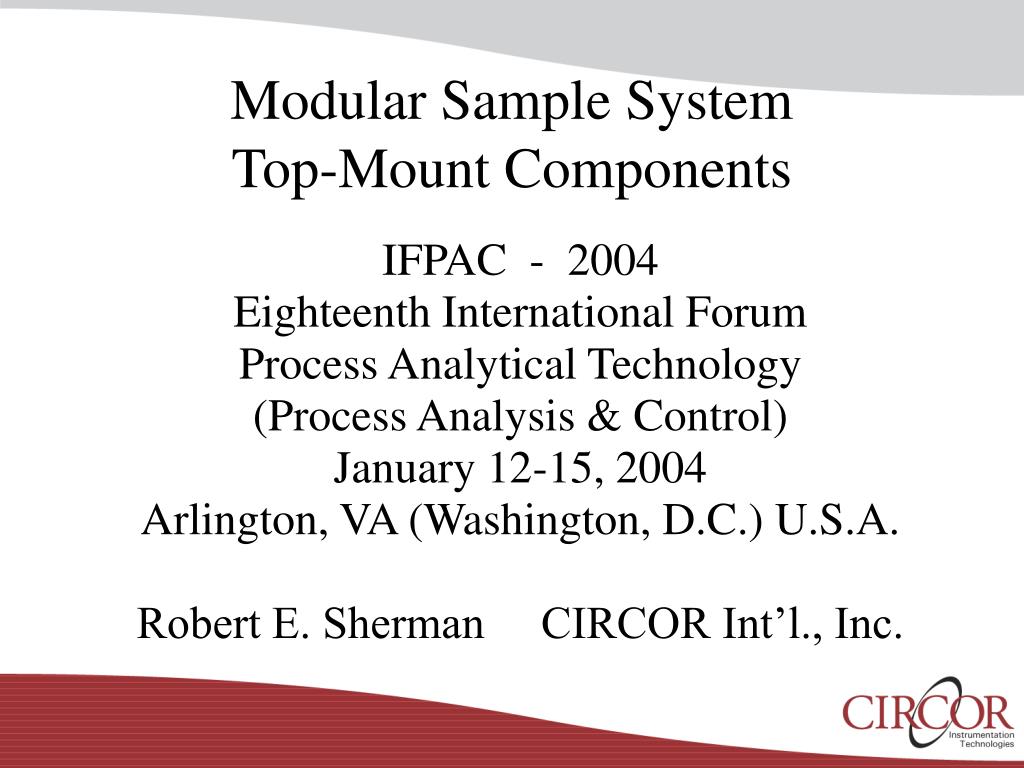

  1. Modular Sample SystemTop-Mount Components IFPAC - 2004 Eighteenth International Forum Process Analytical Technology (Process Analysis & Control) January 12-15, 2004 Arlington, VA (Washington, D.C.) U.S.A. Robert E. Sherman CIRCOR Int’l., Inc.

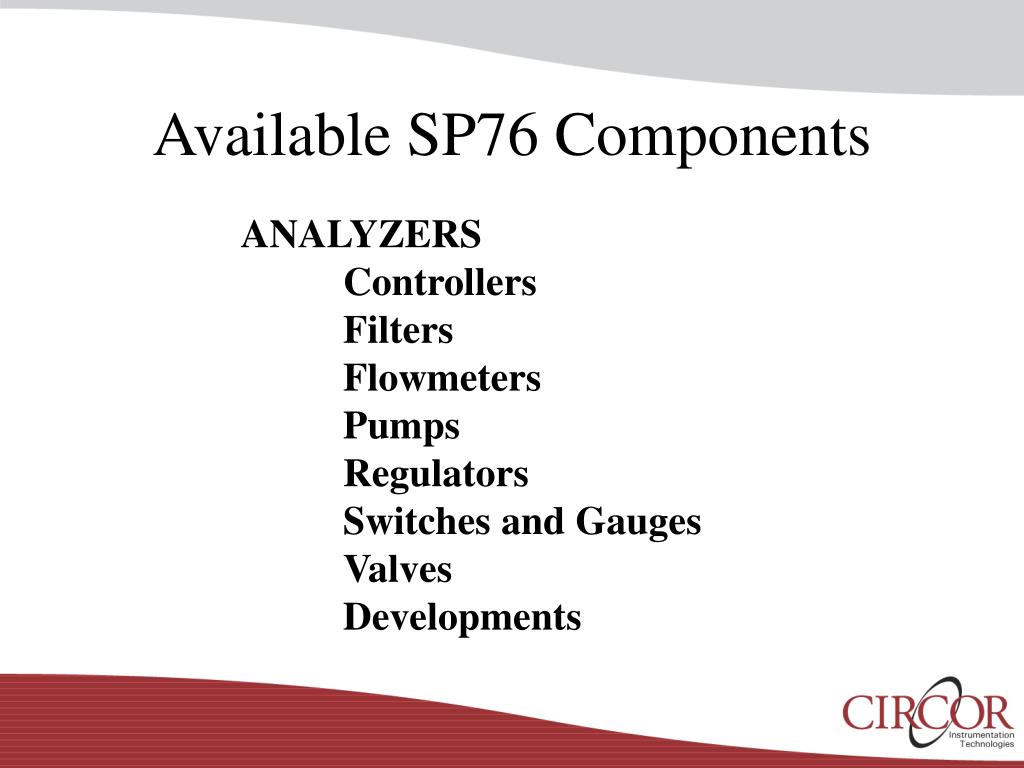

  2. Available SP76 Components ANALYZERS Controllers Filters Flowmeters Pumps Regulators Switches and Gauges Valves Developments

  3. SP76-based Analyzers (1 of 2) • PPM Oxygen Teledyne Analytical • PPM Moisture Panametrics • Refractive Index Proprietary Under Development

  4. SP76-based Analyzers (2 of 2) Spectrophotometer Cell UV / NIR (fiberoptic) Equitech Int’l., Corp. Analyzer-on-a-Block Proprietary Under Development

  5. Available SP76 Components Analyzers CONTROLLERS Filters Flowmeters Pumps Regulators Switches and Gauges Valves Developments

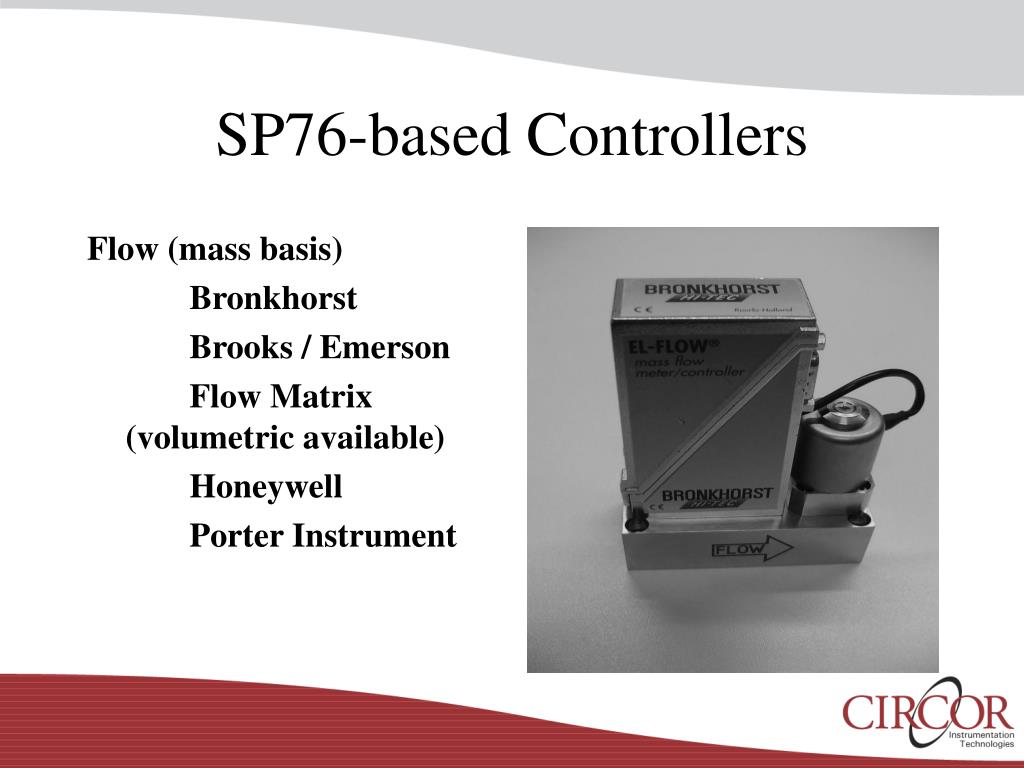

  6. SP76-based Controllers Flow (mass basis) Bronkhorst Brooks / Emerson Flow Matrix (volumetric available) Honeywell Porter Instrument

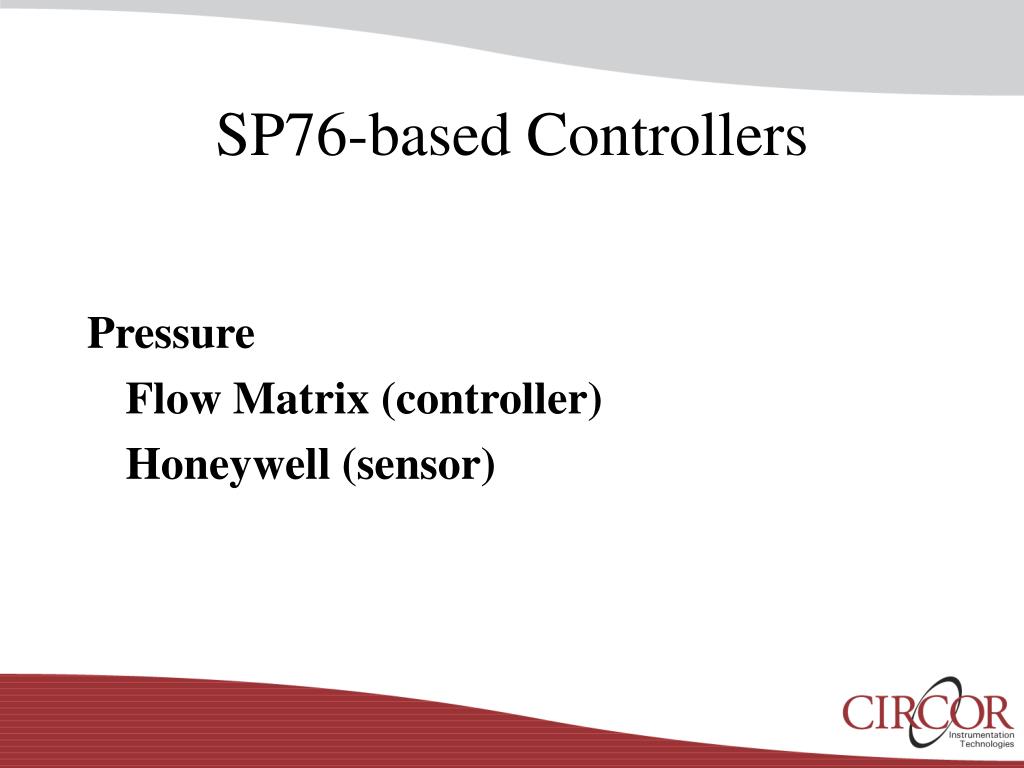

  7. SP76-based Controllers Pressure Flow Matrix (controller) Honeywell (sensor)

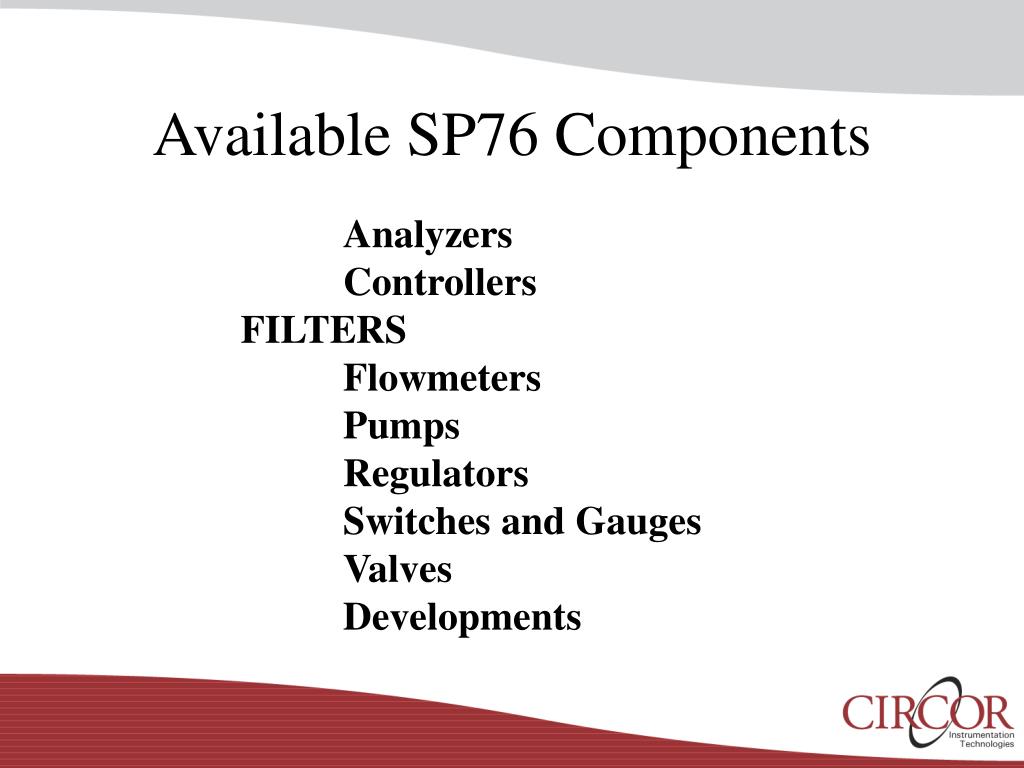

  8. Available SP76 Components Analyzers Controllers FILTERS Flowmeters Pumps Regulators Switches and Gauges Valves Developments

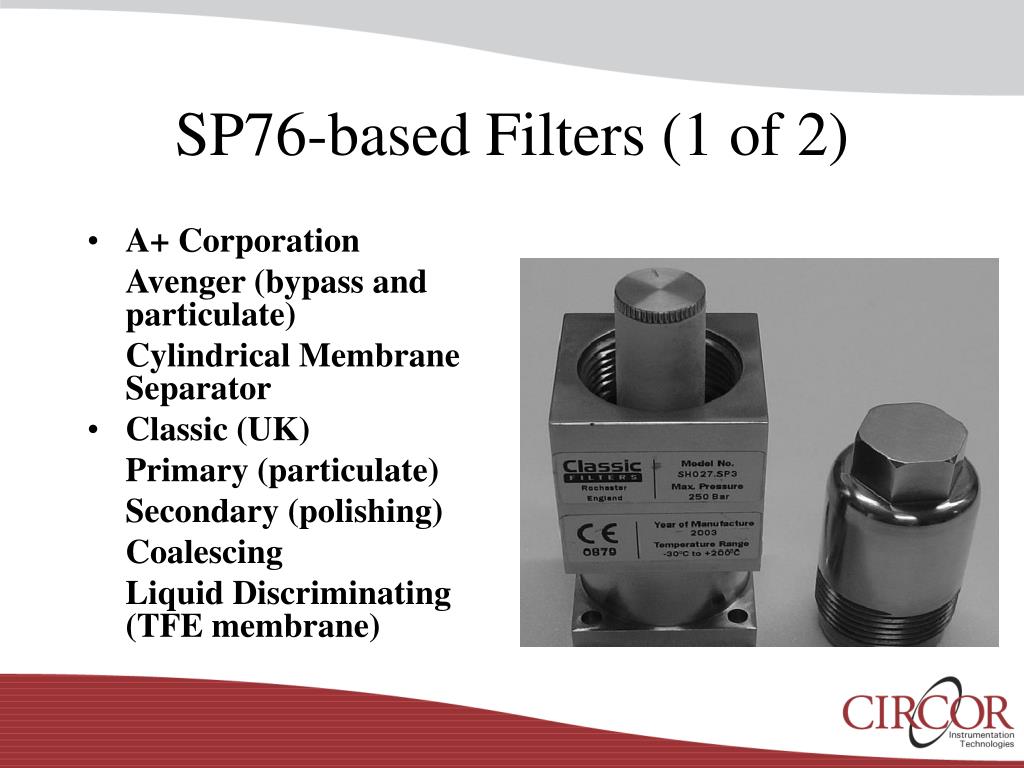

  9. SP76-based Filters (1 of 2) • A+ Corporation Avenger (bypass and particulate) Cylindrical Membrane Separator • Classic (UK) Primary (particulate) Secondary (polishing) Coalescing Liquid Discriminating (TFE membrane)

  10. SP76-based Filters (2 of 2) • Circor Instrumentation Technologies Circor Tech GO Hoke • Parker • Swagelok

  11. Available SP76 Components Analyzers Controllers Filters FLOWMETERS Pumps Regulators Switches and Gauges Valves Developments

  12. SP76-based Flowmeters Rotameters (armored & light duty) Brooks / Emerson (both) Bühler / Buehler (light) Krohne (both) Parker

  13. Available SP76 Components Analyzers Controllers Filters Flowmeters PUMPS Regulators Switches and Gauges Valves Developments

  14. SP76-based Pumps Diaphragm KNF-Neuberger Positive Displacement (gear) HNP Mikrosysteme GmbH

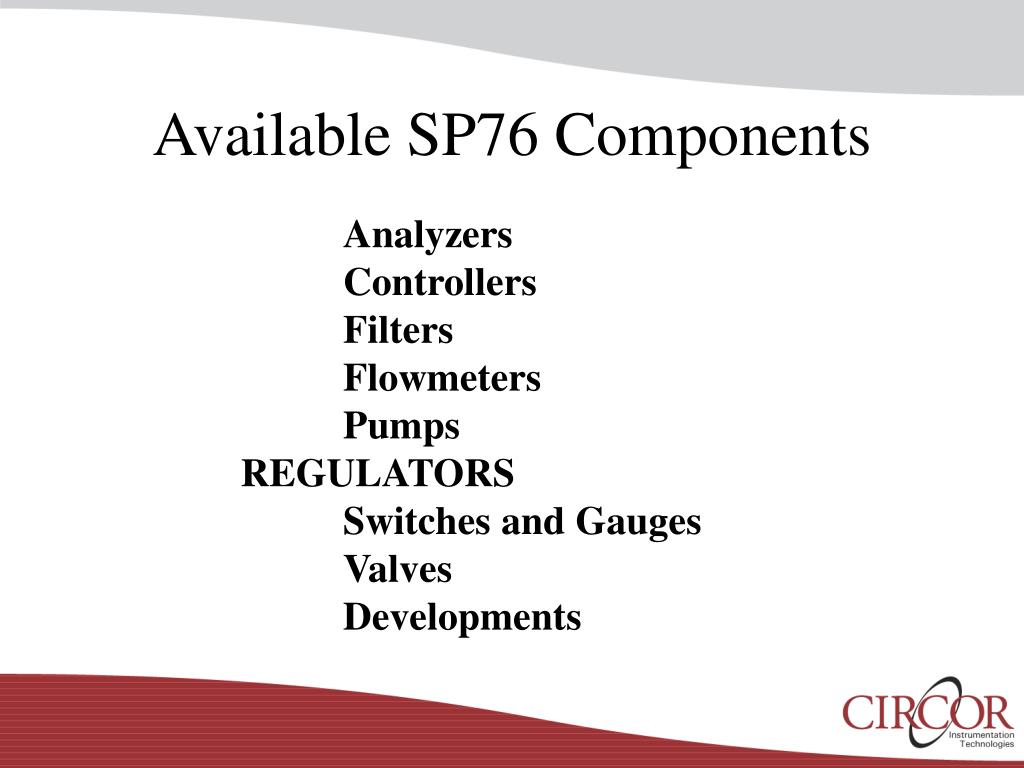

  15. Available SP76 Components Analyzers Controllers Filters Flowmeters Pumps REGULATORS Switches and Gauges Valves Developments

  16. SP76-based Regulators CIRCOR Instrumentation Technologies GO Regulator Parker Swagelok Formerly Kenmac Limited

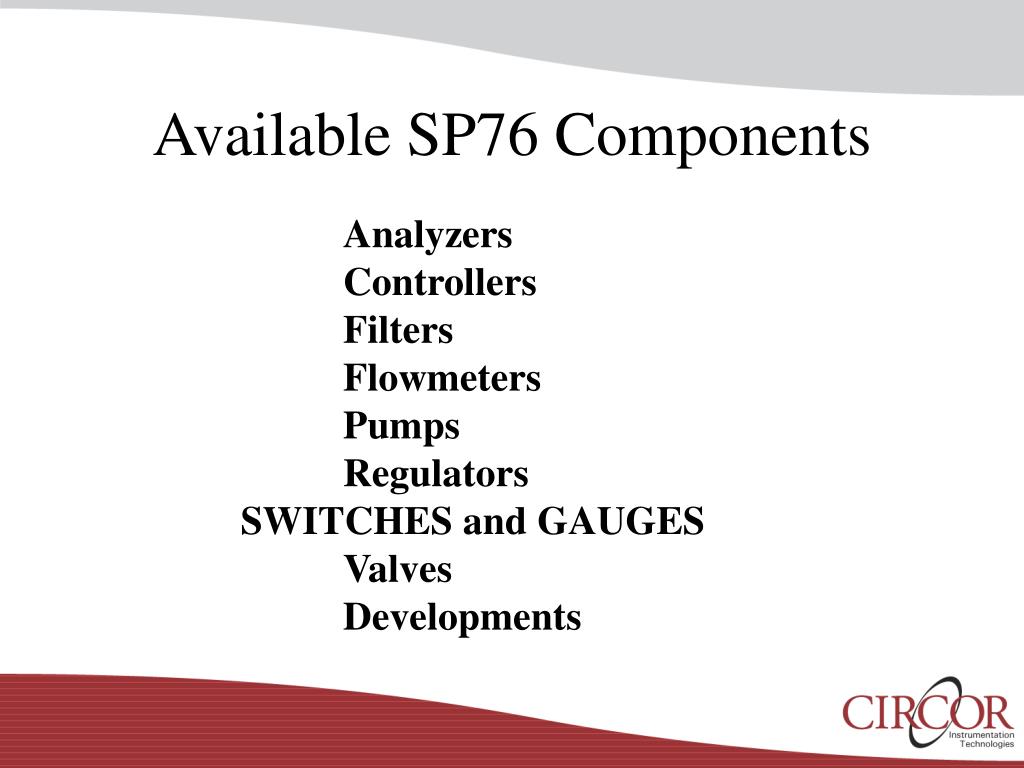

  17. Available SP76 Components Analyzers Controllers Filters Flowmeters Pumps Regulators SWITCHES and GAUGES Valves Developments

  18. Switches-Flow Chem-Tec Eqpt. Co. Honeywell Malema Switches-Moisture/Water Bühler / Buehler Sensors-Temperature Honeywell Gauges Bourdon SP76-basedSwitches, Sensors and Gauges

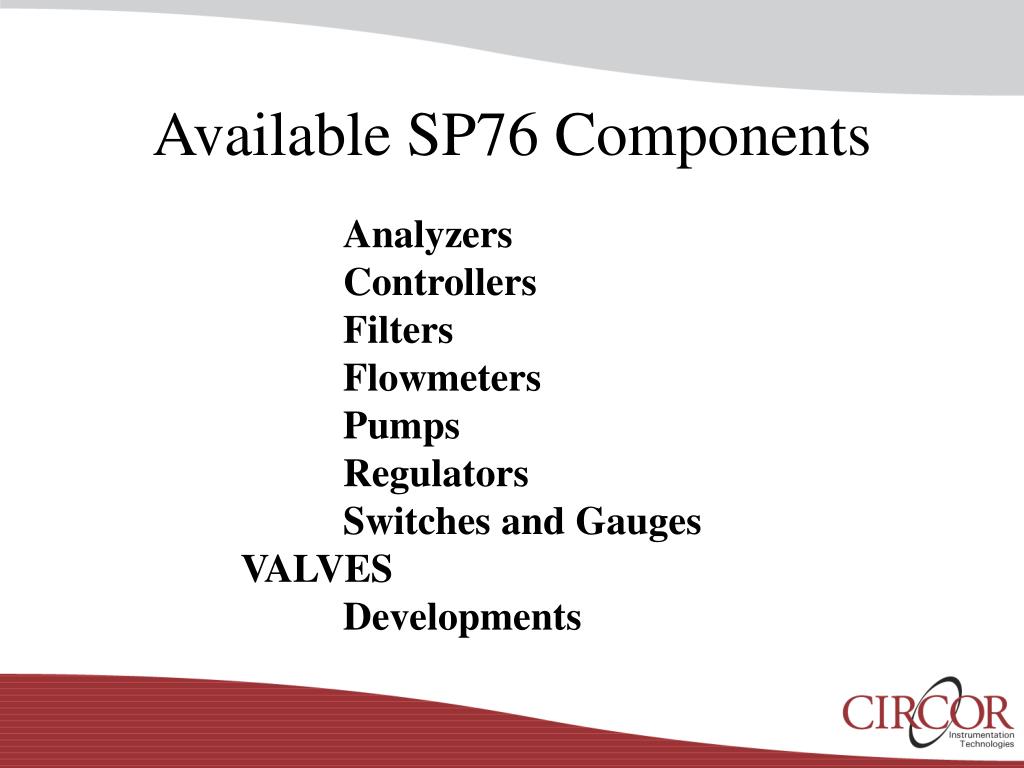

  19. Available SP76 Components Analyzers Controllers Filters Flowmeters Pumps Regulators Switches and Gauges VALVES Developments

  20. SP76-based Valves (1 of 3) CIRCOR Instrumentation Technologies Circle SealControls, Inc. Check and Relief Circor Tech Pneumatic* Actuated Diaphragm Hoke Manual and Pneumatic* Diaphragm *Positive Position Indication optional on all models

  21. SP76-based Valves (2 of 3) Parker(pneumatic-p or manual-m) Ball (m, 2 and 3-way) Check Diaphragm (m and p, 2-way) Meter (m) Needle (m and p) Relief (m) Toggle (m)

  22. SP76-based Valves (3 of 3) Swagelok (pneumatic-p or manual-m) Check Diaphragm (p,m) Meter (m) Needle (m) Shut-off (p,m) Toggle (p,m)

  23. Circor Corporate Commitment Analyzers Controllers Filters Flowmeters Pumps Regulators Switches and Gauges Valves DEVELOPMENTS

  24. Thank youand… …see you at Circor TechNet !
