Presentation Transcript

  1. System Components Hardware overview for Apollo ACS

  2. Pc (host) • Runs software • Connection point for devices • Specific Location (?) • Licensed • Database Engine

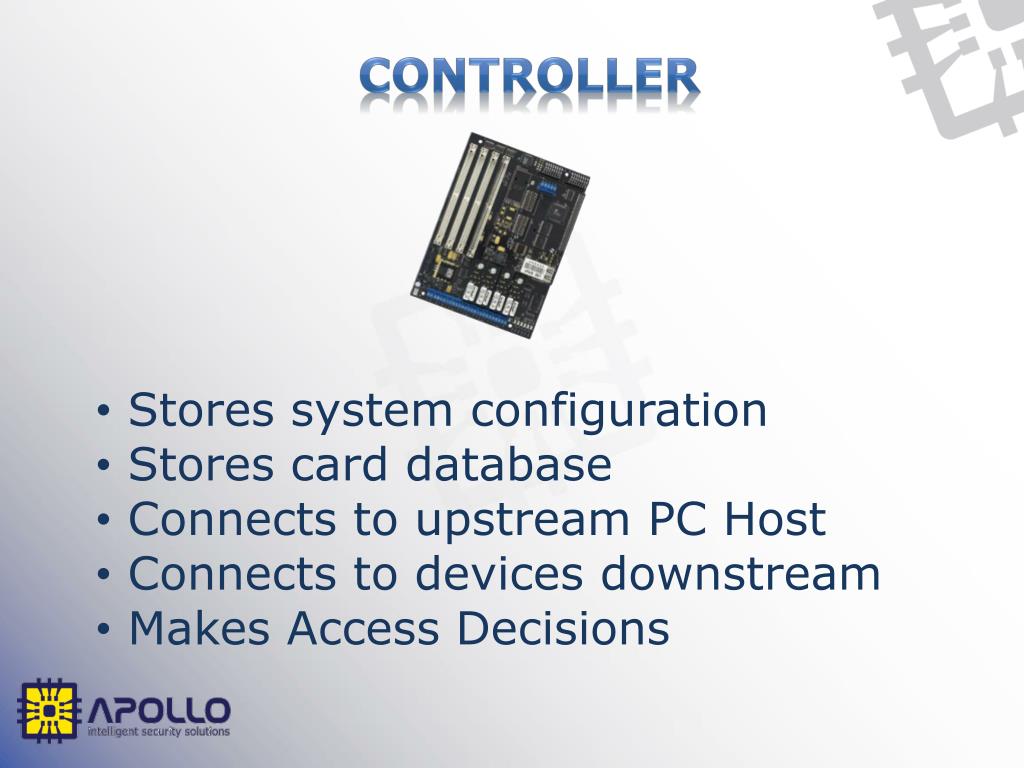

  3. controller • Stores system configuration • Stores card database • Connects to upstream PC Host • Connects to devices downstream • Makes Access Decisions

  4. Reader interface • Stores card database (sometimes) • Connects to upstream controller • Connects to readers downstream • Physical connections for door hardware (lock, EPB, door contact)

  5. Reader (standard) • Reads credential information • Wiegand protocol • Connects to upstream reader interface

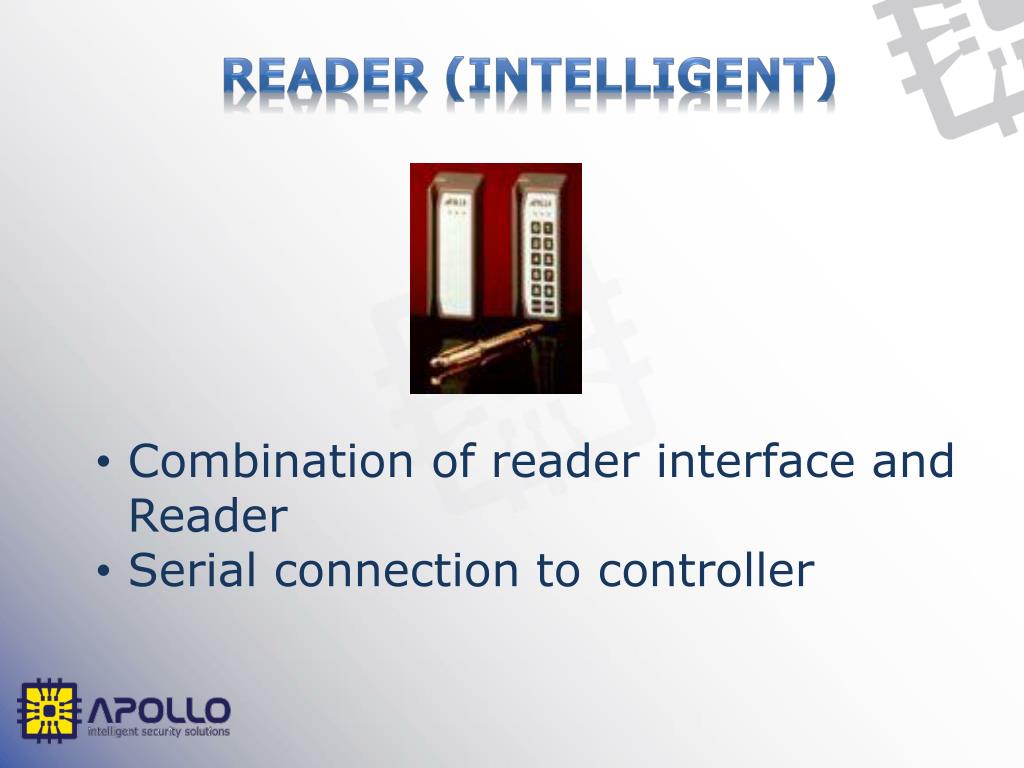

  6. Reader (intelligent) • Combination of reader interface and • Reader • Serial connection to controller

  7. Alarm panel • Connects to upstream controller • Connects to sensors and signal devices or other systems • downstream • Inputs & Outputs

  8. Status panel • Connects to upstream controller • System status without computer

  9. Network interfaces • Changes serial to network • TCP protocol for host communication • UDP protocol for device communication

  10. Other devices

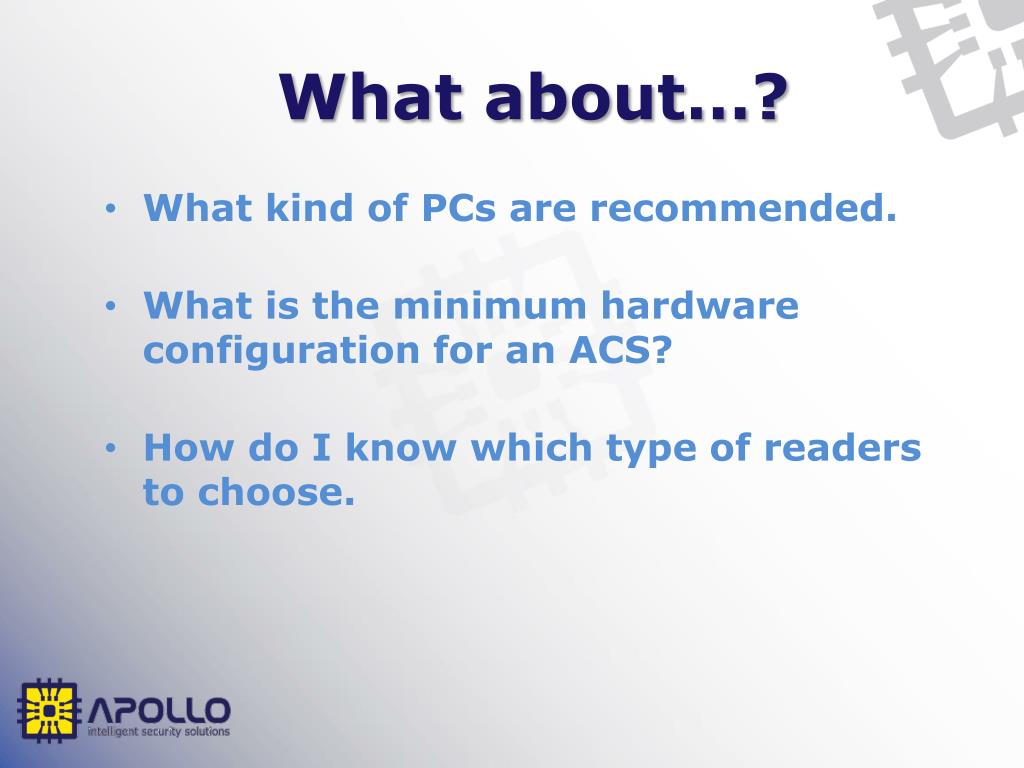

  11. What about…? • What kind of PCs are recommended. • What is the minimum hardware configuration for an ACS? • How do I know which type of readers to choose.
