Saturation effect of MPPC. Introduction. MPPC output signal saturates because of its limited number of pixels. <Npix> = Nmax(1-exp(-Nph/Nmax)) Nmax : Number of MPPC pixels Nph : Number of photons Npix : Number of hit pixels We take into account this effect in the calorimeter simulation.

jaunie
Télécharger la présentation

Saturation effect of MPPC

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Saturation effect of MPPC

  2. Introduction • MPPC output signal saturates because of its limited number of pixels. • <Npix> = Nmax(1-exp(-Nph/Nmax)) • Nmax : Number of MPPC pixels • Nph : Number of photons • Npix : Number of hit pixels • We take into account this effect in the calorimeter simulation

  3. Energy deposit in each 1cm x 5cm strip 10GeV muon MeV

  4. Energy deposit in each 1cm x 5cm strip 10GeV electron 50GeV electron 100GeV electron 250GeV electron

  5. Assumptions • Nph(MIP)=5 or 10 • Nmax=400, 1600, and 6400 • Perfect MPPC is assumed： i.e. No cross-talk, no noise

  6. 1GeV electron Nph Nmax=400 Nmax=6400 Nmax=1600

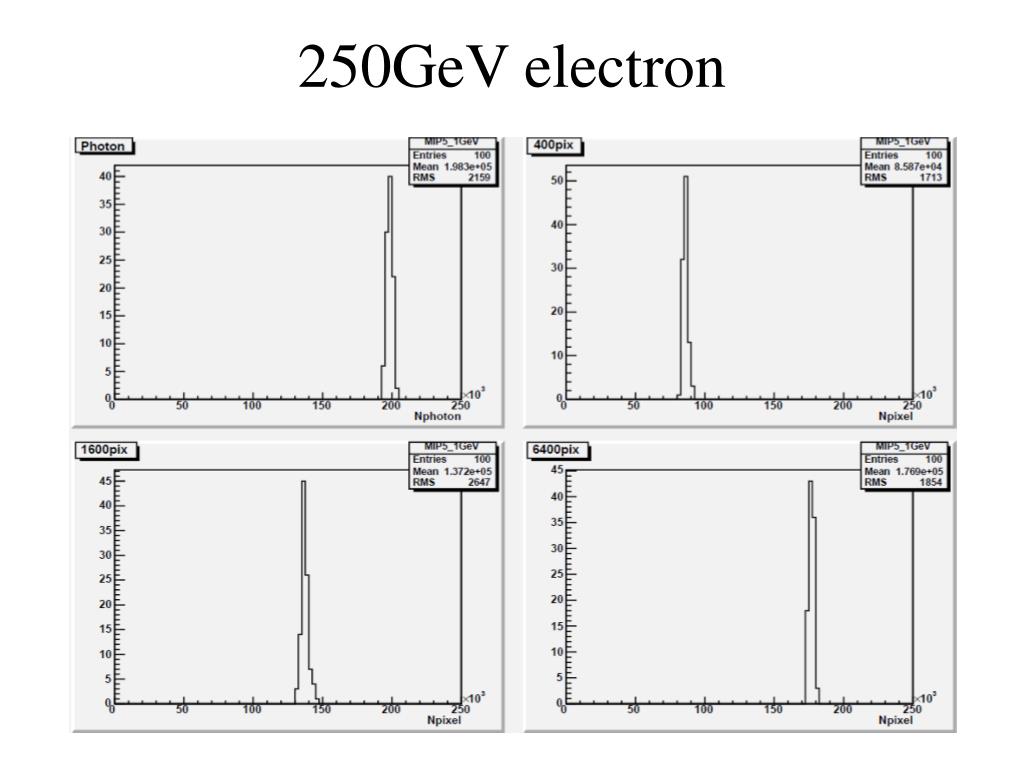

  7. 250GeV electron

  8. Results for Nph(MIP=5) 6400pix 1600pix 400pix

  9. Results for Nph(MIP=10)
