the Skeletal System

Chapter 5. the Skeletal System. Divided into: the axial skeleton - forms the longitudinal axis of the body the appendicular skeleton - bones of the limbs and girdles. Also includes joints, cartilages, and ligaments. Functions. support protection movement

jed
Télécharger la présentation

the Skeletal System

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Chapter 5 the Skeletal System

  2. Divided into: • the axial skeleton- forms the longitudinal axis of the body • the appendicular skeleton- bones of the limbs and girdles. • Also includes joints, cartilages, and ligaments.

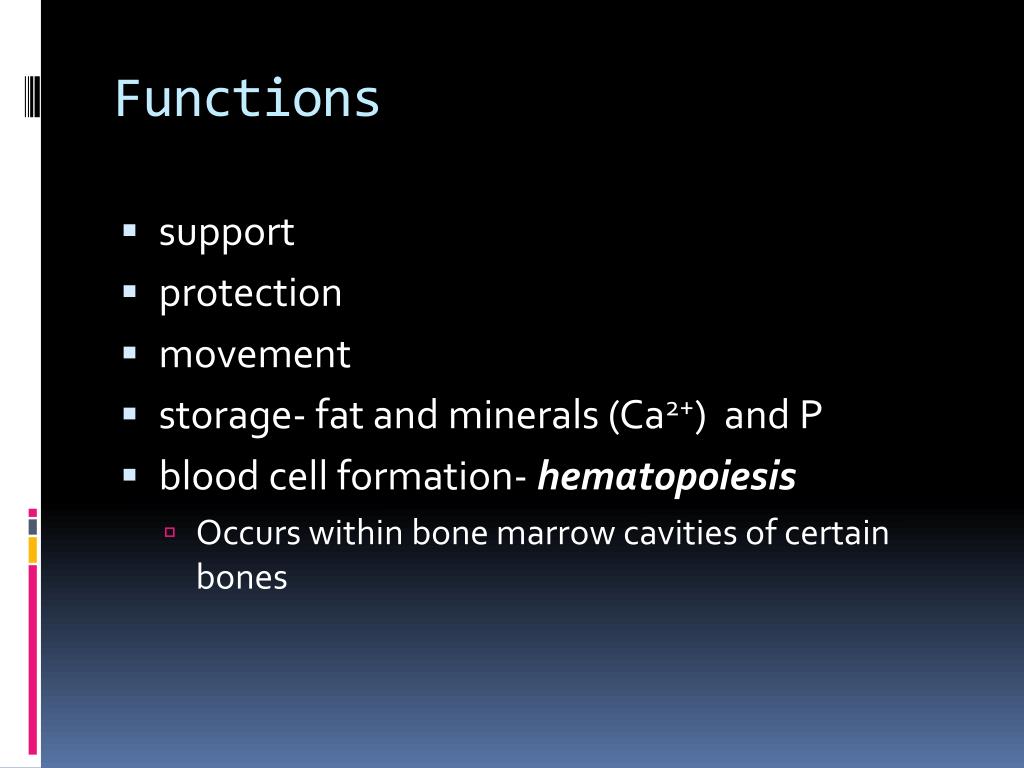

  3. Functions • support • protection • movement • storage- fat and minerals (Ca2+) and P • blood cell formation- hematopoiesis • Occurs within bone marrow cavities of certain bones

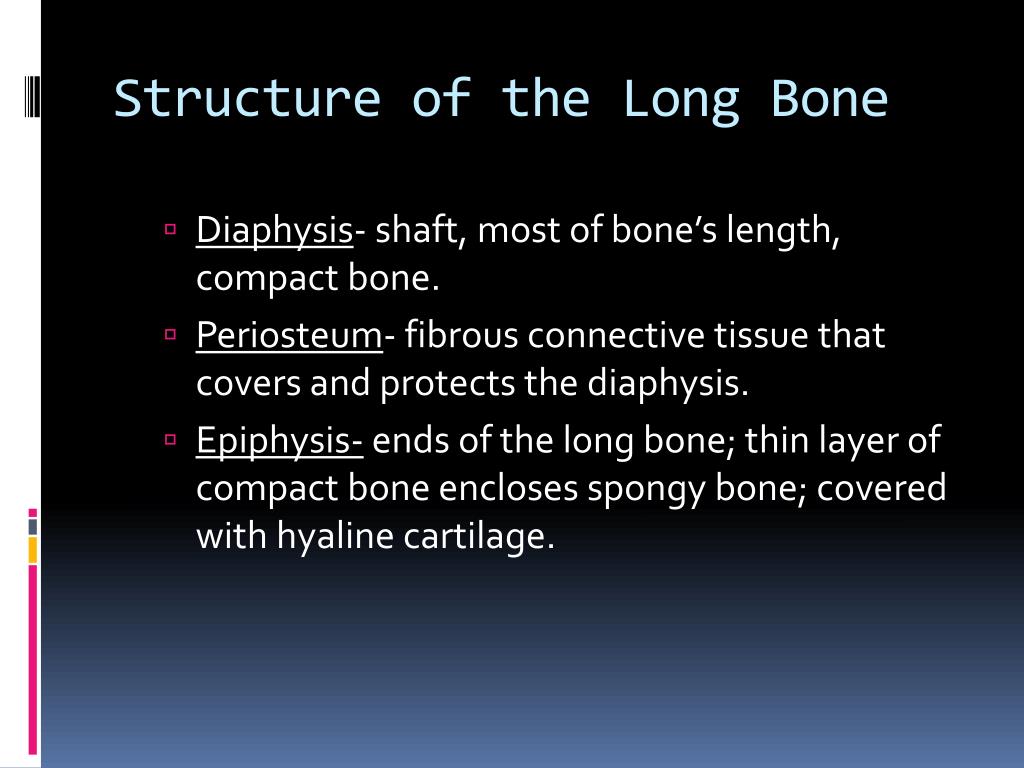

  4. Structure of the Long Bone • Diaphysis- shaft, most of bone’s length, compact bone. • Periosteum- fibrous connective tissue that covers and protects the diaphysis. • Epiphysis- ends of the long bone; thin layer of compact bone encloses spongy bone; covered with hyaline cartilage.

  5. Structure of the Long Bone • Epiphyseal plate- a flat plane of hyaline cartilage that allows lengthwise growth. After puberty, this is replaced with bone and is called the epiphyseal line. • Medullary cavity- cavity of the diaphysis; is primarily a storage area for adipose (fat) tissue in adult bones; called yellow marrow. In infants, these areas form red blood cells and are called red marrow. In adult bones, red marrow is found the spongy bone of flat bone and the epiphyses of some long bones.

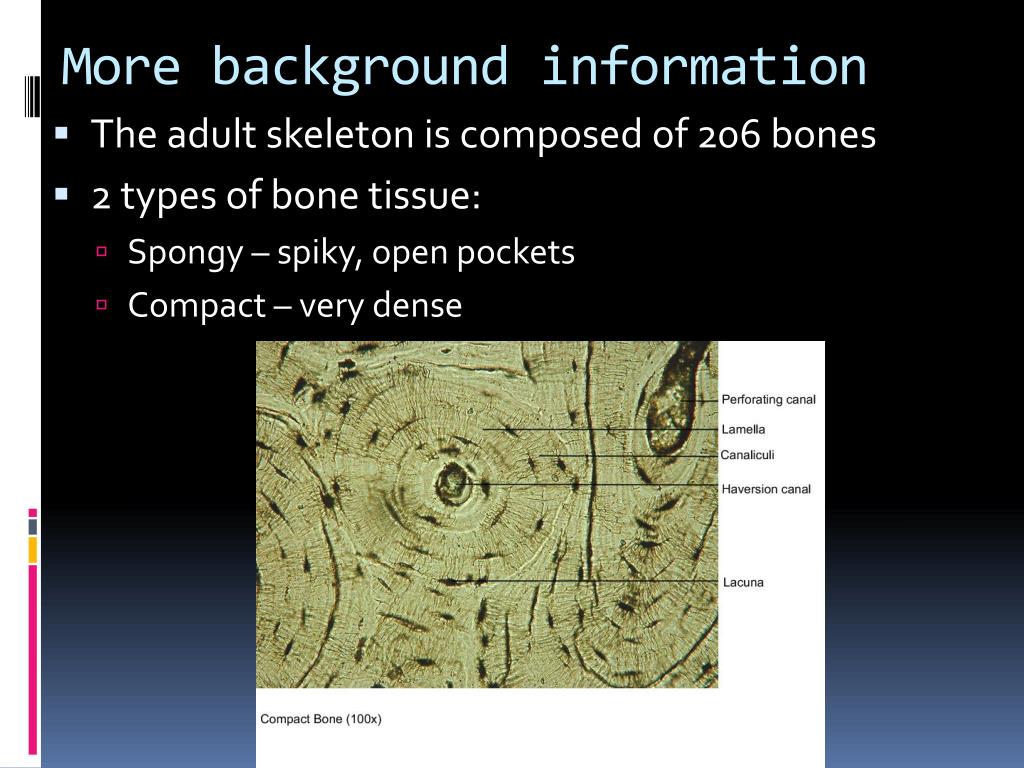

  6. More background information • The adult skeleton is composed of 206 bones • 2 types of bone tissue: • Spongy – spiky, open pockets • Compact – very dense

  7. Spongy (cancellous) bone

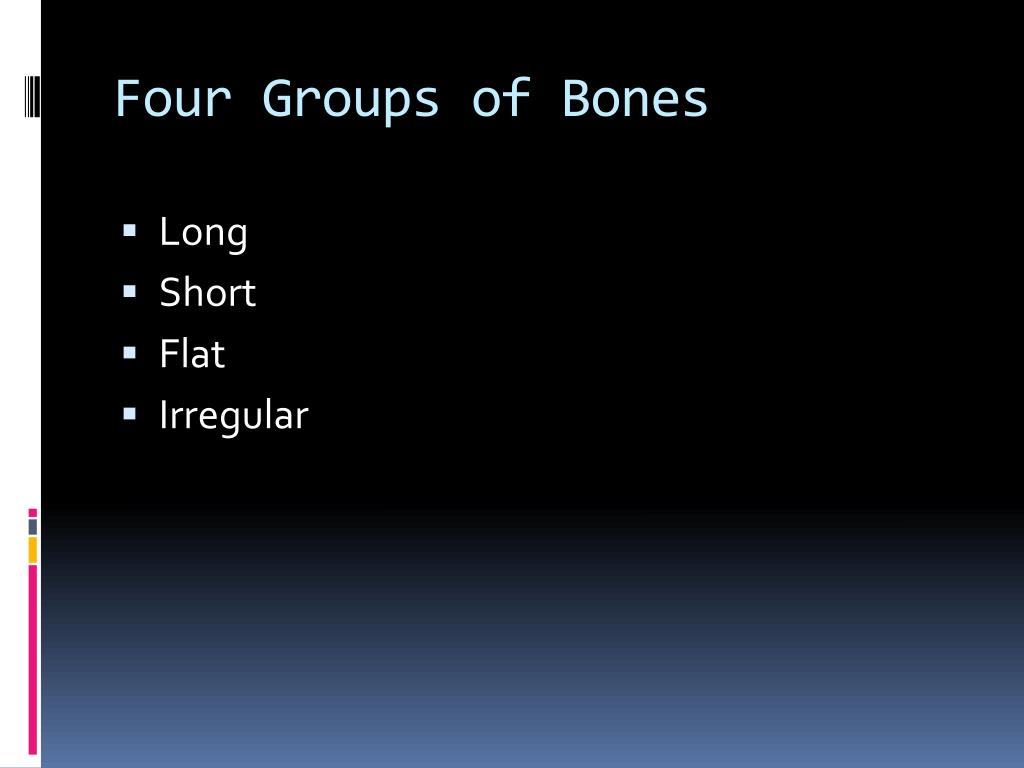

  8. Four Groups of Bones • Long • Short • Flat • Irregular

  9. Microscopic Anatomy • Osteocytes – mature bone cells found within the matrix in tiny cavities called lacunae

  10. The lacunae are arranged in concentric circles called lamellae around central (Haversian) canals

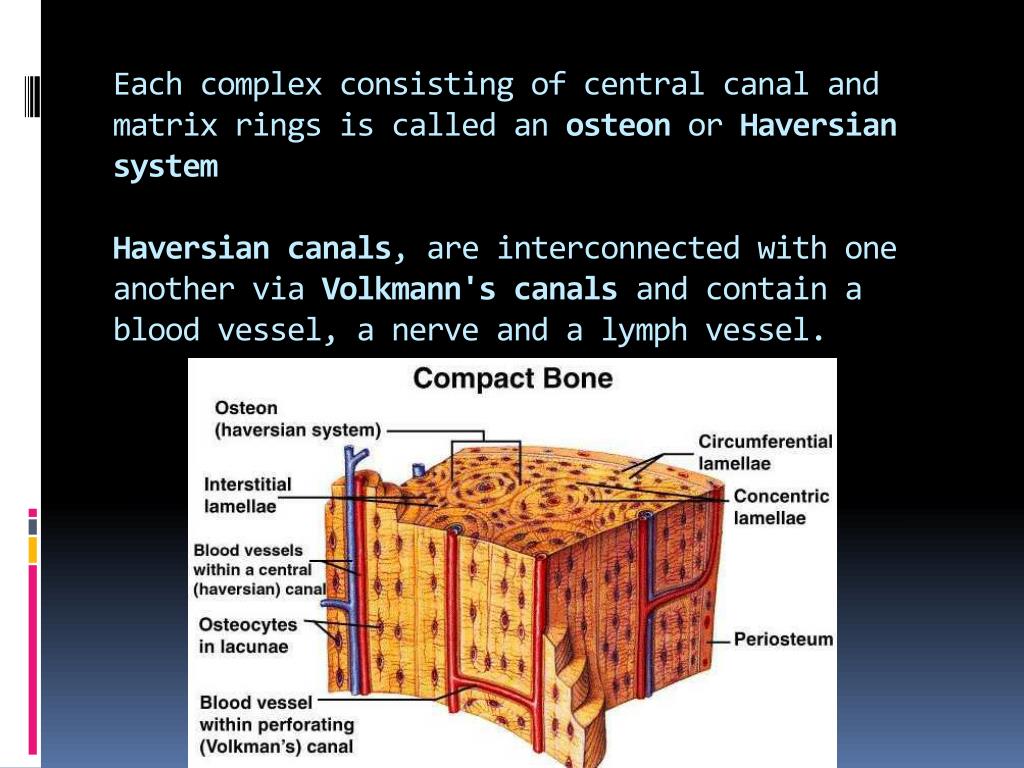

  11. Each complex consisting of central canal and matrix rings is called an osteonor Haversian systemHaversiancanals, are interconnected with one another via Volkmann's canals and contain a blood vessel, a nerve and a lymph vessel.

  12. Tiny canals, canaliculi, radiate outward from the central canals to all lacunae.The canaliculi form a transportation system that connects all the bone cells to the nutrient supply through the hard bone matrix.

  13. Volkmann’s canals, are perforated areas which run into the compact bone at right angles to the shaft.These canals provide communication between the outside of the bone to its interior.

  14. The calcium salts deposited in the matrix give bone its hardness, which resists compression. • The organic parts (especially the collagen fibers) provide for bone’s flexibility and great tension strength. • What does organicmean ? • Containing carbon

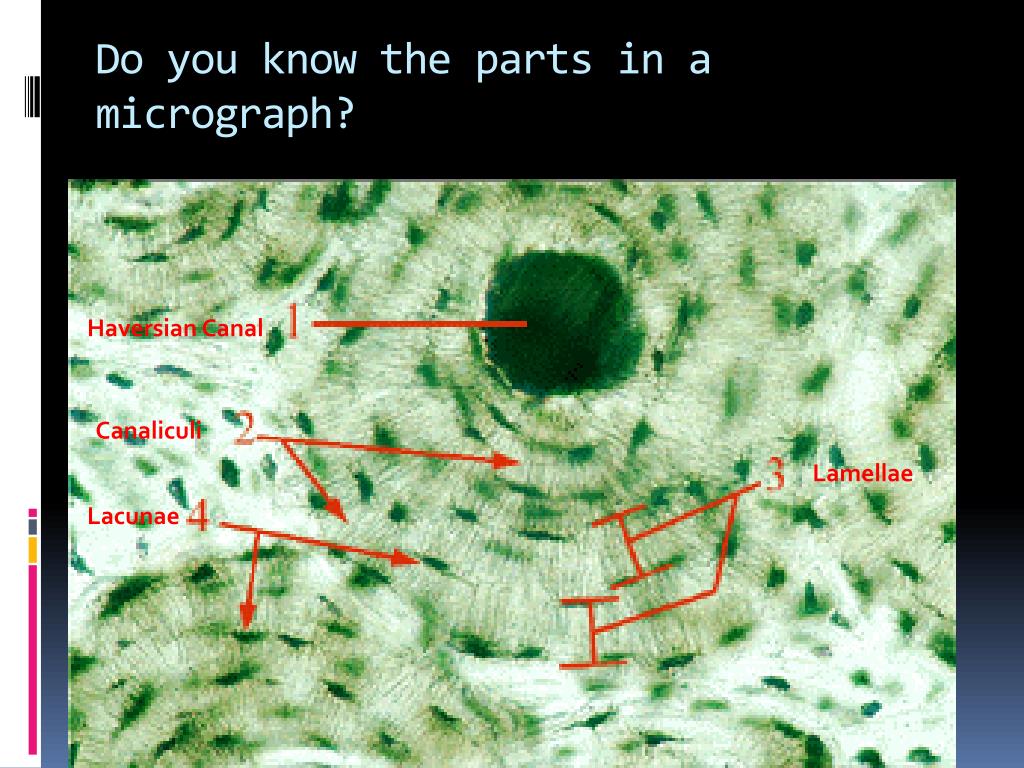

  15. Do you know the parts in a micrograph? Haversian Canal Canaliculi Lamellae Lacunae
