  1. timothy.griffin@cl.cam.ac.uk Metarouting and Network Optimization (work in progress) alex.gurney@cl.cam.ac.uk CISS 2006

  2. The Current Situation • IP Connectivity is implemented with dynamic routing protocols • These protocols are few in number • Existing protocols tend to get in the way of network optimization, network analysis

  3. Routing Algebras(Sobrinho) 1970s 1980s: Path Algebra = Idempotent semiring. Carre’, Gondran & Minoux 2002: Algebra and Algorithms for QoS Path Computation and Hop-by-Hop Routing in the Internet. 2003: Network Routing and Path Vector Protocols: Theory and Applications. Routing Algebras

  4. Generalized Routing Algebras(Gurney & Griffin, ongoing work) This is a pre-order A semi-group is a semi-group action on S

  5. Big Picture Routing Algebras Path Algebras Generalized Routing Algebras

  6. “Best” Routes For finite, non-empty Total order Partial order Total pre-order Pre-order

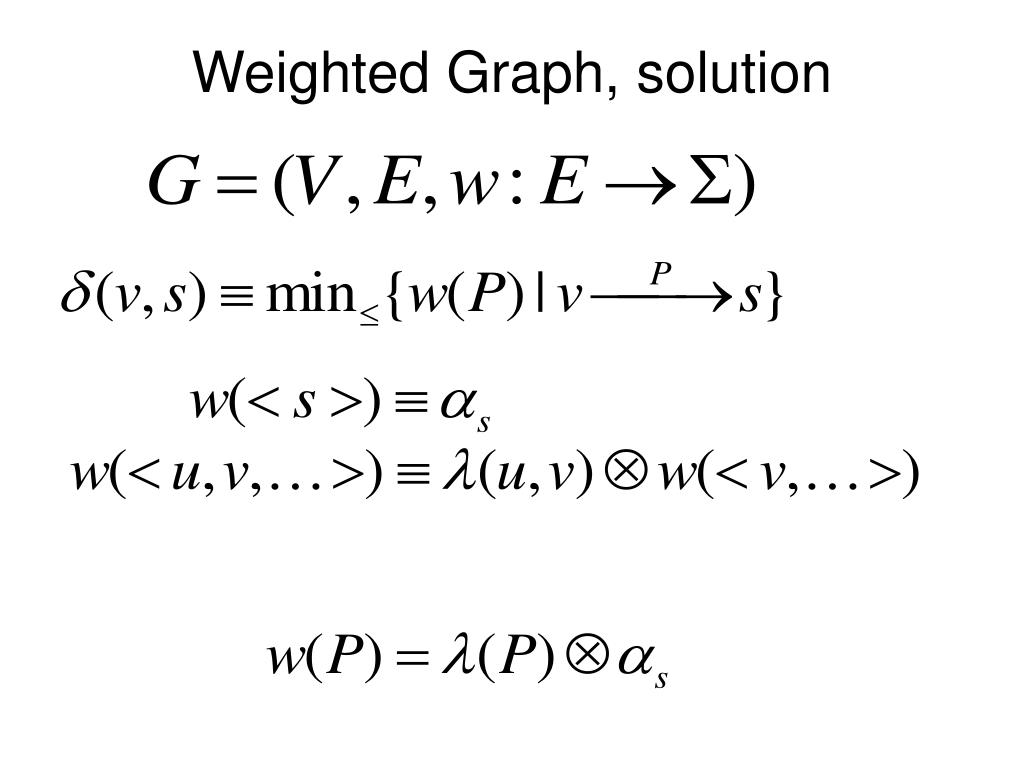

  7. Weighted Graph, solution

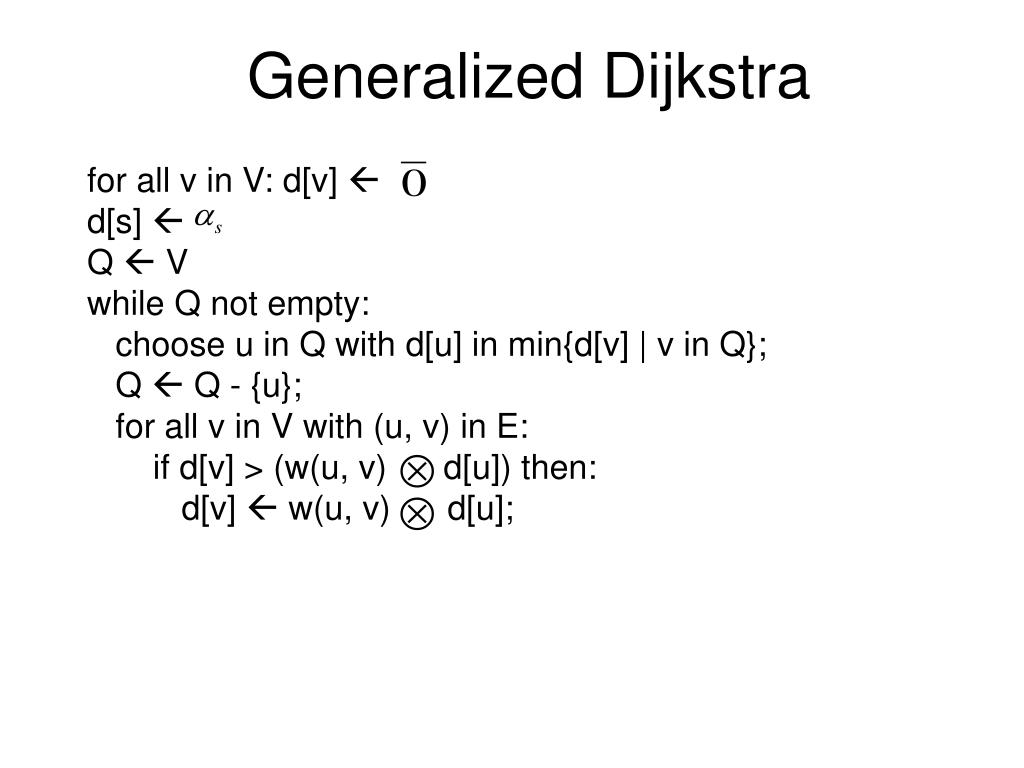

  8. Generalized Dijkstra for all v in V: d[v]  d[s]  Q  V while Q not empty: choose u in Q with d[u] in min{d[v] | v in Q}; Q  Q - {u}; for all v in V with (u, v) in E: if d[v] > (w(u, v) d[u]) then: d[v]  w(u, v) d[u];

  9. Generalized Bellman-Ford for all v in V: d[v]  d[s]  Q  V for i in {1, 2, ..., |V| - 1} for all (u, v) in E if d[v] > (w(u, v) d[u]]) then d[v]  w(u, v) d[u] -- Negative weight cycle detection for (u, v) in E if d[v] > (w(u, v) d[u]) then: return false -- Found “neg-weight” cycle return true -- No “neg-weight” cycle

  10. Some Important Properties Monotonicity (M) : Strict monotonicity (SM) : Isotonicity (I) : Strict isotonicity (SI) :

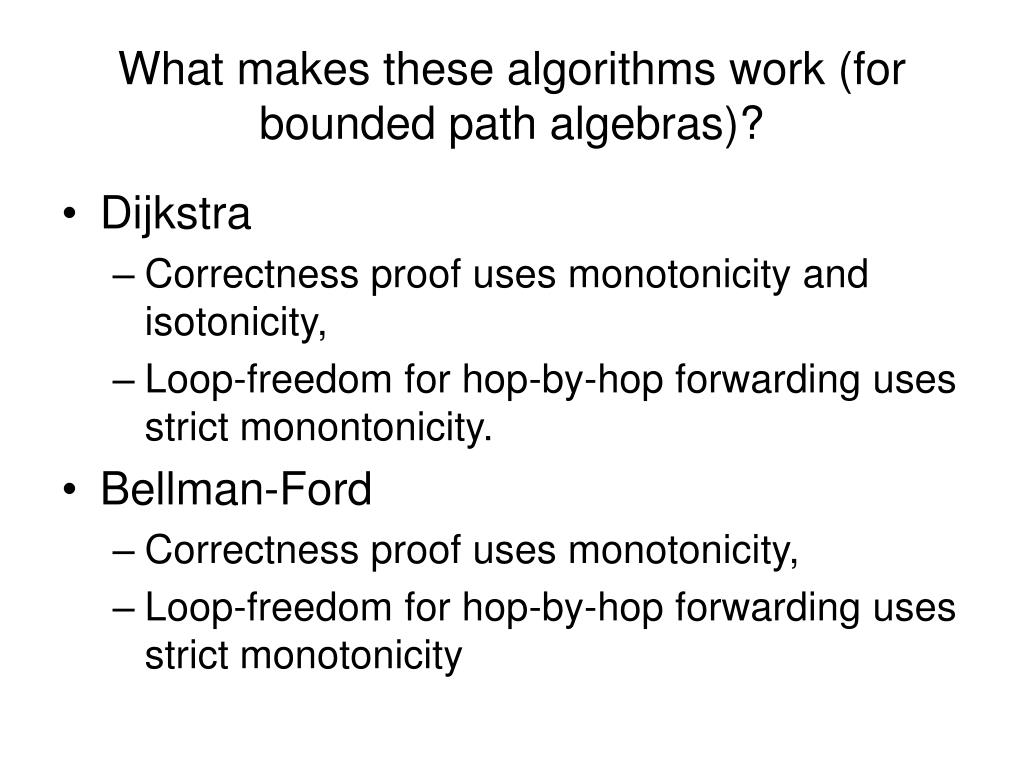

  11. What makes these algorithms work (for bounded path algebras)? • Dijkstra • Correctness proof uses monotonicity and isotonicity, • Loop-freedom for hop-by-hop forwarding uses strict monontonicity. • Bellman-Ford • Correctness proof uses monotonicity, • Loop-freedom for hop-by-hop forwarding uses strict monotonicity

  12. Metarouting(Griffin & Sobrinho 2005) • A meta-language for Routing Algebras • Base algebras • Constructors • Property Preservation Rules • Properties of base algebras known, • Preservation rules for each constructor • Can be implemented, standardized

  13. Direct Product

  14. Direct Product M M M I I I SM M M SI I I M SM M I SI I SM SM SM SI SI SI

  15. The corresponding path algebra gives {(300, 30), (571, 70)} = (300, 70) Distance x Bandwidth Prague London Moscow (100, 30) (311, 70) (10, 80) (200, 30) Paris Rome (250, 90) P = Rome  Prague  Moscow = (300, 30) Q = Rome  Paris  London  Moscow = (571, 70) min {w(P), w(Q)} = {(300, 30), (571, 70)}

  16. Lexicographic Product

  17. Property Preservation with Lex Product M M M EQ,SI I I SM SM EQ,SI SI SI M SM SM EQ EQ EQ A design pattern: SM All at least M SM Don’t care!

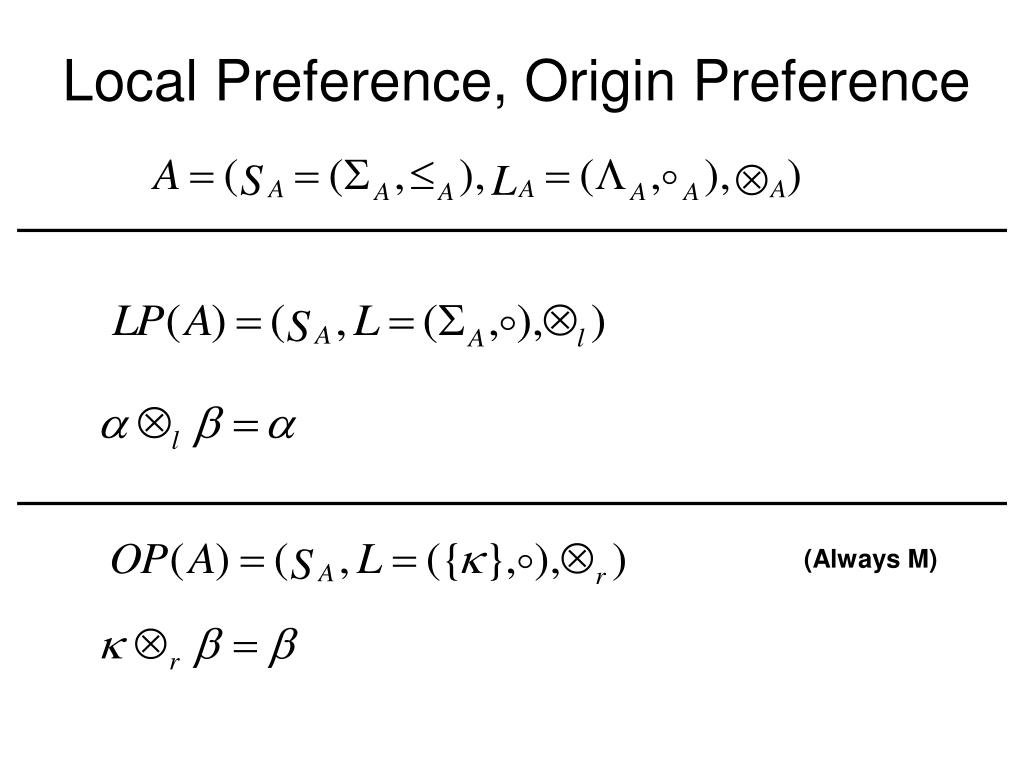

  18. Local Preference, Origin Preference (Always M)

  19. Disjoint Union

  20. Disjoint Union : Property Preservation M M M I I I SM M M SI I I M SM M I SI I SM SM SM SI SI SI

  21. Scoped Product Q : What is a good mathematical framework for the analysis of routing algebra metalanguages? A : CATEGORY THEORY!

  22. Scoped Product

  23. Scoped Product : Monotonicity Preservation SM M M SM SM SM

  24. Dependent Lexicographic Product

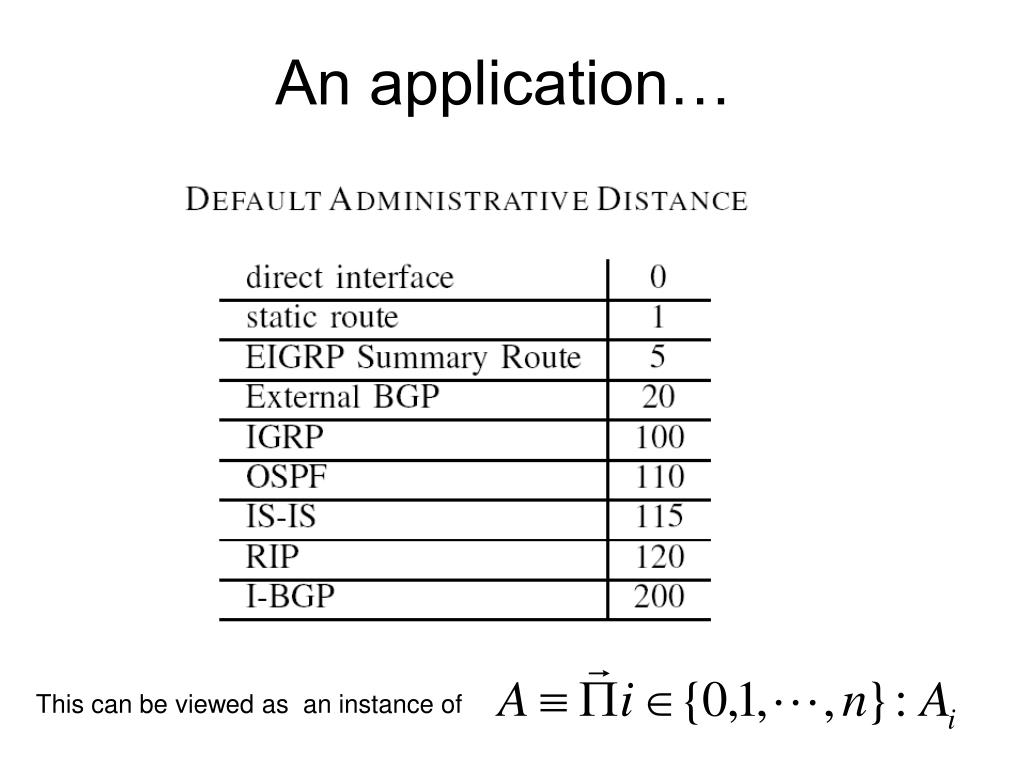

  25. An application… This can be viewed as an instance of

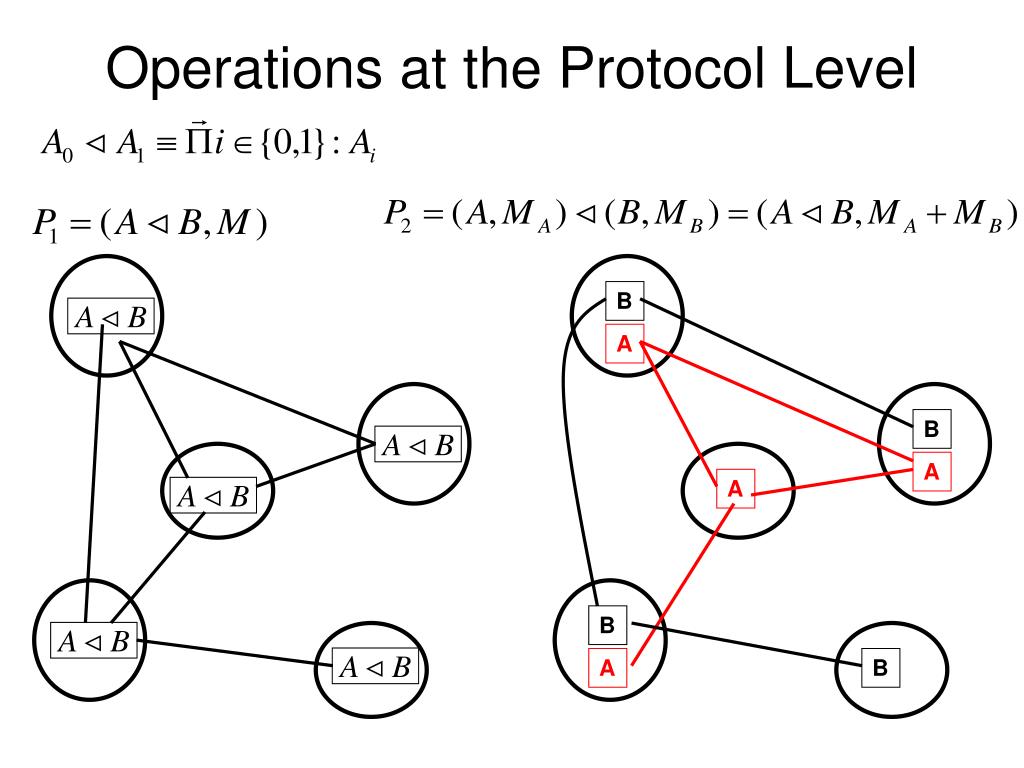

  26. Operations at the Protocol Level B A B A A B A B

  27. …or B A B Adjacencies of B supported by connectivity of provided by A A A B A Think of A = OSPF and B = IBGP …. A

  28. OSPF Revisited Something like Something like where (shortest paths)

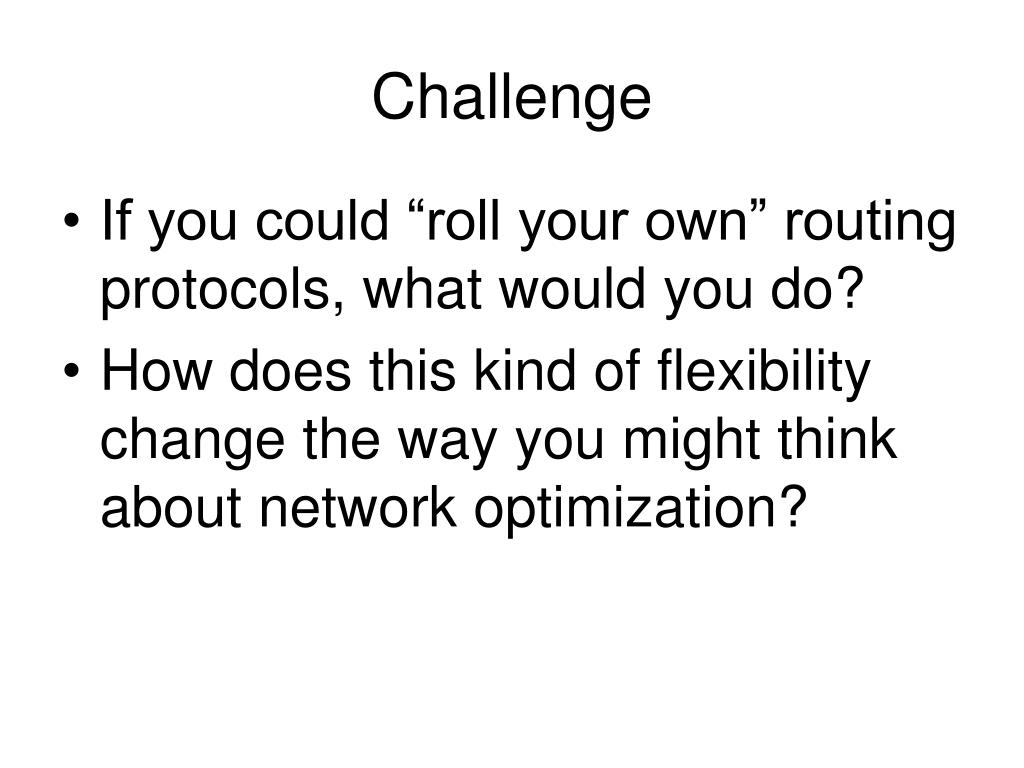

  29. Challenge • If you could “roll your own” routing protocols, what would you do? • How does this kind of flexibility change the way you might think about network optimization?
