  1. Micro- Rain- RadarLocal Area Weather Radar Cloud Radar Gerhard Peters Meteorological Institute University Hamburg

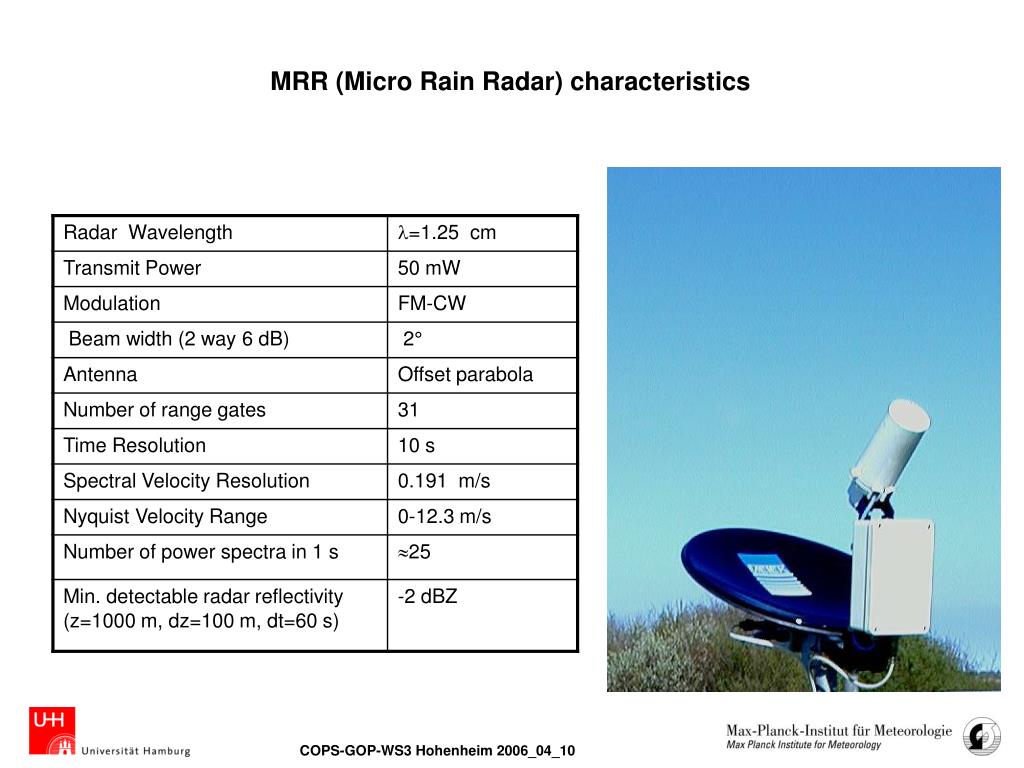

  2. MRR (Micro Rain Radar) characteristics

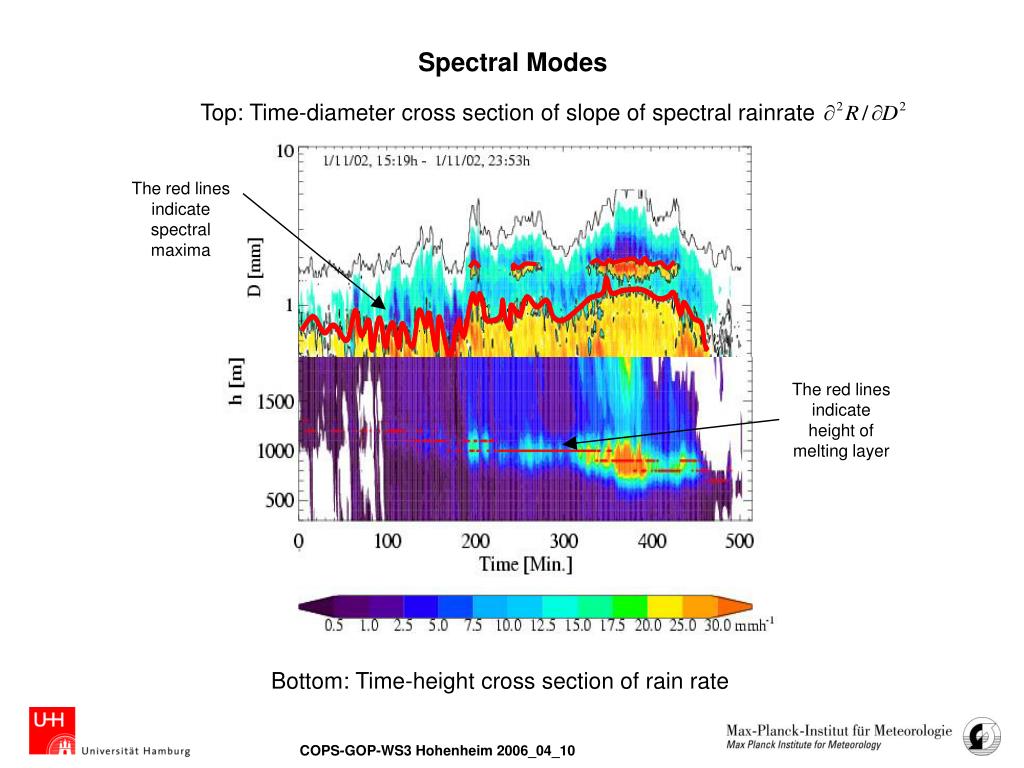

  3. Top: Time-diameter cross section of slope of spectral rainrate The red lines indicate spectral maxima The red lines indicate height of melting layer Bottom: Time-height cross section of rain rate Spectral Modes

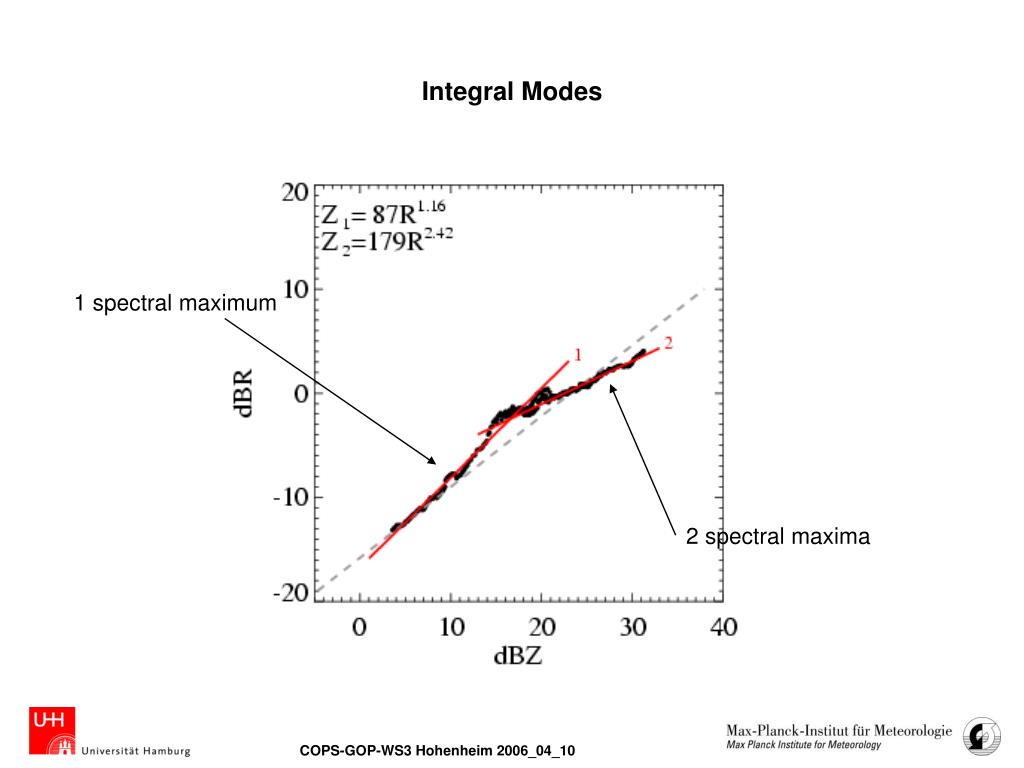

  4. Integral Modes 1 spectral maximum 2 spectral maxima

  5. LAWR characteristics Based on Nautical Radar Furuno, Type FR7112 Fan-beam-antenna replaced by pencil beam (Offset Parabol, 85 cm) Polarization: Horizontal Scan Rate: 24 rpm X-Band Transceiver: Fixed to Antenna Unit Transmit power: 12 kW peak Frequency: 9410 ± 30 MHz (X-Band) Pulse width, Pulse repetition rate0.08 µs/2100 Hz 0.3 µs/1200 Hz 0.8 µs/600 Hz Sampling Rate 10 MHz (corresponds to 15 m range resolution) Digital power resolution 0.005 dB Dynamic range 70 dB Beam width 2.5 ° (3dB 1 way) Antenna Gain > 30 dBi Beam Elevation: +3° to + 20° (adjustable). Sensitivity: 0 dBZ, (5 km range, 0.08 µs pulse width, 30 s time integration, 60 m range integration, 2° azimuth integration)

  6. LAWR characteristics

  7. LAWR 14 MRR sites Proposed radar sites

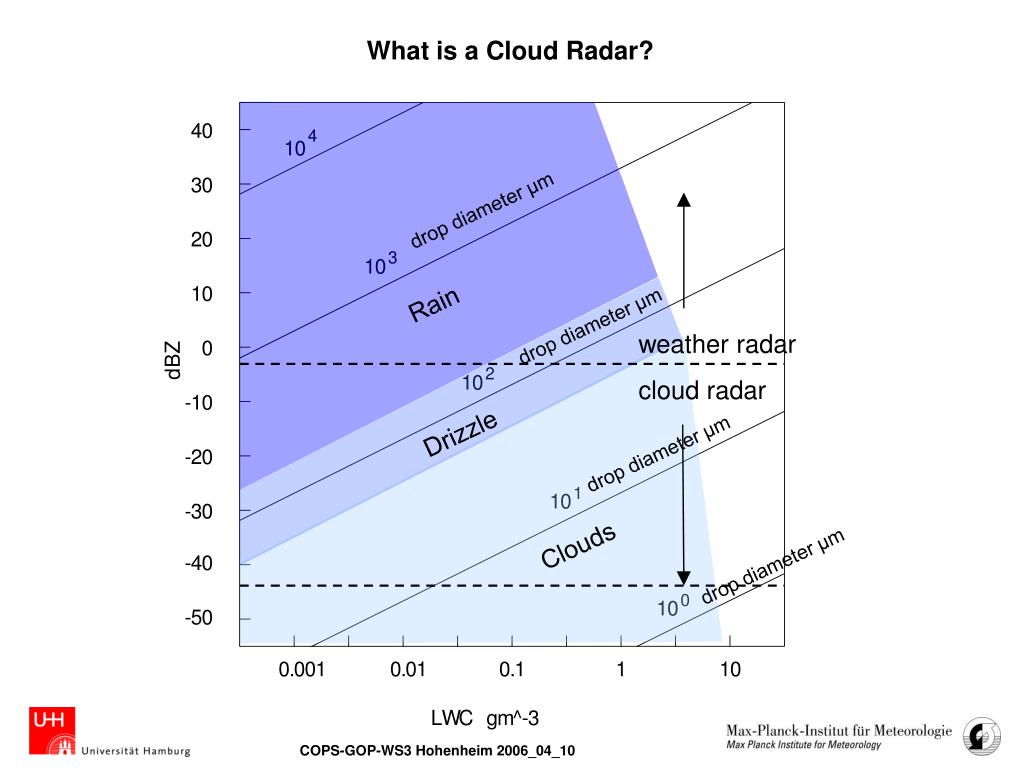

  8. What is a Cloud Radar? drop diameter μm Rain drop diameter μm weather radar cloud radar Drizzle drop diameter μm Clouds drop diameter μm

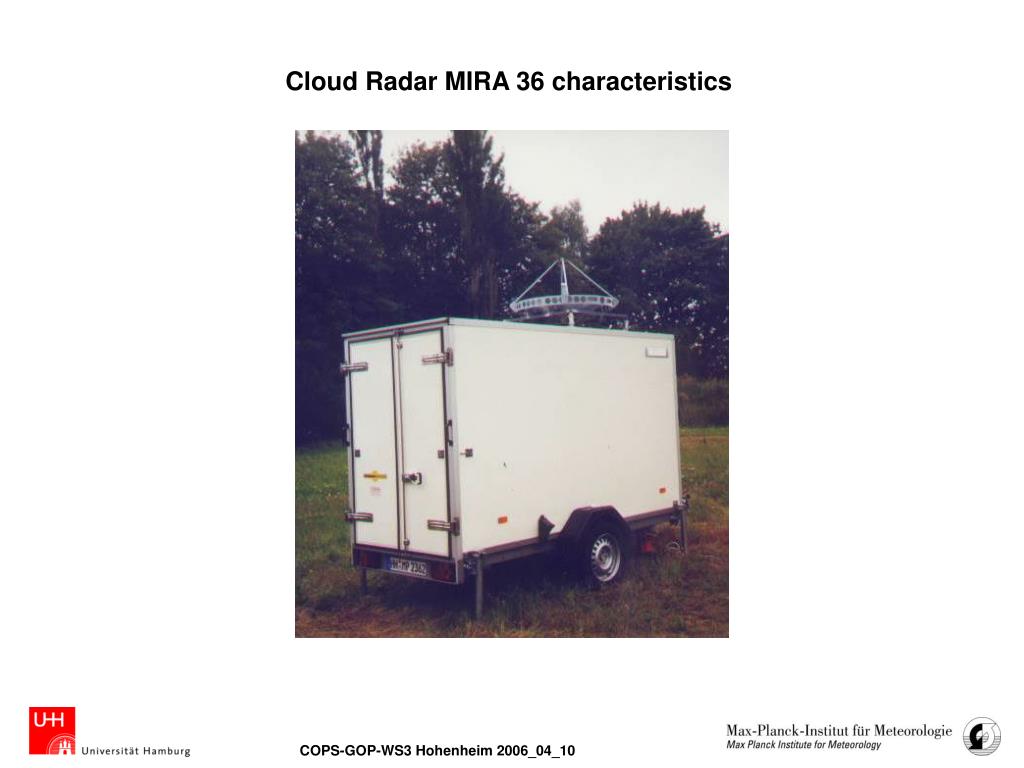

  9. Cloud Radar MIRA 36 characteristics

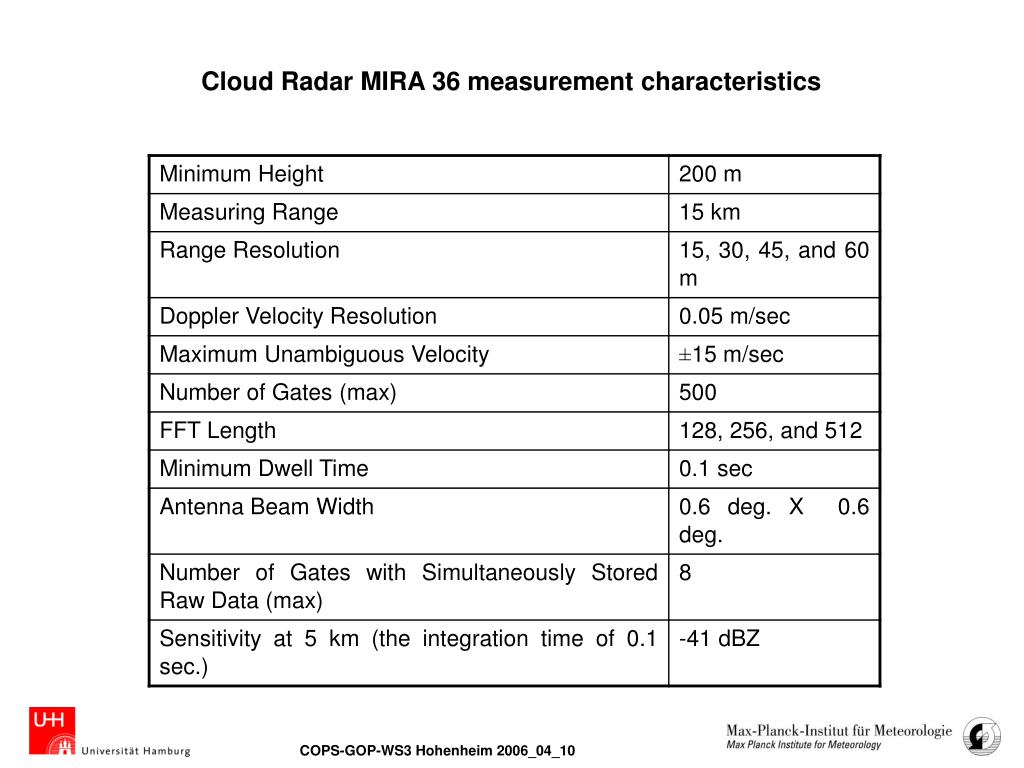

  10. Cloud Radar MIRA 36 measurement characteristics

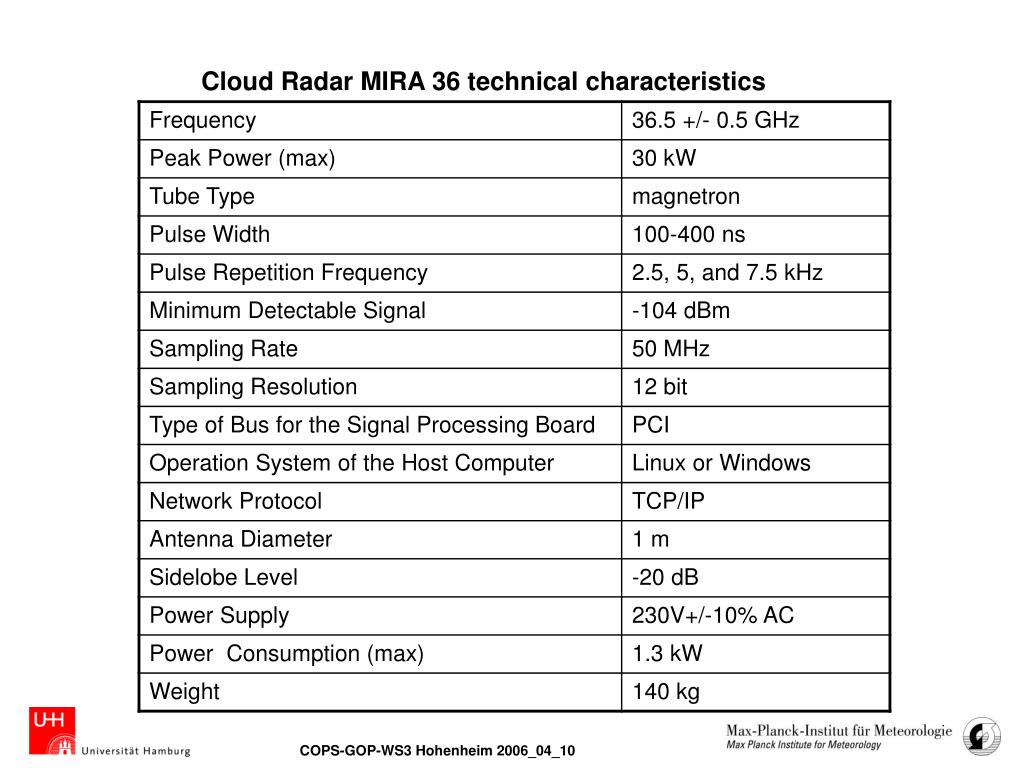

  11. Cloud Radar MIRA 36 technical characteristics

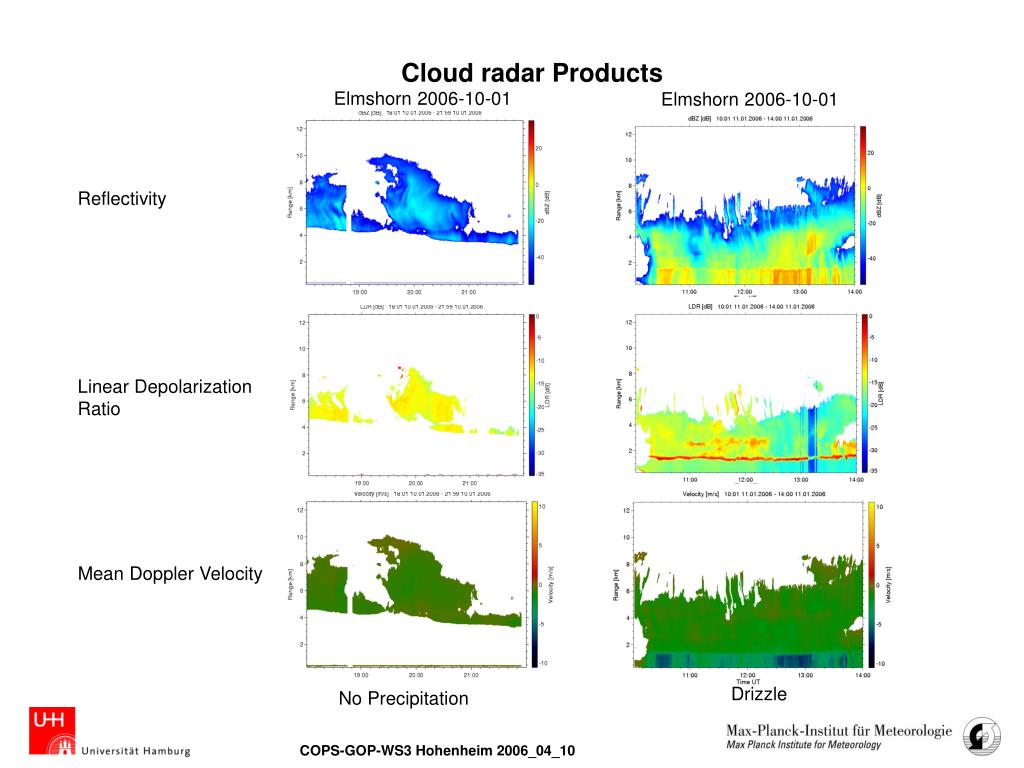

  12. Cloud radar Products Elmshorn 2006-10-01 Elmshorn 2006-10-01 Reflectivity Linear Depolarization Ratio Mean Doppler Velocity Drizzle No Precipitation

  13. Cloud radar Products Geesthacht 2000-09-06 12:52

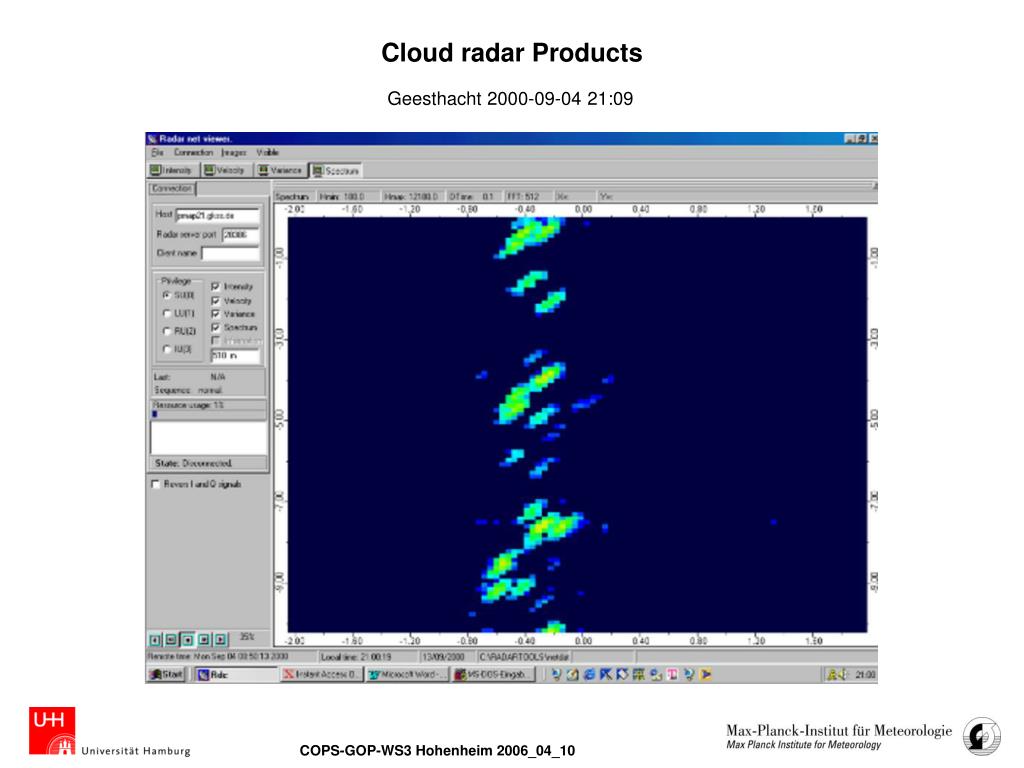

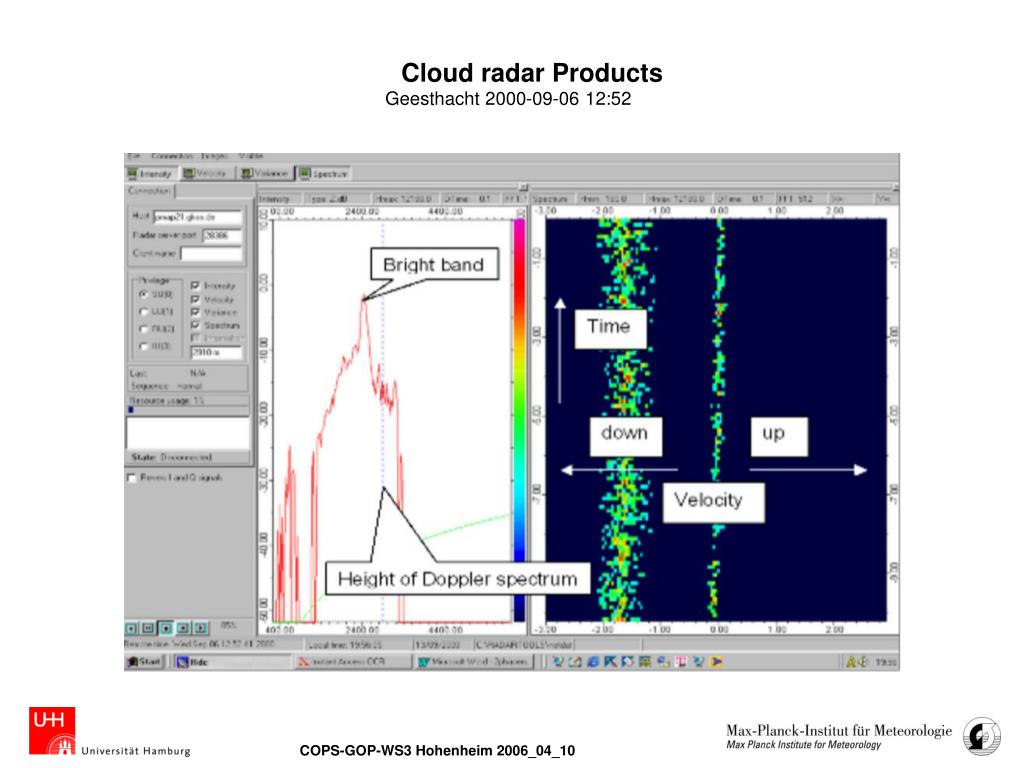

  14. Cloud radar Products Geesthacht 2000-09-04 21:09

  15. Cloud radar radar site?
