  1. Interim Draft Module 4 - September 2008 Case Finding and Diagnosis

  2. Project Partners • Collaborative project Funded by the United States Agency for International Development (USAID)

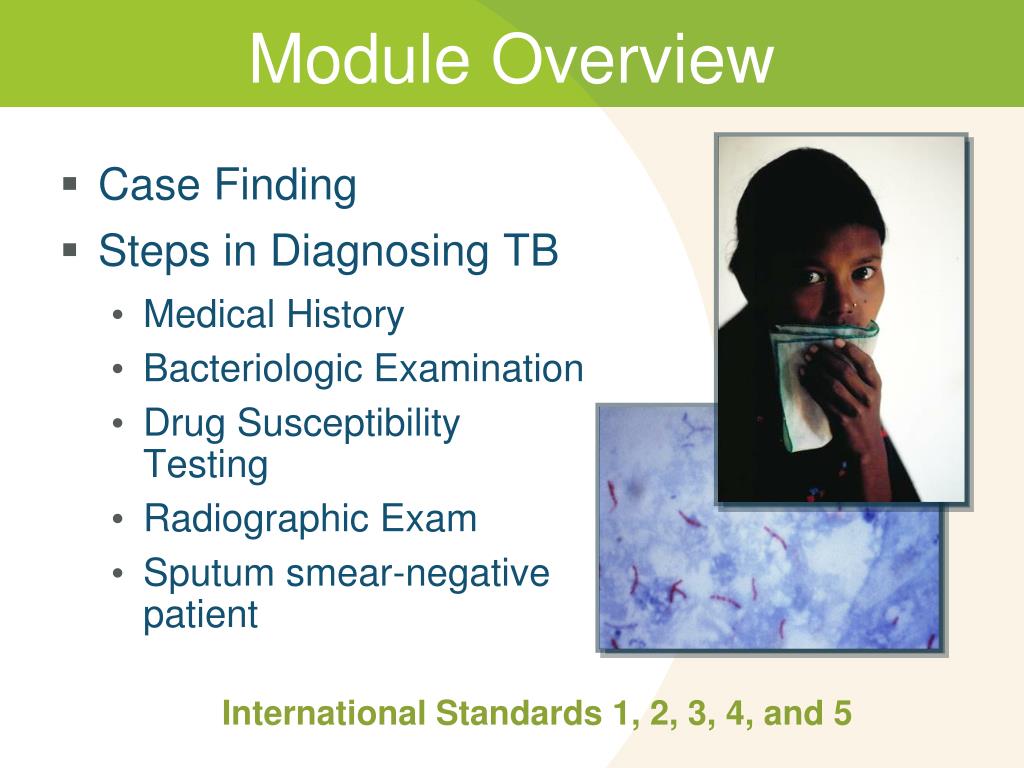

  3. Module Overview • Case Finding • Steps in Diagnosing TB • Medical History • Bacteriologic Examination • Drug Susceptibility Testing • Radiographic Exam • Sputum smear-negative patient International Standards 1, 2, 3, 4, and 5

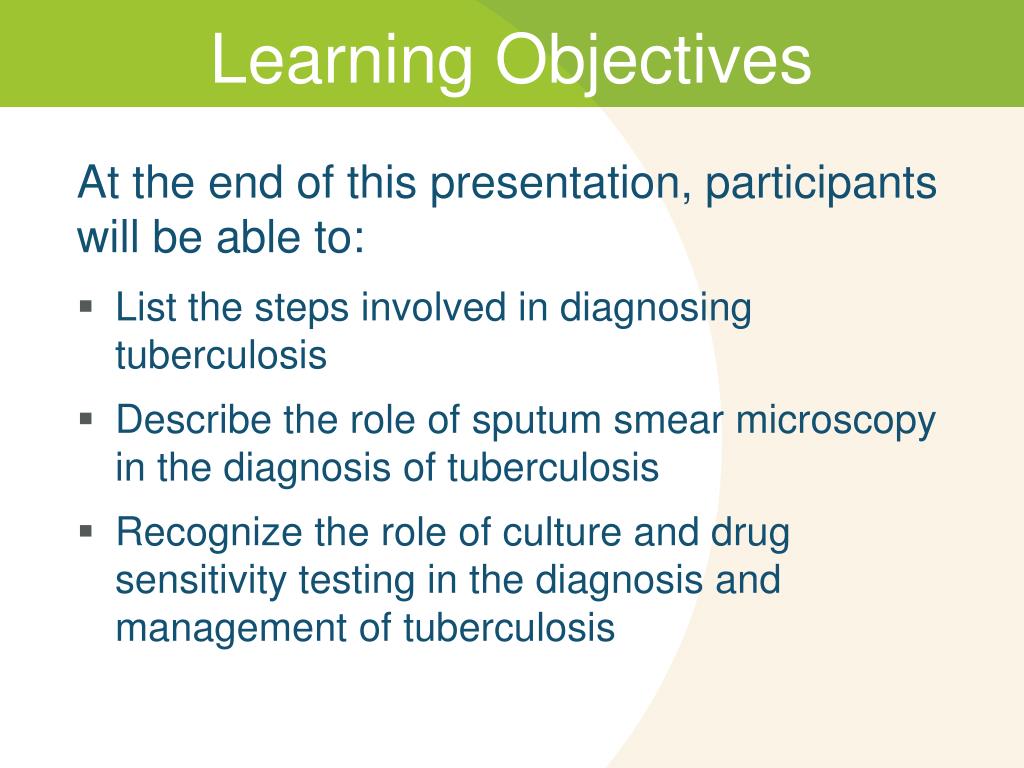

  4. Learning Objectives At the end of this presentation, participants will be able to: • List the steps involved in diagnosing tuberculosis • Describe the role of sputum smear microscopy in the diagnosis of tuberculosis • Recognize the role of culture and drug sensitivity testing in the diagnosis and management of tuberculosis

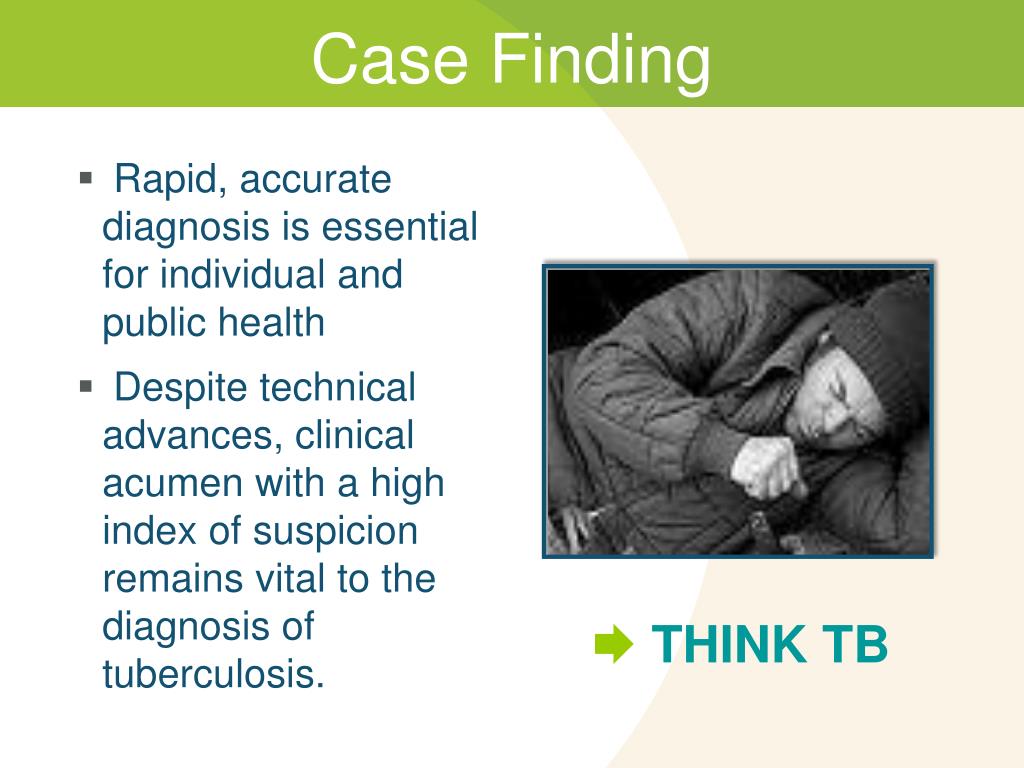

  5. Case Finding • Rapid, accurate diagnosis is essential for individual and public health • Despite technical advances, clinical acumen with a high index of suspicion remains vital to the diagnosis of tuberculosis.  Think TB

  6. Question Where can you conduct case finding activities?

  7. Opportunities for Case Finding • TB Chest Clinics • Hospitals (Public) • Public Health Clinics • Voluntary Counselling and Testing (VCT) clinics • Prevention of Mother to Child Transmission (PMTCT) clinics • Correctional facilities (prisons, jails) • Drug Rehab Centres • HIV Care facilities • Private medical clinics • Occupational Health facilities • Long term care facilities and shelters

  8. Steps in Diagnosing TB • Medical History • Bacteriologic examination • Drug Susceptibility Testing • Radiographic exam • Other examinations based on site(s)/location(s) involved

  9. Medical History • Known exposure to a person with infectious pulmonary TB • Symptoms of TB disease and approximate date symptoms started • Previous treatment for latent TB infection or active TB disease • Other medical conditions that might affect treatment approach

  10. Question What are the signs and symptoms of tuberculosis?

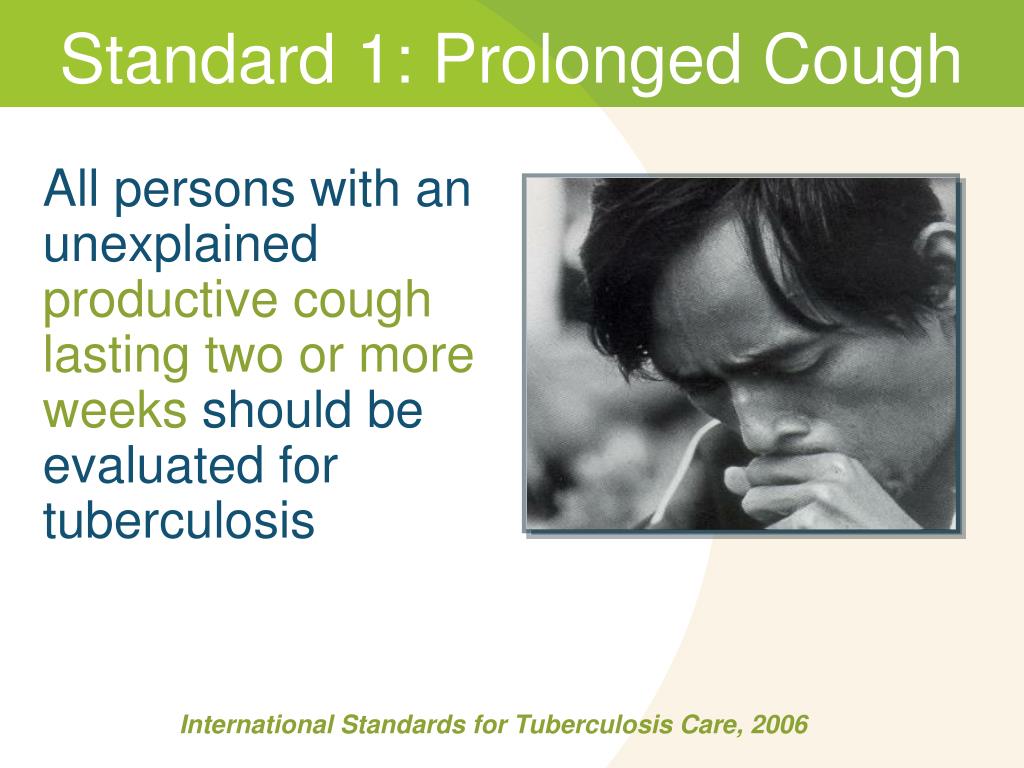

  11. Standard 1: Prolonged Cough All persons with an unexplained productivecough lasting two or moreweeks should be evaluated for tuberculosis International Standards for Tuberculosis Care, 2006

  12. Prolonged Cough Think TB: Prolonged Cough (2 or more weeks) • Cough may not be specific for TB, however, long duration raises the likelihood of TB diagnosis • Is criterion for suspecting TB in most national and international guidelines • The likelihood of AFB smear-positive sputum increases with increasing duration of cough Will not catch all TB cases; use best clinical judgment

  13. “Classic” TB Clinical Presentation • Subtle onset and chronic course • Chest symptoms • Cough (usually productive) • Hemoptysis • Chest pain (usually pleuritic) • Nonspecific constitutional symptoms • Extrapulmonary symptoms (if involved)

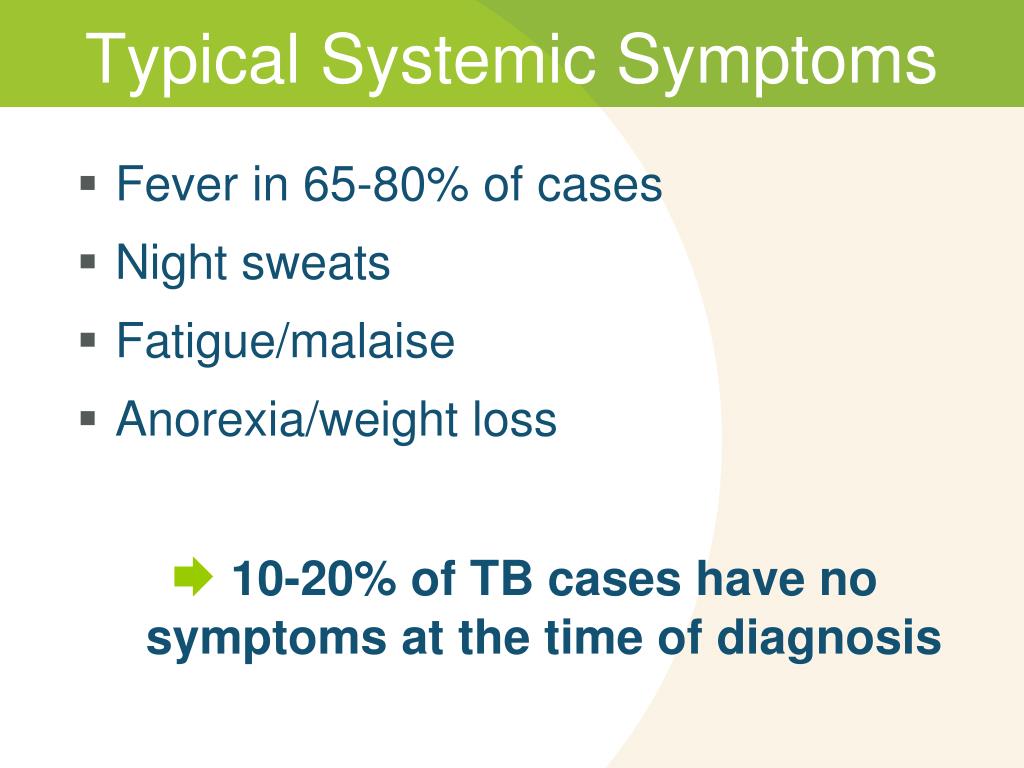

  14. Typical Systemic Symptoms • Fever in 65-80% of cases • Night sweats • Fatigue/malaise • Anorexia/weight loss  10-20% of TB cases have no symptoms at the time of diagnosis

  15. Clinical Presentation Physical Examination (PE): • May be normal in mild–moderate disease • Lungs: rales, rhonchi; absent breath sounds and dullness to percussion if pleural fluid is present • Extrapulmonary (site specific): adenopathy, skin lesions, bone tenderness, neck stiffness, etc. The PE is most useful when assessing for non-pulmonary sites of TB

  16. Bacteriologic Examination

  17. Standard 2: Sputum Microscopy All patients suspected of having pulmonary TB who can produce sputum should have at least two sputum specimens obtained for microscopic examination. When possible, at least one early morning specimen should be obtained. International Standards for Tuberculosis Care, 2006

  18. Sputum Microscopy • To confirm a diagnosis of TB, every effort must be made to identify the causative agent • TheAFB smearin high-prevalence areas is: • Highly specific for TB • Most rapid method for determining TB diagnosis • Identifies those at greatest risk of dying from TB • Identifies those most likely to transmit disease

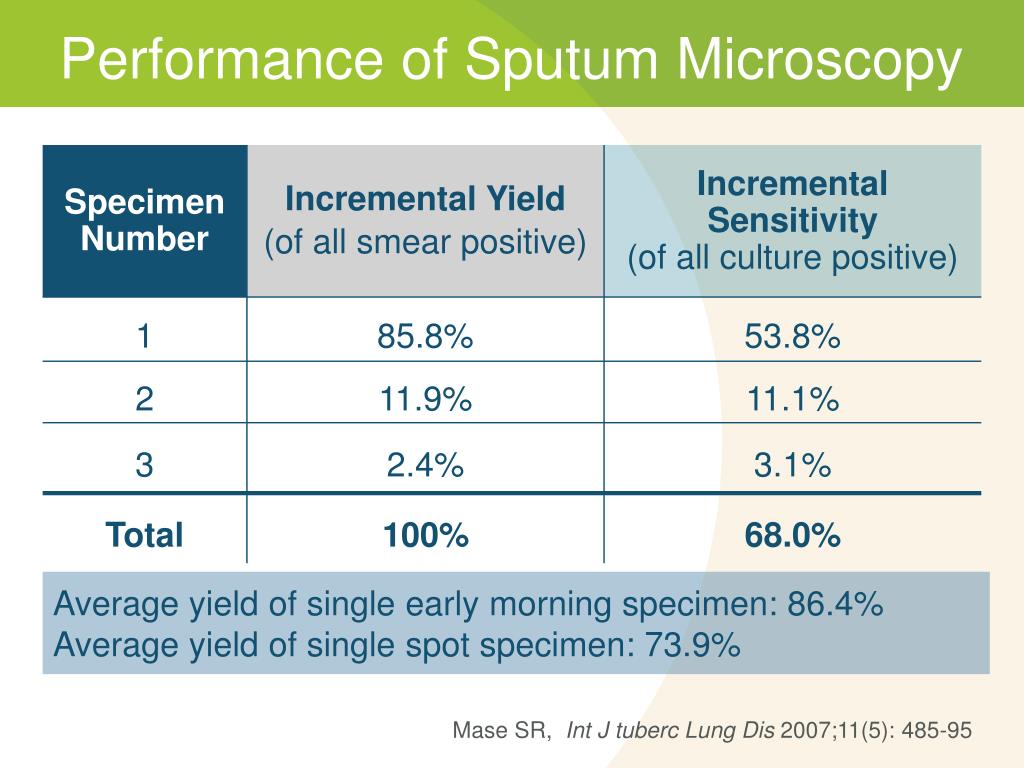

  19. Performance of Sputum Microscopy Average yield of single earlymorning specimen: 86.4% Average yield of single spot specimen: 73.9% Mase SR, Int J tuberc Lung Dis 2007;11(5): 485-95

  20. Culture and Drug Susceptibility Testing Obtaining culture and drug susceptibility testing (DST) offers significant advantages in the diagnosis and management of TB: • Increases case detection • Earlier diagnosis • Identification of drug resistance

  21. Culture: Advantages • Higher sensitivity than smear microscopy (culture can make diagnosis despite fewer bacilli in specimen) • If TB disease is suspected and sputum smears are negative, culture may provide diagnosis • Allows for identification of mycobacterial species • Allows for drug susceptibility testing

  22. Culture: Disadvantages • Cost • Technical complexity • May take weeks to get results • Requires ongoing quality assurance • Therefore, culture testing is more likely to be found in major referral centers. Avoid delaying appropriate TB treatment in suspicious cases while awaiting results.

  23. Case 1 • A 32 year old man presents to the clinic with complaint of cough x 1 month. He is not severely ill and can be evaluated in an ambulatory setting Questions: • What other history do you ask him about? • What other signs will you look for during your examination to aide in diagnosis?

  24. Case 1 (2) • Patient gives further history of feeling poorly for several months now; reports weight loss (about 3-4kg) and cough has gotten progressively worse. Patient denies smoking. His brother was treated for tuberculosis last year. Patient was not evaluated for TB at that time. Question: • What laboratory tests would do you order?

  25. Case 1 (3) • Among the results you receive, one of three sputum smears is positive for acid fast bacilli (AFB) on direct microscopy. Question: • What would you do next?

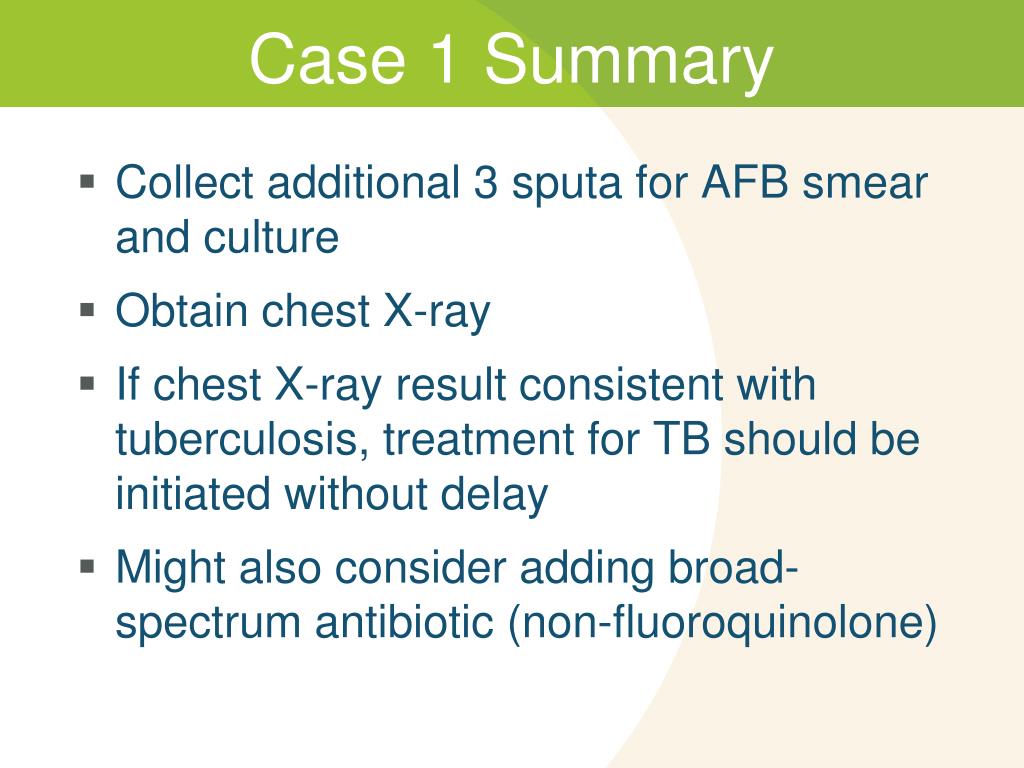

  26. Case 1 Summary • Collect additional 3 sputa for AFB smear and culture • Obtain chest X-ray • If chest X-ray result consistent with tuberculosis, treatment for TB should be initiated without delay • Might also consider adding broad-spectrum antibiotic (non-fluoroquinolone)

  27. Standard 3: Extrapulmonary Specimens For all patients suspected of having extrapulmonary TB, appropriate specimens from the suspected sites of involvement should be obtained for microscopy. Where facilities and resources are available, specimen should also be sent for culture and histopathological examination. International Standards for Tuberculosis Care, 2006

  28. Clinical Presentation: Extrapulmonary • Incidence/site may vary  TB can involve any organ • More common in HIV/TB (co-infection) Both, 9% Lymphatic, 42% Pleural, 18% Extrapulmonary, 21% Other, 12% Pulmonary, 70% Bone/joint, 11% Genitourinary, 5% TB Cases by Form of Disease, United States, CDC, 2005 Peritoneal, 6% Meningeal, 6%

  29. Extrapulmonary Tuberculosis

  30. Radiographic Examination

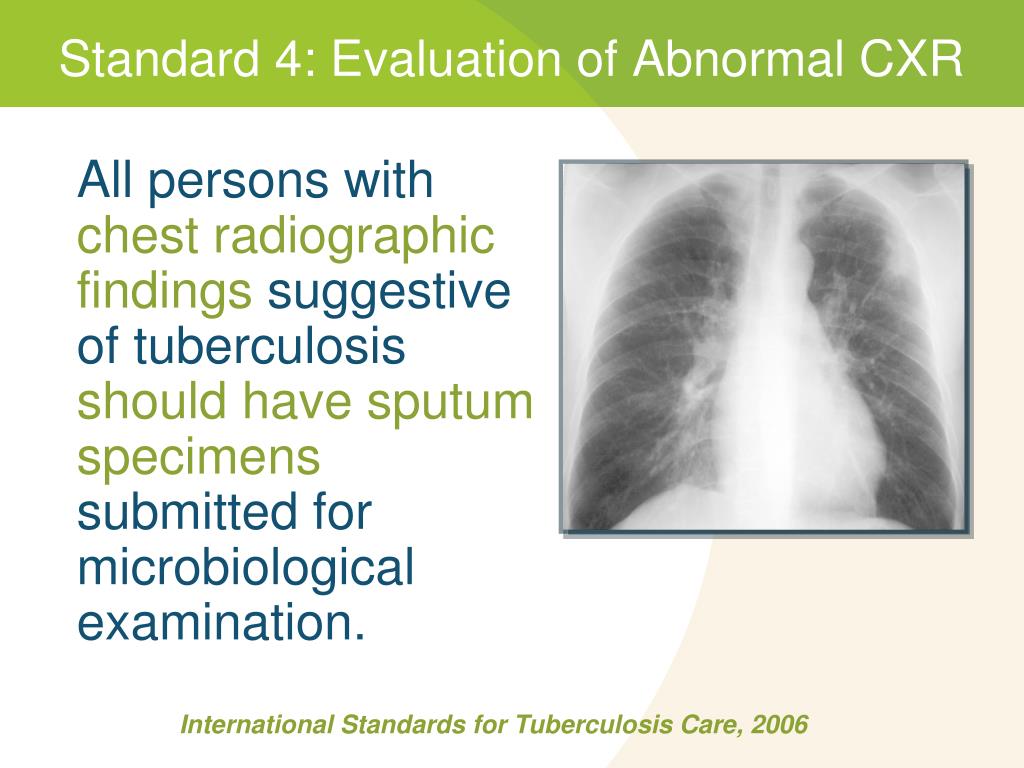

  31. Standard 4: Evaluation of Abnormal CXR All persons with chest radiographic findings suggestive of tuberculosis should have sputum specimens submitted for microbiological examination. International Standards for Tuberculosis Care, 2006

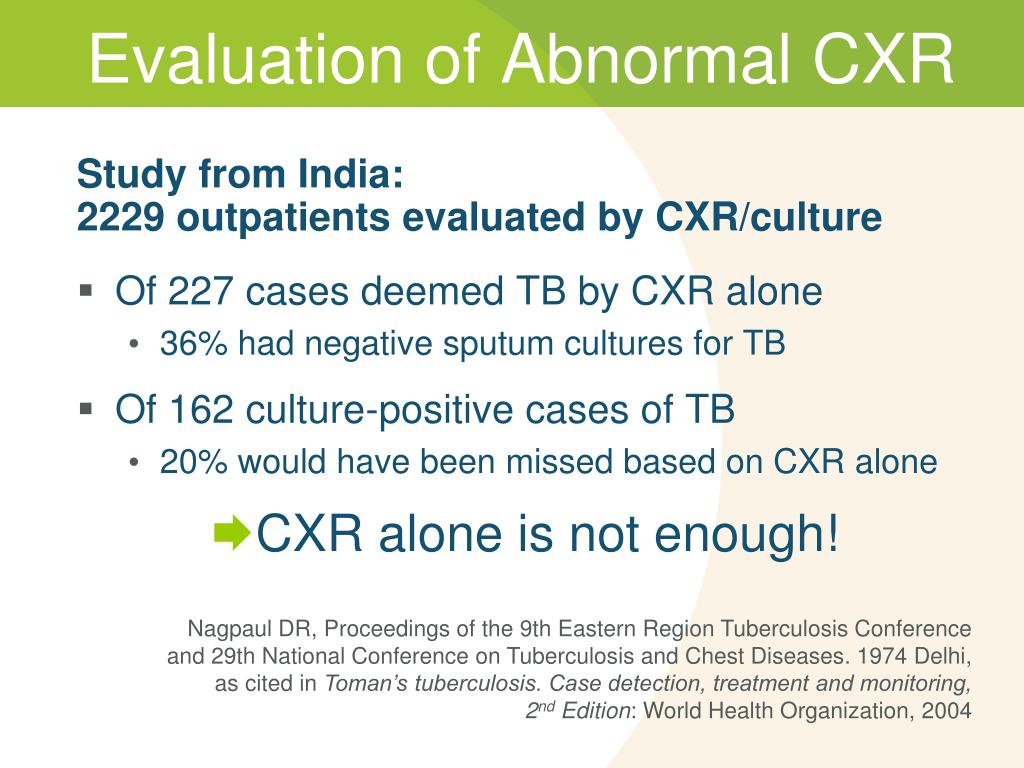

  32. Evaluation of Abnormal CXR Study from India: 2229 outpatients evaluated by CXR/culture • Of 227 cases deemed TB by CXR alone • 36% had negative sputum cultures for TB • Of 162 culture-positive cases of TB • 20% would have been missed based on CXR alone CXR alone is not enough! Nagpaul DR, Proceedings of the 9th Eastern Region Tuberculosis Conference and 29th National Conference on Tuberculosis and Chest Diseases. 1974 Delhi, as cited in Toman’s tuberculosis. Case detection, treatment and monitoring, 2nd Edition: World Health Organization, 2004

  33. Chest Radiography Purpose: • Provides additional evidence to aide in diagnosis of TB disease when only 1 sputum smear is positive • Check for lung abnormalities in people who have symptoms of TB; especially in those with HIV co-infection • Evaluate and rule out TB disease in persons with a newly positive tuberculin skin test (Mantoux) Chest X-ray alone cannot confirm TB disease

  34. Chest Radiography (2) Chest X-ray findings suggestive of active PTB disease include: • Acute upper lobe pneumonia • Unresolving pneumonia • Cavitation, cavitary lesion • Pleurisy, pleural effusion • Lung infiltrate, especially in upper lung zones • Hilar node enlargement or adenopathy International Standards for Tuberculosis Care, 2006

  35. Chest Radiography (3) Chest X-ray findings suggestive of previous or presumed inactive PTBinclude: • Apical fibrosis • Upper lobe fibronodular abnormality • Pleural calcification • Upper lung zone bronchiectasis • Thoracoplasty or partial pneumonectomy • Healed primary lesion (Ghon focus/complex)

  36. Can this be TB?

  37. Can this be TB? Miliary TB

  38. Can this be TB? 54-year-old man with three months of focal low-back pain

  39. Can this be TB? Extrapulmonary • “Pott’s disease” • Signs and symptoms of extrapulmonary TB are site specific • Sampling of extrapulmonary sites for smear, culture, and histopathology may confirm diagnosis 54-year-old man with three months of focal low-back pain

  40. Sputum Smear-Negative Patient Criteria for diagnosis: • At least 3 negative sputum smears • Cultures must be attempted • Chest X-ray consistent with TB • Lack of response to broad-spectrum (non-fluoroquinolone) antibiotic

  41. Standard 5: Smear-negative Diagnosis The diagnosis of sputum smear-negative PTB should be based on the following criteria: • At least three negative sputum smears (including at least one early morning specimen) • Chest radiography findings consistent with TB • Lack of response to a trial of broad-spectrum anti-microbial agents (avoid use of fluoroquinolone) For such patients, if facilities for culture are available, sputum cultures should be obtained. In persons with known or suspected HIV infection, the diagnostic evaluation should be expedited. International Standards for Tuberculosis Care, 2006

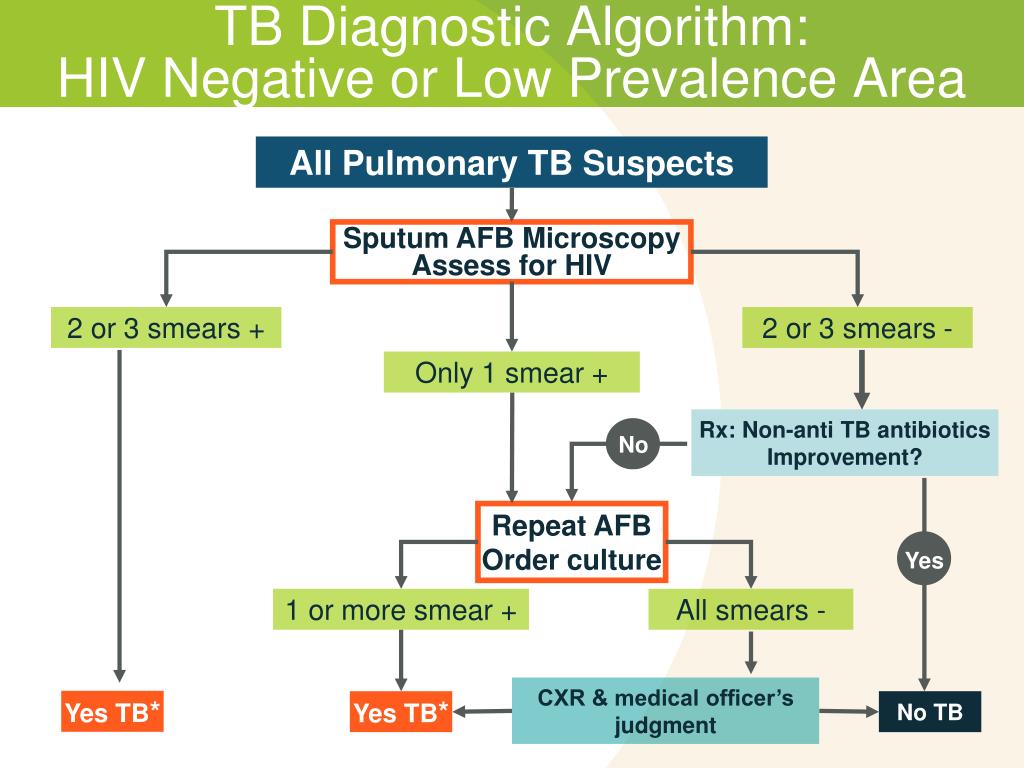

  42. TB Diagnostic Algorithm:HIV Negative or Low Prevalence Area All Pulmonary TB Suspects Sputum AFB Microscopy Assess for HIV 2 or 3 smears + 2 or 3 smears - Only 1 smear + Rx: Non-anti TB antibiotics Improvement? No Repeat AFB Order culture Yes 1 or more smear + All smears - CXR & medical officer’s judgment Yes TB* Yes TB* No TB

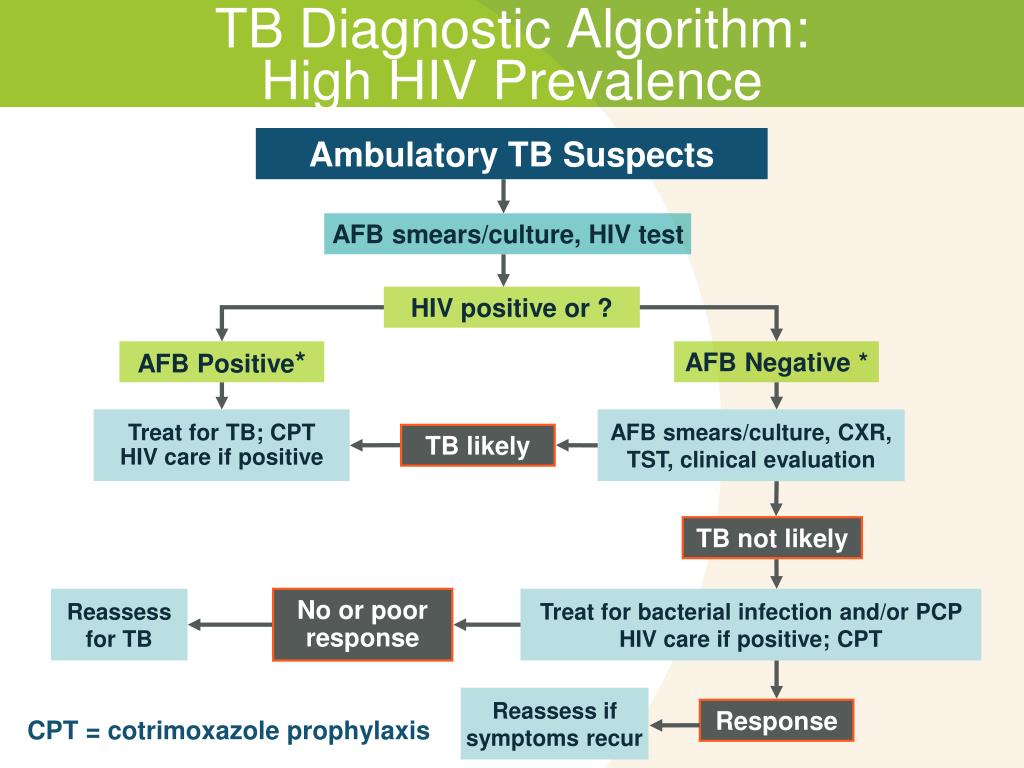

  43. TB Diagnostic Algorithm:High HIV Prevalence Ambulatory TB Suspects AFB smears/culture, HIV test HIV positive or ? AFB Positive* AFB Negative * Treat for TB; CPT HIV care if positive AFB smears/culture, CXR, TST, clinical evaluation TB likely TB not likely Reassess for TB No or poor response Treat for bacterial infection and/or PCP HIV care if positive; CPT Reassess if symptoms recur Response CPT = cotrimoxazole prophylaxis

  44. Clinical Presentation and Diagnosis of TB Remember: • Symptoms/severity (can be)none to overwhelming • Tempo of illness: ranges from indolent to fast • TB can involve any organ or tissue • Signs/symptoms may be both local and systemic • Consider HIV testing in the diagnostic evaluation TB is capable of presenting in many ways

  45. Can this be TB?

  46. Can this be TB? • Distribution: Any lobe involved (slight lower lobe predominance) • Air-space consolidation • Cavitation is uncommon (< 10%) • Adenopathy is common (esp. in children and HIV) • Miliary pattern Atypical pattern: Primary TB

  47. Clinical Presentation and Diagnosis of TB Summary: • A prolonged duration of cough should raise TB suspicion and trigger a diagnostic evaluation • TB risk factors and exposure increase level of suspicion • AFB smear in high-prevalence areas is highly specific and most rapid tool for diagnosing TB • Radiographic patterns may help in TB diagnosis if suspicion high and AFB smear is negative, but a radiograph alone is not enough to make diagnosis

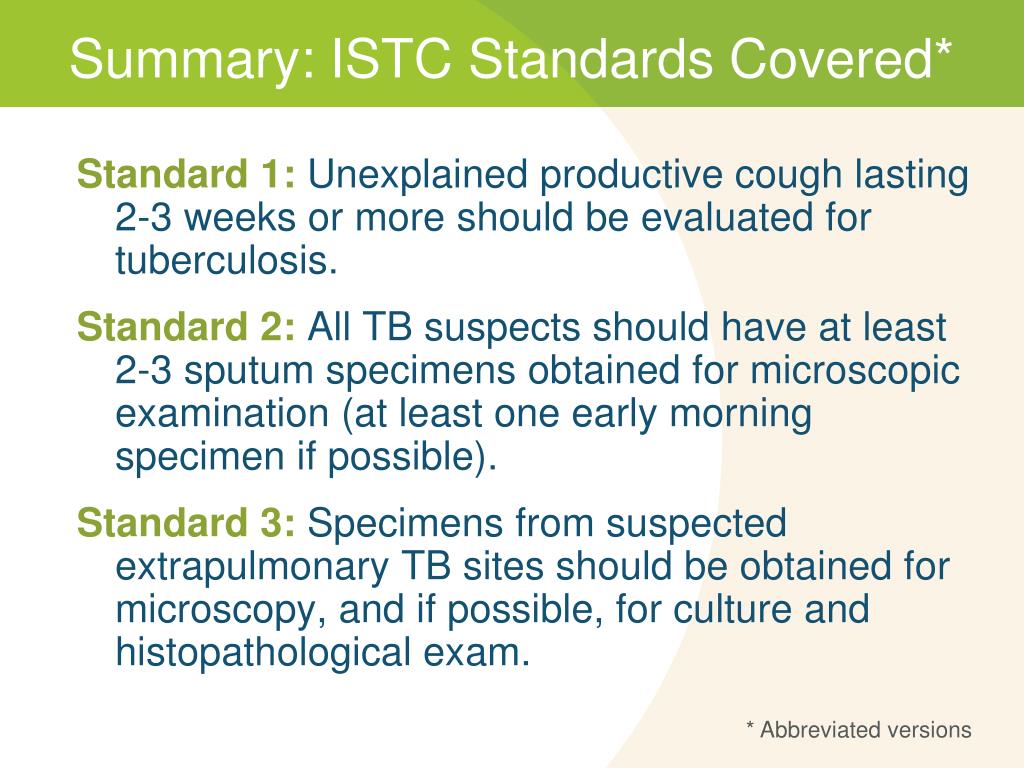

  48. Summary: ISTC Standards Covered* Standard 1: Unexplained productive cough lasting 2-3 weeks or more should be evaluated for tuberculosis. Standard 2: All TB suspects should have at least 2-3 sputum specimens obtained for microscopic examination (at least one early morning specimen if possible). Standard 3: Specimens from suspected extrapulmonary TB sites should be obtained for microscopy, and if possible, for culture and histopathological exam. * Abbreviated versions

  49. Summary: ISTC Standards Covered* Standard 4: All persons with chest radiographic findings suggestive of TB should have sputum specimens submitted for microbiological examination. Standard 5: The diagnosis of smear-negative pulmonary TB should be based on the following: at least two negative sputum smears (including at least one early morning specimen); CXR finding consistent with TB; and lack of response to broad-spectrum antibiotics (avoid fluoroquinolones). Obtain cultures as available.  Think TB * Abbreviated versions

  50. Additional Cases
