  1. Open Fabrics BOFSupercomputing 2009 Tziporet Koren, Gilad Shainer, Yiftah Shahar, Stan Smith Hal Rosenstock, Jeff Squyres, DK Panda, Bob Woodruff, Betsy Zeller Rev. 1.0

  2. Agenda • Open Fabrics Linux Update (15 – minutes) • OFED 1.4.1, 1.4.2, and OFED 1.5 releases • OFED 1.6 plans and roadmap • Open Fabrics Windows Update (15 – minutes) • WinOF 2.1 release • WinOF 2.2 plans and roadmap • Open Discussion – 60 minutes • OFED scalability, should we have a scalability roadmap? • Should we be including MPIs in the OFED releases? • OFA solutions for Ethernet clusters for HPC • Questions and feedback from the community

  3. Linux: OFED Components HCA/NIC Drivers IB: IBM, Mellanox, QLogic iWARP: Chelsio, Intel Core: Verbs, mad, SMA, CMA, SA cache IPoIB SDP SRP and SRP Target iSER RDS Qlogic_VNIC uDAPL OSM Diagnostic tools iSER Target NFS-RDMA OFA Development Add on • Bonding module • Open iSCSI • MPI Components • MVAPICH • Open MPI • MVAPICH2 • Benchmark tests • Proprietary MPIs: Intel, HP, Platform mpi • Proprietary SMs: Sun, Voltaire, Qlogic, Mellanox Tested with

  4. Update from Sonoma ’09 Session Progress: Provide user space components in tarballs according to distros requests

  5. OFED 1.4.1 – Released May 2009 New features Added support for RHEL 5.3 and SLES11 NFS/RDMA: In beta quality with support for RHEL 5.2, 5.3 and SLES 10 SP2 Updated MPI packages: MVAPICH 1.1.0-3355, Open MPI 1.3.2 Updated bonding package: ib-bonding-0.9.0-40 Updated DAPL: compat-dapl-1.2.14 and dapl-2.0.19 Updated OpenSM version to include critical bug fixes Fixed RDS iWARP support Low level drivers updated: ehca, mlx4, cxgb3, nes, ipath, mthca Added a module parameter to control number of MTTs per segment in Mellanox HCAs (mlx4 & mthca) mstflint update Enhanced OpenSM and management tools, user interface, HA, routing enhancements, much more, too much to list… details in the backup slides

  6. OFED 1.4.2 – Released August 2009 New features Critical bug fixes only Fixes to NES (Intel iWarp) driver Fixes to support running with Lustre installed NFS/RDMA critical bug fixes Minimal QA Thus, recommended only for people hitting these critical bugs

  7. OFED 1.5 – Release December 2009 New features Added support for RedHat EL5.4 and EL4.8 and SLES 10 SP 3 Added support for kernel.org 2.6.29 and 2.6.30 uDAPL scalability enhancements, new UCM provider Hardware driver for new Qlogic QDR HCA All user space packages released as tar balls for easier distro integration MVAPICH2 1.4 OpenMPI 1.3.3 Several new enhancements to OpenSM and management tools for improved scalability, performance, QoS, routing, etc. (see backup slides for details) Bug fixes SDP Zero Copy, and other performance improvements OFED 1.5-RDMAoE Branch Experimental branch of OFED-1.5 that also includes support for Mellanox RDMAoE For those that want to try out this new technology Open Fabrics board has voted to include this code in OFED/WinOF Which release should it go into ?OFED-1.5 ? or wait till the code is accepted upstream and there is a standard spec ?

  8. OFED 1.5 OS Matrix List of Supported Kernels for OFED 1.5 RHEL4: up6, up7, up8 RHEL5: up2, up3, up4 SLES10: SP2, SP3 SLES 11 Fedora Core 11* OpenSuSE 11* Kernel.org: 2.6.18-2.6.30 * minimal QA for these versions.

  9. OFED 1.6 Plans Preliminary Schedule Release at Nov 2010 Detailed schedule will be derivative from the above Preliminary Feature List: Kernel.org: 2.6.33 and 2.6.34 SRIOV support Mellanox Vnic for BridgeX MMU notification for MPI (if accepted by the kernel) New HW from vendors (if any) RDMAoE (if not already in an earlier release)

  10. OFED 1.6 OS Matrix kernel.org: kernel 2.6.33 and 2.6.34 RHEL4: up6,up7, up8 (maybe drop at all if RHEL 6 is out – lets talk in meeting) RHEL5: up2, up3, up4, up5 RHEL6 SLES10: SP2, SP3, SP4 SLES 11: SP1 Fedora Core: latest OpenSuSE: latest • new for OFED 1.6 in bold • drop support for items in blue

  11. Agenda • Open Fabrics Linux Update (15 – minutes) • OFED 1.4.1, 1.4.2, and OFED 1.5 releases • OFED 1.6 plans and roadmap • Open Fabrics Windows Update (15 – minutes) • WinOF 2.1 release • WinOF 2.2 plans and roadmap • Open Discussion – 60 minutes • OFED scalability, should we have a scalability roadmap? • Should we be including MPIs in the OFED releases? • OFA solutions for Ethernet clusters for HPC • Questions and feedback from the community

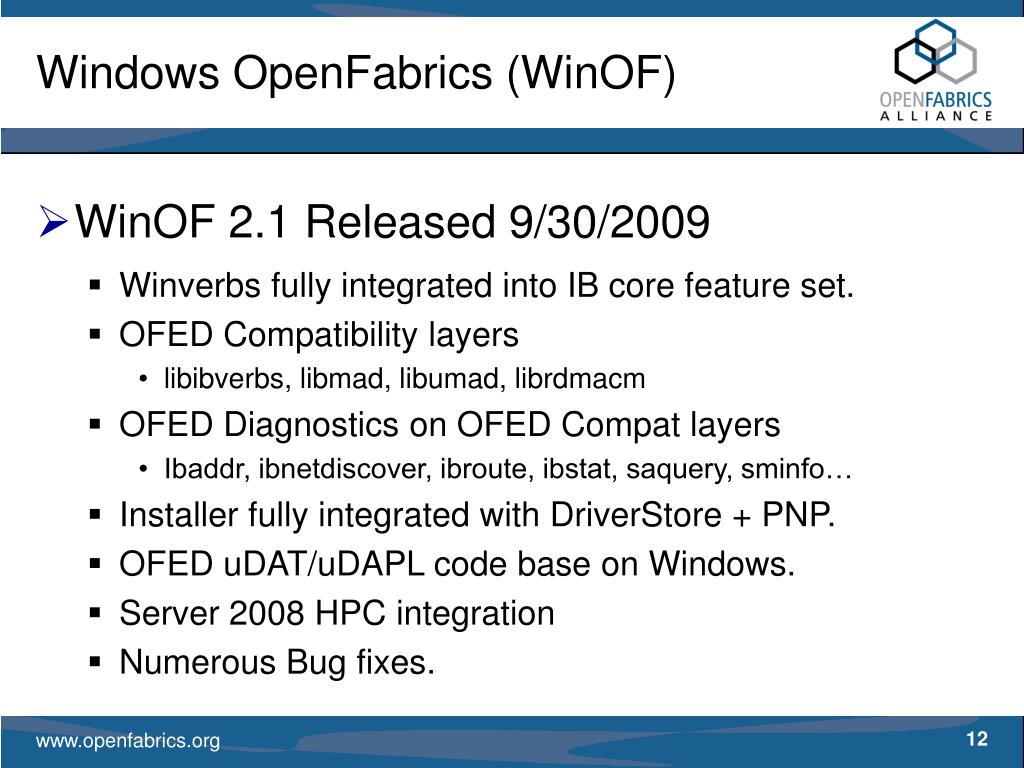

  12. Windows OpenFabrics (WinOF) • WinOF 2.1 Released 9/30/2009 • Winverbs fully integrated into IB core feature set. • OFED Compatibility layers • libibverbs, libmad, libumad, librdmacm • OFED Diagnostics on OFED Compat layers • Ibaddr, ibnetdiscover, ibroute, ibstat, saquery, sminfo… • Installer fully integrated with DriverStore + PNP. • OFED uDAT/uDAPL code base on Windows. • Server 2008 HPC integration • Numerous Bug fixes.

  13. WinOF Roadmap • WinOF 2.2 • Release target Q1’2010, freeze in Q4’09 • Features: • Windows 7 & Server 2008 R2 fully supported. • NDIS 6.0 IPoIB driver based on WHQL’ed source. • OpenSM 3.3.3 (WinOF 2.1 @ 3.0.0 ~OFED 1.2+). • SRP multi-path fixes. • WinOF 2.3 • Release target Q4’2010, freeze early Q4’2010 • Connected Mode IPoIB.

  14. Agenda • Open Fabrics Linux Update (15 – minutes) • OFED 1.4.1, 1.4.2, and OFED 1.5 releases • OFED 1.6 plans and roadmap • Open Fabrics Windows Update (15 – minutes) • WinOF 2.1 release • WinOF 2.2 plans and roadmap • Open Discussion – 60 minutes • OFED scalability, should we have a scalability roadmap? • Should we be including MPIs in the OFED releases? • OFA solutions for Ethernet clusters for HPC • Questions and feedback from the community

  15. OFA Scalability • Challenges and Goals • Infrastructure Scalability • ULPs/Apps Scalability • Possible Improvements

  16. Challenges and Goals • Scale out to 10K-20K or more nodes • Performance • Reliability • Sometimes hard to differentiate feature from scalability • Focus additional attention/resources on issues • Get ready for more detailed discussion at Sonoma

  17. Infrastructure Scalability/Features • Improved multicore affinity/awareness/support • Binding to specific hw threads in a core • e.g. http://arstechnica.com/hardware/news/2009/09/ibms-8-core-power7-twice-the-muscle-half-the-transistors.ars • Interrupt distribution • Binding HCAs/RNICs to numa nodes • Multicast • Reliable multicast • New IBTA optional feature • Better UD multicast performance • Small message mcast latency, with just two members in the mcast group, is 2x to 3x that of unicast latency between the same pair • Flow control for SRQ • New IBTA optional feature • CM extension

  18. Infrastructure Scalability/Features • Fault tolerance • Application transparent fault detection, isolation, recovery • Multiple HCAs/NICs with transparent failover • IB monitoring • Performance counters, throughput, hotspots, degraded links • This is IB's Achilles' heel... • Need much better monitoring tools discover congestion, bottlenecks • Adaptive routing • HCA out-of-order delivery • Switch logic for state info & adaptive algorithm, etc.

  19. Infrastructure Scalability • SA aspects • Primarily PathRecord • OpenSM • SA client • RDMA CM • Resolve route • ARP query scalability • Resolve address • SA PathRecord query scalability

  20. Infrastructure Scalability • CM • Higher abstraction model • Current APIs are cumbersome & difficult to use • OpenSM • Stateful failover • Replication • Eliminate client re-registration • Congestion manager

  21. Possible Infrastructure Improvements • Adaptive MAD retransmission • Better duplicate transaction handling by SA (and MAD ?) • SA scalability in terms of PathRecord responses • More parallelization • Shadow DB ? • SA distribution beyond node • Tunable retry mechanism for various components • RDMA CM API addition and ACM (Assistant to the IB CM) • Does this address higher abstraction model requested ?

  22. Possible ULPs/Apps Improvements • MPI • Don’t query PathRecords per core • Hardware collective support • Common API • Reliable multicast • ummunotify • BoIB (Boot over IB) • SM improvements for handling non responsive SMAs as node transitions from boot ROM to kernel • infiniband as boot interface without ethernet suspenders • Bonding • Load balancing • Not just active/standby (failover) • DHCP • Use raw (mmap) rather than BSD socket interface due to inadequate performance • Others ?

  23. Agenda • Open Fabrics Linux Update (15 – minutes) • OFED 1.4.1, 1.4.2, and OFED 1.5 releases • OFED 1.6 plans and roadmap • Open Fabrics Windows Update (15 – minutes) • WinOF 2.1 release • WinOF 2.2 plans and roadmap • Open Discussion – 60 minutes • OFED scalability, should we have a scalability roadmap? • Should we be including MPIs in the OFED releases? • OFA solutions for Ethernet clusters for HPC • Questions and feedback from the community

  24. MPI Distribution in OFED: Rationale Open source MPI’s initially included to “bootstrap” the OFED project MPI was the main user for OFED, so this seemed like a natural pairing Made it (significantly) easier for customers to get their MPI jobs running on InfiniBand Also necessary for political buy-in: unify under one, standard verbs API (vs. different MVAPI stacks) QA testing of MPI + OFED is still extremely valuable This is not a discussion of removing MPI + OFED QA

  25. MPI Distribution in OFED: Pros MPI is still the most common OFED “customer” HPC customers get network stack + MPI in one package Helps rapid MPI deployment on new clusters (out-of-box) MPI-selector function allows to select MPI stack of choice during the installation Customers get QA assurance of specific MPI + OFED version tuples Helps to test multiple functionalities of the OFED stack and IB/iWARP fabric with comprehensive suite of MPI-level benchmarks

  26. MPI Distribution in OFED: Cons MPI’s have their own QA cycles MPI+OFED QA testing is more for OFED, not MPI Bundling induces project scheduling difficulties between OFED and various MPI packages RedHat and SuSE both say “Don’t do this!” They both already include the open source MPI’s Makes it more difficult for them to take OFED drops Many users will download the latest-n-greatest MPIs anyway – not the ones included in OFED

  27. Agenda • Open Fabrics Linux Update (15 – minutes) • OFED 1.4.1, 1.4.2, and OFED 1.5 releases • OFED 1.6 plans and roadmap • Open Fabrics Windows Update (15 – minutes) • WinOF 2.1 release • WinOF 2.2 plans and roadmap • Open Discussion – 60 minutes • OFED scalability, should we have a scalability roadmap? • Should we be including MPIs in the OFED releases? • OFA solutions for Ethernet clusters for HPC • Questions and feedback from the community

  28. OFA Solutions for Ethernet clusters for HPC • Would like to get some community feedback on success stories for building HPC clusters using Ethernet. • What works well ? • Things that need improvement to make it easier ? • Other ?

  29. Agenda • Open Fabrics Linux Update (15 – minutes) • OFED 1.4.1, 1.4.2, and OFED 1.5 releases • OFED 1.6 plans and roadmap • Open Fabrics Windows Update (15 – minutes) • WinOF 2.1 release • WinOF 2.2 plans and roadmap • Open Discussion – 60 minutes • OFED scalability, should we have a scalability roadmap? • Should we be including MPIs in the OFED releases? • OFA solutions for Ethernet clusters for HPC • Questions and feedback from the community

  30. Backup Slides

  31. Open SM – OFED 1.4.1 and 1.4.2 • Versions in OFED 1.4.2: • libibumad-1.3.1, libibmad-1.3.1, opensm-3.3.1, infiniband-diags-1.5.1 • User Interface: • Unified configuration file • Configuration reloading on the fly • Improved Plugin interface – multiple plugins are supported • Mlticast: Ipv6 Solicited Node consolidation • Better diagnostic tools (new - ibsendtrap) • HA: • OpenSM will query Standby SMs periodically • Standby OpenSM notifies Master SM about priority change (Trap 144)

  32. Open SM - OFED 1.4.2 Routing • Cached routing (- -R ftree,updn,minhop) • LMC improvements: • Preserve base LIDs routes • Ensure LMC paths balancing over different switches/chassis • Ordered paths balancing • Ports are sorted by switch loads • Port order file option (--guid_routing_order_file option) • Better LASH support: Mesh geometry analysis, Paths balancing over multiple links • General • Port IDs for Up/Down • Min hop weights • Connecting root nodes with Up/Down • Connecting IO nodes with FastTree

  33. Open SM - new features in OFED 1.5 QoS improvements • SL2VL setup optimization • QoS/LASH co-exist Major bug fix • MCG join/leave fixes • Clean delayed MCG deletion Scalability & performance • Optimized SL2VL setup • Parallel LFTs setup • Parallel MFTs setup Routing & multicast • FTree improvements • Routing engine reloading • Mesh switch reordering optimizations • MGID to MLID compression
