  1. 70-270, 70-290 MCSE/MCSA Guide to Installing and Managing Microsoft Windows XP Professional and Windows Server 2003 Chapter Twelve Implementing Terminal Services and Remote Access

  2. Objectives • Install and configure Terminal Services • Describe remote access features and protocols • Configure security features for remote access Guide to MCSE 70-270, 70-290

  3. Implementing Terminal Services • Terminal Services: Provides remote access to a server desktop • Through “thin client” software • Transmits only program’s user interface to client • Centralized control of applications • Remote Desktop for Administration: Enables administrators to connect to a server for administrative purposes • Disabled by default Guide to MCSE 70-270, 70-290

  4. Enabling Remote Desktop for Administration • Only need to change a single setting in System Properties dialog box • By default, Administrators group members can connect via Remote Desktop for Administration • Can grant other users access • Activity 12-1: Enabling and Testing Remote Desktop for Administration • Objective: Enable and test Remote Desktop for Administration Guide to MCSE 70-270, 70-290

  5. Enabling Remote Desktop for Administration (continued) Figure 12-1: The Remote tab of the System Properties dialog box Guide to MCSE 70-270, 70-290

  6. Enabling Remote Desktop for Administration (continued) Figure 12-2: Entering a user name, password, and domain name for Remote Desktop Connection Guide to MCSE 70-270, 70-290

  7. Implementing Terminal Services Table 12-1: Benefits of Terminal Services Guide to MCSE 70-270, 70-290

  8. Implementing Terminal Services (continued) • Terminal Services has 2 major components: • Terminal server: Computer on which Terminal Services installed • Enables users to remotely run Windows applications • License server: Computer on which Terminal Services Licensing service installed • Stores client access license (CAL) tokens for group of terminal servers • Tracks license tokens that have been issued • Implementing Terminal Services Licensing consists of installation and activation Guide to MCSE 70-270, 70-290

  9. Implementing Terminal Services (continued) • Installing Terminal Services on a Terminal Server: Installed from Control Panel’s Add or Remove Programs applet • Activity 12-2: Installing Terminal Services • Objective: Install Windows Server 2003 Terminal Services • Licensing Service Installation: Must be at least one license server on network for Terminal Services to obtain license information • Installing terminal server and Licensing service on same computer is acceptable, but possibly costly Guide to MCSE 70-270, 70-290

  10. Implementing Terminal Services (continued) Figure 12-4: The Terminal Services Licensing model Guide to MCSE 70-270, 70-290

  11. Implementing Terminal Services (continued) • Licensing Service Installation (continued): • Microsoft maintains Microsoft Certificate Authority and Licensing Clearinghouse to activate license servers and issue client license key packs • License servers support many types of licenses • Terminal Server Device Client Access Licenses • Terminal Server User Client Access Licenses • Can be installed on workgroup-based server, member server, or domain controller • Choice determines how and when terminal servers find a license server Guide to MCSE 70-270, 70-290

  12. Implementing Terminal Services (continued) • Licensing Service Activation: Use Activation Wizard in Terminal Services Licensing tool • Three connection methods: • Automatic connection (recommended) • Web Browser • Telephone • When license server activated, Microsoft supplies limited-use digital certificate to validate server ownership and identity • X.509 industry-standard certificate Guide to MCSE 70-270, 70-290

  13. Configuring and Managing Terminal Services • Three tools for Terminal Services administration: • Terminal Services Manager: Monitors and controls client access to terminal servers • Terminal Services Configuration: Configures terminal server settings and connections • Terminal Services Licensing: Stores and tracks Terminal Services client access licenses • Configuring Remote Connection Settings: Configure security and connection-related settings with Terminal Services Configuration tool Guide to MCSE 70-270, 70-290

  14. Configuring and Managing Terminal Services (continued) Figure 12-6: The Terminal Services Configuration window Guide to MCSE 70-270, 70-290

  15. Configuring and Managing Terminal Services (continued) • Each network interface in Terminal Services server can be configured with only one Remote Desktop Protocol (RDP) connection • Most important settings to be checked when configuring a Terminal Services connection are encryption and authentication • Available encryption options include: • Low • Client Compatible • High • FIPS Compliant Guide to MCSE 70-270, 70-290

  16. Configuring and Managing Terminal Services (continued) Table 12-3: Property settings for a Terminal Services connection Guide to MCSE 70-270, 70-290

  17. Configuring and Managing Terminal Services (continued) • Activity 12-3: Exploring Terminal Services Settings • Objective: Explore Terminal Services settings • Using Terminal Services Manager: View and manage terminal servers in Active Directory forest • Monitor users, sessions, and applications • Carry out administrative tasks • Three tabs in Terminal Services Manager Window: • Users, Sessions, and Processes Guide to MCSE 70-270, 70-290

  18. Configuring and Managing Terminal Services (continued) • Using Terminal Services Manager (continued): • Users tab: Name, connection time, state of user connection • Sessions tab: Displays user session information • Processes tab: Information about applications running in user’s session • Session types: • User • Consol • Listener • Idle Guide to MCSE 70-270, 70-290

  19. Configuring and Managing Terminal Services (continued) Table 12-4: Terminal Services Manager actions Guide to MCSE 70-270, 70-290

  20. Configuring and Managing Terminal Services (continued) Table 12-4 (continued): Terminal Services Manager actions Guide to MCSE 70-270, 70-290

  21. Terminal Services Client Software • After Terminal Services installed, client software packages automatically added to %systemroot%\System32\Clients\Tsclient\Win32 • Contains files for installing RDCsoftware • Client software provided as both MSI file and Win32 executable • Recommended installation method is to share %systemroot%\System32\Clients\Tsclient\Win32 folder • Initiate installation over network manually or via group policies for software deployment Guide to MCSE 70-270, 70-290

  22. Installing Applications • Applications must be installed in compatible mode for multiple users to access them simultaneously • Might need to reinstall some applications • On terminal server, software applications should be installed only in install mode Guide to MCSE 70-270, 70-290

  23. Configuring Terminal Services User Properties • Terminal Services adds four tabs to Properties dialog boxes of user accounts: • Terminal Services Profile: Enable user as Terminal Services client • Remote control: Configure remote control properties for user account • Sessions: Set max session time and disconnect options • Environment: Configure programs to run automatically when user connects Guide to MCSE 70-270, 70-290

  24. Troubleshooting Terminal Services • Tips/Guidelines for troubleshooting: • If user unable to log on, ensure client software settings correct and Allow logon to terminal server option set • If connection refused, ensure client meets server’s RDP encryption requirements • If all users unable to log on, ensure connection enabled • Each network interface can be configured with only one RDP connection to the network Guide to MCSE 70-270, 70-290

  25. Troubleshooting Terminal Services (continued) • Tips/Guidelines for troubleshooting (continued): • If several users require sessions on RDP connection, might need to increase number of sessions available • If applications don’t run, might need to relax application security settings • Must have administrative rights on terminal server to manage and troubleshoot Terminal Services Guide to MCSE 70-270, 70-290

  26. Implementing Remote Access • Remote access: Connecting to another computer or network using a public carrier • Useful when used with Terminal Services • Accomplished in two ways: • Direct dial-up • Virtual private network (VPN) over Internet Guide to MCSE 70-270, 70-290

  27. Dial-up Remote Access • Computers connect and transfer information using modems and a phone line • When connection created between dial-up client and server, modems act like NICs • Allowing client to access resources on network • Easy availability • Example: Accessing Internet by dialing into an ISP • IP Address Management: When clients connect to Windows Server 2003 remote access server, assigned an IP address • DHCP or static pool of IP addresses Guide to MCSE 70-270, 70-290

  28. Dial-up Remote Access (continued) Figure 12-16: Using DHCP for the IP address configuration of a remote access client Guide to MCSE 70-270, 70-290

  29. Dial-up Remote Access (continued) • Enabling and Configuring a Dial-up Server: Use Routing and Remote Access Service (RRAS) to enable and configure dial-up servers and clients • Must enable RRAS • Must configure Telephony Application Programming Interface (TAPI) • Must ensure modem(s) installed and properly configured • Enable RRAS for dial-up connections • Using the Routing and Remote Access snap-in in Windows Server 2003 Guide to MCSE 70-270, 70-290

  30. Dial-up Remote Access (continued) • Activity 12-4: Installing a Modem • Objective: Perform the steps necessary to install a modem on a Windows Server 2003 or XP system • Activity 12-5: Enabling RRAS as a Dial-up Server • Objective: Configure RRAS on your server to act as a dial-up server • Dial-up Security: User name and password are basis for remote access security • Only designated users allowed to connect Guide to MCSE 70-270, 70-290

  31. Dial-up Remote Access (continued) Figure 12-20: Dial-up security options Guide to MCSE 70-270, 70-290

  32. Dial-up Remote Access (continued) • Dial-up Protocols: Dial-up connections require different protocols than LAN connections • Serial Line Internet Protocol (SLIP): Rarely used • Point-to-Point Protocol (PPP): Used by default • Can automatically configure clients with IP address information • Can support multiple LAN protocols • Can provide for scripting logon processes • PPP Multilink Protocol (PPP-MP): Enables combination of multiple remote access links into one logical connection Guide to MCSE 70-270, 70-290

  33. Dial-up Remote Access (continued) • Dial-up Protocols (continued): • Both LAN and dial-up network protocols need to be considered when configuring Windows Server 2003 as a remote access server • Activity 12-6: Creating a Dial-up Connection • Objective: Configure your client to make a dial-up connection to an RRAS server Guide to MCSE 70-270, 70-290

  34. VPN Remote Access • Virtual private network (VPN): Creates private connection between two entities across Internet • Advantages over dial-up: • Ease of setup • Speed • Encryption • Requires protocol to create secure “tunnel” for delivering TCP/IP packets across Internet • Point-to-Point Tunneling Protocol (PPTP) • Layer Two Tunneling Protocol (L2TP) Guide to MCSE 70-270, 70-290

  35. VPN Remote Access (continued) Figure 12-22: Initiating a VPN connection across the Internet Guide to MCSE 70-270, 70-290

  36. VPN Remote Access (continued) • PPTP: Uses Microsoft Point-to-Point Encryption (MPPE) • Easy to configure • Works across NAT routers • Does not authenticate • L2TP: More secure than PPTP • Harder to configure • Works in conjunction with IPSec • Performs authentication • Limited support for traversing NAT routers Guide to MCSE 70-270, 70-290

  37. VPN Remote Access (continued) • IP Security (IPSec): Negotiates secure encrypted communications link between client and server • Through public and private encryption keys • Two modes: • Transport: Links between any two systems on network • Tunneling: Only links between two specific systems • IPSec policies govern how system communicates through TCP/IP • Three sample IPSec policies given by Windows XP: • Client (Respond Only), Server (Request Security), and Secure Server (Require Security) Guide to MCSE 70-270, 70-290

  38. VPN Remote Access (continued) • IP Security (continued): • Supports three types of authentication methods: • Kerberos version 5 (default and preferred) • Public key certificate • Preshared key (least secure) • Configuring a VPN Remote Access Server: Remote access server automatically configured for five PPTP ports and five L2TP ports • Activity 12-7: Configuring a Remote Access Server • Objective: Configure remote access server settings Guide to MCSE 70-270, 70-290

  39. VPN Remote Access (continued) Figure 12-23: Default VPN ports Guide to MCSE 70-270, 70-290

  40. VPN Remote Access (continued) Table 12-5: RRAS authentication methods Guide to MCSE 70-270, 70-290

  41. Remote Access Security • Allowing Remote Access to Windows XP: Via dial-in or VPN connection • User’s name must be added to Remote Desktop Users list • Remote Access Policies: Stored on each remote access server • Policies applied to users can vary depending on server to which user connects • Activity 12-8: Creating a Remote Access Policy • Objective: Create a new remote access policy on your remote access server Guide to MCSE 70-270, 70-290

  42. Remote Access Security (continued) • Activity 12-9: Creating a Client VPN Connection • Objective: Create a client VPN connection and then test it • Windows XP Internet Connection Firewall (ICF): Protect network connections from unwanted traffic • Stateful firewall • Configured by default to block most incoming traffic • Can configure to allow specific types of traffic without internal request Guide to MCSE 70-270, 70-290

  43. Remote Access Security (continued) Figure 12-32: The Services tab of the Advanced Settings dialog box Guide to MCSE 70-270, 70-290

  44. Remote Access Security (continued) • ICF (continued): • Can log dropped traffic • Activity 12-10: Configuring ICF • Objective: Configure a dial-up network connection (Internet) as a firewall Guide to MCSE 70-270, 70-290

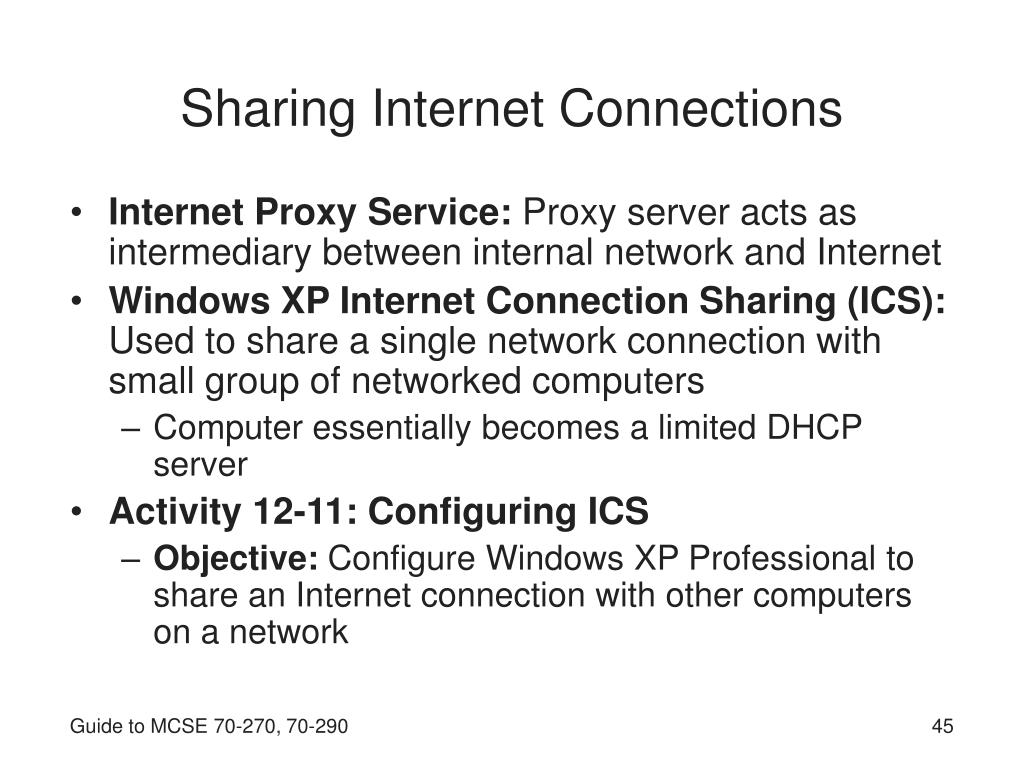

  45. Sharing Internet Connections • Internet Proxy Service: Proxy server acts as intermediary between internal network and Internet • Windows XP Internet Connection Sharing (ICS): Used to share a single network connection with small group of networked computers • Computer essentially becomes a limited DHCP server • Activity 12-11: Configuring ICS • Objective: Configure Windows XP Professional to share an Internet connection with other computers on a network Guide to MCSE 70-270, 70-290

  46. Sharing Internet Connections (continued) Figure 12-36: Using a proxy server Guide to MCSE 70-270, 70-290

  47. Sharing Internet Connections (continued) • Configuring ICS: • On-demand dialing • Define internal services accessible to external users • By default, allows access to L2TP,PPTP, and IKE (IPSec) resources • Can enable access to other resources • Do not use on networks with domain controllers, DNS servers, gateway systems, DHCP servers, or with clients that must have static IP addresses Guide to MCSE 70-270, 70-290

  48. Sharing Internet Connections (continued) • Configuring ICS (continued): • ICS Troubleshooting Tasks: • Verify connection is active and functioning • Verify communication from other clients can access your system over the network • Make sure computer hosting ICS has IP address of 192.168.1.1 with mask of 255.255.255.0 • Ensure ICS client computers set to automatically obtain IP address information Guide to MCSE 70-270, 70-290

  49. Windows Server 2003 Network Address Translation (NAT) Figure 12-38: NAT routing Guide to MCSE 70-270, 70-290

  50. Summary • Terminal Services is a Windows Server 2003 feature that allows users to connect to and run applications on a Windows Server 2003 system from their desktops as though they were sitting at the server console • Remote Desktop for Administration is a Windows Server 2003 feature that allows an administrator to connect to servers remotely for administrative purposes • Terminal Services requires that the Licensing service be installed and activated Guide to MCSE 70-270, 70-290
