  1. Comm Operator Tutorial How to send the same data at fixed interval time automatically Serial Port Tool http://www.serialporttool.com

  2. Task Send the same data at fixed interval time automatically. Sample: Send data ’254 24’ every 5 seconds.

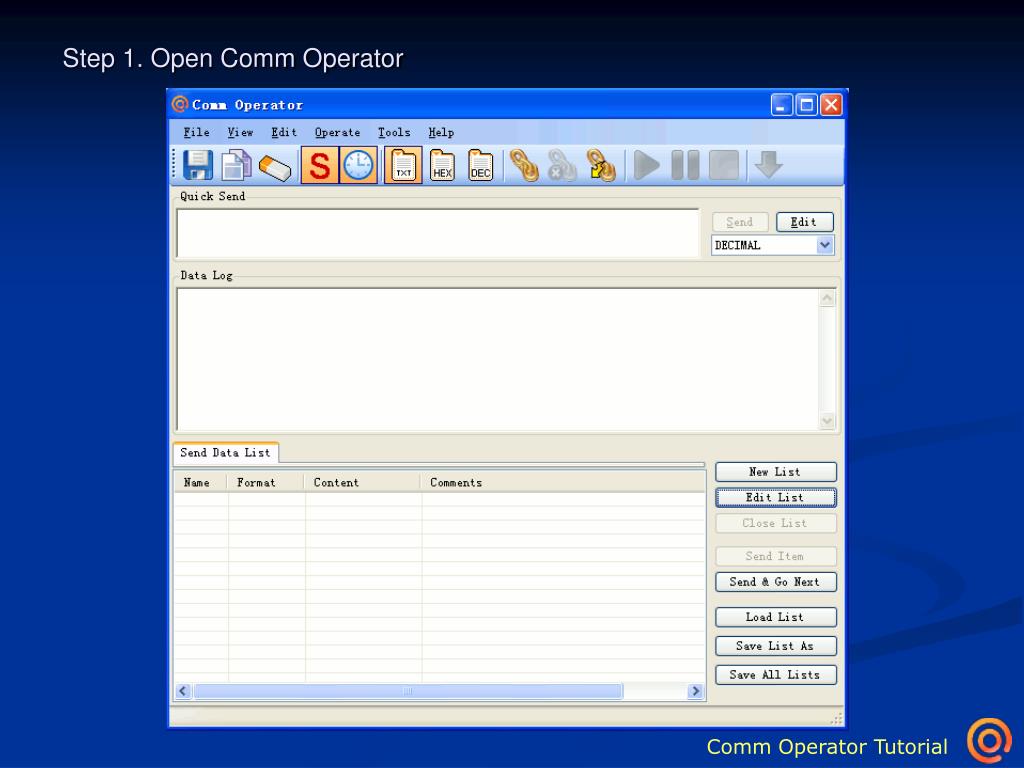

  3. Step 1. Open Comm Operator

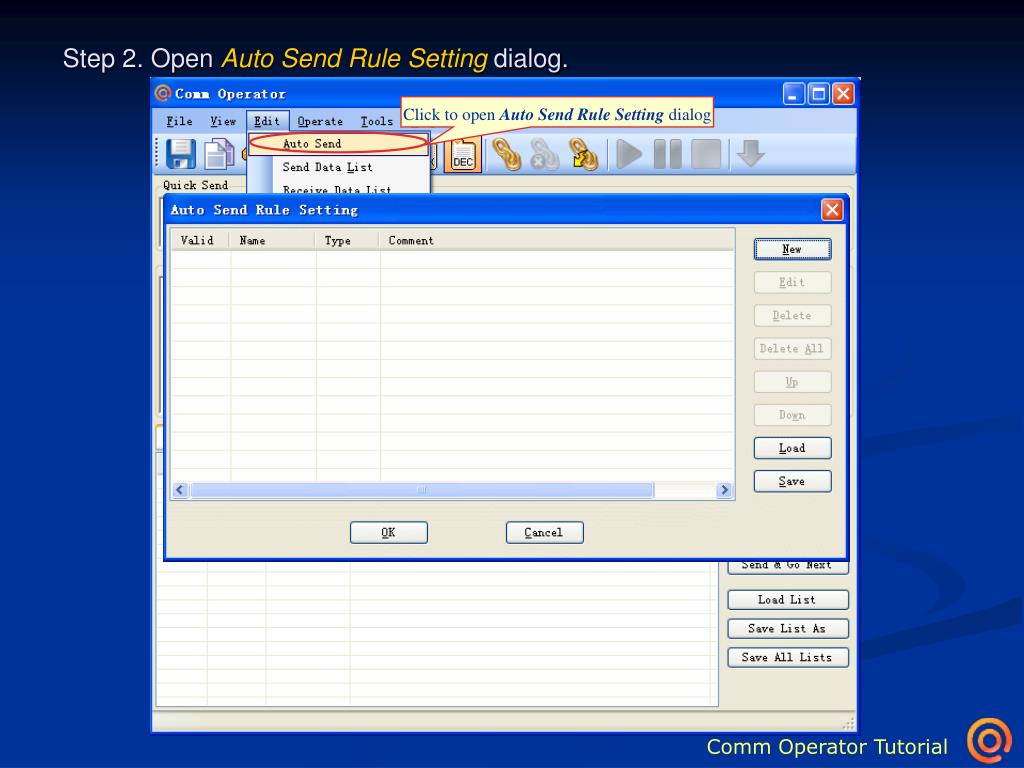

  4. Click to open Auto Send Rule Setting dialog Step 2. OpenAuto Send Rule Settingdialog.

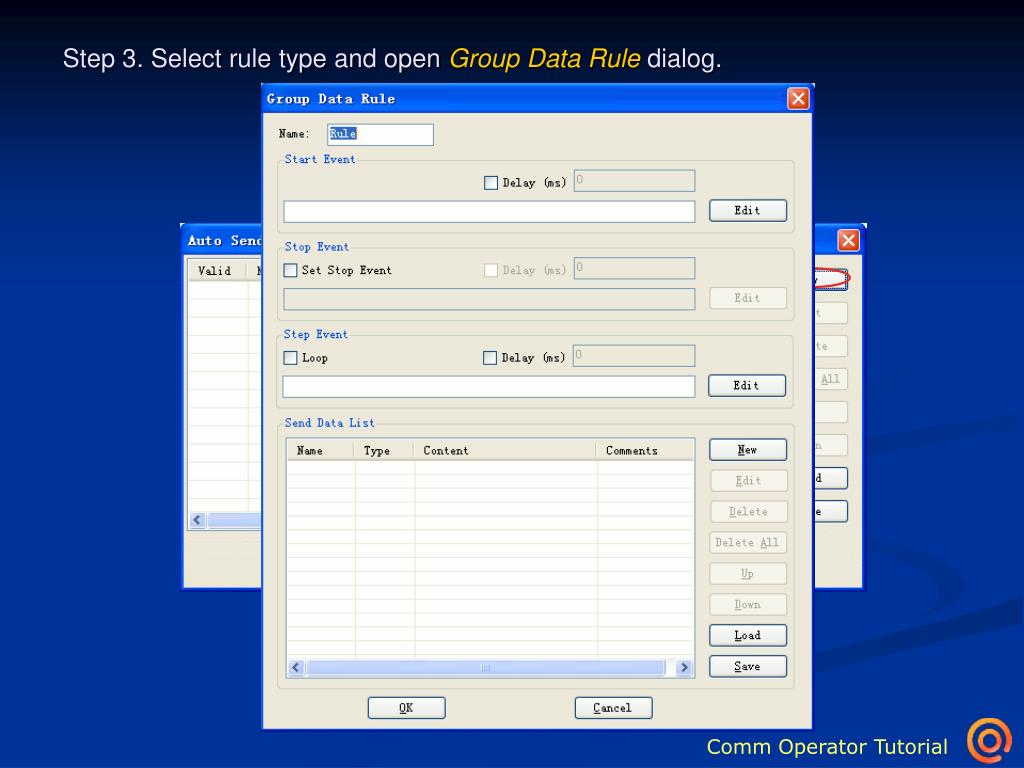

  5. Click to show Select Rule Type dialog Click to open Group Data Rule dialog Step 3. Select rule type and open Group Data Ruledialog.

  6. Click to open Event Editor dialog Click to return Group Data Rule dialog Step 4. Set condition of Start Event.

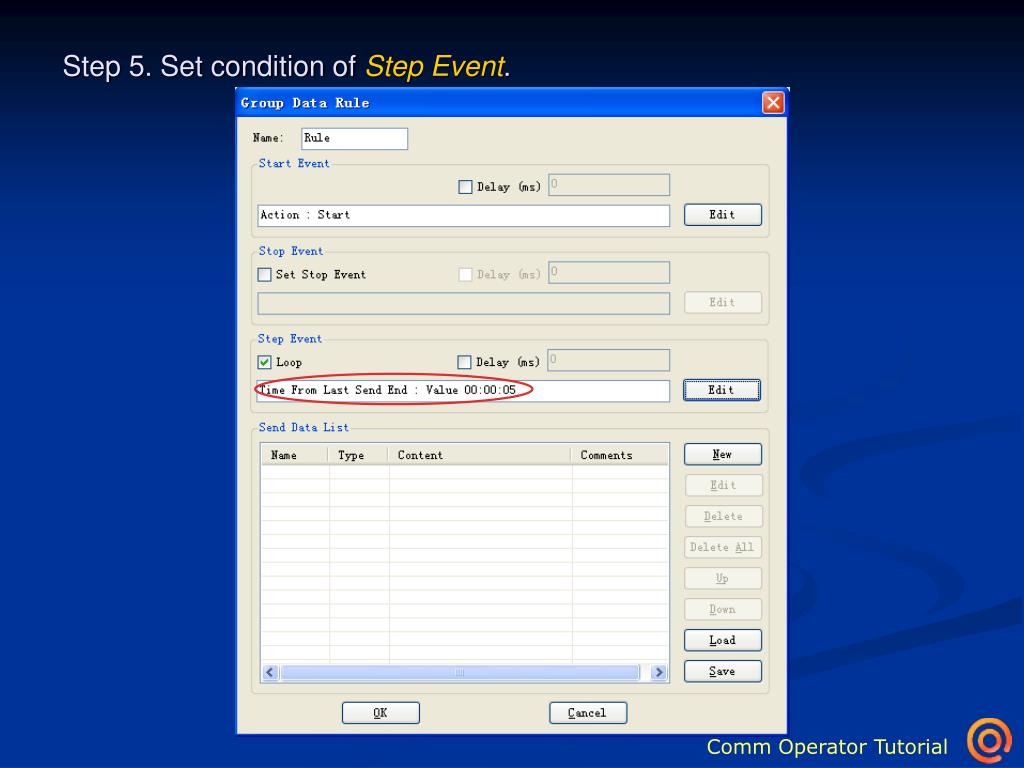

  7. Click to open Event Editor dialog Click to return Group Data Rule dialog Step 5. Set condition of Step Event.

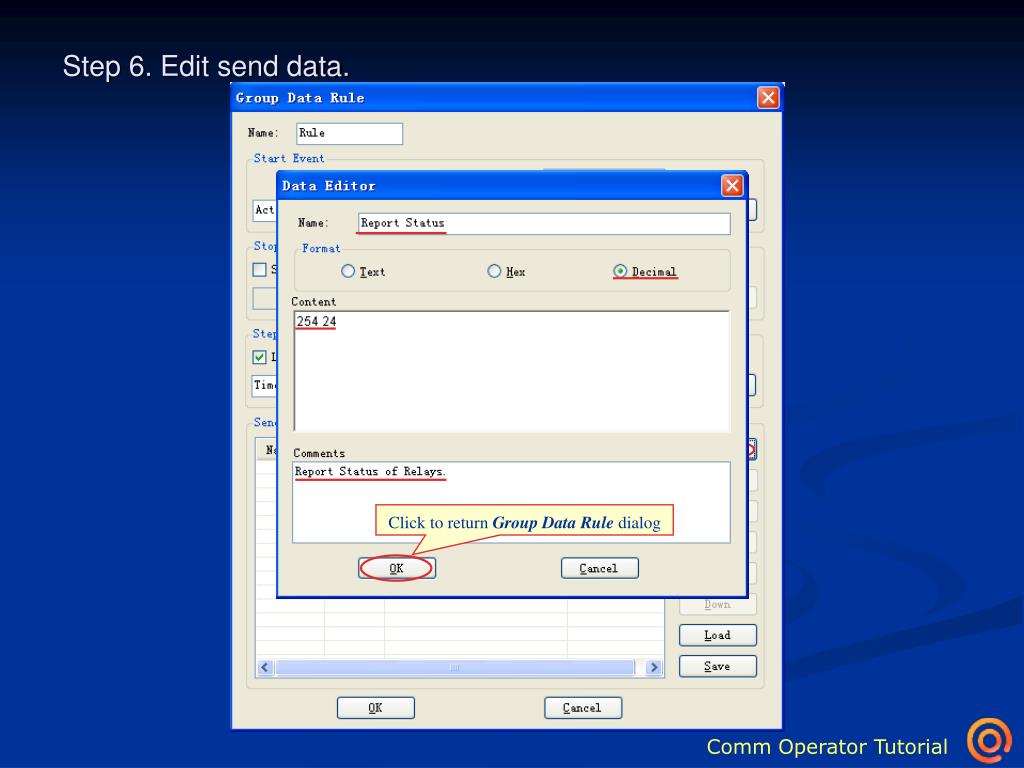

  8. Click to open Data Editor dialog Click to return Group Data Rule dialog Step 6. Edit send data.

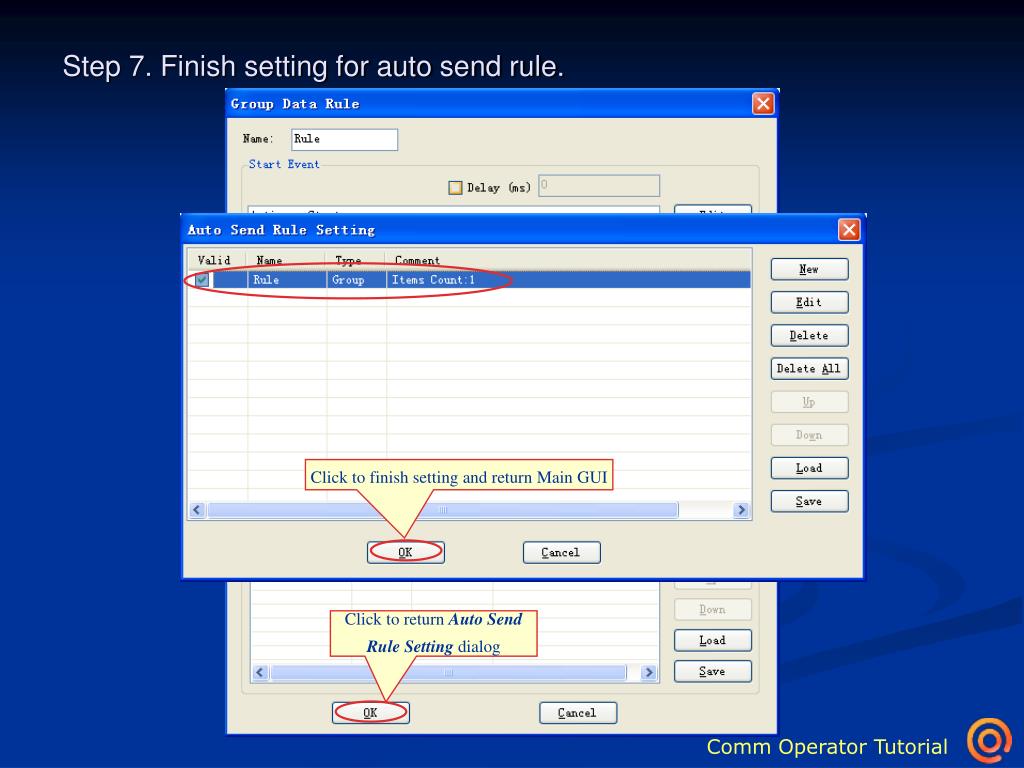

  9. Click to finish setting and return Main GUI Click to return Auto Send Rule Setting dialog Step 7. Finish setting for auto send rule.

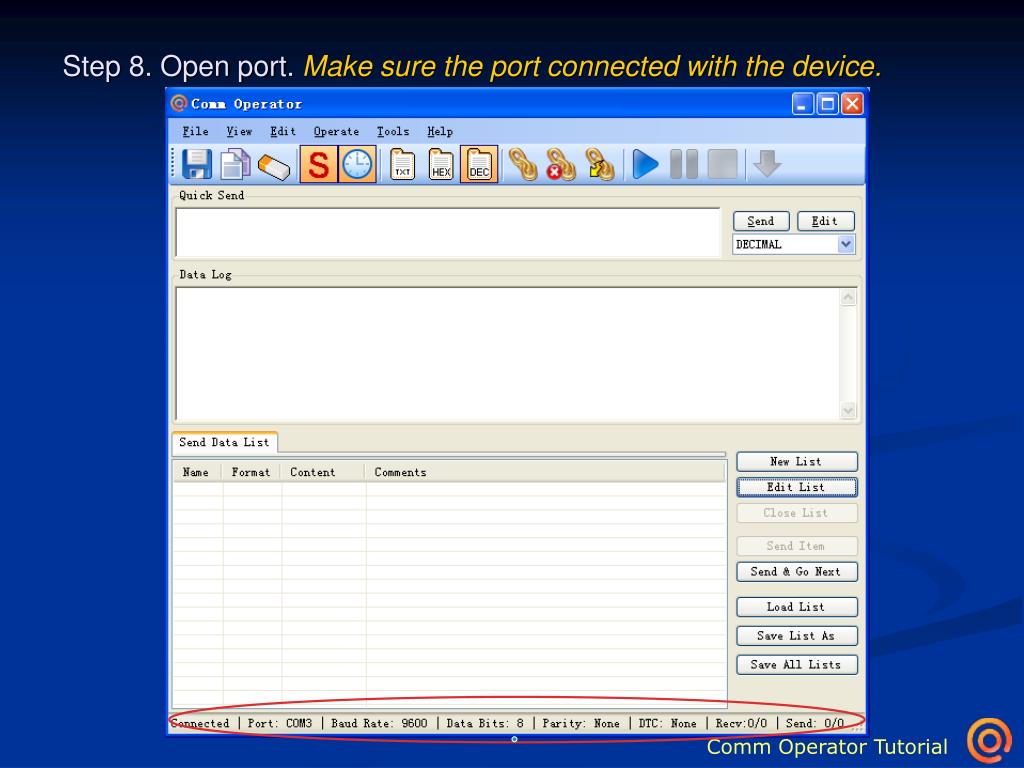

  10. Click to show Open Port dialog Click to show Select Link Type dialog Click to open port Click to select link type Step 8. Open port. Make sure the port connected with the device.

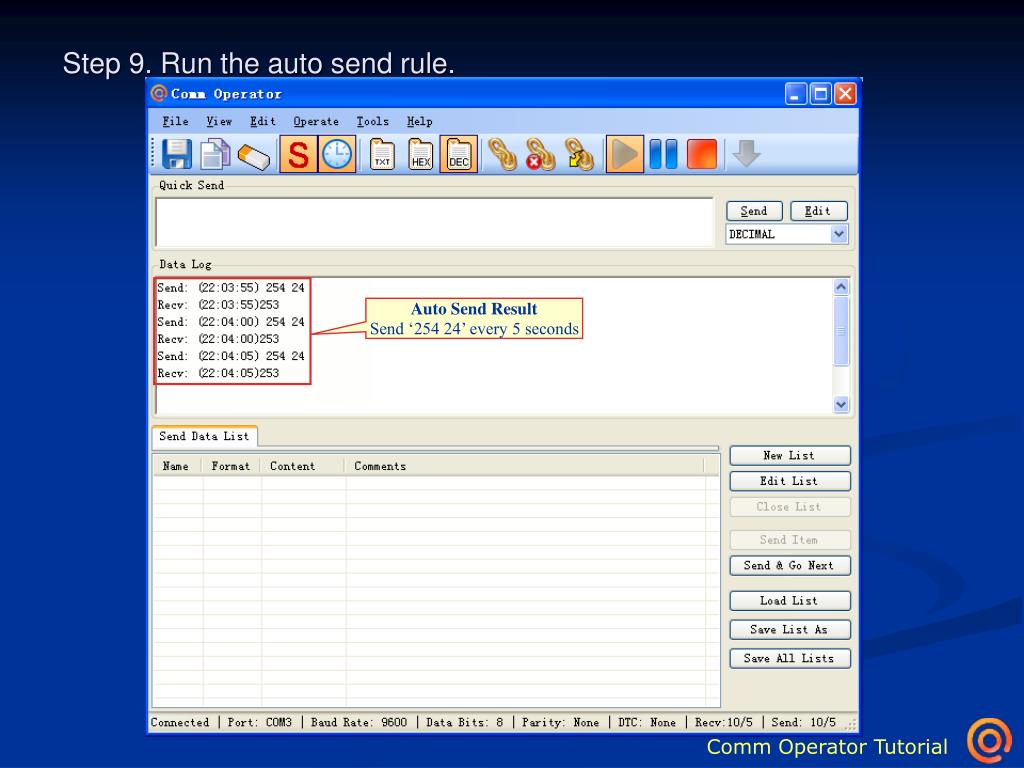

  11. Click to start auto send Auto Send Result Send ‘254 24’ every 5 seconds Step 9. Run the auto send rule.
