Guidelines for Using Heatmaps. (X) let’s-track-and-see-what-happens approach. (2) Define the 2D-data represented. (1) Used for visualizing quantitative data. (3) Define a fixation; e.g., 100ms, 0.5 . (4) Define the upper bound for color scale.

jens
Télécharger la présentation

Guidelines for Using Heatmaps

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Guidelines for Using Heatmaps (X) let’s-track-and-see-what-happens approach (2) Define the 2D-data represented (1) Used for visualizing quantitative data (3) Define a fixation; e.g., 100ms, 0.5 (4) Define the upper bound for color scale (5) Describe the timeduration when fixations were collected

  2. Case Study: ASCO Original ASCO homepage Proposed ASCO homepage With which users can be quicker to find information?

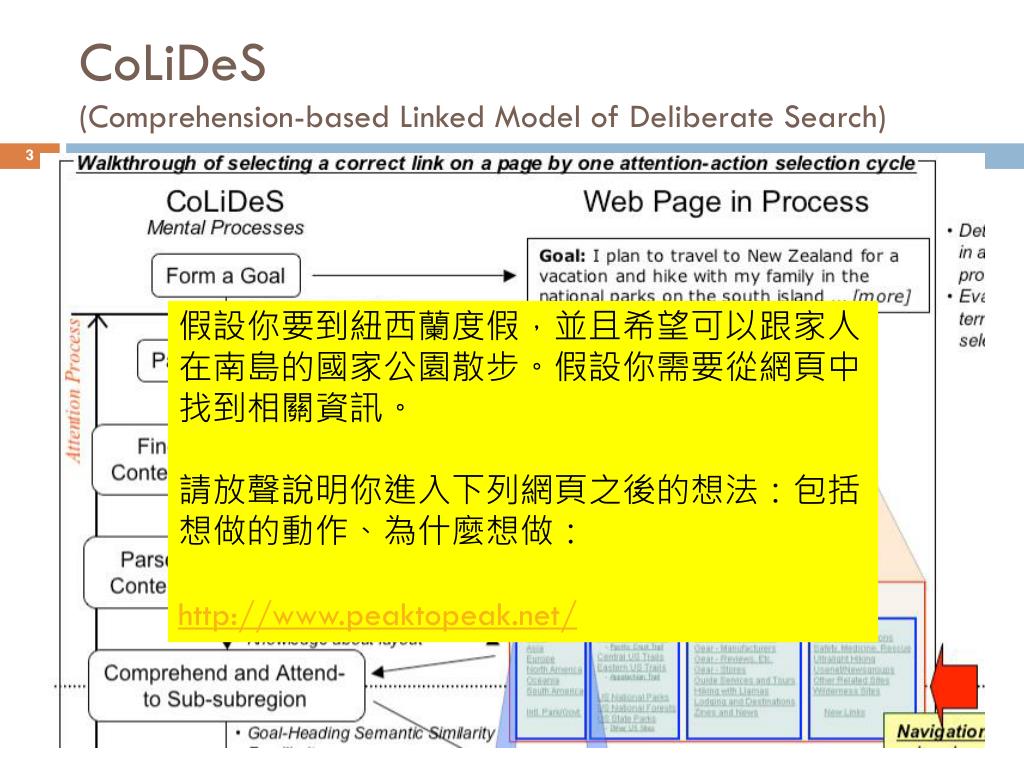

  3. CoLiDeS(Comprehension-based Linked Model of Deliberate Search) 假設你要到紐西蘭度假，並且希望可以跟家人 在南島的國家公園散步。假設你需要從網頁中 找到相關資訊。 請放聲說明你進入下列網頁之後的想法：包括 想做的動作、為什麼想做： http://www.peaktopeak.net/

  4. CoLiDeS(Comprehension-based Linked Model of Deliberate Search)

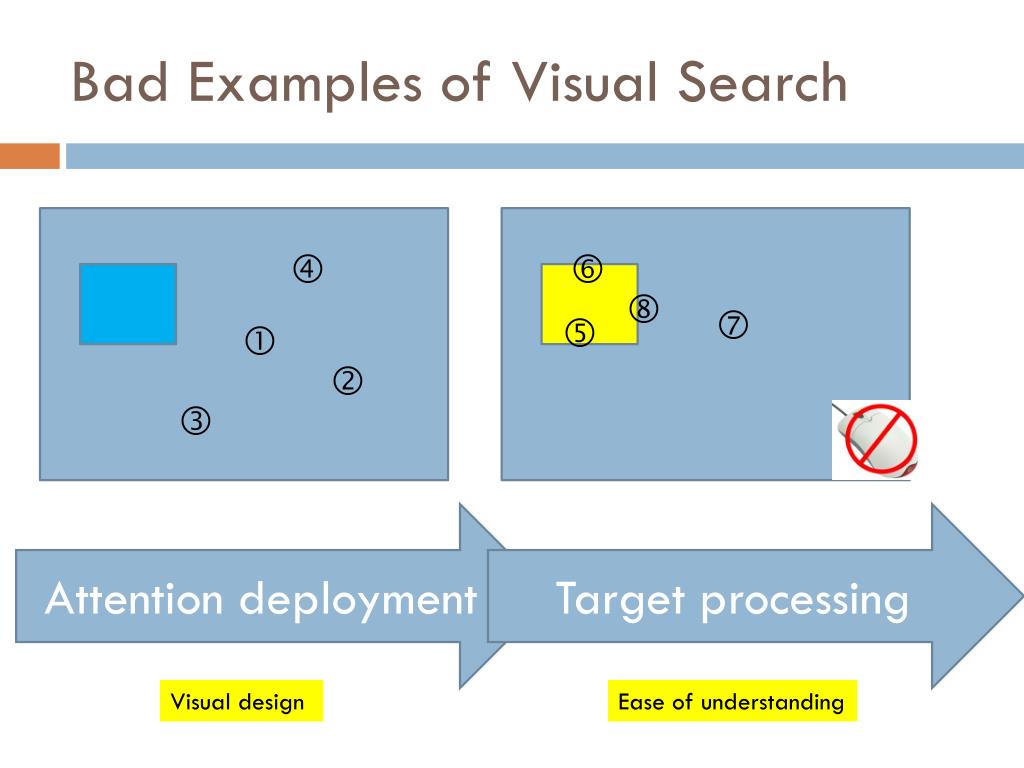

  5. Bad Examples of Visual Search         Attention deployment Target processing Visual design Ease of understanding

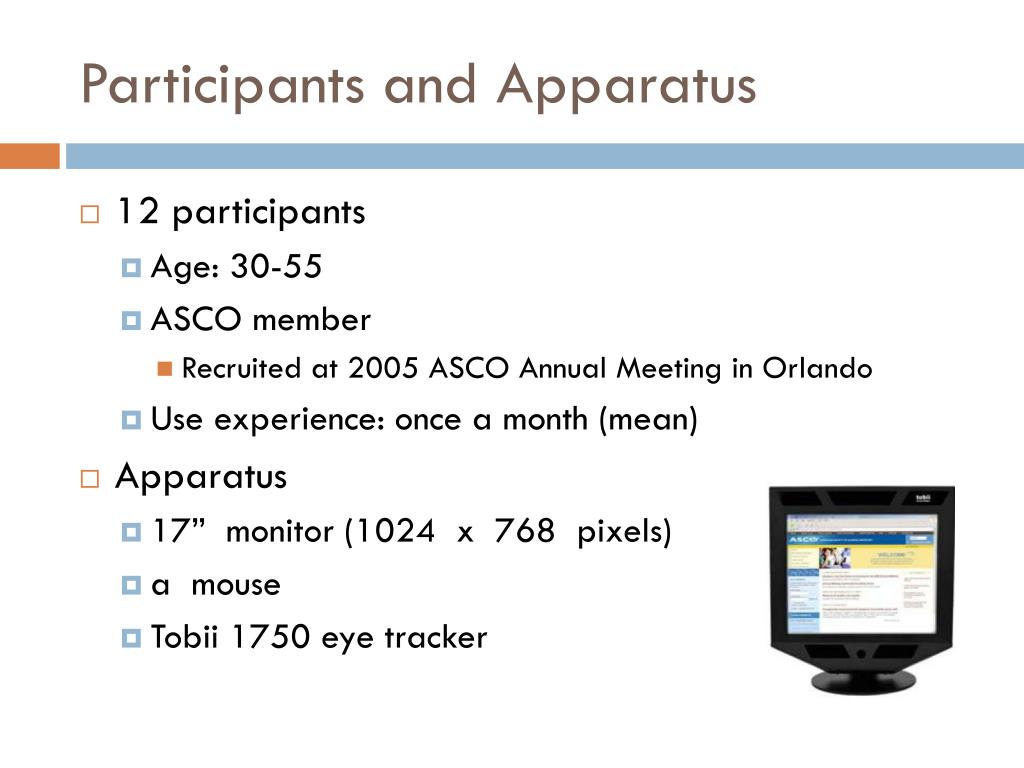

  6. Participants and Apparatus • 12 participants • Age: 30-55 • ASCO member • Recruited at 2005 ASCO Annual Meeting in Orlando • Use experience: once a month (mean) • Apparatus • 17” monitor (1024 x 768 pixels) • a mouse • Tobii 1750 eye tracker

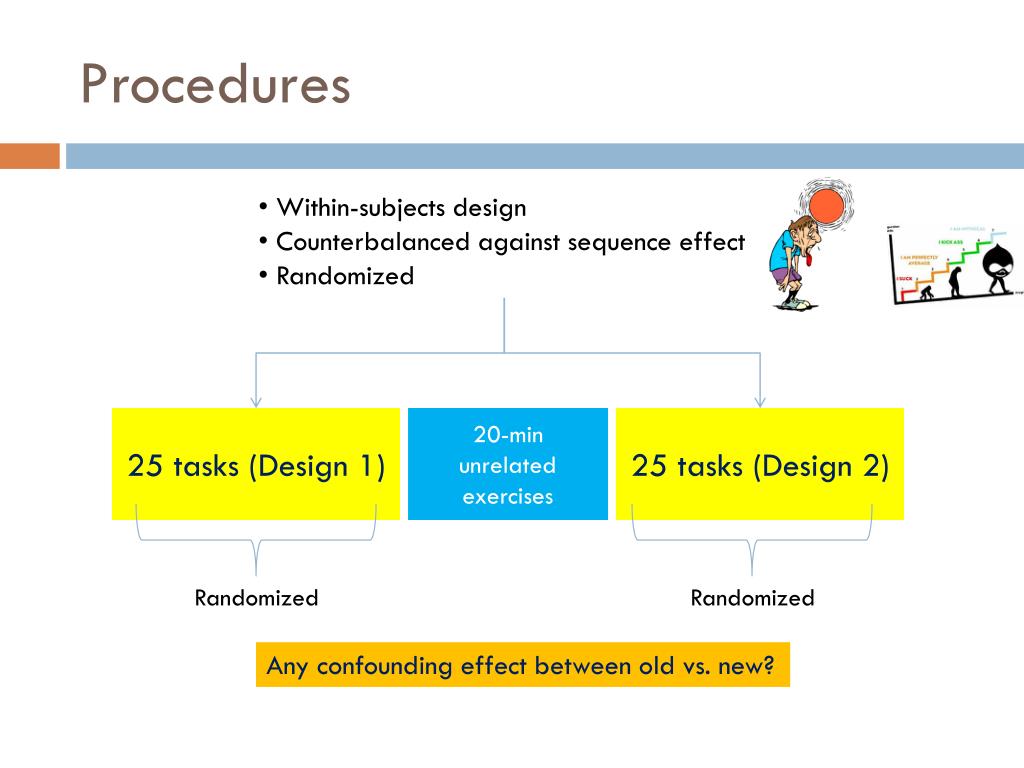

  7. Procedures • Within-subjects design • Counterbalanced against sequence effect • Randomized 25 tasks (Design 1) 20-min unrelated exercises 25 tasks (Design 2) Randomized Randomized Any confounding effect between old vs. new?

  8. TASK I: Find a list of upcoming conferences Original webpage Proposed webpage

  9. Analysis Results

  10. What Color Scheme Is Better? Red-Orange-Yellow-Blue-Gray Red-Orange-Yellow-Green-Gray

  11. Grayscale Scheme

  12. White Background?

  13. Gaze Plot&Gaze Replay • What they are? • Place • Order • Size • Limitations • 有時候看不到數字 • 有時候看不到網頁 • Time-consuming • Gaze replay Qualitative nature

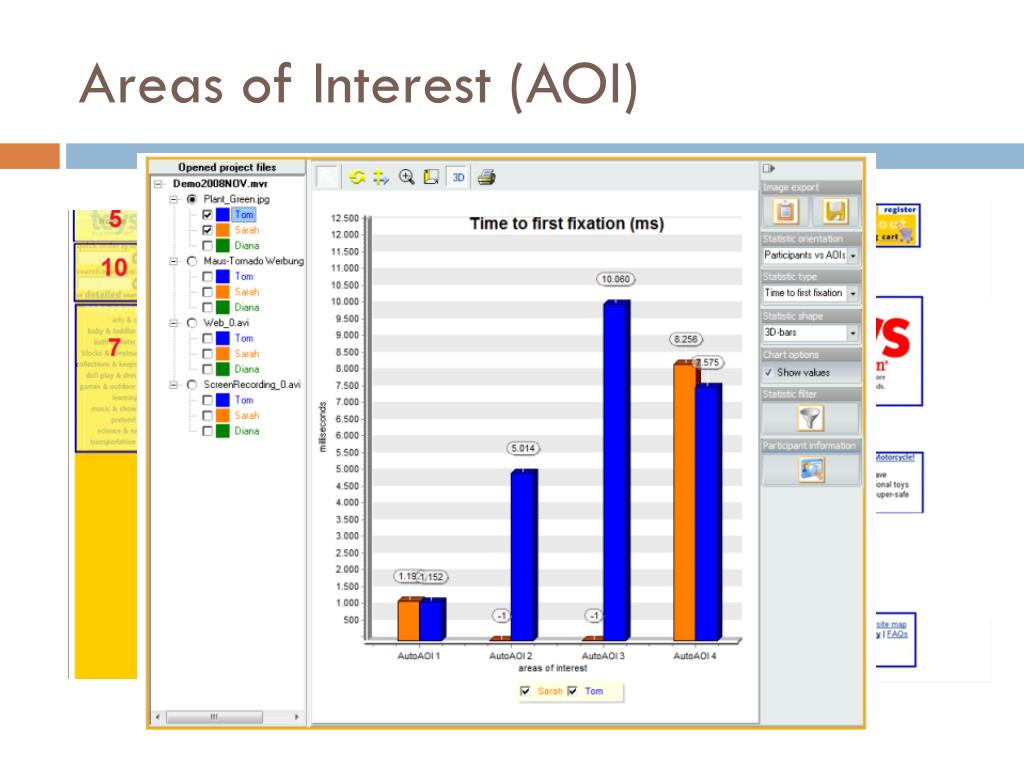

  14. Areas of Interest (AOI)
