Unsteady reconnection session

Unsteady reconnection session. Working group coordinators: T. Intrator, J. Borovsky - LANL 30-40 participants Energy stored in stressed magnetic fields can produce large scale explosive events Unsteady , impulsive , multi time scale , probably requires 3D to exist

jenski
Télécharger la présentation

Unsteady reconnection session

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Unsteady reconnection session • Working group coordinators: T. Intrator, J. Borovsky - LANL • 30-40 participants • Energy stored in stressed magnetic fields can produce large scale explosive events • Unsteady, impulsive, multi time scale, probably requires 3D to exist • Reality is rarely steady state, but our concepts & models are • How and where does reconnection • Initiate? … Stagnate? SHINE2009 Intrator LA-UR-08-0324

  2. Unsteady solar reconnection • Surveys of solar flare energy release observations • L. Fletcher-Univ. Glasgow: Unsteady signatures in solar flares • J. Qiu- Univ. Montana: Reconnection in solar flares -- 2D to 3D • P. Bellan-Caltech: Alfven waves = field line twist = energy flow • Flare energy release is probably mediated by reconnection, but not yet definitively proven • No clean diagnostics for electron acceleration time scales • Hard to separate time and spatial scales • Overlapping time scales are not very distinct • measured data characteristic time scales evenly spread down to resolution ≈ 0.1-0.3 seconds, probably faster in future data • Proxy data: UV footpoints track reconnection inflow speed => “rcxn rate” SHINE2009 Intrator LA-UR-08-0324

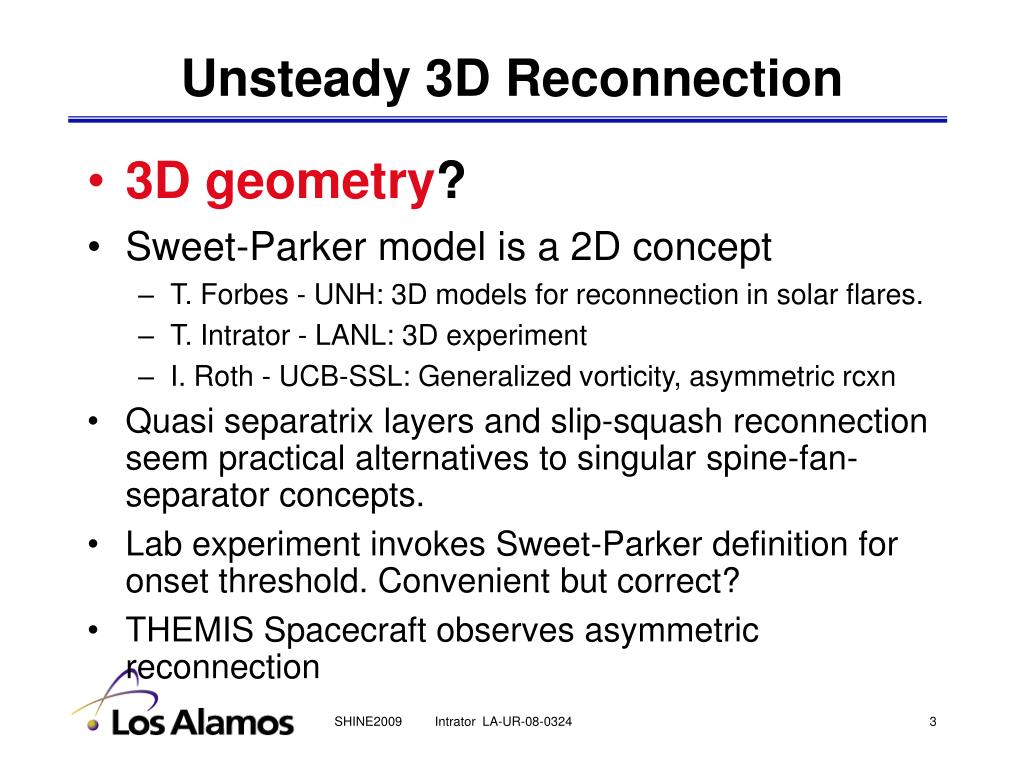

  3. Unsteady 3D Reconnection • 3D geometry? • Sweet-Parker model is a 2D concept • T. Forbes - UNH: 3D models for reconnection in solar flares. • T. Intrator - LANL: 3D experiment • I. Roth - UCB-SSL: Generalized vorticity, asymmetric rcxn • Quasi separatrix layers and slip-squash reconnection seem practical alternatives to singular spine-fan-separator concepts. • Lab experiment invokes Sweet-Parker definition for onset threshold. Convenient but correct? • THEMIS Spacecraft observes asymmetric reconnection SHINE2009 Intrator LA-UR-08-0324

  4. Impulsive Magnetic Reconnection • Onset of reconnection? • A. Bhattacharjee - UNH: Tectonic model => unsteady rcxn dynamics • M. Yamada - Princeton: MRX data shows impulsive rcxn • T. Intrator - LANL: RSX data shows kink instigated rcxn • Unsteady dynamics can follow from 2D & 3D theories, definitely occurs in 3D lab data, nature SHINE2009 Intrator LA-UR-08-0324

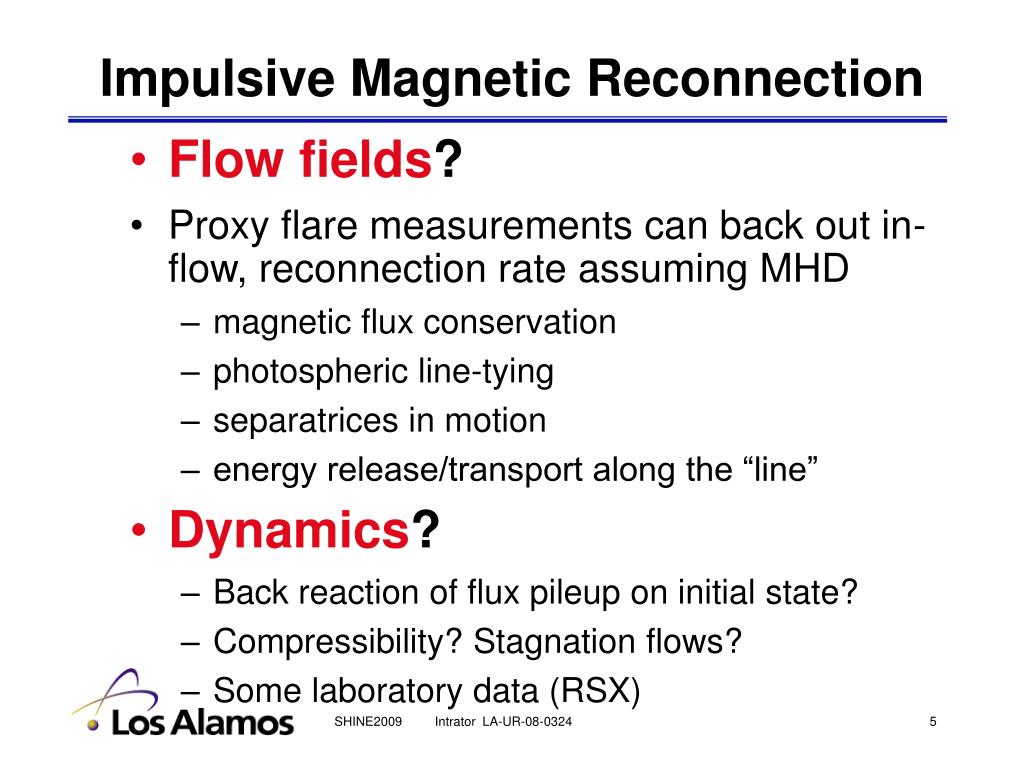

  5. Impulsive Magnetic Reconnection • Flow fields? • Proxy flare measurements can back out in-flow, reconnection rate assuming MHD • magnetic flux conservation • photospheric line-tying • separatrices in motion • energy release/transport along the “line” • Dynamics? • Back reaction of flux pileup on initial state? • Compressibility? Stagnation flows? • Some laboratory data (RSX) SHINE2009 Intrator LA-UR-08-0324

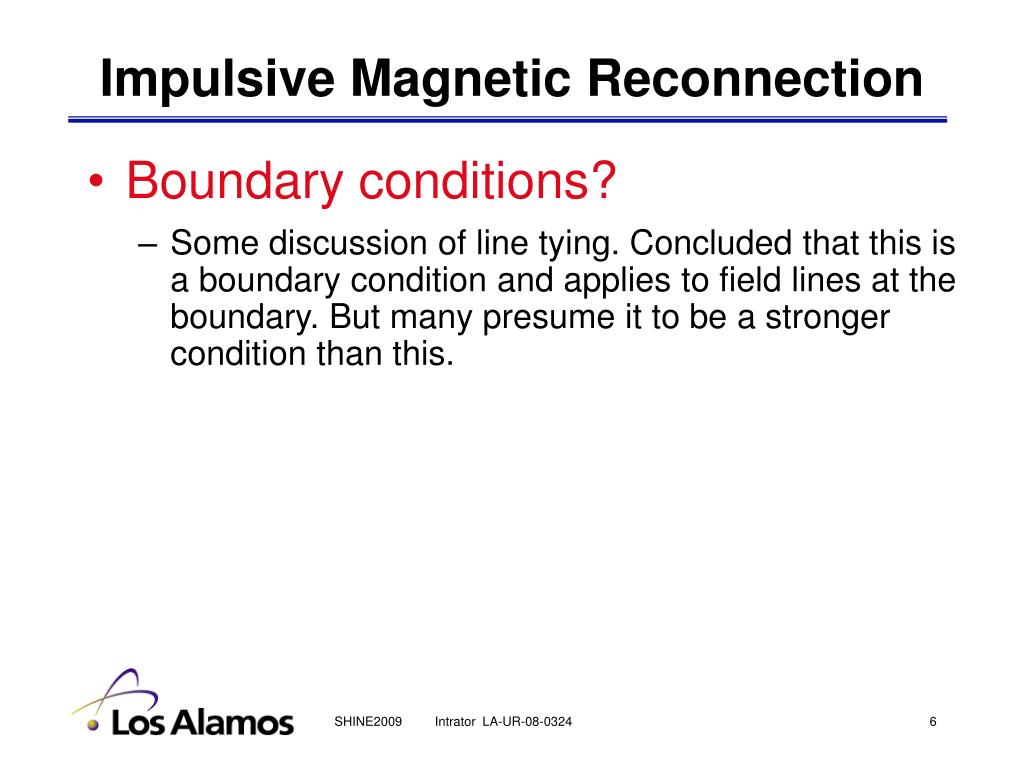

  6. Impulsive Magnetic Reconnection • Boundary conditions? • Some discussion of line tying. Concluded that this is a boundary condition and applies to field lines at the boundary. But many presume it to be a stronger condition than this. SHINE2009 Intrator LA-UR-08-0324

  7. Scientific desires • Improved proxy data for flares, or more direct measurements • Faster time cadence • Improve measurements or estimates for B, velocity, reconnection rate • Deconvolve temporal and spatial scales • More attention to 3D concepts, theories • Some laboratory data SHINE2009 Intrator LA-UR-08-0324

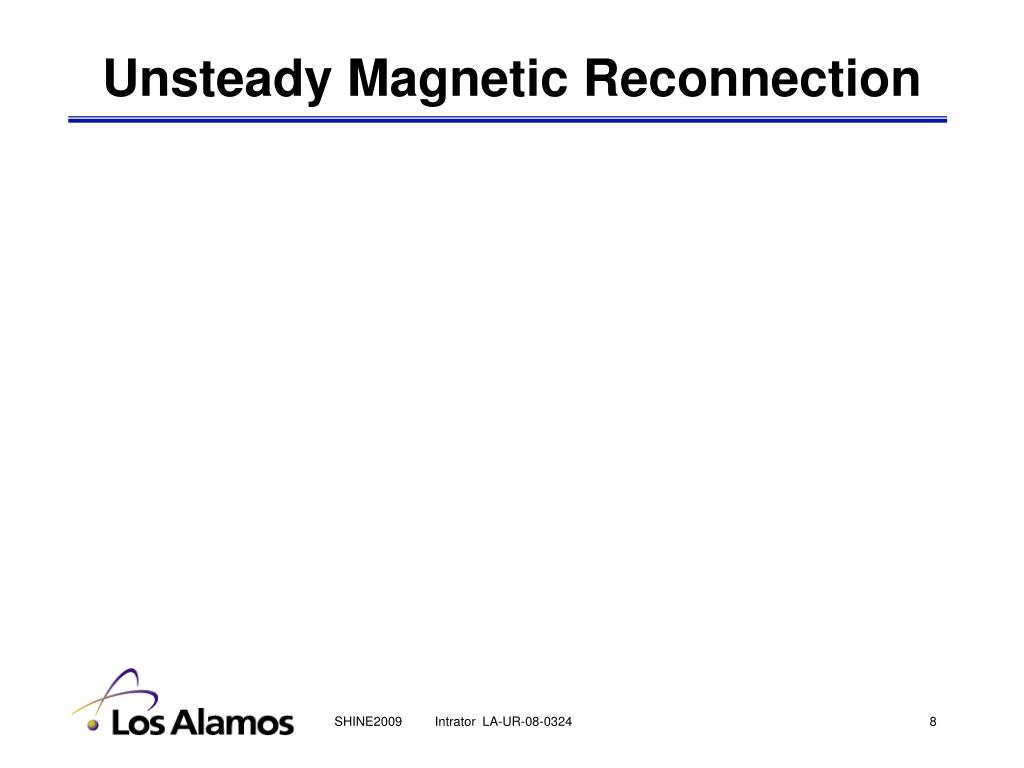

  8. Unsteady Magnetic Reconnection SHINE2009 Intrator LA-UR-08-0324

  9. Unsteady rcxn session • Wednesday morning, Salon E • 10:05-11:05AM, 11:05-11:30-break, 11:30AM-1:00PM =>150min • Invited talks: ≈ 25 minutes each • Intrator intro - 5 min • L. Fletcher-Univ. Glasgow: Unsteady signatures in solar flares • J. Qiu- Univ. Montana: Reconnection in solar flares -- 2D to 3D • T. Forbes - UNH: 3D models for reconnection in solar flares • A. Bhattacharjee - UNH: Impulsive current sheets & rcxn • Roth, Intrator, Yamada, Bellan • Edmondson, Evans, Savage, … posters or talks? others?? • Posters P142-P146 SHINE2009 Intrator LA-UR-08-0324
