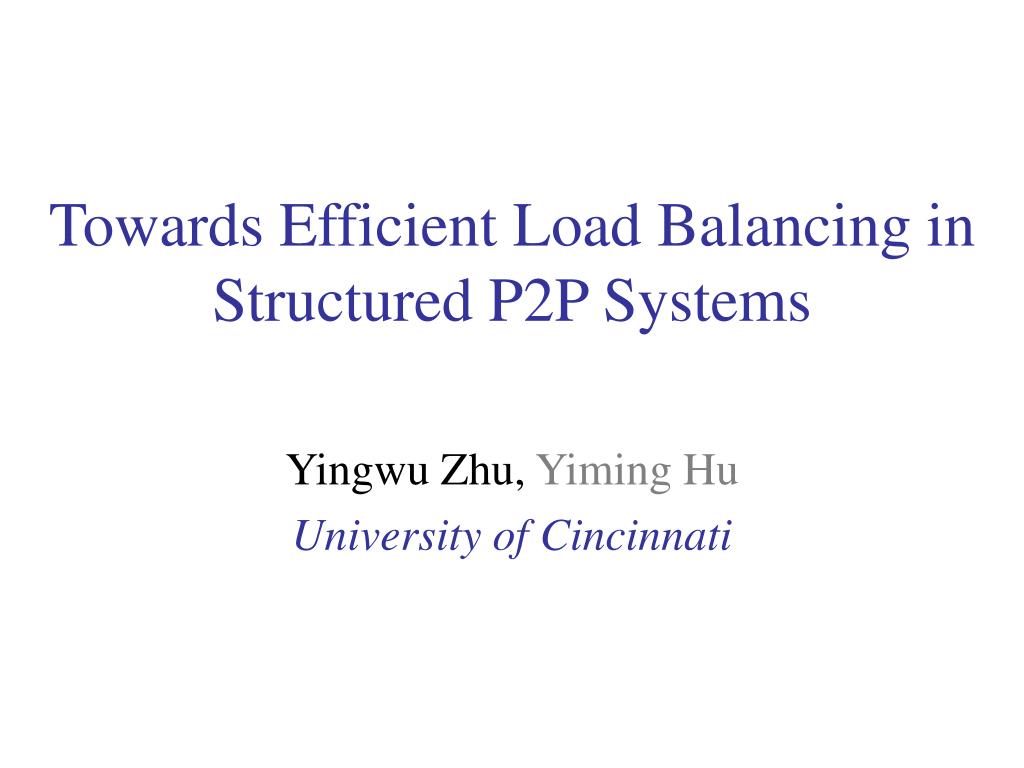

  1. Towards Efficient Load Balancing in Structured P2P Systems Yingwu Zhu, Yiming Hu University of Cincinnati

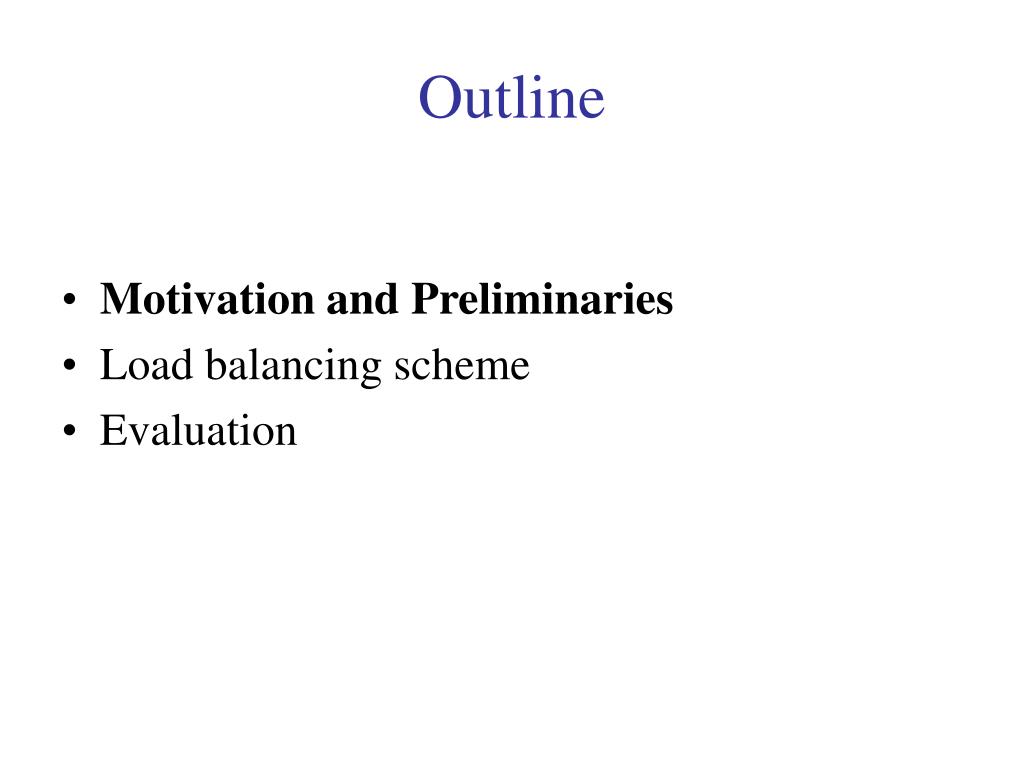

  2. Outline • Motivation and Preliminaries • Load balancing scheme • Evaluation

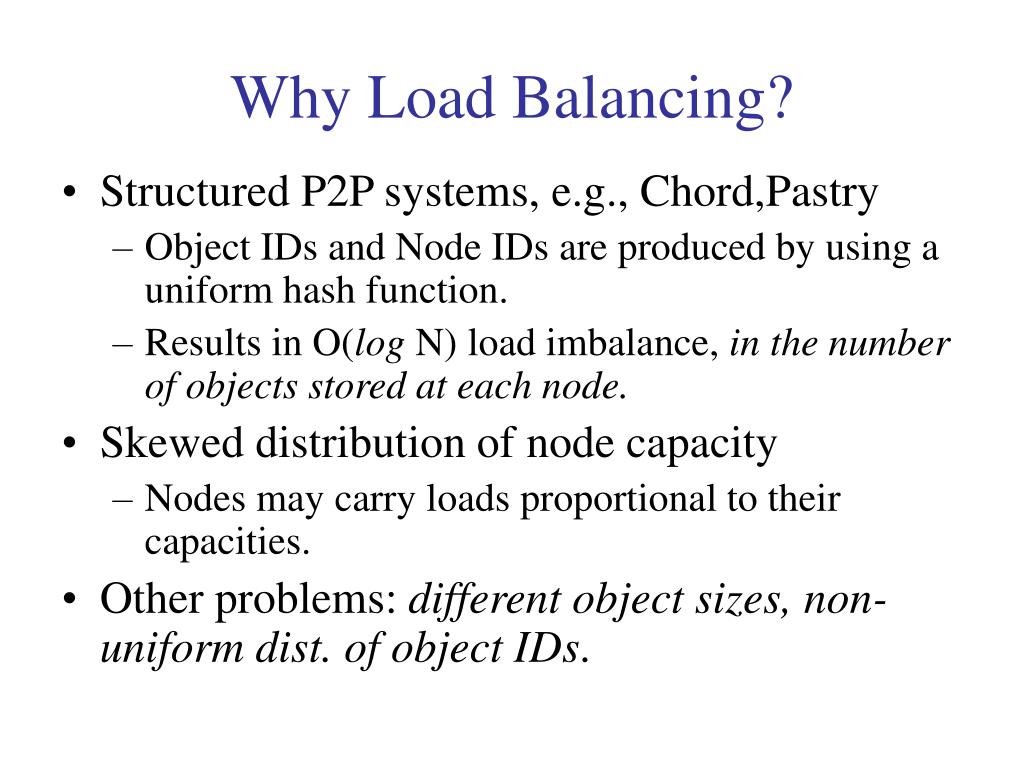

  3. Why Load Balancing? • Structured P2P systems, e.g., Chord,Pastry • Object IDs and Node IDs are produced by using a uniform hash function. • Results in O(log N) load imbalance, in the number of objects stored at each node. • Skewed distribution of node capacity • Nodes may carry loads proportional to their capacities. • Other problems: different object sizes, non-uniform dist. of object IDs.

  4. Virtual Servers (VS) • First introduced in Chord/CFS. • A VS is responsible for a contiguous region of the ID space. • A node can host multiple VSs. Node A Node B Node C Chord Ring

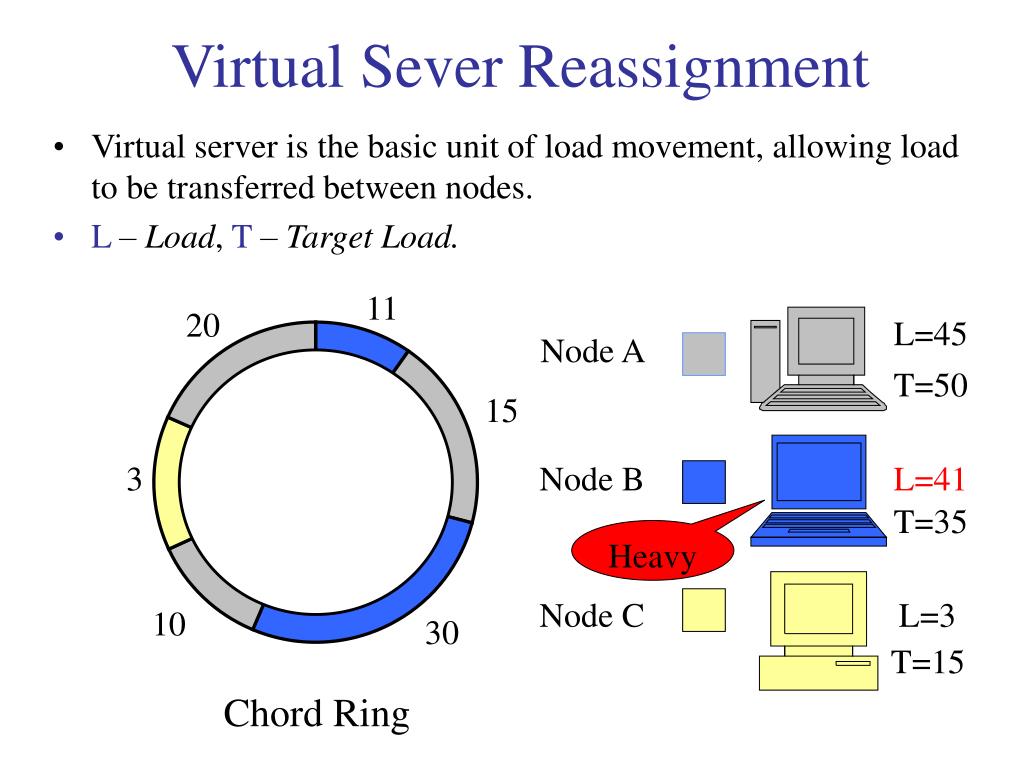

  5. 11 20 L=45 15 3 L=41 L=3 10 30 Virtual Sever Reassignment • Virtual server is the basic unit of load movement, allowing load to be transferred between nodes. • L – Load, T – Target Load. Node A T=50 Node B T=35 Heavy Node C T=15 Chord Ring

  6. 11 20 L=45 15 3 L=41 L=3 10 30 Virtual Sever Reassignment • Virtual server is the basic unit of load movement, allowing load to be transferred between nodes. • L – Load, T – Target Load. Node A T=50 Node B T=35 Heavy Node C T=15 Chord Ring

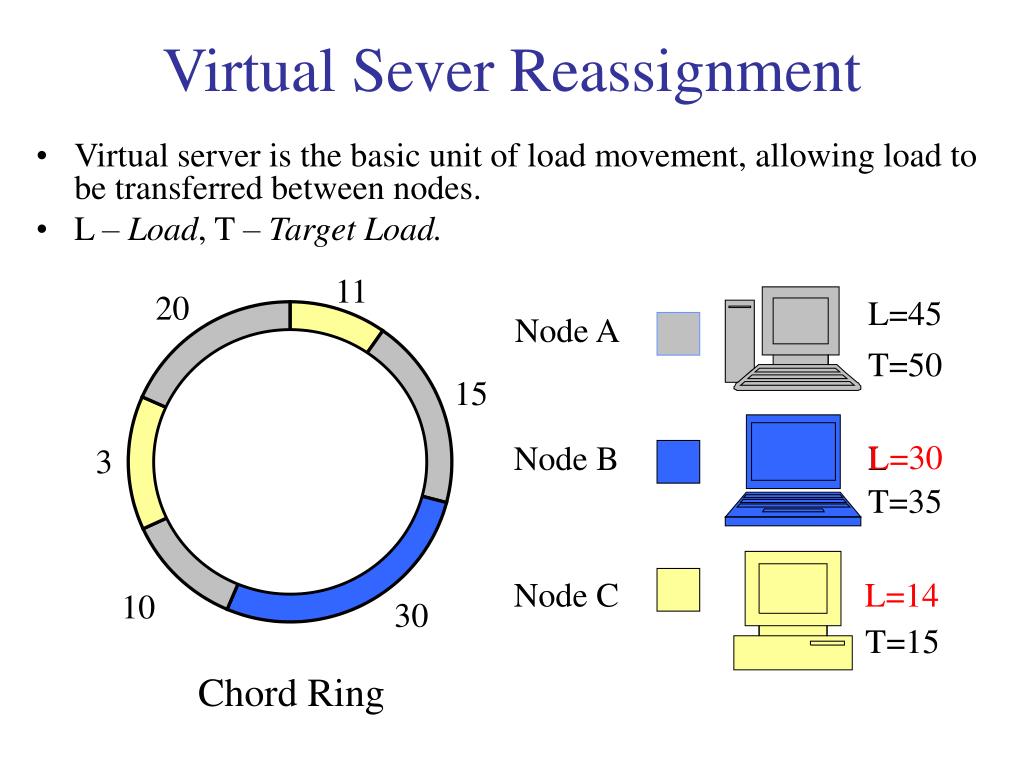

  7. 11 20 L=45 15 3 L=31 L=14 10 30 L=30 Virtual Sever Reassignment • Virtual server is the basic unit of load movement, allowing load to be transferred between nodes. • L – Load, T – Target Load. Node A T=50 Node B T=35 Node C T=15 Chord Ring

  8. Advantages of Virtual Servers • Flexible: load is moved in the unit of a virtual server. • Simple: • VS movement is supported by all structured P2P systems. • Simulated by a leave operation followed by a join operation.

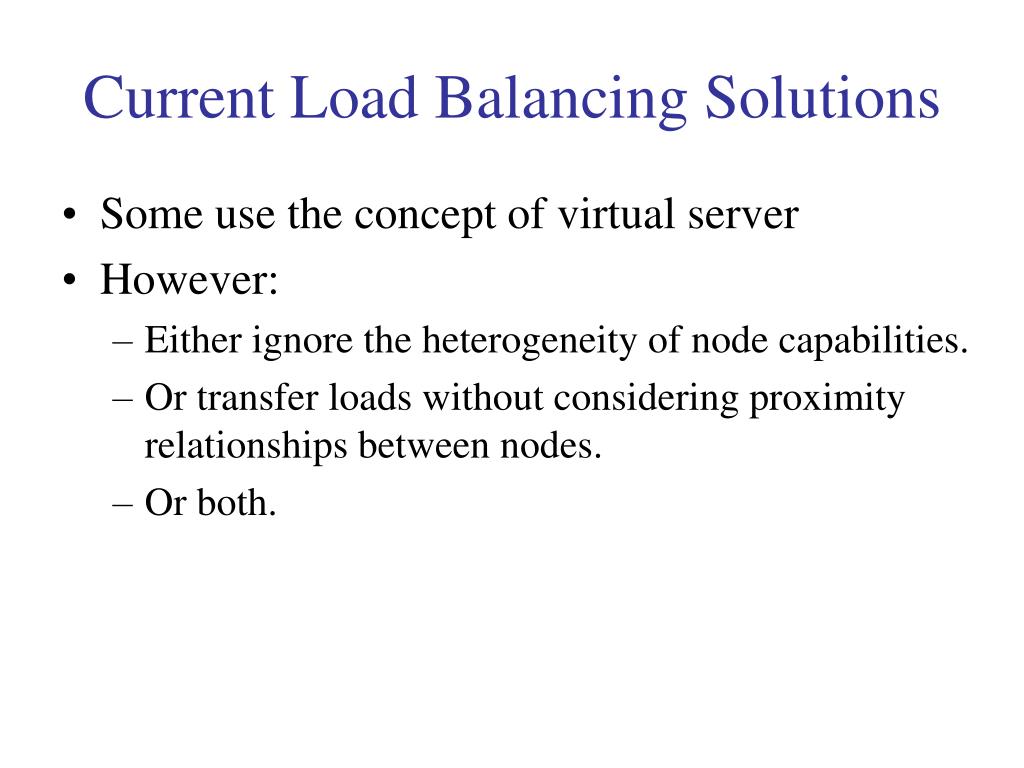

  9. Current Load Balancing Solutions • Some use the concept of virtual server • However: • Either ignore the heterogeneity of node capabilities. • Or transfer loads without considering proximity relationships between nodes. • Or both.

  10. Goals • Goals: • To maintain each node’s load less than its targetload (maximum load a node is willing to take). • High capacity nodes take more loads. • Load balancing is performed in proximity-aware manner, to minimize the overhead of load movement (bandwidth usage) and allow more efficient and fast load balancing. • Load: depends on the particular P2P systems. • E.g., storage, network bandwidth, and CPU cycles.

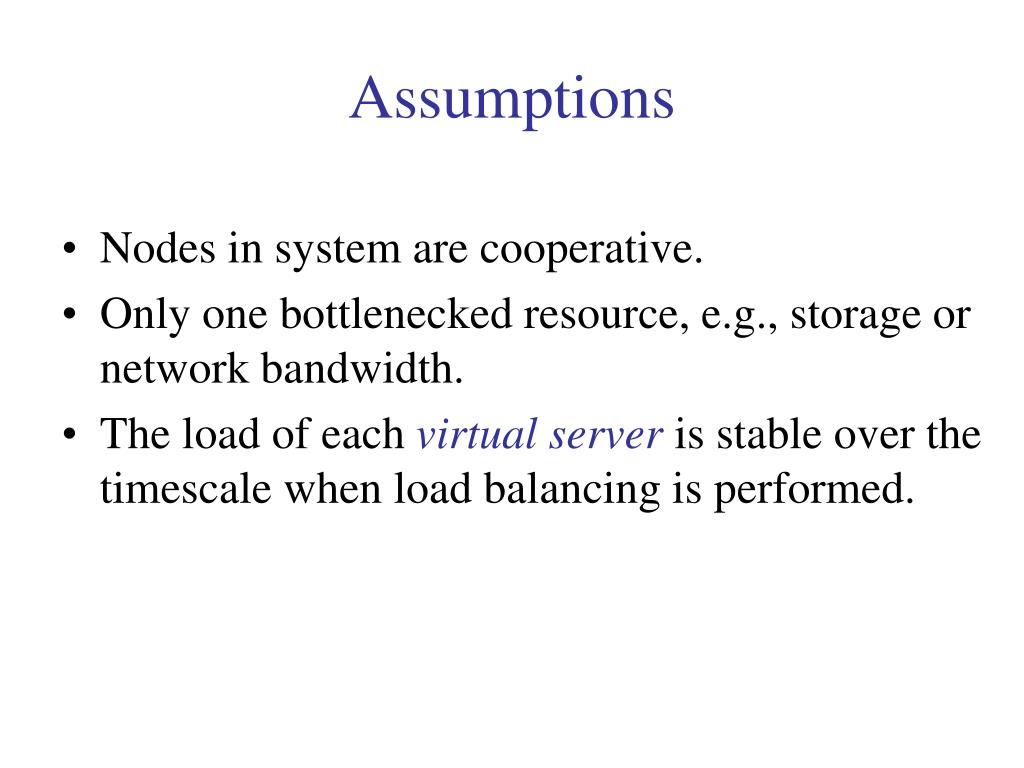

  11. Assumptions • Nodes in system are cooperative. • Only one bottlenecked resource, e.g., storage or network bandwidth. • The load of each virtual server is stable over the timescale when load balancing is performed.

  12. Overview of Design • Step1: Load balancing information (LBI) aggregation, e.g., load and capacity info. • Step2: Node classification. E.g., heavy nodes, light nodes, neutral nodes. • Step3: Virtual server assignment (VSA). • Step4: Virtual server transferring (VST). • Proximity-aware load balancing • VSA is proximity-aware.

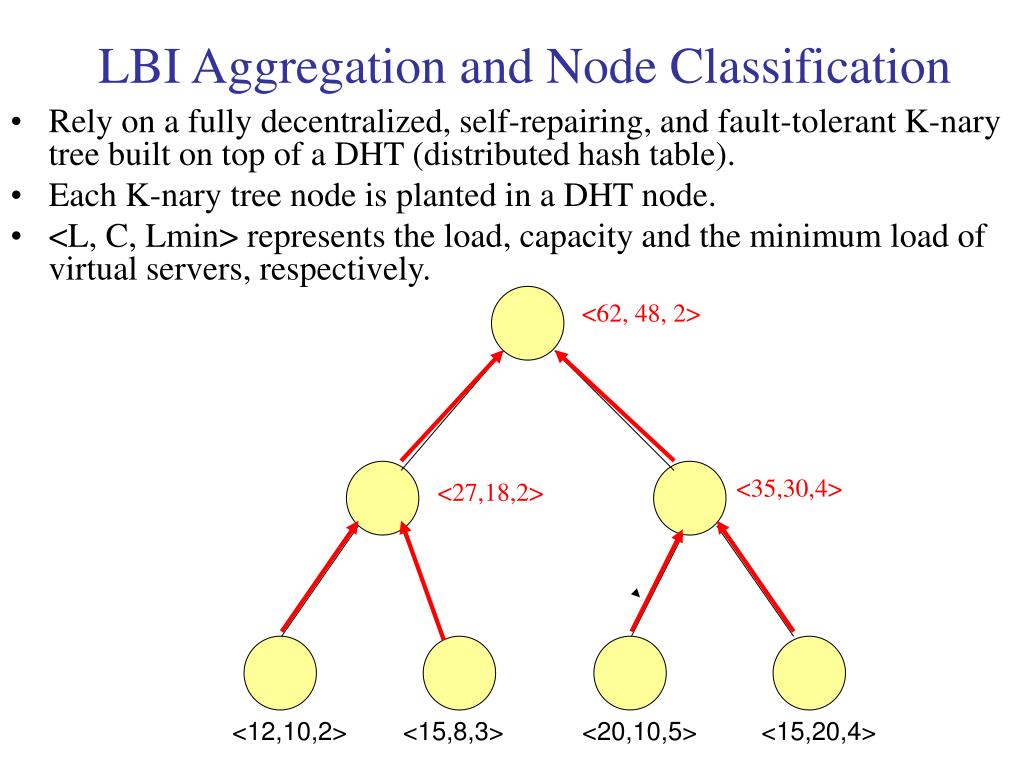

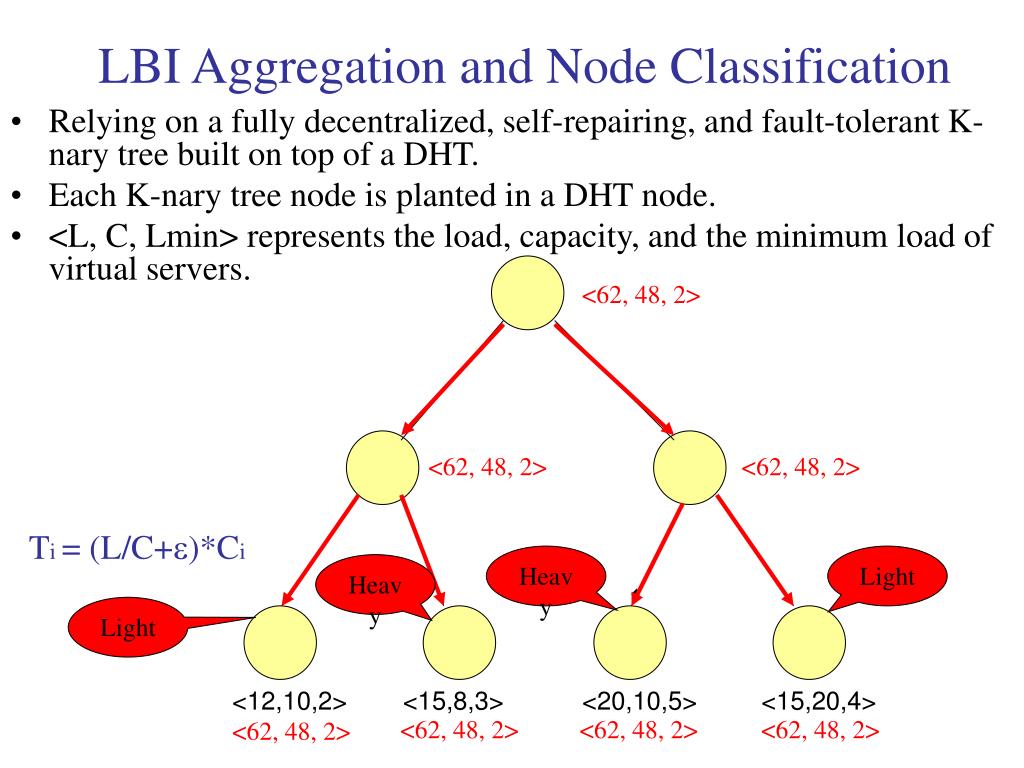

  13. <35,30,4> <27,18,2> <12,10,2> <15,8,3> <20,10,5> <15,20,4> LBI Aggregation and Node Classification • Rely on a fully decentralized, self-repairing, and fault-tolerant K-nary tree built on top of a DHT (distributed hash table). • Each K-nary tree node is planted in a DHT node. • <L, C, Lmin> represents the load, capacity and the minimum load of virtual servers, respectively. <62, 48, 2>

  14. <62, 48, 2> <62, 48, 2> Heavy Light Heavy Light <12,10,2> <15,8,3> <20,10,5> <15,20,4> <62, 48, 2> <62, 48, 2> <62, 48, 2> <62, 48, 2> LBI Aggregation and Node Classification • Relying on a fully decentralized, self-repairing, and fault-tolerant K-nary tree built on top of a DHT. • Each K-nary tree node is planted in a DHT node. • <L, C, Lmin> represents the load, capacity, and the minimum load of virtual servers. <62, 48, 2> Ti = (L/C+)*Ci

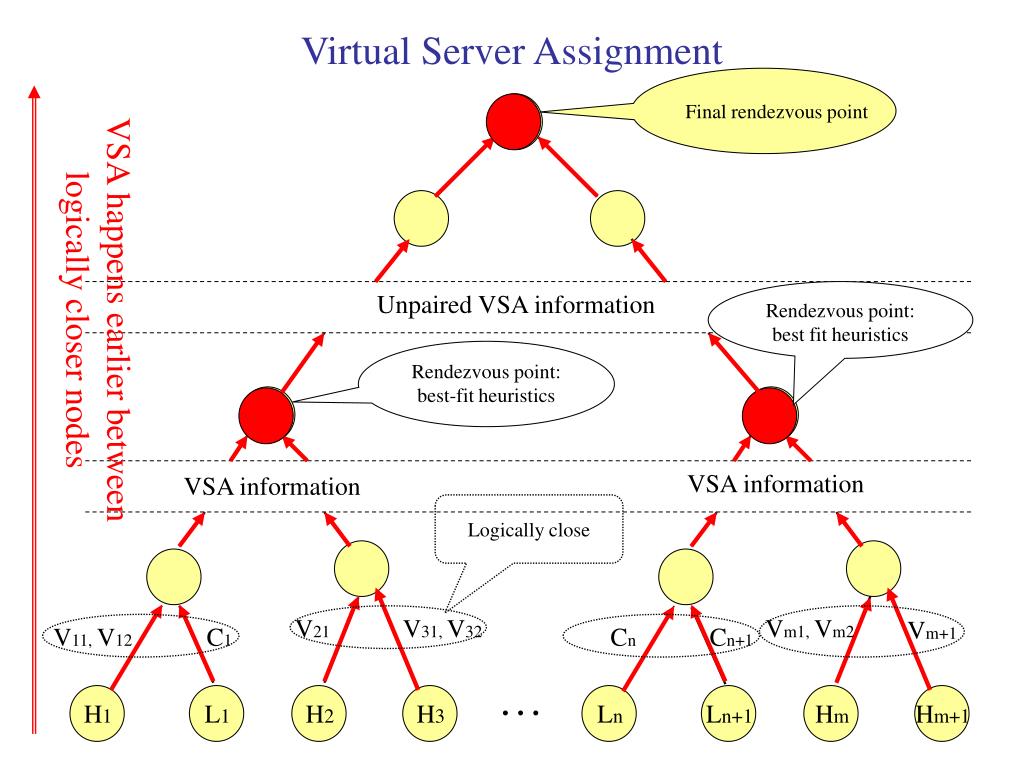

  15. Final rendezvous point Rendezvous point: best fit heuristics Unpaired VSA information Rendezvous point: best-fit heuristics VSA information VSA information Logically close Hm+1 Hm Ln Ln+1 H2 L1 H1 H3 V21 V31, V32 Vm1, Vm2 Vm+1 V11, V12 C1 Cn Cn+1 Virtual Server Assignment VSA happens earlier between logically closer nodes …

  16. H1 L3 L2 V2 V3 L4 L1 H2 V1 Virtual Server Assignment • DHT identifier space-based VSA: • VSA happens earlier between logically closer nodes. • Proximity-ignorant, because logically close nodes in DHT do NOT mean they are physically close together. [1] Nodes in same colors are physically close to each other. [2] H – heavy nodes, L – light nodes. [3] Vi – virtual servers.

  17. H1 L3 L2 V2 V1 L4 L1 H2 V3 Proximity-Aware VSA • Nodes in same colors are physically close to each other. • H – heavy node, L – light node, Vi – virtual server. • VSs are assigned between physically close nodes.

  18. Proximity-Aware VSA • Use landmark clustering to generate proximity information, e.g. landmark vectors. • Use space-filling curves (e.g., Hilbert curve): Landmark vectors Hilbert numbers as DHT keys. • Heavy nodes and light nodes each puts/maps their VSA info. into the underlying DHT with the resulting DHT keys: align physical closeness with logical closeness. • Each virtual server independently reports the VSA info. which is mapped into its responsible region, rather than its node’s own VSA info.

  19. Rendezvous point: best fit heuristics Unpaired VSA information Rendezvous point: best-fit heuristics VSA information VSA information Hm Ln+1 Ln Hm+1 H2 L1 H1 H3 V21 V31, V32 Vm1, Vm2 Vm+1 V11, V12 C1 Cn Cn+1 Proximity-Aware Virtual Server Assignment VSA happens earlier between physically closer nodes Final rendezvous point Physically close …

  20. Experimental Setup • A K-nary tree built on top of a DHT (Chord), e.g., k=2, and 8, respectively. • Two node capacity distributions: • Gnutella-like capacity profile, 5-level capacities. • Zipf-like capacity profile. • Two load distributions of virtual servers: • Gaussian dist. and Pareto dist. • Two transit-stub topologies (5,000 nodes): • “ts5k-large” and “ts5k-small”.

  21. High Capacity Nodes Carry More Loads Gaussian load distribution + Gnutella-like capacity profile

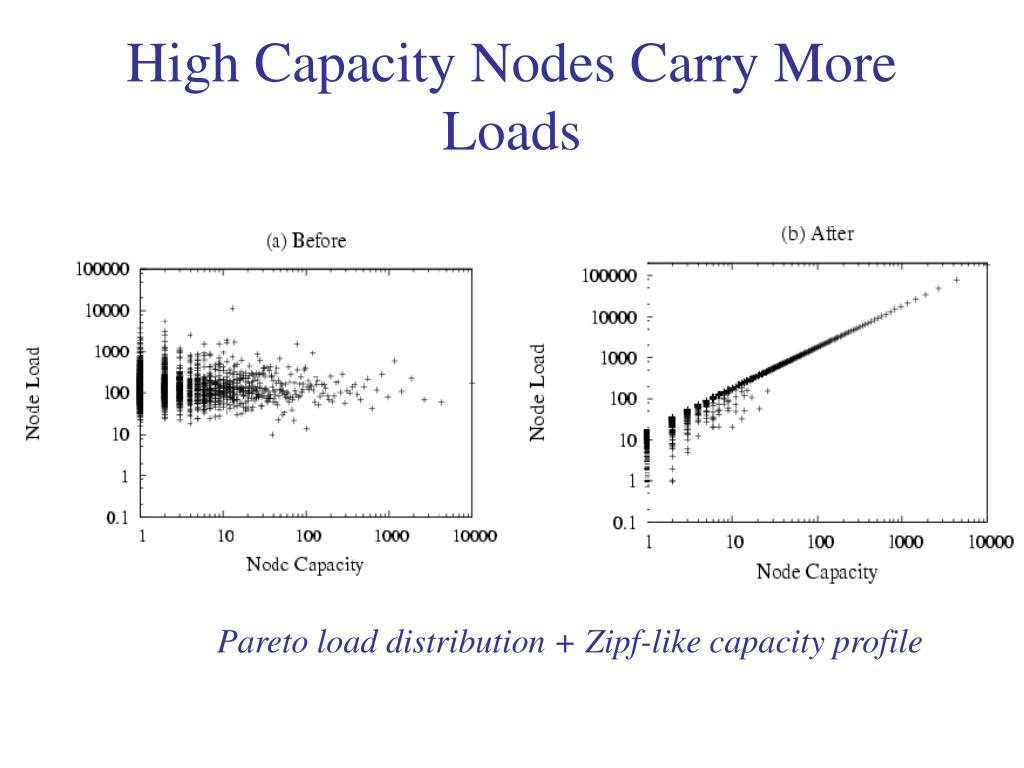

  22. High Capacity Nodes Carry More Loads Pareto load distribution + Zipf-like capacity profile

  23. Proximity-Aware Load Balancing More loads are moved within shorter distances by proximity-aware load balancing. Gaussian load distribution and Gnutella-like capacity profile Pareto load distribution and Zipf-like capacity profile CDF of Moved Load Distribution in ts5k-large

  24. Benefit of Proximity-Aware Scheme • Load movement cost: LM(d) denotes the load moved in the distance of dhops. • Benefit: • Results: • For ts5k-large: B = 37-65% • For ts5k-small: B = 11-20%

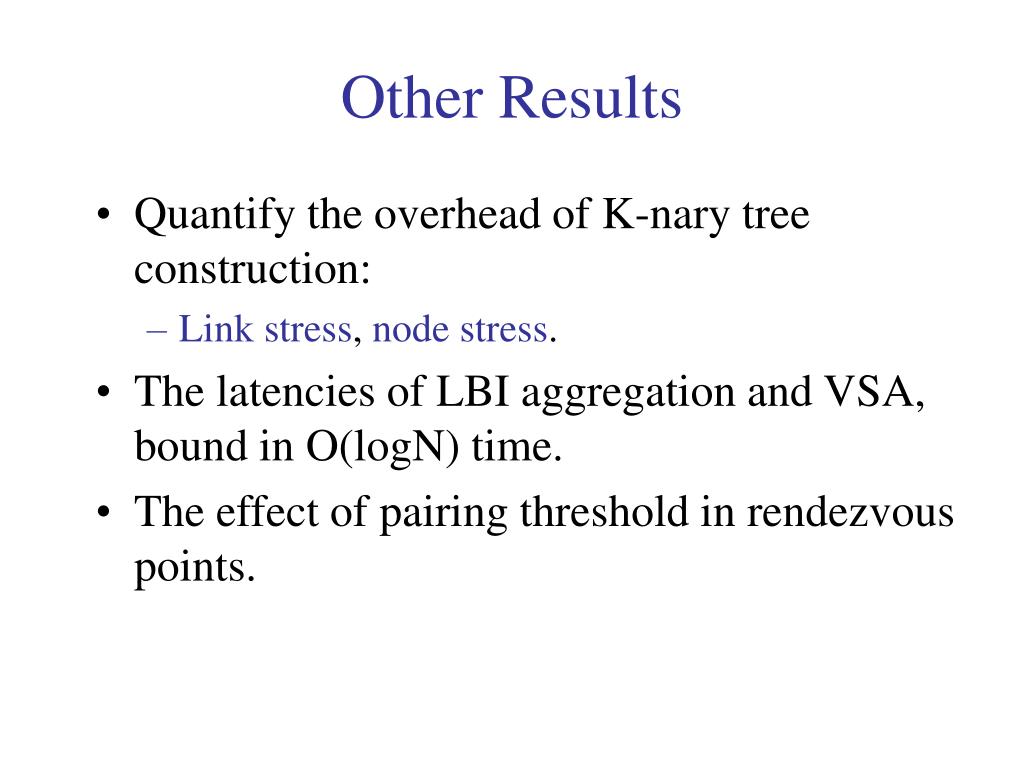

  25. Other Results • Quantify the overhead of K-nary tree construction: • Link stress, node stress. • The latencies of LBI aggregation and VSA, bound in O(logN) time. • The effect of pairing threshold in rendezvous points.

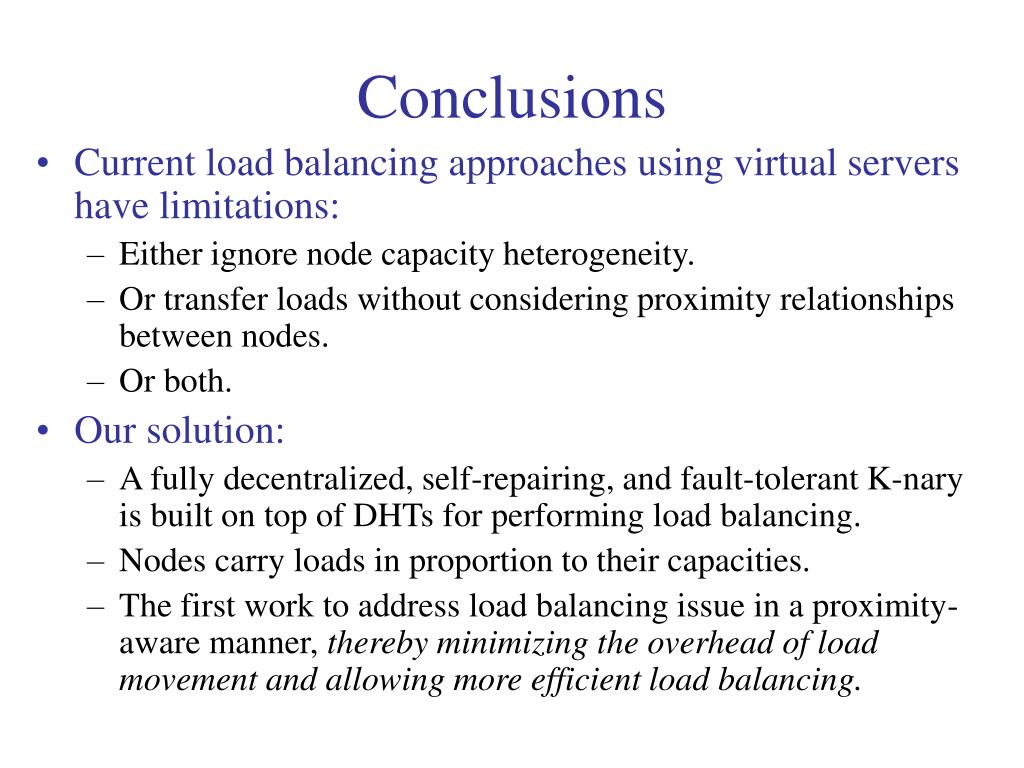

  26. Conclusions • Current load balancing approachesusing virtual servers have limitations: • Either ignore node capacity heterogeneity. • Or transfer loads without considering proximity relationships between nodes. • Or both. • Our solution: • A fully decentralized, self-repairing, and fault-tolerant K-nary is built on top of DHTs for performing load balancing. • Nodes carry loads in proportion to their capacities. • The first work to address load balancing issue in a proximity-aware manner, thereby minimizing the overhead of load movement and allowing more efficient load balancing.

  27. Questions?
